Prado Trimless Spot Plaster-In Downlight

Manufacturer: Prado

Finish: Height: Colour Temp.: Beam Angle: CRI: Plaster Kit: Driver (req.): Install Tool:

£164

View product details

Description

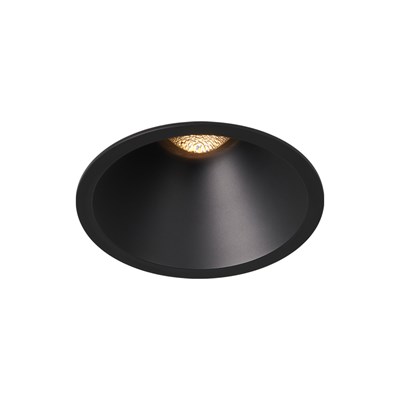

This stunning best-selling trimless spot downlight is made from massive, precision milled, anodised aluminium. To truly understand the quality of this downlighter, one must see it, touch it, feel it. Solid material offers significantly better cooling, increasing durability and lifespan. A deep recessed glass lens brings you that glare free light experience. Absent yet sophisticated. Available in a shorter version.

- The short version delivers over 800 lumen, and with a height of 55mm can be installed in ceilings with smaller installation depths.

- The long version offers up to 1,100 lumen. At 95mm in height, it needs a large space for installation.

Custom finishes
Available for projects only in: brushed nickel, light bronze, dark bronze, canon de fusil light and canon de fusil dark. Contact us for further details.

Specification

Finish: black ano | white struc
Reflector: glass lens

Height: Long - 95mm | Short - 55mm

Beam angle: 15° | 25° | 40° | 60°
Light temperature: 2700K | 3000K

Power supply: max. 700 mA (long) | max. 500 mA (short)
Output: up to 1.100 lumen (long) | up to 800 lumen (short)
CRI: CRI 90+ | CRI 97
IP Rating: IP65
Class III

Plaster Kits: (required)
Data Sheet PDF - Standard plaster ring Ø57 (8000 - 0003)
Data Sheet PDF - Adjustable plaster ring Ø57 (8000 - 0103)
Data Sheet PDF - CLT CSC (cross laminate timber & cold stretch ceiling) ring Ø57 (8000-0013)
Concrete ring cap Ø57 (8000-0113)

Driver: (required - not included)
DALI dimmable driver 38W constant current multi power (8000-0021)
1-10V dimmable driver 36W constant current multi power (8000-0022)
Non-dimmable driver 42W constant current multi power (8000-0023)
DALI dimmable driver 60W constant current multi-power (4fx)(8000-0026)
DALI deep dimmable driver 20W constant current 700mA (8000-0027)

Lamp type: Integrated LED

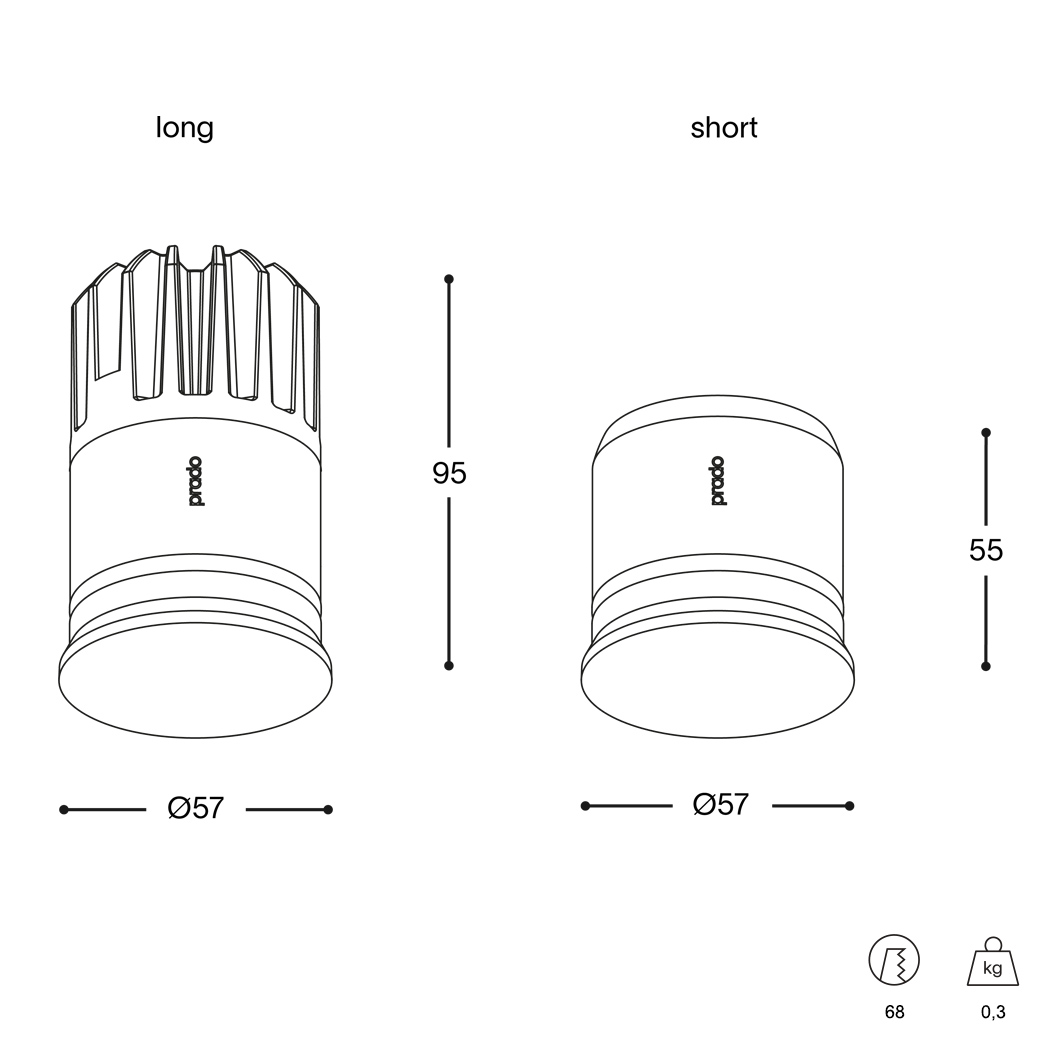

Dimensions

Product dimensions: Diameter.57mm

Cutout dimensions: Dia.68mm

Lens dimensions: Dia.57mm

Downloads

Delivery and warranty

Delivery usually within 2-3 weeks

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms

About the manufacturer

Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.

Available now for EU but coming soon in UK versions - Rond applies the same principles to the wall with sockets, switches and data ports with a unique design.

Got a question? Email us or call 01189 882294
