- Description
-

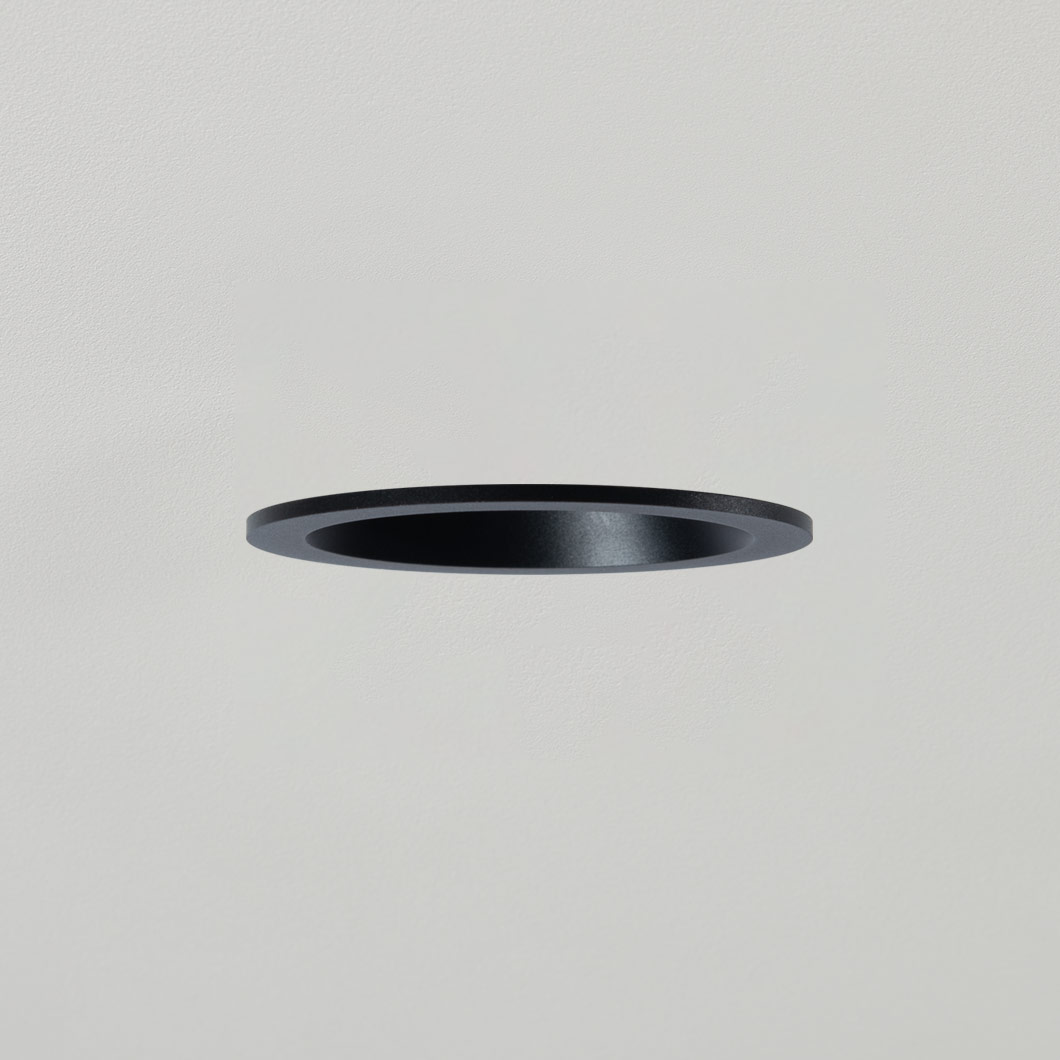

Unseen performance from this tiny downlighter. The 8W Trim Spot Mini is made from precision milled, anodised aluminium and comes in two versions:
- The short one delivers over 500 lumen and can be installed in ceilings with only 55mm of installation depth.
- The long version requires an installation depth of 95mm and offers up to 750 lumen. A deep recessed glass lens brings you that glare free light experience.
A deep recessed glass lens (for a miniature fitting) is paired with a 40° beam angle, creating a glare free light experience.
Custom finishes
Available for projects only in: brushed nickel, light bronze, dark bronze, canon de fusil light and canon de fusil dark. Contact us for further details.
- Specification
-
Finish: black ano | white struc
Reflector: glass lens
Height: Long - 95mm | Short - 55mm
Beam angle: 40°
Light temperature: 2700K | 3000K
Power supply: max. 500 mA (long) | max. 350 mA (short)
Output: up to 750 lumen (long) | up to 550 lumen (short)
CRI: CRI 90+ | CRI 97
IP Rating: IP44
Class III
Driver: (required - not included)
DALI dimmable driver 38W constant current multi power (8000-0021)
1-10V dimmable driver 36W constant current multi power (8000-0022)
Non-dimmable driver 42W constant current multi power (8000-0023)
DALI dimmable driver 60W constant current multi-power (4fx)(8000-0026)
DALI deep dimmable driver 20W constant current 700mA (8000-0027)
Lamp type: Integrated LED

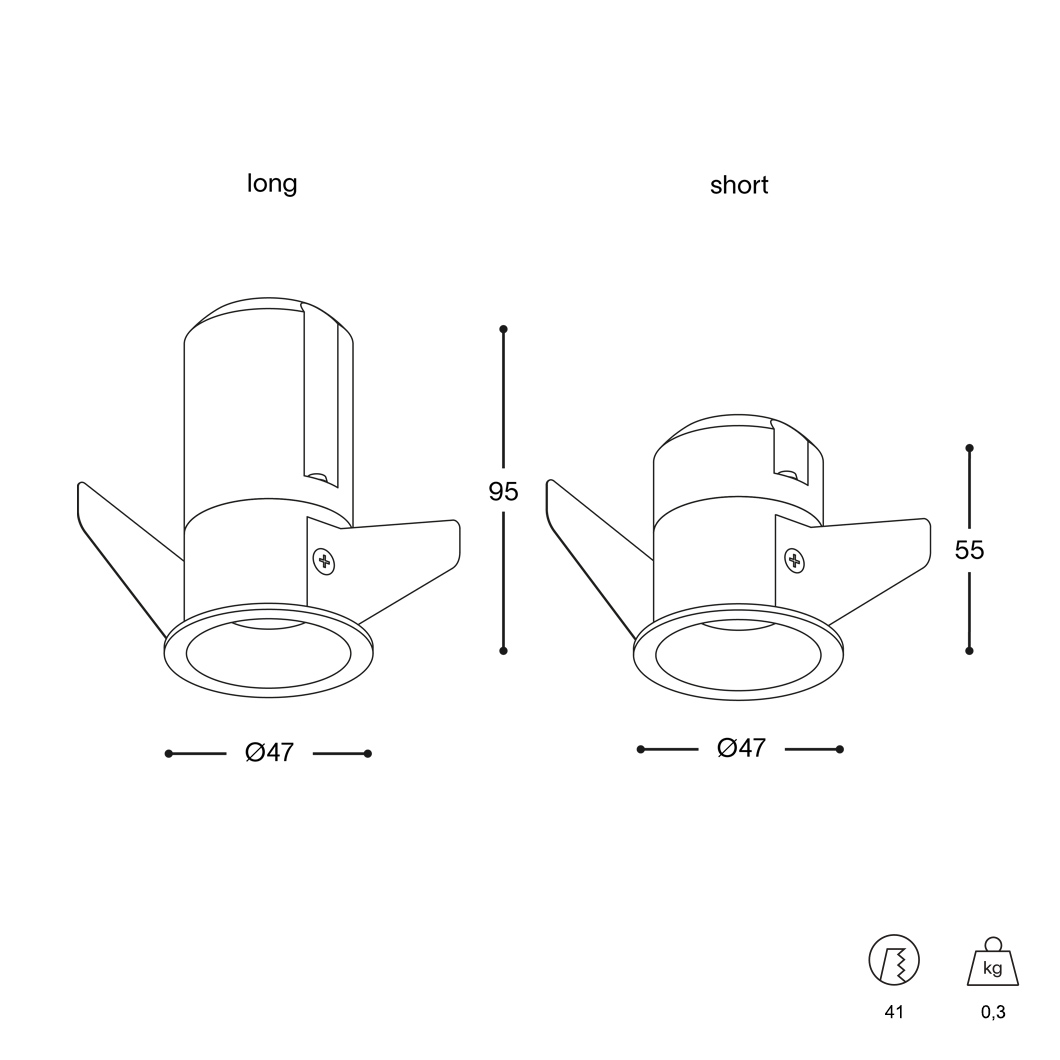

- Dimensions
-
Product dimensions: Diameter.47mm
Cutout dimensions: Dia.41mm
Lens dimensions: Dia.47mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES
PDF Full guarantee and terms
- About the manufacturer
-
Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.
Available now for EU but coming soon in UK versions - Rond applies the same principles to the wall with sockets, switches and data ports with a unique design.
