Prado Light + Motion Trim Plaster-In Downlight

Manufacturer: Prado

£329


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

The world’s first fully invisible motion sensor is here. Discover the combination of a powerful, diffuse downlight with an invisibly integrated PIR sensor. Works fully autonomous. Made from precision milled, anodised aluminium and available with or without ventilation. Show what you want, hide what you need.

Lights up when you're there. Shuts down when you're gone
Meet light motion. The world's first invisible motion sensor. By hiding a PIR sensor in a fixture, we enable architects to create cleaner ceilings, and ultimately more calming homes.

The benefits of a combination product
Combining a luminaire with a motion sensor does not only accelerate installation, it also offers sustainability advantages: fewer materials, less wiring and reduced power consumption.

Beautiful luminaires that deliver sublime light
Pure cylindrical forms crafted from precision milled anodised aluminium. A custom-built glass lens that brings you a low glare light experience. Industry leading LED technology, delivering up to 700 lumen. Its IP rating make it perfect for any type of room. Introducing a fixture that’s stunning in every way you look at it.

Custom finishes
Available for projects only in: brushed nickel, light bronze, dark bronze, canon de fusil light and canon de fusil dark. Contact us for further details.

Specification

Installation Video

Light Specs:

Finish: alu - black ano | white struc (custom brass finishes on request)
Optics: diffuser

Light temperature: 2700K | 3000K

Gear: 48 V driver excl. (see below)
Output: up to 800 lumen
CRI: CRI 90+
↓ IP65 ↑ IP20
Class III

Motion Specs:

Motion detection: passive infrared sensor (PIR)
Detection angle
: h 360 v 100
Light sensor
: integrated
Master/slave: integrated
Adjustability motion sensor: time - sensor - lux
Other
: patent pending

Plaster Kits: (required)
Data Sheet PDF - Standard plaster ring Ø57 (8000 - 0003)
Data Sheet PDF - Adjustable plaster ring Ø57 (8000 - 0103)
Data Sheet PDF - CLT CSC (cross laminate timber & cold stretch ceiling) ring Ø57 (8000-0013)
Concrete ring cap Ø57 (8000-0113)

Driver: (required - not included)
48V driver 15W constant voltage (8000-0029)
48V driver 70W constant voltage (8000-0024)
48V driver 150W constant voltage (8000-0025)

Accessories:
light + motion | master slave connector (8000-2174)
light + motion | external potential-free contact (8000-2175)

Lamp type: Integrated LED

Dimensions

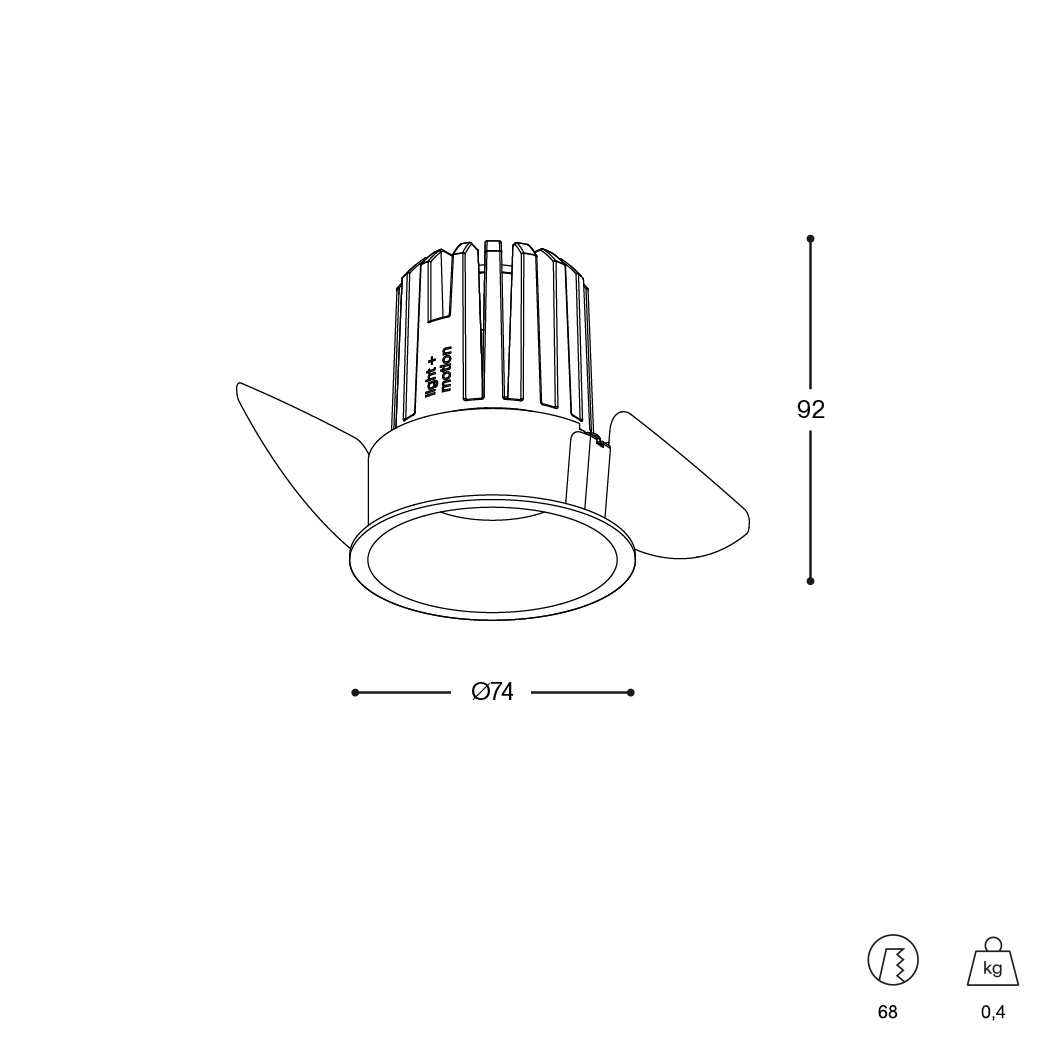

Product dimensions: H.92mm x Diameter.74mm

Cutout dimensions: Dia.68mm

Downloads
Delivery and warranty

Delivery usually within 2-3 weeks

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms

About the manufacturer

Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.



Available now for EU but coming soon in UK versions - Rond applies the same principles to the wall with sockets, switches and data ports with a unique design.

Got a question? Email us or call 01189 882294
