- Description
-

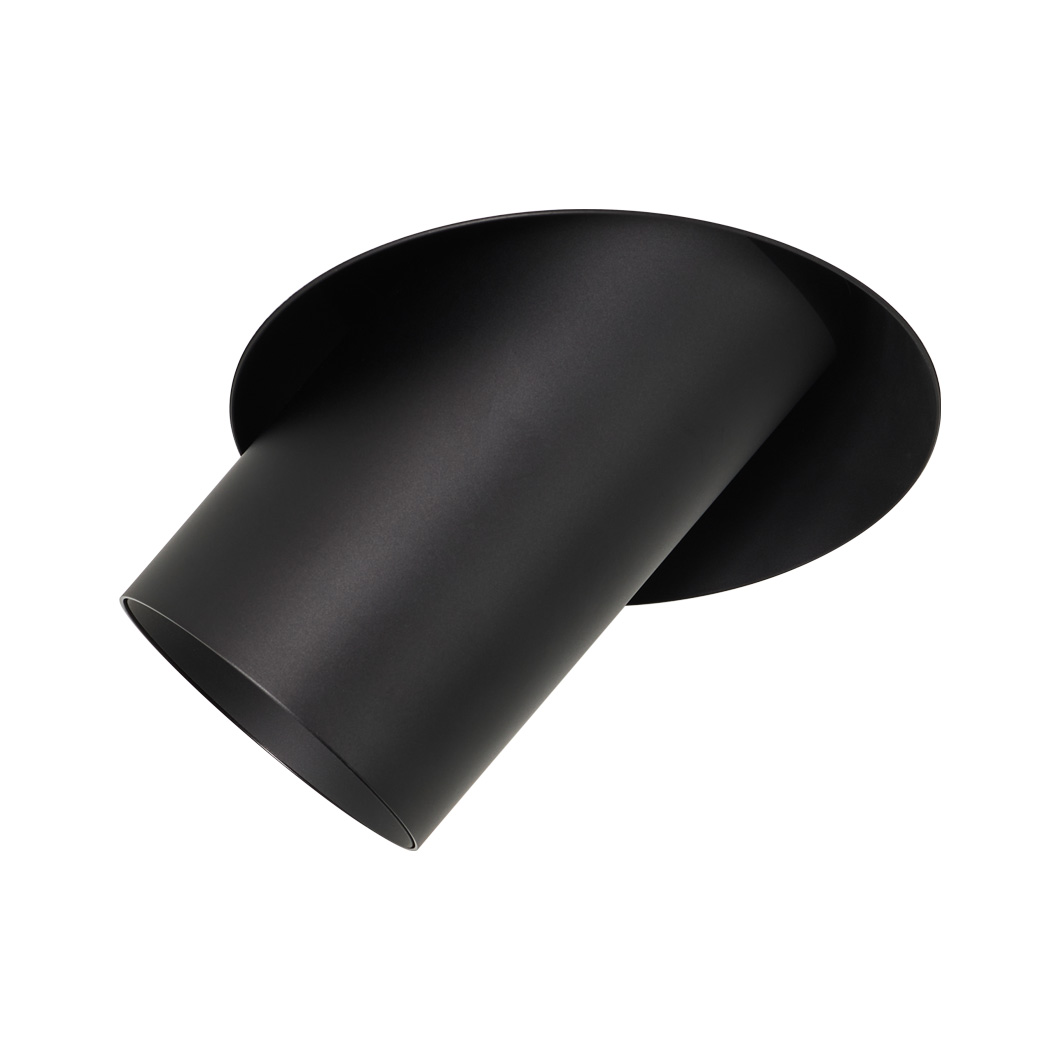

The stunning yet minimalist Light Only luminaire is the downlight only version of the Light+Ventilation Long. Made from precision milled, anodised aluminium. Tilts up to 45°.
A luminaire that lights up your world
Pure cylindrical luminaires crafted from precision milled, anodised aluminium or pure brass. Deliver up to 1.100 lumen. A custom built glass lens brings you a low glare light experience.
Luminous lighting peaceful places
Realizing powerful light output and longevity is one thing. Creating light that fits in the desired atmosphere is another. Certain interiors ask for a very clean look with subtle light sources. In which case a trimless ceiling spot might be best suited. Absent yet sophisticated. This while a minimal pendant or track light would complement a modern minimalist dining room perfectly. No matter the need, prado aims to provide the right luminaire, finish and light experience for every project.
Custom finishes
Available for projects only in: brushed nickel, light bronze, dark bronze, canon de fusil light and canon de fusil dark. Contact us for further details.
- Specification
-
Finish: black ano | white struc
Reflector: glass lens
Beam angle: 15° | 25° | 40° | 60°
Light temperature: 2700K | 3000K
Power supply: max. 700 mA
Output: up to 1.100 lumen
CRI: CRI 90+ | CRI 97
IP Rating: ↓ 65 ↑ 20
Class III
Plaster Kits: (required)
Data Sheet PDF - Standard plaster ring Ø108 (8000 - 0001)
Data Sheet PDF - Adjustable plaster ring Ø108 (8000 - 0101)
Data Sheet PDF - CLT CSC (cross laminate timber & cold stretch ceiling) ring Ø108 (8000-0011)
Data Sheet PDF - Concrete Ring Cap Ø108 (8000-0111)
Driver: (required - not included)
DALI dimmable driver 38W constant current multi power (8000-0021)
1-10V dimmable driver 36W constant current multi power (8000-0022)
Non-dimmable driver 42W constant current multi power (8000-0023)
DALI dimmable driver 60W constant current multi-power (4fx)(8000-0026)
DALI deep dimmable driver 20W constant current 700mA (8000-0027)
Lamp type: Integrated LED

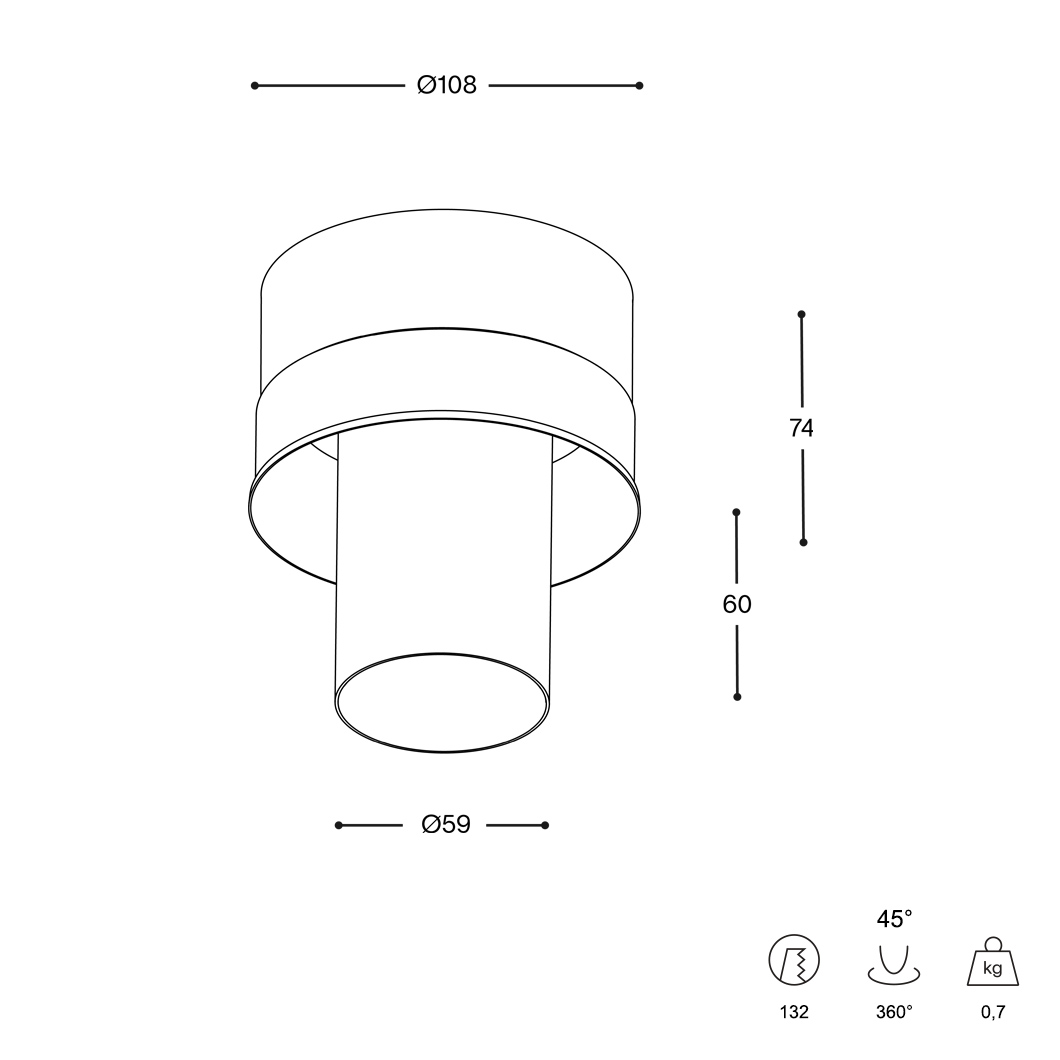

- Dimensions
-
Product dimensions: H.134mm x Diameter.108mm
Cutout dimensions: Dia.132mm
Lens dimensions: Dia.59mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES
PDF Full guarantee and terms
- About the manufacturer
-
Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.
Available now for EU but coming soon in UK versions - Rond applies the same principles to the wall with sockets, switches and data ports with a unique design.
