Davide Groppi Sistema Surface Mounted Modular Track System Components

Designer: Omar Carraglia

Manufacturer: Davide Groppi

£0.0001

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

Sistema is a contemporary track system consisting of contemporary spot luminaires in a minimalist design, and features a high level of customisation thanks to the many optional accessories on offer. This track structure allows the Mira and Dot spot lights to be easily installed or removed, helping to create unique lighting schemes. These spots are adjustable, allowing the powerful beam of light to be directed at specific points in the room.

The spotlights, track and components are available in two classic matt finishes: white and black. More accessories for this track system are available upon request, please contact us for more information. LED included with spot. Bulb module not included with Dot, this is required and can be purchased from the drop-down options.

Build your composition by utilising the dropdown options, adding components to your basket with individual quantities.

Specification

IP20

220-240V / 50/60Hz

Composition: metal

Finish: matt black or matt white

Adjustable

Spotlight module dimensions:
Dia. 25mm, H. 165mm

Compulsory Accessories:
At least one of the following tack lights is required for this track.

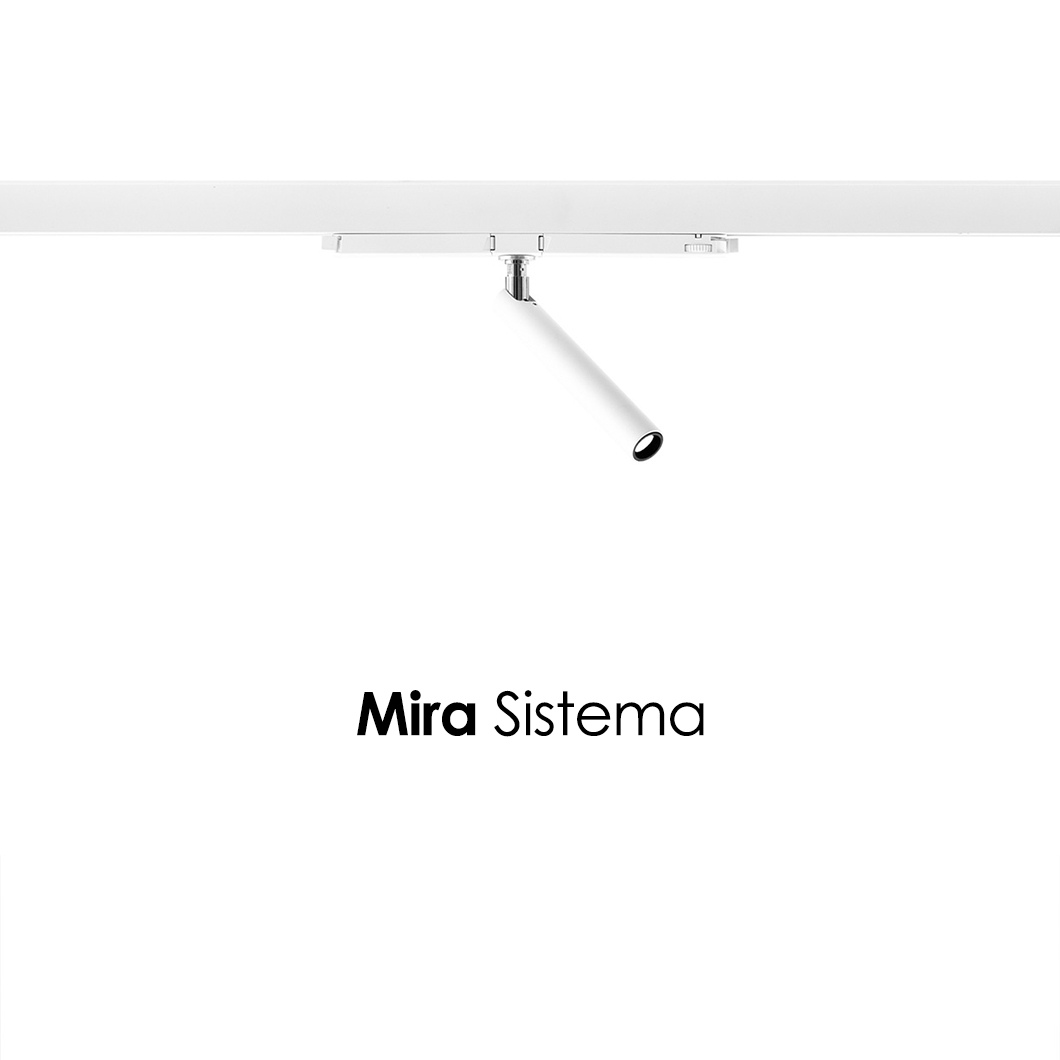

Mira Sistema Track Light:
W. 165mm, Dia. 25mm
220-240V / 50/60Hz
LED 5.6W / 392lm
Compulsory installation system not included
Adjustable
DALI dimmable
LED included

Dot Sistema Track Light:
W. 115mm, Dia. 60mm
100-240V / 50/60Hz
LED/GU10 Max. 10W
Adjustable
Compulsory installation kit not included
Bulb not included
Optional bulb accessories not included

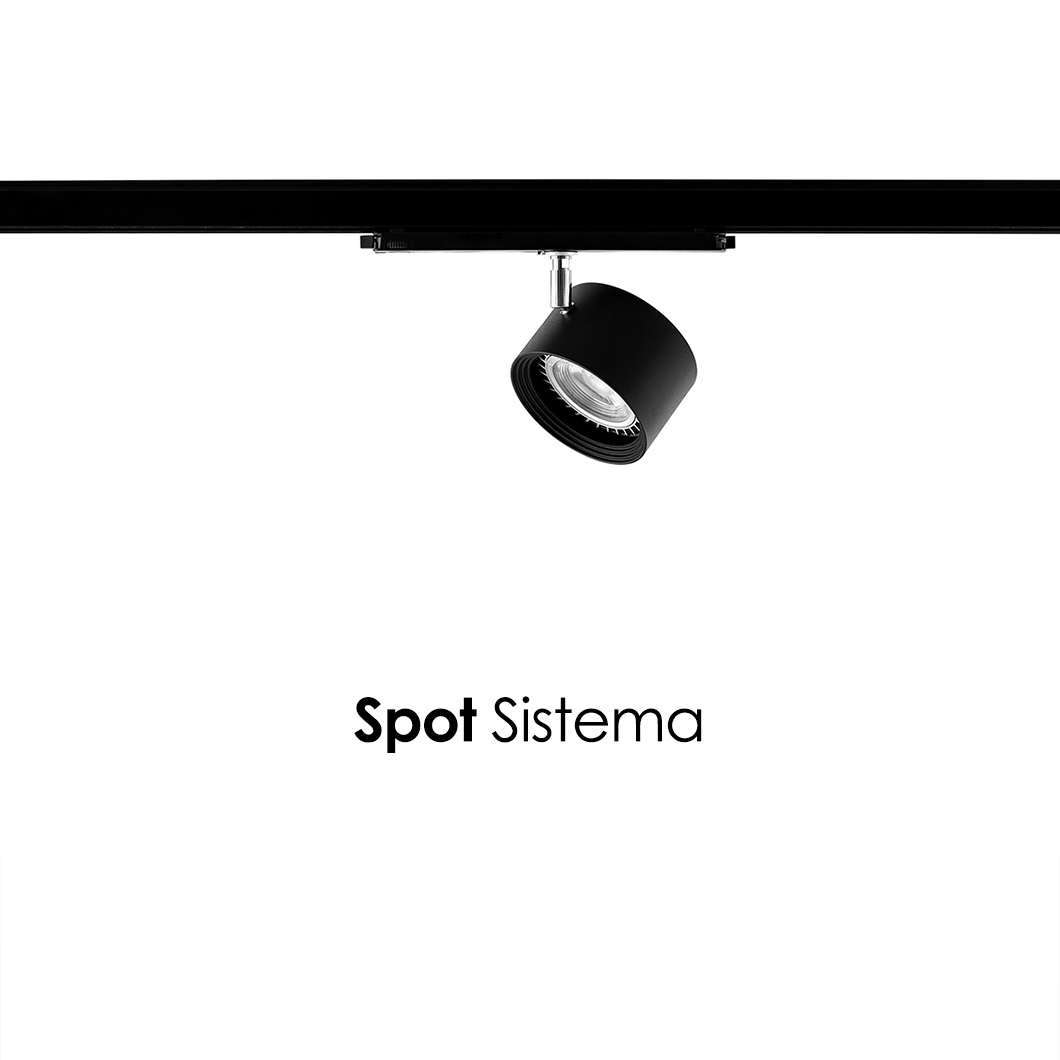

Spot Sistema Track Light:
W. 75mm, Dia. 120mm
220-240V / 50/60Hz
LED 18W
Compulsory installation system not included
Adjustable
DALI dimmable
LED module not included
Optional LED module accessories not included

Sistema Track:
Eurostandard 6 Conductors Track System
W. 31mm, H. 38mm
L1/L2/L3/N/TERRA
165/440V AC
3.6kVA / 10.8kVA
D+/D
1x 1A/50V FELV AC (DALI)

Dot Sistema LED Modules:
GU10 / IGBT dimmable / 230V / 7.5W / 10° / 2700K / 390lm
GU10 / IGBT dimmable / 230V / 7.5W / 10° / 3000K / 410lm
Please note: optional LED module accessories are also available on request, please contact us for more information.

Spot Sistema LED Modules:
LED 18W / 15° / 2700K / 1719lm
LED 18W / 15° / 3000K / 1829lm
LED 18W / 24° / 2700K / 1759lm
LED 18W / 24° / 3000K / 1869lm

Compulsory installation kits are as follows:
Power right connector
Power left connector
End cap

Optional installation kits are as follows:
Linear connector
Internal L connector
External L connector
Right T connector
Left T connector
X connector
Adjustable suspension cable

Dimensions
Downloads
Delivery and warranty

Delivery usually within 4-5 weeks

Supplied with a 2 year warranty - not including electronic and retrofit bulbs.

About the manufacturer

His father taught him how to make things when he was young. Together they made a pinball machine, a telegraph and a lamp - and it was this lamp that sparked Davide Groppi’s passion for lighting. Over fifty years later and the brands’ extensive contemporary lighting range is still winning awards, including the prestigious ADI Compasso D’Oro for their Sampei and Nulla pieces. Their playful and exciting designs include a portable rechargeable table lamp, a giant yet delicate architectural floor lamp that seems to defy gravity, and a plaster-in downlight with a cunning hidden light source.

The Davide Groppi edit below showcases the most popular products in the range.

 Browse the Davide Groppi Catalogue
 Browse the Davide Groppi Technical Handbook
 Browse the Davide Groppi Outdoor Catalogue
 Browse the Davide Groppi System Lighting Catalogue

For prices on any product that isn't shown below please contact us.



The brand is renowned for their sleek Italian lamps, meticulous design and cutting-edge LED technology. From humble beginnings in a small laboratory in the historical centre of Piacenza, their clever collaborations with talented lighting designers mean that, today, Davide Groppi is respected internationally as a superior quality lighting brand.
