Prado Light + Ventilation SE Trim Recessed Downlight

Manufacturer: Prado

£175


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

Ventilation valves as we know them today should be a thing of the past. So Prado have developed an affordable version of the the world’s first good looking ventilation valve. The trim makes it easy to install in any Ø125 valve adapter, its IP65 rating makes it even suitable for ventilating in showers. Plus it works with every other ventilation system.

Award winning design makes ventilation disappear
Invisible air supply and extraction, up to 50m³/h. Waterproof IP65 rated - perfect for your bathroom. Ideal for kitchens. Works for any other room.

Ventilation valves that work with every system

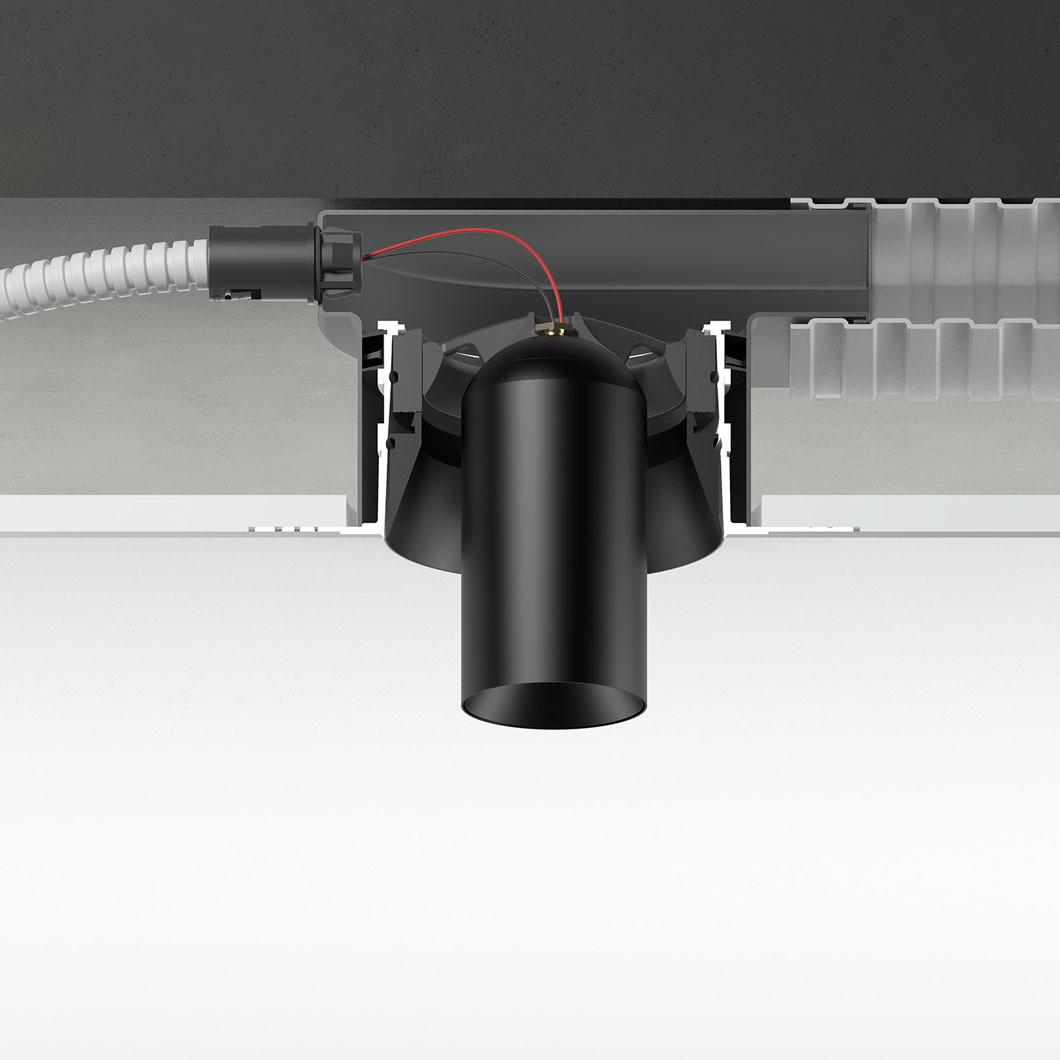

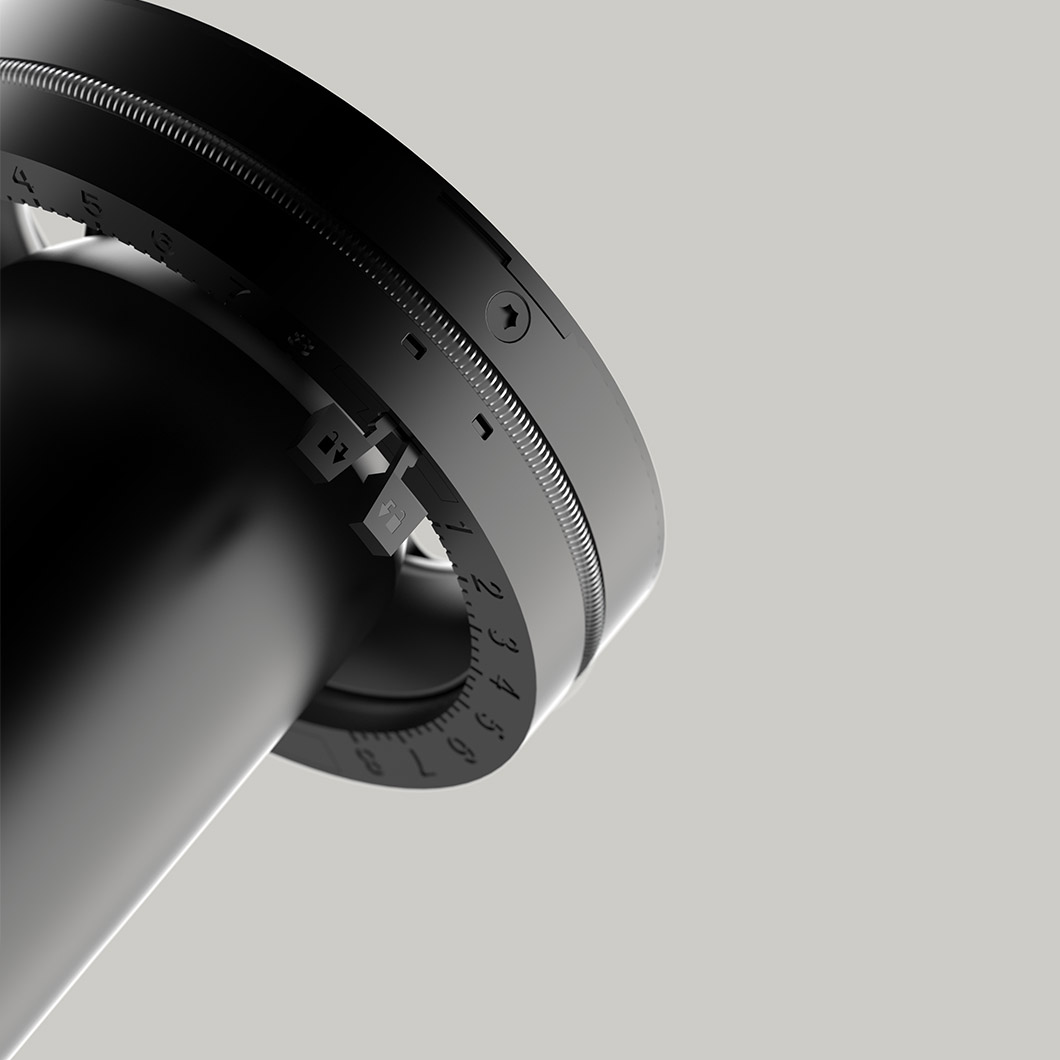

Extract up to 50m³/h. Completely invisible and incredibly quiet. The Ø108 plaster ring fits in every Ø125 ventilation duct and has an installation depth of only 74mm, a flow setting scale and rasterized adjustment positions allow easy and accurate adjustment. Simply twist the light to start tweaking. Light and ventilation valve are easily retractable, ideal for maintenance. An integrated lock prevents from accidentally modifying the air flow after installation. Introducing a ventilation valve that effortlessly works with every ventilation system. Works with DUCO, works with Renson, works with every other ventilation system.

Beautiful luminaires that deliver sublime light
Pure cylindrical forms crafted from pure aluminium. A lens that brings you a low glare light experience. Industry leading LED technology, delivering up to 800 lumen. Its IP65 rating makes it perfect for any type of room. Introducing a fixture that’s stunning in every way you look at it.

Custom finishes
Available for projects only in: brushed nickel, light bronze, dark bronze, canon de fusil light and canon de fusil dark. Contact us for further details.

Specification

Installation Video

Finish: black ano | white struc
Reflector: glass lens

Beam angle: 25° | 40°
Light temperature: 2700K | 3000K

Power supply: max. 500 mA
Output: up to 825 lumen
CRI: CRI 90+
IP65
Class III

Ventilation: air extraction
Air flow: max. 50 m³/h
Noise: < 25 dB(A)
Pressure: 7 – 75 Pa

Adjustability: 32 steps
Locking mechanism: integrated
Other: patent pending

Driver: (required - not included)
DALI dimmable driver 38W constant current multi power (8000-0021)
1-10V dimmable driver 36W constant current multi power (8000-0022)
Non-dimmable driver 42W constant current multi power (8000-0023)
DALI dimmable driver 60W constant current multi-power (4fx)(8000-0026)
DALI deep dimmable driver 20W constant current 700mA (8000-0027)

Lamp type: Integrated LED

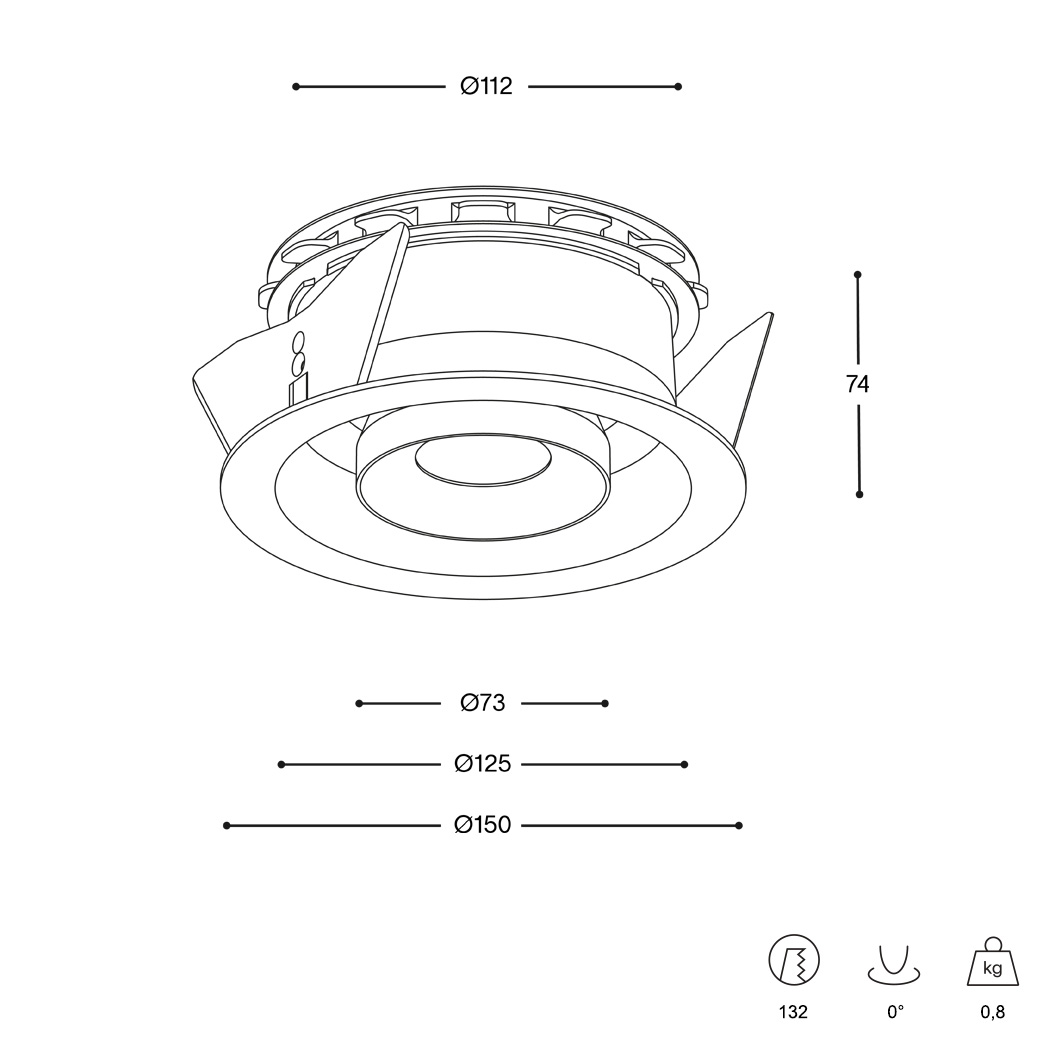

Dimensions

Product dimensions: H.74mm x Diameter.150mm

Cutout dimensions: Dia.132mm

Lens dimensions: Dia.73mm

Downloads
Delivery and warranty

Delivery usually within 2-3 weeks

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms

About the manufacturer

Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.



Available now for EU but coming soon in UK versions - Rond applies the same principles to the wall with sockets, switches and data ports with a unique design.
