DLD Surf 5 LED Fixed Plaster In Downlight - Next Day Delivery

The Surf 5 plaster-in downlight combines a row of 5 energy-efficient LEDs with an anti-glare design, resulting in a trimless recessed downlight that illuminates longer spaces whilst disappearing into the ceiling. With a contemporary and architectural style, and a family that includes a longer 10 downlight version to cover larger spaces, recessed with trim or trimless plaster-in installation, and fixed or adjustable for focused or wall washing applications.

View the Surf collection

Residential or commercial

With a beam angle of 30º, Surf 5 fixed is a designed as a more focused spotlight, washing the space directly below with light - perfect for both commercial lighting in a hotel lobby, office or restaurant, or for lighting a hallway or above a table or kitchen island in your home.

High quality materials

The luminaire is made from steel with the heat sink in extruded aluminium for optimum heat dissipation. Optic lens reflector with ABS baffle. The minimal white bezel is supplemented by the baffle being available in matching white or black. With a unified glare rating (UGR) of less than 10, Surf offers completely homogeneous lighting. Supplied with 0-100% phase dimmable driver as standard. Compatible with leading edge and trailing edge dimmers. DALI dimmable driver also available.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

On request (please contact us for lead times):

15º and 30º beam angles
3000K & Tuneable white (2700K-6000K) colour temperatures

IP20
Class 1
Wattage: 11W (2.2W x 5)
Current: 700mA
Lumen: 200lm x 5 (from LED chip)
Beam angle: 15º | 30º
Colour temperature: 2700ºK | 3000ºK
CRI: 90+

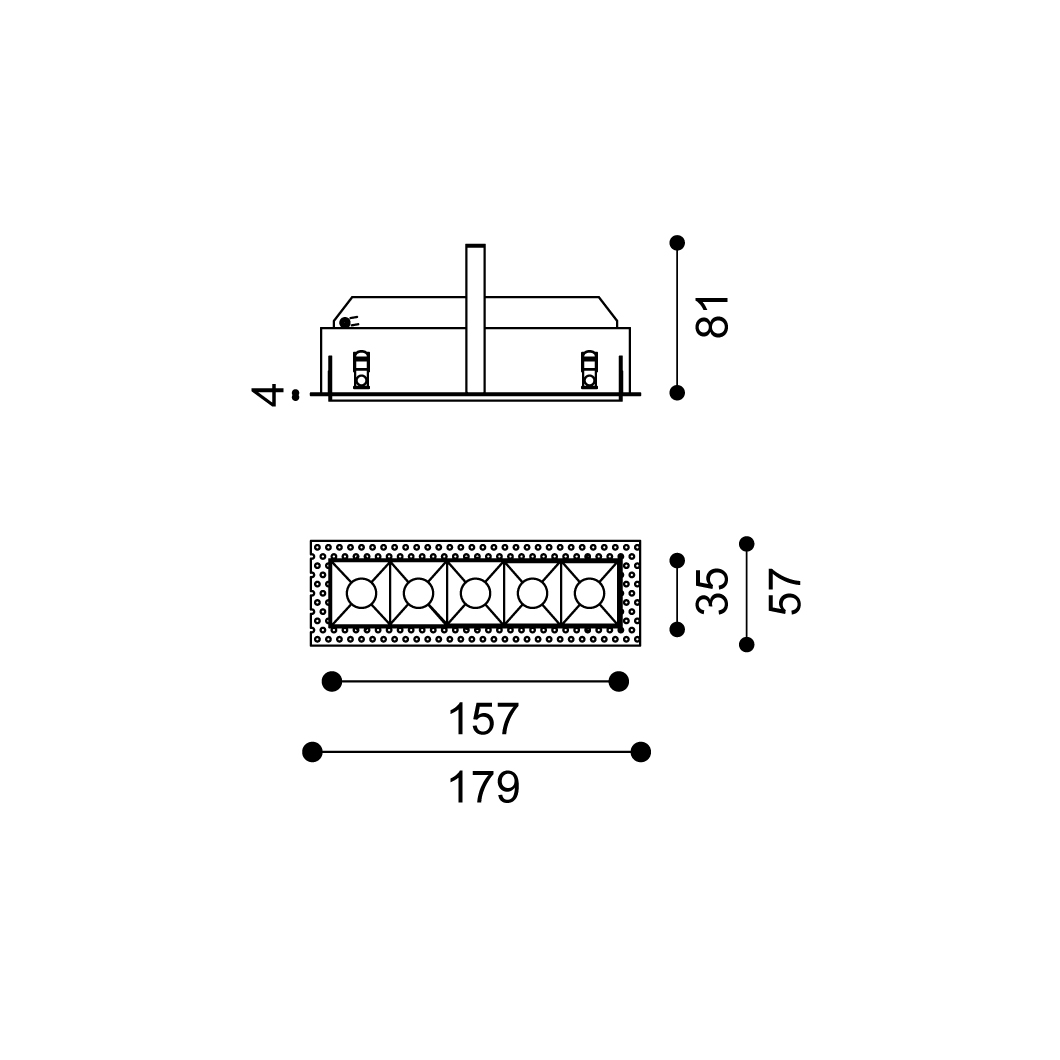

Dimensions: 180 x 74mm H.60mm
Visible dimensions: 142 x 34mm

Cutout: 153 x 46mm

Product dimensions: W.180mm x D.74mm x H.60mm

Cutout dimensions: W.153mm x H.46mm

• DLD-Surf-5-Recessed-Fixed-Datasheet
• DLD-Surf-Brochure
