DLD Surf 5 LED Adjustable Recessed Downlight - Next Day Delivery

Manufacturer: DLD Architectural


One tree planted
Trustpilot Rating
Free UK delivery
Next Day Delivery
365 Day returns

View product details

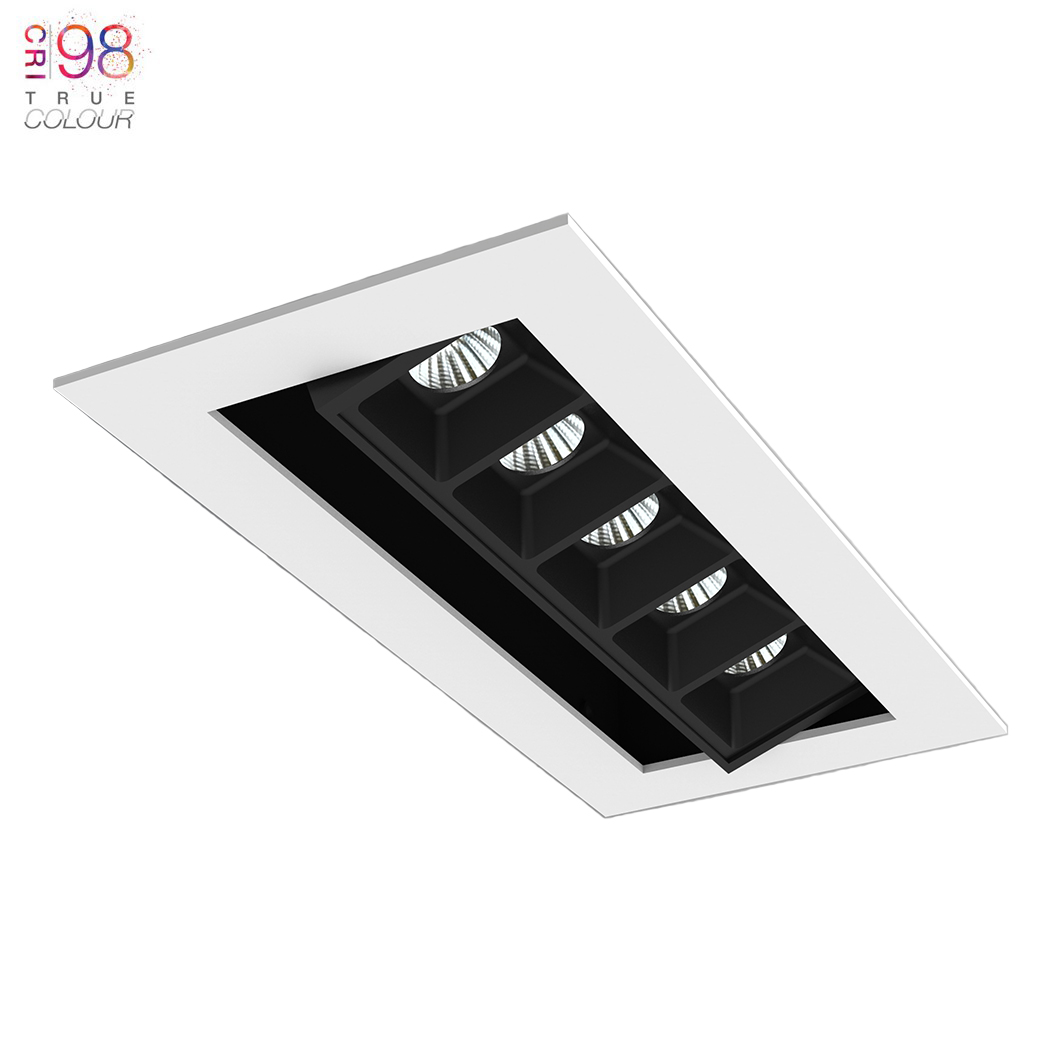

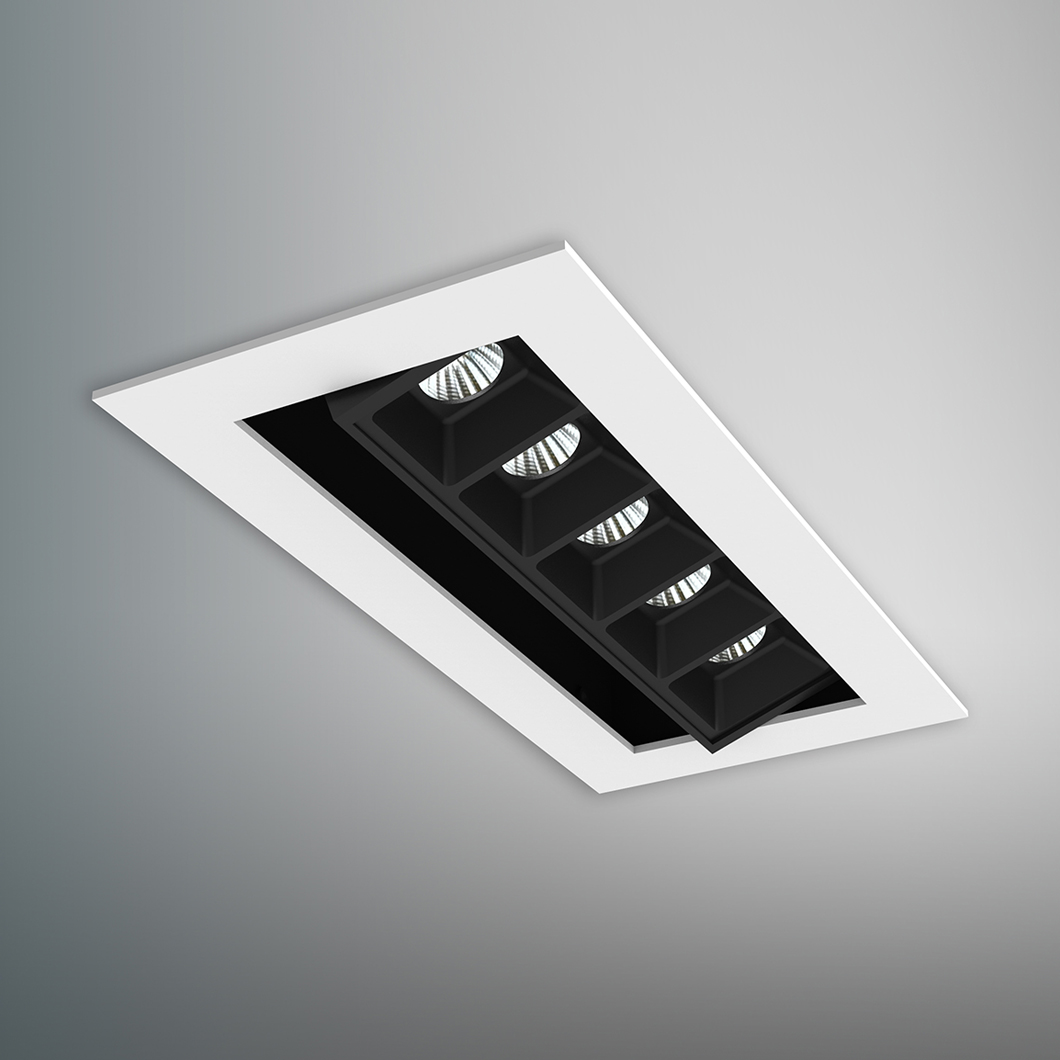

Combining 5 high power energy-efficient LEDs with an anti-glare baffle design, the Surf 5 is a purpose-designed adjustable wall washing downlight that is recessed into the ceiling. Contemporary in style, the choice of beam angles coupled with a ±25º tilt allows the 5 LED Surf to be a truly flexible downlight, perfect for both commercial lighting in a hotel lobby, office or restaurant, or for lighting a feature or statement piece of furniture in your home. With an adjustable tilt of 25º and a beam angle of 30º, Surf is a flexible downlight suitable for using as a focused spotlight / wall washer or to flood an area with light. Luminaire in steel with the heat sink in extruded aluminium for optimum heat dissipation. Optic lens reflector with ABS baffle. The minimal white bezel is supplemented by the baffle being available in matching white or black.

UGR less than 10 and a Dark Light effect, Surf offers completely homogeneous lighting.

Supplied with 0-100% phase dimmable driver as standard. Compatible with leading edge and trailing edge dimmers.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Next Day Delivery Avaliable on: (Black - Black - 2700K - 30D), (White - Black - 2700K - 30D), (White - White- 2700K - 30D)

On request (please contact us for lead times):

15 and 30 degree beam angles
3000K & Tuneable white (2700K-6000K) colour temperatures


Class 1
Wattage: 11W (2.2W x 5)
Current: 700mA
Lumen: 200lm x 5 (from LED chip)
Beam angle: 10º, 15º or 30º
Adjustable: 25º
Colour temperature: 2700ºK | 3000ºK
CRI: 80+

Cutout: 160 x 70mm

Including Constant Current driver


Product dimensions: W.172mm x D.80mm x H.60mm

Cutout dimensions: W.160mm x H.70mm

Delivery and warranty

Delivery varies for each product, please see product description

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
