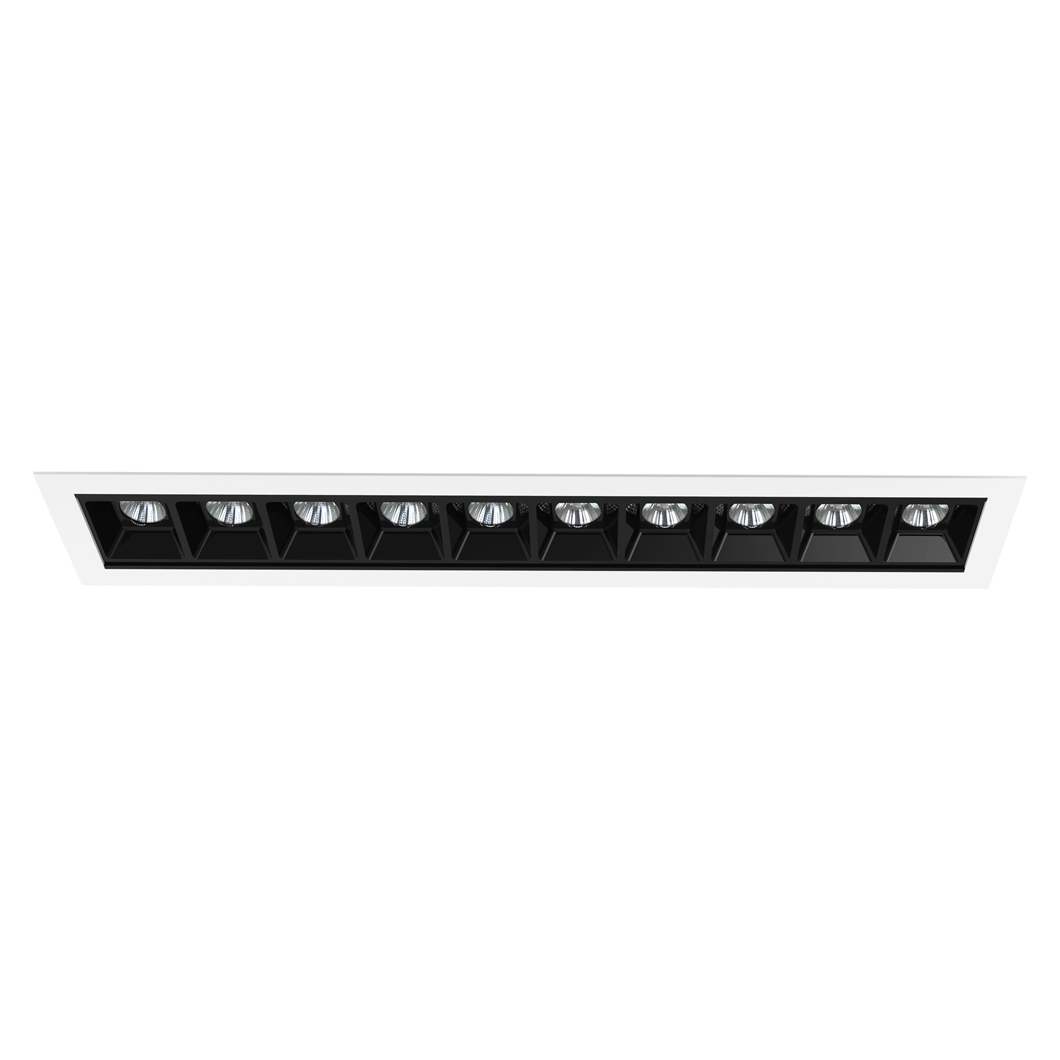

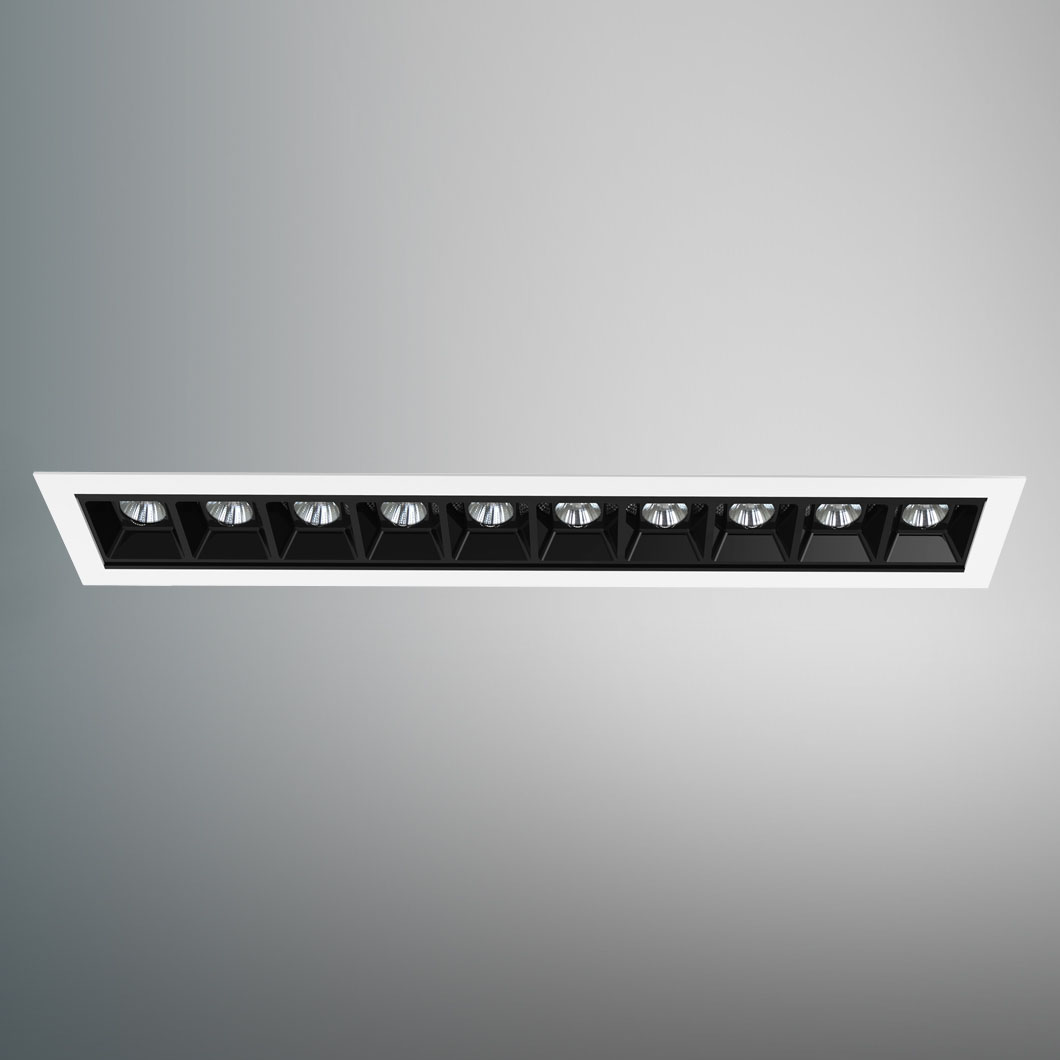

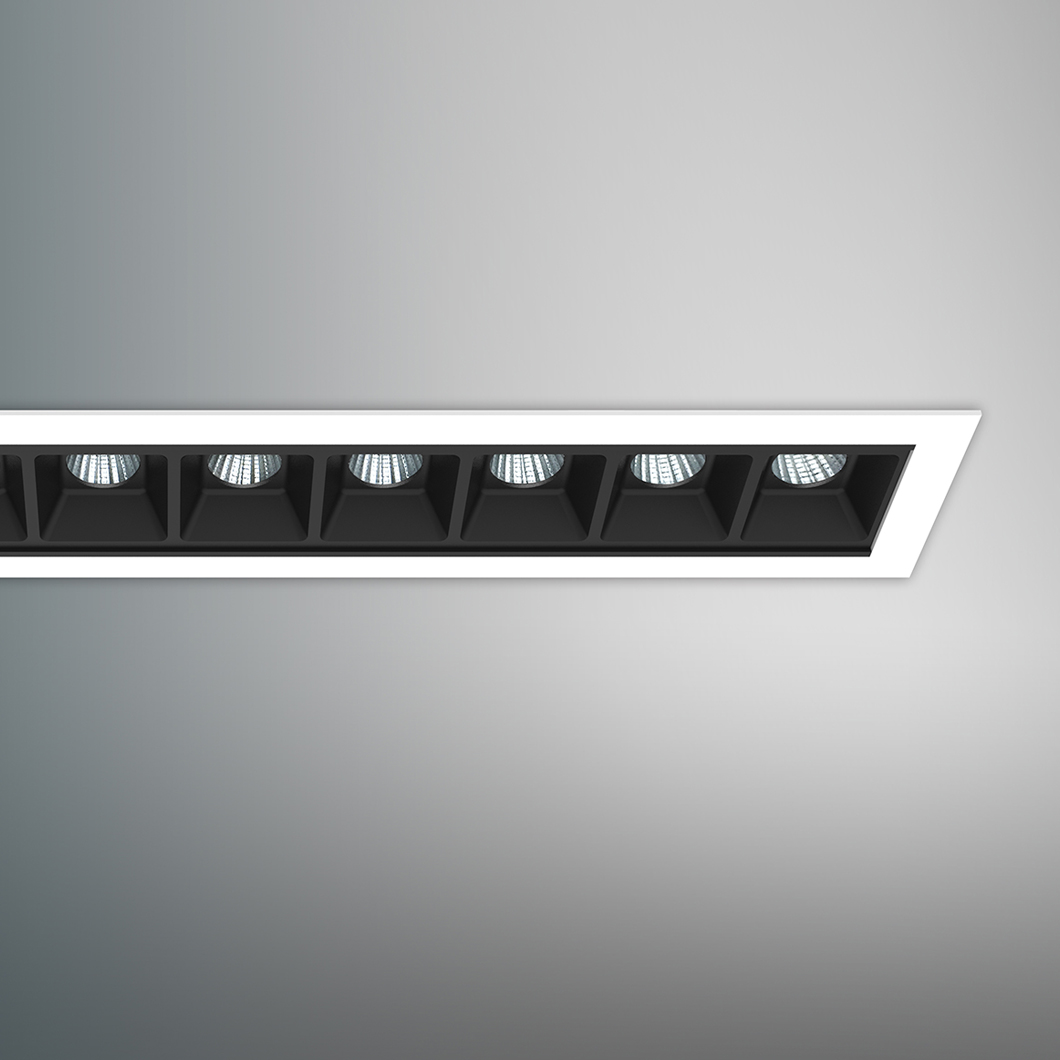

DLD Surf 10 LED Fixed Recessed Downlight

Manufacturer: DLD Architectural

£179

Description

The DLD Surf 10 fixed recessed downlight combines 10 high power energy efficient LEDs with an anti-glare baffle design. A minimal and contemporary multi-lens downlight, the choice of beam angles makes the 10 LED Surf perfect for both commercial lighting in a hotel lobby, office or restaurant, or for lighting a feature or statement piece in your home.

With an LED beam angle of 10º, 15º or 30º, Surf is a flexible downlight suitable for using as a focused spotlight / wall washer or to flood an area with light. Luminaire in steel with heat sink in extruded aluminium for optimum heat dissipation. Optic lens reflector with ABS baffle. Available with a white bezel and matching white or black baffle.

Supplied with 0-100% phase dimmable driver as standard, with a 4 pole plug & play connector for simple installation. Compatible with leading edge and trailing edge dimmers.

Surf is available in other fixed and adjustable versions - see below.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Delivery usually with 1-2 weeks.

Specification

IP20
Class 1
Wattage: 22W (2.2W x 10)
Current: 700mA
Lumen: 200lm x 10 (from LED chip)
Beam angle: 10º, 15º or 30º
Colour temperature: 2700ºK | 3000ºK
CRI: 80+

Cutout: 324mm x 41mm

Including Constant Current driver
4 pole plug & play connector

Dimensions

Product dimensions: W.330mm x D.50mm x H.61mm

Cutout dimensions: W.324mm x H.41m

Downloads
Delivery and warranty

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Darklight Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.

For more information on our products and services please call 01189 882294 or email design@darklightdesign.com.

Got a question? Email us or call 01189 882294
