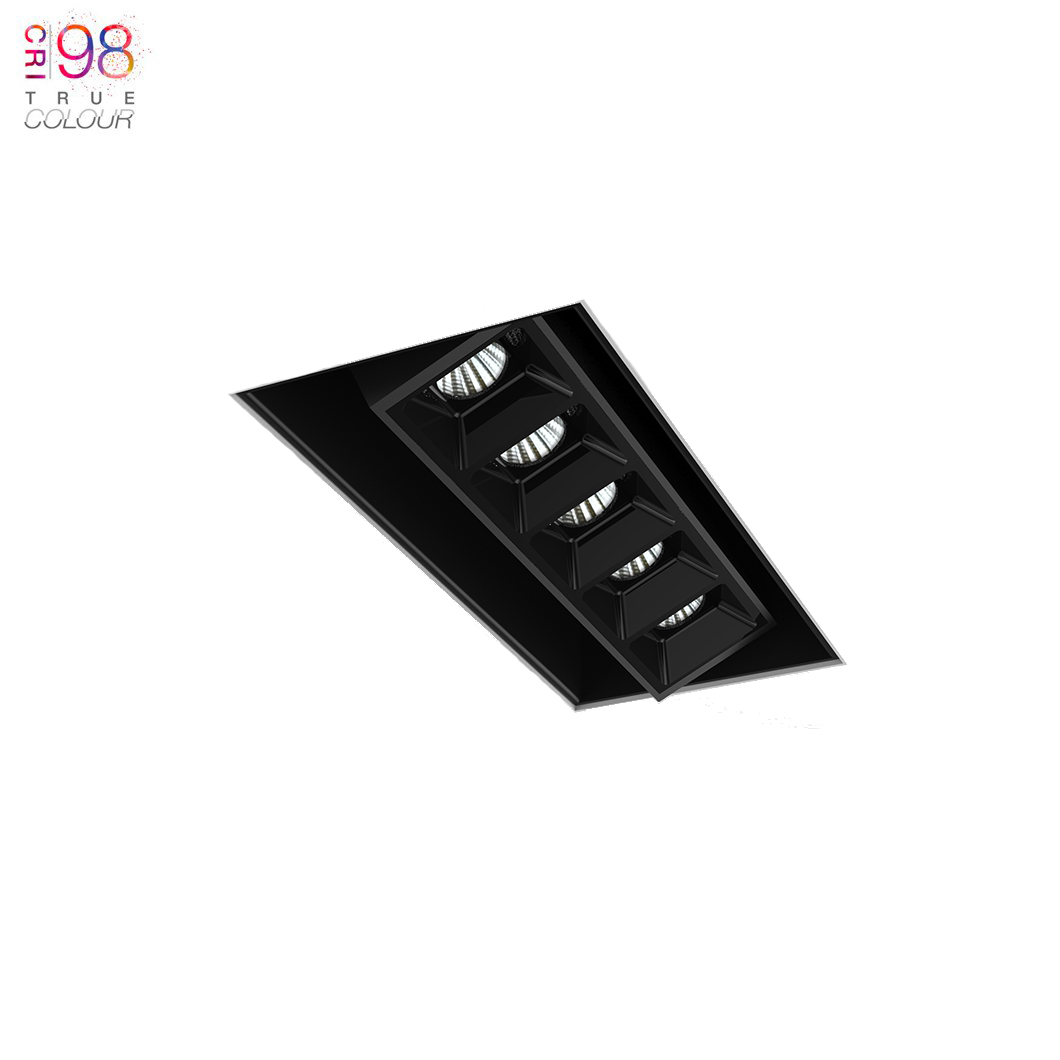

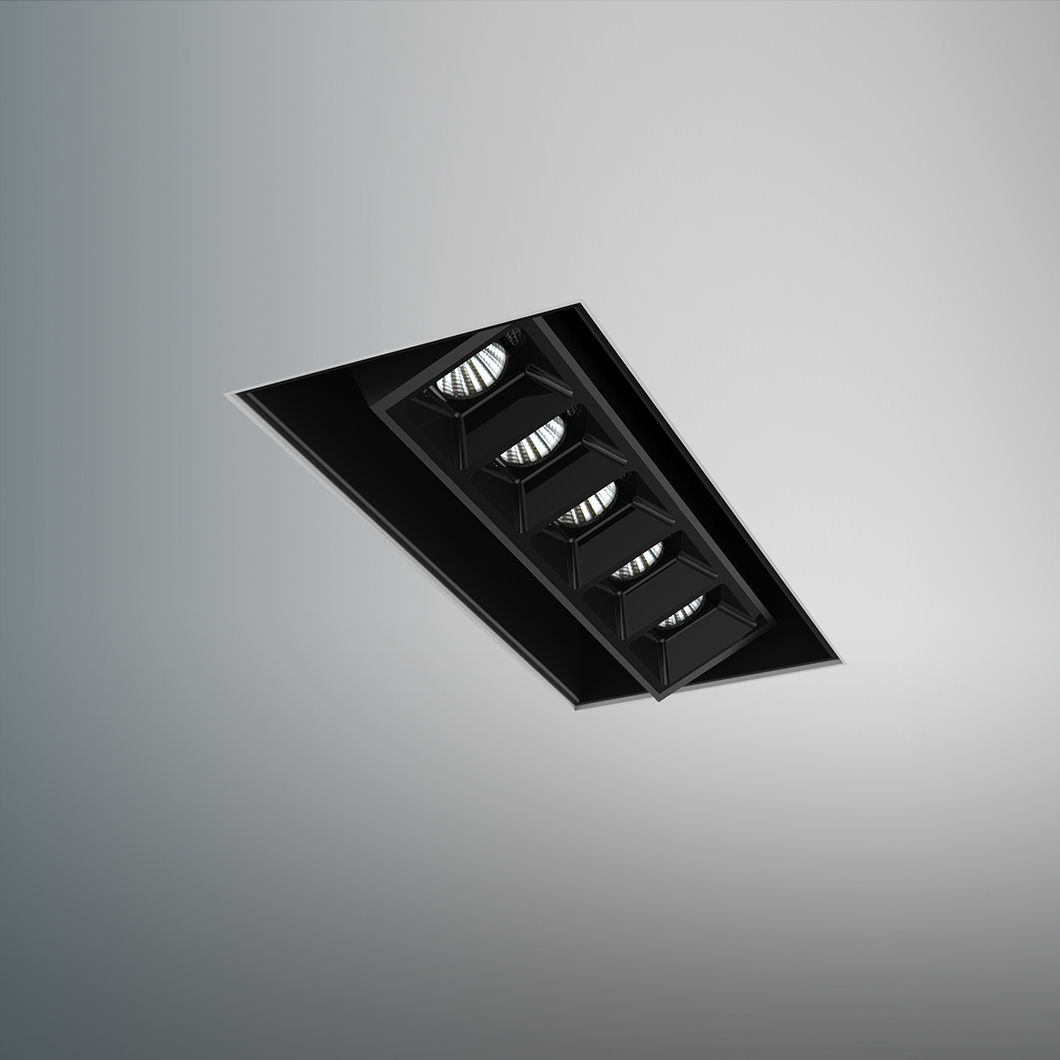

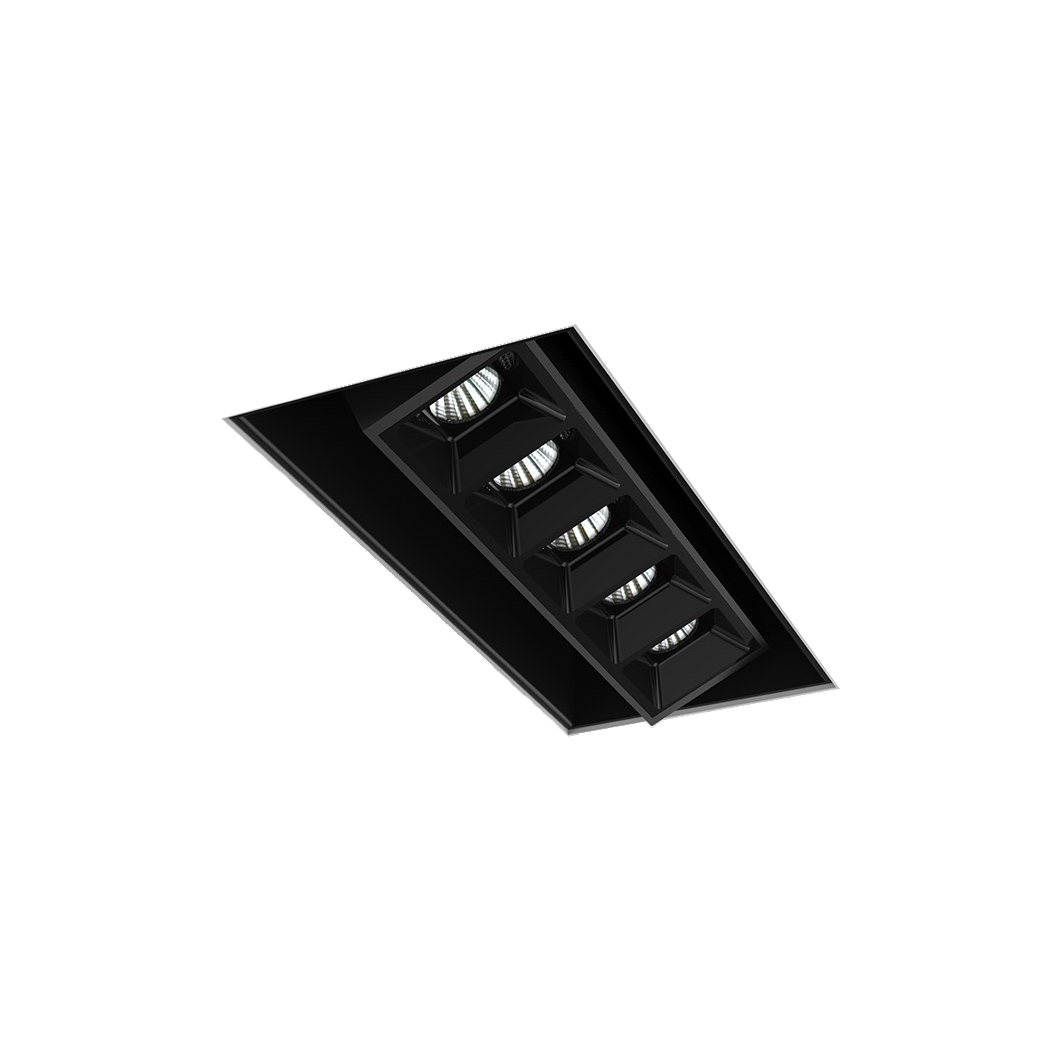

DLD Surf 5 LED Adjustable Plaster In Recessed Downlight

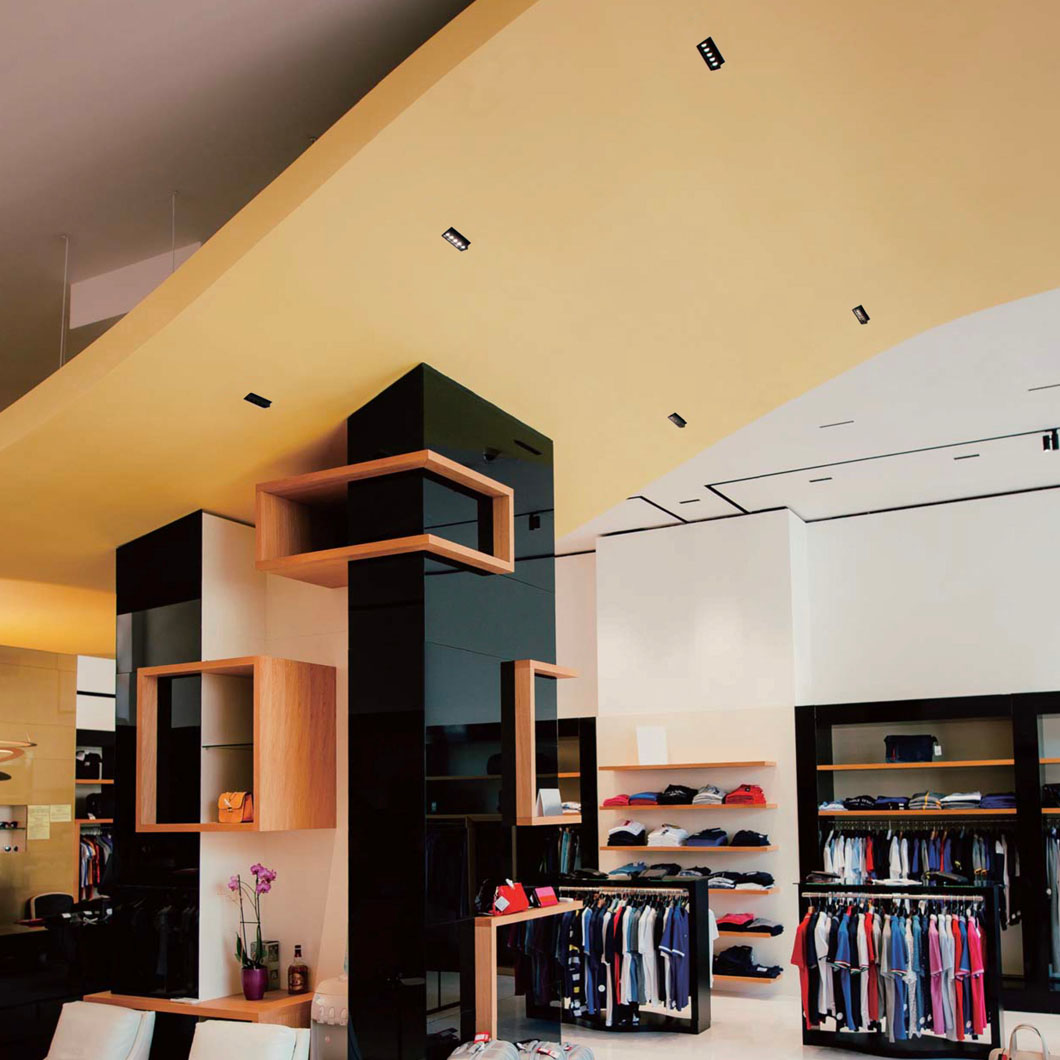

The Surf 5 adjustable downlight is recessed and plastered into the ceiling and combines 5 high power energy-efficient LEDs with an anti-glare baffle design. Contemporary and minimal in style, the choice of beam angles makes the 5 LED Surf plaster-in downlight perfect for both commercial lighting in a hotel lobby, office or restaurant or for lighting a feature or statement piece of furniture in your home.

With an adjustable tilt of ±25º and a beam angle of 30º, Surf is a flexible plaster in downlight suitable for using as a focused spotlight / wall washer or to flood an area with light. Luminaire in steel with heat sink in extruded aluminium for optimum heat dissipation. Optic lens reflector with ABS baffle. The baffle is available in white or black. Supplied with 0-100% phase dimmable driver as standard. Compatible with leading edge and trailing edge dimmers.

Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

View the Surf collection

IP20
Class 1
Wattage: 11W (2.2W x 5)
Current: 700mA
Delivered lumens: 770lm (from LED chip)
Beam angle: 15º, 30º or 40º
Colour temperature: 2700ºK | 3000ºK
CRI: 90+

Dimensions installed: 155mm x 69mm
Cutout: 168 x 78mm

Including Constant Current driver

In stock:
White & white | 2700K | 30º

On request (please contact us for lead times):
Beam angles: 15º and 40º
Colour temperatures: 3000K & Tunable White (2700K-6000K)

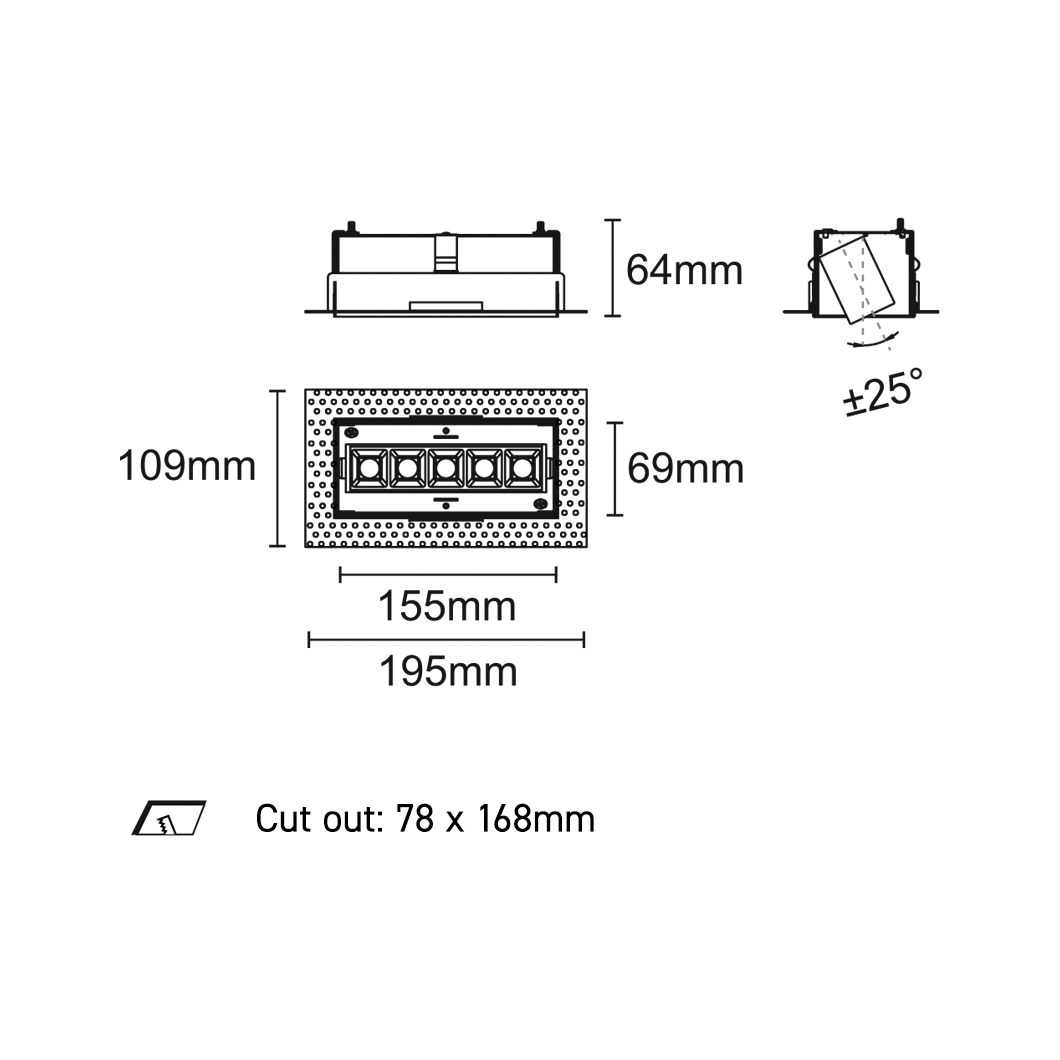

Product dimensions: W.195mm x D.109mm x H.64mm

Cutout dimensions: W.168mm x H.78mm

• Data Sheet PDF
• DLD-Surf-Brochure
