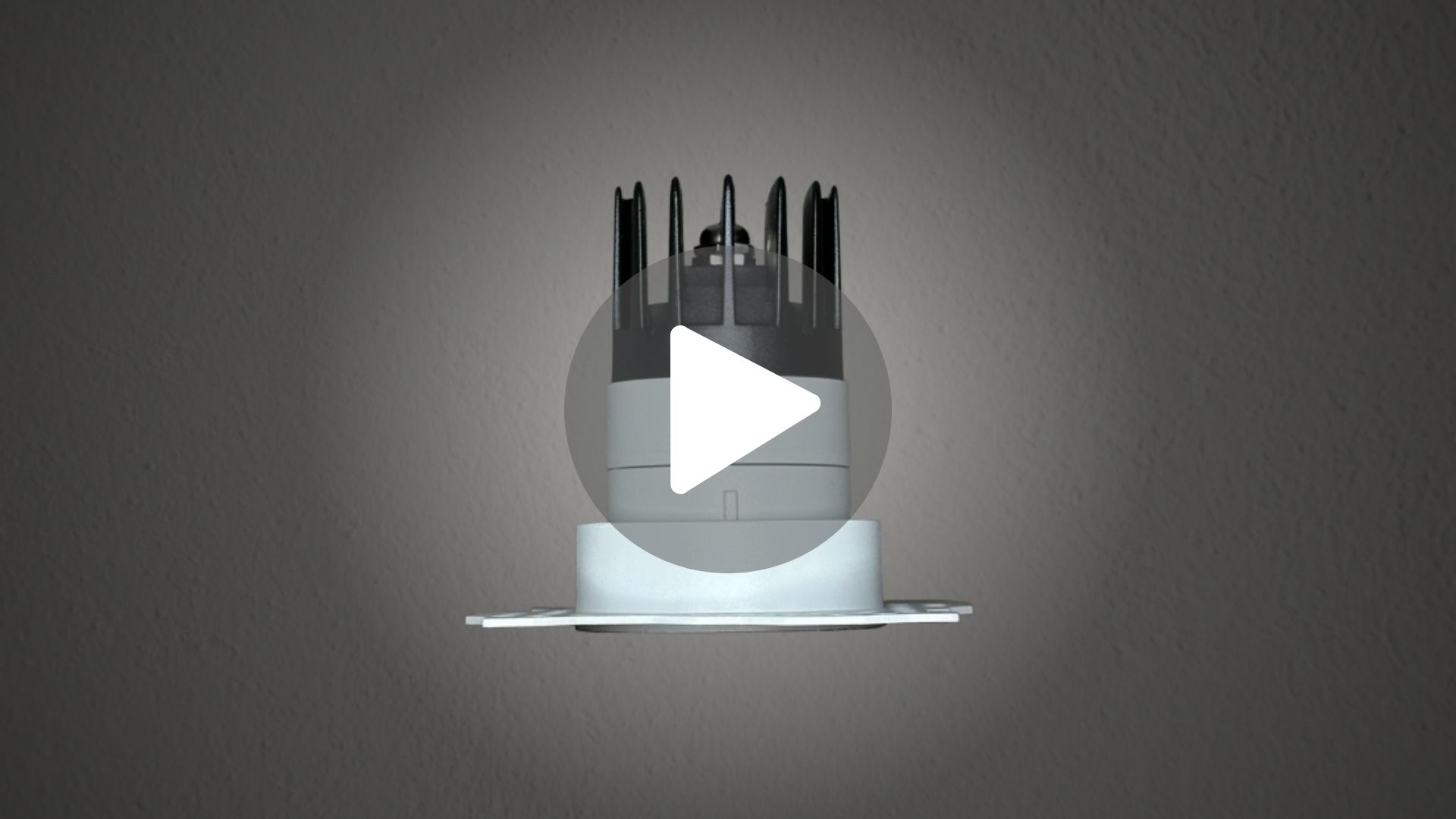

DLD Nebo True Colour CRI98 LED IP65 Adjustable Plaster-In Downlight

Description

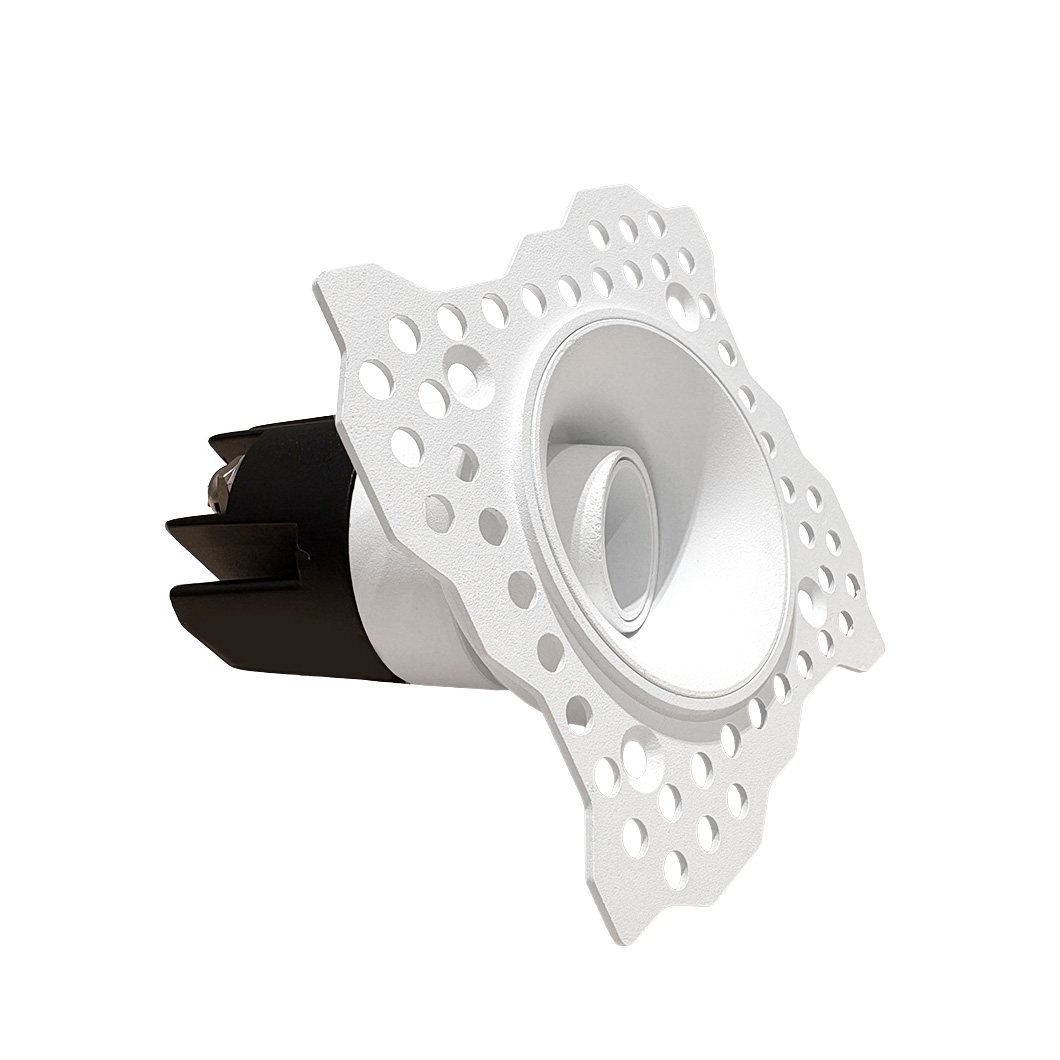

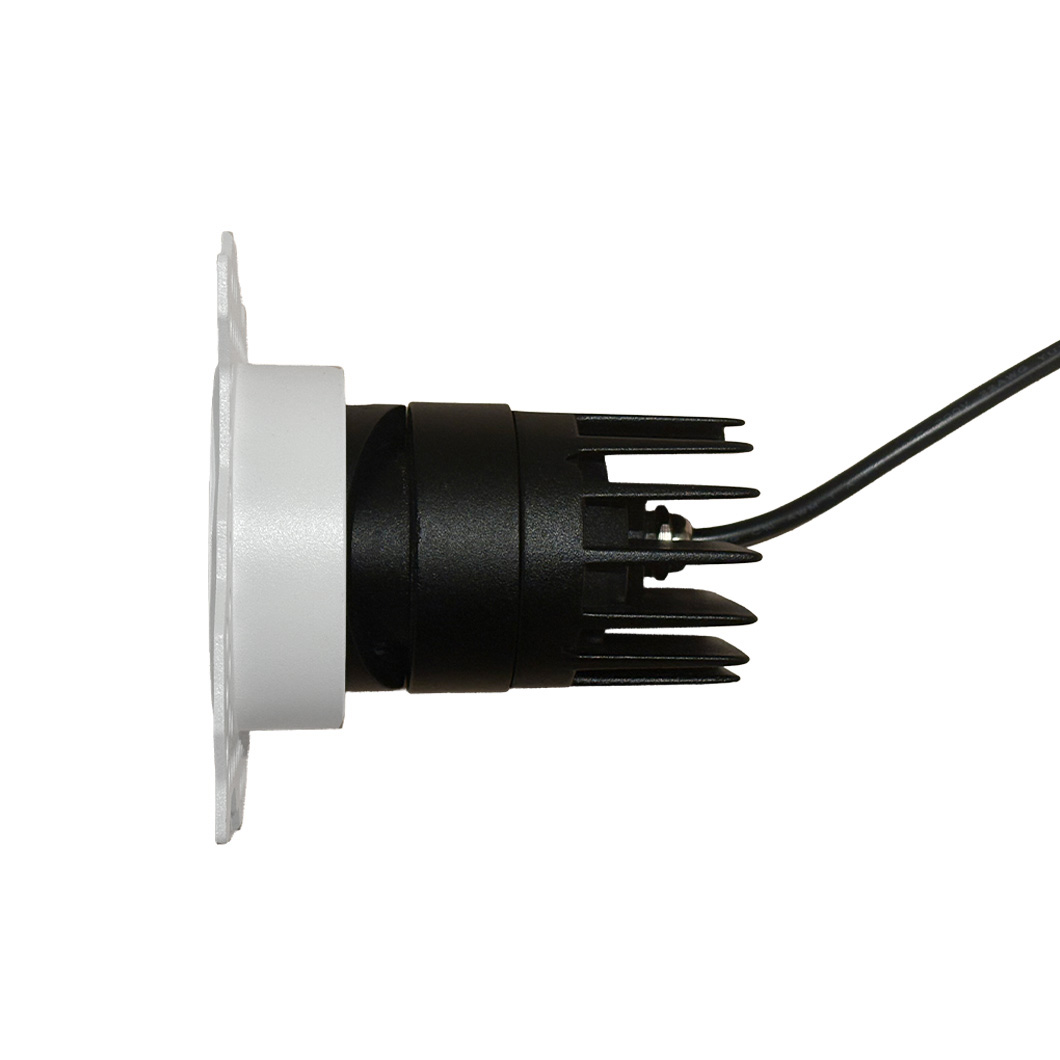

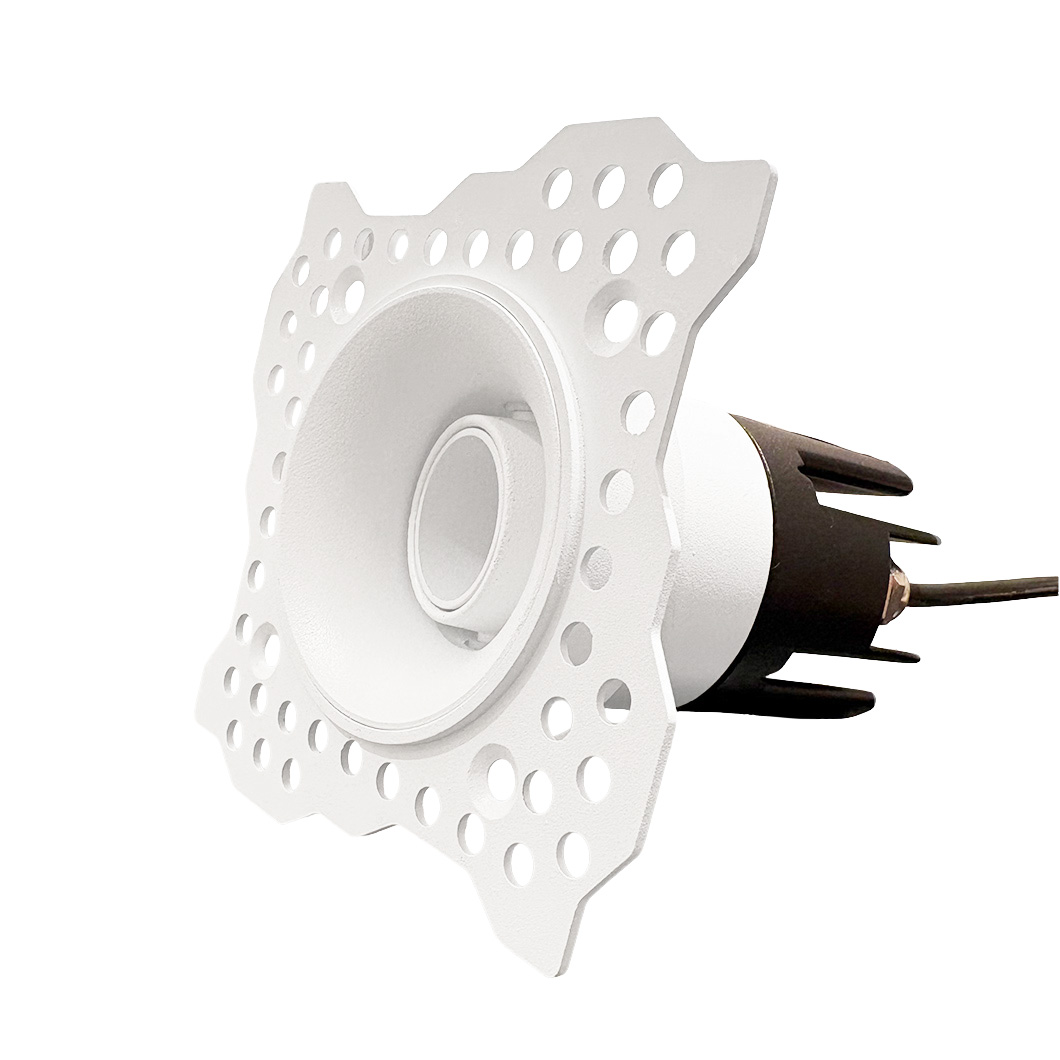

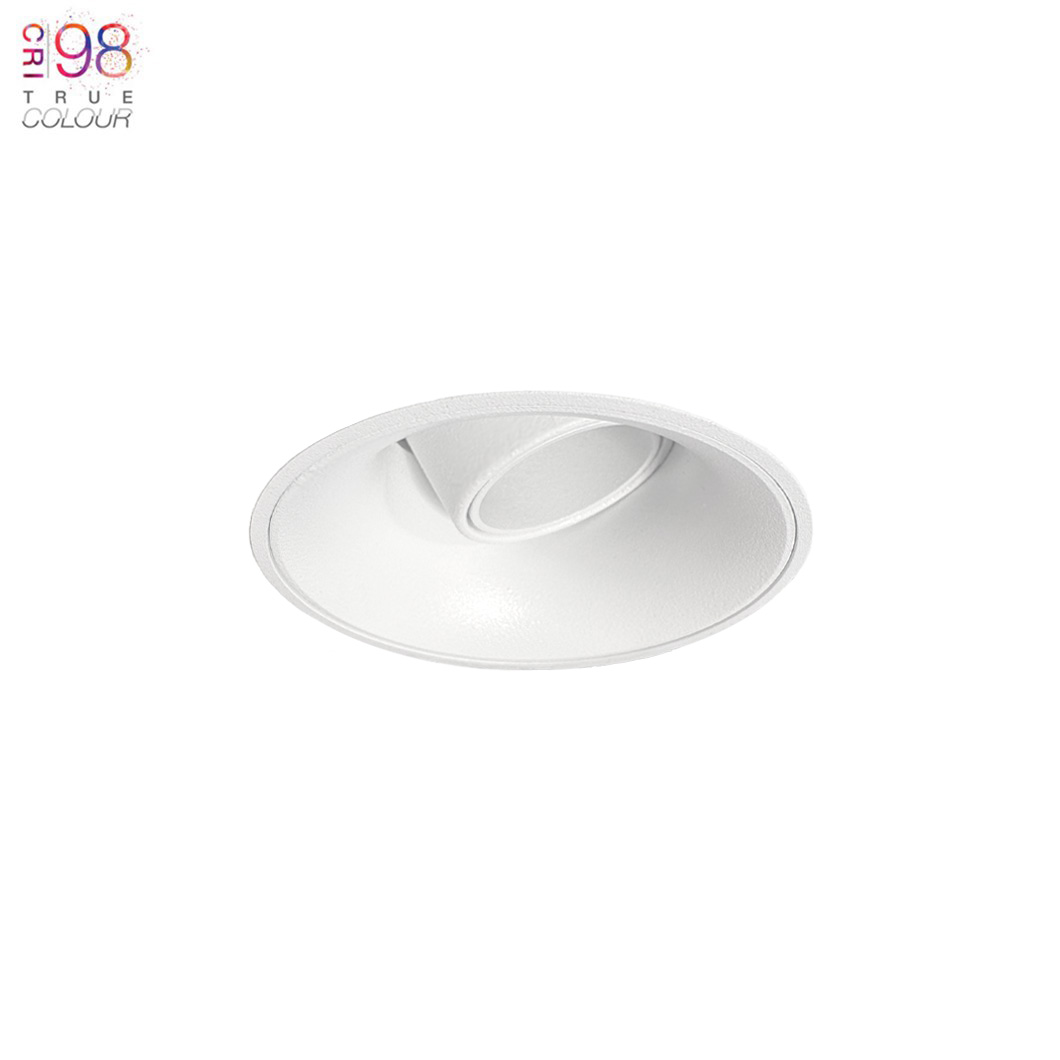

Nebo is a trimless, plaster-in downlight that recesses into the ceiling. The versatile fitting has a medium 36° beam angle, offering a diffused spread of light. Nebo's IP65 rating, paired with an adjustable 25° tilt, makes it an ideal directional downlight for installation in bathroom zone 1 as well as dry areas. Featuring our True Colour CRI98 LED technology, Nebo has exceptional colour rendering accuracy.

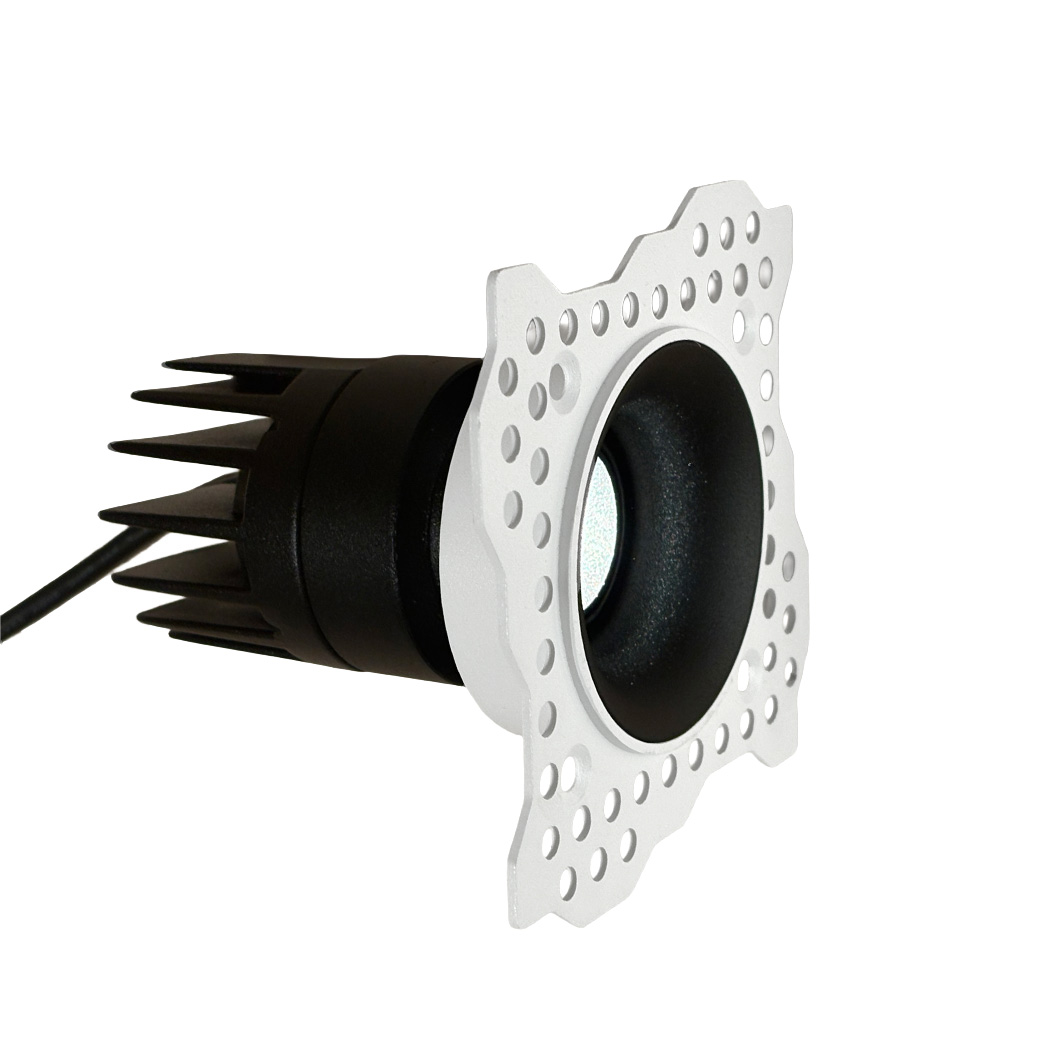

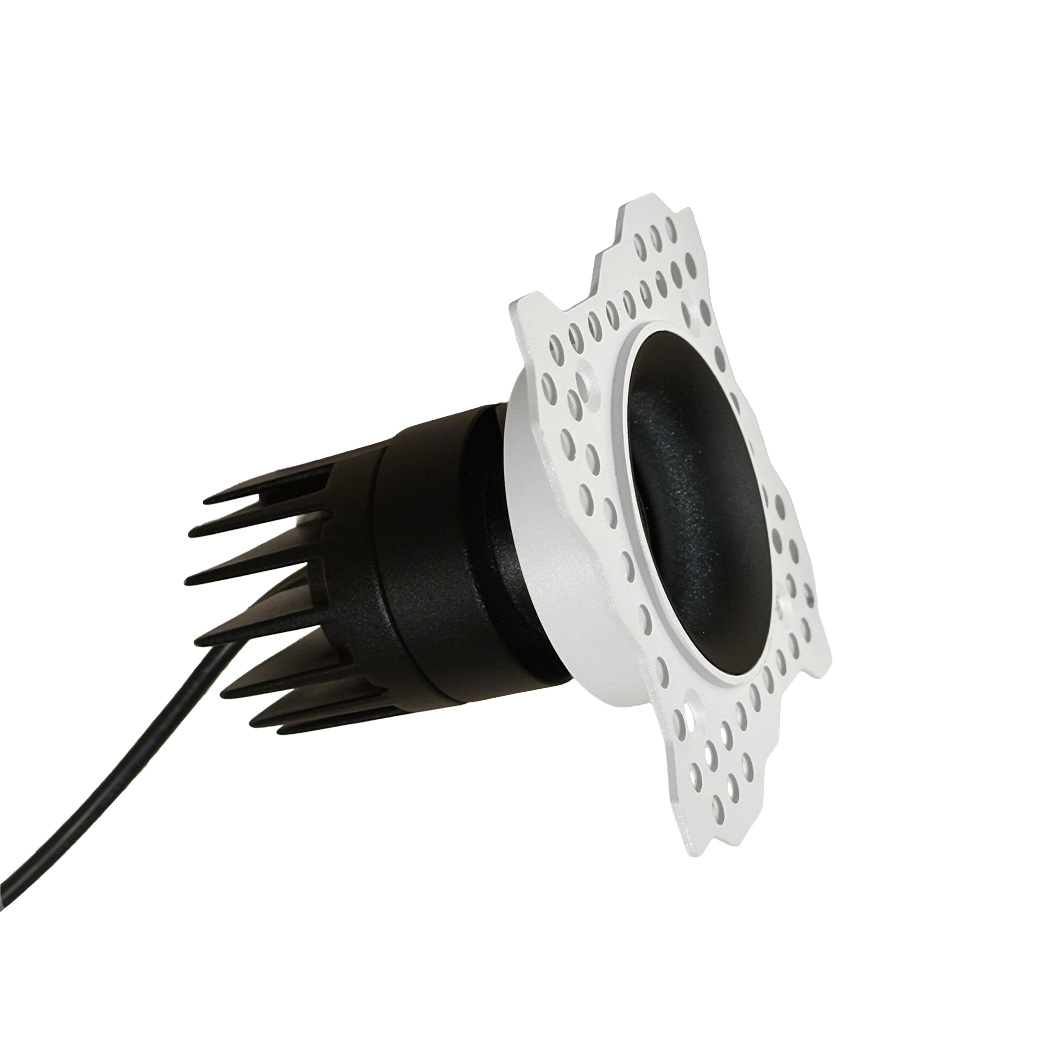

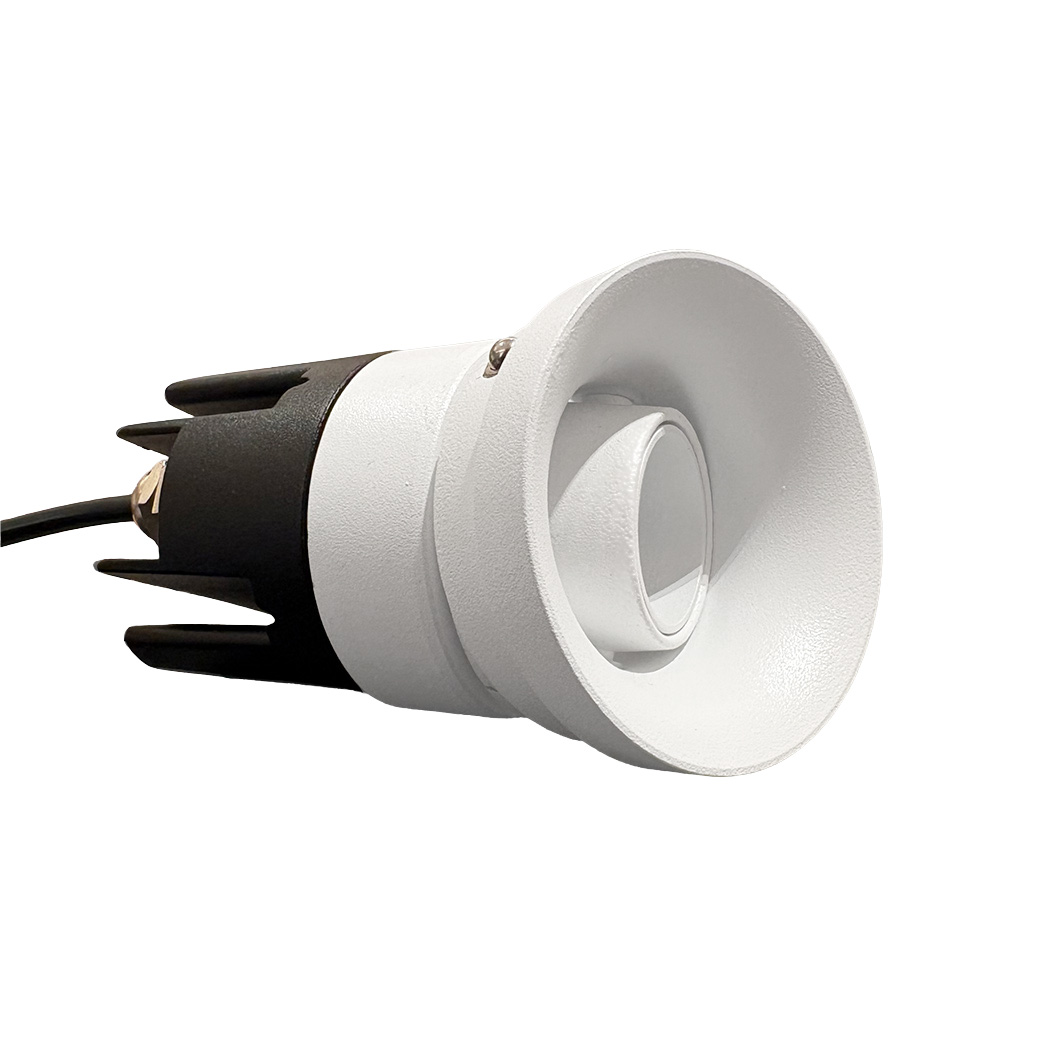

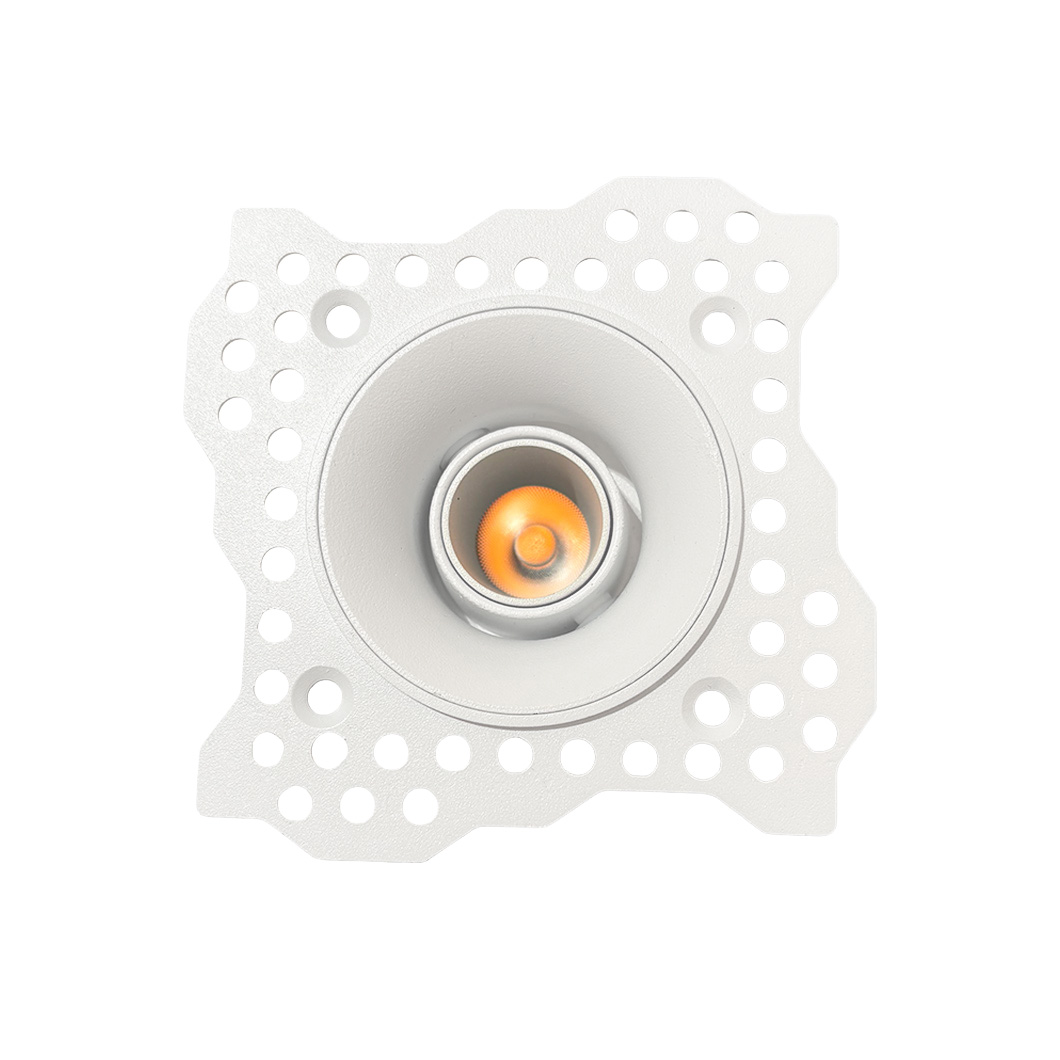

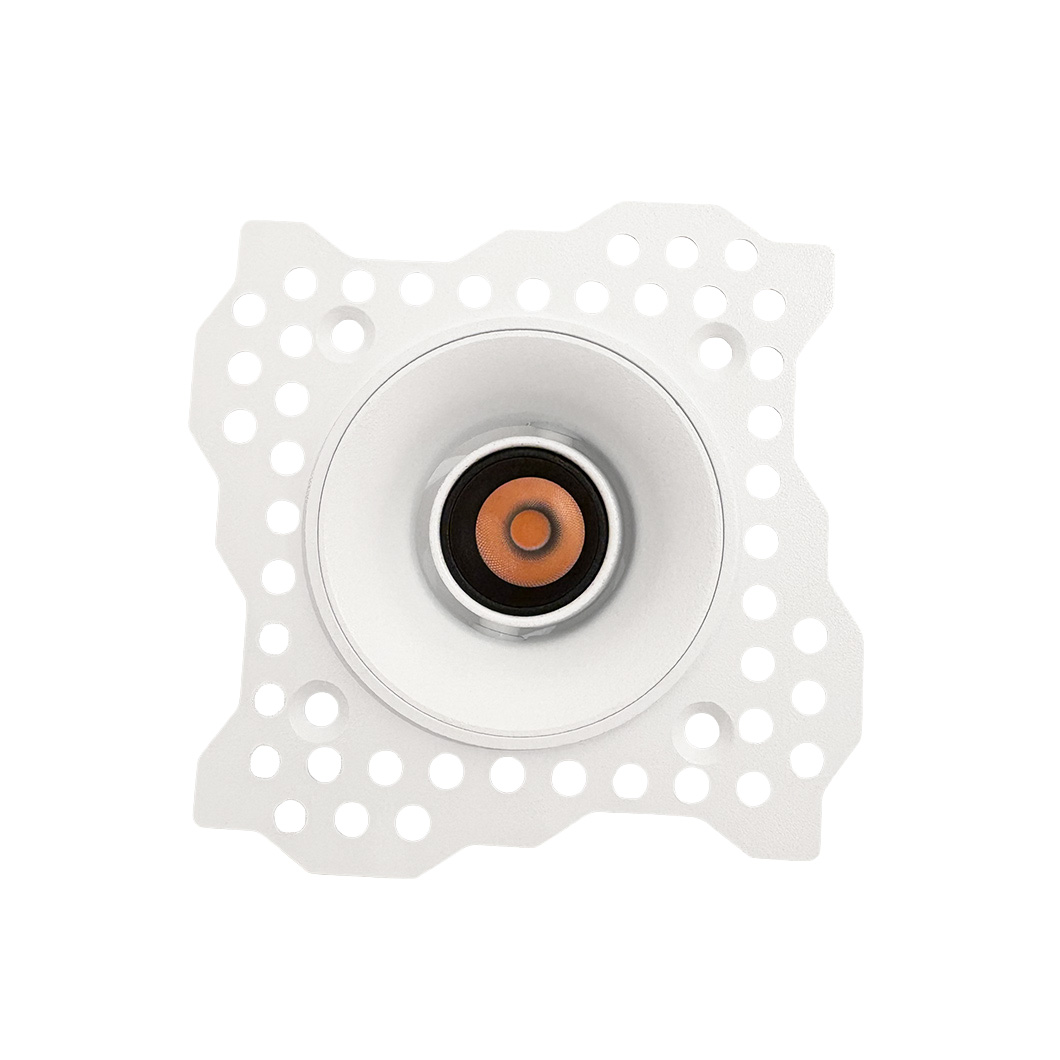

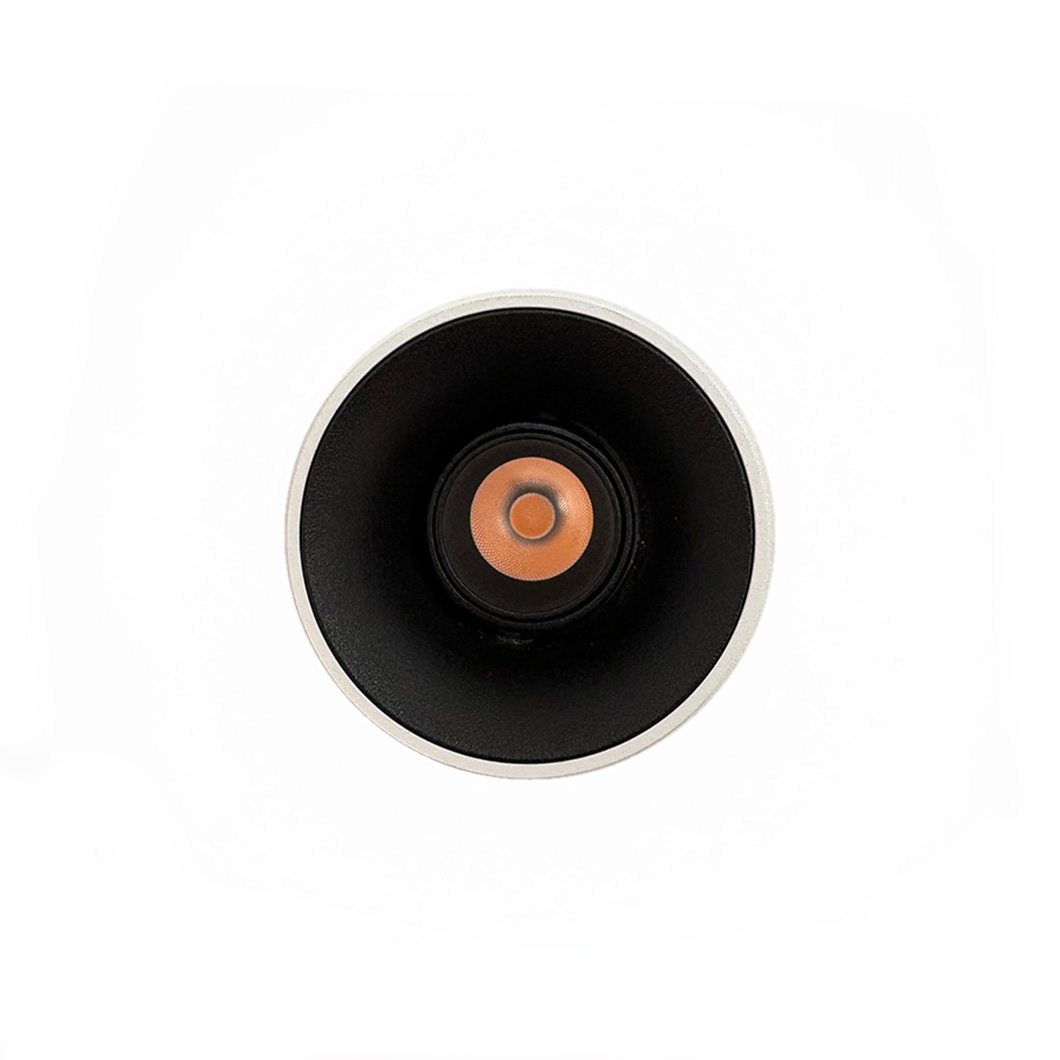

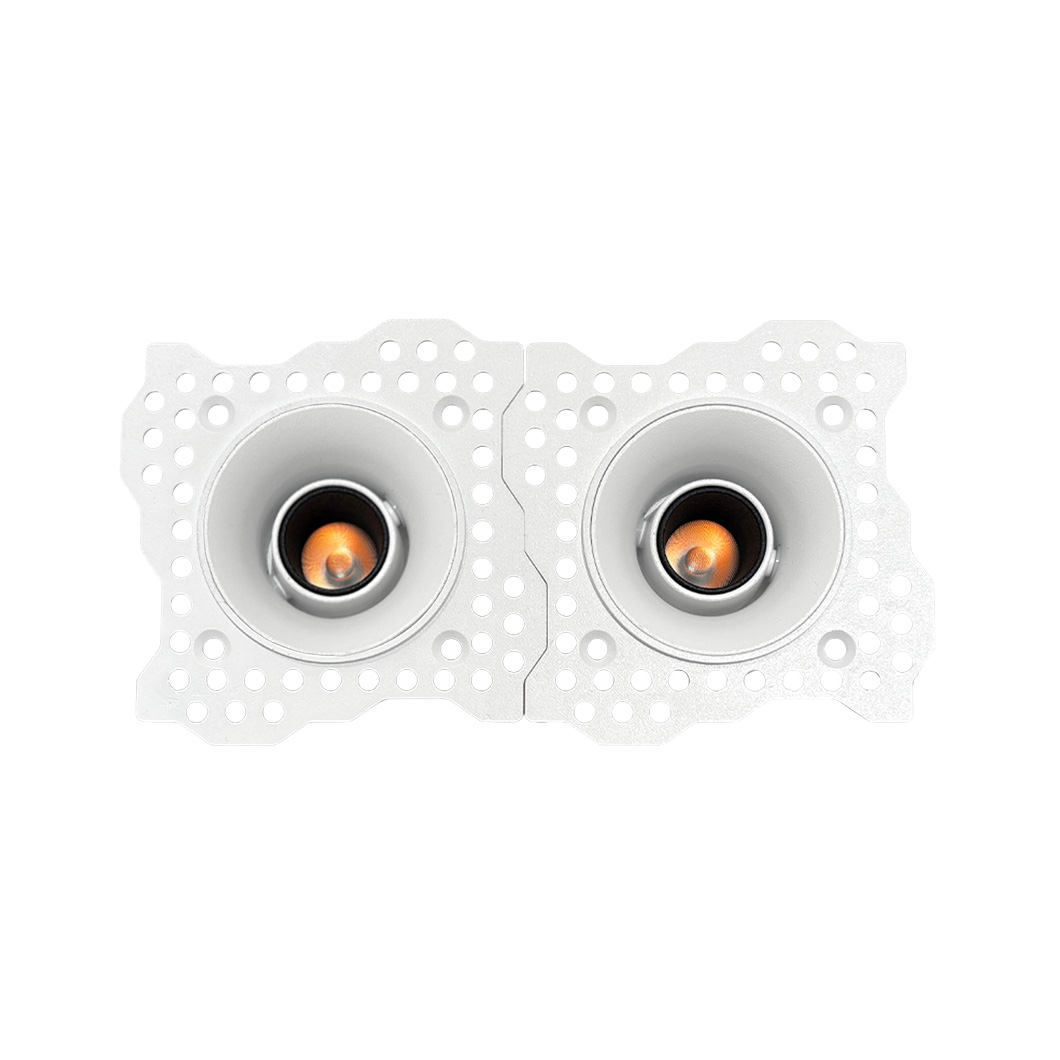

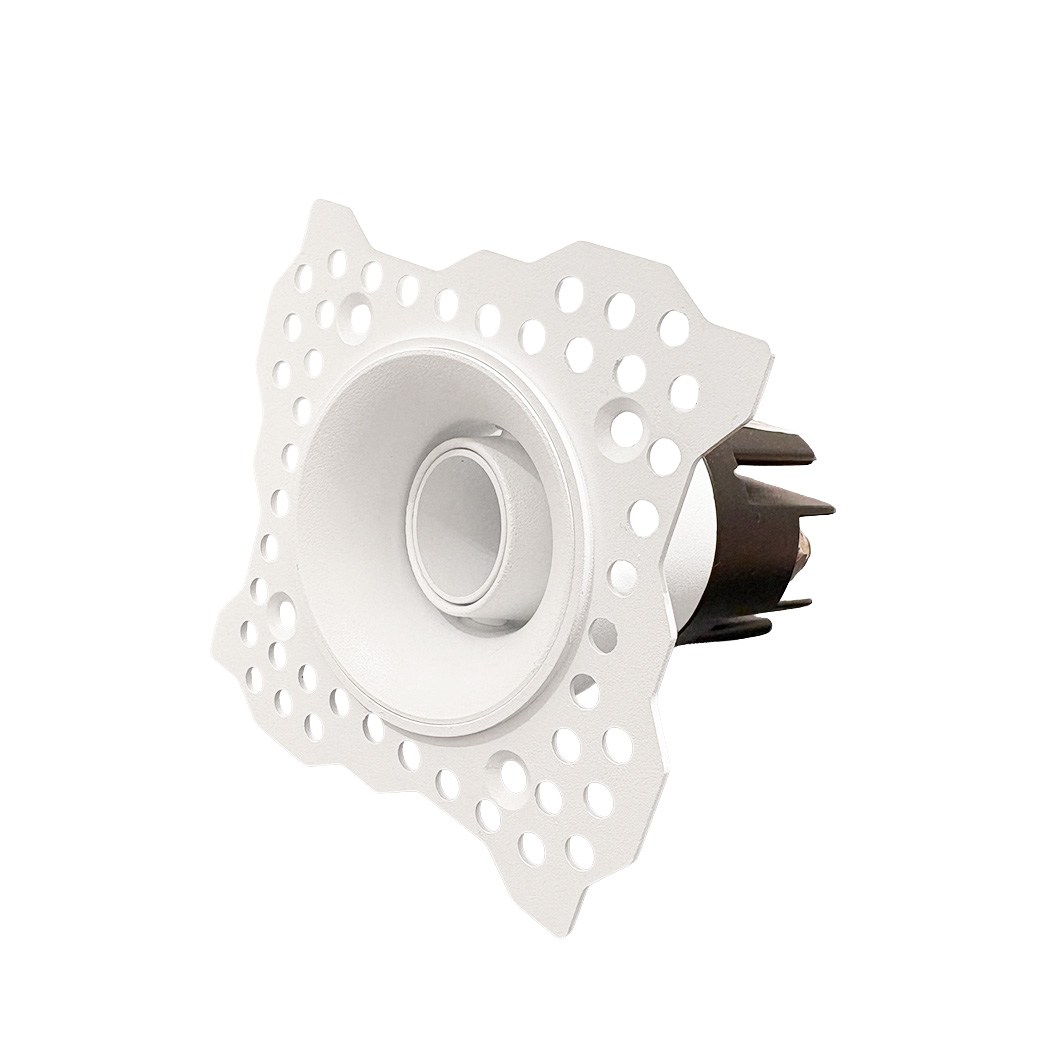

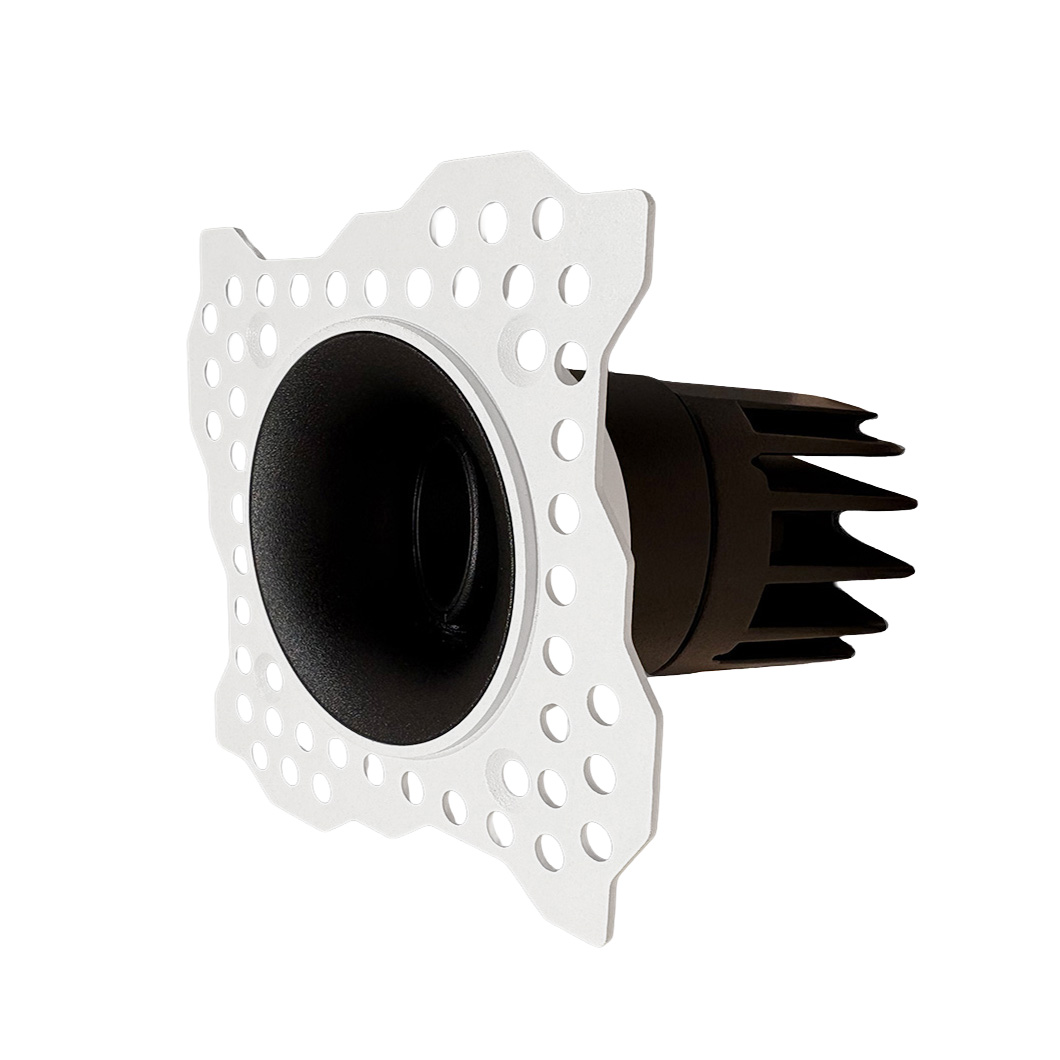

The plaster-in frame is fixed directly into the ceiling before being plastered and decorated for a seamless finish. The LED light engine is easy to pop in and out of the frame, making post-installation maintenance simple. Nebo is available in white or black finishes, with white or black inner baffle options. 2700K or 3000K colour temperatures. An optional fire ring accessory is available to make the fitting fire-rated. Dimmable with either 0-10V, TRIAC or DALI dimming drivers - see the dropdown or the specification tab for options.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack, this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage, this high-performance fitting becomes a low-lux emergency light, operating at around 10% of its original performance with a battery life of 3 hours. Please contact us for details.

Specification

IP65

Material: Aluminium
Cable length: 400mm

Wattage: 13W
Current: 300mA
Lumen output: 710lm
Beam angle: 36°
Colour temperature: 2700K | 3000K
CRI 98

Adjustable
25° tilt

Dimensions:
Ø59.4mm x 94mm
Cut out: Ø65mm
Cut out with fire ring: Ø71mm
Plaster-in frame: 102mm x 102mm x 23.3mm

Driver Options:

• Mains dimmable driver: Osram OT FIT 14W Phase Cut CC Driver
• 0-10V dimmable driver: EldoLED 0-10V ELD/SL0241A2-350
• DALI dimmable driver: L-Tech DALI-15-100-700-E1A1
• See datasheets in Downloads tab for further details

Dimensions

Product dimensions: D.94mm x Diameter.59mm

Cutout dimensions: Dia.65mm

Downloads

• Installation Instructions PDF
• Bathroom Zones & IP Ratings Explained PDF
• Data Sheet | Osram OT FIT 14W Phase Cut Driver | PDF
• Data Sheet | EldoLED 0-10V Dim. Driver SL0241A2 | PDF
• Data Sheet | LTech DALI driver 15 100 700 E1A1 | PDF
