DLD Atlas Mini True Colour CRI98 LED IP65 Adjustable Plaster In Downlight - Next Day Delivery

Description

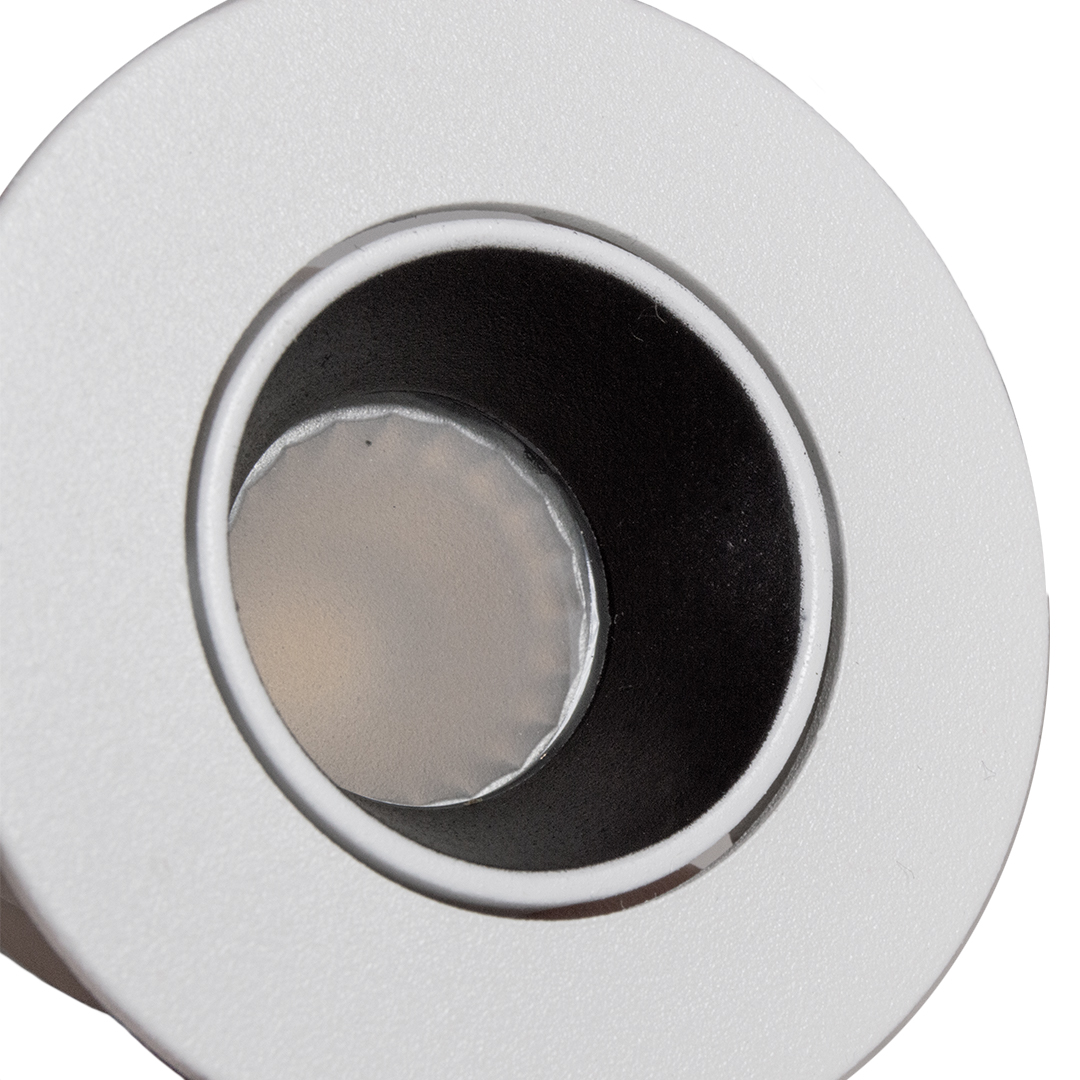

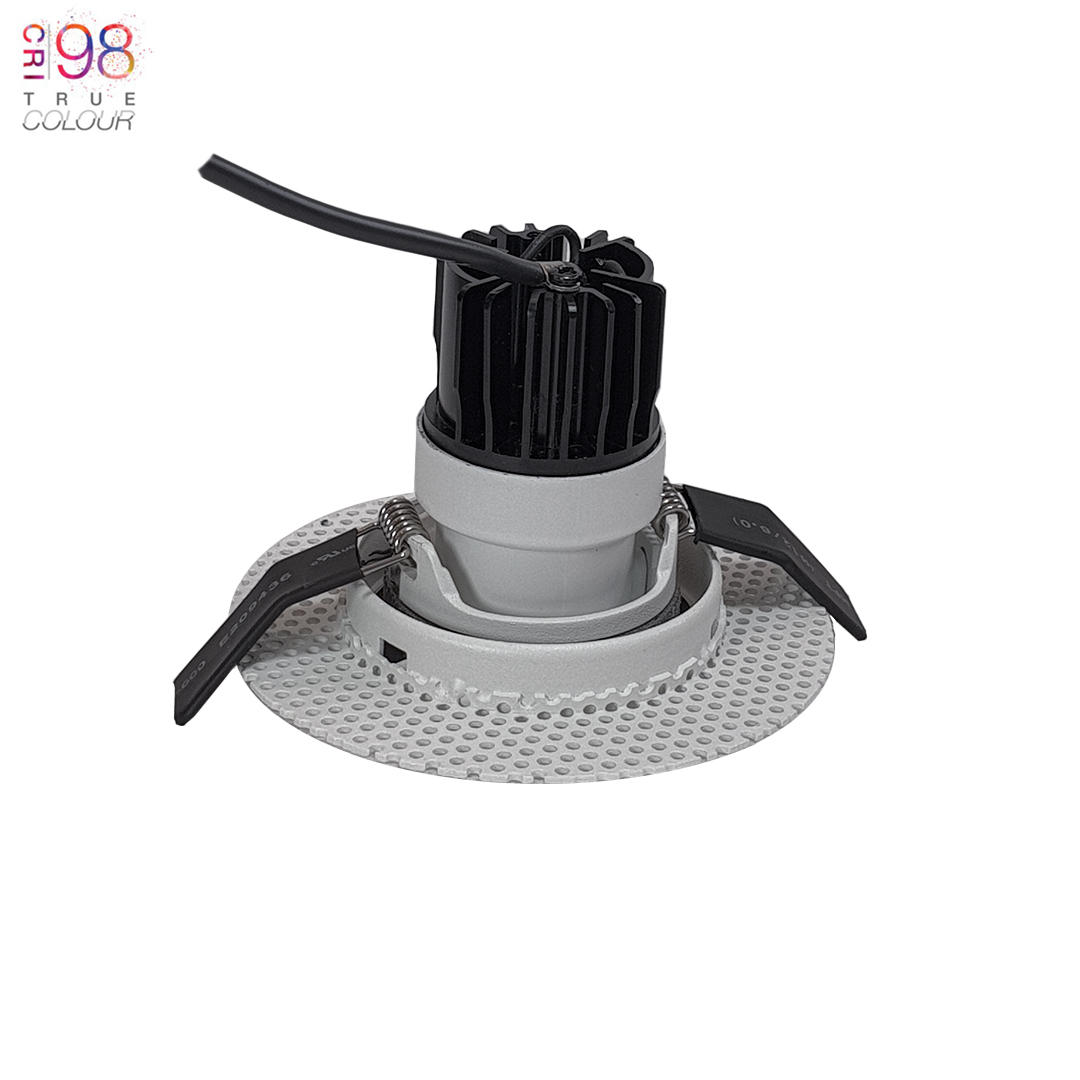

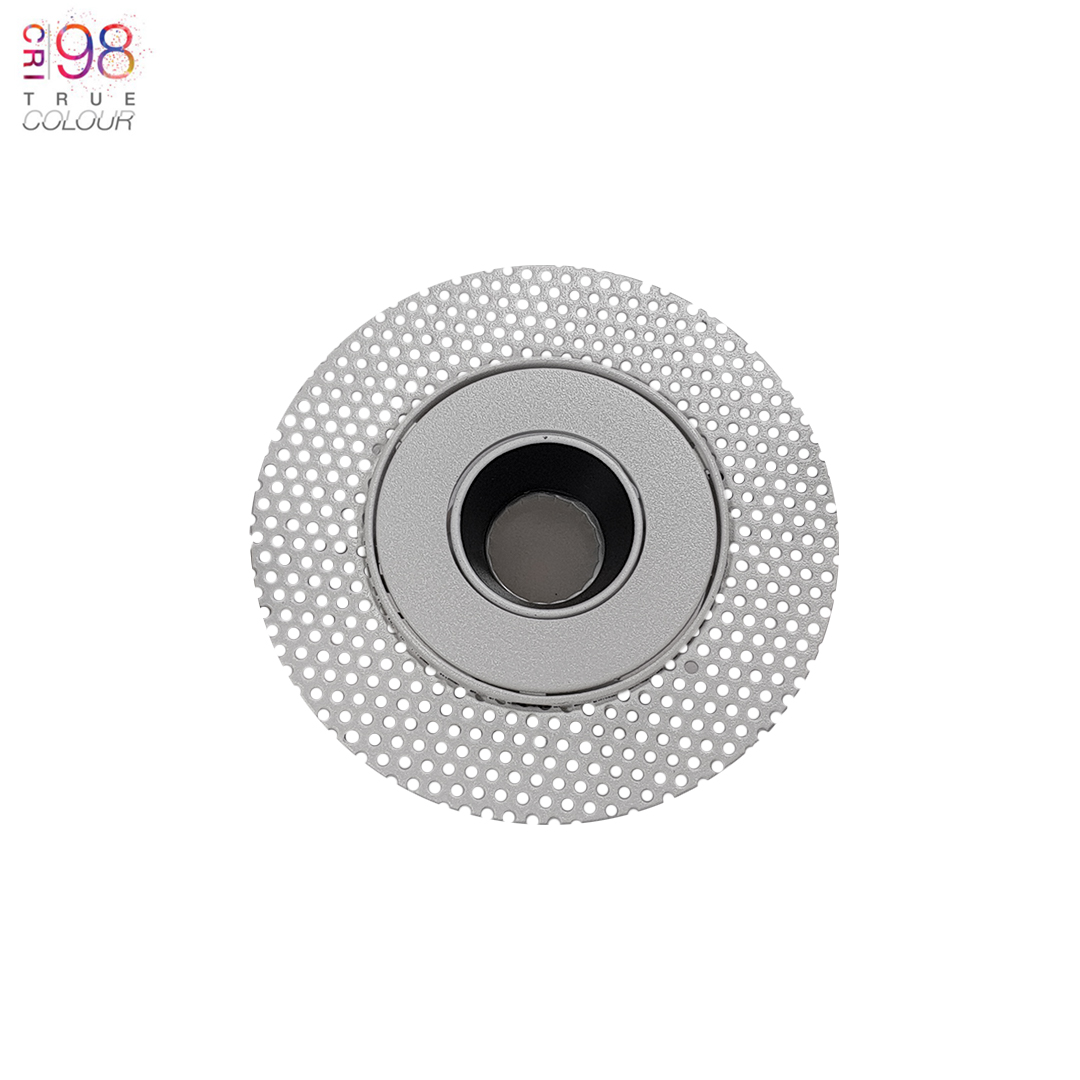

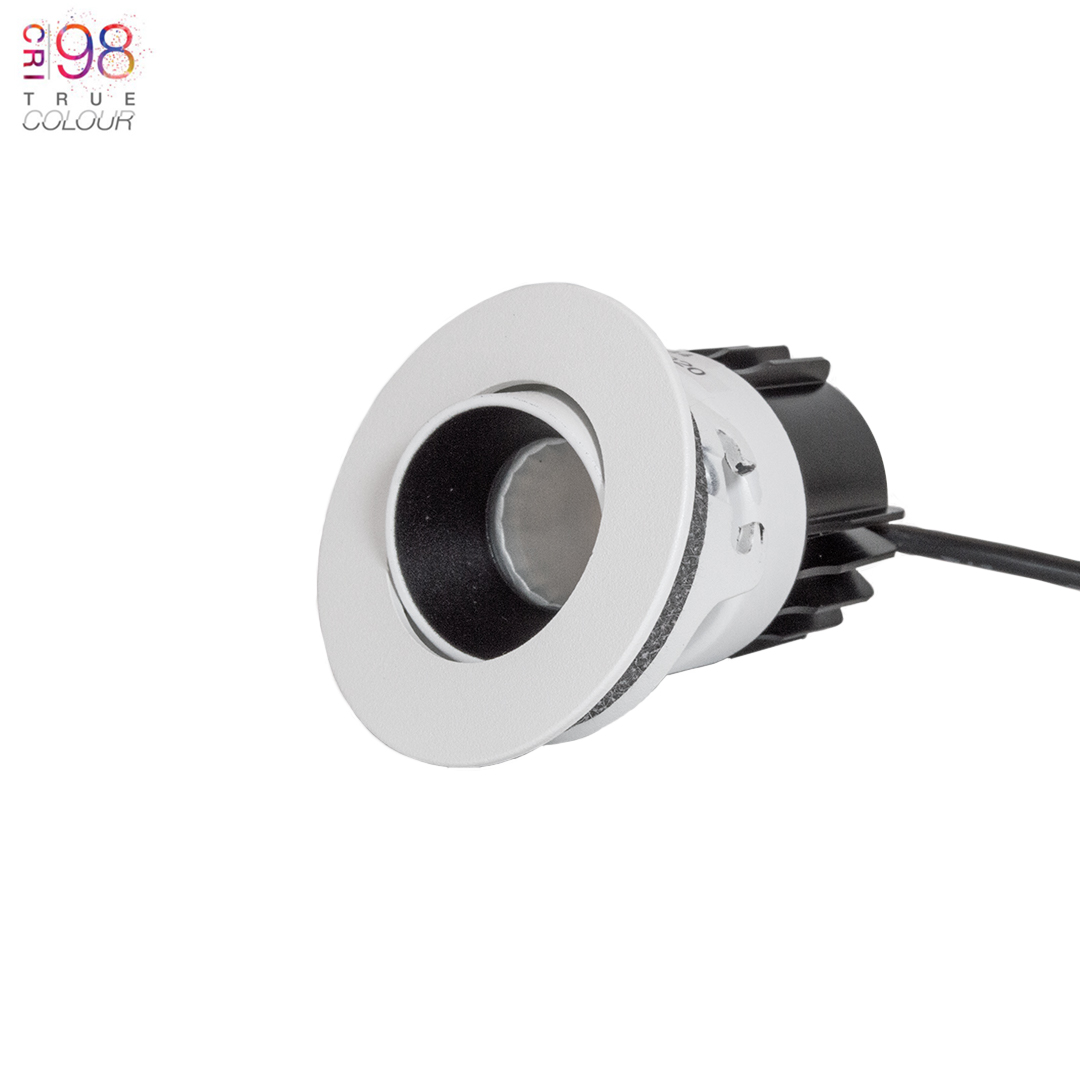

At just over 5cm diameter, the Atlas Mini Baffle LED adjustable downlight is the smaller sibling in our ever popular Atlas range, designed for when a more subtle downlight is required. This is the plaster in version for a neat and minimal effect where the module stays flush with the ceiling, completely trimless. Featuring an easily removable 6W light engine - a simple twist mechanism allows for easy maintenance of the LED component. Adjustable by 25º and with a medium beam angle of 50º, Atlas Mini is a flexible downlight suitable for using as a focused spotlight or as a wall washer. Equipped with up-to-date True Colour CRI98 LED COB technology, the Atlas Mini range render colours with outstanding accuracy.

Made from die-cast aluminium with steel housing, while the forged aluminium heatsink allows the fitting to stay cool with optimum heat dissipation. Bezel available in black or white, inner baffle ring in black as standard (white on request). Reflector in PC plastic. Atlas Mini has an IP65 rating* and is perfect for lighting bathroom zones 1, 2 and 3 and in outdoor lighting projects. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Fully dimmable, supporting 0-10V, TRIAC or DALI drivers - see dropdown options.

4000K colour temperature and white baffle on demand - please contact for details.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Delivery approximately 1-2 weeks

* The front of this fitting is IP65 whilst the back is not IP rated, meaning it will need to be installed in a watertight environment if used for outdoor or bathroom lighting

Specification

IP65 (front only)
IP20 (heat sink and back of the downlight)

Wattage: 6.4W
Current: 350mA
Lumen: 542lm
Delivered lumens: 290lm (3000ºK)
Beam angle: 50º
Adjustable tilt: 25º
Colour temperature: 2700ºK | 3000ºK
CRI: 98
Dimmable: 1-10V | TRIAC | DALI
Aperture: Ø33mm

Plaster in frame: Ø 95mm

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

• LED fitting removable from the plaster-in housing post installation
• Driver fits through the cut-out hole diameter
• Driver can be housed remotely from the fitting (check maximum distance with us)

Dimensions

Product dimensions: H.64mm x Diameter.59mm

Cutout dimensions: Dia.64mm

Lens dimensions: Dia.33mm

Downloads

• Darklight-Bathroom-Zones67.pdf
• Datasheet 0-10V Dim. Driver - EldoLED SL0241A2 PDF
• L Tech SE 12 100 400 W1D Data Sheet
