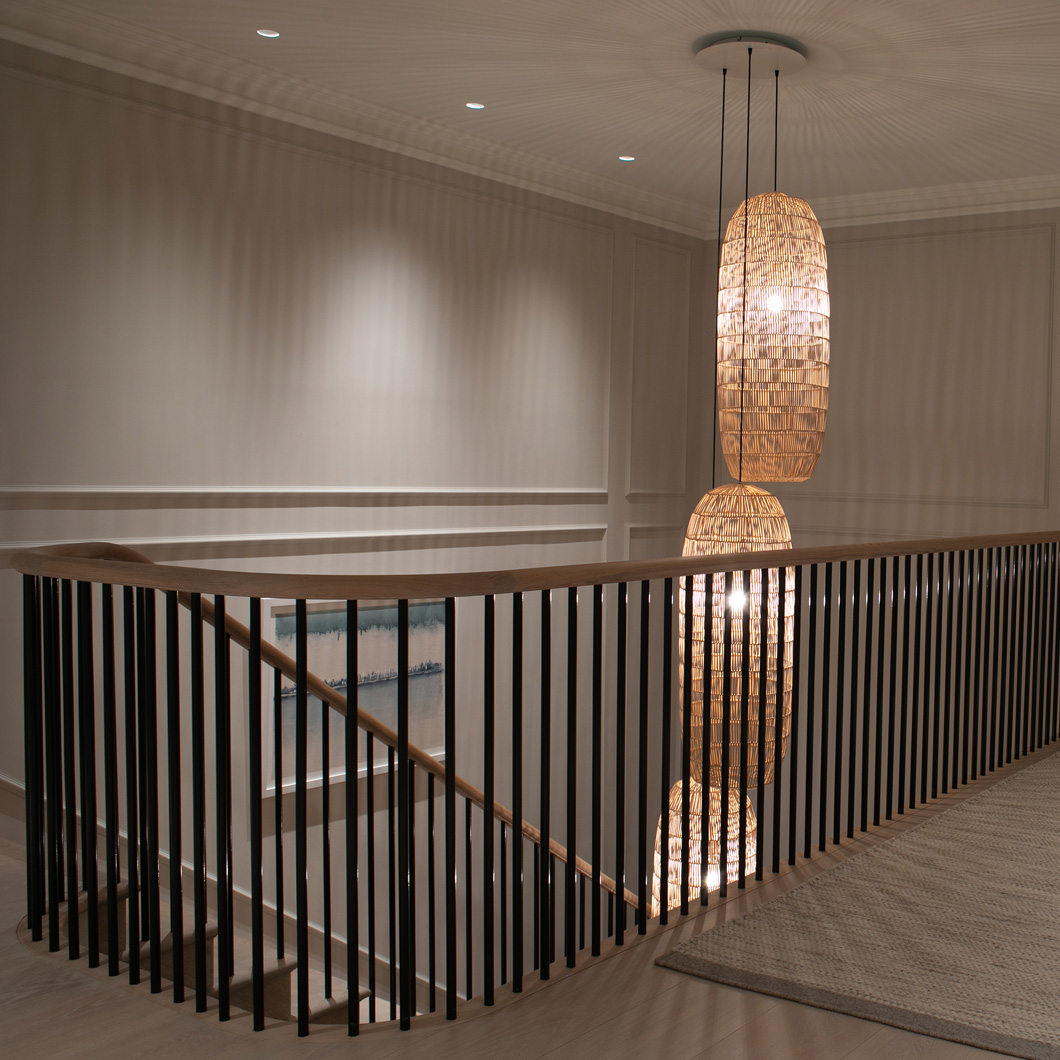

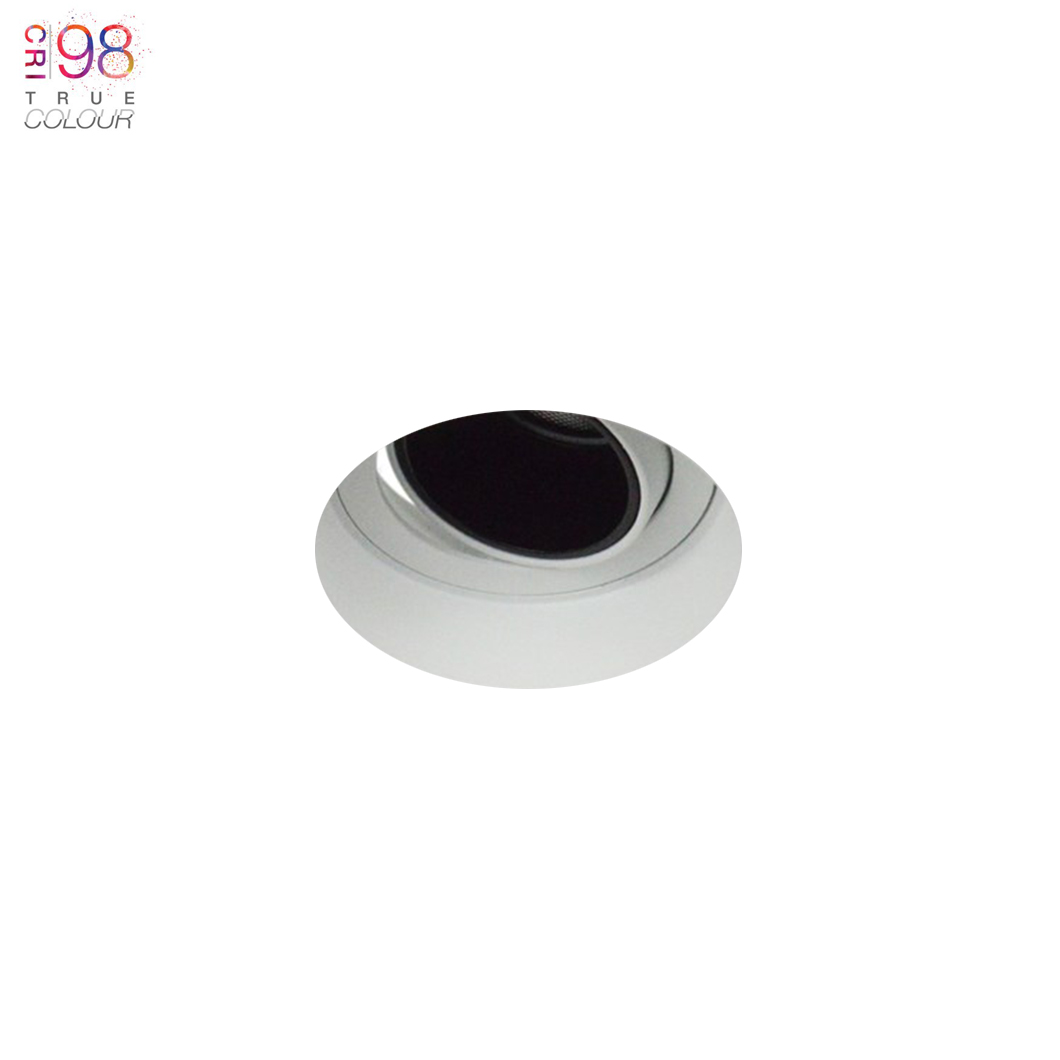

Plaster in down light, by darklight design, warm bright led

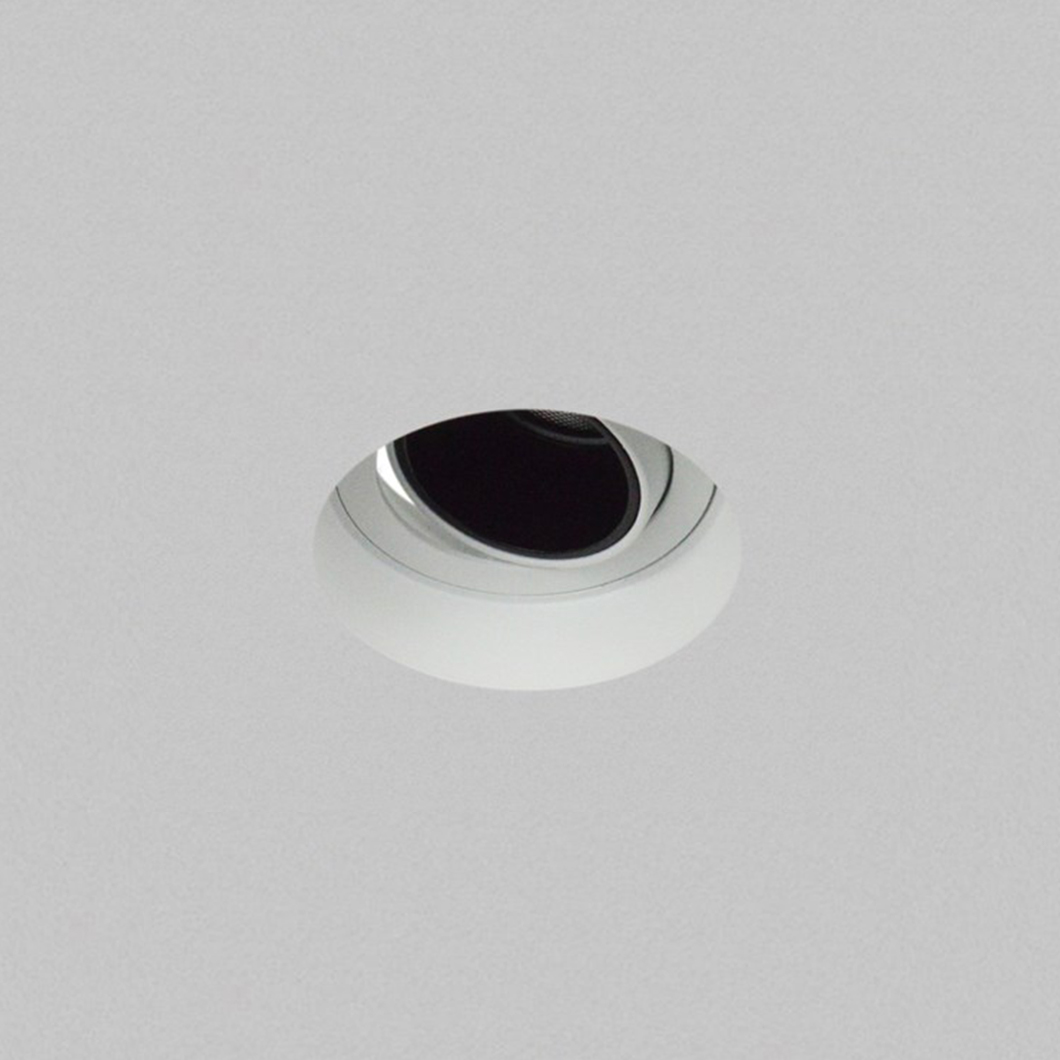

Andes down lighter mounted in a plasterboard fixing same as ceiling mounted, bi directional with the adjustable mount

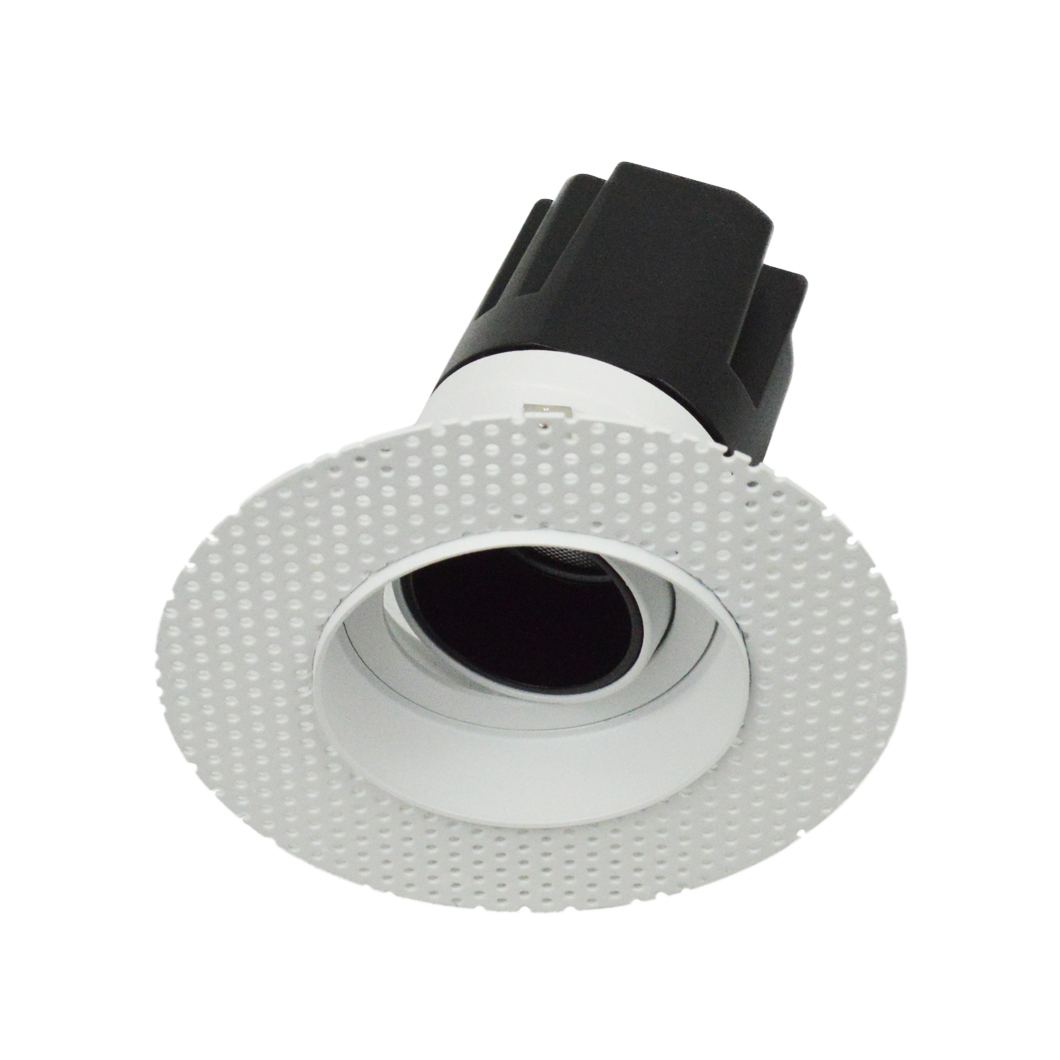

DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit with tilted light engine on white background
DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background

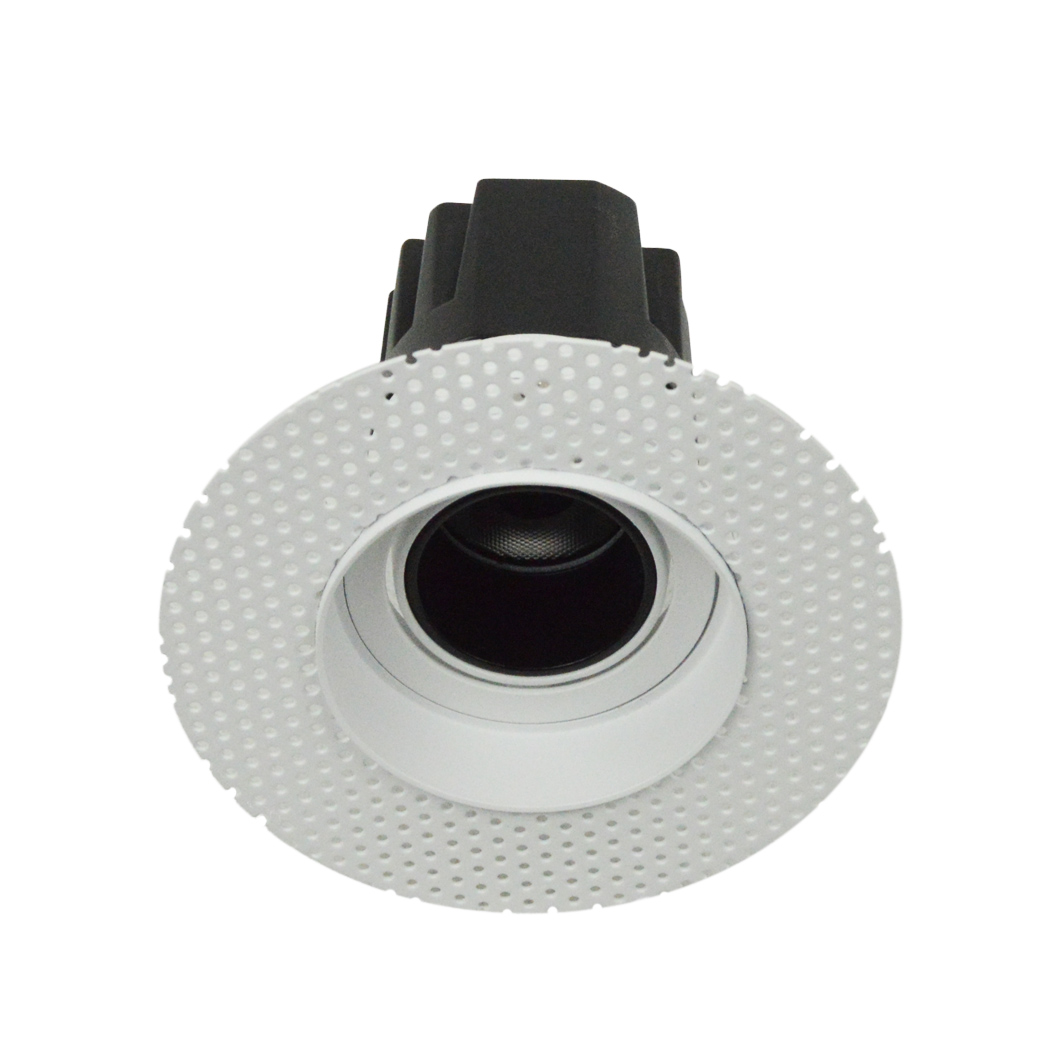

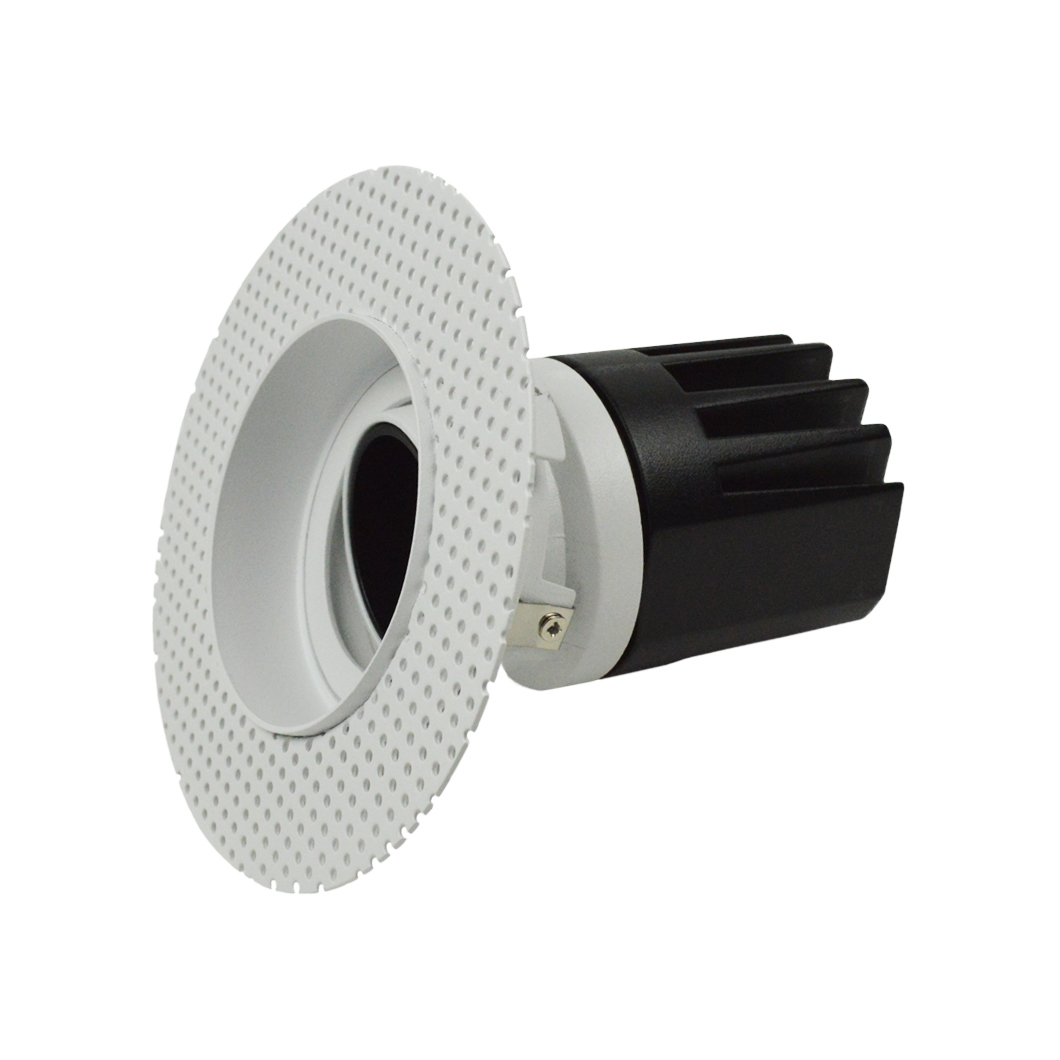

3/4 view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit with tilted light engine on white background

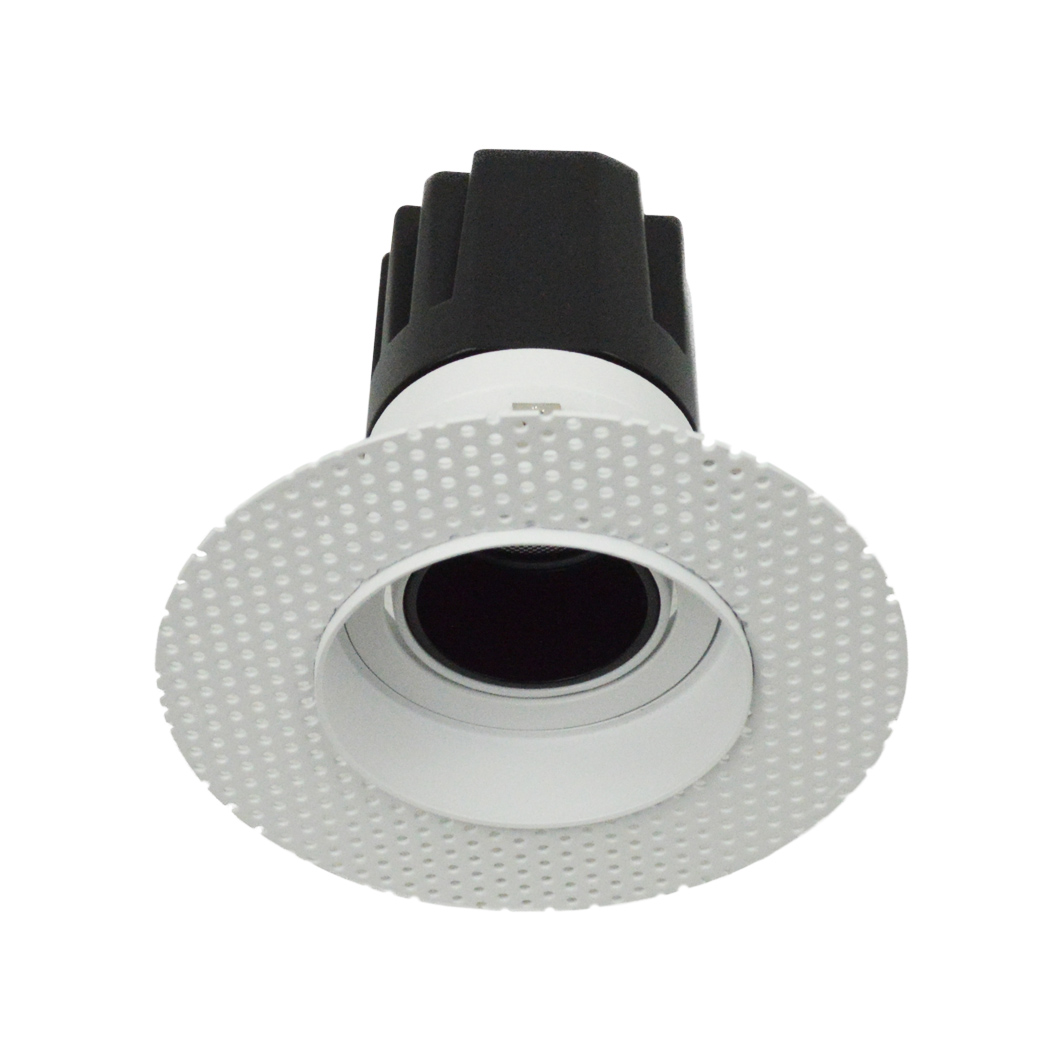

3/4 view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background

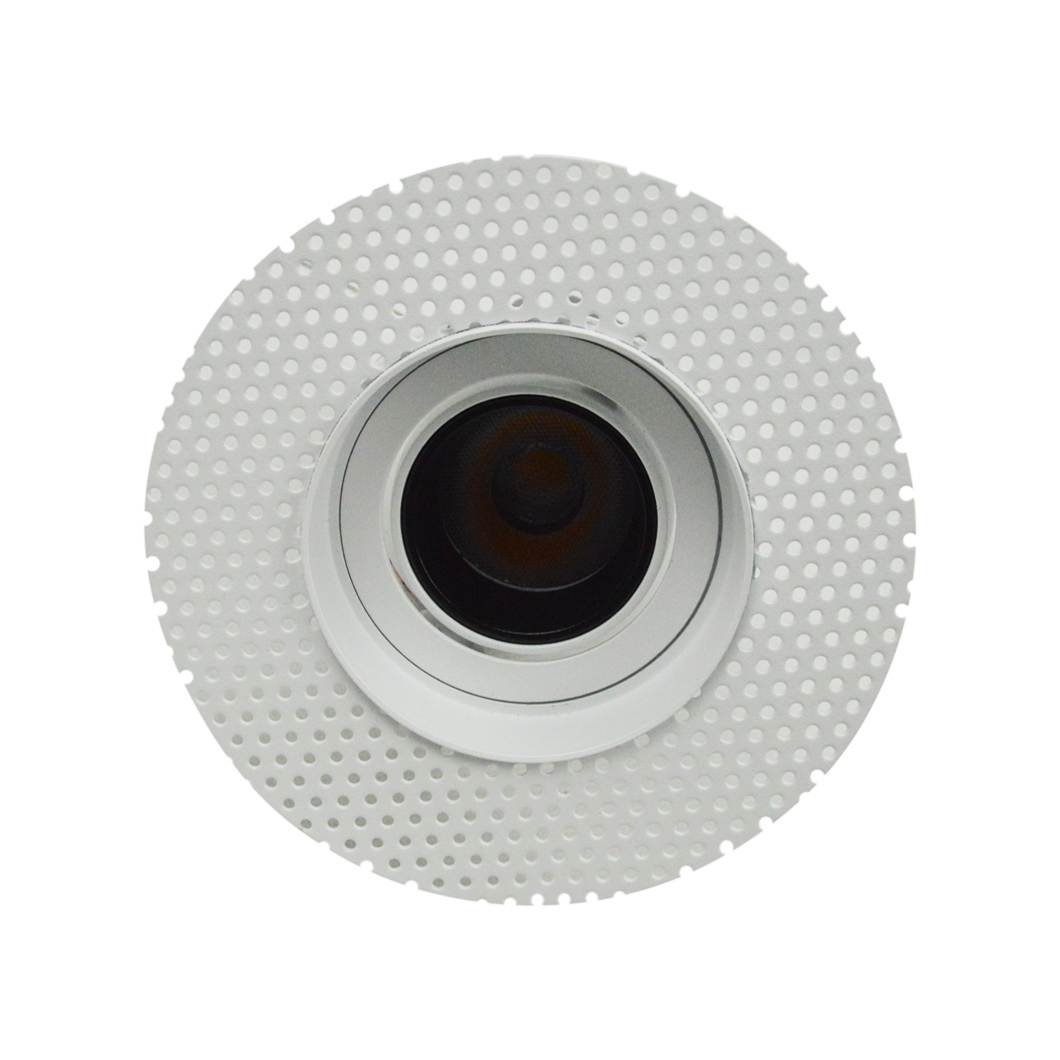

Straight on view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background

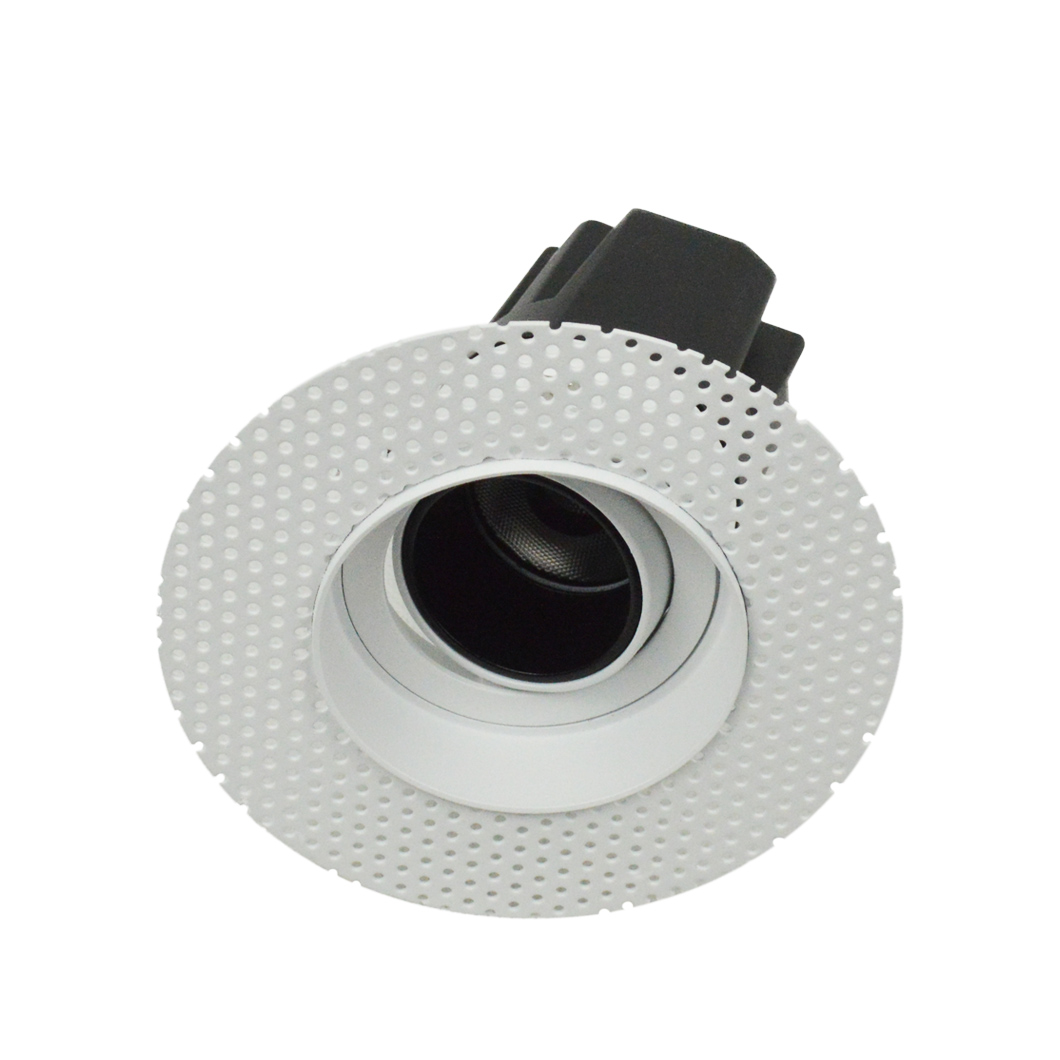

3/4 view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background
3/4 view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background

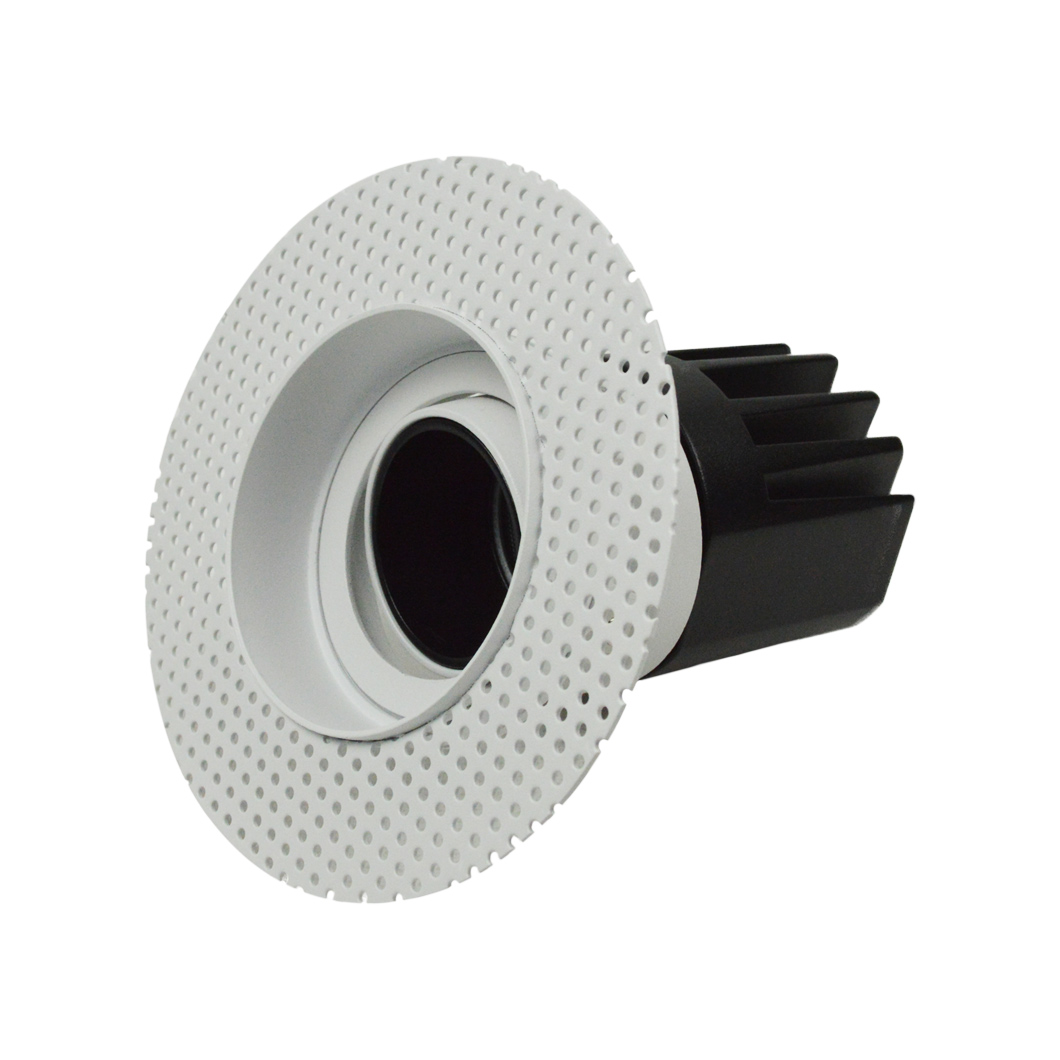

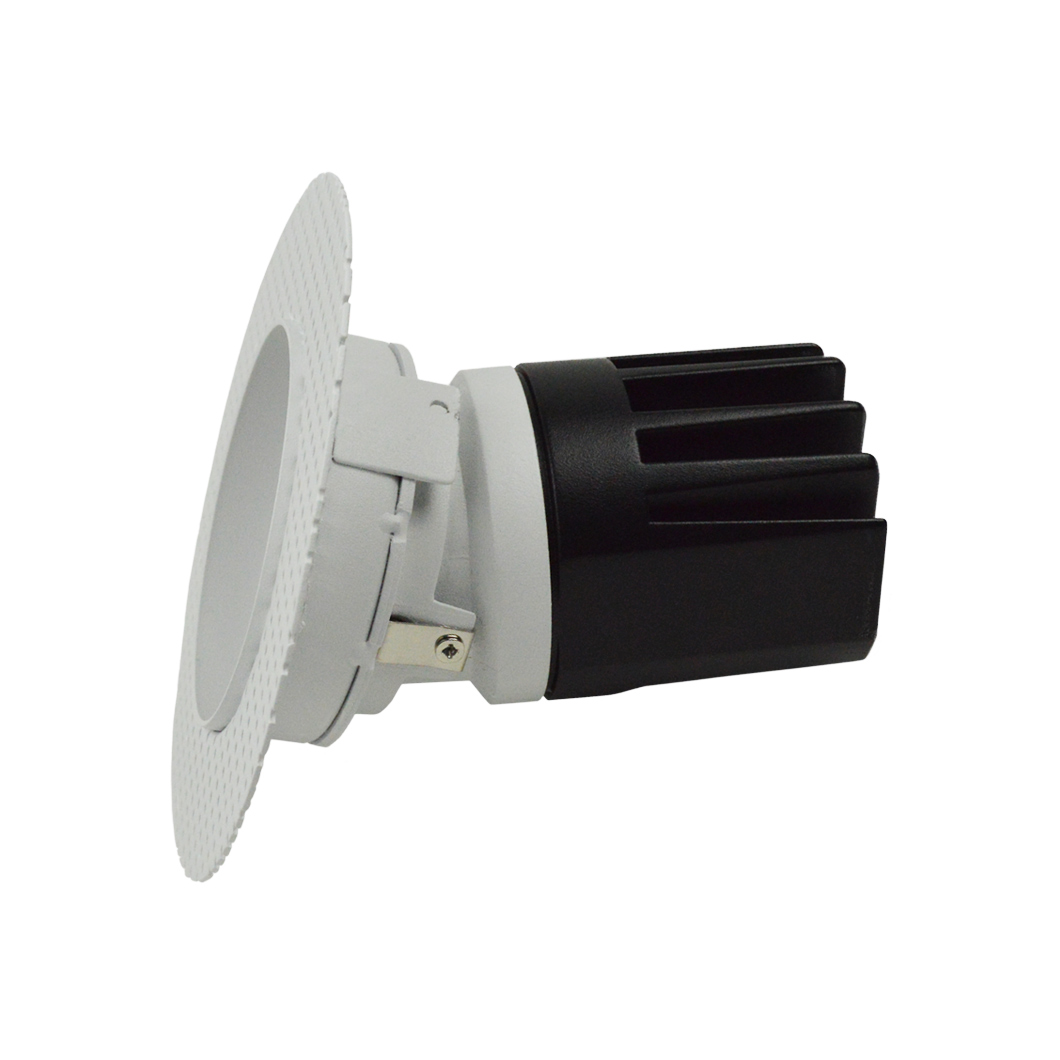

Side view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background

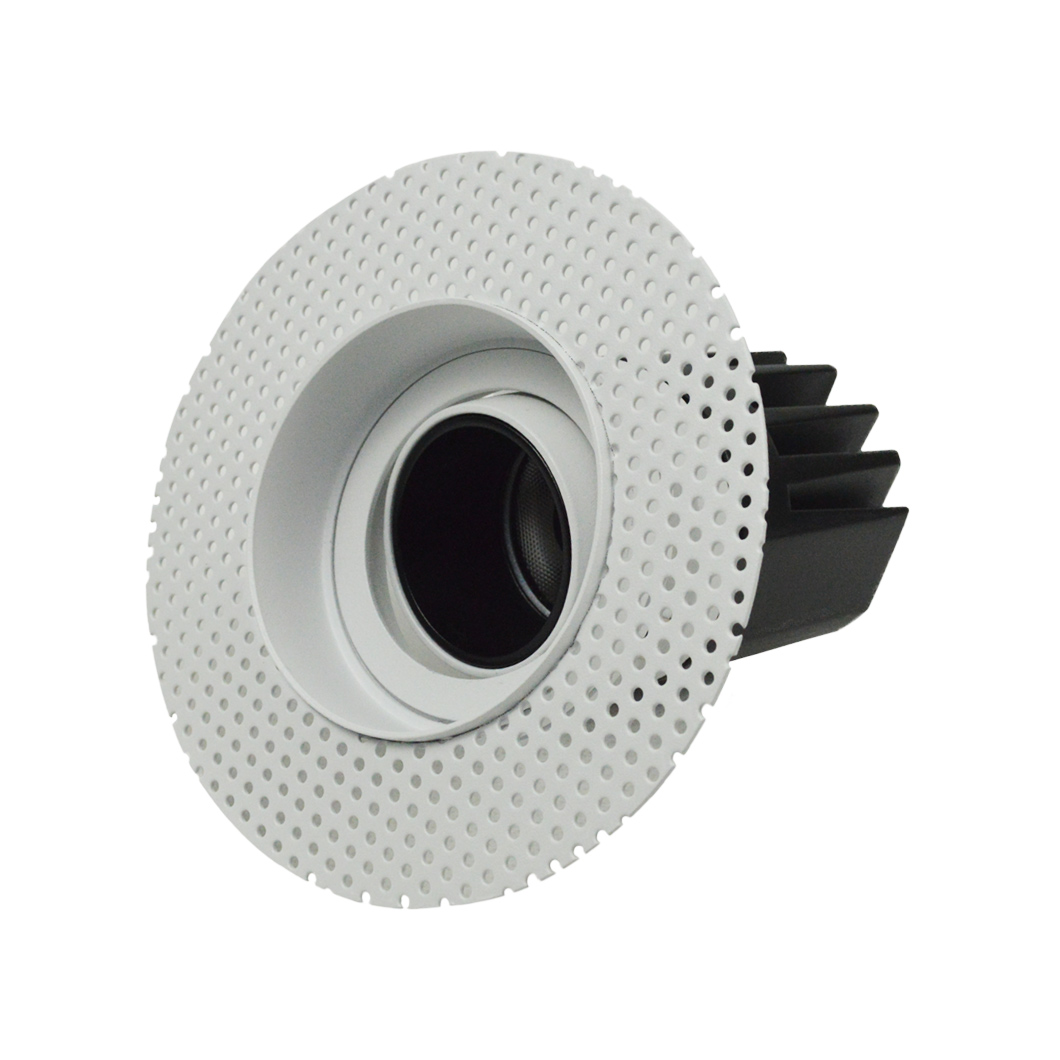

Side view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background

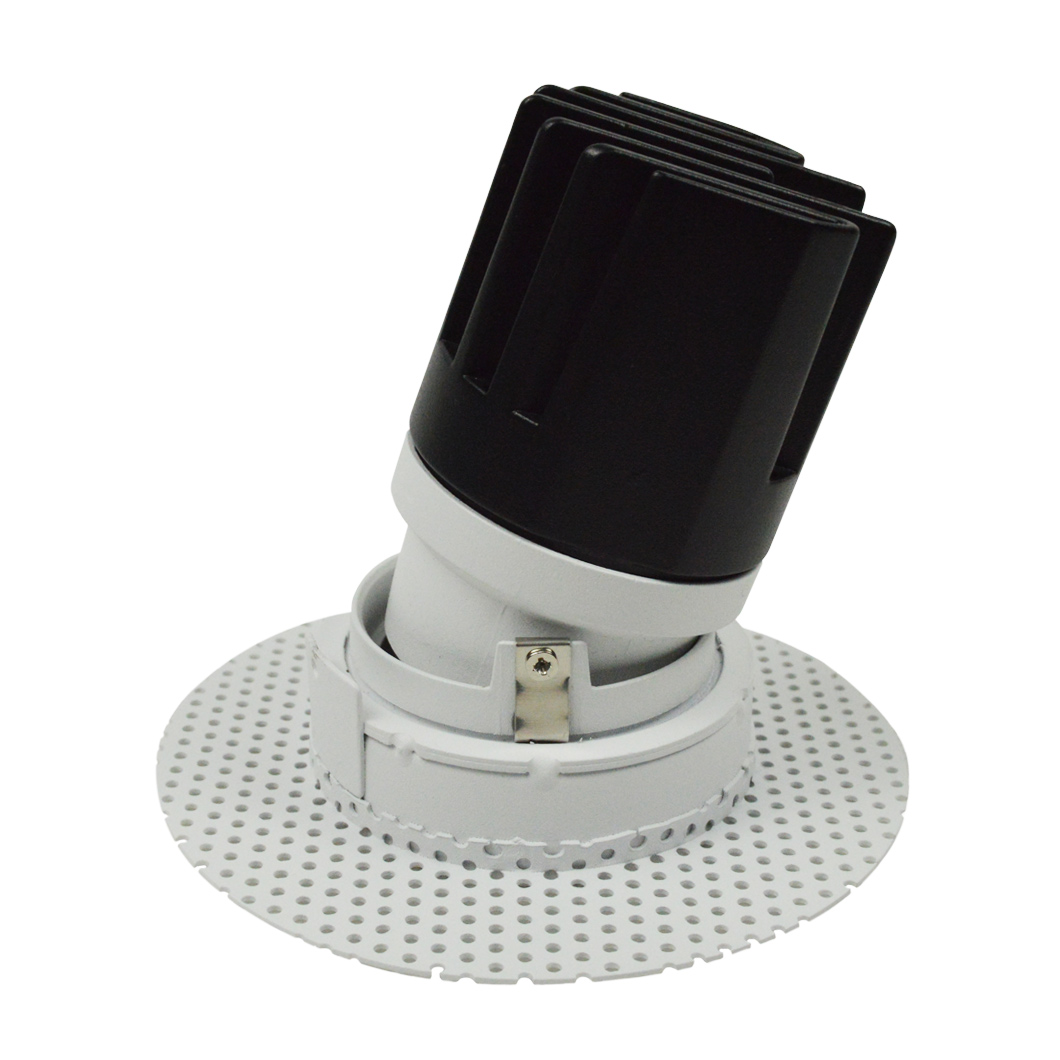

Side on DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight with tilted light engine on white background

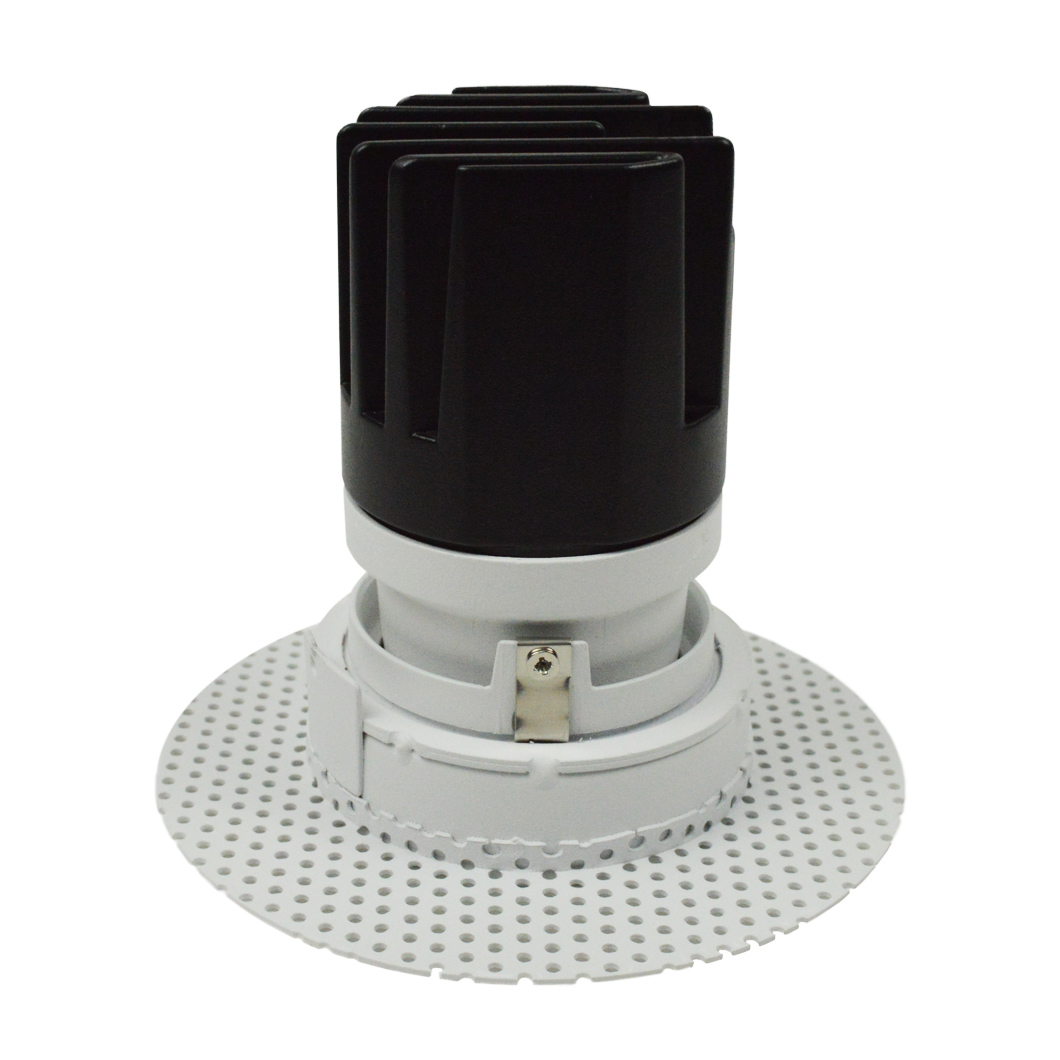

Side on DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight with straight light engine on white background
Plaster in down light, by darklight design, warm bright led
Andes down lighter mounted in a plasterboard fixing same as ceiling mounted, bi directional with the adjustable mount
DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit with tilted light engine on white background
DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background
3/4 view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit with tilted light engine on white background
3/4 view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background
Straight on view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background
3/4 view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background
3/4 view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background
Side view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background
Side view DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight showing round plaster kit on white background
Side on DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight with tilted light engine on white background
Side on DLD Andes 1-R True Colour CRI98 plaster-in adjustable recessed downlight with straight light engine on white background

DLD Andes 1-R True Colour CRI98 LED Adjustable Plaster In Downlight - Next Day Delivery

Manufacturer: DLD Architectural

£90

Description

An adjustable round plaster-in downlight with deep black baffle to reduce glare, the DLD Andes 1-R utilises our True Colour CRI98 LED COB to render colours with outstanding clarity. The IP54 rating coupled with the 24º adjustable tilt and 355º rotation make the Andes the perfect directional plaster-in downlight for bathroom zone 2 as well as in dry spaces.

The frame is fixed directly into the ceiling, which is then plastered and decorated to produce a perfectly seamless finish with zero risk of damaging the LED fitting. It is simple to pop the LED light engine in and out of the frame, which allows for easy maintenance post installation. Available with a beam angle of 15º, 24º or 36º, allowing for a narrower or wider spread of light depending on the requirements. Die-cast aluminium luminaire with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. In white with black baffle. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Compatible with leading edge and trailing edge dimmers. Dimmable with either 0-10V, TRIAC or DALI dimming drivers - see dropdown for options. Blue connection box included for easy push-fit installation.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Currently in stock:
Orders placed before midday are delivered next working day

Available on request:
Body in black & baffle in white or gold
Please contact us for the lead time on these finishes

Specification

IP54 - suitable for bathroom zone 2
Wattage: 13W
Current: 350mA
Beam angle: 15º | 24º | 36º
Adjustable tilt: 24º
Adjustable rotation: 355º
True Colour CRI 98

Colour Temperature | Lumen:
2700ºK | 628lm
3000ºK | 492lm
4000ºK | 803lm

Plaster-in frame: Ø124mm

Driver Options:

  • Mains dimmable driver: Osram TRIAC OSR/OTE13/220−240/350PC
  • 0-10V dimmable driver: EldoLED 0-10V ELD/SL0241A2-350
  • DALI dimmable driver: Osram OTi DALI 15/220…240/1A0 LT2 NFC
  • See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

  • LED fitting removable from the plaster-in housing post installation
  • Driver fits through the cut-out hole diameter
  • Driver can be housed remotely from the fitting (check maximum distance with us)
Dimensions

Product dimensions: H.101mm x Diameter.74mm

Cutout dimensions: Dia.78m

Downloads
Delivery and warranty

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Darklight Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
