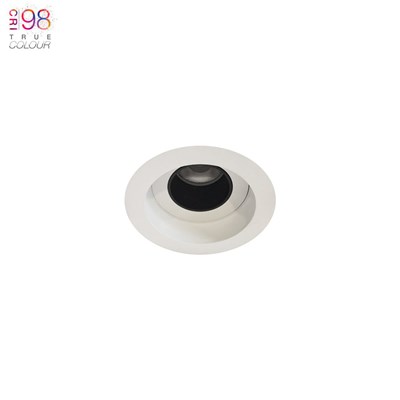

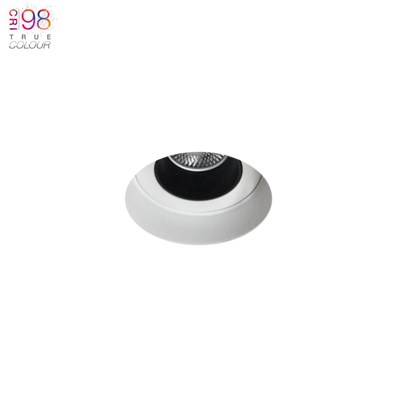

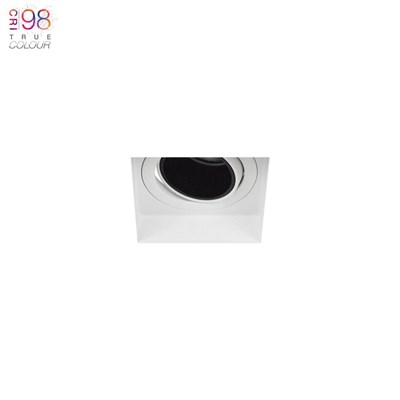

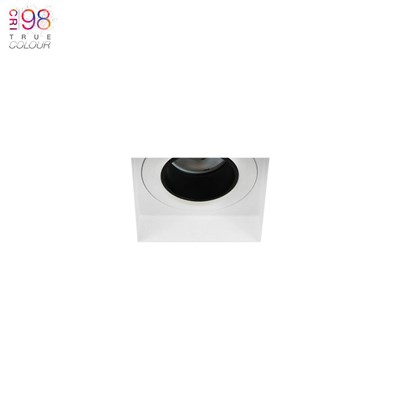

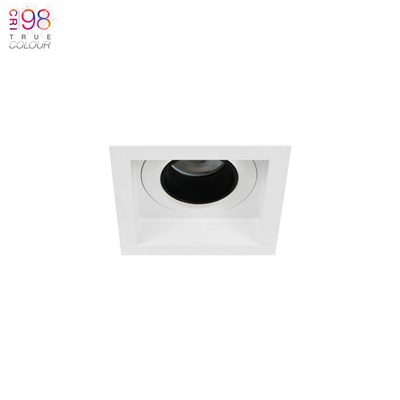

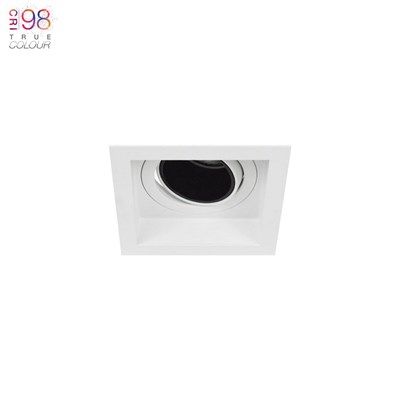

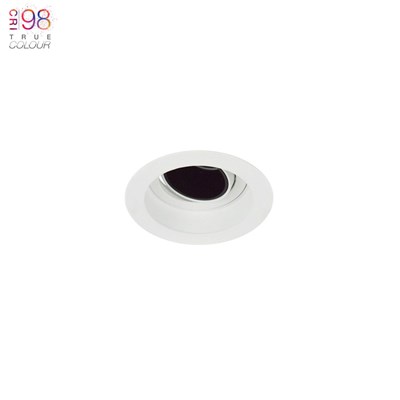

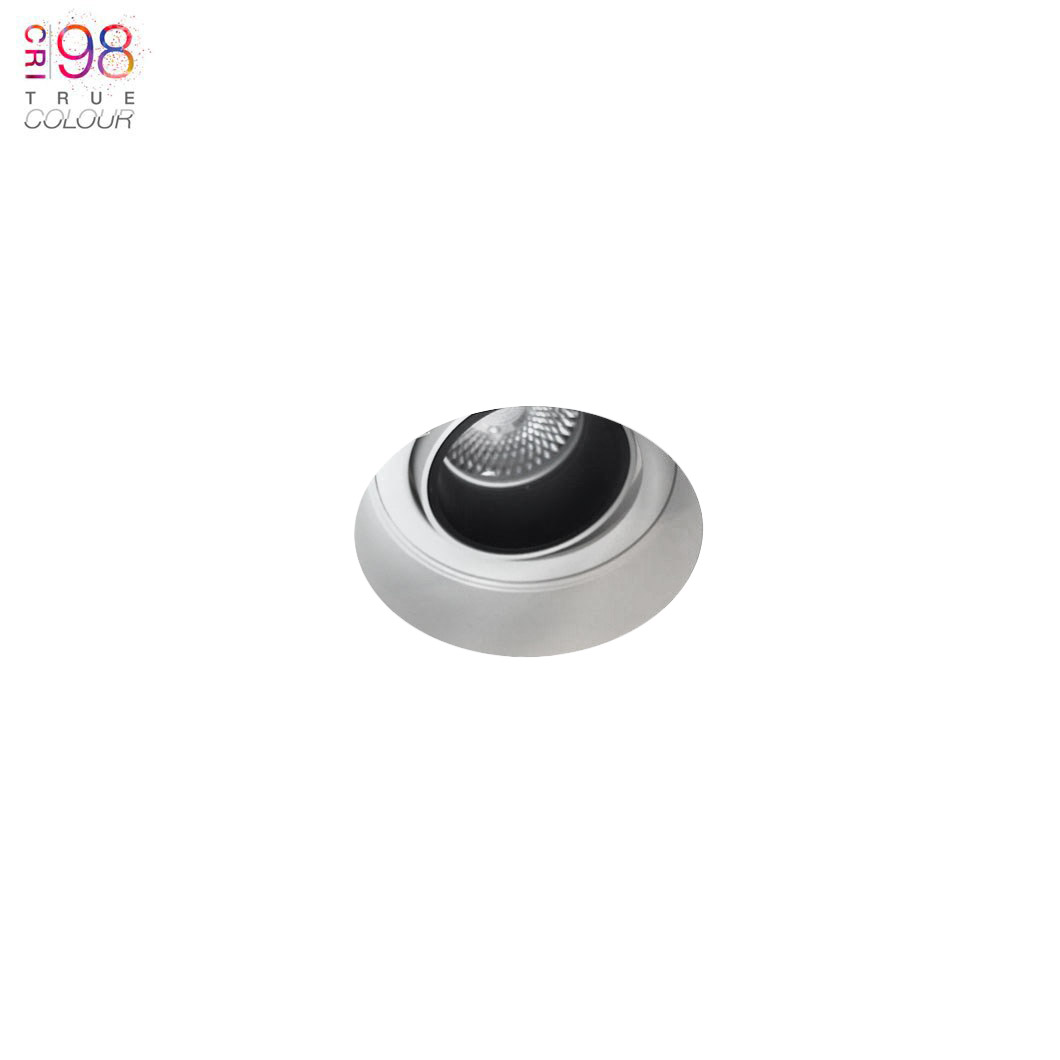

The DLD Andes Mini almost has a double anti-glare design, with not only a black baffle, but also a plaster frame with a deep recess. At just 6cm in diameter, the Andes Mini is ideal as a directional downlight for bathroom zone 2 (it's also suitable for standard rooms) thanks to the IP54 rating. The 24º adjustable tilt and 355º rotation mean Andes can be used to highlight specific walls or architectural features. As part of our True Colour range, this downlight has a CRI98 integral LED chip, rendering colours around your home at the highest quality.
Once the frame is installed into the ceiling it's easy to pop the LED light engine in and out, allowing for simple maintenance after installation. Beam angle is 36 degree as standard (for other beam angles, please enquire for availability). Die-cast aluminium luminaire with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. In white with black baffle. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. The Andes range is fully dimmable, supporting 0-10V, TRIAC or DALI drivers.
4000K colour temperature on demand - please contact for details.
Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch. See the 'You May Also Need...' section below for the available options and technical information.
Emergency lighting compatible
Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.
Currently in stock:
Orders placed before midday are delivered next working day
IP54 - suitable for bathroom zone 2
Beam angle: 36º (15º & 24º available on request)
Adjustable tilt: 24º
Adjustable rotation: 355º
True Colour CRI 98
Beam Angle | Colour Temperature | LM/W | Delivered Lumens:
15d | 2700ºK | 36lm | 288lm
36d | 2700ºK | 50lm | 400lm
15d | 3000ºK | 38lm | 304lm
36d | 3000ºK | 52lm | 416lm
15d | 4000ºK |
36d | 4000ºK |
Internal baffle dims: Ø63mm
Cut out: Ø65mm
Lamp type: Integral LED 7W, 180mA, CRI98 (true colour)
Product dimensions: H.90mm x Diameter.110mm
Cutout dimensions: Dia.65mm
Delivery varies for each product, please see product description
Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
