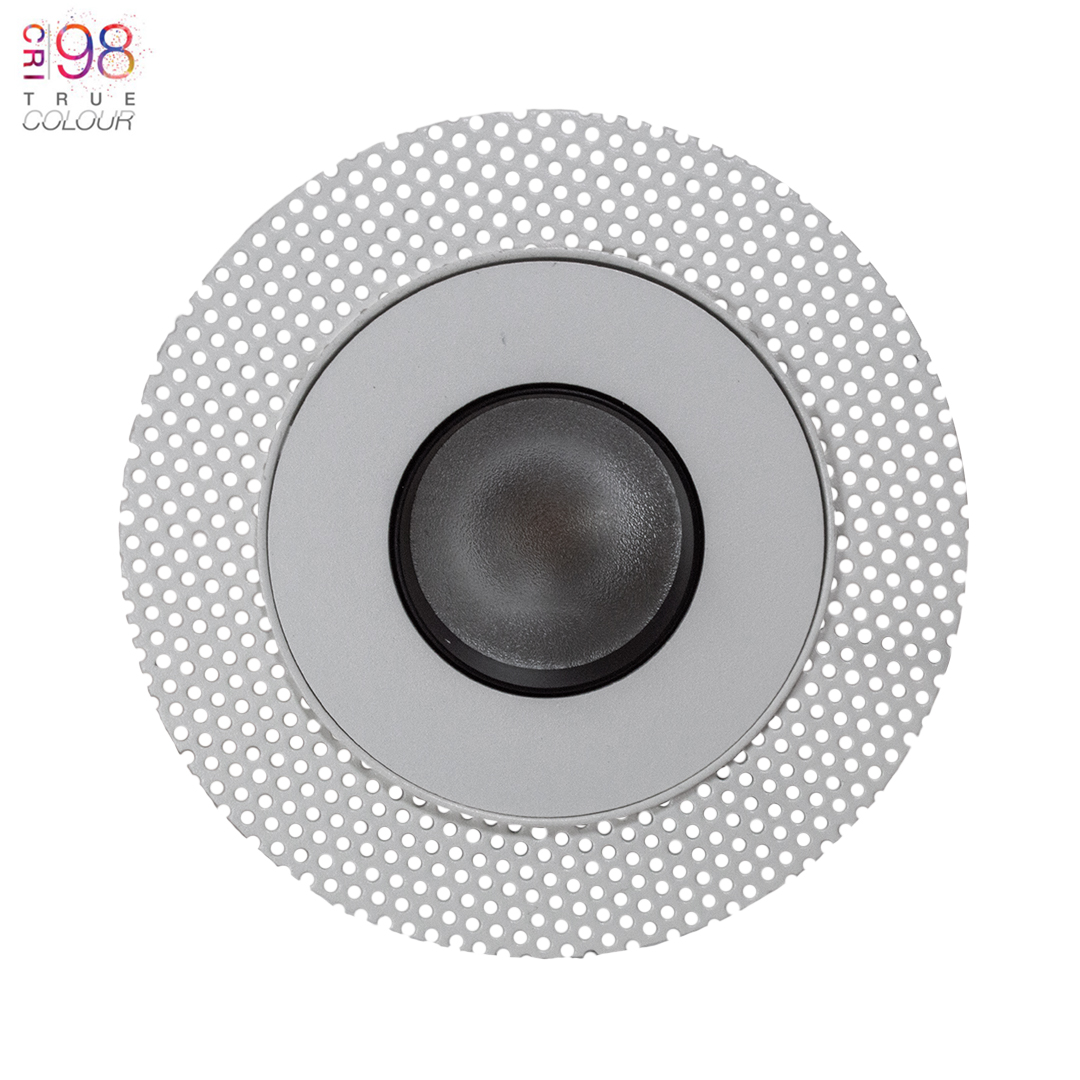

Atlas Baffle LED plaster in downlight fully recesses into the ceiling, creating a neat trim-less finish. Featuring a removable light engine with black baffle and white bezel, and available with a beam angle of 15º, 38º or 60º. The light engine can be simply accessed through a simple twist mechanism, which allows for easy maintenance. Atlas is a seamless flexible fitting suitable for using as a focused spotlight / wall washer or to flood an area with light. Utilising the up-to-date True Colour CRI98 LED COB technology, the Atlas range render colours with outstanding accuracy.
Luminaire in die-cast aluminium luminaire with steel housing with heat sink in forged aluminium for optimum heat dissipation. Bezel in black or white. Reflector in PC plastic. IP44 rated, suitable for installation in bathroom zones 1, 2 and 3. Complete with anti-glare frosted lens. Adjustable version also available. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Fully dimmable, supporting 0-10V, TRIAC or DALI drivers - see dropdown options.
4000K colour temperature on demand - please contact for details.
Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch. See the 'You May Also Need...' section below for the available options and technical information.
Emergency lighting compatible
Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.
Currently in stock:
All bezel finishes | all beam angles | 2700K & 3000K
Orders placed before midday are delivered next working day
Versions not in stock: delivery usually with 1-2 weeks
Lumen: 1387lm (3000ºK)
Delivered lumens: 700lm (3000ºK)
Beam angle: 15º, 38º or 60º
Colour temperature: 2700ºK or 3000ºK
Plaster-in frame: Ø117mm
60+ minute FR rating
Independently tested by Cambridge Fire Service
Emergency pack (optional)
1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations
Maintenance & Access
Product dimensions: H.83mm x Diameter.80mm
Cutout dimensions: Dia.85mm
Delivery varies for each product, please see product description
Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
