Winner of two Reddot Design Awards in 2020, among other prestigious accolades, the ultra-fine Minimal 24V suspension track by Arkoslight combines an energy-efficient, low-voltage lighting system with some of the smallest tracks and luminaires on the market.
Miniature size, minimalist design

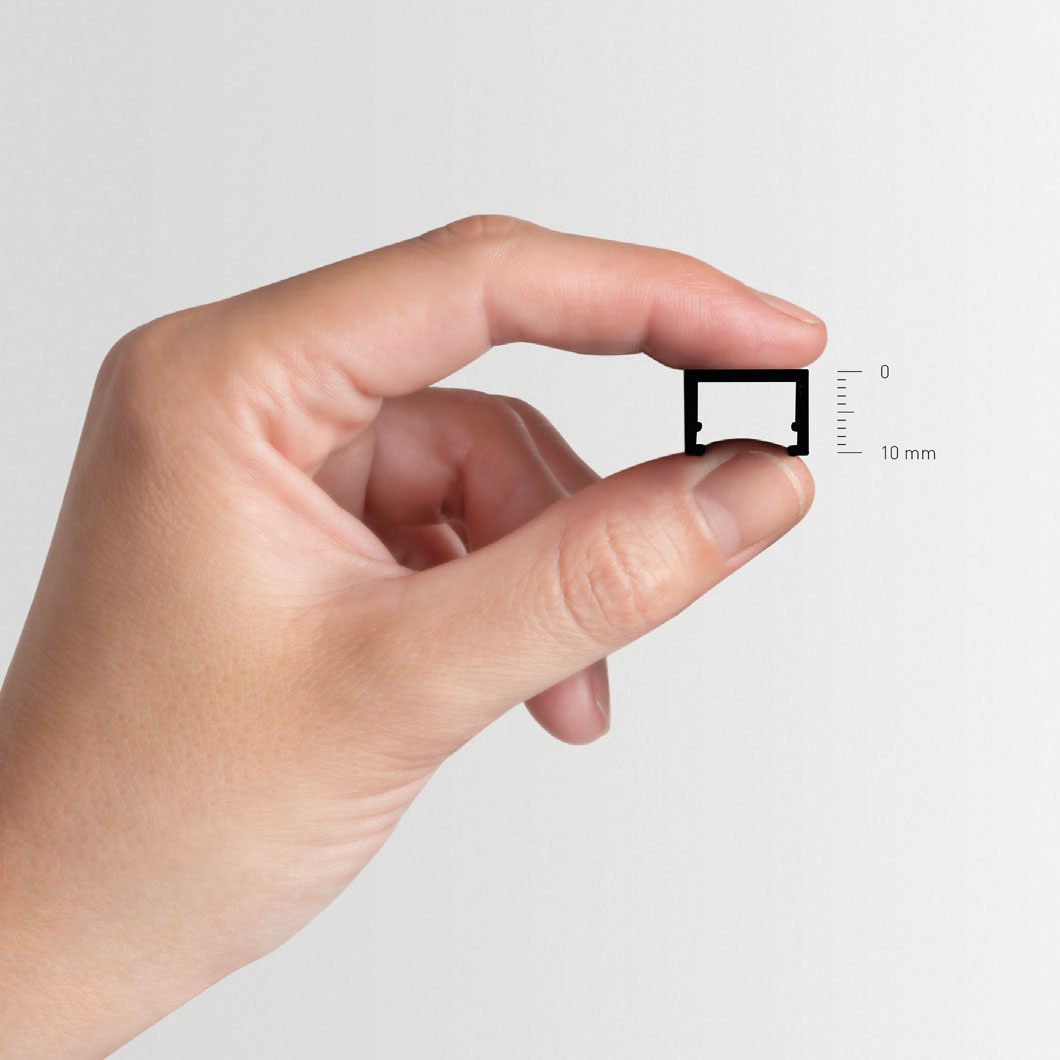

With a profile width of 15mm and a depth of just 10mm, Minimal 24V suspension track is designed to appear as a minimalist, floating black line, with a series of miniaturised LED modules to match the clean, compact aesthetic. The simple geometric design ideally complements modern and contemporary spaces. The versatile nature of the track system and its various available lighting effects make the Minimal 24V track capable of adapting to the needs of both residential and commercial environments.
Modular track lighting - minimal fuss

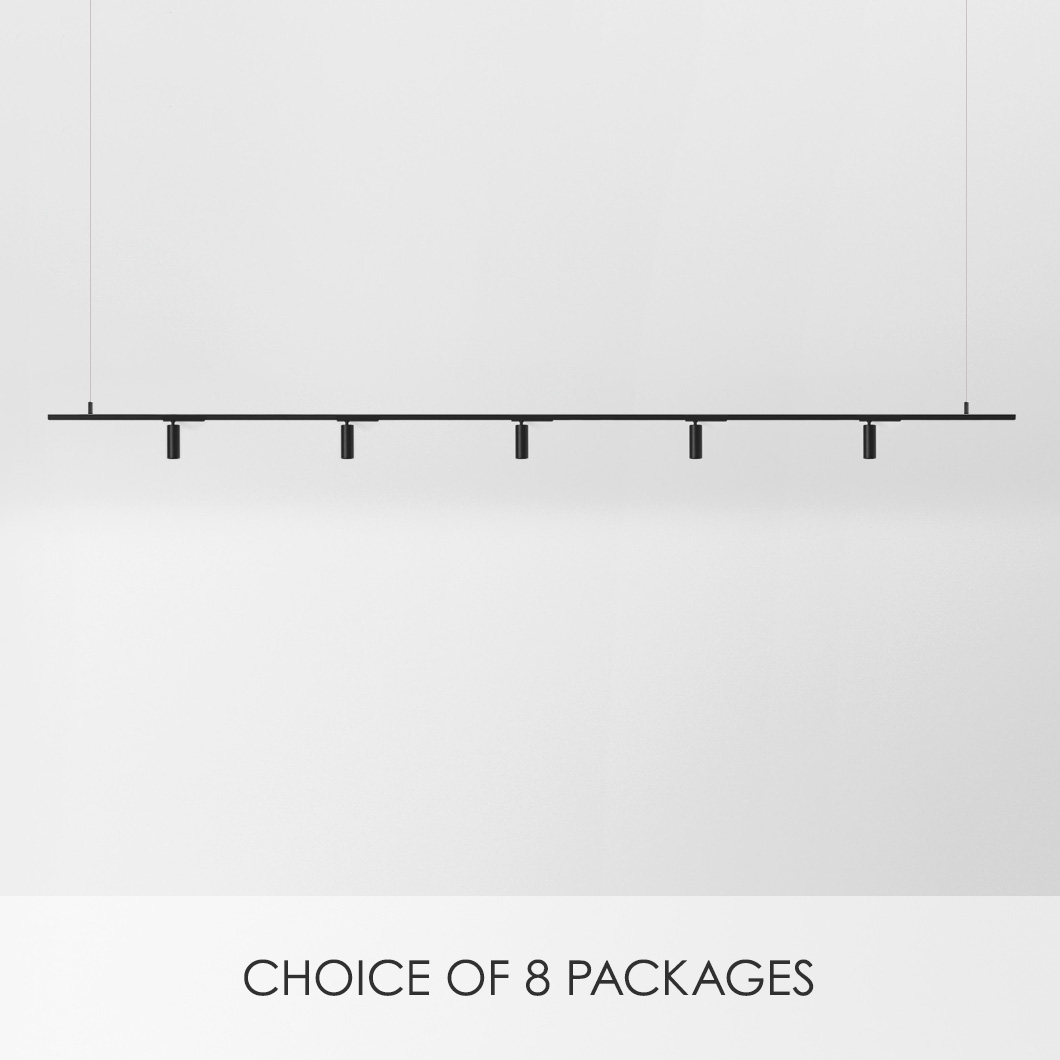

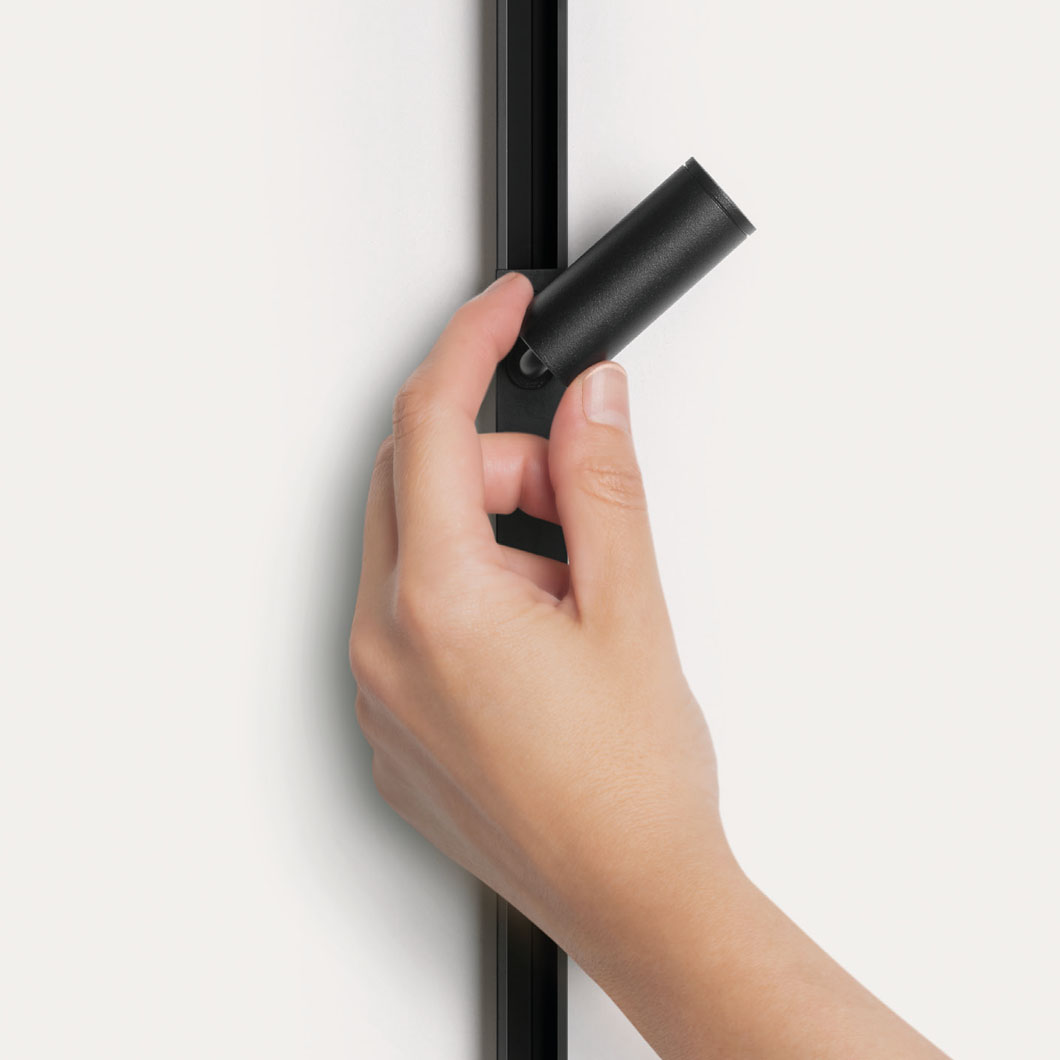

Our lighting designers have simplified track lighting by carefully curating 8 conveniently preset packages. Each configuration is complete with everything you need for full installation and functionality, including 2m track, LED modules and remote power supply. All packages deliver impactful architectural lighting with various combinations of LED downlights, pendants, and adjustable spotlight modules available to adapt the look of your system. Simple to install, the Minimal 24V track also offers easy removal or repositioning of light modules without the need for additional tools. See the Specification tab below for the full list of the components included in each package.
Dimming options
All track packages are non-dimmable as standard, but support multiple dimming types, including WIFI voice-dimming through integrated Amazon Alexa and Google Home compatibility.
Surface, suspended or trimless mounting

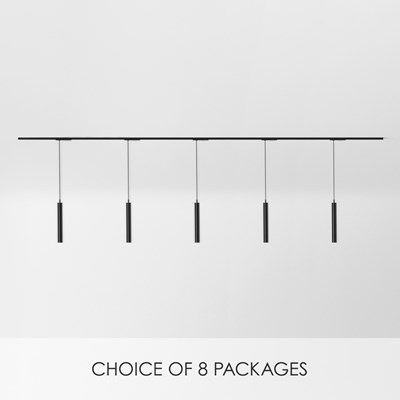

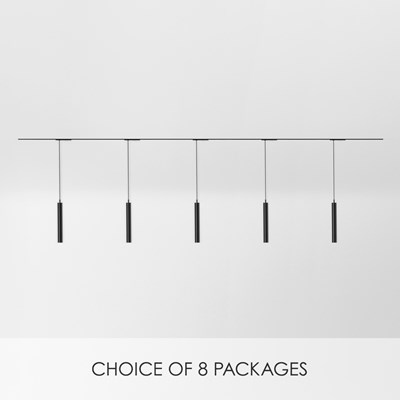

Minimal 24V trimless plaster-in track and Minimal 24V surface-mounted track packages are also available, see 'More Like This' below. Alternatively, for a completely customisable version of the Minimal 24V track system, see our Modular Track Components listing below.
Award-winning design
A true example of a leader in the lighting world, the Arkoslight Minimal 24V track system is the winner of multiple awards:
- Our Top Tips -
How do I order a track?
We know track lighting can be confusing, so we've simplified everything into preset packages for you!
- Use the dropdown options to select your track system package. Make sure to review the technical specification to see exactly what's included within each package.
- Choose from the required and optional dropdowns available.
- It's as easy as that!
- Please see the 'Downloads' tab below for helpful pdf guides on the track components, modules, and dimming options.
- Of course, if you need any assistance, we are more than happy for you to email us at [email protected] or call us on 01189 882294
What driver do I need?
- Minimal is a 24V track and therefore requires a 24V power supply. Simply add up the total number of watts from each module component included in your system (refer to the Specification tab). However, we recommend choosing the next largest driver in case of future upgrades.
Packages:
Package 1 | 10.5W:
5 x LED Module | Top Micro 24V (5 x 2.1W) | Black
2700K [A4300120NT]
3000K [A4300121NT]
1 x 2m suspension track profile | Initial feed | Black [A4000210N]
2 x 1m suspension rubber cable | Black [A4000001N]
1 x Suspension end caps | Black [A4000005N]
1 x Suspension kit | Black [A4000204N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)

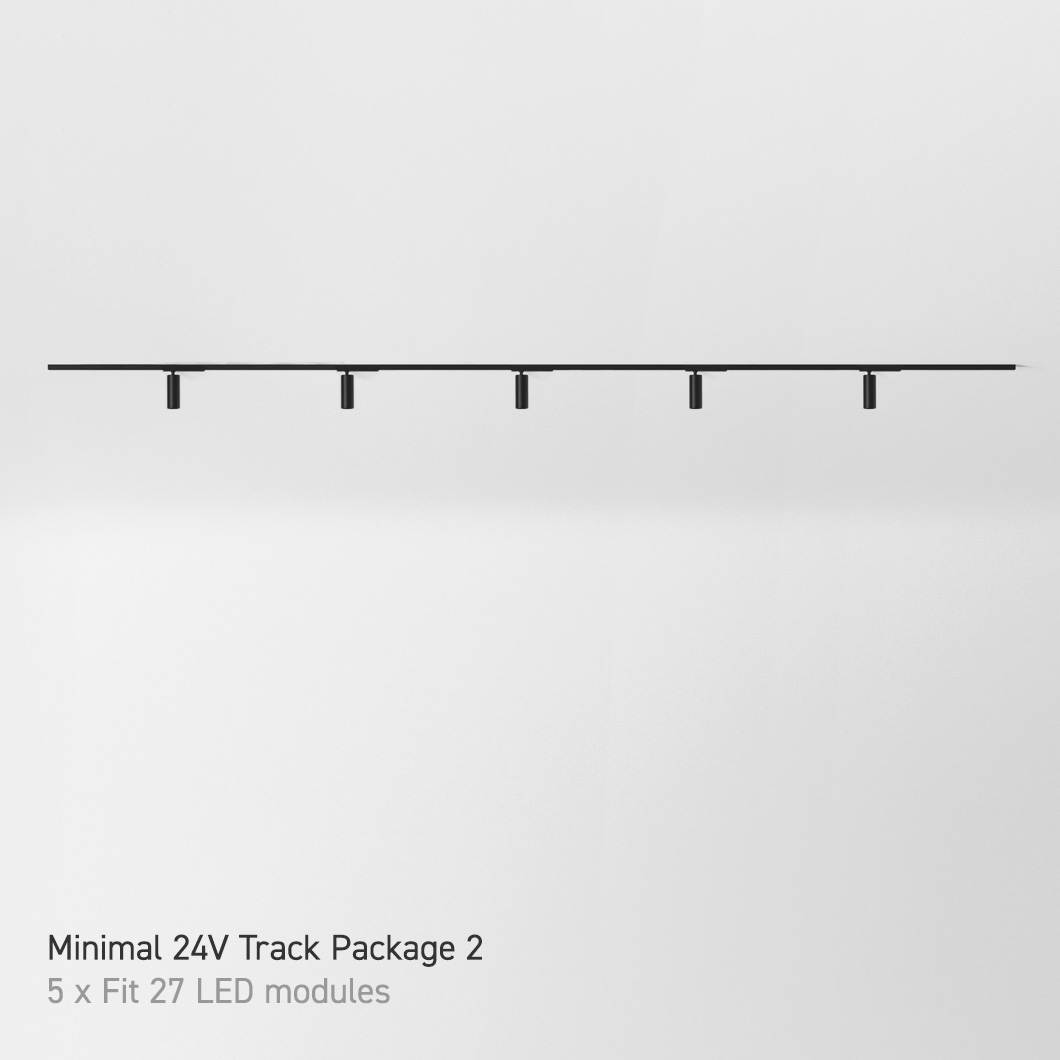

Package 2 | 22.5W:
5 x LED Module | Fit 27 24V (5 x 4.5W) | Black
2700K [A4320120NT]
3000K [A4320121NT]
1 x 2m suspension track profile | Initial feed | Black [A4000210N]
2 x 1m suspension rubber cable | Black [A4000001N]
1 x Suspension end caps | Black [A4000005N]
1 x Suspension kit | Black [A4000204N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)

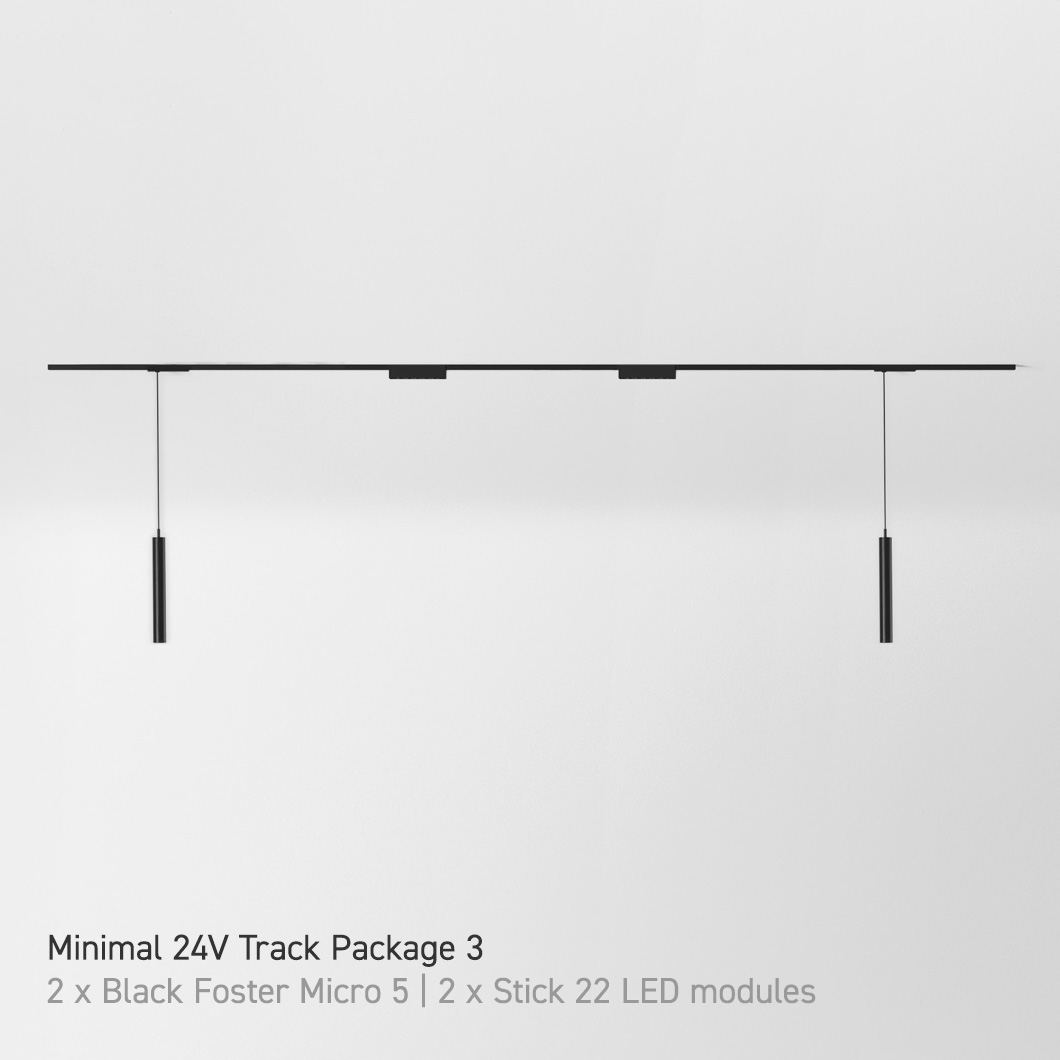

Package 3 | 21W:
2 x LED Module | Black Foster Micro 5 24V (2 x 7W) | Black
2700K [A4682010NT]
3000K [A4682011NT]
2 x LED Module | Stick 22 24V (2 x 4,5W) | Black
2700K [A4100120NT]
3000K [A4100121NT]
1 x 2m suspension track profile | Initial feed | Black [A4000210N]
2 x 1m suspension rubber cable | Black [A4000001N]
1 x Suspension end caps | Black [A4000005N]
1 x Suspension kit | Black [A4000204N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)

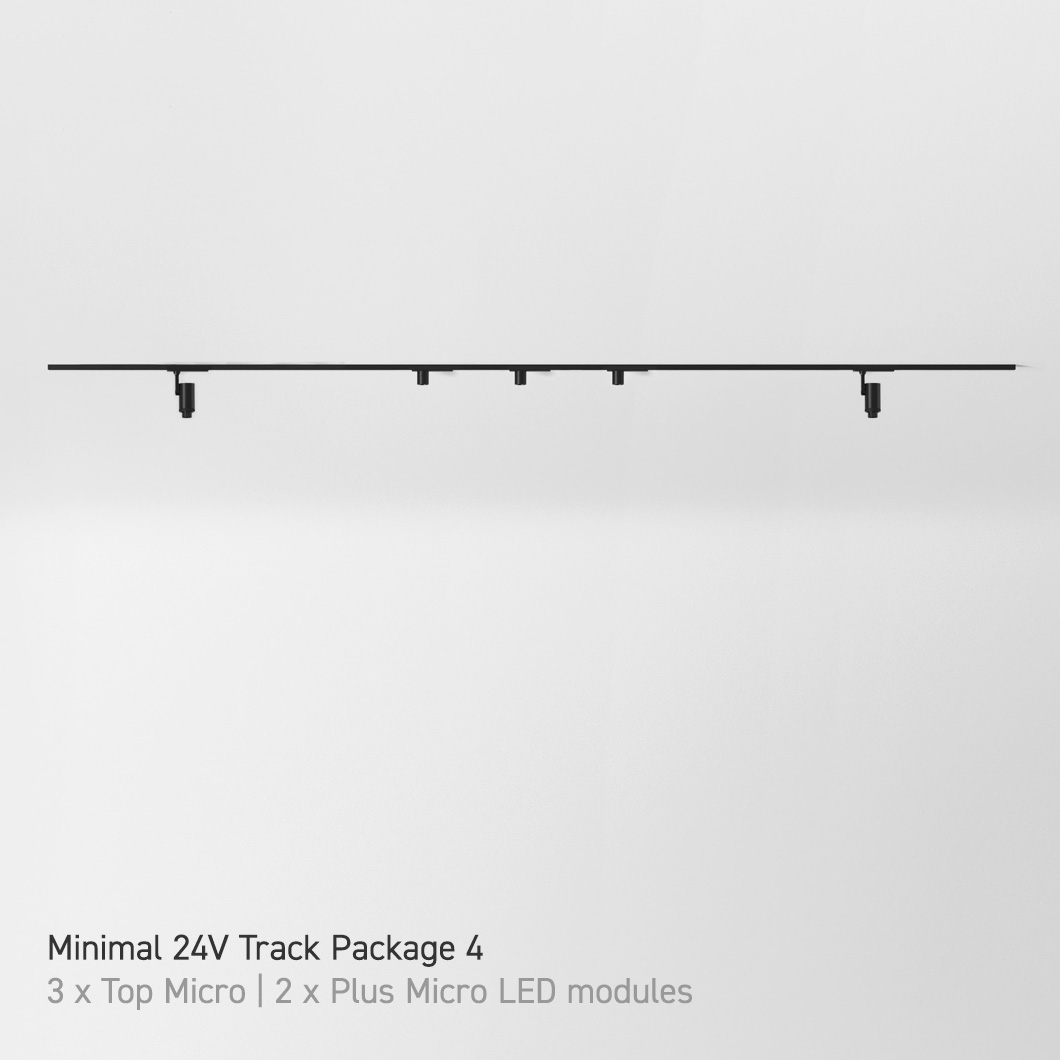

Package 4 | 15.7W
2 x LED Module | Plus Micro 24V (2 x 4,7W) | Black
2700K [A4330100NT]
3000K [A4330101NT]
3 x LED Module | Top Micro 24V (3 x 2,1W) | Black
2700K [A4300120NT]
3000K [A4300121NT]
1 x 2m suspension track profile | Initial feed | Black [A4000210N]
2 x 1m suspension rubber cable | Black [A4000001N]
1 x Suspension end caps | Black [A4000005N]
1 x Suspension kit | Black [A4000204N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Package 5 | 23.5W
5 x LED Module | Plus Micro 24V (5 x 4.7W) | Black
2700K [A4330100NT]
3000K [A4330101NT]
1 x 2m suspension track profile | Initial feed | Black [A4000210N]
2 x 1m suspension rubber cable | Black [A4000001N]
1 x Suspension end caps | Black [A4000005N]
1 x Suspension kit | Black [A4000204N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)

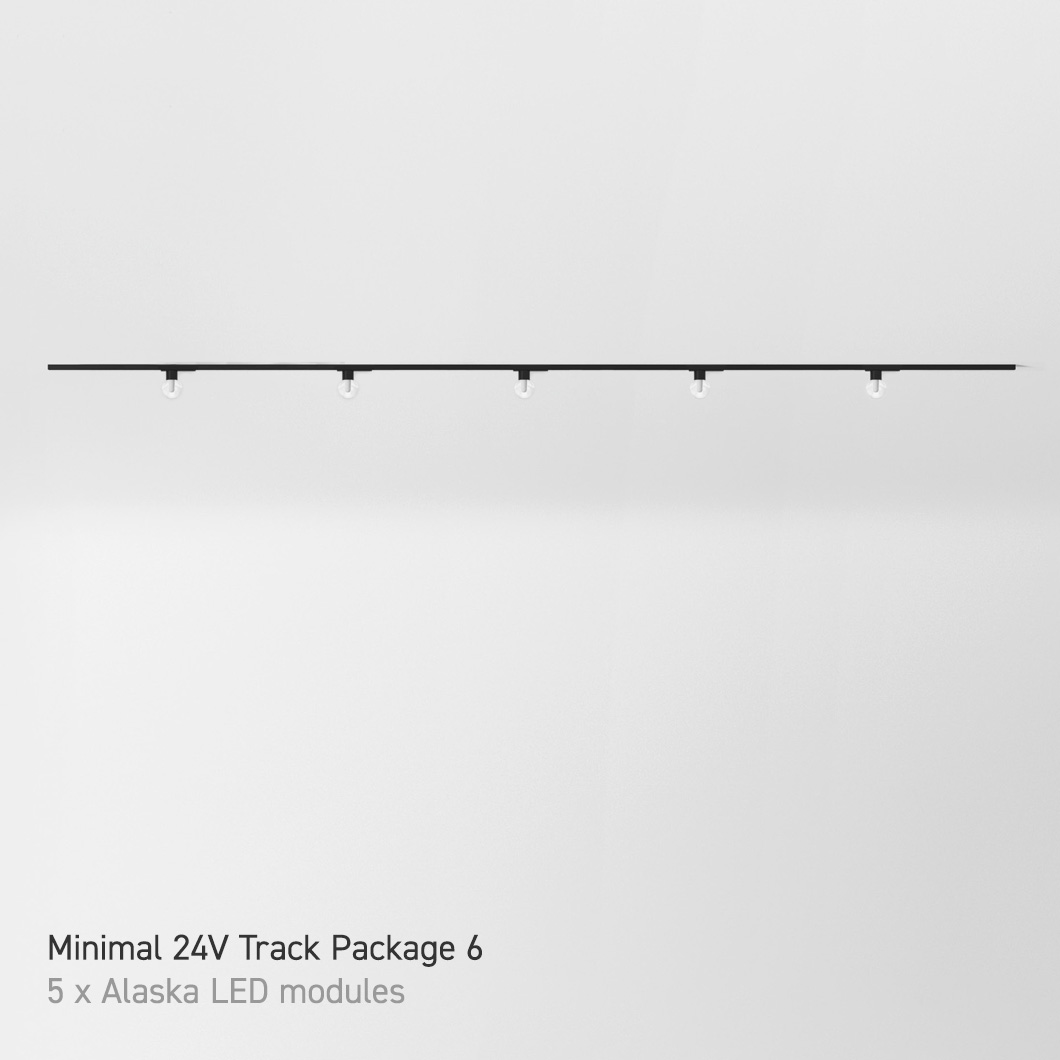

Package 6 | 17.5W
5 x LED Module | Alaska 24V (5 x 3.5W) | Black
2700K [A3850000N]
3000K [A3850001N]
1 x 2m suspension track profile | Initial feed | Black [A4000210N]
2 x 1m suspension rubber cable | Black [A4000001N]
1 x Suspension end caps | Black [A4000005N]
1 x Suspension kit | Black [A4000204N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)

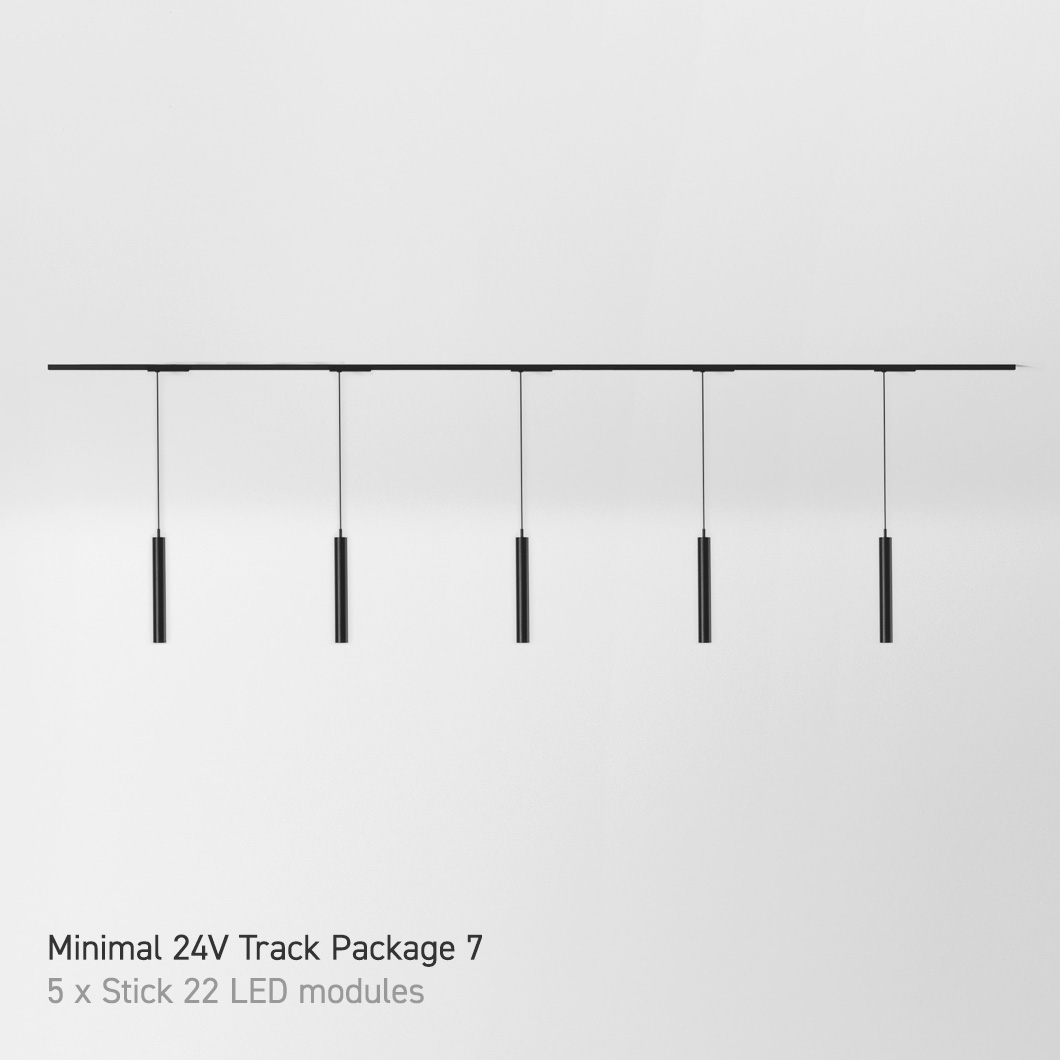

Package 7 | 22.5W
5 x LED Module | Stick 22 24V (5 x 4.5W) | Black
2700K [A4100120NT]
3000K [A4100121NT]
1 x 2m suspension track profile | Initial feed | Black [A4000210N]
2 x 1m suspension rubber cable | Black [A4000001N]
1 x Suspension end caps | Black [A4000005N]
1 x Suspension kit | Black [A4000204N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)

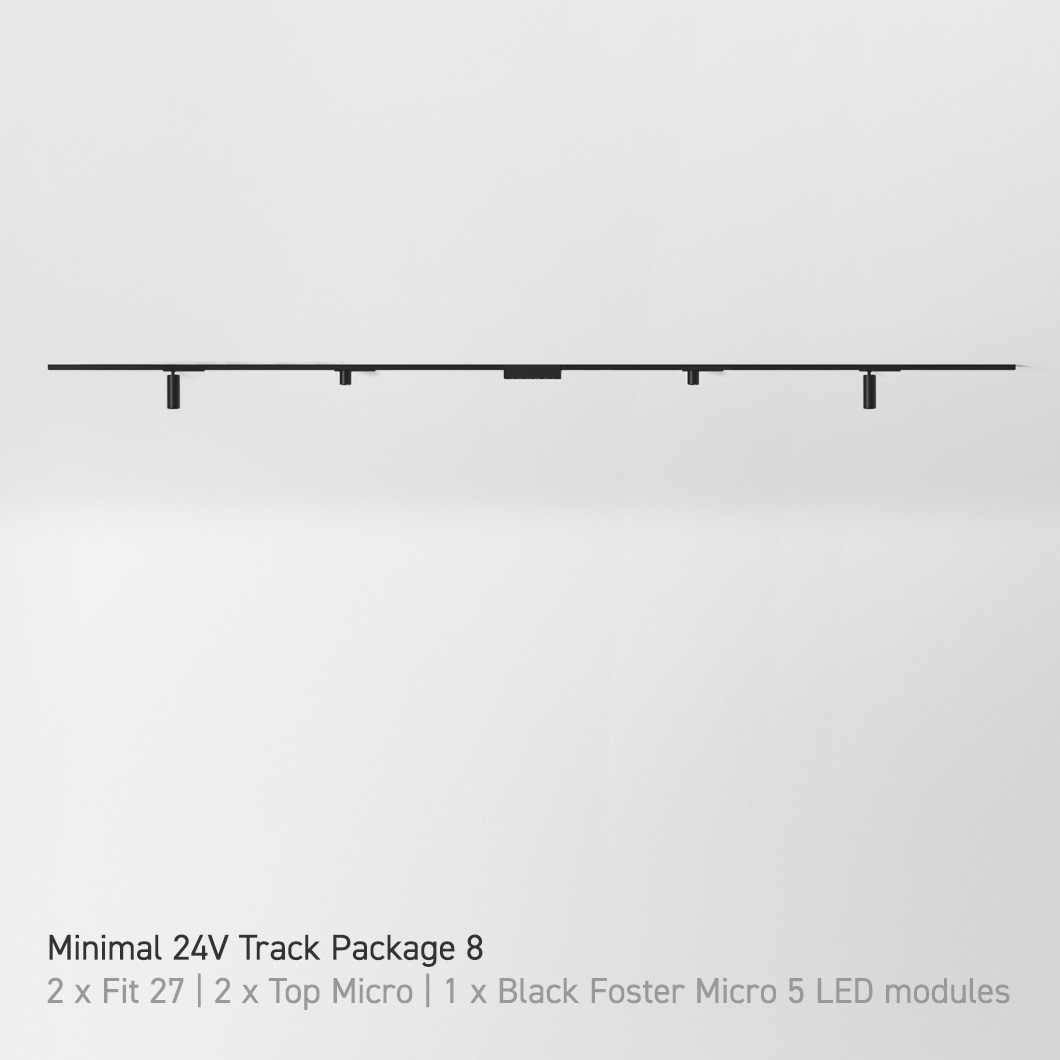

Package 8 | 20.2W
2 x LED Module | Fit 27 24V (2 x 4.5W) | Black
2700K [A4320120NT]
3000K [A4320121NT]
2 x LED Module | Top Micro 24V (2 x 2.1W) | Black
2700K [A4300120NT]
3000K [A4300121NT]
1 x LED Module | Black Foster Micro 5 24V (1 x 7W) | Black
2700K [A4682010NT]
3000K [A4682011NT]
1 x 2m suspension track profile | Initial feed | Black [A4000210N]
2 x 1m suspension rubber cable | Black [A4000001N]
1 x Suspension end caps | Black [A4000005N]
1 x Suspension kit | Black [A4000204N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Optional (All Packages):
Remote constant voltage Casambi (Bluetooth), WIFI or DALI/push dimmer (see dropdowns)
Track Dimensions:
Minimal Track 24V Profile (2m): W. 15mm, H. 10mm, D. 2000mm

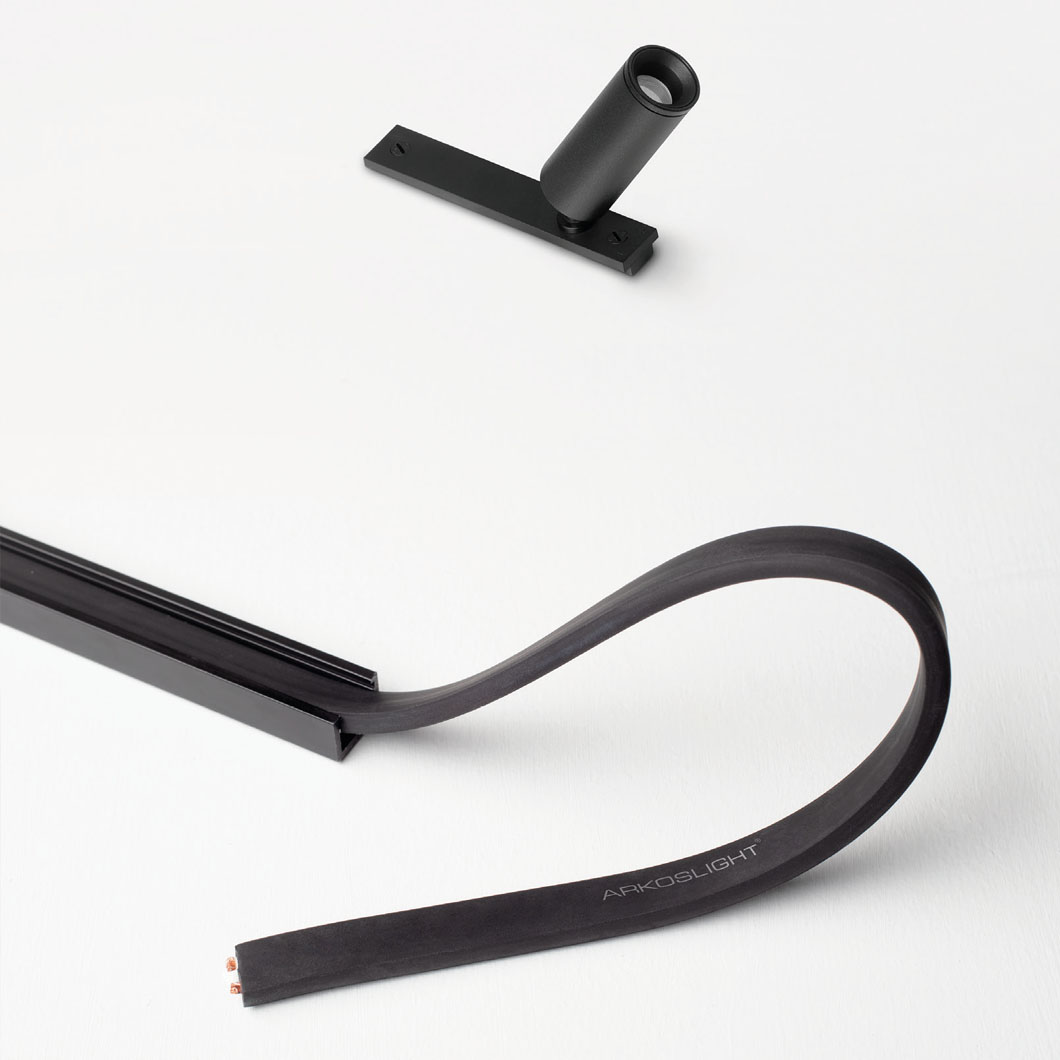

Minimal Track 24V Rubber Cable (1m): W. 11.5mm, H. 4.5mm, D. 1000mm
Drivers:
Remote Power Supply (on/off) | 60W 24V | 04340137 | 180 x 52 x 30mm
Power Supply Box Black (on/off) | 40W 24V | A4000006NT | 280 x 30 x 36mm
LED Module Specification:

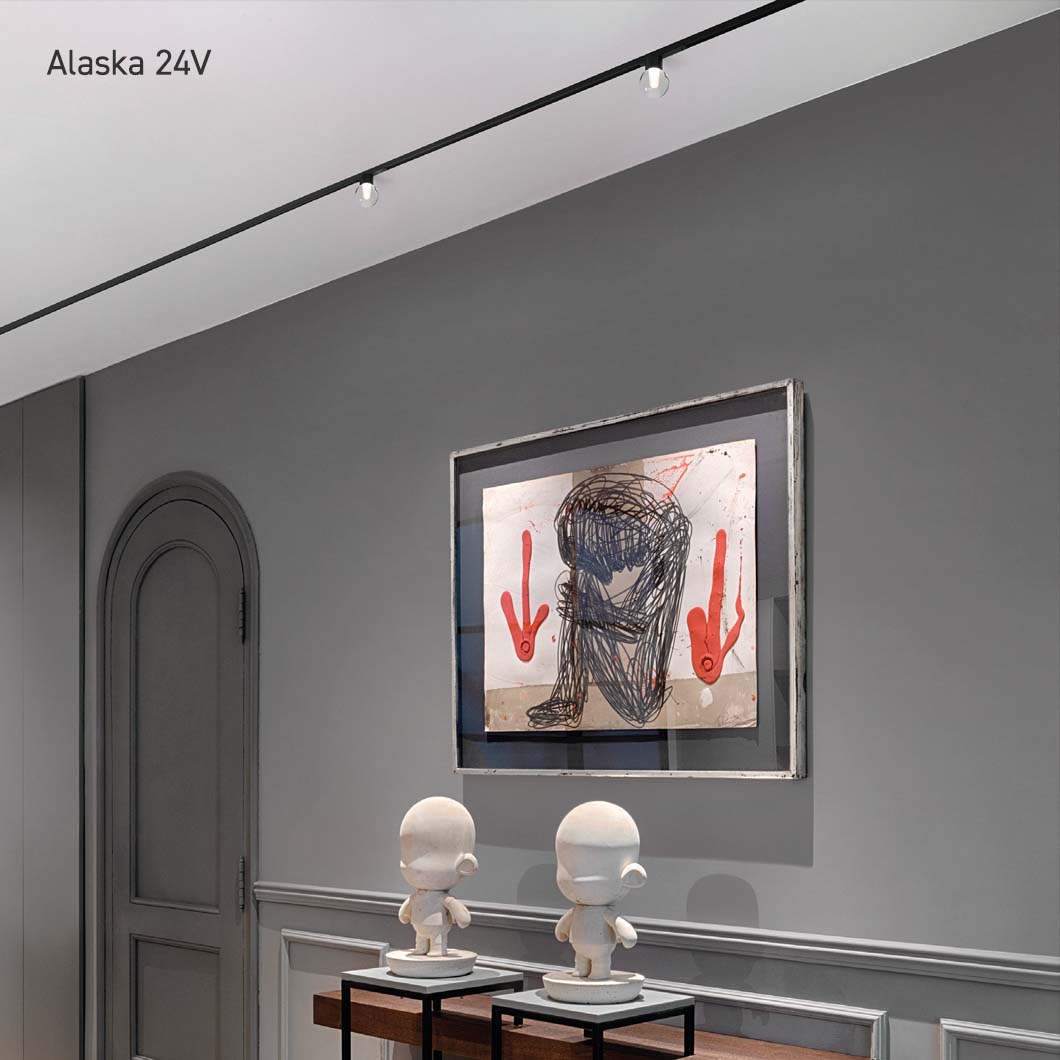

Alaska 24V 2700K [A3850000N]
Alaska 24V 3000K [A3850001N]
H. 72mm, Dia. 50mm
LED 3.5W / 400mA
Beam angle: 21°

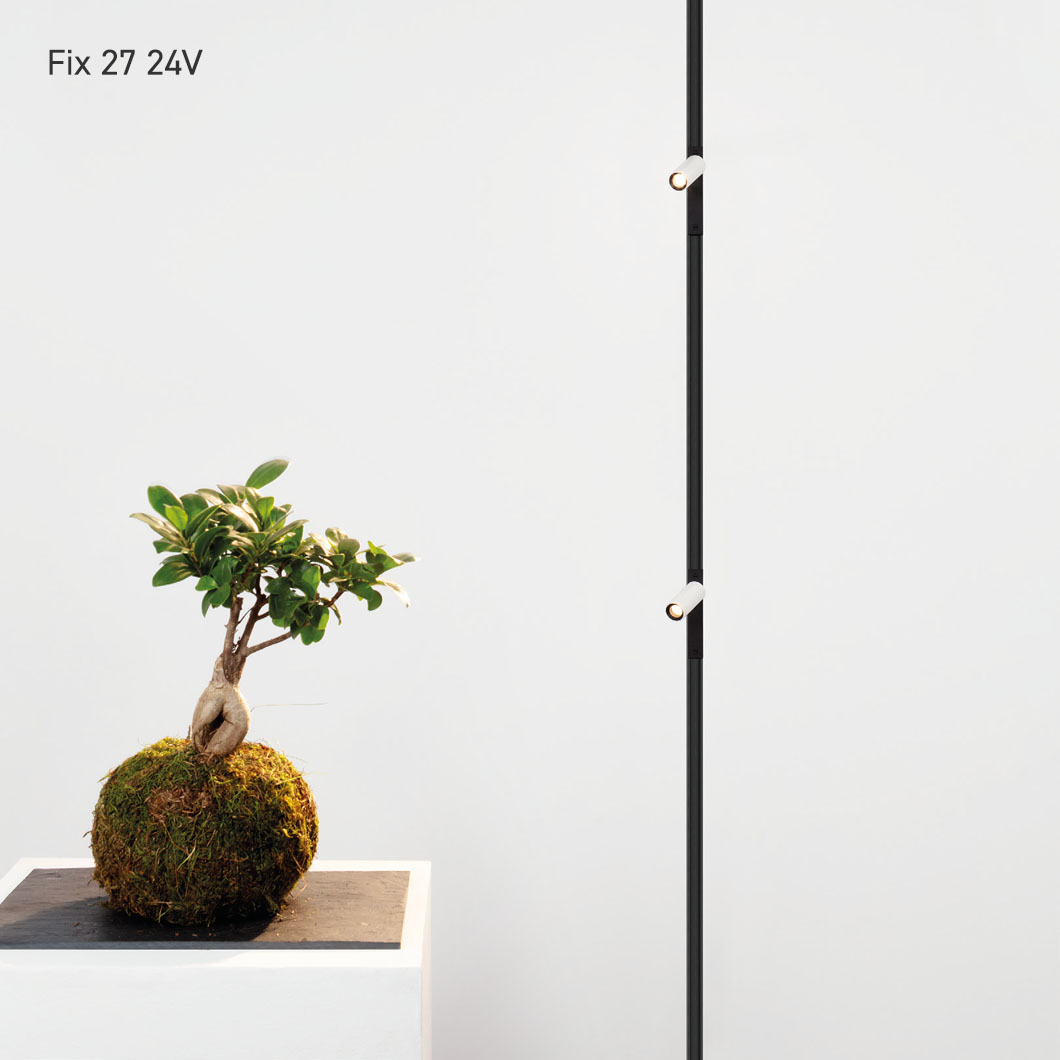

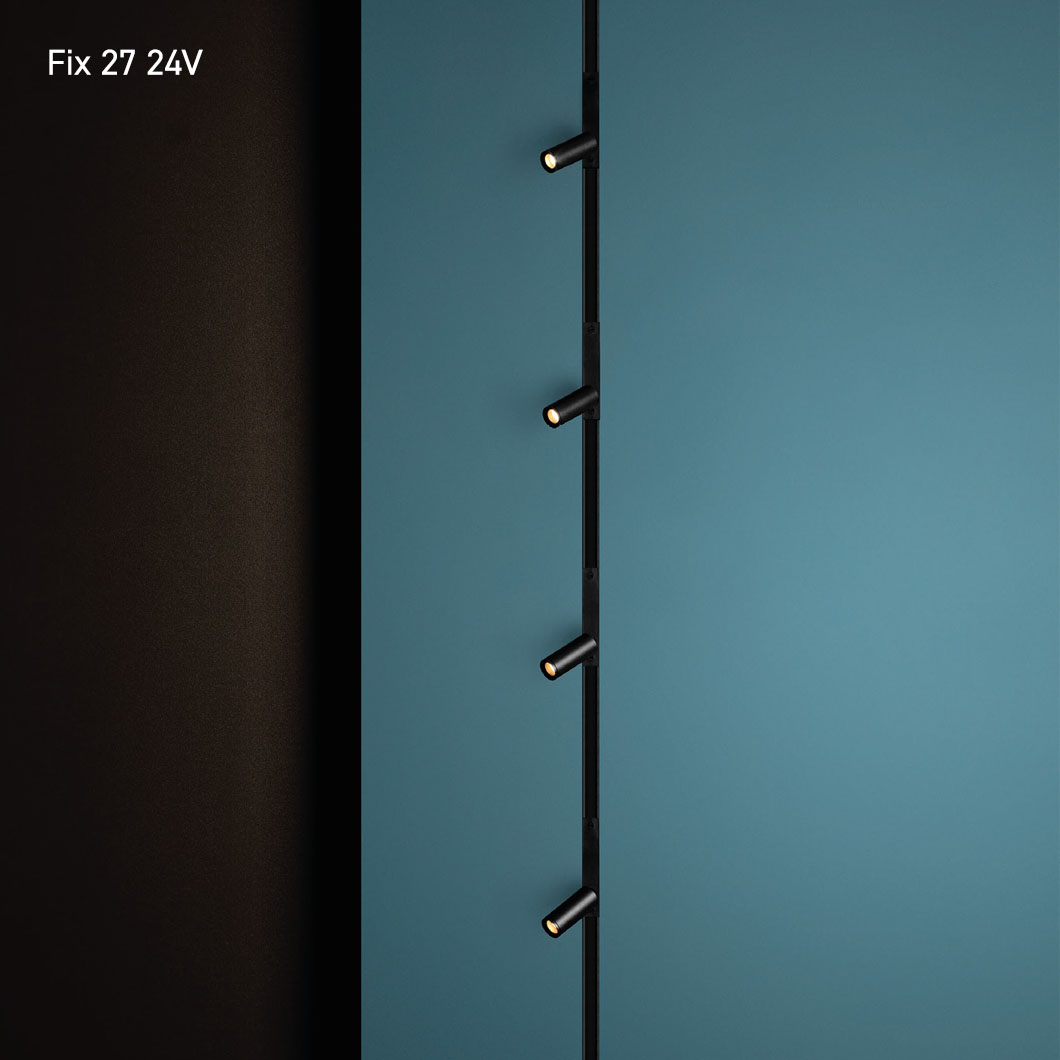

Fit 27 24V Medium 2700K Black 31º [A4320120NT]
Fit 27 24V Medium 3000K Black 31º [A4320121NT]
Dia. 20mm, H. 50mm
LED 4.5W / 400mA
Beam angle: 31°

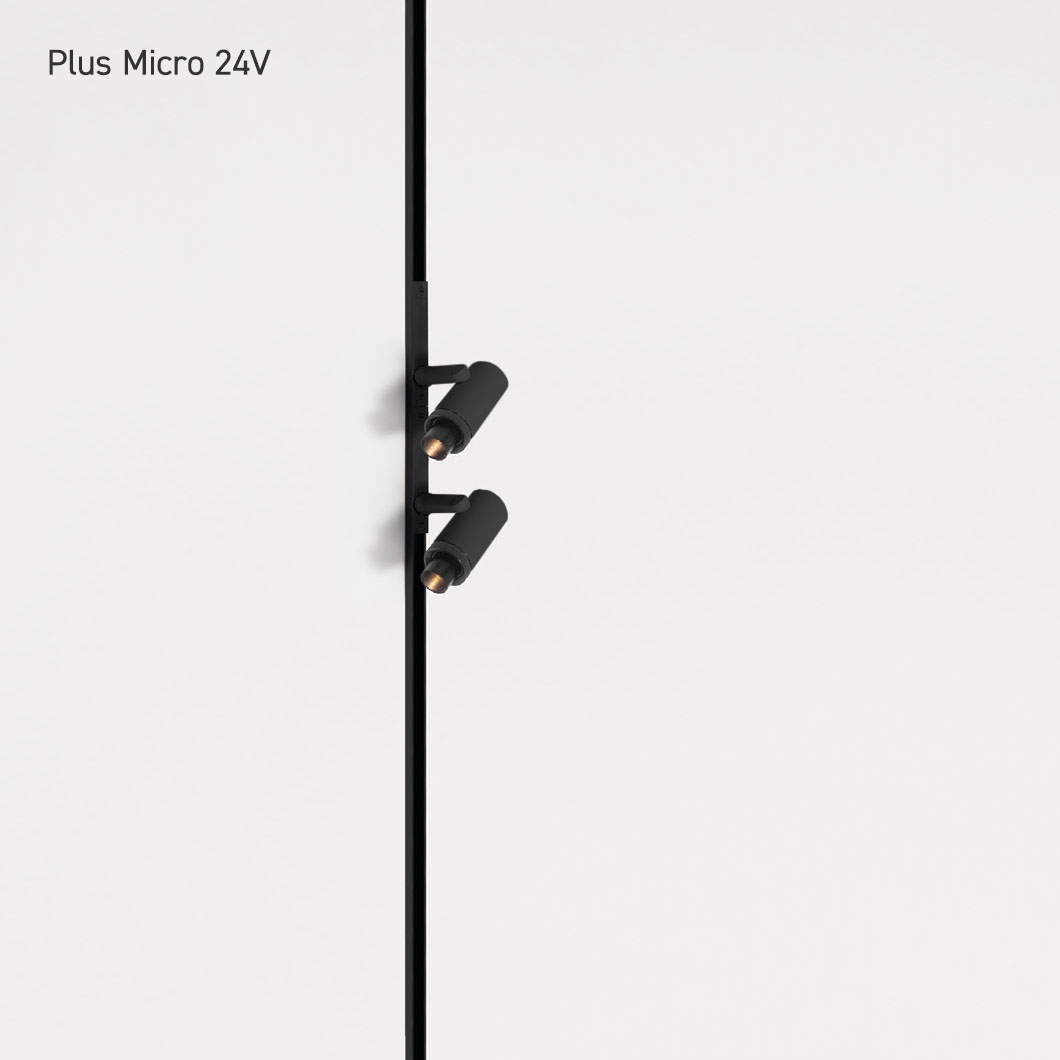

Plus Micro 24V 2700K Black [A4330100NT]
Plus Micro 24V 3000K Black [A4330101NT]
W. 44mm, Dia. 21mm, H. 65mm, D. 60mm
LED 4.7W / 400mA

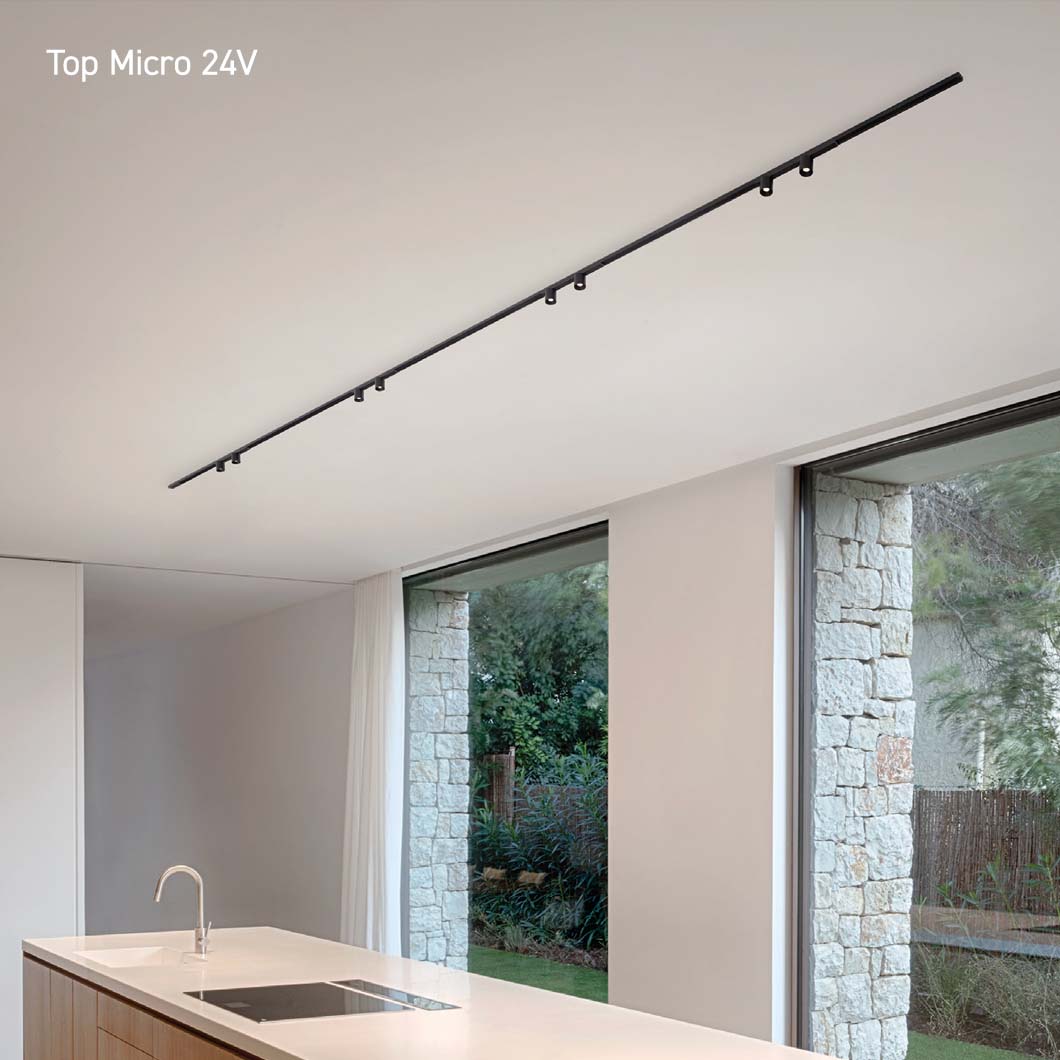

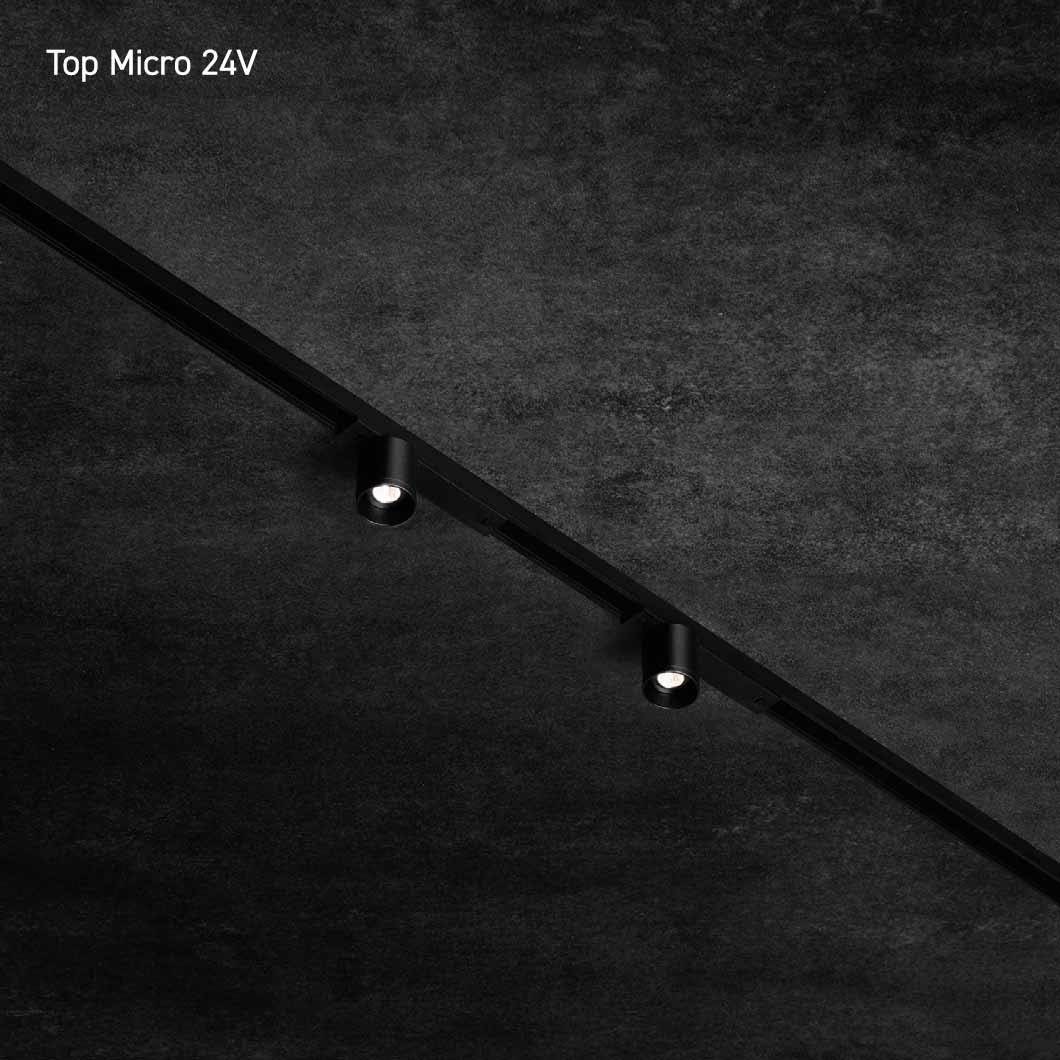

Top Micro 24V 38º 2700K Black [A4300120NT]
Top Micro 24V 38º 3000K Black [A4300121NT]
Dia. 25mm, H. 31mm
LED 2.1W / 700mA
Beam angle: 38°
Black Foster Micro 24V Surface 5 2700K Black [A4682010NT]
Black Foster Micro 24V Surface 5 3000K Black [A4682011NT]
W. 44mm, Dia. 199mm, H. 28mm, D. 22mm
LED 7W / 500mA
Beam angle: 37°
Stick 22 24V 2m 31º Medium 2700K Black [A3850000N]
Stick 22 24V 2m 31º Medium 3000K Black [A3850001N]
LED 4.5W
Cable length max. 2000mm
Beam angle: 31°
