Winner of the Reddot Award in 2020, the ultra-fine Minimal 24V surface mounted track lighting system by Arkoslight combines an energy efficient low voltage with some of the smallest tracks and luminaires on the market.
Miniature size, minimalist design
With a profile width 15mm and a depth of just 10mm, Minimal 24V surface mounted track is designed to appear as a minimalist line on the ceiling, with its small dimensions creating an almost trimless effect on the eye. The geometric aesthetic is a perfect fit for modern and contemporary spaces, and the suite of equally compact LED modules allows for different lighting effects to be easily created.
Modular track lighting - minimal fuss

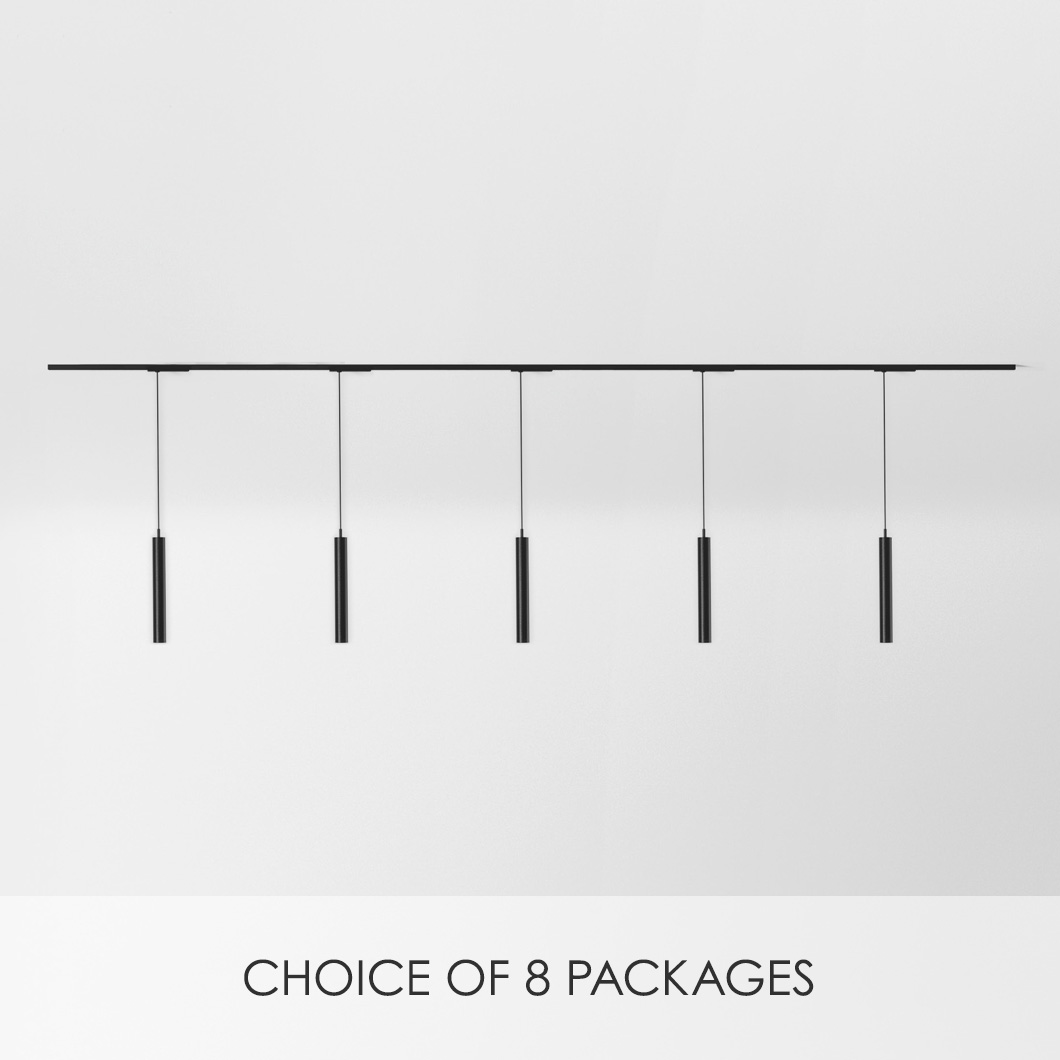

Our lighting designers have carefully curated 8 conveniently preset packages - each package is complete with everything you need for full installation, including 2m track, LED modules and remote power supply. All packages deliver impactful architectural lighting with various combinations of LED downlights, pendants, and adjustable spotlight modules available to adapt the look of your system. The Minimal 24V track is simple to install, and removal or repositioning of light modules is simple without the need for additional tools. See the Specification tab below for full list of the components included in each package.
Dimming options
All track packages are non-dimmable as standard, but support multiple dimming types, including WIFI voice-dimming through integrated Amazon Alexa and Google Home compatibility.
Surface, suspended or trimless mounting
Minimal 24V suspension track and Minimal 24V plaster-in track packages are also available, see 'More Like This' below. Alternatively, for a completely customisable version of the Minimal 24V track system, see our Modular Track Components listing below.
Award-winning design
The Arkoslight Minimal 24V track system is a true leader in the lighting world, and the winner of multiple awards:
- Our Top Tips -
How do I order a track?
We know track lighting can be confusing, so we've simplified everything into preset packages for you!
- Use the dropdown options to select your track system package. Make sure to review the technical specification to see exactly what's included within each package.
- Choose from the required and optional dropdowns available.
- It's as easy as that!
- Please see the 'Downloads' tab below for helpful pdf guides on the track components, modules, and dimming options.
- Of course, if you require any assistance, we are more than happy for you to email us at [email protected] or call us on 01189 882294
What driver do I need?
- Minimal is a 24V track and therefore requires a 24V power supply. Simply add up the total number of watts from each module component included in your system (refer to the Specification tab). However, we recommend choosing the next largest driver in case of future upgrades.
Packages:
Package 1 | 10.5W:
5 x LED Module | Top Micro 24V (5 x 2.1W) | Black
2700K [A4300120NT]
3000K [A4300121NT]
1 x 2m track profile | Black [A3840200N]
2 x 1m rubber cable | Black [A3840001N]
1 x End caps | Black [A3840005N]
1 x Connection box (remote driver only) | Black [A3840006N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Package 2 | 22.5W:
5 x LED Module | Fit 27 24V (5 x 4.5W) | Black
2700K [A4320120NT]
3000K [A4320121NT]
1 x 2m track profile | Black [A3840200N]
2 x 1m rubber cable | Black [A3840001N]
1 x End caps | Black [A3840005N]
1 x Connection box (remote driver only) | Black [A3840006N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Package 3 | 21W:
2 x LED Module | Black Foster Micro 5 24V (2 x 7W) | Black
2700K [A4682010NT]
3000K [A4682011NT]
2 x LED Module | Stick 22 24V (2 x 4,5W) | Black
2700K [A4100120NT]
3000K [A4100121NT]
1 x 2m track profile | Black [A3840200N]
2 x 1m rubber cable | Black [A3840001N]
1 x End caps | Black [A3840005N]
1 x Connection box (remote driver only) | Black [A3840006N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Package 4 | 15.7W
2 x LED Module | Plus Micro 24V (2 x 4,7W) | Black
2700K [A4330100NT]
3000K [A4330101NT]
3 x LED Module | Top Micro 24V (3 x 2,1W) | Black
2700K [A4300120NT]
3000K [A4300121NT]
1 x 2m track profile | Black [A3840200N]
2 x 1m rubber cable | Black [A3840001N]
1 x End caps | Black [A3840005N]
1 x Connection box (remote driver only) | Black [A3840006N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Package 5 | 23.5W
5 x LED Module | Plus Micro 24V (5 x 4.7W) | Black
2700K [A4330100NT]
3000K [A4330101NT]
1 x 2m track profile | Black [A3840200N]
2 x 1m rubber cable | Black [A3840001N]
1 x End caps | Black [A3840005N]
1 x Connection box (remote driver only) | Black [A3840006N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Package 6 | 17.5W
5 x LED Module | Alaska 24V (5 x 3.5W) | Black
2700K [A3850000N]
3000K [A3850001N]
1 x 2m track profile | Black [A3840200N]
2 x 1m rubber cable | Black [A3840001N]
1 x End caps | Black [A3840005N]
1 x Connection box (remote driver only) | Black [A3840006N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Package 7 | 22.5W
5 x LED Module | Stick 22 24V (5 x 4.5W) | Black
2700K [A4100120NT]
3000K [A4100121NT]
1 x 2m track profile | Black [A3840200N]
2 x 1m rubber cable | Black [A3840001N]
1 x End caps | Black [A3840005N]
1 x Connection box (remote driver only) | Black [A3840006N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Package 8 | 20.2W
2 x LED Module | Fit 27 24V (2 x 4.5W) | Black
2700K [A4320120NT]
3000K [A4320121NT]
2 x LED Module | Top Micro 24V (2 x 2.1W) | Black
2700K [A4300120NT]
3000K [A4300121NT]
1 x LED Module | Black Foster Micro 5 24V (1 x 7W) | Black
2700K [A4682010NT]
3000K [A4682011NT]
1 x 2m track profile | Black [A3840200N]
2 x 1m rubber cable | Black [A3840001N]
1 x End caps | Black [A3840005N]
1 x Connection box (remote driver only) | Black [A3840006N]
1 x 60W remote power supply or 40W Power Supply Box Black (see dropdowns)
Optional (All Packages):
Remote constant voltage Casambi (Bluetooth), WIFI or DALI/push dimmer (see dropdowns)
Track Dimensions:
Minimal Track 24V Profile (2m): W. 15mm, H. 10mm, D. 2000mm
Minimal Track 24V Rubber Cable (1m): W. 11.5mm, H. 4.5mm, D. 1000mm
Drivers:
Remote Power Supply (on/off) | 60W 24V | 04340137 | 180 x 52 x 30mm
Power Supply Box Black (on/off) | 40W 24V | A3840007NT | 280 x 30 x 24mm
LED Module Specification:
Alaska 24V 2700K [A3850000N]
Alaska 24V 3000K [A3850001N]
H. 72mm, Dia. 50mm
LED 3.5W / 400mA
Beam angle: 21°
Fit 27 24V Medium 2700K Black 31º [A4320120NT]
Fit 27 24V Medium 3000K Black 31º [A4320121NT]
Dia. 20mm, H. 50mm
LED 4.5W / 400mA
Beam angle: 31°
Plus Micro 24V 2700K Black [A4330100NT]
Plus Micro 24V 3000K Black [A4330101NT]
W. 44mm, Dia. 21mm, H. 65mm, D. 60mm
LED 4.7W / 400mA
Top Micro 24V 38º 2700K Black [A4300120NT]
Top Micro 24V 38º 3000K Black [A4300121NT]
Dia. 25mm, H. 31mm
LED 2.1W / 700mA
Beam angle: 38°
Black Foster Micro 24V Surface 5 2700K Black [A4682010NT]
Black Foster Micro 24V Surface 5 3000K Black [A4682011NT]
W. 44mm, Dia. 199mm, H. 28mm, D. 22mm
LED 7W / 500mA
Beam angle: 37°
Stick 22 24V 2m 31º Medium 2700K Black [A3850000N]
Stick 22 24V 2m 31º Medium 3000K Black [A3850001N]
LED 4.5W
Cable length max. 2000mm
Beam angle: 31°
