Our preset, all-inclusive track system compositions are designed to help you navigate track lighting with ease. For a completely customisable version of the minimal 24V track system, see our Track Components listing below in More Like This. Rest assured, our packages include all track parts & accessories necessary for complete track functionality. Combine multiple compositions to create a spectacle of architectural lighting. 24V Minimal track also allows for WIFI voice-dimming through integrated Amazon Alexa and Google Home compatibility. This listing is for the trimless plaster-in track; suspended and surface-mounted versions of these track packages are available below in 'More Like This'.

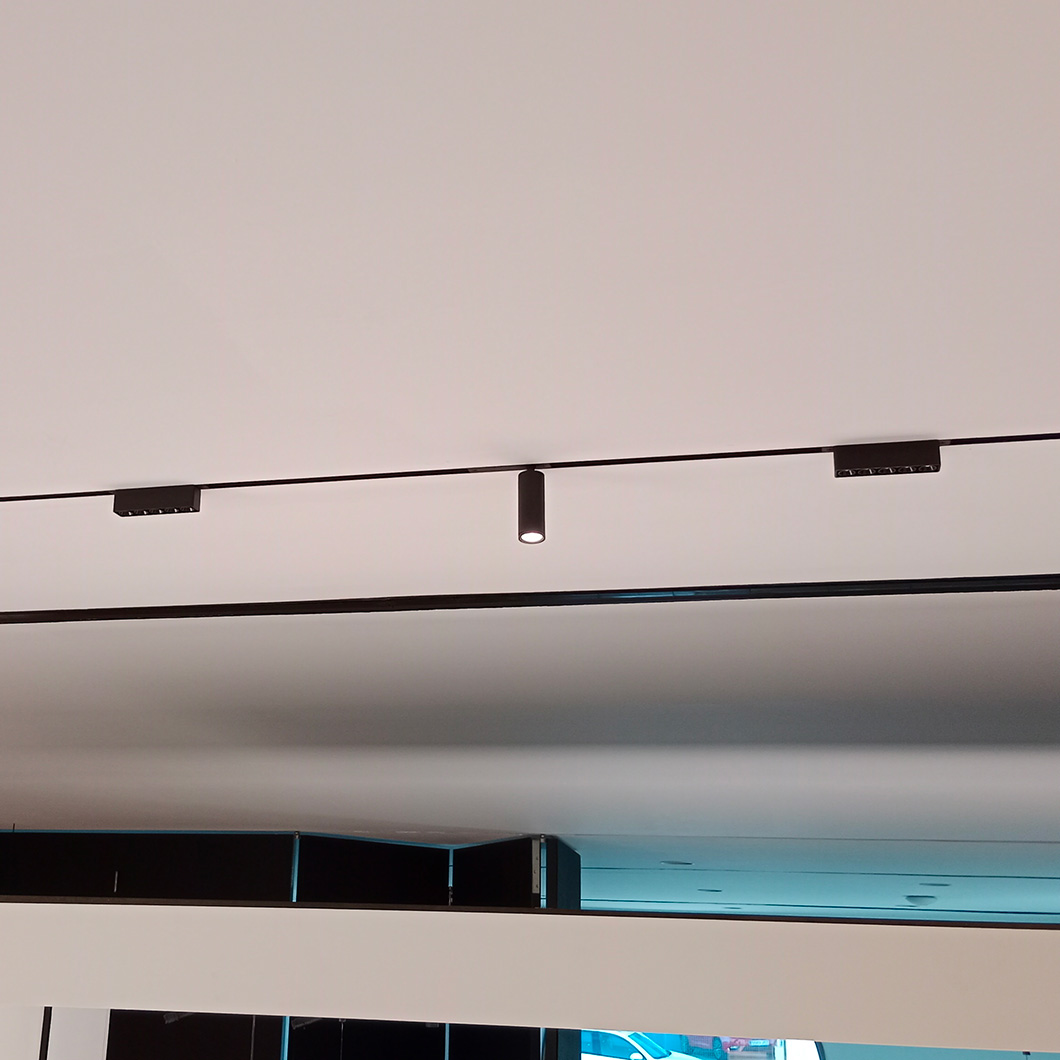

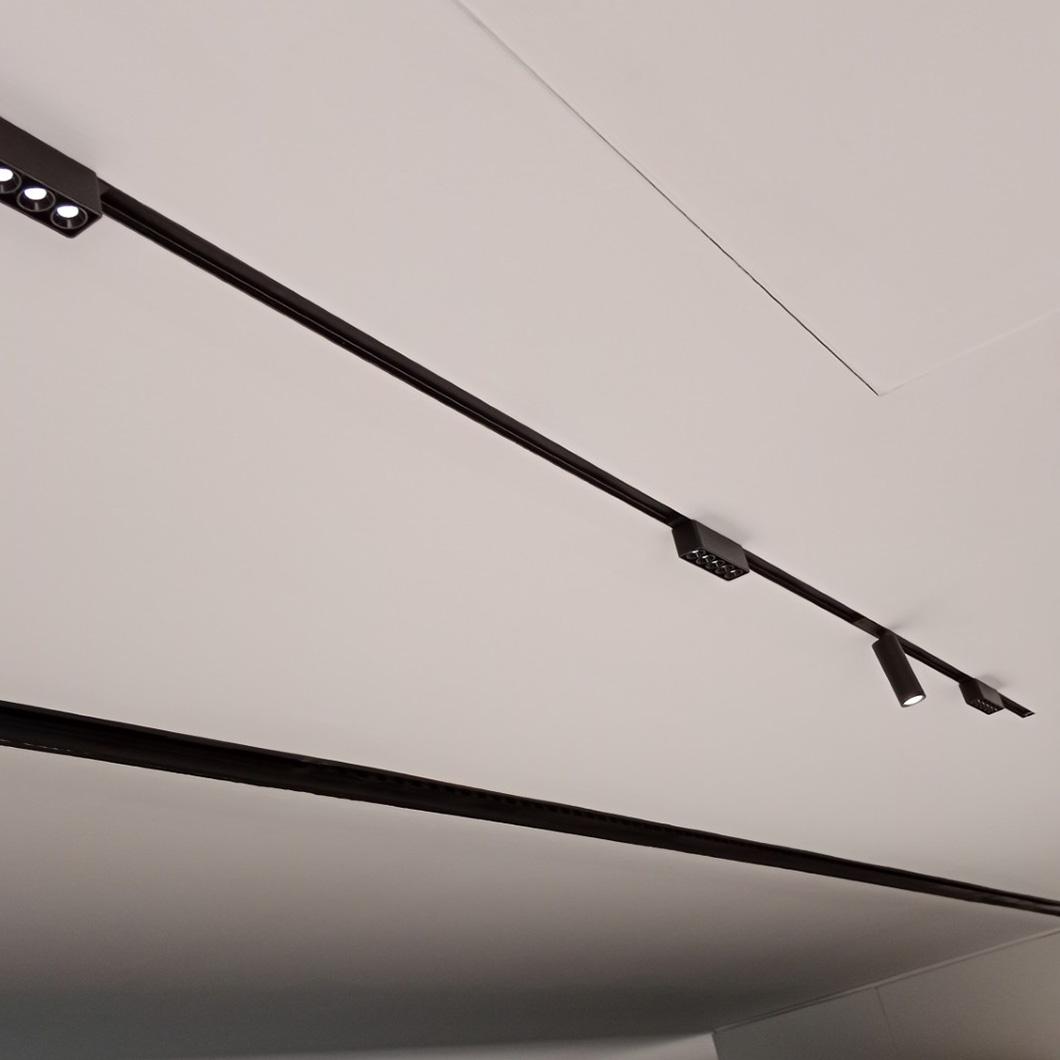

Minimal 24V track system is a miniaturised trimless plaster-in modular track system offering energy-efficient low voltage. The thin, compact and minimalist design of the track gives a 'visual trimless’ effect on the ceiling. Track systems allow for versatility; track lines can be created at will and a range of different lights can be installed on one track. Simple installation means each luminaire can be easily removed or repositioned with no need for tools to create a unique composition of architectural lighting.
Accolades:
RedDot winner 2020 - Innovative product
RedDot winner 2020 - Lighting Design
Delta Awards 20 bronze
European Product Design 2020 honourable mention
This track is non-dimmable as standard but dimmable via Bluetooth with Casambi or WIFI on request - please enquire for more information.
- Our Top Tips -
How do I order a track?
We know track lighting can be confusing so we've simplified everything into pre-set packages for you!
- Use the dropdown options to select your track system package. Make sure to look at the technical specification to see exactly what's included within each package.
- Choose from the required and optional dropdowns available.
- It's as easy as that!
- Please see the 'Downloads' tab below for helpful pdf guides on the track components, modules, and dimming options.
- Of course, if you would like any help with anything, we are more than happy for you to email us at [email protected] or call us on 01189 882294
What driver do I need?
- Minimal is a 24V track and therefore requires a 24V power supply. Simply add up the total number of watts from each module component included in your system (refer to the Specification tab). However, we recommend choosing the next largest driver in case of future upgrades.

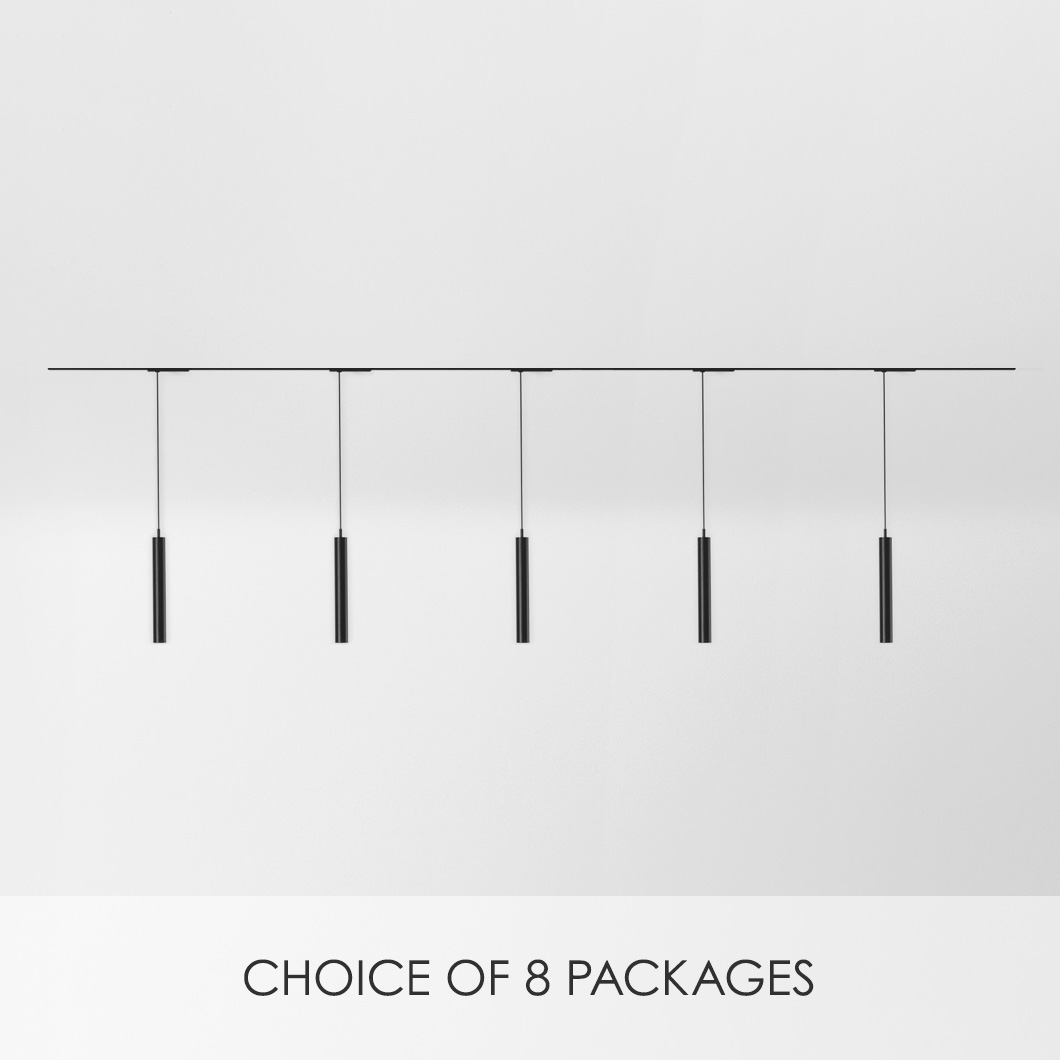

Packages:
Package 1 | 10.5W:
5 x LED Module | Top Micro 24V (5 x 2.1W) | Black
2700K [A4300120NT]
3000K [A4300121NT]
1 x 2m track profile | Black [A4670200N]
2 x 1m rubber cable | Black [A4670001N]
1 x End caps | Black [A4670005N]
1 x Connection box (remote driver only) | Black [A4670007N]
1 x 60W remote power supply or 100W remote power supply (see dropdowns)
Package 2 | 22.5W:
5 x LED Module | Fit 27 24V (5 x 4.5W) | Black
2700K [A4320120NT]
3000K [A4320121NT]
1 x 2m track profile | Black [A4670200N]
2 x 1m rubber cable | Black [A4670001N]
1 x End caps | Black [A4670005N]
1 x Connection box (remote driver only) | Black [A4670007N]
1 x 60W remote power supply or 100W remote power supply (see dropdowns)
Package 3 | 21W:
2 x LED Module | Black Foster Micro 5 24V (2 x 7W) | Black
2700K [A4682010NT]
3000K [A4682011NT]
2 x LED Module | Stick 22 24V (2 x 4,5W) | Black
2700K [A4100120NT]
3000K [A4100121NT]
1 x 2m track profile | Black [A4670200N]
2 x 1m rubber cable | Black [A4670001N]
1 x End caps | Black [A4670005N]
1 x Connection box (remote driver only) | Black [A4670007N]
1 x 60W remote power supply or 100W remote power supply (see dropdowns)
Package 4 | 15.7W
2 x LED Module | Plus Micro 24V (2 x 4,7W) | Black
2700K [A4330100NT]
3000K [A4330101NT]
3 x LED Module | Top Micro 24V (3 x 2,1W) | Black
2700K [A4300120NT]
3000K [A4300121NT]
1 x 2m track profile | Black [A4670200N]
2 x 1m rubber cable | Black [A4670001N]
1 x End caps | Black [A4670005N]
1 x Connection box (remote driver only) | Black [A4670007N]
1 x 60W remote power supply or 100W remote power supply (see dropdowns)
Package 5 | 23.5W
5 x LED Module | Plus Micro 24V (5 x 4.7W) | Black
2700K [A4330100NT]
3000K [A4330101NT]
1 x 2m track profile | Black [A4670200N]
2 x 1m rubber cable | Black [A4670001N]
1 x End caps | Black [A4670005N]
1 x Connection box (remote driver only) | Black [A4670007N]
1 x 60W remote power supply or 100W remote power supply (see dropdowns)
Package 6 | 17.5W
5 x LED Module | Alaska 24V (5 x 3.5W) | Black
2700K [A3850000N]
3000K [A3850001N]
1 x 2m track profile | Black [A4670200N]
2 x 1m rubber cable | Black [A4670001N]
1 x End caps | Black [A4670005N]
1 x Connection box (remote driver only) | Black [A4670007N]
1 x 60W remote power supply or 100W remote power supply (see dropdowns)
Package 7 | 22.5W
5 x LED Module | Stick 22 24V (5 x 4.5W) | Black
2700K [A4100120NT]
3000K [A4100121NT]
1 x 2m track profile | Black [A4670200N]
2 x 1m rubber cable | Black [A4670001N]
1 x End caps | Black [A4670005N]
1 x Connection box (remote driver only) | Black [A4670007N]
1 x 60W remote power supply or 100W remote power supply (see dropdowns)
Package 8 | 20.2W
2 x LED Module | Fit 27 24V (2 x 4.5W) | Black
2700K [A4320120NT]
3000K [A4320121NT]
2 x LED Module | Top Micro 24V (2 x 2.1W) | Black
2700K [A4300120NT]
3000K [A4300121NT]
1 x LED Module | Black Foster Micro 5 24V (1 x 7W) | Black
2700K [A4682010NT]
3000K [A4682011NT]
1 x 2m track profile | Black [A4670200N]
2 x 1m rubber cable | Black [A4670001N]
1 x End caps | Black [A4670005N]
1 x Connection box (remote driver only) | Black [A4670007N]
1 x 60W remote power supply or 100W remote power supply (see dropdowns)
Optional (All Packages):
Remote constant voltage Casambi (Bluetooth), WIFI or DALI/push dimmer (see dropdowns)
Track Dimensions:
Minimal Track 24V Profile (2m): W.15.5mm, H. 18mm, D. 2000mm
Minimal Track 24V Rubber Cable (1m): W. 11.5mm, H. 4.5mm, D. 1000mm
Drivers:
Remote Power Supply (on/off) | 60W 24V | 04340137 | 180 x 52 x 30mm
Remote Power Supply (on/off) | 100W 24V | 04331022 | 295 x 43 x 30mm
LED Module Specification:
Alaska 24V 2700K [A3850000N]
Alaska 24V 3000K [A3850001N]
H. 72mm, Dia. 50mm
LED 3.5W / 400mA
Beam angle: 21°
Fit 27 24V Medium 2700K Black 31º [A4320120NT]
Fit 27 24V Medium 3000K Black 31º [A4320121NT]
Dia. 20mm, H. 50mm
LED 4.5W / 400mA
Beam angle: 31°
Plus Micro 24V 2700K Black [A4330100NT]
Plus Micro 24V 3000K Black [A4330101NT]
W. 44mm, Dia. 21mm, H. 65mm, D. 60mm
LED 4.7W / 400mA
Top Micro 24V 38º 2700K Black [A4300120NT]
Top Micro 24V 38º 3000K Black [A4300121NT]
Dia. 25mm, H. 31mm
LED 2.1W / 700mA
Beam angle: 38°
Black Foster Micro 24V Surface 5 2700K Black [A4682010NT]
Black Foster Micro 24V Surface 5 3000K Black [A4682011NT]
W. 44mm, Dia. 199mm, H. 28mm, D. 22mm
LED 7W / 500mA
Beam angle: 37°
Stick 22 24V 2m 31º Medium 2700K Black [A3850000N]
Stick 22 24V 2m 31º Medium 3000K Black [A3850001N]
LED 4.5W
Cable length max. 2000mm
Beam angle: 31°
