- Description
-

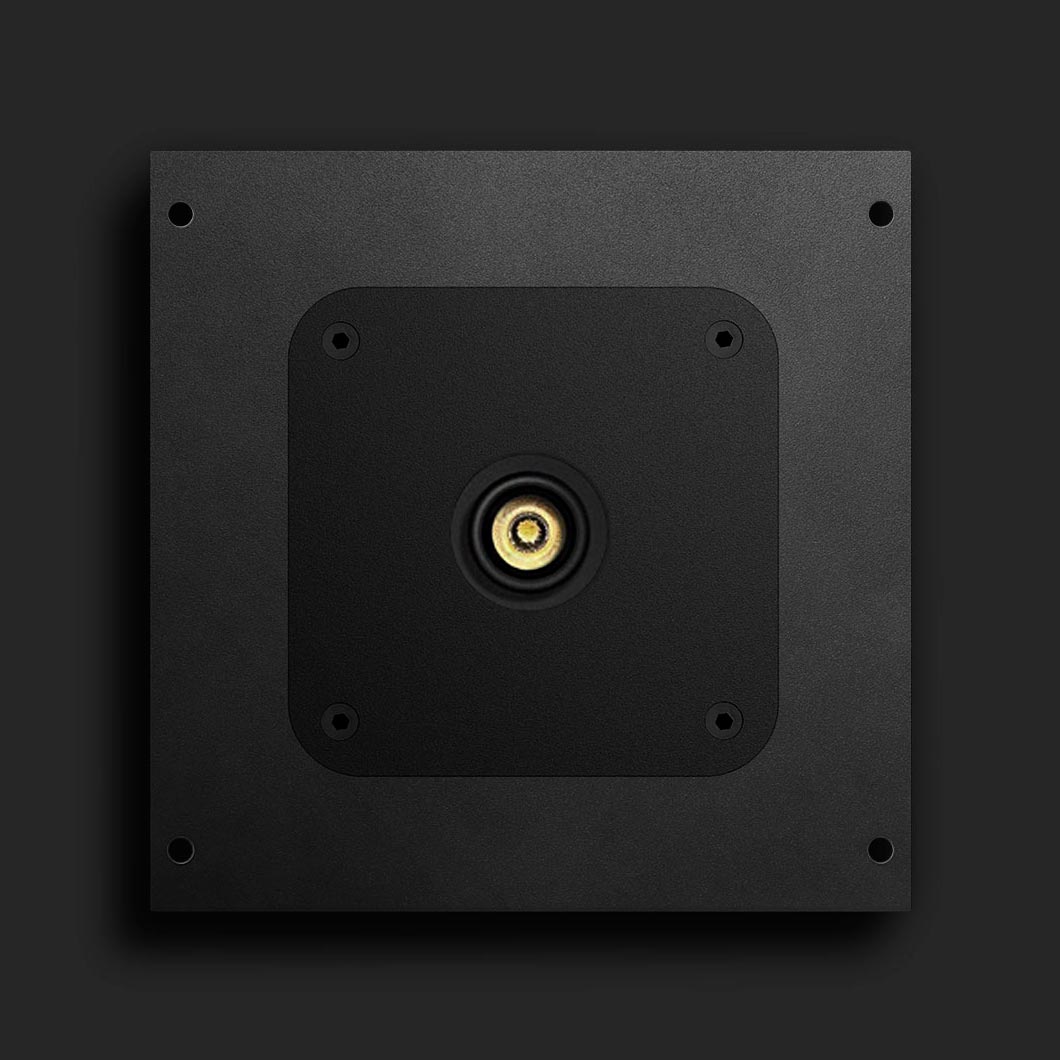

Apure’s newest addition to its award-winning and patented MINUS Series, the MINUS NANO downlight brings sophistication to interior spaces with its never-before-seen performance. A single high performance 12W CREE LED is combined with precision-focusing optics to create an unprecedented light fixture. The fixture is totally plastered in, leaving a minimalist light source that compliments the interior aesthetics of a space. With interchangeable round louvers, available in various finishes, you can personalise the MINUS NANO's design to match the aesthetic of a scheme at any time.
Low Voltage, Recessed Downlight
The high-tech design features a visible round aperture of just 20mm and a minimum recessed depth of only 19 mm (3/4”). Spot, narrow and flood beam angles available for different applications. Compatible with various dimming protocols, each fully compatible with all major architectural lighting control systems.
Versatile Installation
- General Lighting
- Spot Lighting

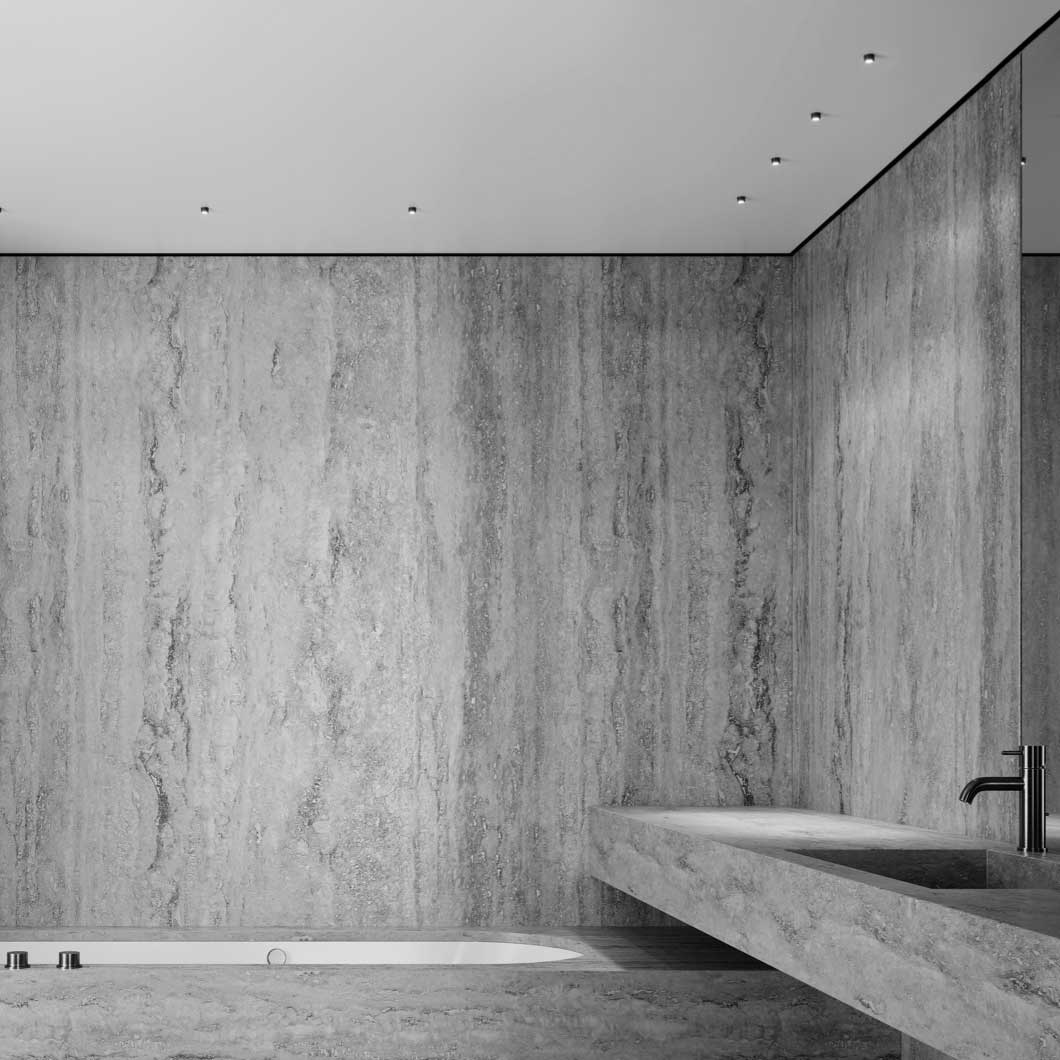

- Bathrooms
Can be installed in drywall, wood, stone and metal ceilings
Perfect for either new construction or retrofit installation projects

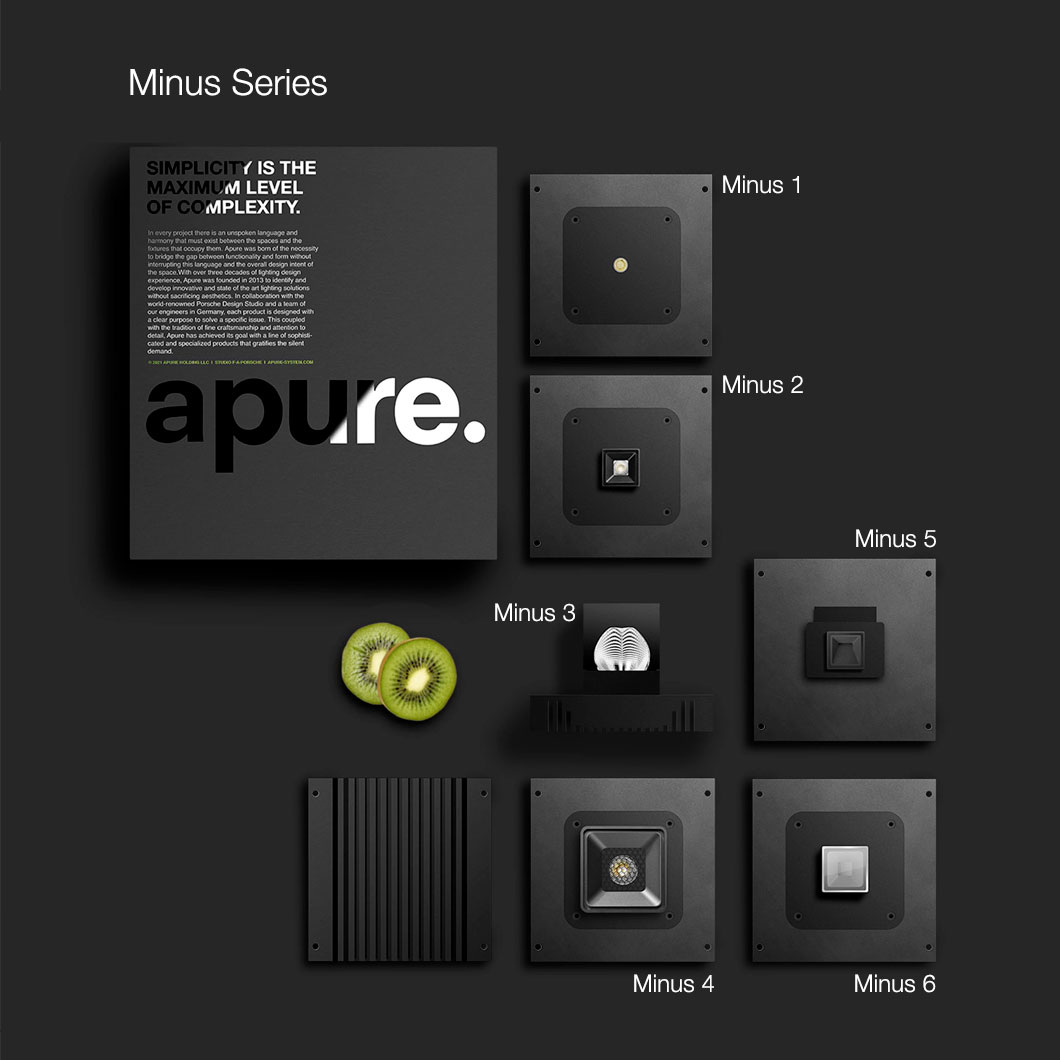

Explore the MINUS Series below
- Specification
-
Construction
• Extruded aluminum fixture body
• 50,000 hours LED lifetime
• Approximate fixture weight: 720g (1.58lbs)
• Operating Temperature: 10ºC to 50ºC
• Threaded adjustable ring
Fixture Size

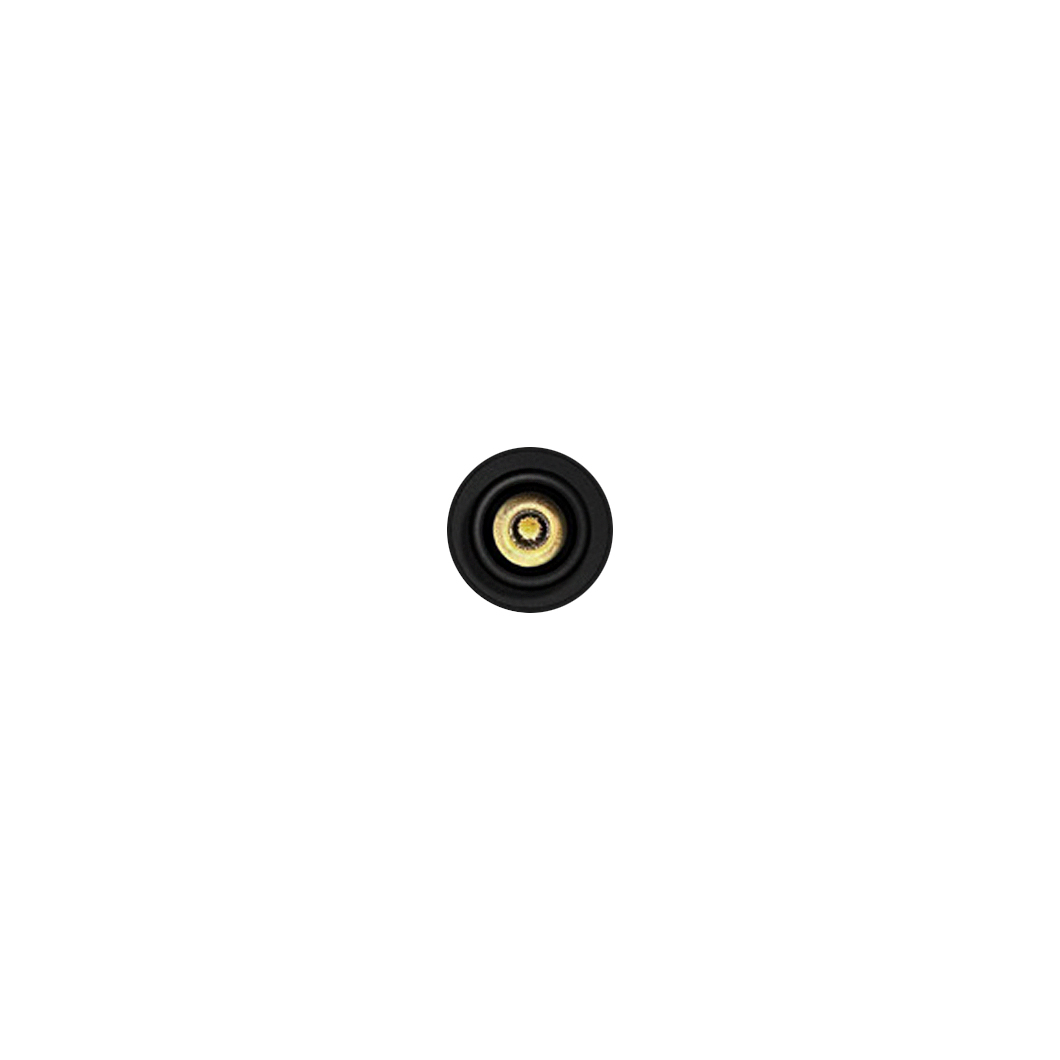

• Visible Aperture: 20mm
• Recess Depth: 19mm (3/4”)
• Heat Sink: 120mm x 120mm (4 - 3/4” x 4 - 3/4”)
Light Output
• High performance Cree LED, available in various color temperatures
• 1000lm source light output
• 2-step SDCM ellipse
• Color rendering index (CRI) min. 90
• Integral microprocessor controlled thermal protection
• Beam Angles: Spot (16º) Narrow Flood (25º) Flood (55º)
Electrical Specifications
Constant Current 12V DC Input (Class 2, 12W Power Consumption)
• Remote 1000mA Constant Current Driver Required
• 0-10V 0.1% Dimming (or) 1-10V/Push/DALI (or) Phase Dimming drivers available
• Recommended wire, min. 16 AWG plenum rated (CMP, when required) up to 82ft from remote transformer
Installation Types
• Drywall installation for new construction and retrofit installations possible with the Universal Drywall Bracket, available for various drywall thicknesses.
• Custom installations for wood, metal and stone ceilings. Requires shop drawings available per request by Apure.
• The Minus series is not suitable for installation within steam rooms or saunas!
Listings
• UL Listed, CE Conform
• JA8/Title 24
• Suitable for dry and damp locations
• Type IC Rated, Plenum Rated, Airtight Rated
Lamp type: 12W CREE LED | 50,000 hours lifetime
- Dimensions
-

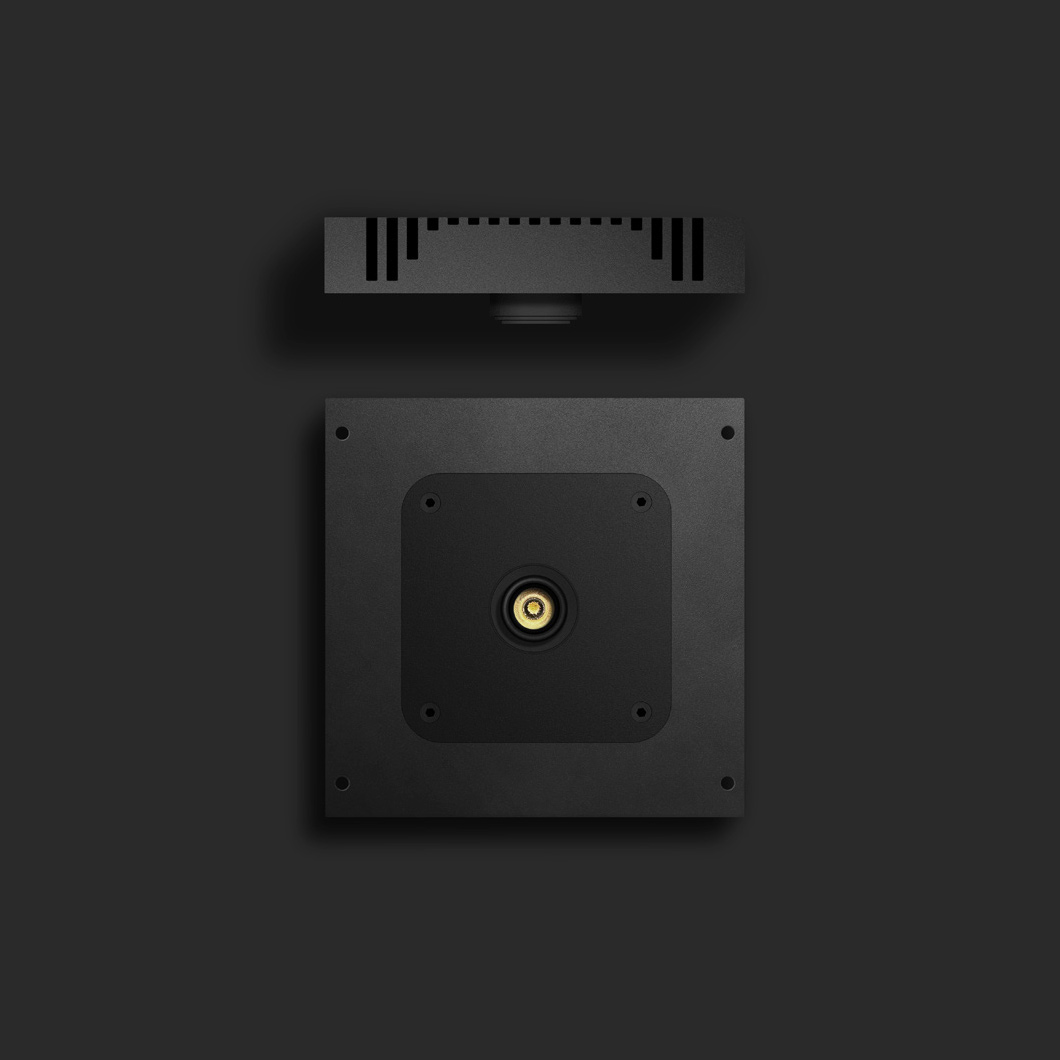

Product dimensions: W.120mm x H.120mm
Lens dimensions: Dia.20mm
- Downloads
-
- Delivery and warranty
-
Usually delivered in 6-8 weeks
LED Lighting Fixtures – 2 Years*
Power Supplies & Drivers – 2 Years*
Linear Profiles – 5 Years*
Housings – 5 Years*
*From delivery date
Apure Warranty PDF
