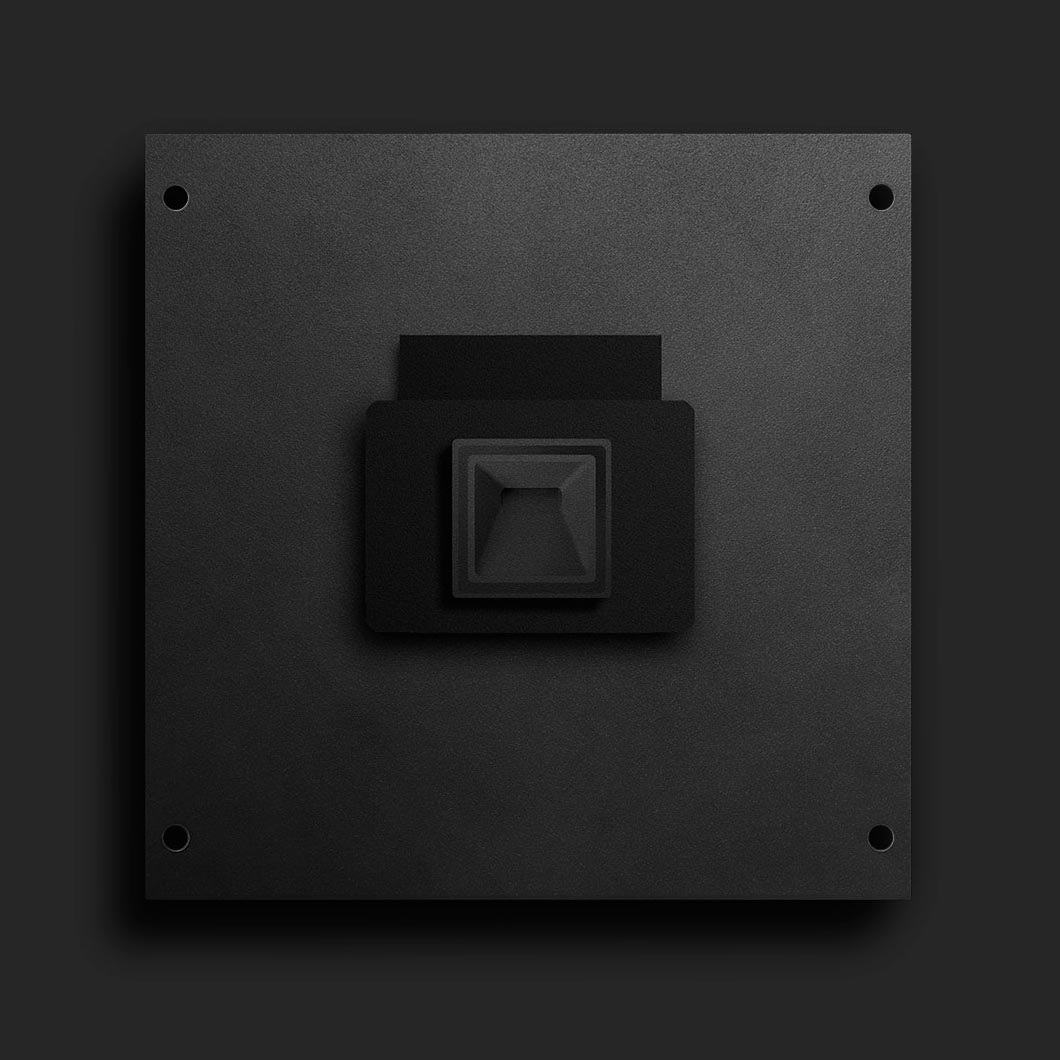

The Apure MINUS 5 low level or step light delivers the highest quality of lighting wrapped in a discreet package. With a minimal visible aperture of just 25 x 25mm, the MINUS 5 is equipped with a 12W CREE LED that produces up to 1000 lm. Recessed in less than 25mm (1′′), the fixture is totally plastered in leaving a minimalist light source that compliments the interior aesthetics of staircases, corridors, and walkways.
Low Voltage, Recessed Wall Light
The high-tech design features a 25 x 25mm aperture that distributes low level light. Minus 5 omits a massive 1000 lumens from source. Compatible with various dimming protocols, each fully compatible with all major architectural lighting control systems.
Versatile Installation

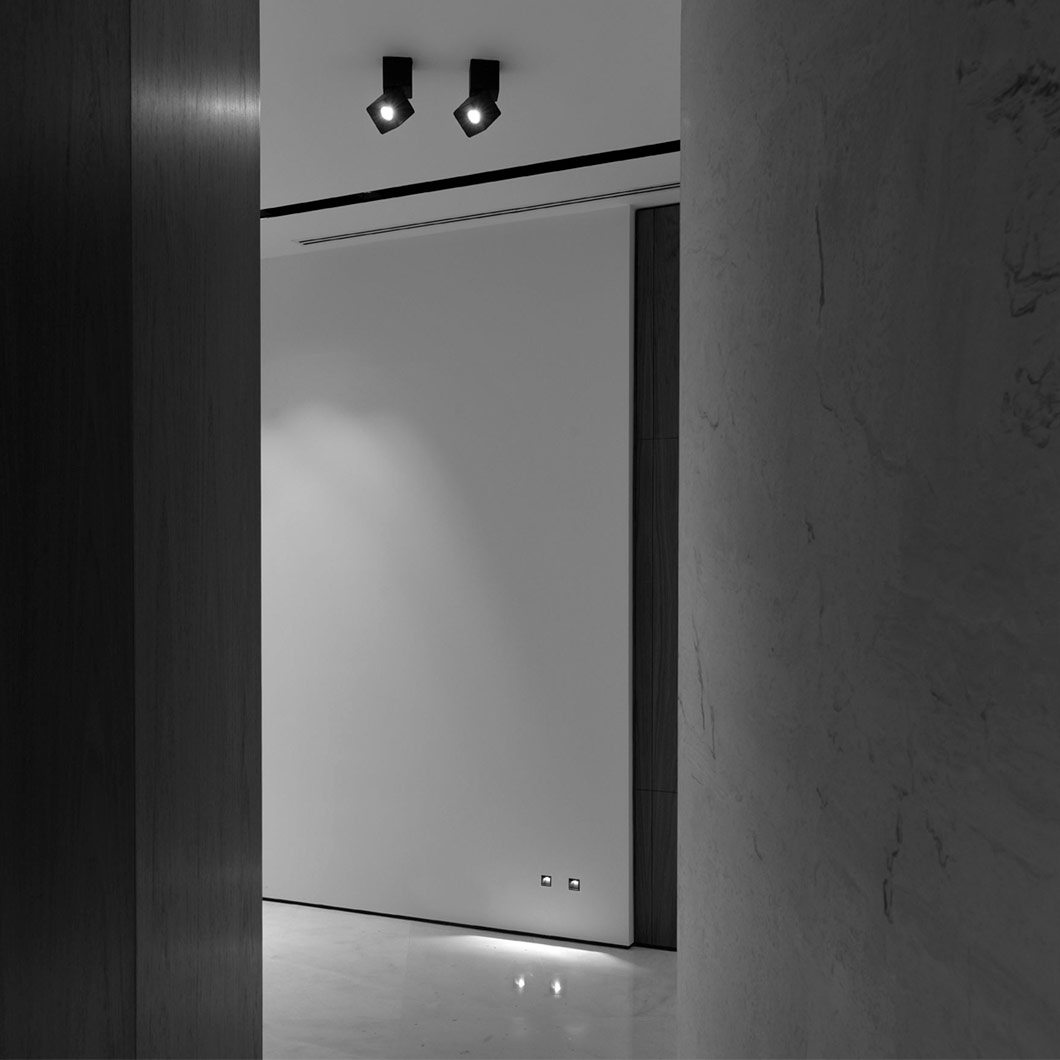

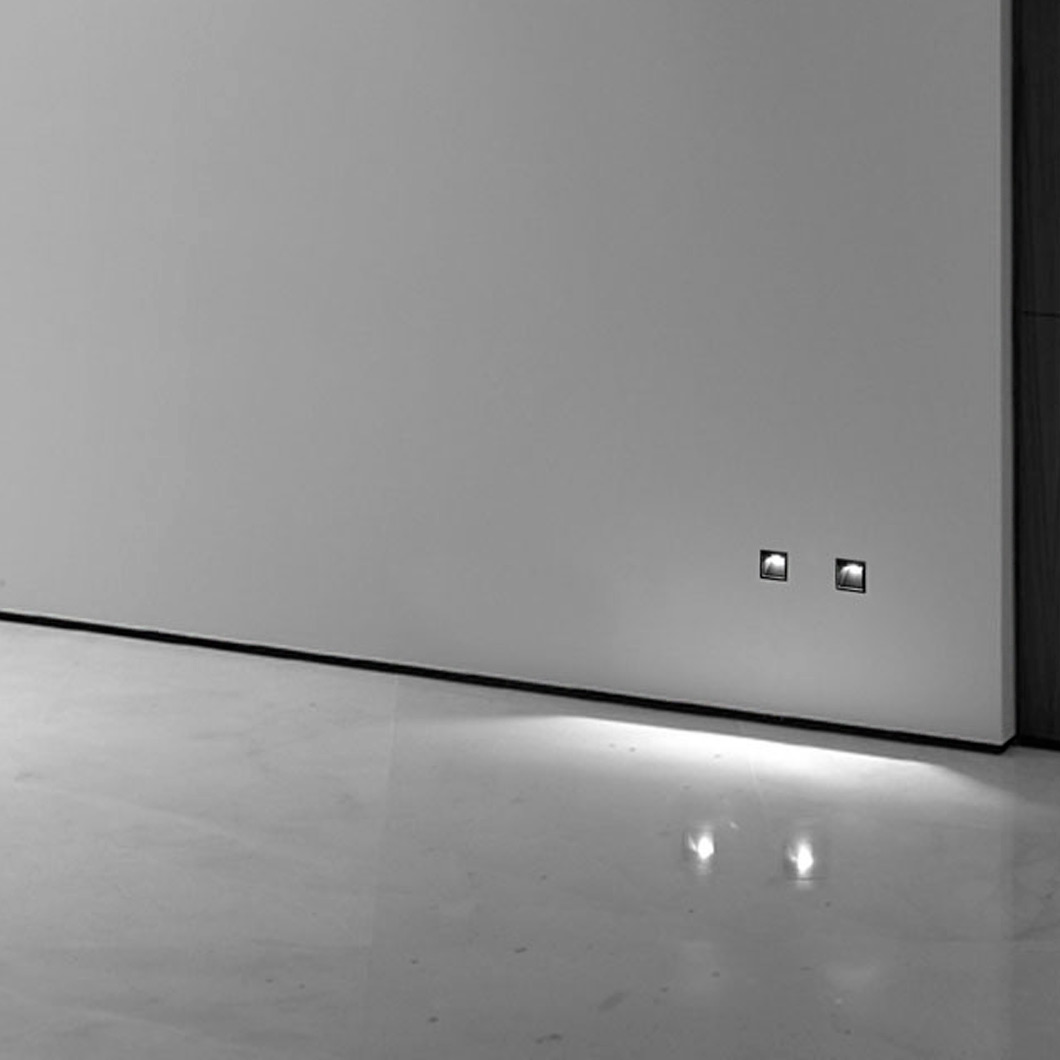

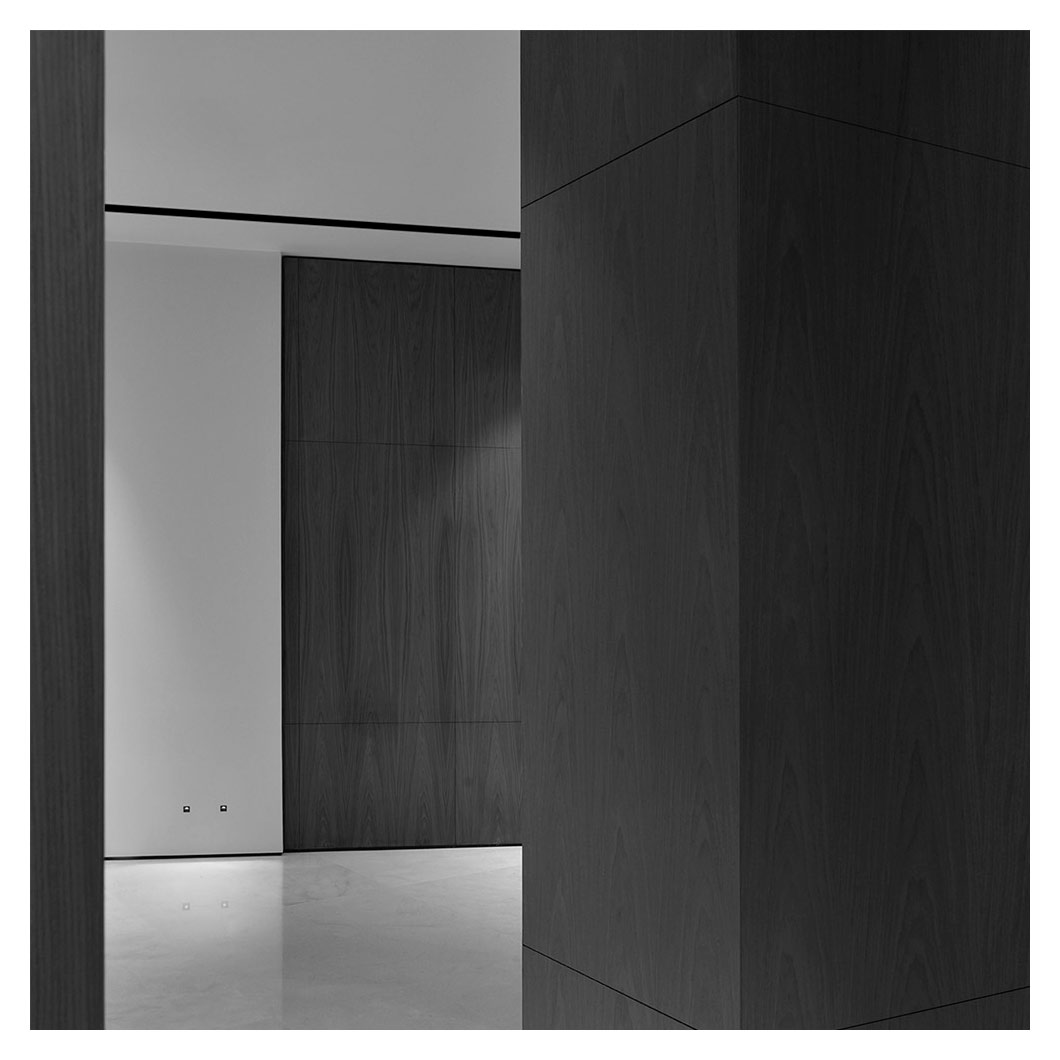

- Ambient lighting for walkways

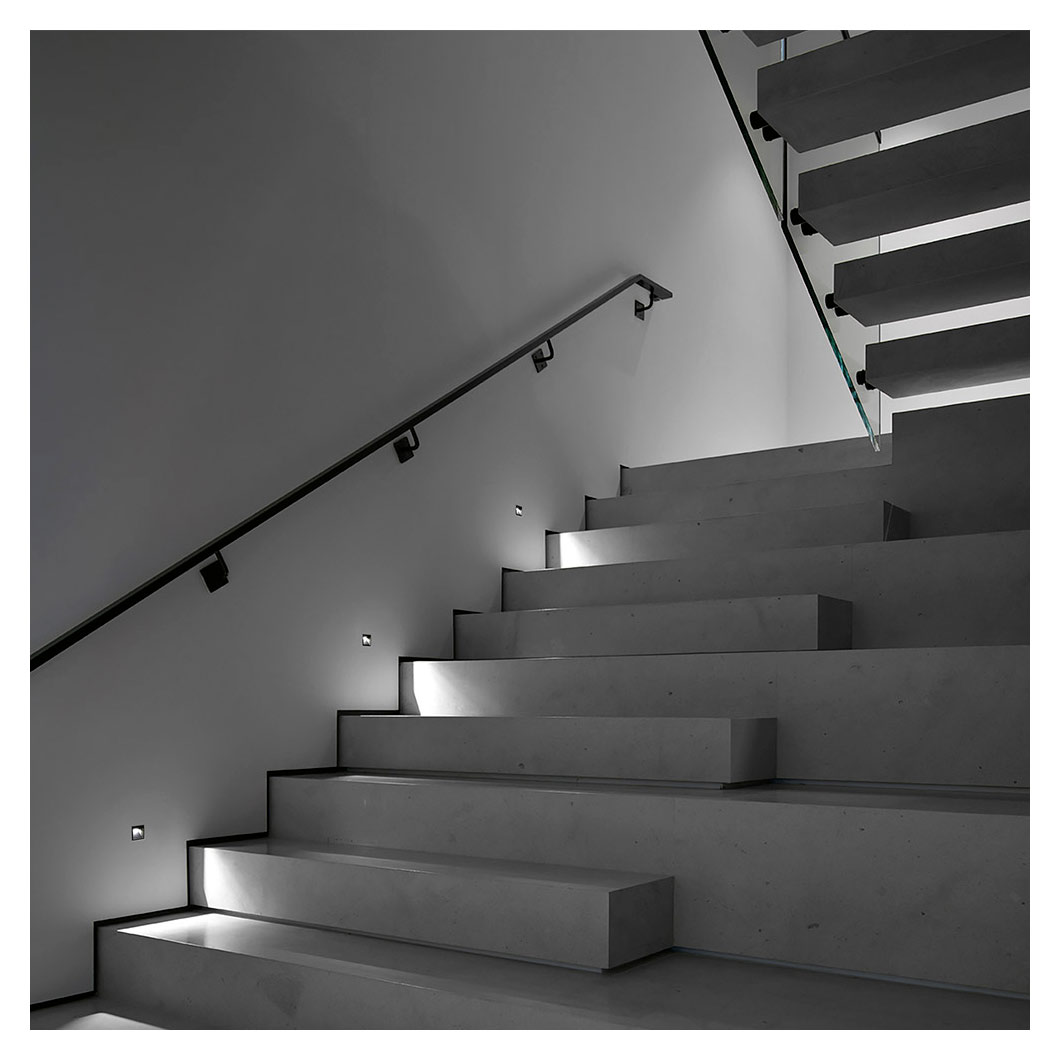

- Step lighting for safety on stairs
- Suitable for drywall, wood, stone and metal installations
Perfect for either new construction or retrofit installation projects
See installation videos below the Tabs

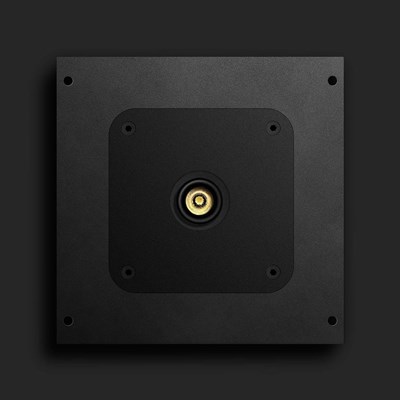

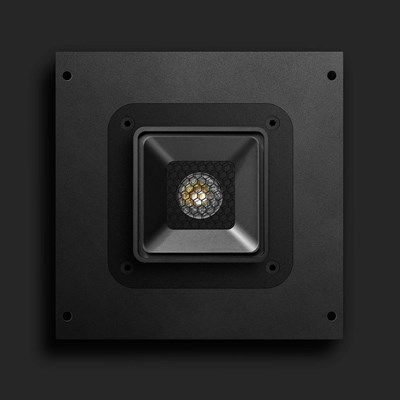

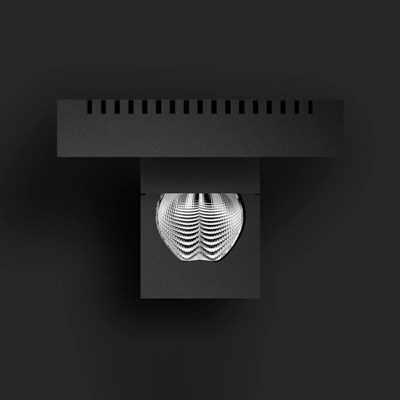

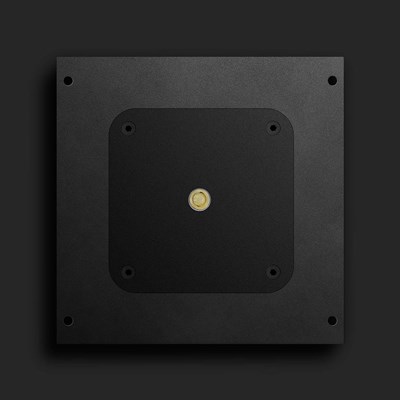

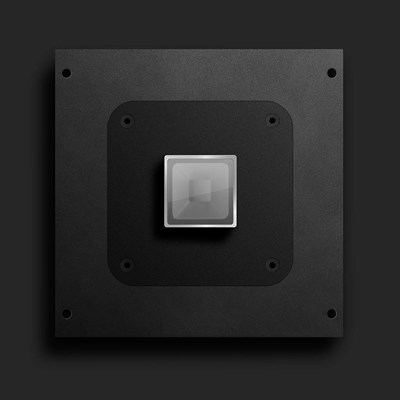

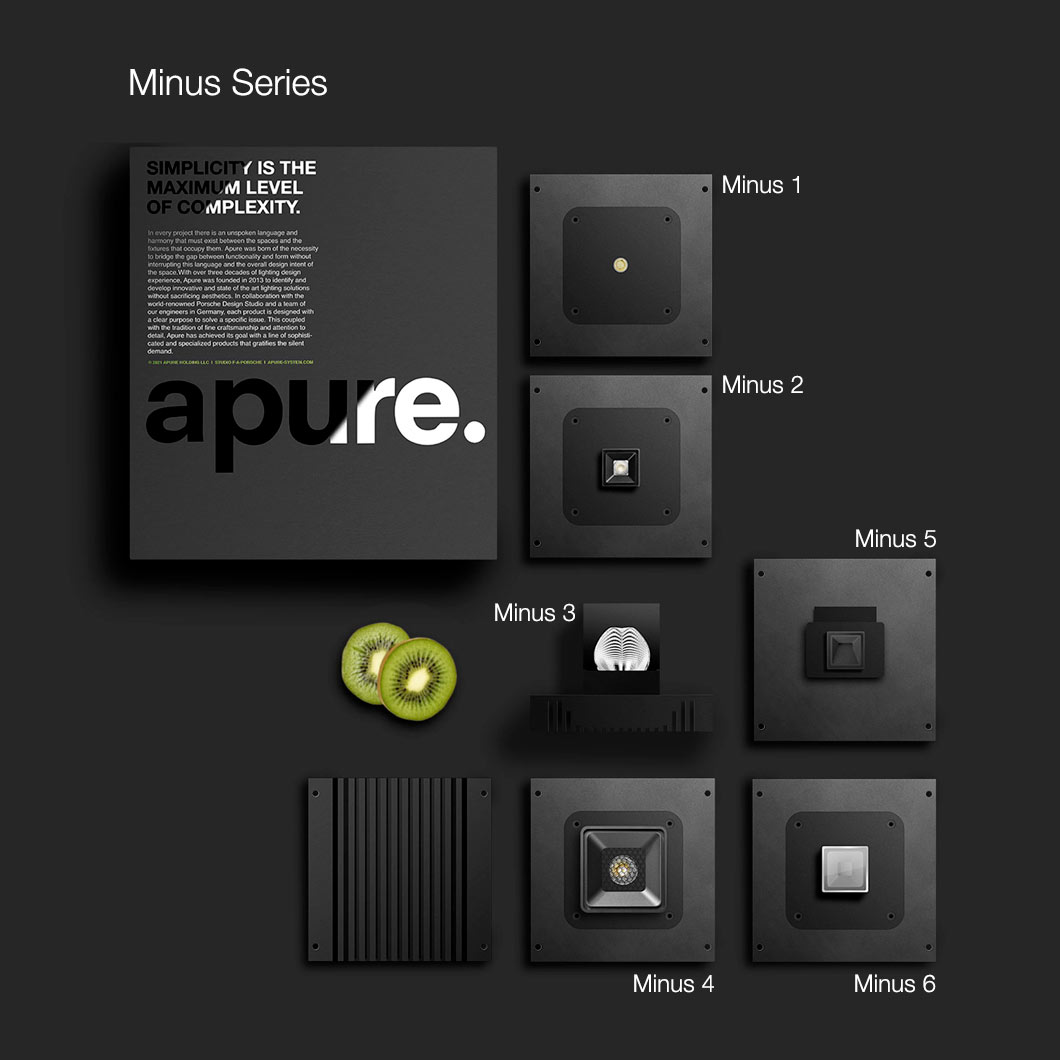

Explore the Minus Series below
Construction

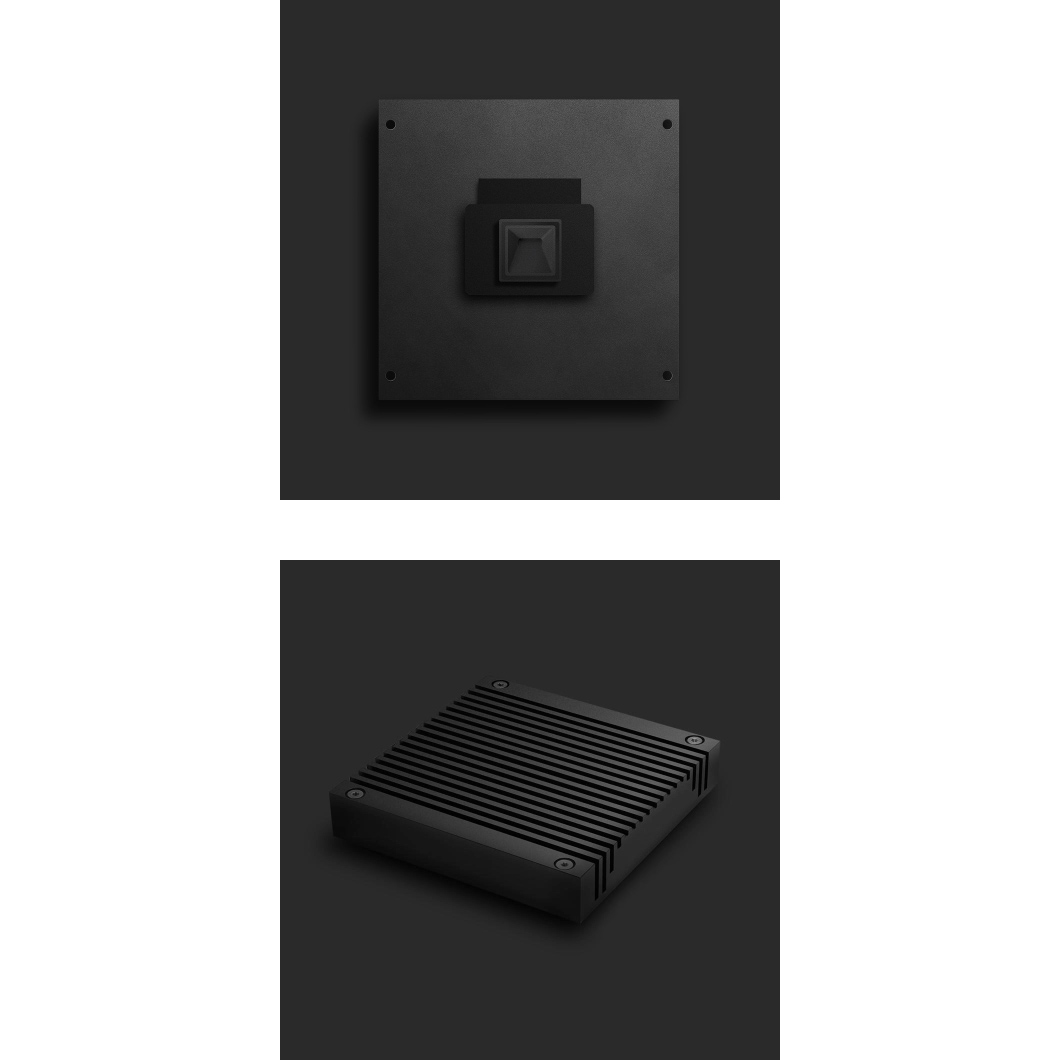

• Extruded aluminum fixture body, featuring Apure’s signature louver designed by Studio F·A·Porsche
• 50,000 hours LED lifetime
• Approximate fixture weight: 720g (1.58lbs)
• Operating Temperature: 10ºC to 50ºC

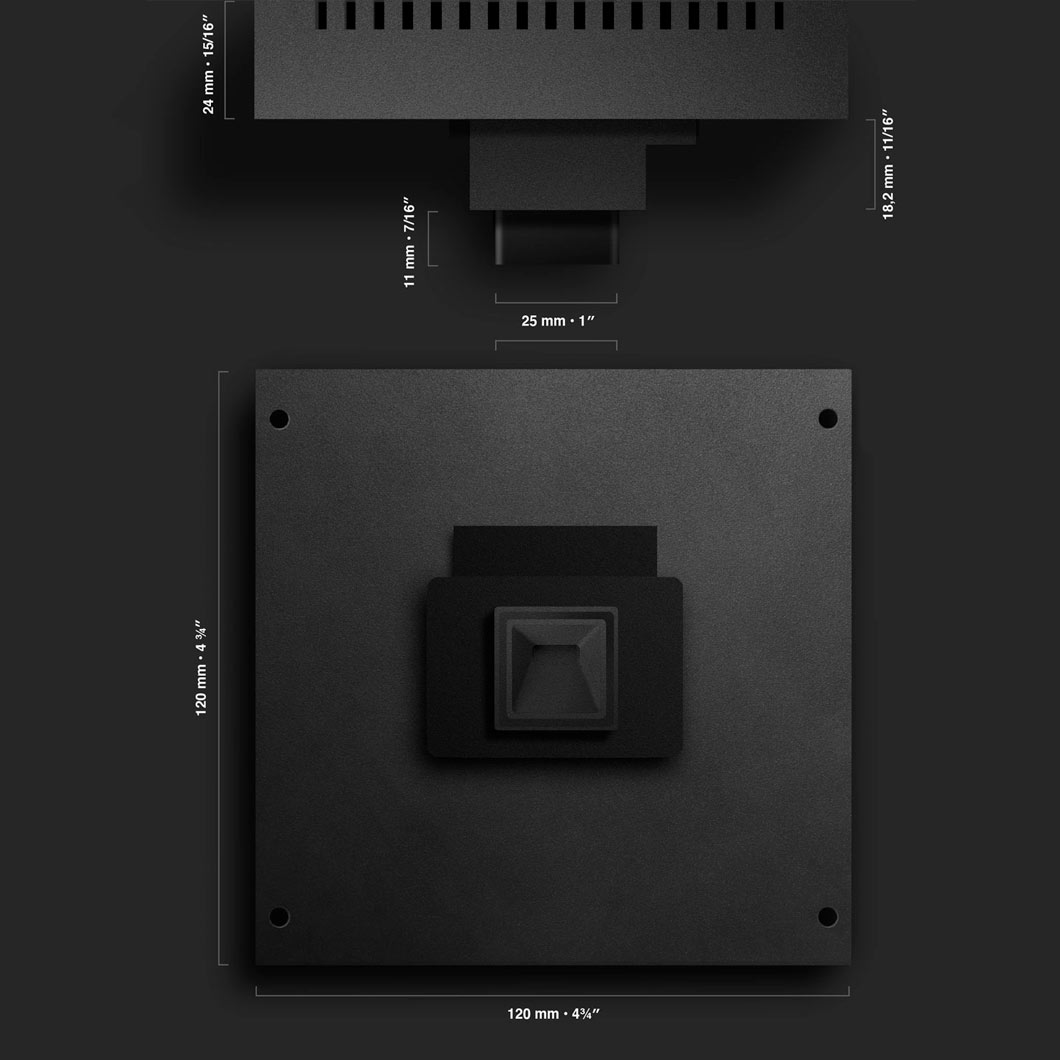

Fixture Size

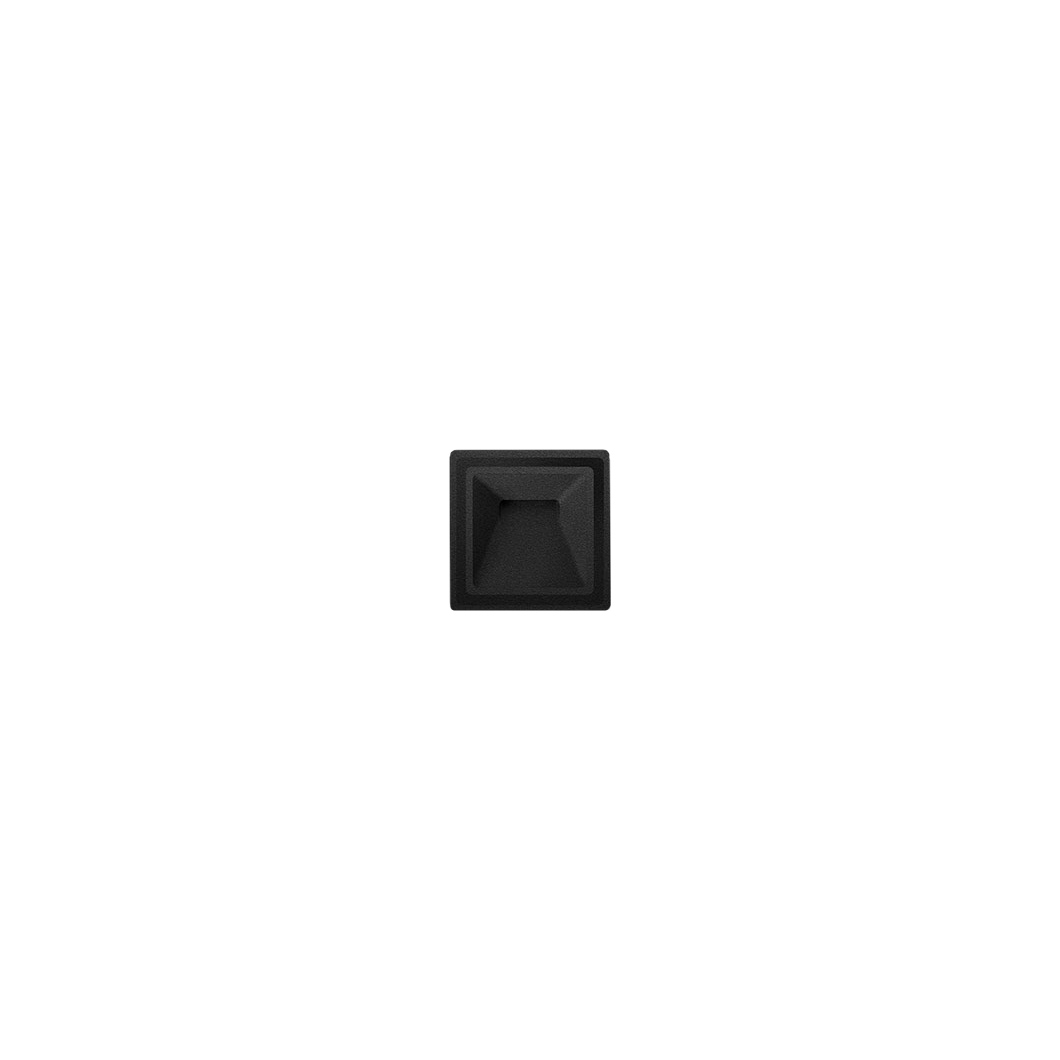

• Visible Aperture: 25mm x 25mm (1” x 1”)
• Recess Depth: 23.6mm (15/16”)
• Heat Sink: 120mm x 120mm (4 - 3/4” x 4 - 3/4”)
Light Output
• High performance Cree LED, available in various color temperatures
• 1000lm source light output
• 2-step SDCM ellipse
• Color rendering index (CRI) min. 90
• Integral microprocessor controlled thermal protection
Electrical Specifications
24V DC Input (Class 2, 12W Power Consumption)
• 96W 24V DC Power Supply Required (powers up to 4 fixtures)
• Magnetic Low Voltage (MLV) Dimming (or) 3-Wire Lutron Hi-Lume dimming protocols
• Recommended wire, min. 16 AWG plenum rated (CMP, when required) up to 150ft from remote transformer
12V DC Input (Class 2, 12W Power Consumption)
• Remote 1000mA Constant Current Driver Required
• 0-10V 0.1% Dimming (or) 1-10V/Push/DALI (or) Phase Dimming drivers available
• Recommended wire, min. 16 AWG plenum rated (CMP, when required) up to 82ft from remote transformer
Installation Types
• Drywall installation for new construction and retrofit installations possible with the Universal Drywall Bracket, available for various drywall thicknesses.
• Custom installations for wood, metal and stone walls. Requires shop drawings available per request by Apure.
• The Minus series is not suitable for installation within steam rooms or saunas!
Listings
• UL Listed, CE Conform, Type IC Rated, Plenum Rated, Airtight Rated
• Suitable for dry and damp locations
Lamp type: 12W CREE LED | 50,000 hours lifetime
