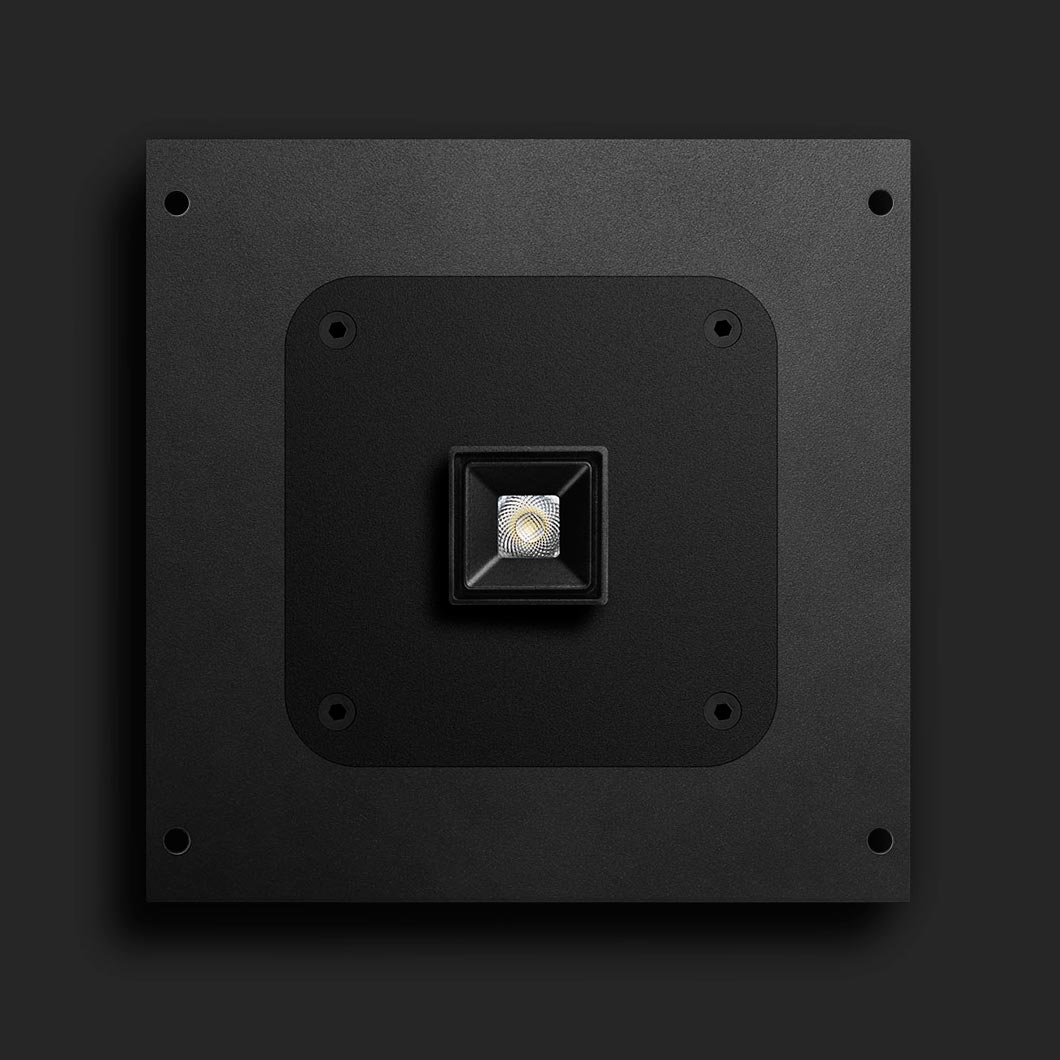

Building on the lighting technology used in the MINUS 1, the Apure MINUS 2 downlight brings sophistication to interior spaces with its never-before-seen performance. A single high performance LED is combined with precision-focusing optics to create an unprecedented light fixture. Recessed in less than 25mm (1′′), the fixture is totally plastered in leaving a minimalist light source that compliments the interior aesthetics of a space.
Low Voltage, Recessed Downlight
The high-tech design features a 25 x 25mm aperture that distributes glare-free 'invisible' light in either a 20 or 40 degree beam spread. Minus 2 produces a massive 1000 lumens from source. Compatible with various dimming protocols, each fully compatible with all major architectural lighting control systems.
Versatile Installation
- General Lighting
- Spot Lighting
- Suitable for dry installations
- Profile installation in the LINIAR System (see the LINIAR System data sheet in the tabs below)
Can be installed in drywall, wood, stone and metal ceilings
Perfect for either new construction or retrofit installation projects
See installation videos below the Tabs

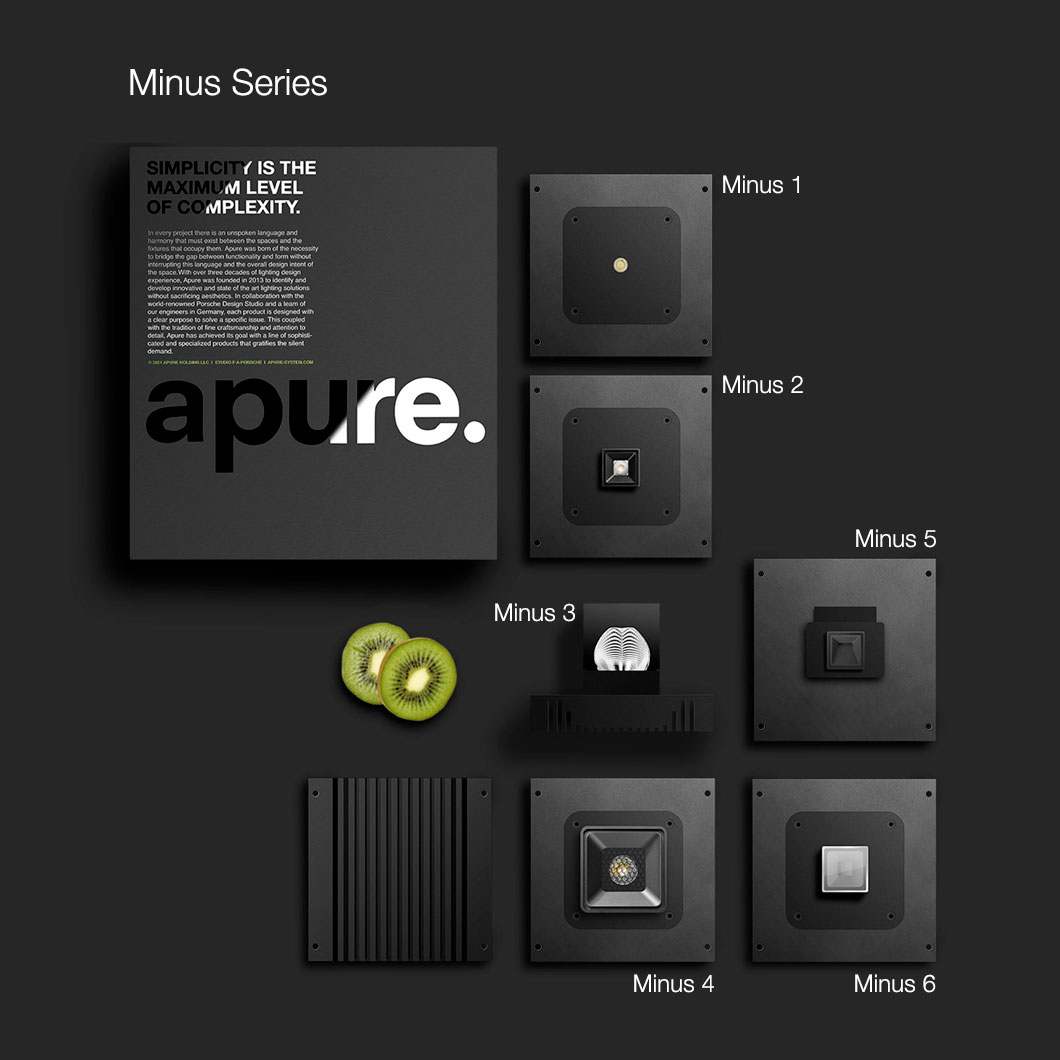

Explore the MINUS Series below
Construction

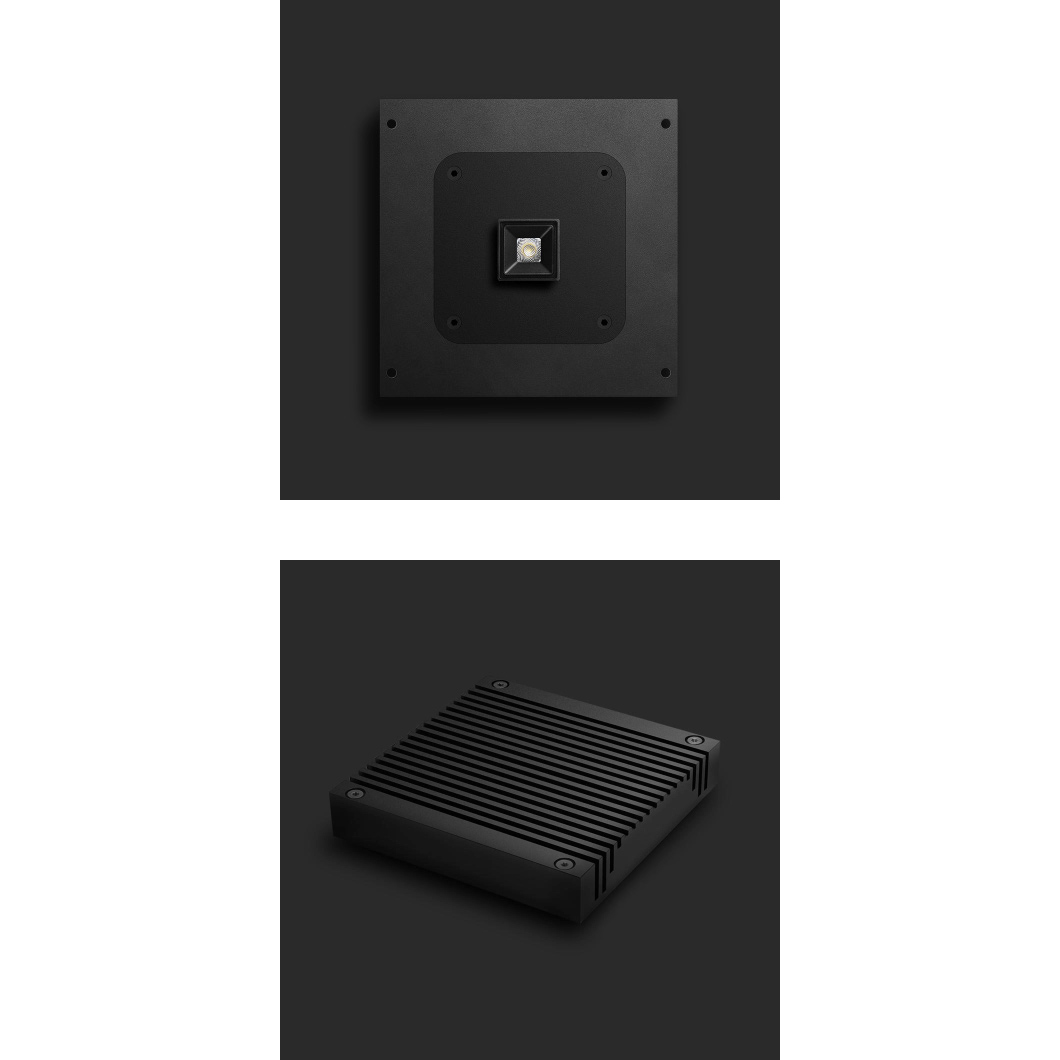

• Extruded aluminum fixture body, featuring Apure’s signature louver designed by Studio F·A·Porsche
• 50,000 hours LED lifetime
• Approximate fixture weight: 720g (1.58lbs)
• Operating Temperature: 10ºC to 50ºC

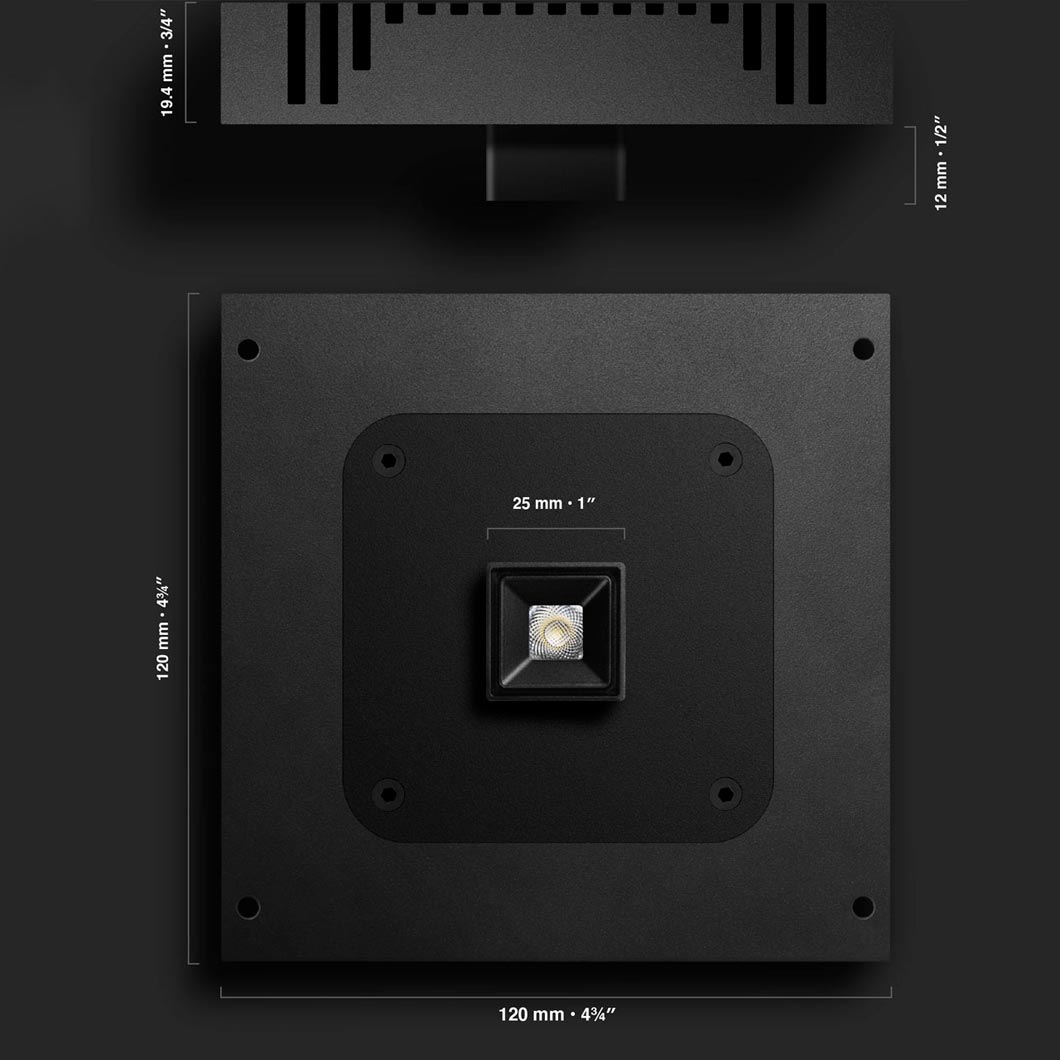

Fixture Size

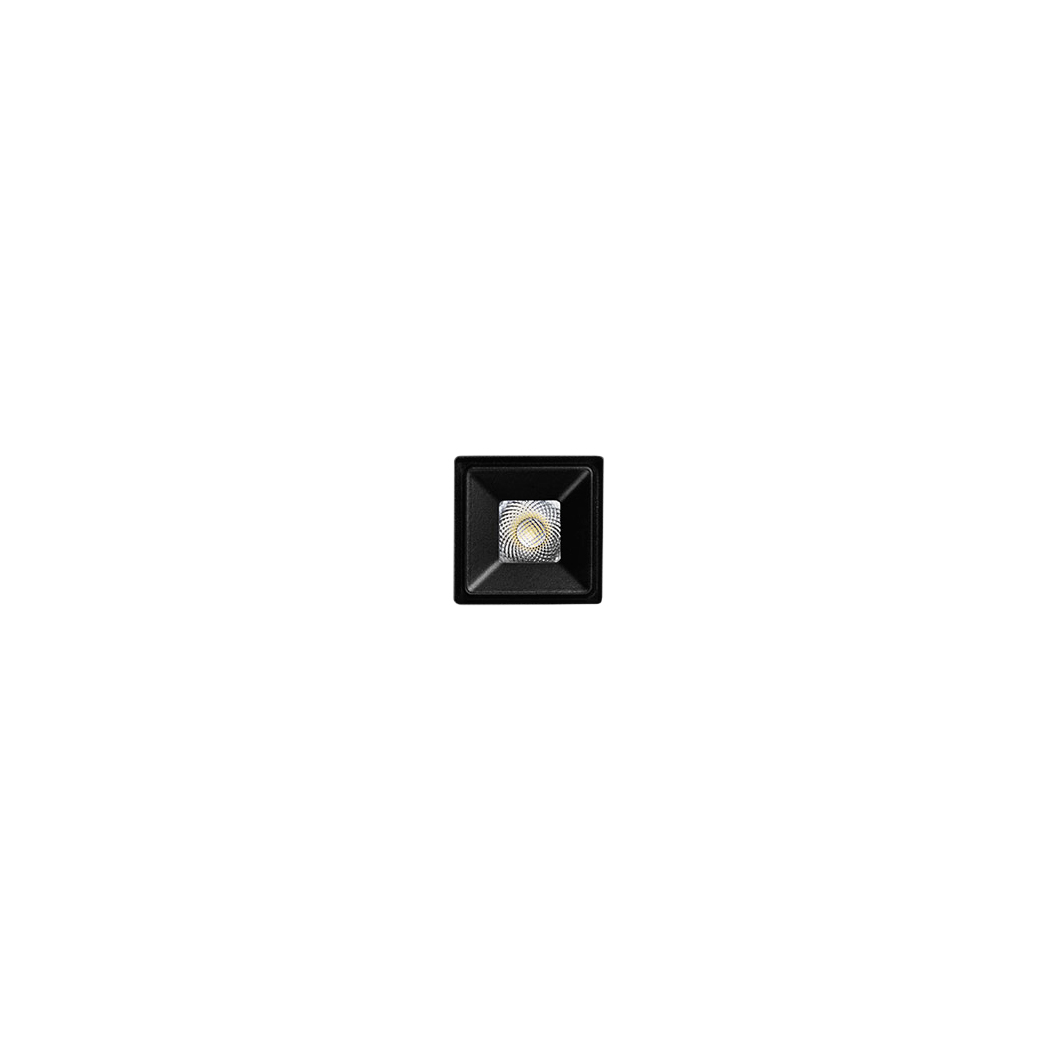

• Visible Aperture: 25mm x 25mm (1” x 1”)
• Recess Depth: 19mm (3/4”)
• Heat Sink: 120mm x 120mm (4 - 3/4” x 4 - 3/4”)
Light Output
• High performance Cree LED, available in various color temperatures
• 1000lm source light output
• 2-step SDCM ellipse
• Color rendering index (CRI) min. 90

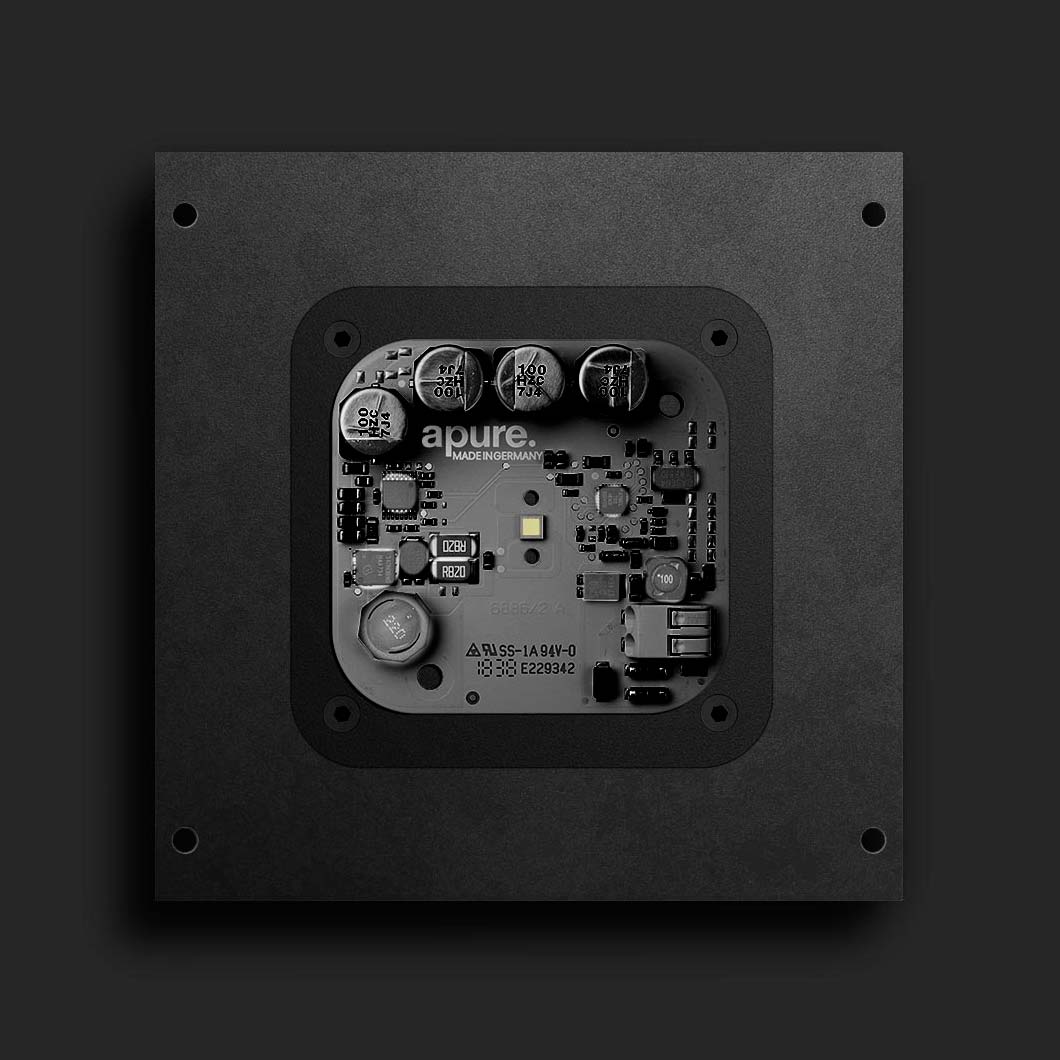

• Integral microprocessor controlled thermal protection

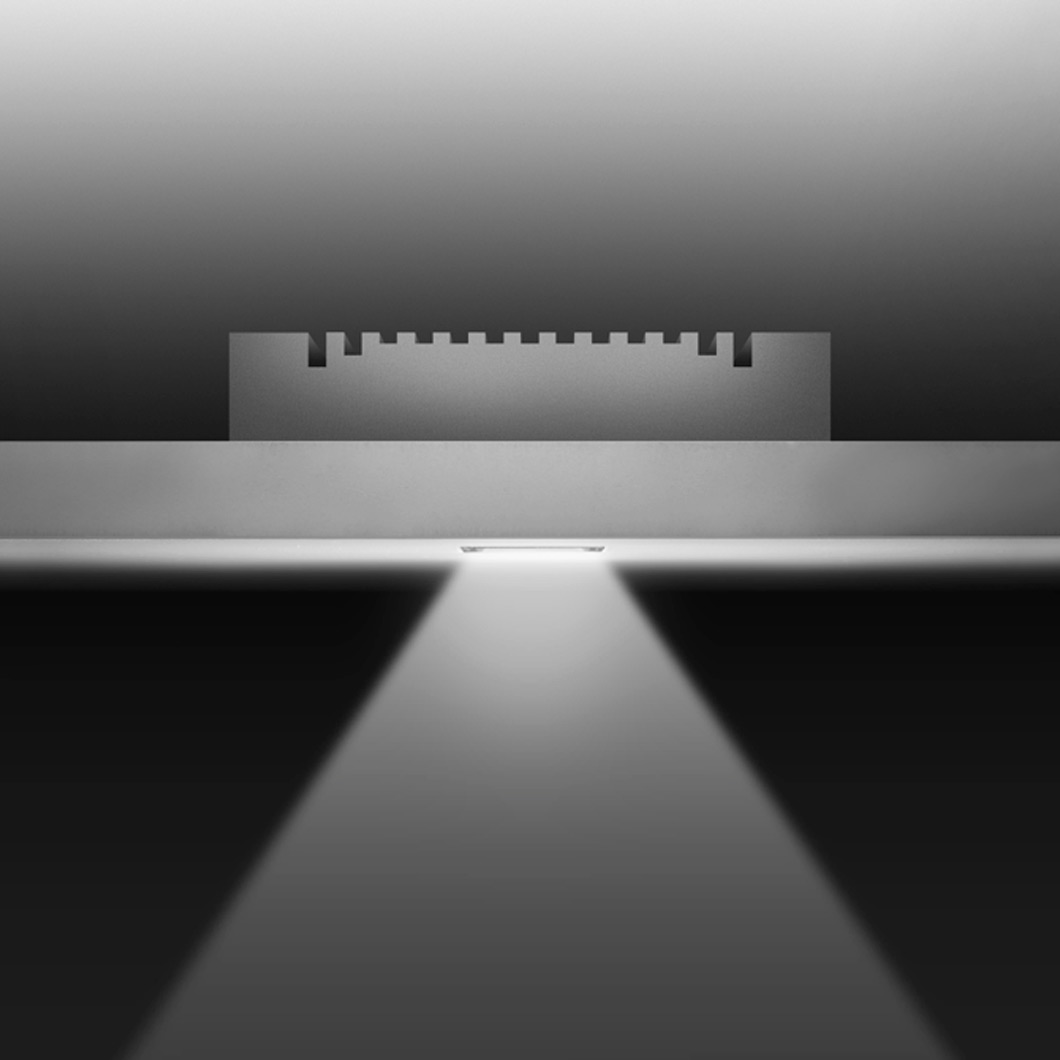

• Beam Angles: Spot (20º) Flood (40º)
Electrical Specifications
24V DC Input (Class 2, 12W Power Consumption)
• 96W 24V DC Power Supply Required (powers up to 4 fixtures)
• Magnetic Low Voltage (MLV) Dimming (or) 3-Wire Lutron Hi-Lume dimming protocols
• Recommended wire, min. 16 AWG plenum rated (CMP, when required) up to 150ft from remote transformer
12V DC Input (Class 2, 12W Power Consumption)
• Remote 1000mA Constant Current Driver Required
• 0-10V 0.1% Dimming (or) 1-10V/Push/DALI (or) Phase Dimming drivers available
• Recommended wire, min. 16 AWG plenum rated (CMP, when required) up to 82ft from remote transformer
Installation Types
• Drywall installation for new construction and retrofit installations possible with the Universal Drywall Bracket, available for various drywall thicknesses.
• Custom installations for wood, metal and stone ceilings. Requires shop drawings available per request by Apure.
• Profile installation in the LINIAR System. See the LINIAR System cutsheet for more details.
• The Minus series is not suitable for installation within steam rooms or saunas!
Listings
• UL Listed, CE Conform, Type IC Rated, Plenum Rated, Airtight Rated
• Suitable for dry, damp and wet locations (IP43)
Lamp type: 12W CREE LED | 50,000 hours lifetime
