Apure Minus 1 Trimless Plaster In Mini Downlight

Designer: Porsche Design Studio

Manufacturer: Apure

Bespoke Specialist Product

Please call for price and availability on +44 (0)1189 882294 or email [email protected]

View product details

Description

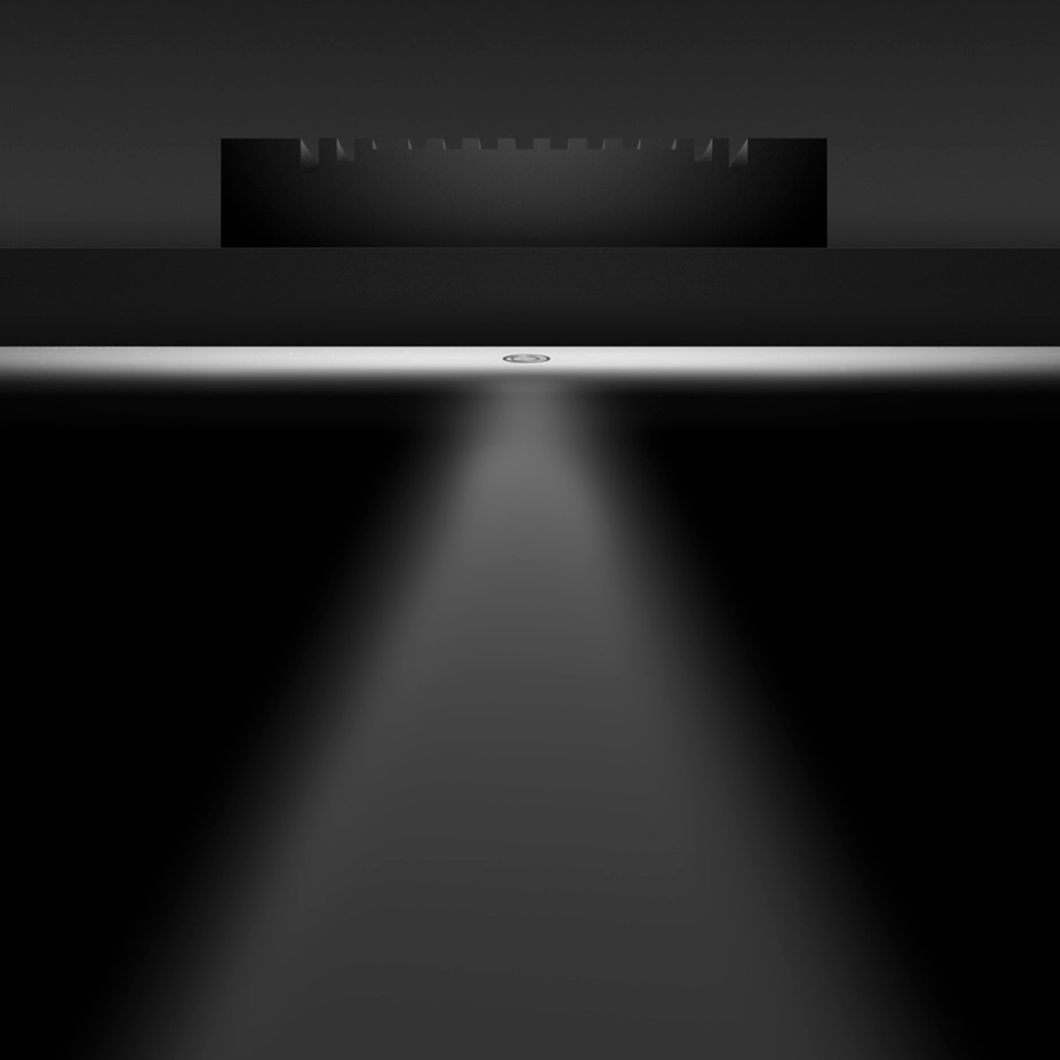

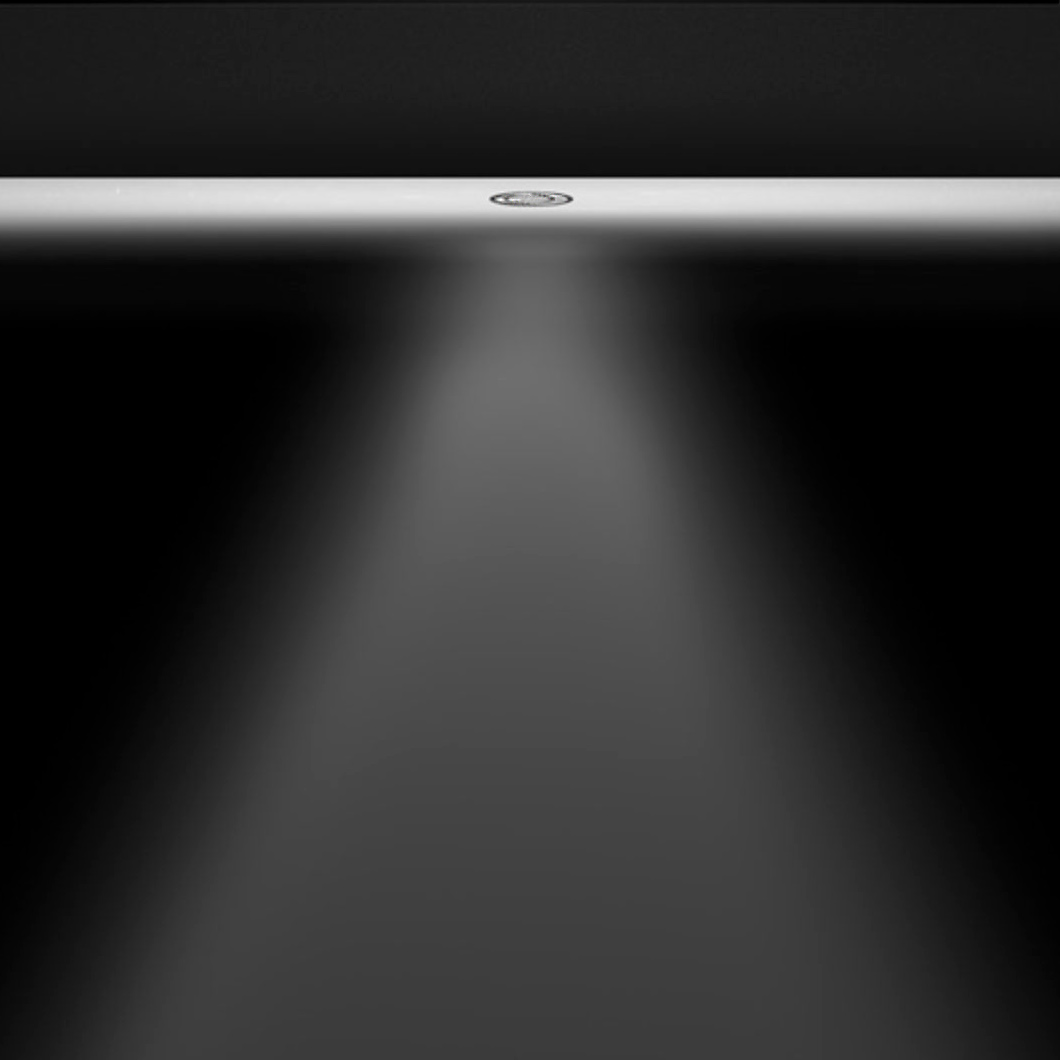

The Apure MINUS 1 downlight brings sophistication to interior spaces with its never-before-seen performance. A single high performance LED is combined with precision-focusing optics to create an unprecedented light fixture. The fixture is totally plastered in, leaving a minimalist light source that compliments the interior aesthetics of a space.

Low Voltage, Recessed Downlight

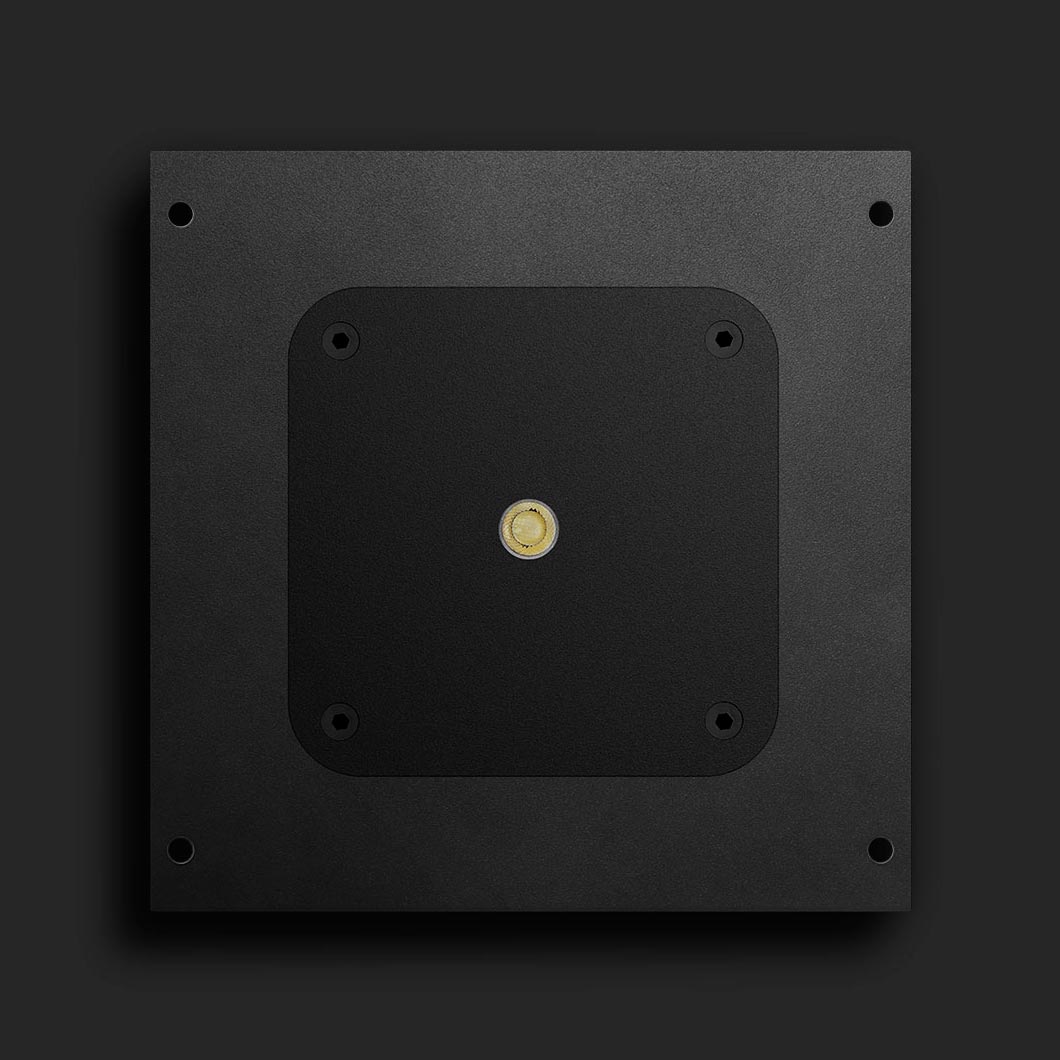

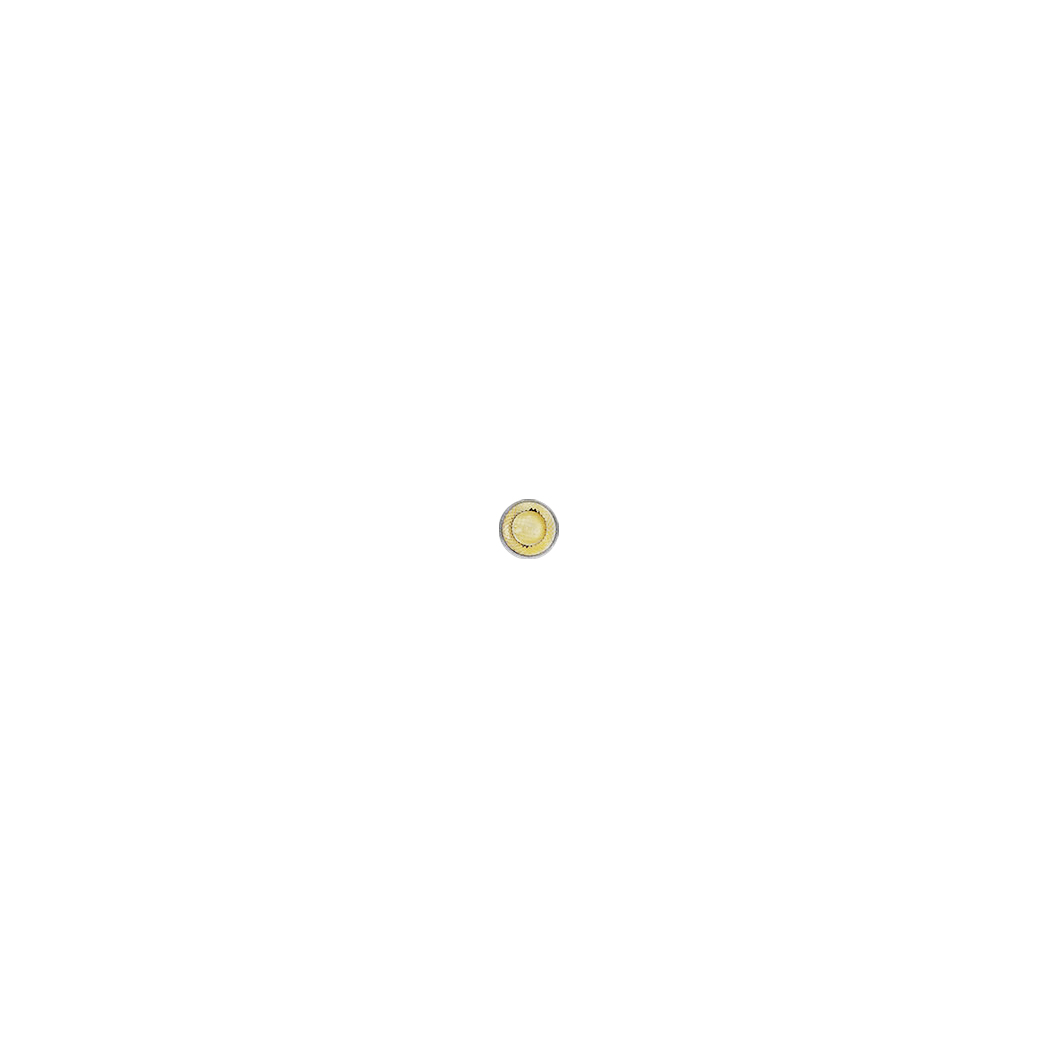

The high-tech design features a perfectly round 10mm (3/8′′) mini aperture that distributes virtually glare-free light at a hugely impressive 1000 lumens. Available in either a 20 or 40 degree beam spread. Compatible with various dimming protocols, each fully compatible with all major architectural lighting control systems.

Versatile Installation
- General Lighting
- Spot Lighting
- Outdoor Overhangs
- Showers
- Marine

Can be installed in drywall, wood, stone and metal ceilings

Perfect for either new construction or retrofit installation projects
See installation videos below the Tabs

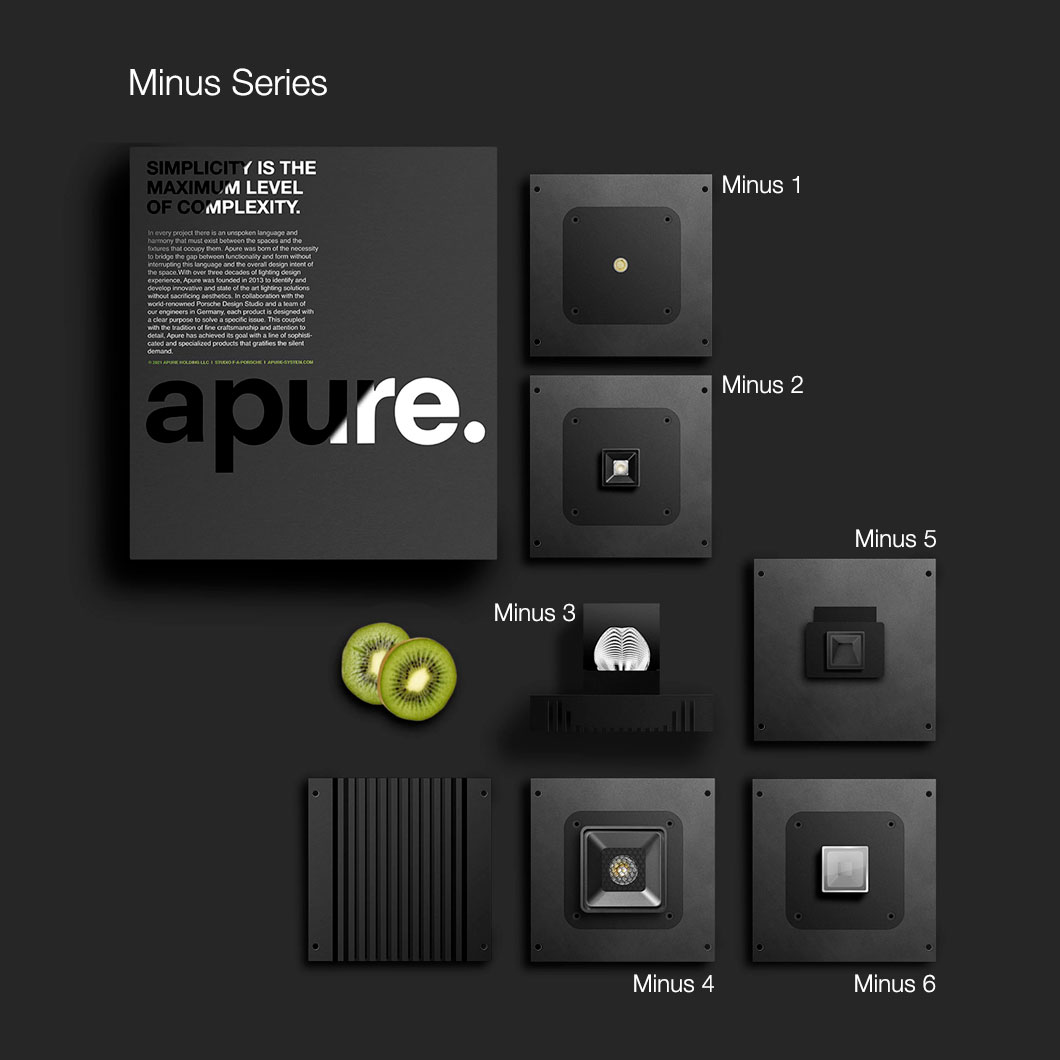

Explore the MINUS Series below

Specification

Light Output

1000 lm from source
Sharply defined 20º or 40º beam spread
High-performance Cree LED available in various color temperatures
SDCM Step-2
Color Rendering Index (CRI) ≥ 90

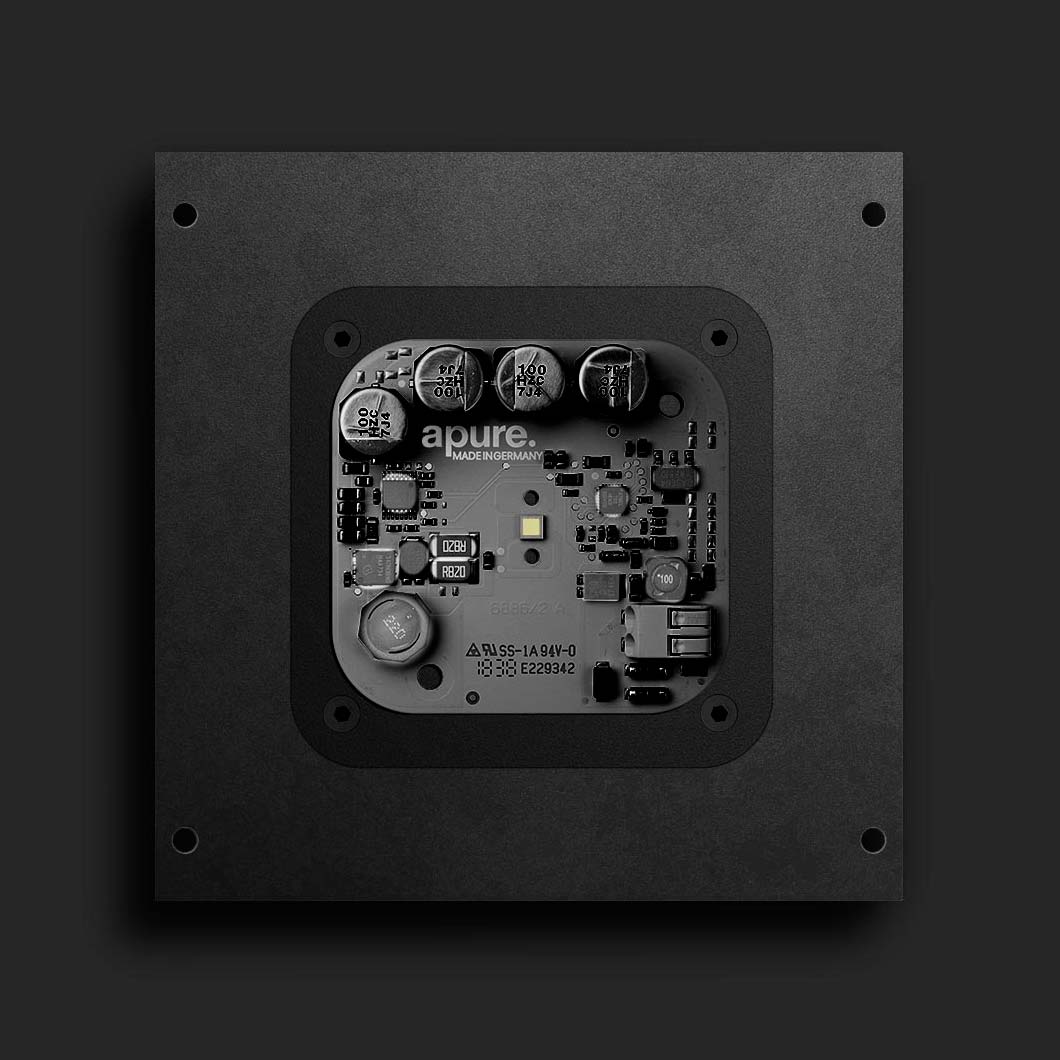

Custom integral microprocessor for thermal protection and equal light output
Beam Angles: Spot (20º) Flood (40º)

Electrical Specifications

Class 2 Fixture
12 W Power Consumption
24 V DC Input for US/CAN
12 V DC, Constant Current 1000mA Input for EU/INT’L
Remote power up to 45 m (150 ft)
0-100% dimmable (please see specification sheets for full details)

Installation Types

General Lighting / Spot Lighting / Outdoor Overhangs / Showers / Marine
Can be installed in drywall, wood, stone, and metal ceilings

Listings / Patents

UL Listed, CE Conform
IC Rated
Plenum Rated / Airtight Rated
Wet Location Listed
IP66 Available
Patent: US 10,151,461 B2

Lamp type: 12W CREE LED | 50,000 hours lifetime

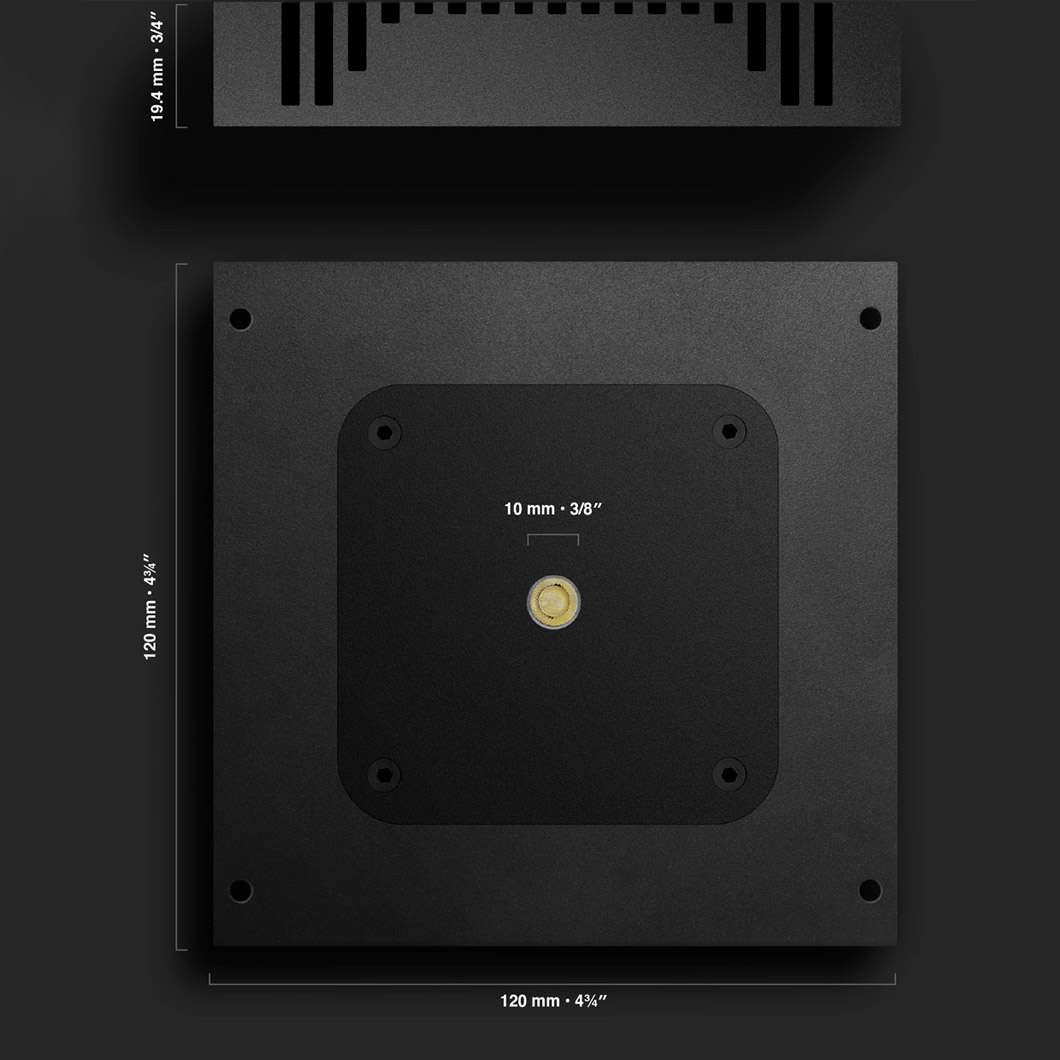

Dimensions

Product dimensions: W.120mm x D.19mm x H.120mm

Lens dimensions: Dia.10mm

Downloads

Delivery and warranty

Usually delivered in 6-8 weeks

LED Lighting Fixtures – 2 Years*
Power Supplies & Drivers – 2 Years*
Linear Profiles – 5 Years*
Housings – 5 Years*
*From delivery date
