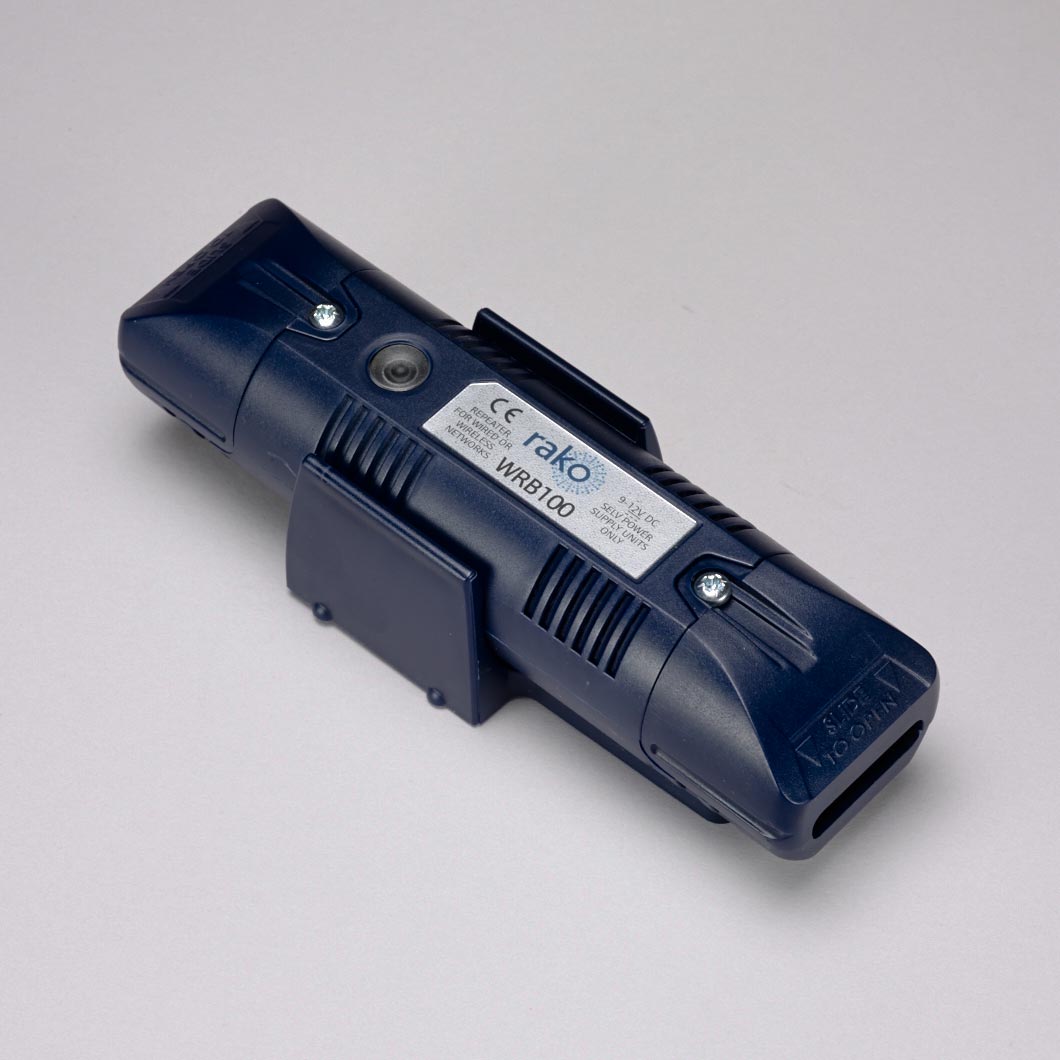

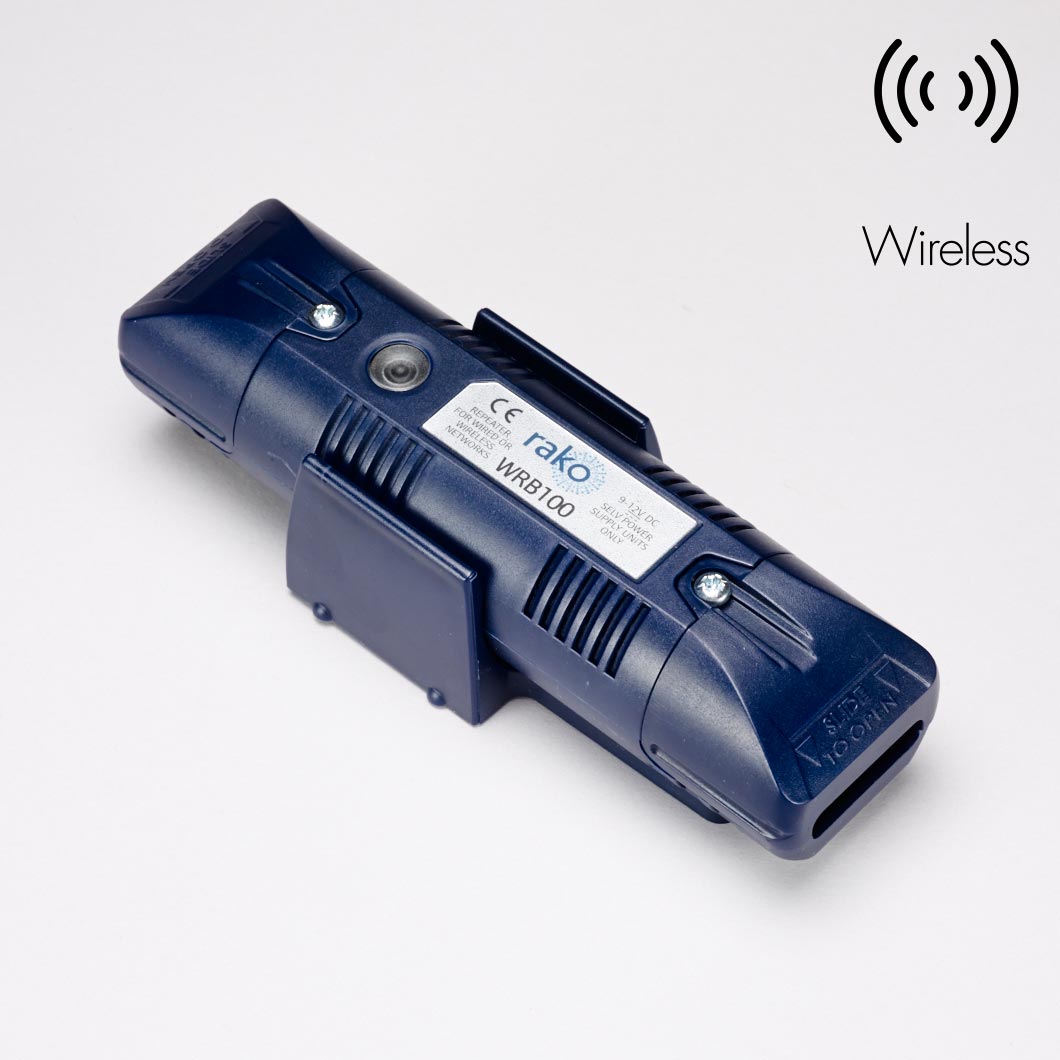

Rako WRB100 Wireless Signal Repeater

Description

The WRB100 is a flexible signal repeater for use with either wireless only or combined wired and wireless Rako systems.

• For use with either wireless only or combined wired and wireless Rako systems.
• Typically located centrally between push button wall plates and dimmer receivers.

Used as a wireless repeater the WRB100 receives and repeats Rako wireless messages thus increasing the range of transmitters. Typically located between transmitters and repeaters the unit will repeat all messages from the same Rako 'House' address.

Usually used as a single repeater to avoid messages creating a locked loop it is possible to configure WRB100 units to repeat messages from other WRB100 units. Consult Rako's technical team for more information.

When used in a combined wired and wireless system the WRB100 forms a link between the two networks, repeating all messages both wired and wireless allowing a wired system to respond to wireless commands and equally control wireless devices.

Wired Spine Operation:
When used to form a wired spine two or more WRB100 modules can be used to create a simple wired backbone system where no other wired devices are used but allowing a wireless message to be received by one WRB100, be transmitted down a data cable and be re-transmitted by another WRB100(s). This method can provide a simple and effective yet reliable means of extending a wireless system.

For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Input supply: 12V DC Power supply included

Weight: 175g

Housing: UL V0 material

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Connections:
Wireless - jack plug for 12V DC
Wired - RJ11socket or punchdown connector

Standards:
Emissions - EN61000-6-3: 2007
Immunity - EN61000-6-1: 2007
LVD - EN 60950-1 :2006

Communication: Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

Dimensions

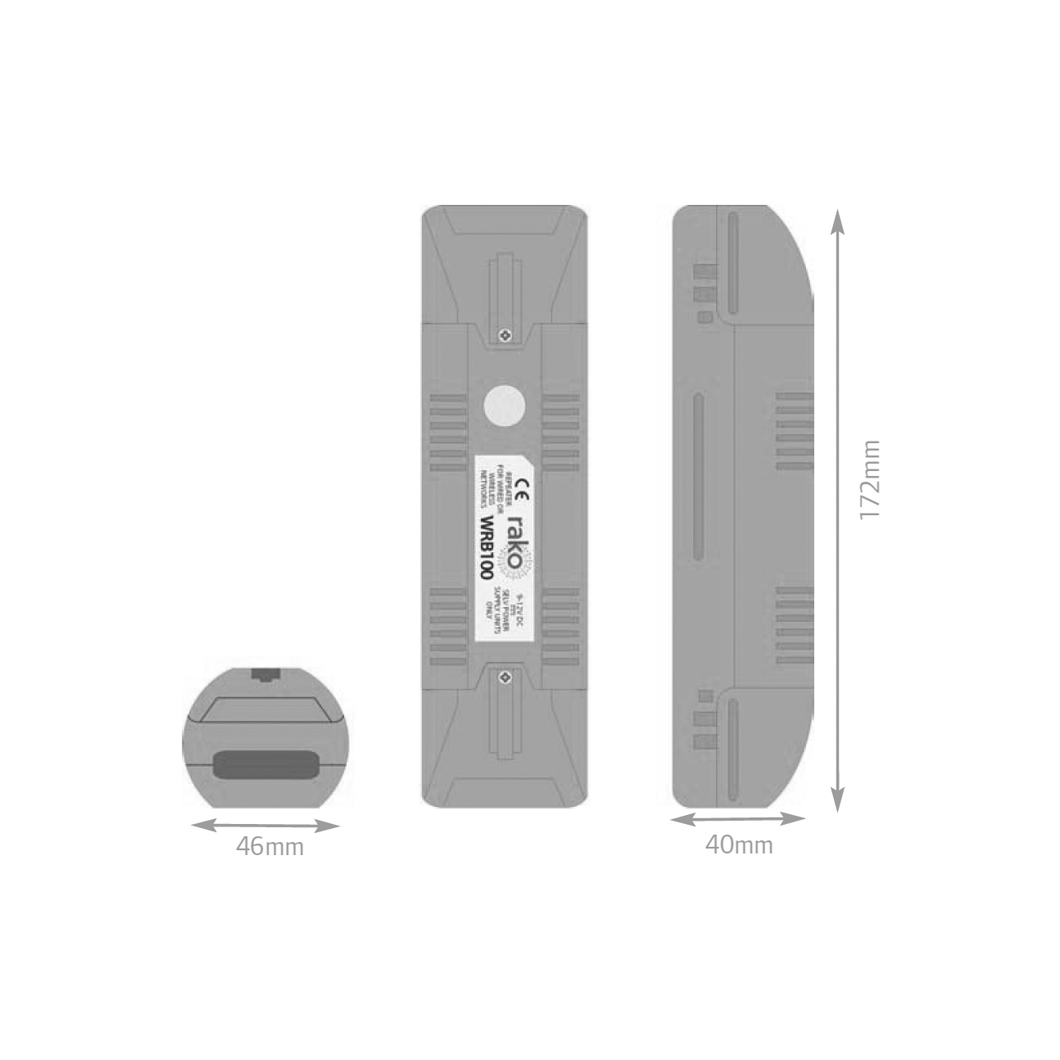

Product dimensions: W.172mm x D.46mm x H.40mm

Downloads

• Rako WRB100 Data Sheet PDF
• Rako WRB100 Installation Instructions PDF

Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
