Rako RMR-VF Wireless Contact Interface Unit

Manufacturer: Rako

£274


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

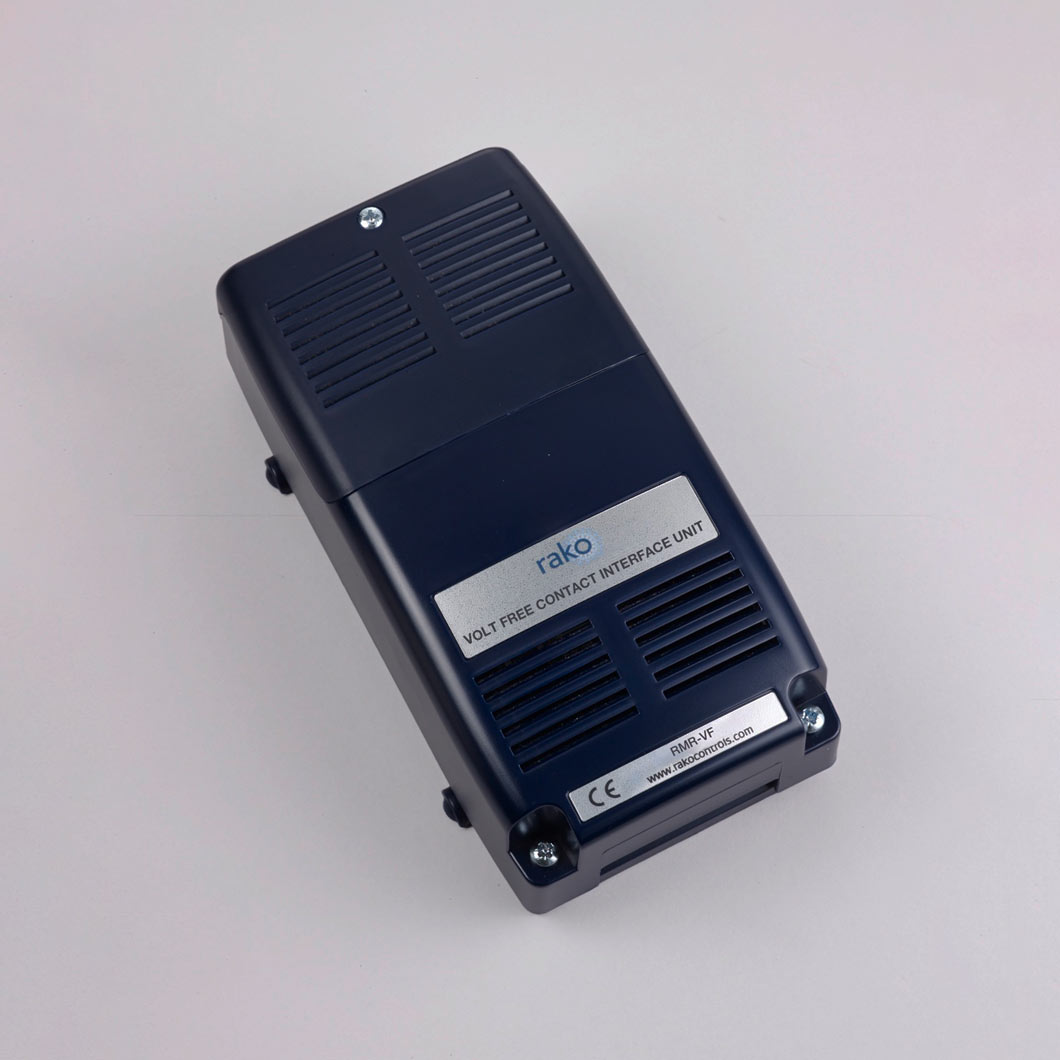

The Rako RMR-VF is an interface unit to convert volt-free contact signals into Rako wireless RAKOM messages.

  • The RMR-VF creates an interface between volt-free contact or DC logic inputs and Rako RF based receivers.
  • The unit accepts up to 10 contact closures which can be mapped using RASOFT Pro to mimic keypad presses.
  • Commands can be sent to single or multiple rooms and can have advanced features such as Press and Hold, Trigger on Release or requiring either single or combinations of inputs to trigger commands.
  • Inputs can be from any volt-free contact or DC logic input such as from alarm, thermo or light sensors and gate opening systems.

The RMR-VF accepts up to 10 volt-free inputs which can be used to trigger multiple scenes within a single room or separate commands in different rooms. Commands can be scenes, fades, levels or multiple actions depending on the duration of the contact closure.

The RMR-VF can be addressed manually to a single Rako Room and inputs will trigger basic scenes within that Room. Rasoft Pro is required (with a suitable programming interface e.g. RABridge) to map commands to different or multiple rooms and action advanced functions such as Level, Press and Hold and Trigger on Release.

Note: The RMR-VF is not intended for use with PIR or other presence sensors. For these sensors the RAMVR should be used.


For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Input supply: 9-12V DC from SELV power supply unit (included)

Weight: 340g

Housing: UL V0 ABS

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Standards:
Emissions - EN61000-6-3: 2007
Immunity - EN61000-6-1: 2007
LVD - EN 60950-1 :2006

Communication: Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

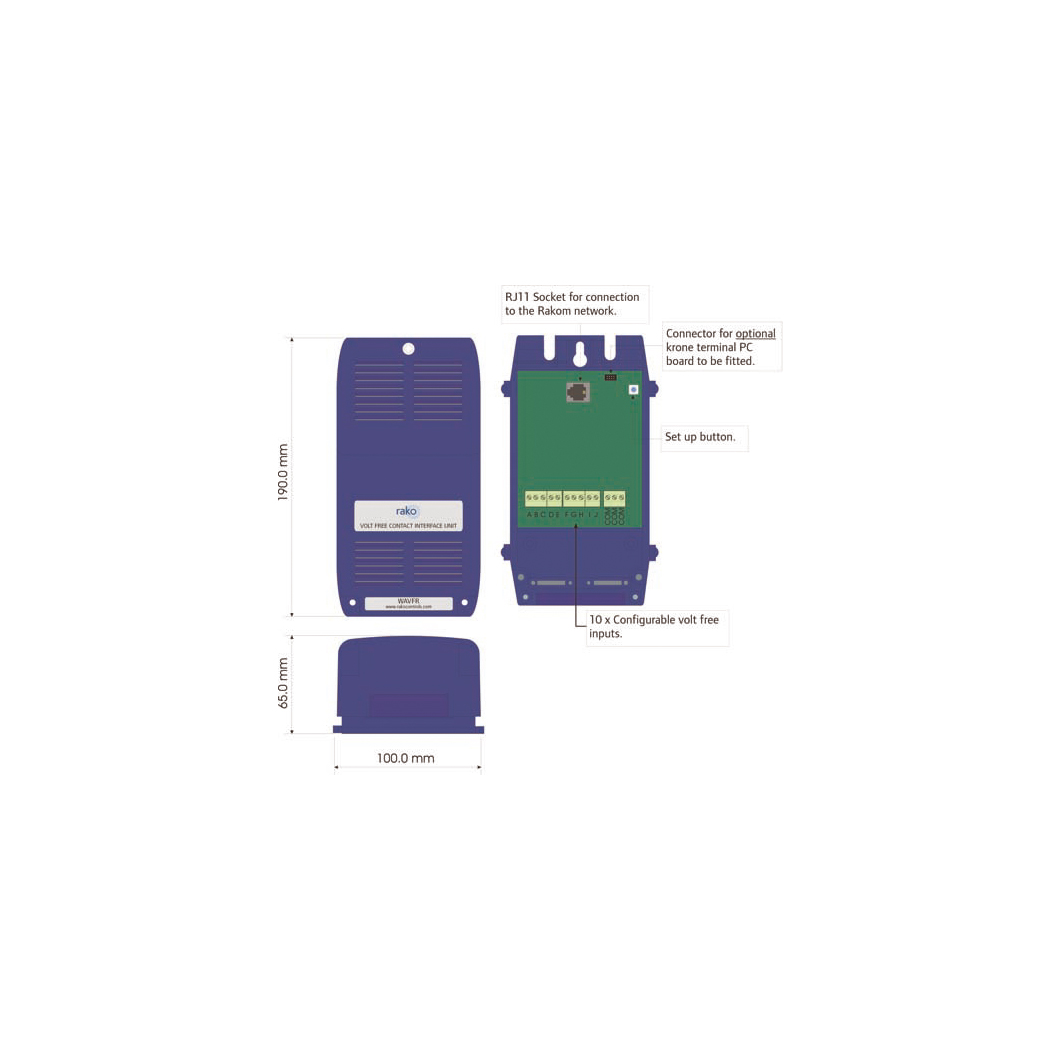

Dimensions

Product dimensions: W.190mm x D.105mm x H.66mm

Downloads
Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Made in Britain, Rako smart lighting controls and systems are easy to use, easy to install & cost effective. Leading the way in providing state-of-the-art digital dimming technology, Rako provides innovative solutions for both wired systems (perfect for new build projects), wireless systems (ideal when it isn't possible to replace wiring) or a hybrid of both.

Perfect for modern living, Rako systems can be easily controlled with tablets, smartphones and smartwatches. Set up lighting scenes that  allow you to select a pre-set lighting scene or change the mood lighting at the touch of a button. Rako offer a full suite of control panels, cover plates, control modules and dimmers, hubs and interfaces. If you're looking for fully integrated smart home mood lighting systems, you're in the right place.

Rako won the Smart Building Awards for Best Lighting Control product and the CEDIA EMEA Award for Best New Hardware for 2022.
