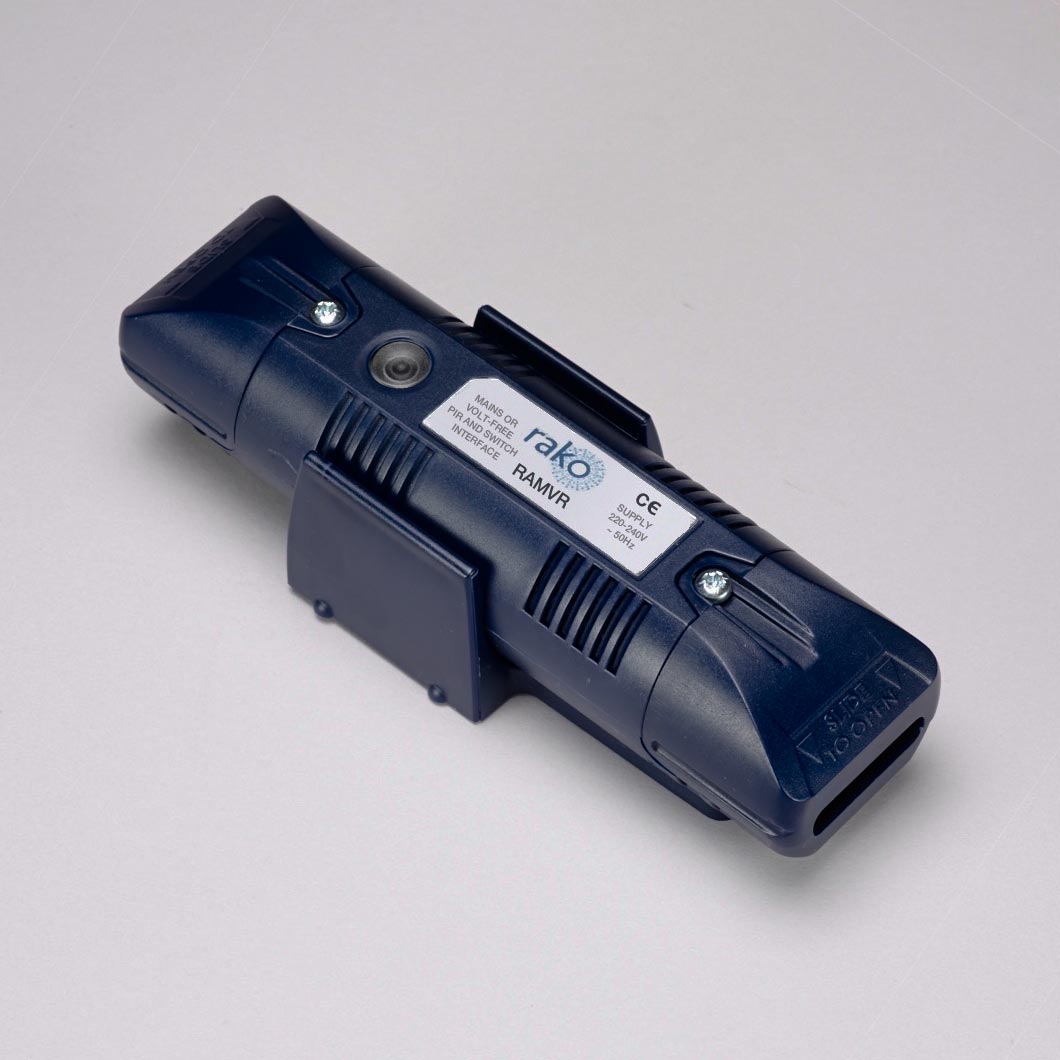

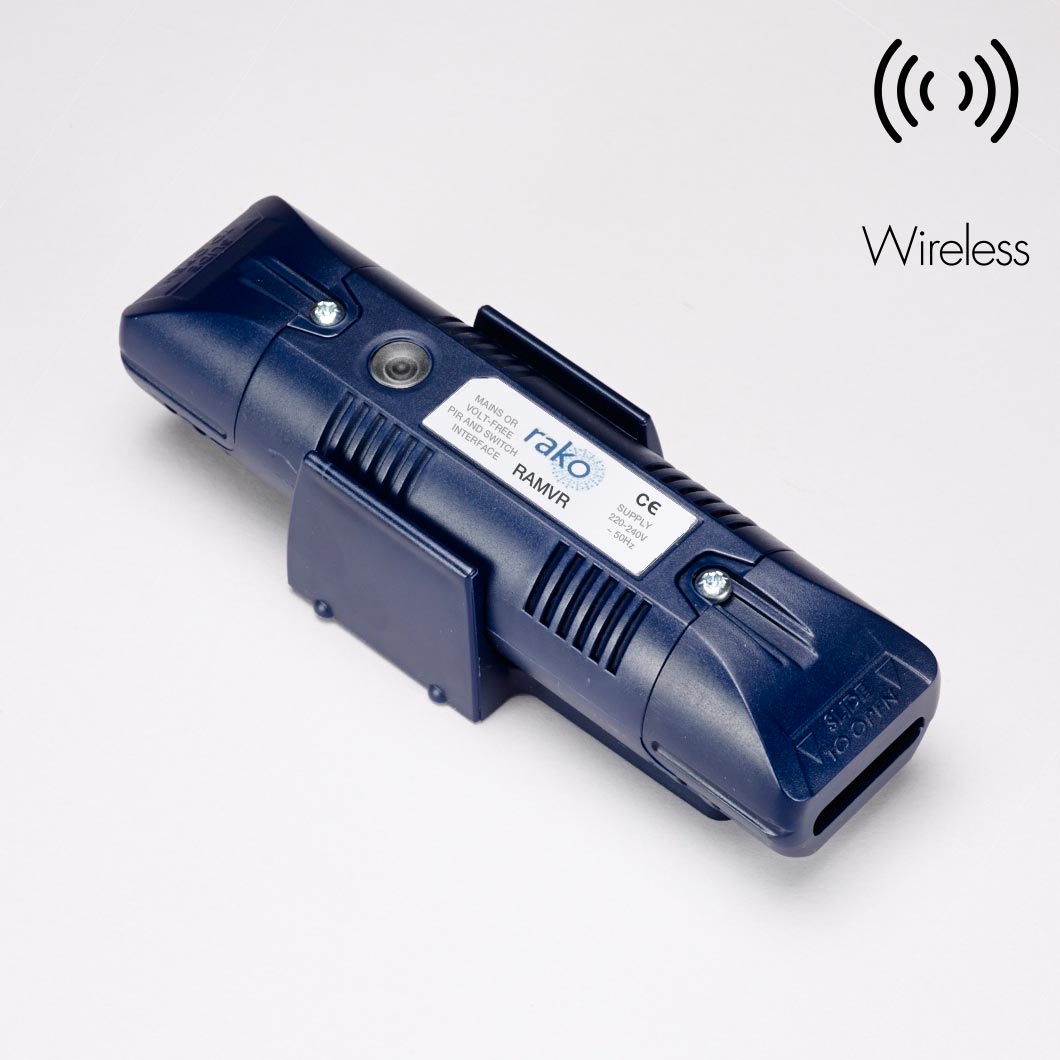

Rako RAMVR Wireless PIP Interface Module

Manufacturer: Rako

£174


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

The Rako RAMVR is a wireless interface module for third party presence sensors.

  • Accepts inputs from third party presence sensors, or other contact inputs and transmits Rako RAKOM wireless RF commands.
  • Accepts either mains voltage or volt-free signals.
  • When used with presence sensors the module allows intelligent integration of sensors into a Rako wireless system.

PRESENCE SENSOR INTERFACING - The RAMVR integrates third party presence sensors into a Rako wireless system where Rako's RAPIR may not be suitable, such as external use. It also allows sensors using other detection methods such as break-beam or microwaves to be used. The RAMVR is mains powered and allows direct connection to sensors that switch mains power. The module also has isolated volt-free inputs connections for dry contact or DC logic inputs.

The module can be manually addressed or programmed using Rasoft Pro for more advanced programming. Programming functions include:

  1. Set scene only when lights are off – Allows lights to be dimmed without the PIR overriding.
  2. Auto off – Turns lights off when no movement is detected.
  3. Exit delay – Allows users to manually turn lights off before the PIR becomes active again.
  4. Other Room Controllers disable Auto-Off – A manual wallplate can disable the auto-off function, allowing long periods of inactivity without turning lights off.

The RAMVR can also be used to interface mains voltage, non-sensor type inputs into a Rako wireless system. Note: The RAMVR is not intended primarily for connection to volt-free, nonsensor inputs where the RMR-VF provides a more flexible solution.


For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Input supply: 230V AC +/-10% 50Hz

Weight: 180g

Housing: UL V0 ABS

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Connections: Screw terminal

Standards:
Emissions - EN61000-6-3: 2007
Immunity - EN61000-6-1: 2007
LVD - EN 60950-1 :2006

Communication: Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

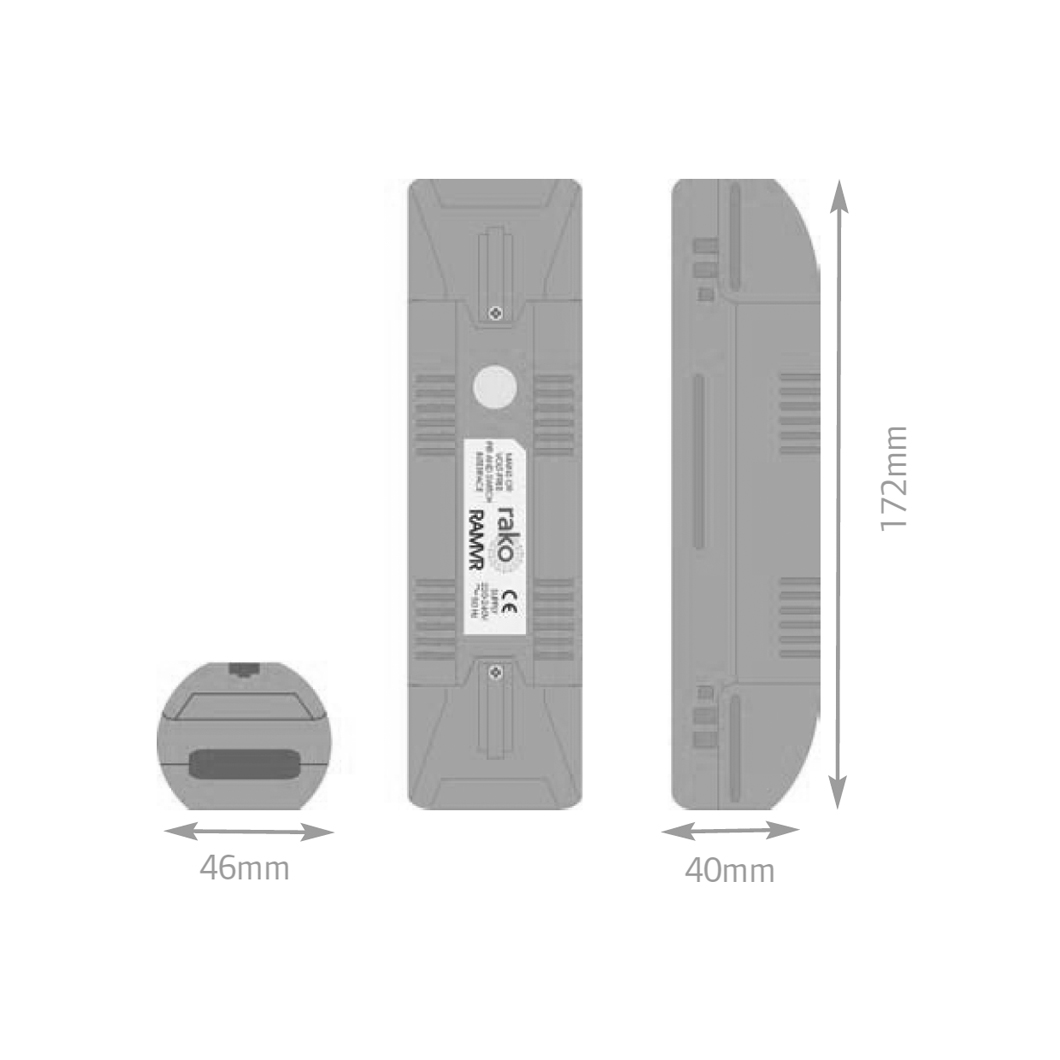

Dimensions

Product dimensions: W.172mm x D.46mm x H.40mm

Downloads
Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Made in Britain, Rako smart lighting controls and systems are easy to use, easy to install & cost effective. Leading the way in providing state-of-the-art digital dimming technology, Rako provides innovative solutions for both wired systems (perfect for new build projects), wireless systems (ideal when it isn't possible to replace wiring) or a hybrid of both.

Perfect for modern living, Rako systems can be easily controlled with tablets, smartphones and smartwatches. Set up lighting scenes that  allow you to select a pre-set lighting scene or change the mood lighting at the touch of a button. Rako offer a full suite of control panels, cover plates, control modules and dimmers, hubs and interfaces. If you're looking for fully integrated smart home mood lighting systems, you're in the right place.

Rako won the Smart Building Awards for Best Lighting Control product and the CEDIA EMEA Award for Best New Hardware for 2022.
