The Rako RMT-PILL dimmer is a compact 250W back-box dimmer for halogen and mains dimmable LED lighting loads.
Designed to a fit in a standard UK or European back-box the RMT-PILL, whether used with or without a neutral, has full RF receiving capability and the same programmability as other Rako dimmers. The “Pill” dimmer is useful for installations where fitting a standard Rako dimmer is difficult e.g. retro-fitting to control wall lights.
The RMT-Pill can be used either with or without a neutral allowing it to be used with dedicated wiring or retrofit into a standard wiring situation. Trailing edge technology for quiet reliable dimming of any non-inductive load when used with a neutral or tungsten GLS and tungsten halogen GU10 style lamps when used without.
The RMT-PILL can be controlled from any Rako transmitter such as RCM wallpanels, RAH hand held, timeclocks and forms an integral part of a Rako scene-set system. The RMT-PILL dimmer can also be controlled from a simple momentary action switch giving ON/OFF control allowing cost effective extra panels. Control from simple panels still allows the dimmer to be used as part of an overall home control system with Master Off and macro command response.
Input supply: 230V AC +/-10% 50Hz
Housing: UL V0 material
Temperature +2C to +40C
Humidity +5% to 95% non condensing
4 way screw terminals for mains power
Molex 2 pin socket for auxiliary switch
Auto resetting over current protection
Auto thermal shutdown
Voltage surge protection
Load types (with neutral):
Mains Dimmable LEDs, Incandescent mains voltage lamps, Tungsten halogen, GU10 lamps, Trailing edge dimmable LV transformers, Trailing edge dimmable cold cathode.
Load types (without neutral):
Incandescent mains voltage lamps, Tungsten halogen GU10 lamps Not suitable for low voltage or LED lamps.
1W (with neutral)
60W (without neutral)
Maximum Load: 250W (with & without neutral)
1.5mm2 - Stranded
2.5mm2 - Solid
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)

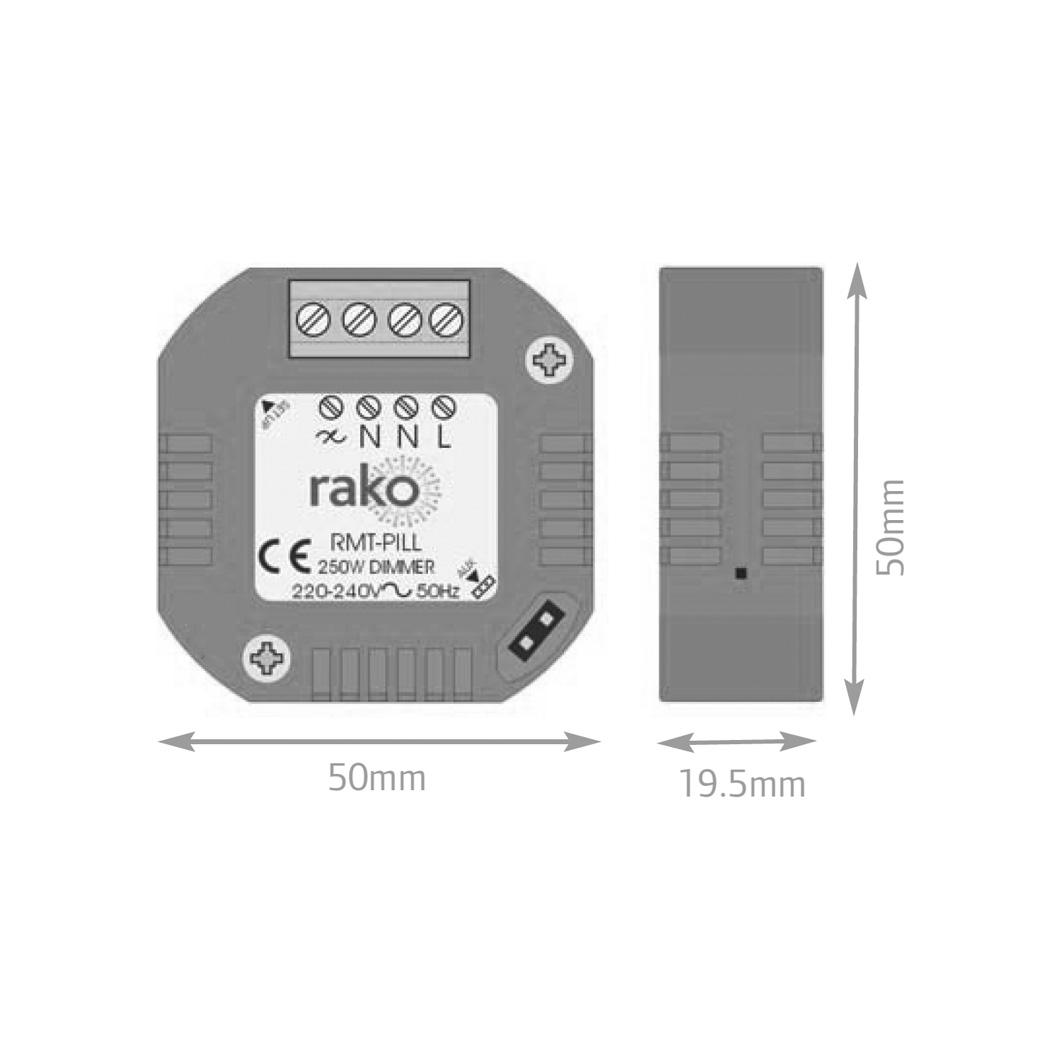

Product dimensions: W.50mm x D.20mm x H.50mm
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
