- Description
-

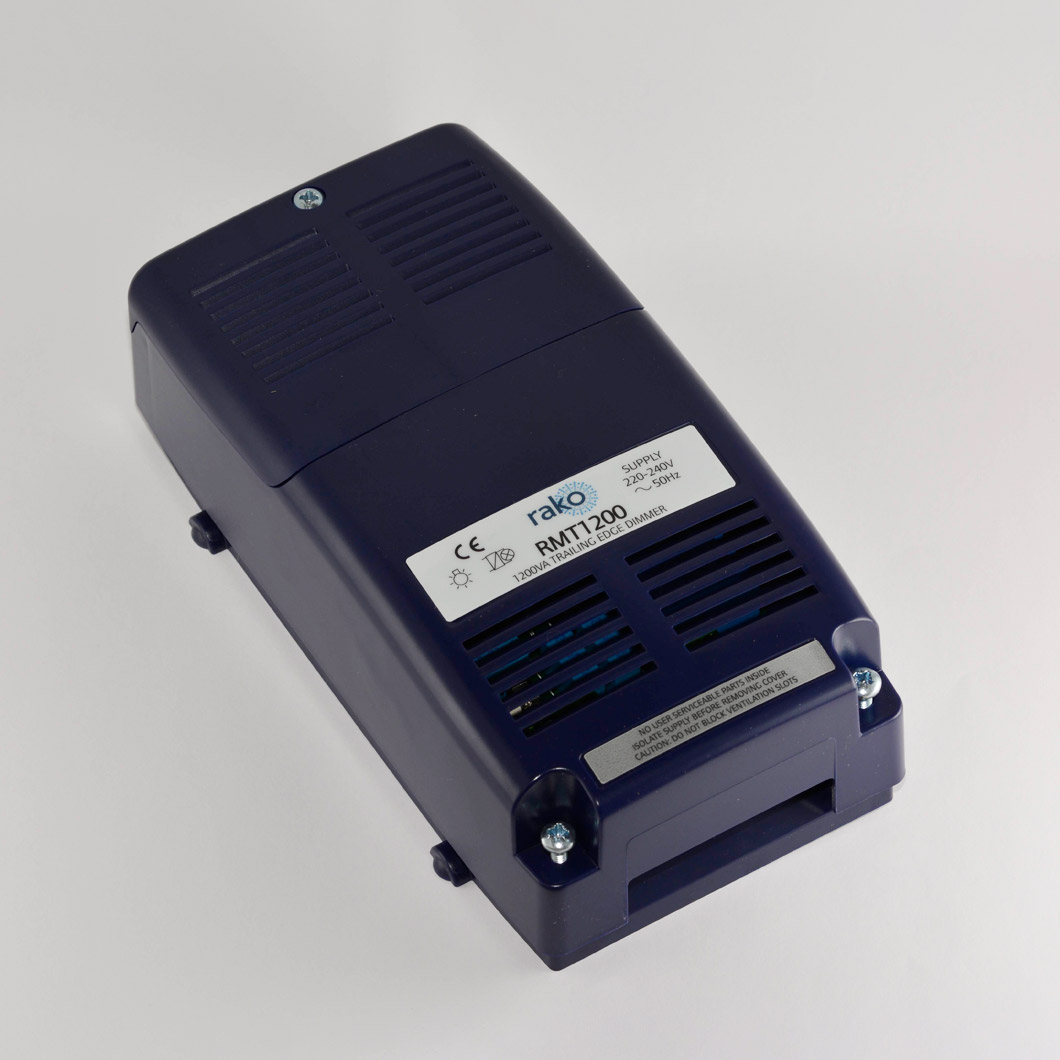

The Rako RMT1200 wireless in-line RF dimmer is designed for GU10 LED lamps, tungsten, low-voltage halogen and other trailing edge dimmable loads.
A compact 1200W RF dimmer designed to be mounted in a ceiling void using an access panel or wall mounted in an electrical cupboard, the Rako RMT1200 uses trailing edge dimming technology for smooth quiet dimming of electronic transformer fed loads and maximises dimming performance of most GU10 LED down-lights. The dimmer is connected in-line before the first lighting fitting to enable dimming of up to 1200W / 1000va of trailing edge dimmable loads.
The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure. The RMT1200 is also the recommended dimmer for GU10 tungsten lamps due to its in-built short-circuit protection, necessary with this style of lamps. 16 Scene memory capacity, can be fully integrated into Rako wired systems. Easy set-up and manual On/Off control using the set-up button. Full rising clamp terminals and mounting bracket for easy installation. NOTE – THE RMT1200 IS NOT SUITABLE FOR USE WITH INDUCTIVE OR WIRE-WOUND LOADS. Programmed using either an RCM/RCP RF wall-plate or RASOFT PC software suite, the RMT1200 stores the House, Room and Channel address plus 16 preset scene levels in a non-volatile memory. The RMT1200 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand-helds and Bridge modules and forms the foundation of any Rako wireless scene-set system.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Input supply: 230V AC +/-10% 50Hz
Weight: 495g
Housing: ULV0 ABS
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Connections: 3 way screw terminals for mains power
Protection:
Auto resetting over current protection
Auto thermal shutdown
Voltage surge protection
Load types:
Mains Dimmable LEDs
Incandescent mains voltage lamps
Tungsten halogen GU10 lamps
Trailing edge dimmable LV transformers
Trailing edge dimmable cold cathode
Minimum Load: 1W
Maximum Load: 1200VA refer to Rako when dimming GU10 style LEDs
Terminal Sizes:
2.5mm2 - Stranded
4.0mm2 - Solid
Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
- Dimensions
-

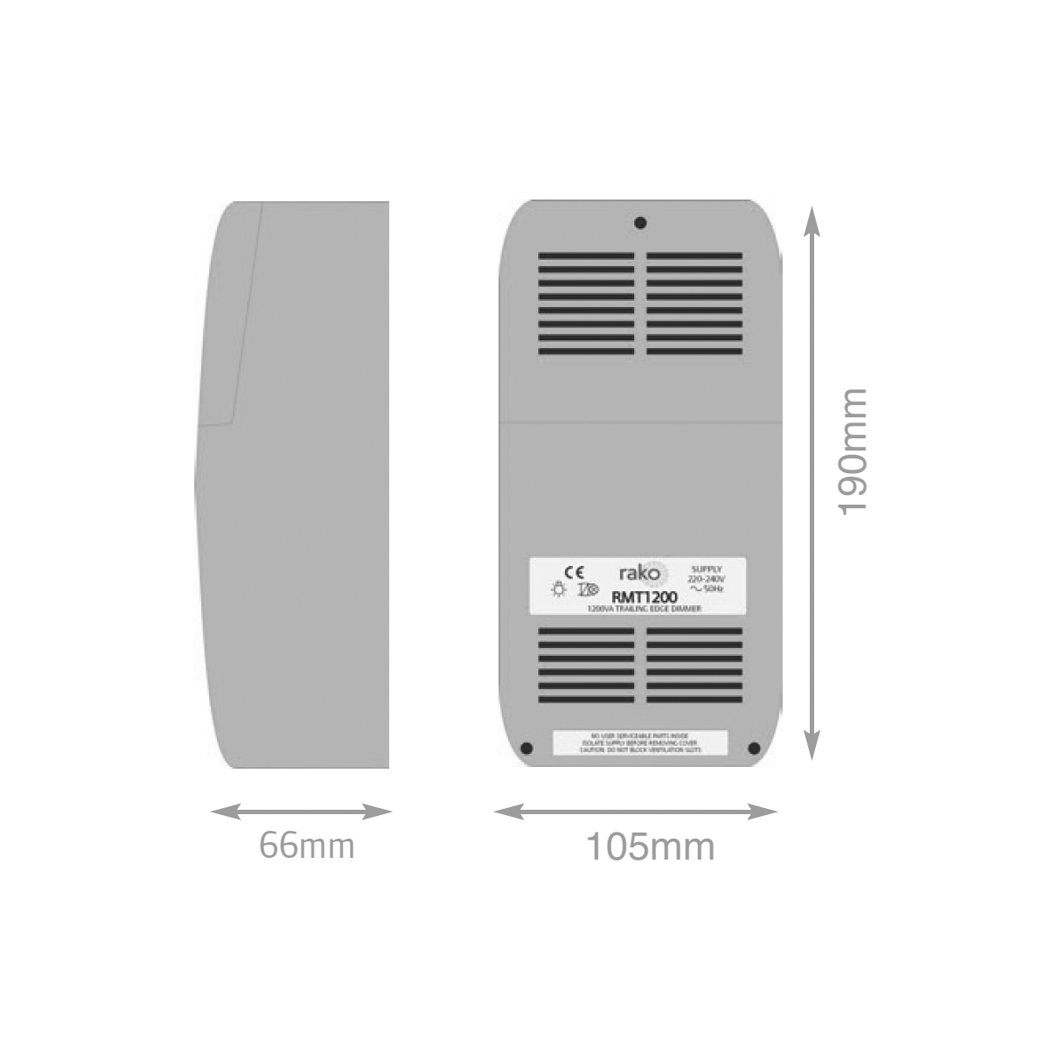

Product dimensions: W.105mm x D.190mm x H.66mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
