- Description
-

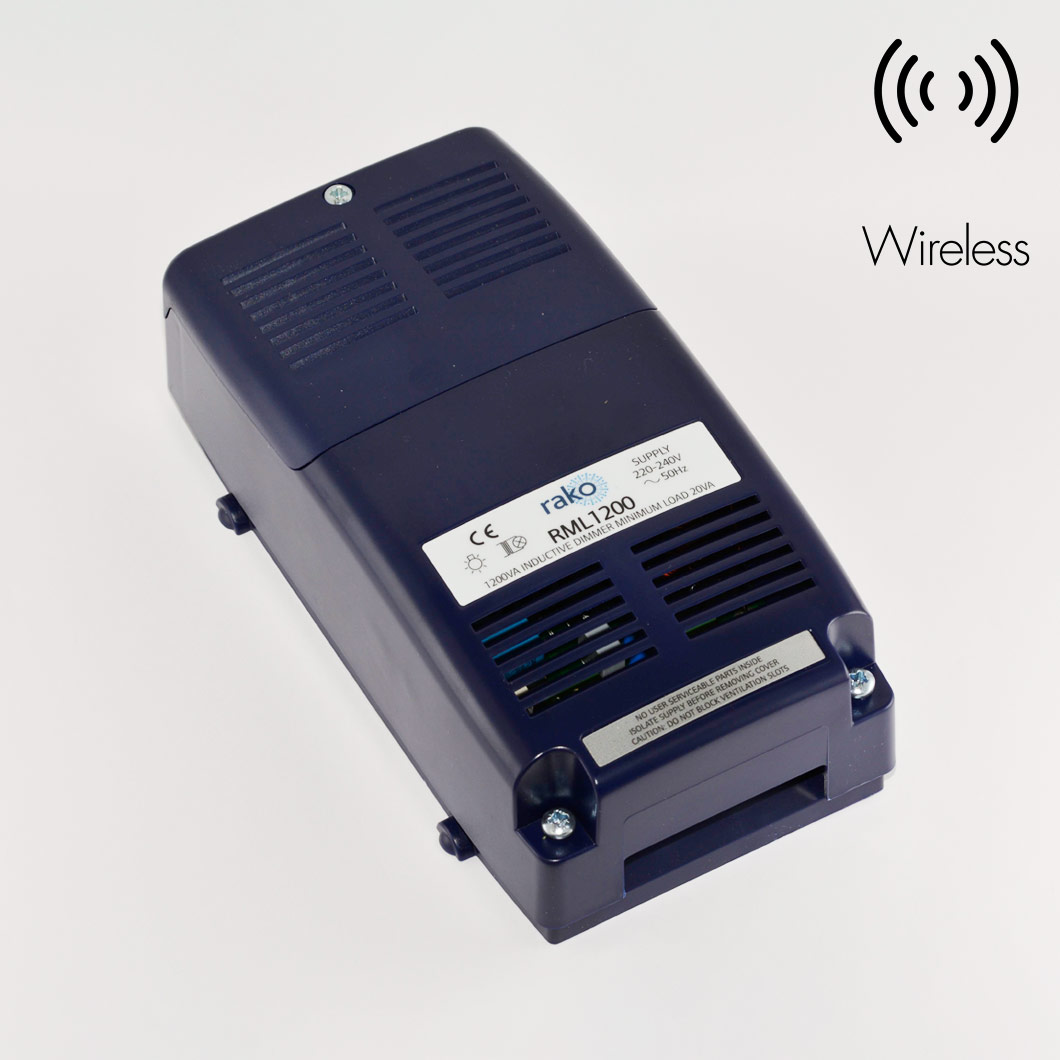

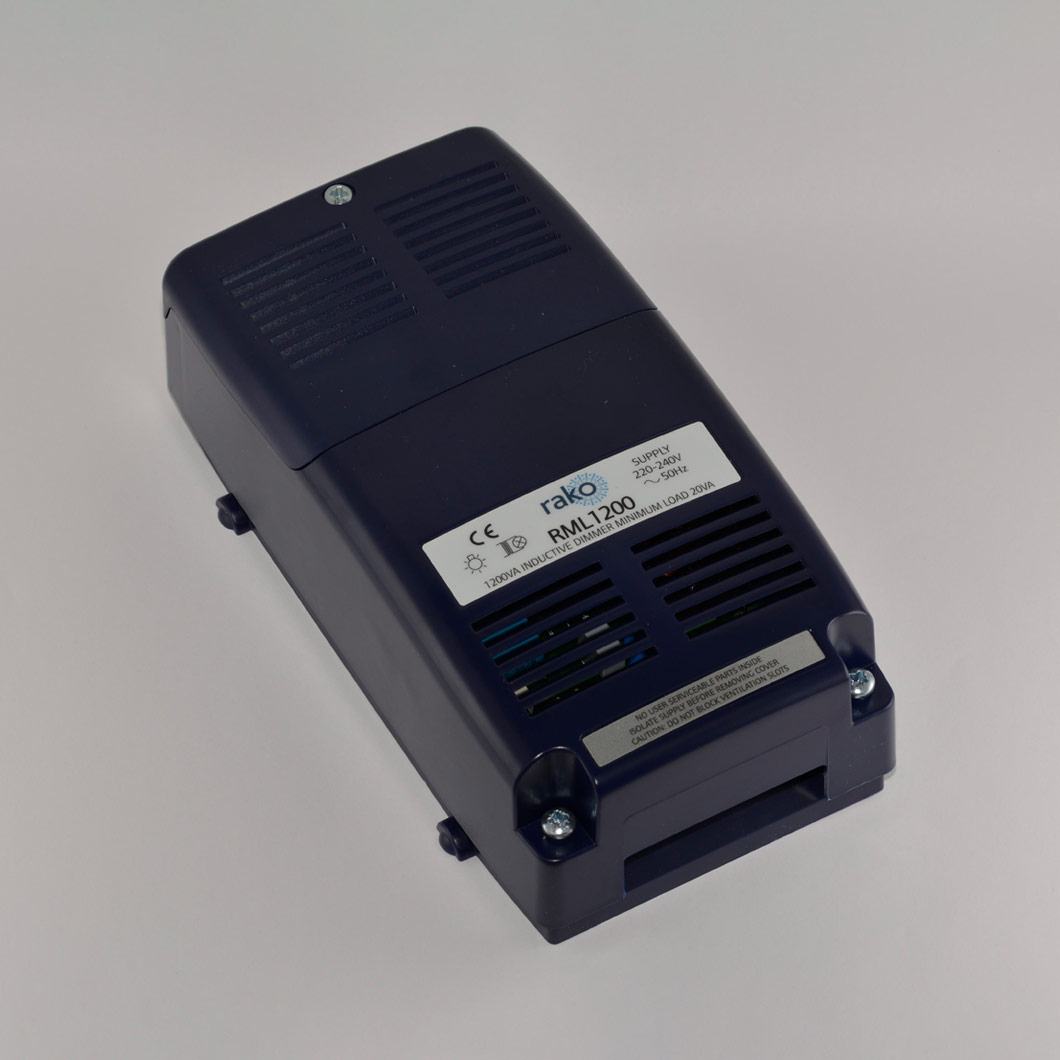

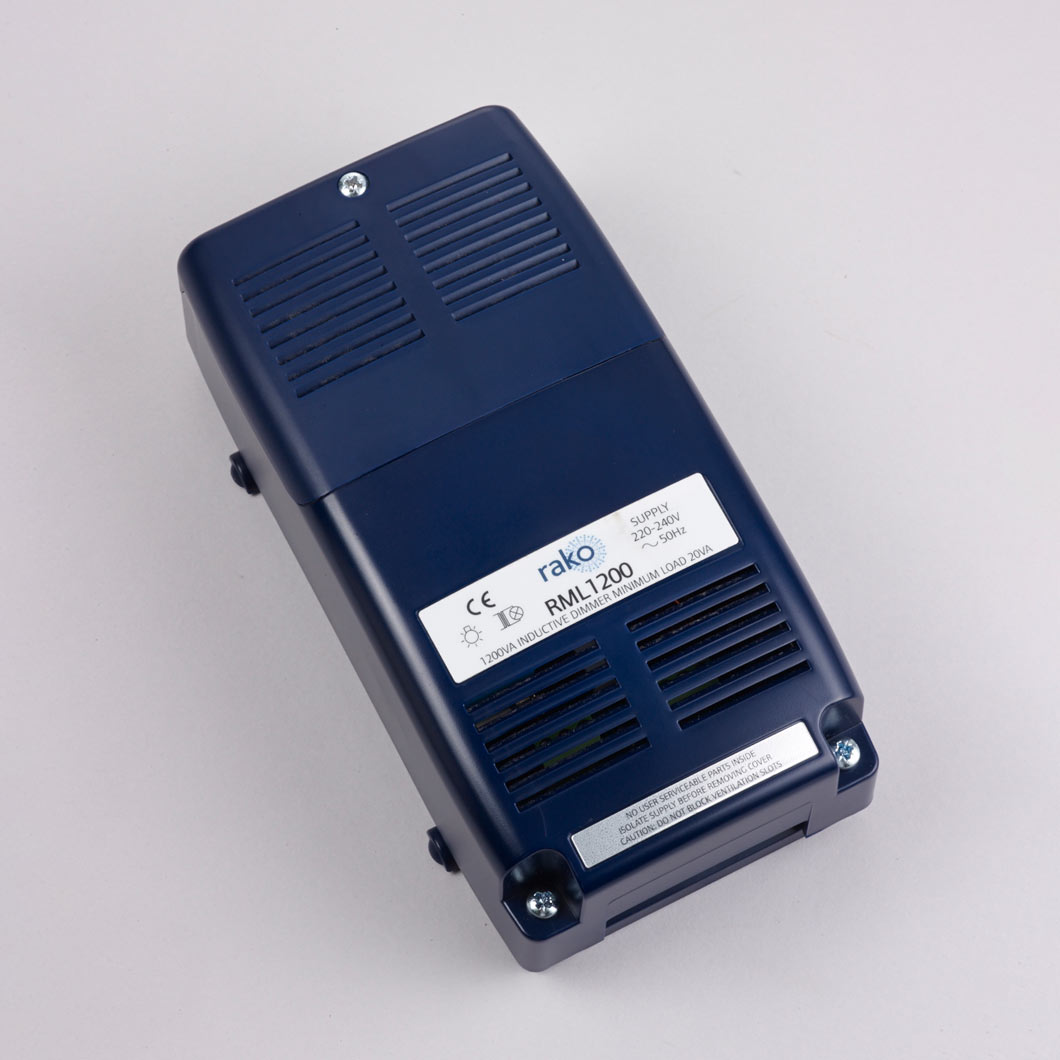

The Rako RML1200 wireless in-line RF dimmer is designed for tungsten, low-voltage halogen and other leading edge dimmable loads.
A compact 1200W RF dimmer designed to be mounted in a ceiling void using an access panel or wall mounted in an electrical cupboard, the Rako RML1200 is connected in-line before the first light fitting, to enable dimming of up to 1200W of leading edge dimmable loads. Controlled from any Rako Rakom RF device, for example the RCM/RCP.
Designed to fit in a ceiling void using an access panel or an electrical cupboard, the RML1200 inductive dimmer can control up to 1200 watts of mains dimmable lighting loads. The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure. With protection features such as field replaceable fuse, overtemperature and voltage surge protection. Programmed using either an RCP/RCM RF wallplate or the RASOFT PC software suite, the unit stores the House, Room and Channel address plus 16 preset scene levels in non volatile memory. The RML1200 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds, Bridge modules and forms the foundation of any Rako scene-set system.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Input supply: 230V AC +/-10% 50Hz
Weight: 555g
Housing: ULV0 ABS
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Connections: 3 way screw terminals for mains power
Protection:
Replaceable fuse protection
Auto thermal shutdown
Voltage surge protection
Load types:
Incandescent mains voltage lamps
Leading edge dimmable transformers
Leading edge dimmable cold cathode
Minimum Load: 20W
Maximum Load: 1200VA
Terminal Sizes:
2.5mm2 - Stranded
4.0mm2 - Solid
Cable Entry: Bottom
Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
- Dimensions
-

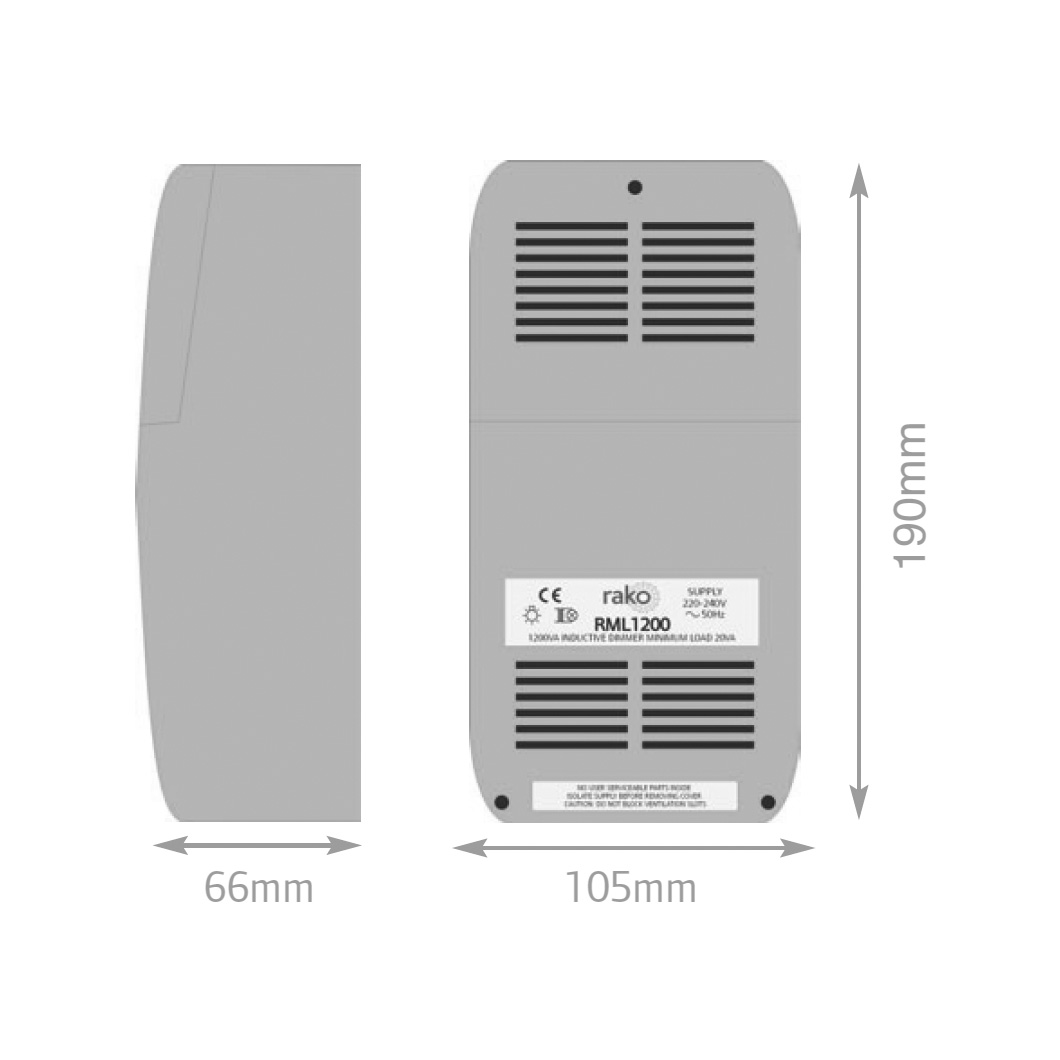

Product dimensions: W.105mm x D.190mm x H.66mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
- About the manufacturer
-
Made in Britain, Rako smart lighting controls and systems are easy to use, easy to install & cost effective. Leading the way in providing state-of-the-art digital dimming technology, Rako provides innovative solutions for both wired systems (perfect for new build projects), wireless systems (ideal when it isn't possible to replace wiring) or a hybrid of both.
Perfect for modern living, Rako systems can be easily controlled with tablets, smartphones and smartwatches. Set up lighting scenes that allow you to select a pre-set lighting scene or change the mood lighting at the touch of a button. Rako offer a full suite of control panels, cover plates, control modules and dimmers, hubs and interfaces. If you're looking for fully integrated smart home mood lighting systems, you're in the right place.
Rako won the Smart Building Awards for Best Lighting Control product and the CEDIA EMEA Award for Best New Hardware for 2022.
