- Description
-

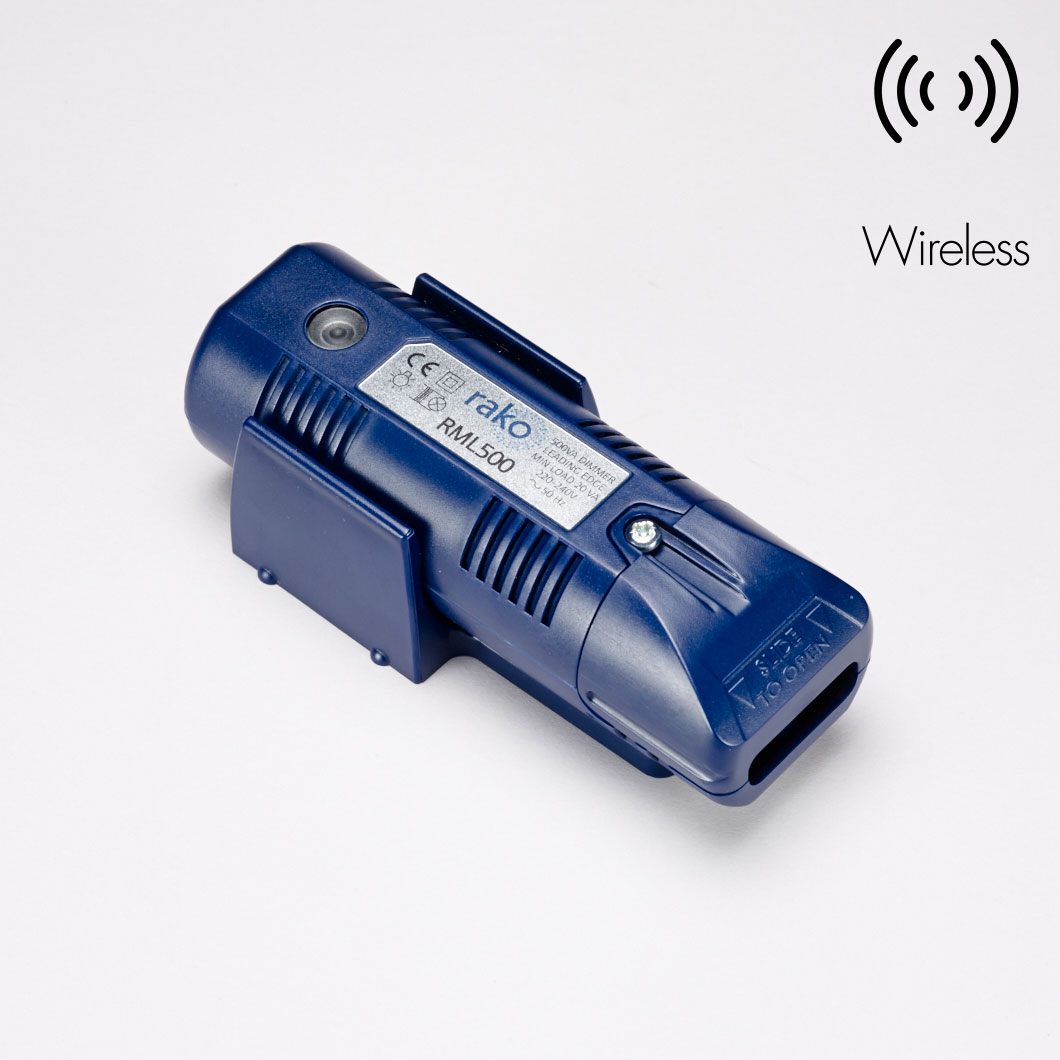

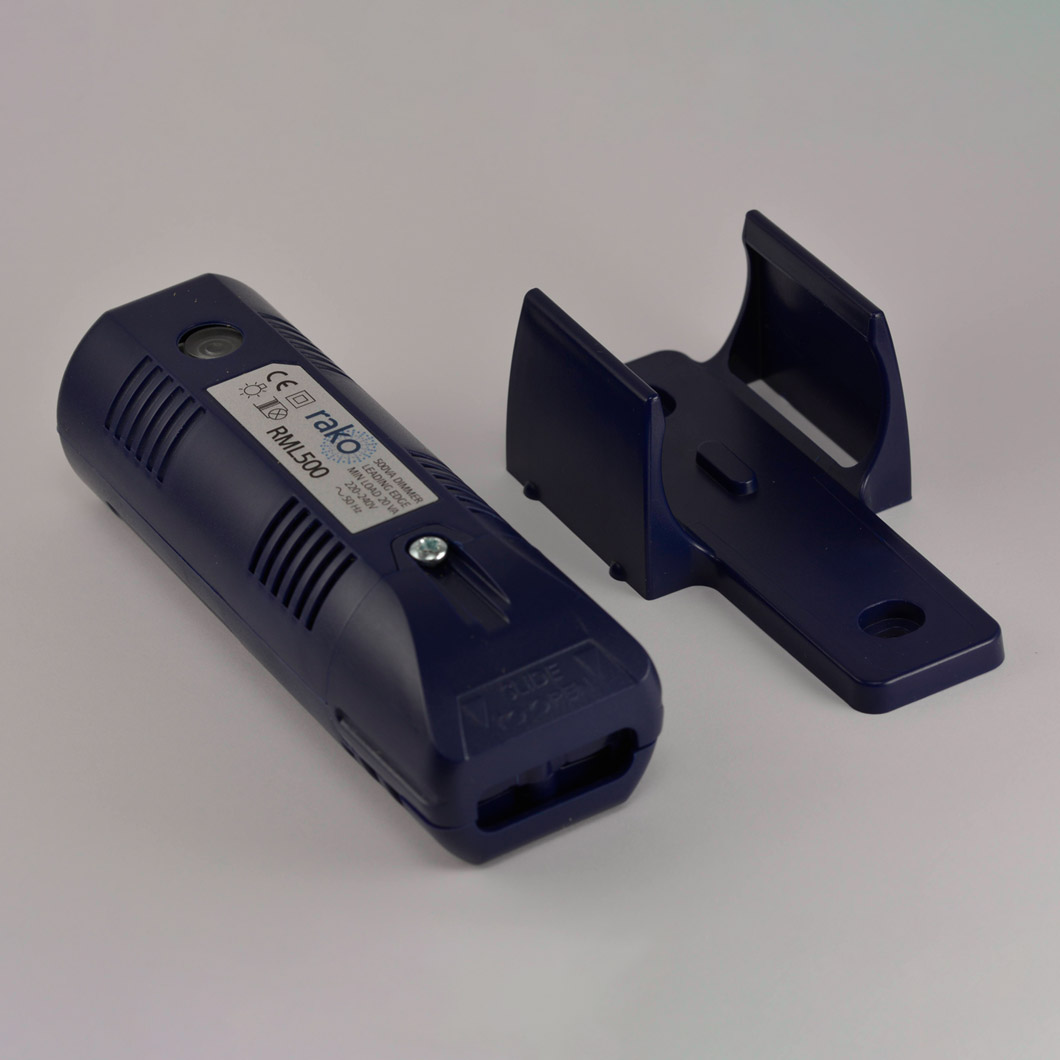

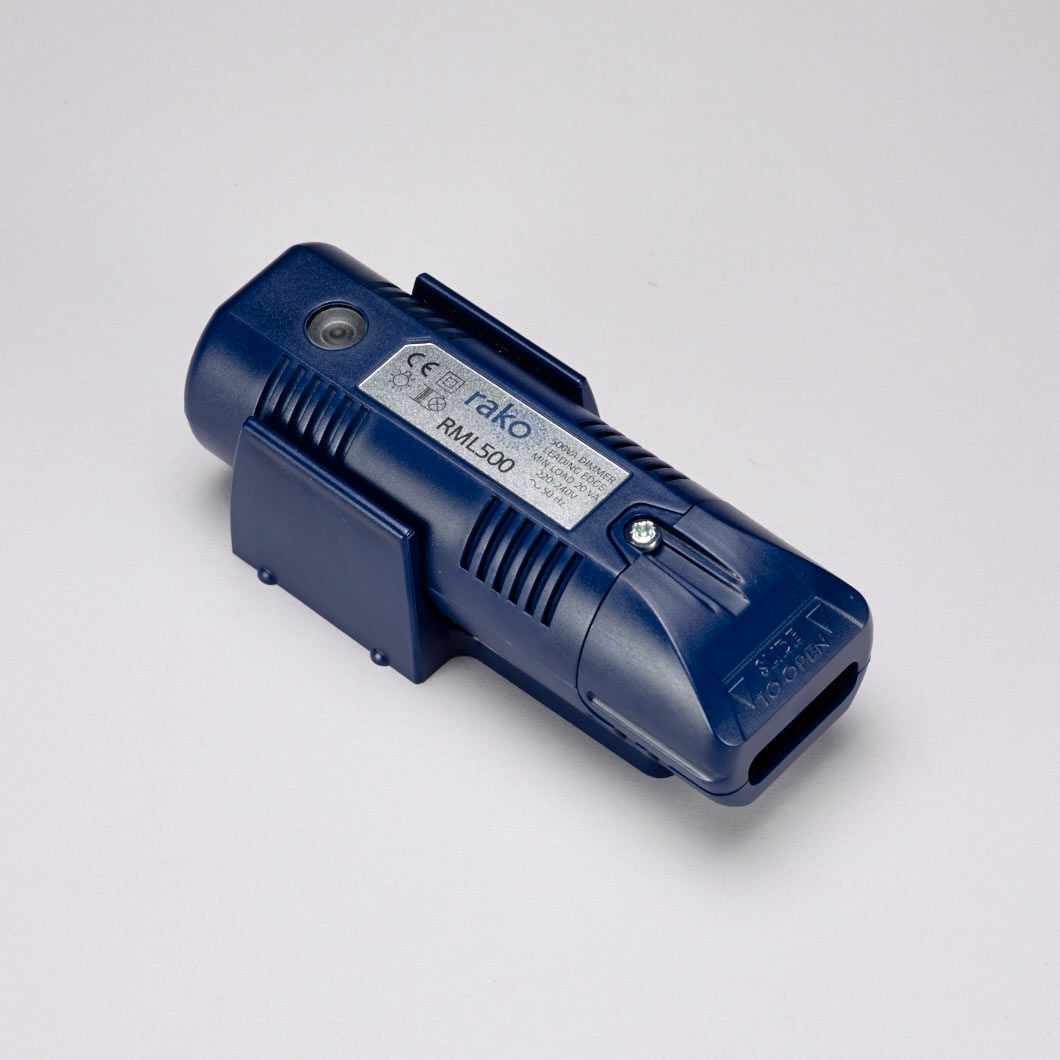

The Rako RML500 wireless in-line RF dimmer is designed for tungsten, low-voltage halogen and other leading edge dimmable loads.
A compact 500W RF dimmer designed to fit through the aperture of a standard downlight cut-out of up to 50mm, the RML500 can be installed in a ceiling void or cupboard. The dimmer is connected in-line before the first light fitting, to enable dimming of up to 500W of leading edge dimmable loads. Controlled from any Rako Rakom RF device.
The unit can also be used for exterior lighting control applications, with the use of a weatherproof IP rated enclosure. With protection features such as field replaceable fuse, overtemperature and voltage surge protection. Programmed using either an RCM/RCP RF wallplate or the RASOFT PC software suite, the unit stores the House, Room and Channel address plus 16 preset scene levels in non volatile memory. The RML500 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds and Bridge modules and is the ideal accessory to any Rako scene-set system.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Input supply: 230V AC +/-10% 50Hz
Weight: 125g
Ceiling mount cutout: 50mm or larger
Housing: UL V0 material
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Connections: 3 way screw terminals for mains power
Protection:
Field replaceable fuse
Auto thermal shutdown
Voltage surge protection
Load types:
Incandescent mains voltage lamps,
Leading edge dimmable transformers
Leading edge dimmable cold cathode
Minimum Load: 20W
Maximum Load: 500VA refer to Rako when dimming GU10 style LEDs
Terminal Sizes: 4mm - solid
Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
- Dimensions
-

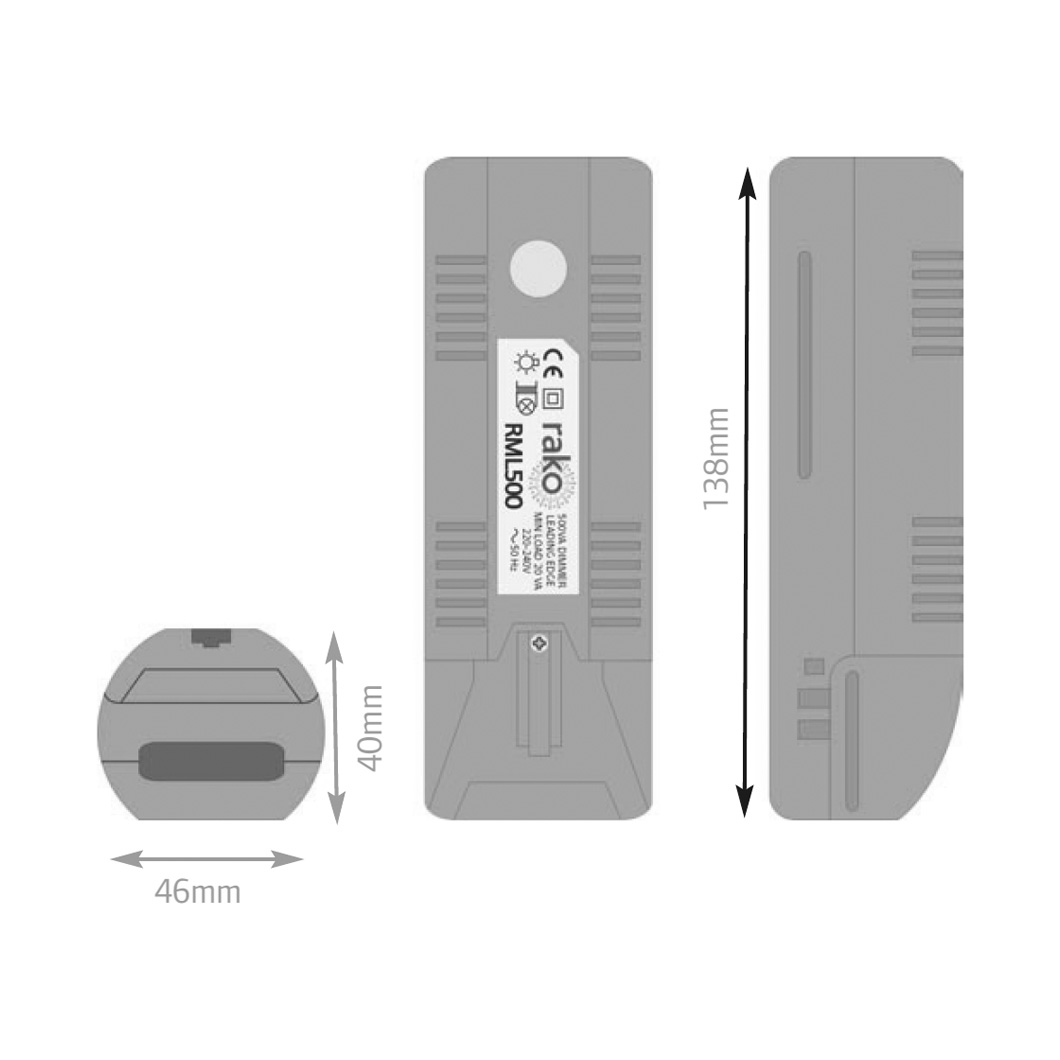

Product dimensions: W.46mm x D.138mm x H.40mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
- About the manufacturer
-
Made in Britain, Rako smart lighting controls and systems are easy to use, easy to install & cost effective. Leading the way in providing state-of-the-art digital dimming technology, Rako provides innovative solutions for both wired systems (perfect for new build projects), wireless systems (ideal when it isn't possible to replace wiring) or a hybrid of both.
Perfect for modern living, Rako systems can be easily controlled with tablets, smartphones and smartwatches. Set up lighting scenes that allow you to select a pre-set lighting scene or change the mood lighting at the touch of a button. Rako offer a full suite of control panels, cover plates, control modules and dimmers, hubs and interfaces. If you're looking for fully integrated smart home mood lighting systems, you're in the right place.
Rako won the Smart Building Awards for Best Lighting Control product and the CEDIA EMEA Award for Best New Hardware for 2022.
