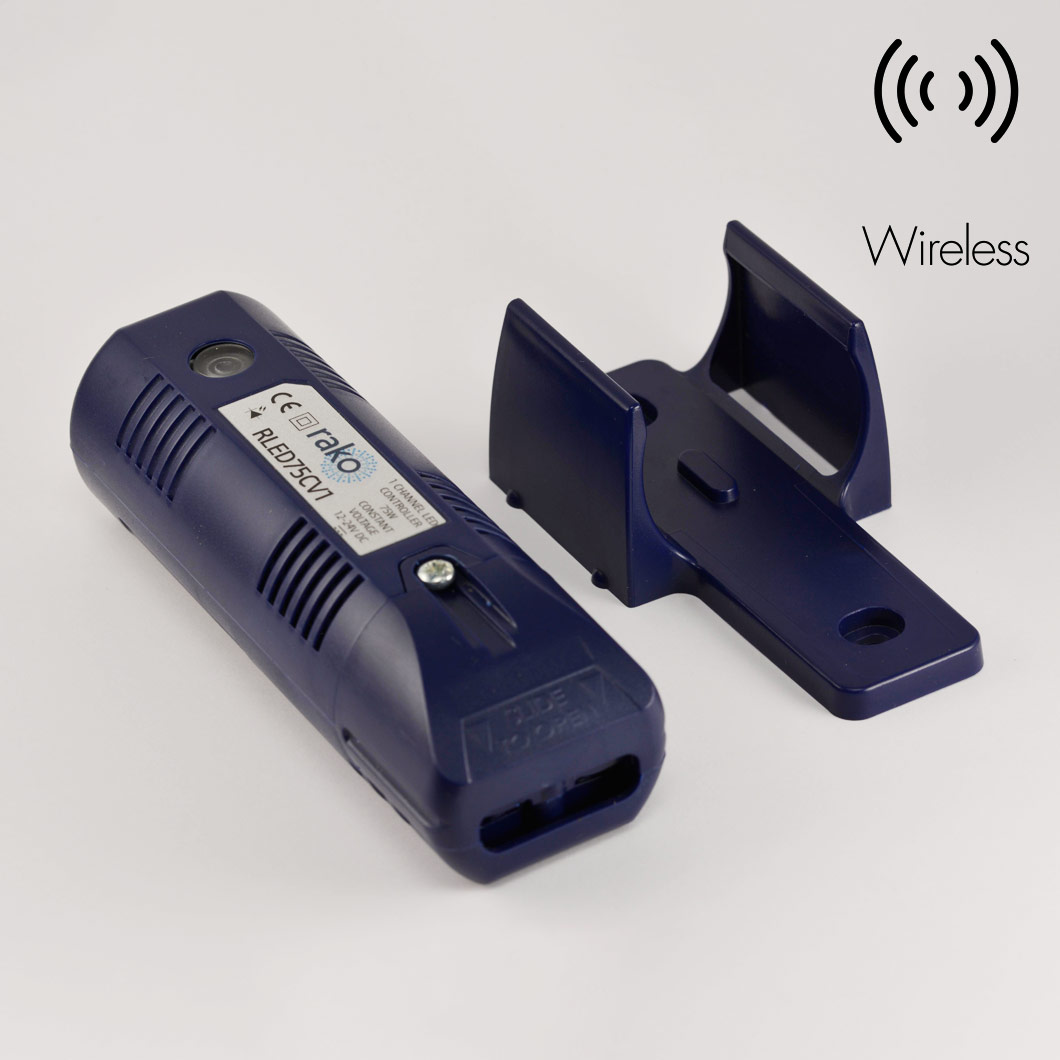

The Rako RLED75CV1 wireless 75W constant voltage dimming LED driver is suitable for ceiling or cupboard mounting.
Designed for use with single channel constant voltage LED fittings and single channel LED tape light. Maximum wattage of 75W for 12V D.C. fittings or 150W for 24V D.C. fittings.
Programmed using either an RCM/RCP RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory. The RLED75CV1 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.
Separate 12V or 24V DC power supply (LED driver) required, suitable for the total connected lighting load. EG: RLED75CV1 would typically require a 75W 12VDC or 150W 24VDC LED driver.
Input supply: 12V or 24VDC
Housing: UL V0 ABS
Temperature +2C to +40C
Humidity +5% to 95% non condensing
2 way terminals for 12-24VD.C. supply
4 way screw terminals for load connections
Reverse polarity input protection
Output current limit protection
Load Types: Single channel constant voltage LED fittings & tapelight
Minimum Load: 1W
75W @ 12VDC
150W @ 24VDC
Terminal Sizes: 4mm2
Emissions - EN61000-6-3: 2001
Immunity - EN61000-6-1: 2001
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
*Requires a suitable external power supply

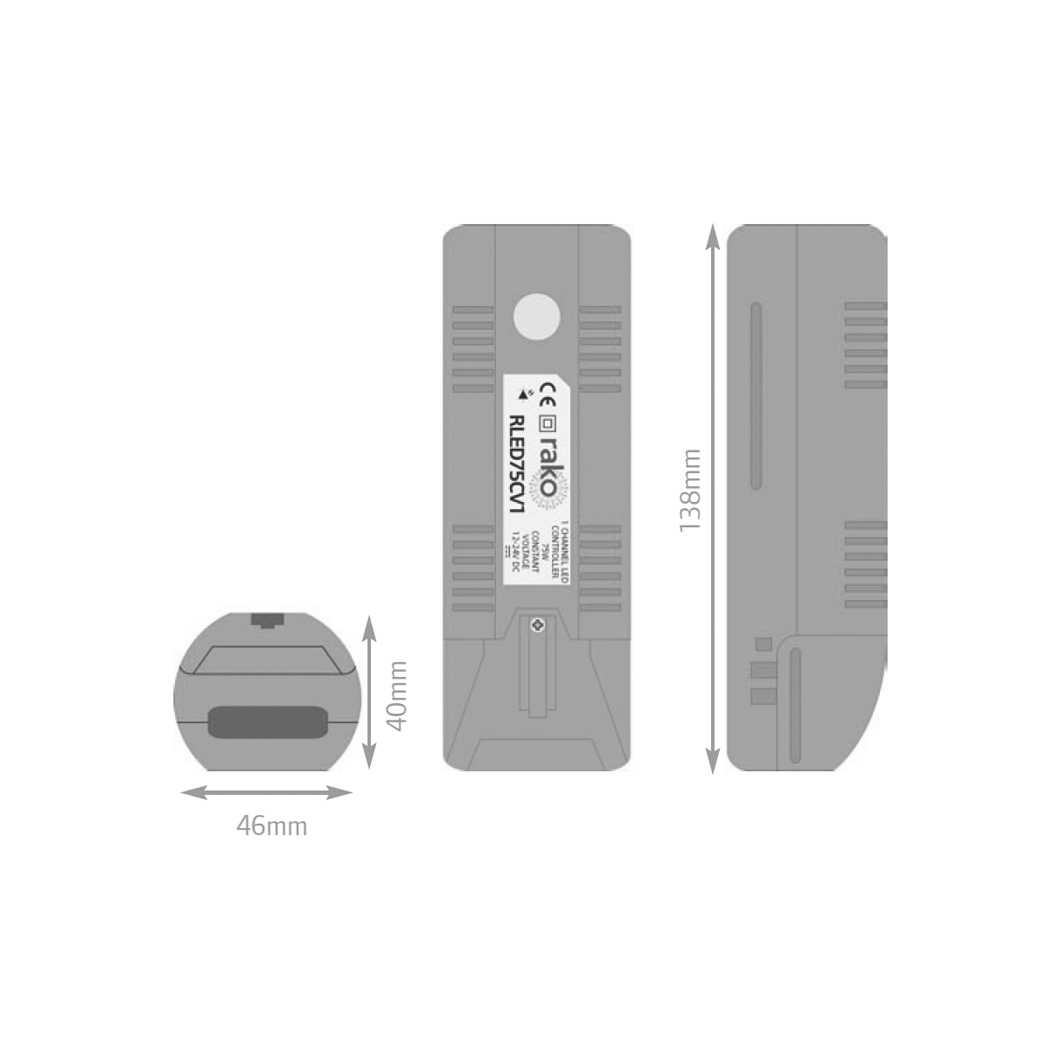

Product dimensions: W.138mm x D.46mm x H.40mm
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
