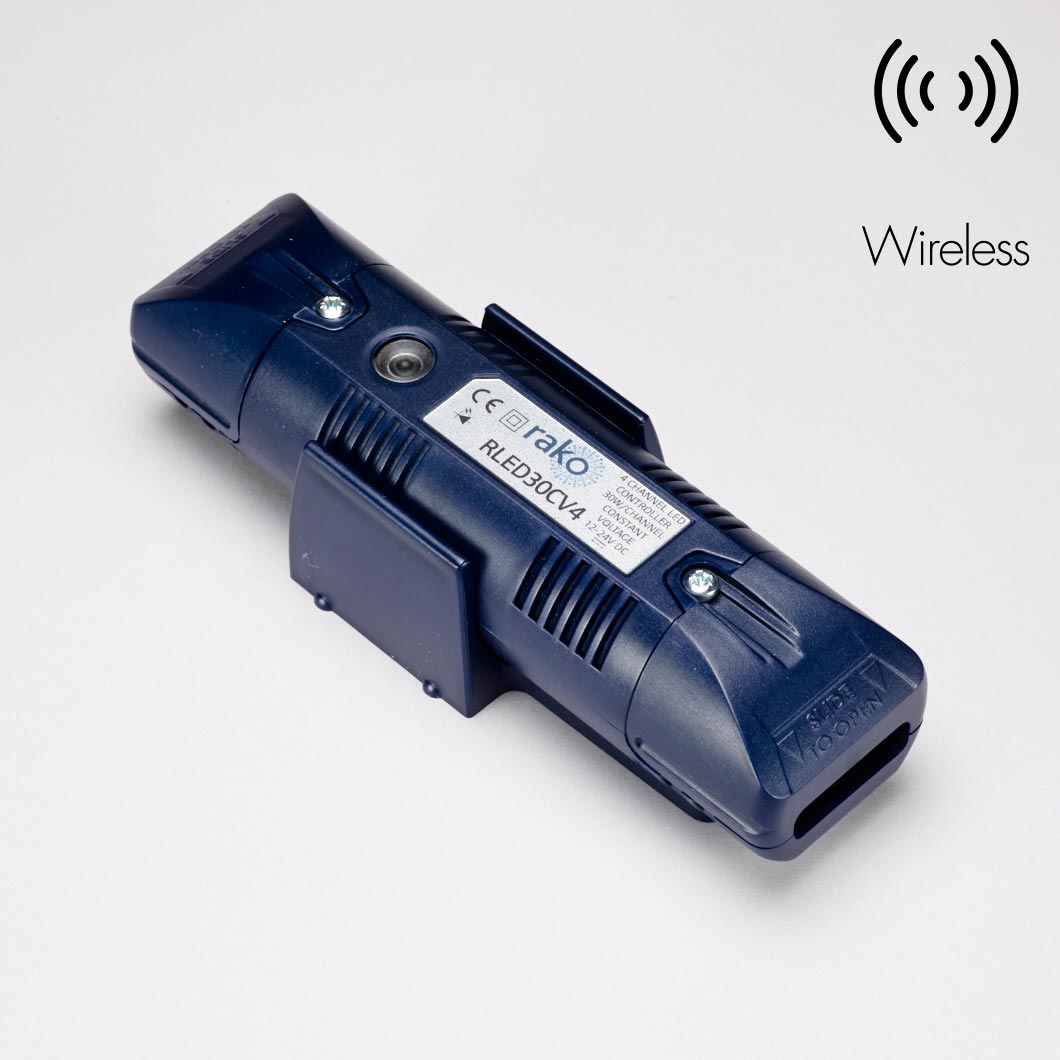

Rako RLED30CV4+ Wireless 30W 4 Channel Constant Voltage LED Dimmer

Description

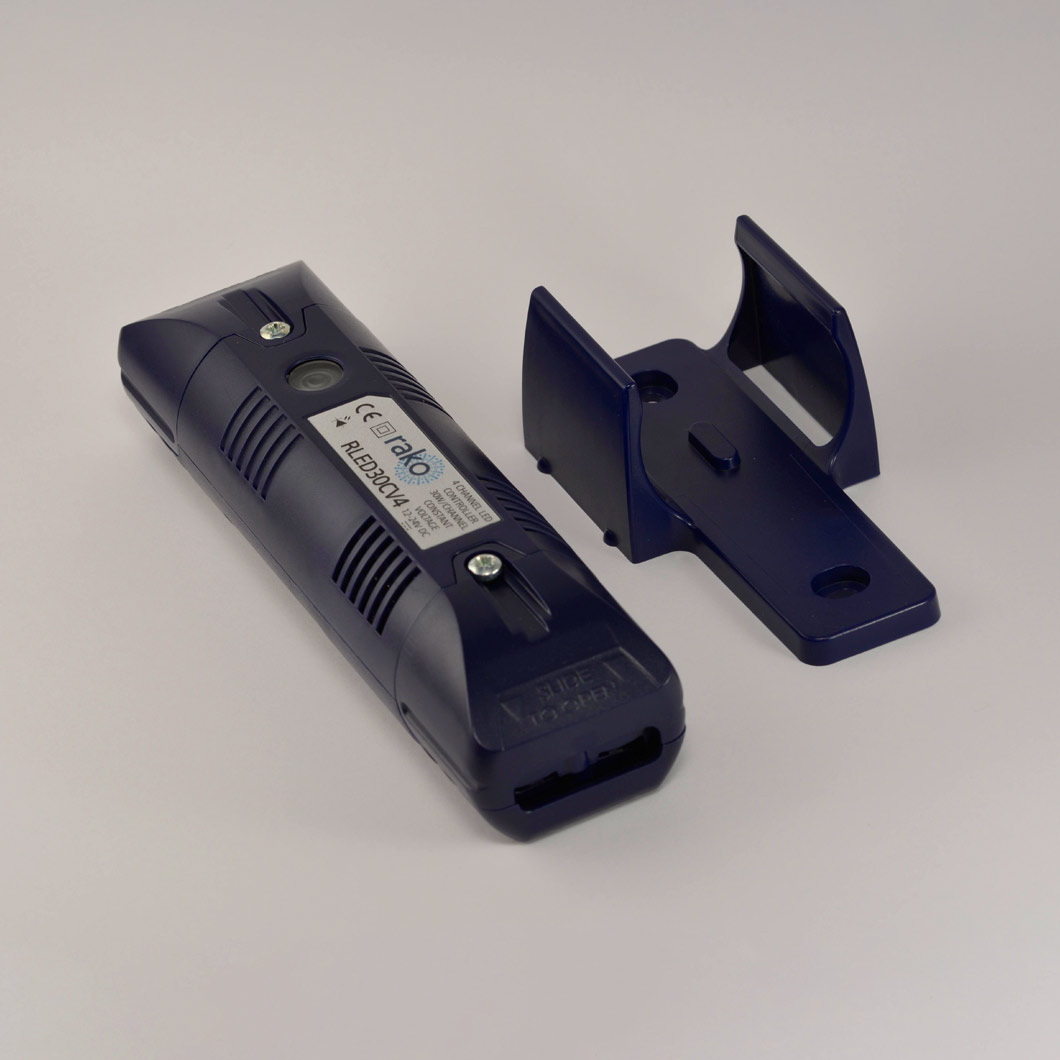

Suitable for ceiling or cupboard mounting, the Rako RLED30-CV4 is a wireless 4 channel, 30W/channel (RGB+White) constant voltage dimming LED driver.

• A compact 4 channel 30W per channel, constant voltage LED dimmer
• In-built RF receiver and Rako processor for control of 4 channel constant voltage LED fittings
• When used with RGBW fittings each colour is allocated a channel and can be individually adjusted allowing complete colour mixing
• Simple colour cycling is started/stopped using the raise/lower buttons in a Rako wallpanel or hand held remote
• Controlled from any Rako Rakom device, e.g. RCP/RCM wall plates or Bridge interface units.
• Requires a suitable external D.C. power supply (normally the power supply that would be supplied with the fitting for a non-dimming application)

Designed for use with 3 or 4 channel constant voltage LED fittings and 3 or 4 channel LED tape light with common +ve and individual -ve connections. Maximum wattage of 120W when used as 4 channel or 90W with 3 channel for 12V DC fittings or 240W (60W per channel) for 24V DC fittings.

Requires a suitable external DC power supply (normally the power supply that would be supplied with the fitting for a non-dimming application). Programmed using either an RCM/RCP RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory. The RLED30CV4 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH handhelds and Bridge modules and forms the foundation of any Rako scene-set system.

Separate 12V or 24V DC power supply (LED driver) required, suitable for the total connected lighting load.

For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Input supply: 12V or 24VDC

Weight: 142g

Housing: UL V0 ABS

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Connections:
2 way terminals for 12-24VDC supply
4 way screw terminals for load connections

Protection:
Reverse polarity input protection
Output current limit protection

Load Types: 4 channel constant voltage LED fittings & tapelight

Minimum Load: 1W

Maximum Load:
12V DC 3 channel @90W
12V DC 4 channel @120W
24V DC 3 channel @180W
24V DC 4 channel @240W

Terminal Sizes: 4mm2

Standards:
Emissions - EN61000-6-3: 2001
Immunity - EN61000-6-1: 2001

Communication: Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

*Requires a suitable external power supply

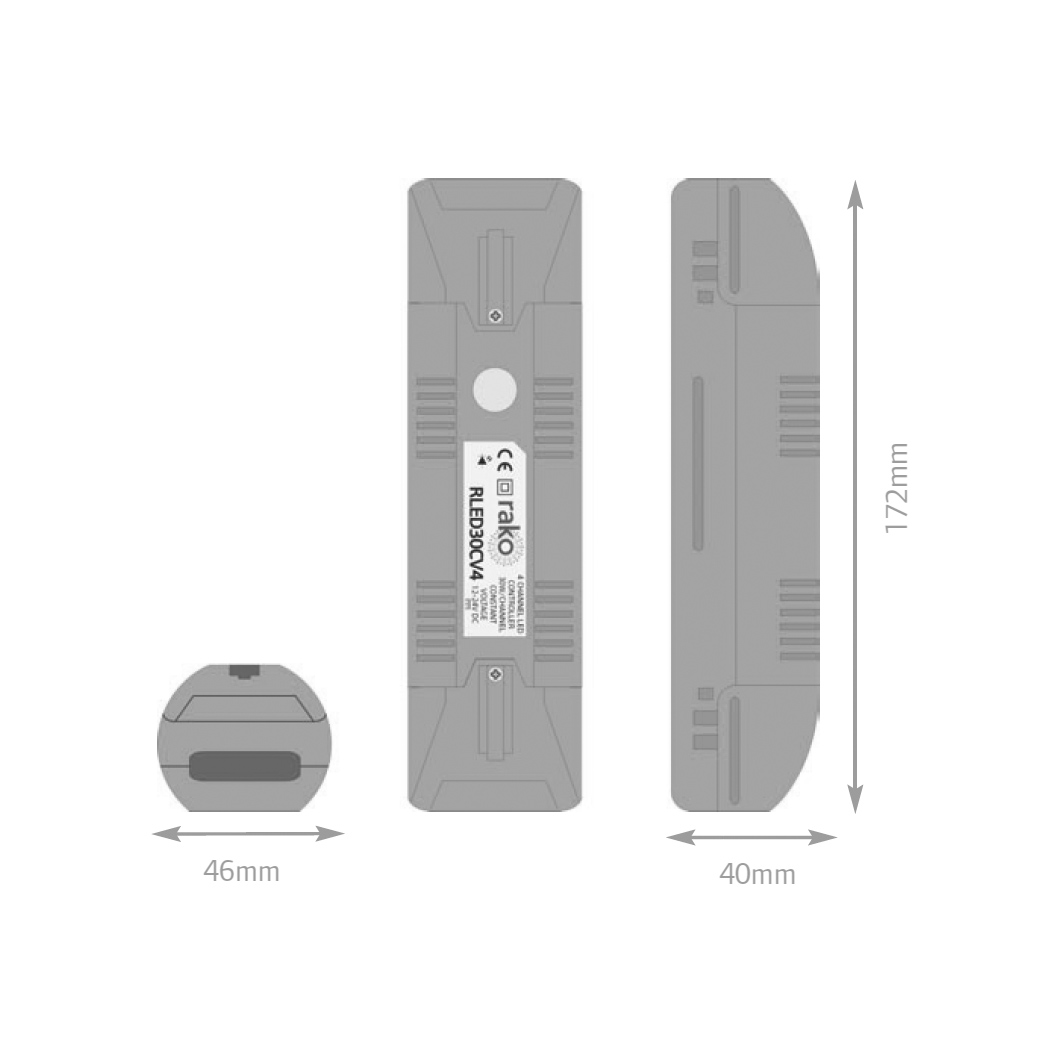

Dimensions

Product dimensions: W.172mm x D.46mm x H.40mm

Downloads

• Rako RLED30CV4 Data Sheet PDF
• Rako RLED30CV4 Installation Instructions PDF

Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
