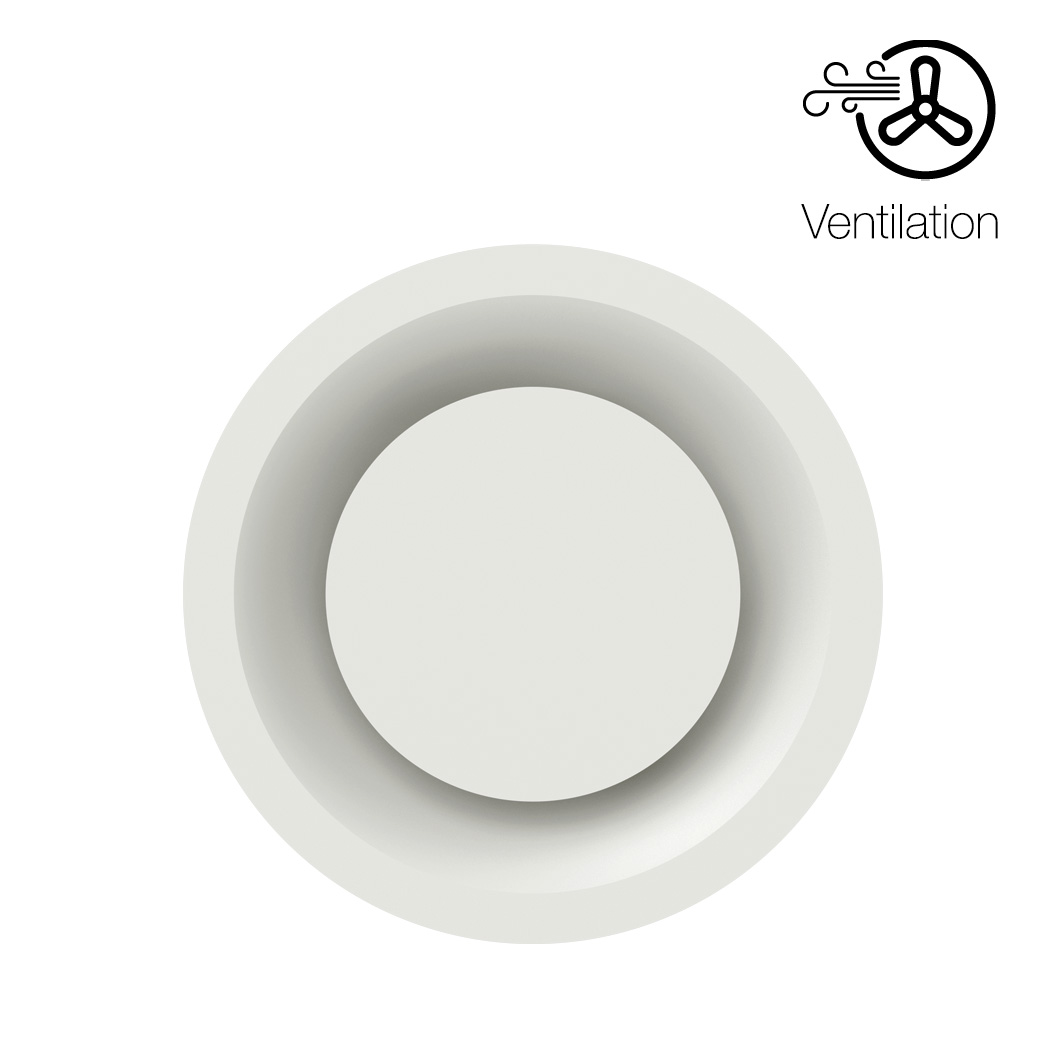

Prado Pradovent Ø125 Trim Recessed Ventilation Valve

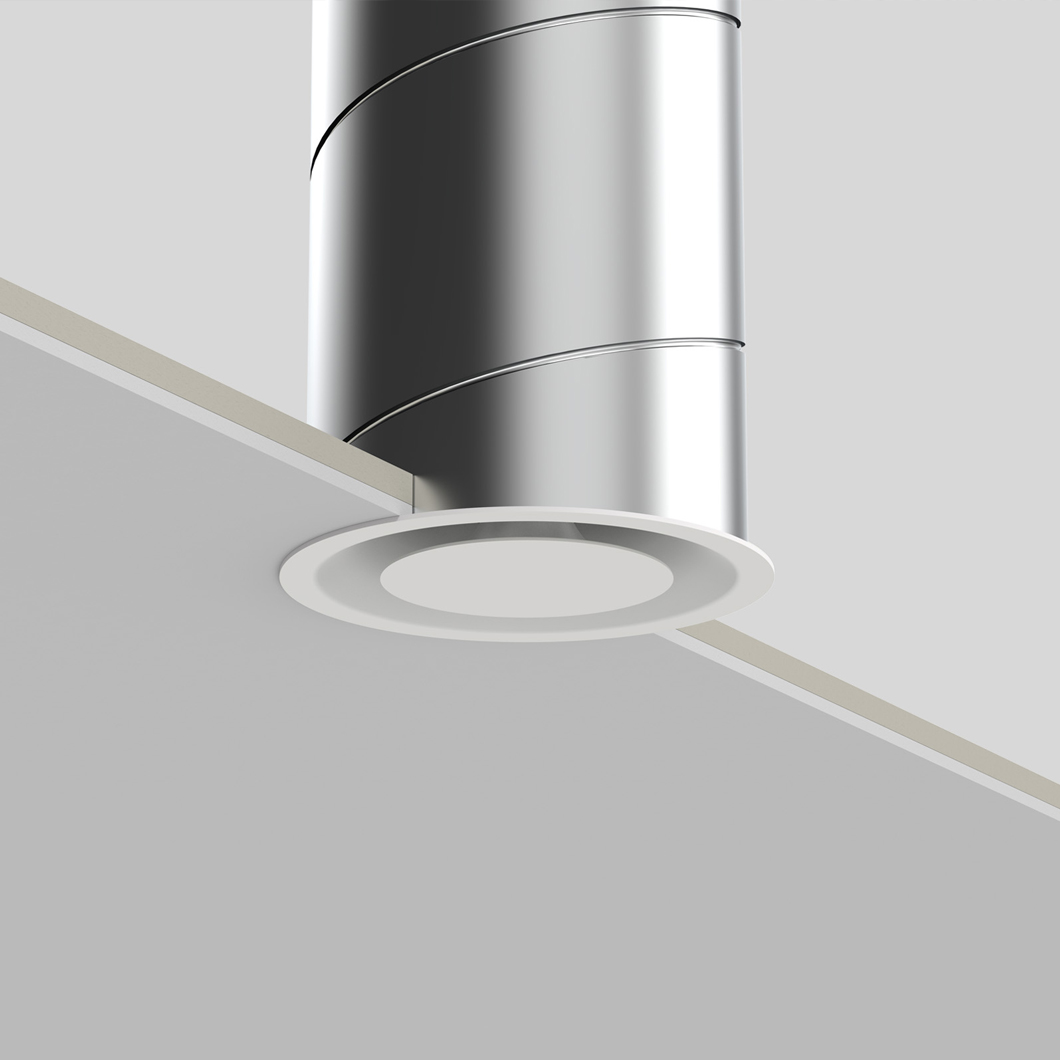

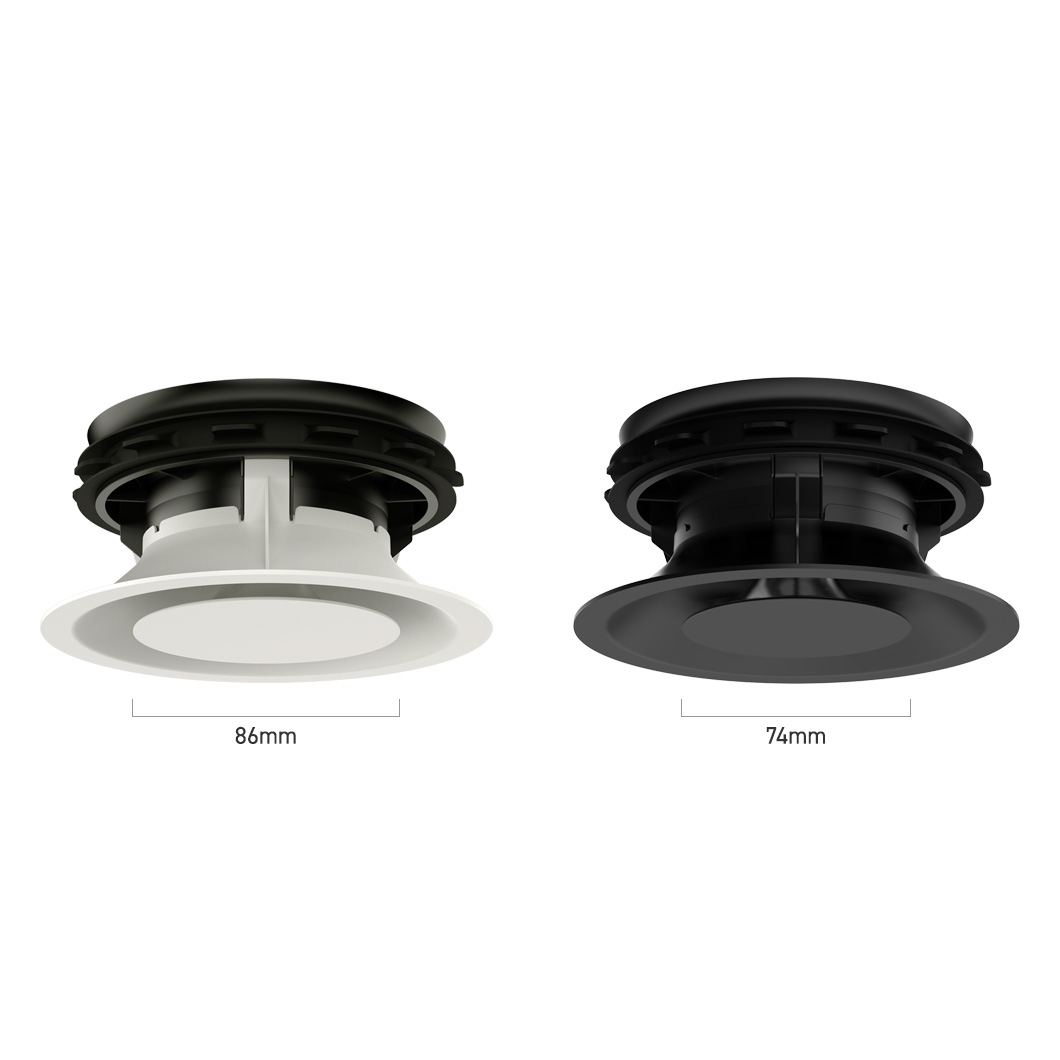

The largest member of the family, Pradovent Ø125 Trim is fully adjustable and designed for air extraction up to 50m³/h. The airflow is fully adjustable in 34 steps. Pradovent Ø125 Trim fits into all Ø125mm ventilation ducts, and is supplied with a choice of 2 cover plates, 74mm and 86mm. Show what you want, hide what you need.

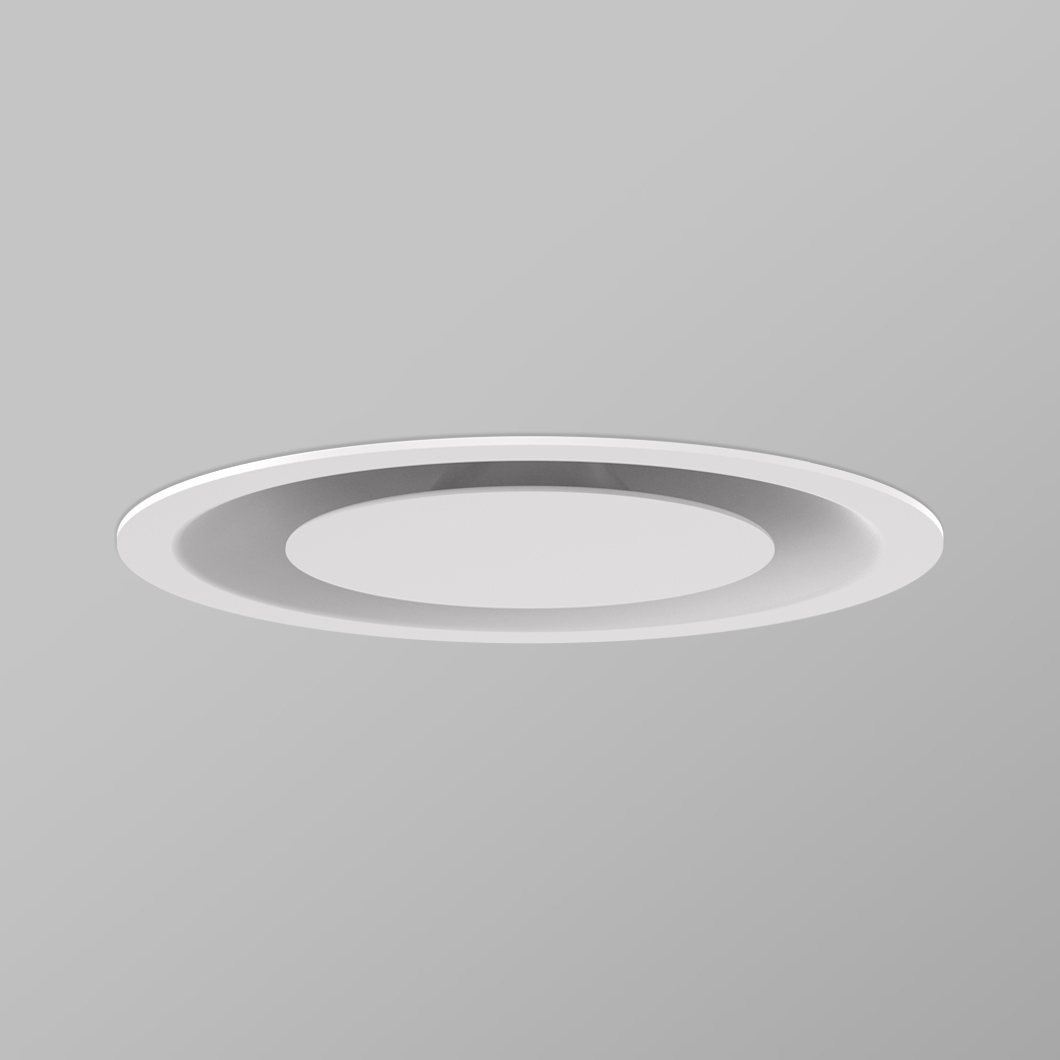

Award winning design makes ventilation disappear
Invisible air supply and extraction, up to 50m³/h. Waterproof IP65 rated - perfect for your bathroom. Ideal for kitchens. Works for any other room. Trim design with paintable design ring to match the colour scheme of the ceiling.

Ventilation valves that work with every system
Extract up to 50m³/h. Completely invisible and incredibly quiet. Introducing a ventilation valve that effortlessly works with every ventilation system. Works with DUCO, works with Renson, works with every other ventilation system.

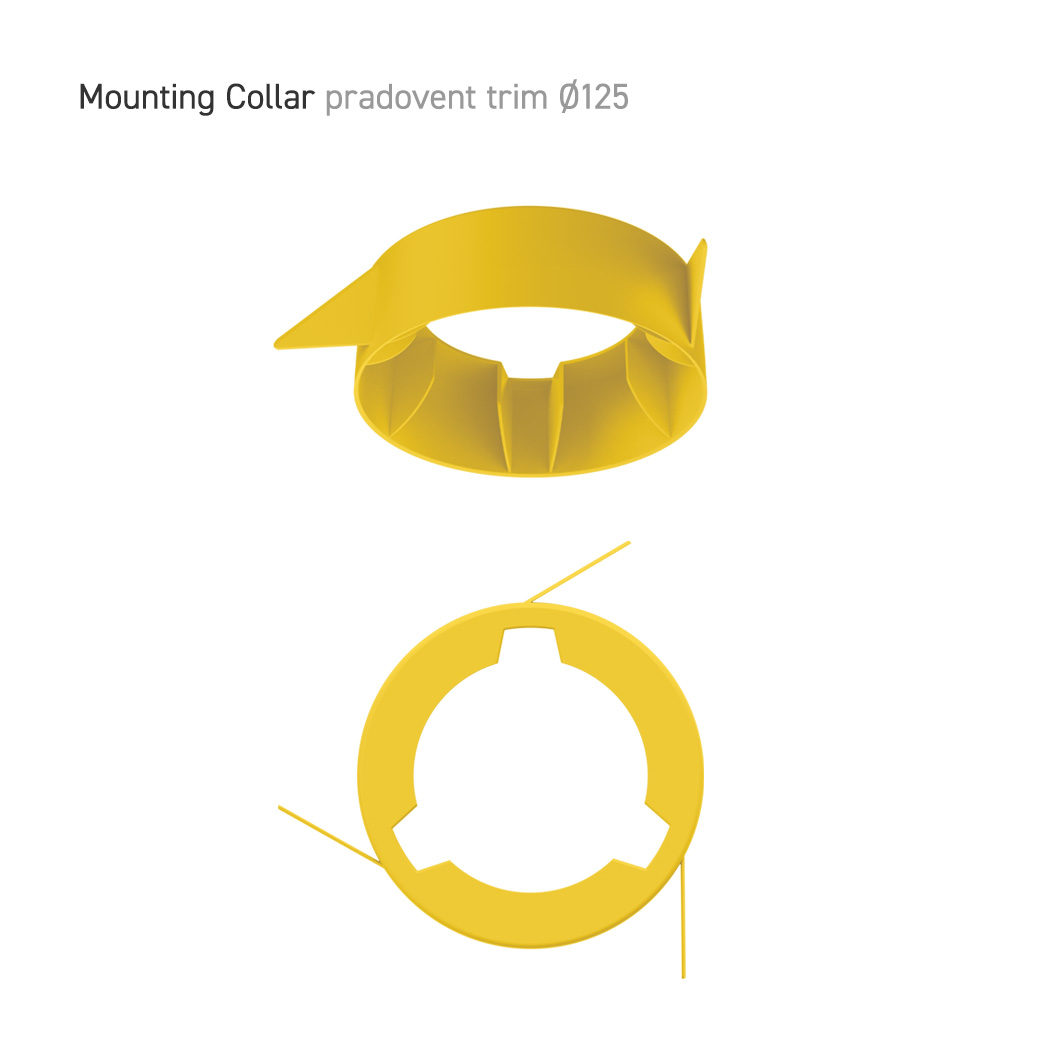

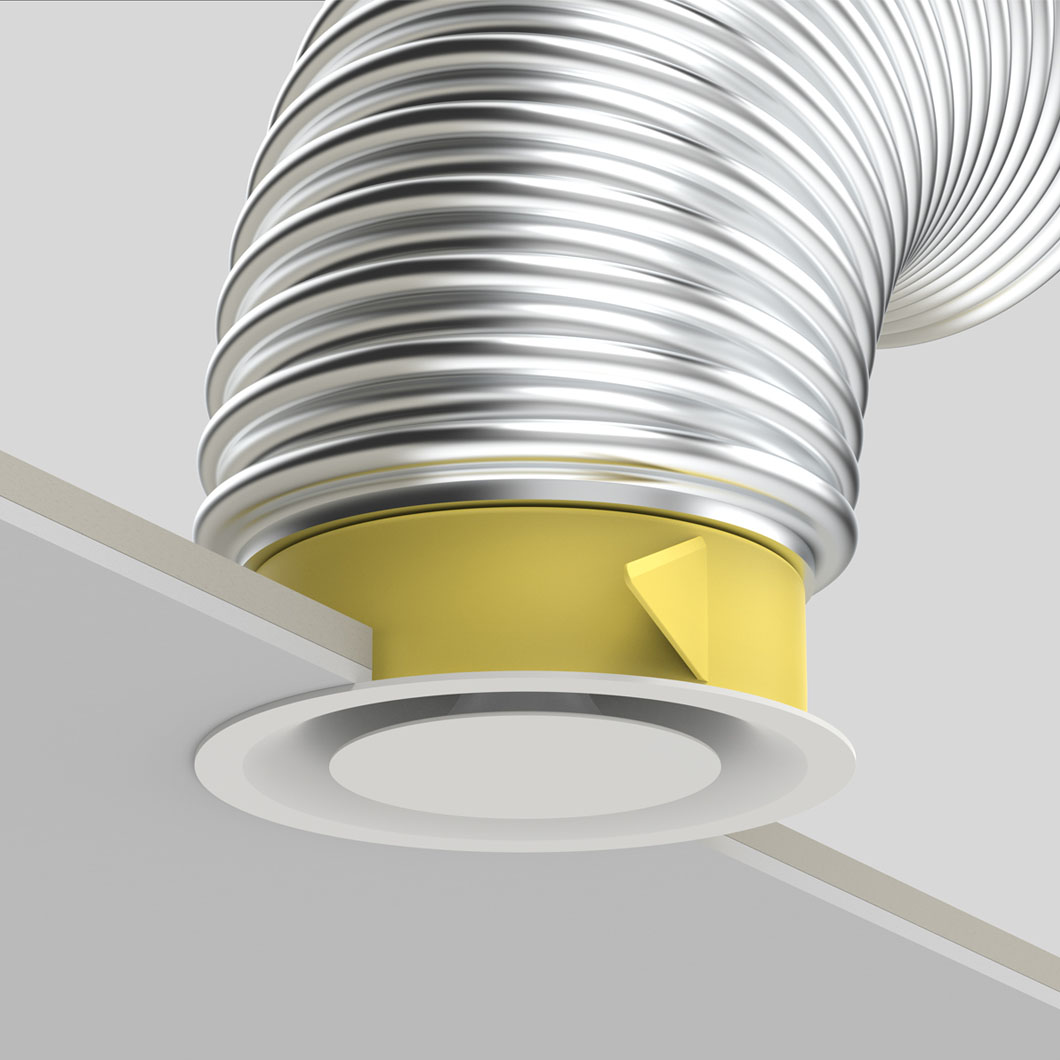

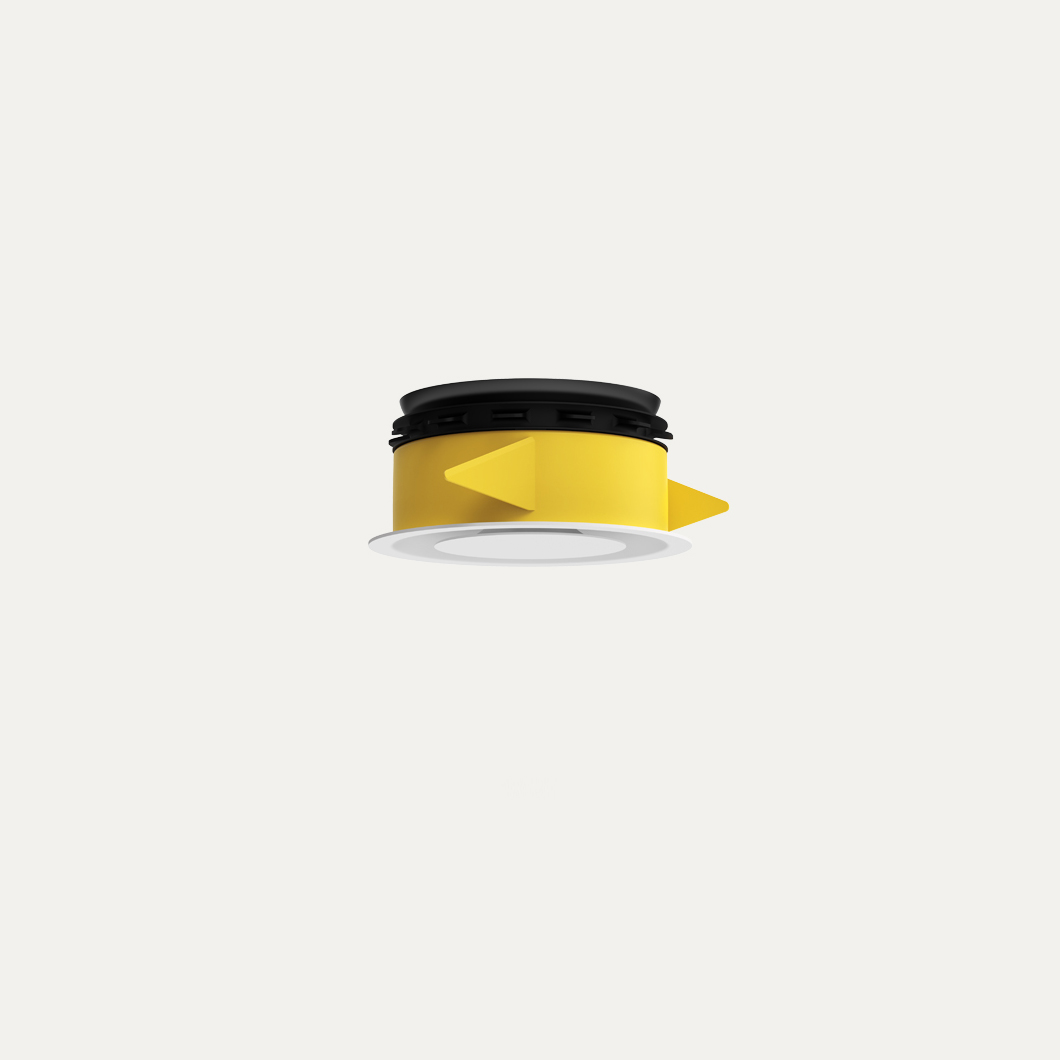

A flexible duct? Use a mounting collar.
This accessory enables the installation of the Pradovent Ø125 Trim in gypsum ceilings when connecting to Ø125 flexible ducts.

Type: supply or extraction
Air flow supply: max. 75 m³/h
Air flow extraction: max. 50 m³/h
Noise: < 27 dB(A)
Pressure: 5 – 85 Pa

Adjustability: 34 steps
Colour: white RAL 9003 | black RAL 9005
Paintable: with synthetic primer
Compatibility: fits all Ø125mm ducts
Other: patent pending

Mounting collar: (for gypsum ceilings and flexible ducts)
Data Sheet PDF - Mounting collar for Pradovent Ø125 Trim (8001-1002)

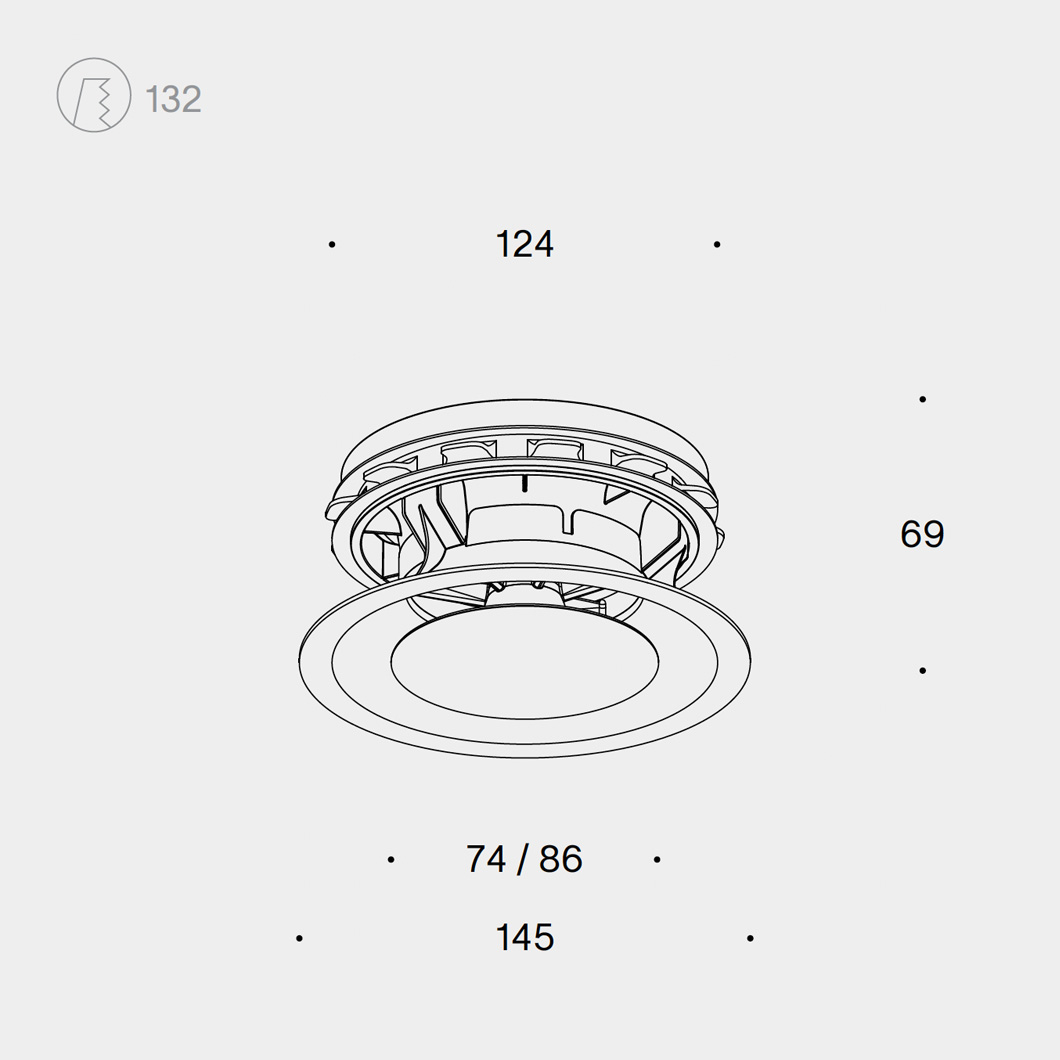

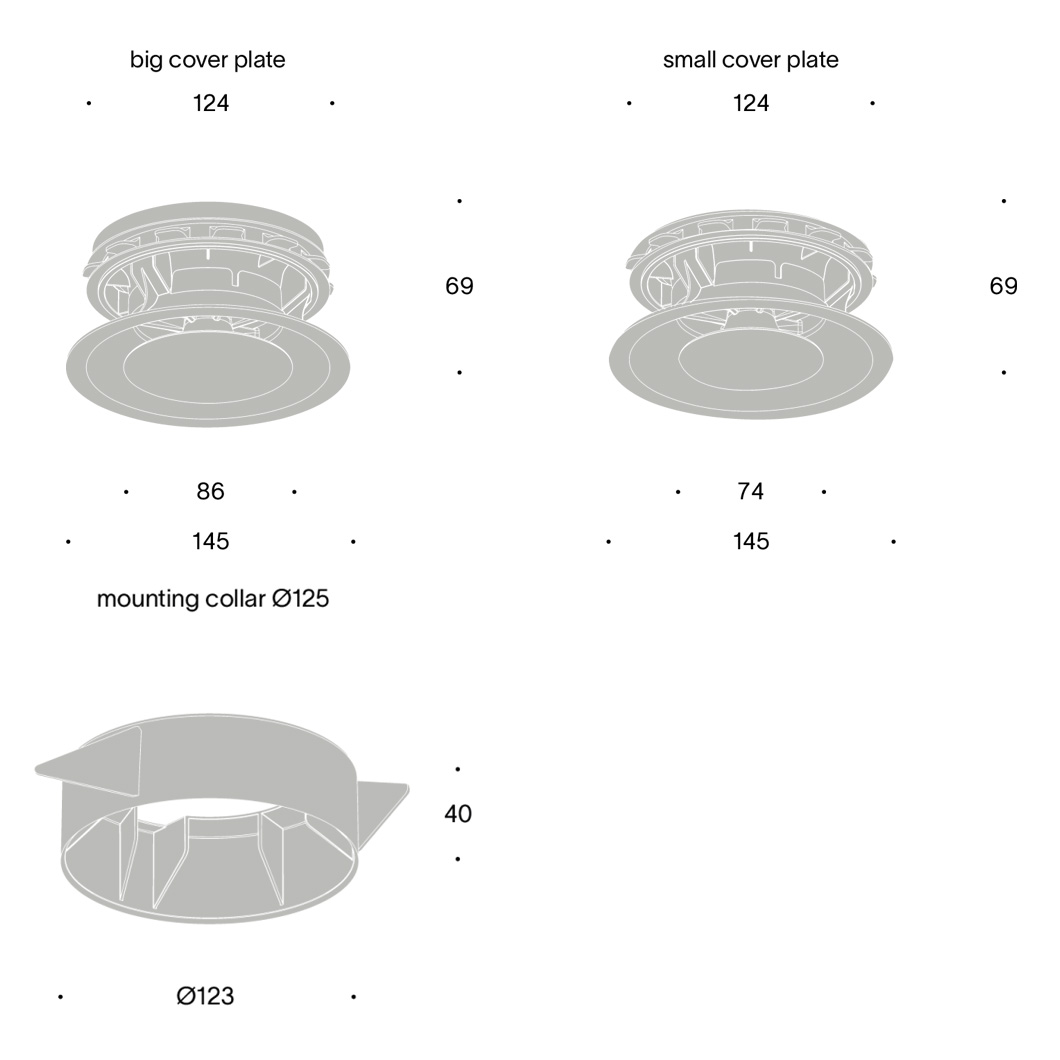

Product dimensions: H.69mm x Diameter.145mm

Cutout dimensions: Dia.132mm

• Data Sheet PDF
• Install Instructions PDF
• Data Sheet | Mounting Collar Ø125 | PDF
• Install Instructions | Mounting Collar Ø125 | PDF

 Delivery

Delivery usually within 2-3 weeks

 Warranty

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms
