Prado Light Only + Motion Long Trimless Plaster-In Adjustable Recessed Downlight

Description

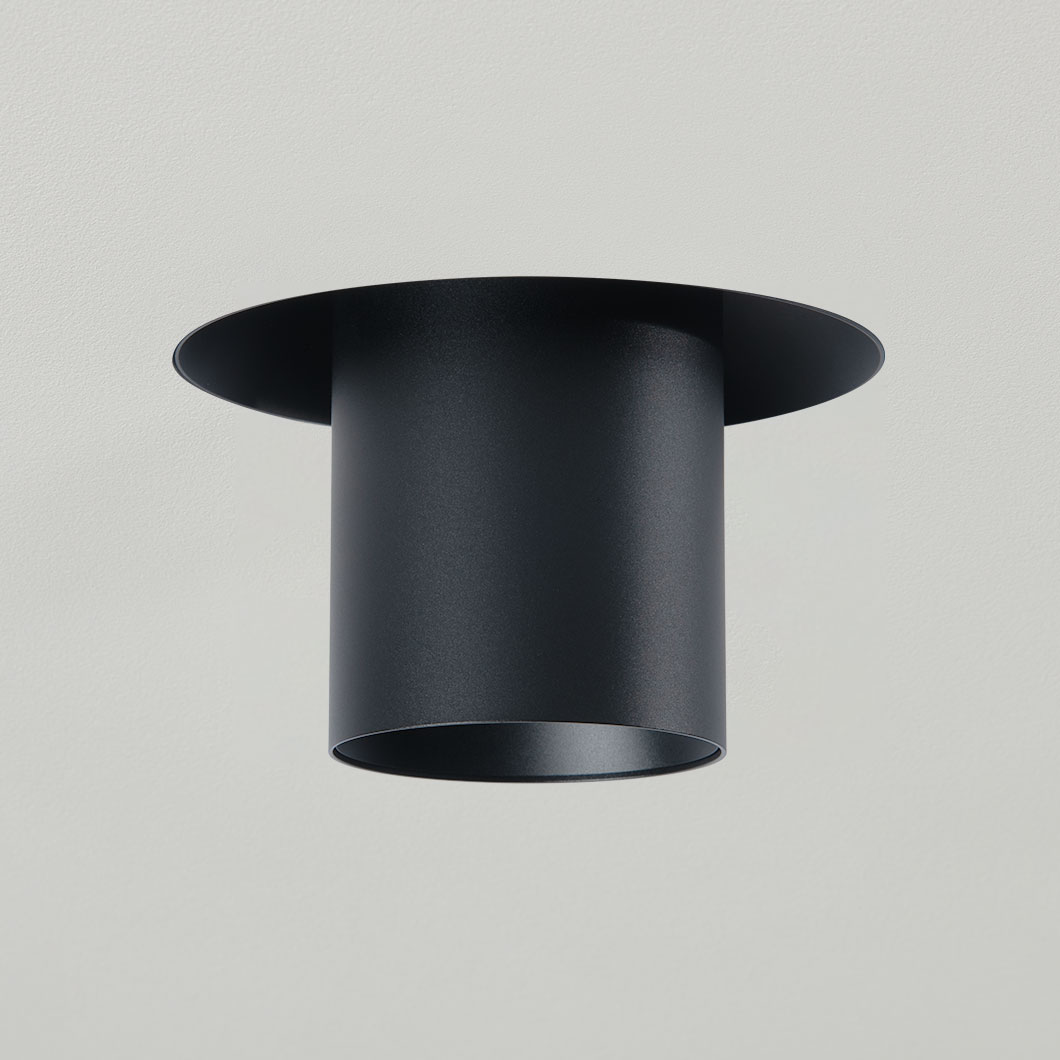

The world’s first fully invisible motion sensor is here. Discover the combination of a powerful, diffuse downlight with an invisibly integrated PIR sensor. Works fully autonomous. Made from precision milled, anodised aluminium. Tilts up to 45°. Plastered into the ceiling for a trimless finish.

Lights up when you're there. Shuts down when you're gone
Meet light + motion, a sleek combination of a downlight with an invisible PIR sensor. By hiding a PIR sensor in a fixture, we enable architects to create cleaner ceilings, and ultimately more calming homes. Also available with integrated ventilation.

The benefits of a combination product
Combining a luminaire with a motion sensor not only speeds up installation, it also offers sustainability advantages: fewer materials, less wiring and reduced power consumption.

Beautiful luminaires that deliver sublime light
Pure cylindrical forms crafted from precision milled anodised aluminium. A custom-built glass lens that brings you a low glare light experience. Industry leading LED technology, delivering up to 800 lumen. Its IP rating make it perfect for any type of room. Introducing a fixture that’s stunning in every way you look at it.

Custom finishes
Available for projects only in: brushed nickel, light bronze, dark bronze, canon de fusil light and canon de fusil dark. Contact us for further details.

Light Only + Motion is available in long and short versions, with trim or trimless. See below.

Specification

Installation Video

Finish: black ano | white struc
Reflector: glass lens

Light temperature: 2700K | 3000K

Power supply: max. 700 mA
Output: up to 800 lumen
CRI: CRI 90+
↓ IP65 ↑ IP20
Class III

Motion detection: passive infrared sensor (PIR)
Detection angle: h 360 v 100
Light sensor: integrated
Master/slave: integrated
Adjustability motion sensor: time - sensor - lux
Other: patent pending

Driver: (required - not included)
DALI dimmable driver 38W constant current multi power (8000-0021)
1-10V dimmable driver 36W constant current multi power (8000-0022)
Non-dimmable driver 42W constant current multi power (8000-0023)
DALI dimmable driver 60W constant current multi-power (4fx)(8000-0026)
DALI deep dimmable driver 20W constant current 700mA (8000-0027)

Accessories:
light + motion | master slave connector (8000-2174)
light + motion | external potential-free contact (8000-2175)

Lamp type: Integrated LED

Dimensions

Product dimensions: H.134mm x Diameter.108mm

Cutout dimensions: Dia.132mm

Lens dimensions: Dia.59mm

Downloads

• Lighting File Light+Motion Trimless 2790B Sbl 48V LDT
• Lighting File Light+Motion Trimless 2790W Sbl 48V LDT
• Light Motion Master Slave Installation Instruction PDF
• Light Motion Relay Installation Instruction PDF
• Light + Motion Trim 2790B Sbl 48V
• Light + Motion Trim 2790W Sbl 48V

Delivery and warranty

Delivery usually within 2-3 weeks

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms

About the manufacturer

Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.



Available now for EU but coming soon in UK versions - Rond applies the same principles to the wall with sockets, switches and data ports with a unique design.

Got a question? Email us or call 01189 882294
