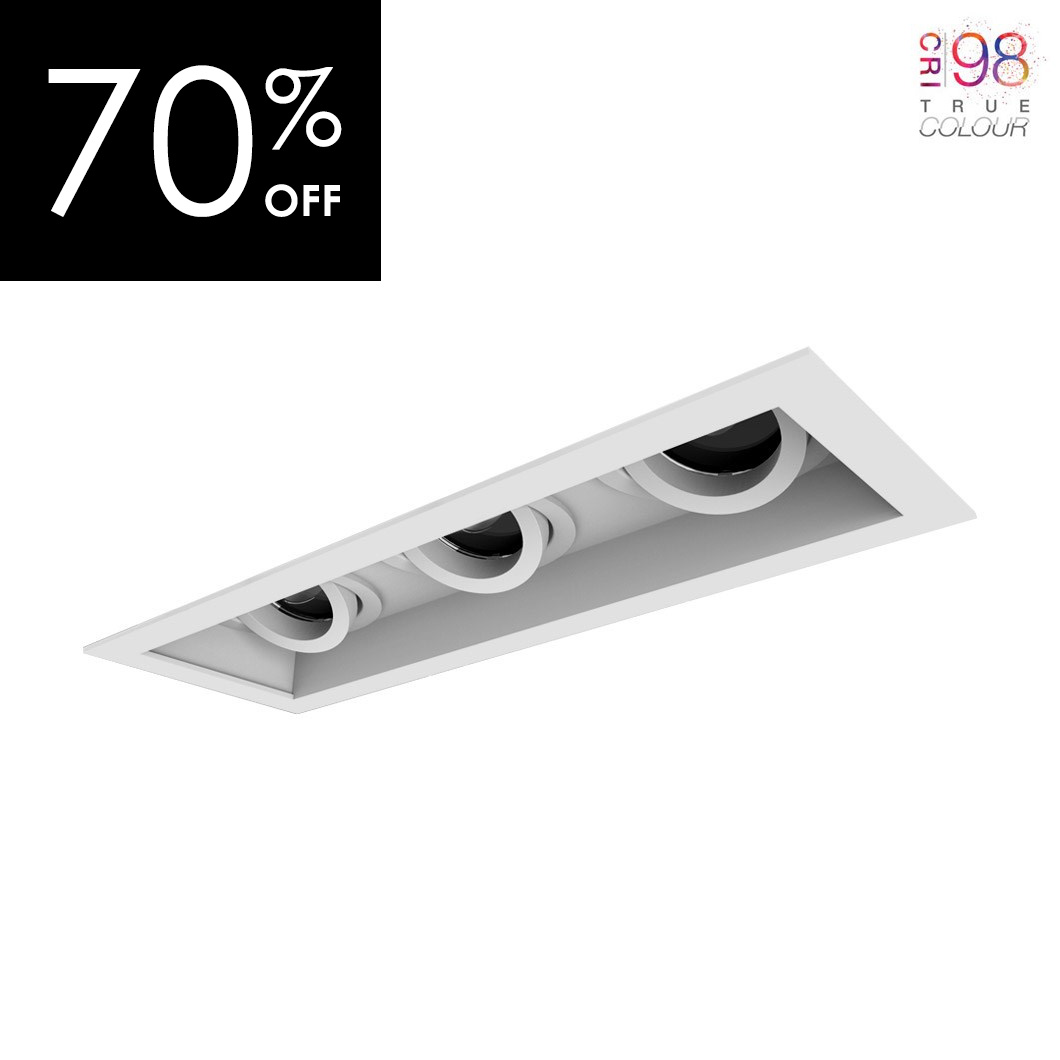

OUTLET DLD Eiger 3 CRI98 LED Adjustable Recessed Downlight

Eiger 3 LED adjustable recessed downlight has a triple lumen output of over 3 x 1400lm - making it perfect for installation in residential projects. The treble light engines are removable through a simple twist mechanism, which allows for easy maintenance. 15º or a medium 36º beam angles are available. Die-cast aluminium luminaire with steel housing. Adjustable tilt of 24º and 355º rotation. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. In white or black. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. The Eiger range is fully dimmable, supporting 0-10V, TRIAC or DALI drivers.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Compatible with leading edge and trailing edge dimmers. Dimmable with either 1-10V, TRIAC or DALI dimming drivers - not supplied. Contact us for further details. Eiger is available in multiple versions, and with or without trim. Optional blue connection box available for easy push-fit installation.

IP54

Wattage: 3 x 15W
Current: 3 x 350mA
Adjustable tilt: 24º
Adjustable rotation: 355º
CRI 98

Available versions
Colour Temperature & Beam angle:
2700K & 36º | 3000K & 15º

Delivered Lumens:
Dependent on beam angle and colour temp - see datasheet in Downloads tab

Driver Options

• Mains dimmable driver: 3x L-Tech TRIAC SE-15-350-700-G1T
• 0-10V dimmable driver: 3x EldoLED 0-10V ELD/SL0241A2-350
• DALI dimmable driver: 3x L-Tech DALI-15-100-700-E1A1
• See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

• LED fitting removable from the plaster-in housing post installation
• Driver fits through the cut-out hole diameter
• Driver can be housed remotely from the fitting (check maximum distance with us)

Product dimensions: W.272mm x D.98mm x H.112mm

Cutout dimensions: W.260mm x H.86mm

• Data Sheet | Eiger 3 Recessed Adjustable | PDF
• Install Instructions | Eiger | PDF
• Lighting Info for Bathroom Zones
• Data Sheet | EldoLED 0-10V Dim. Driver SL0241A2 | PDF
• FIRE TEST REPORT
• Lighting File Eiger 15D IES
• Lighting File Eiger 15D LDT
• Lighting File Eiger 24D IES
• Lighting File Eiger 24D LDT
• Lighting File Eiger 36D IES
• Lighting File Eiger 36D LDT
• L Tech SE 15 350 700 G1T Data Sheet
• Data Sheet | LTech DALI driver 15 100 700 E1A1 | PDF

 Delivery

Delivery varies for each product, please see product description
