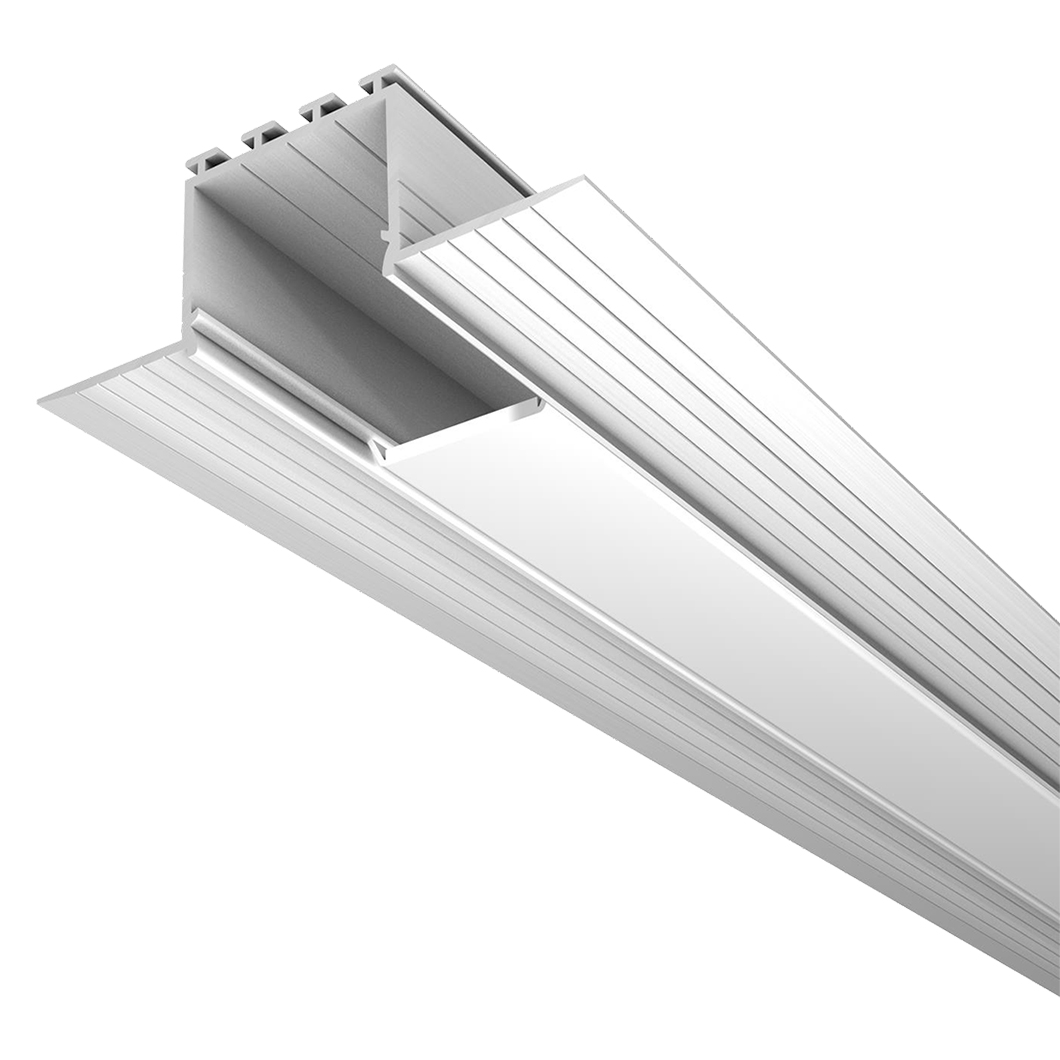

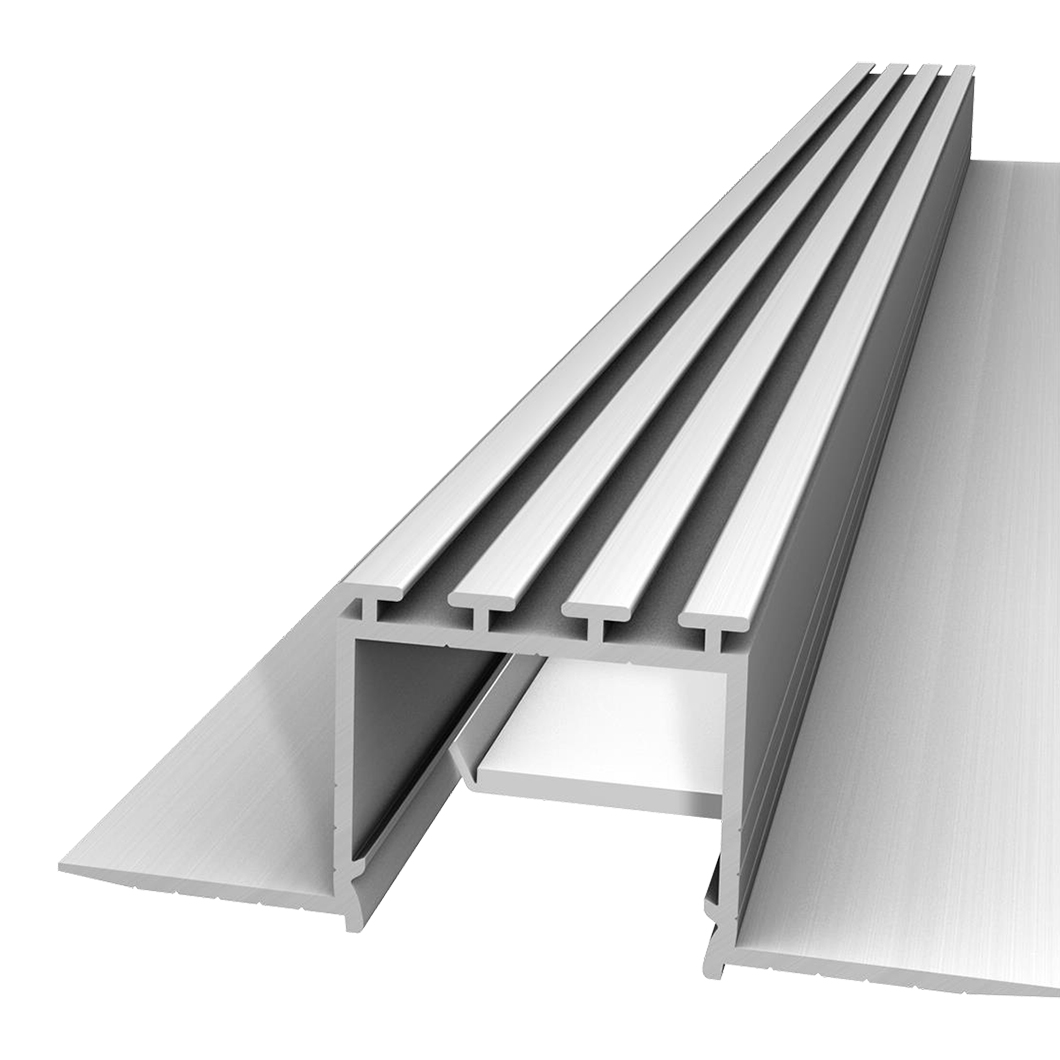

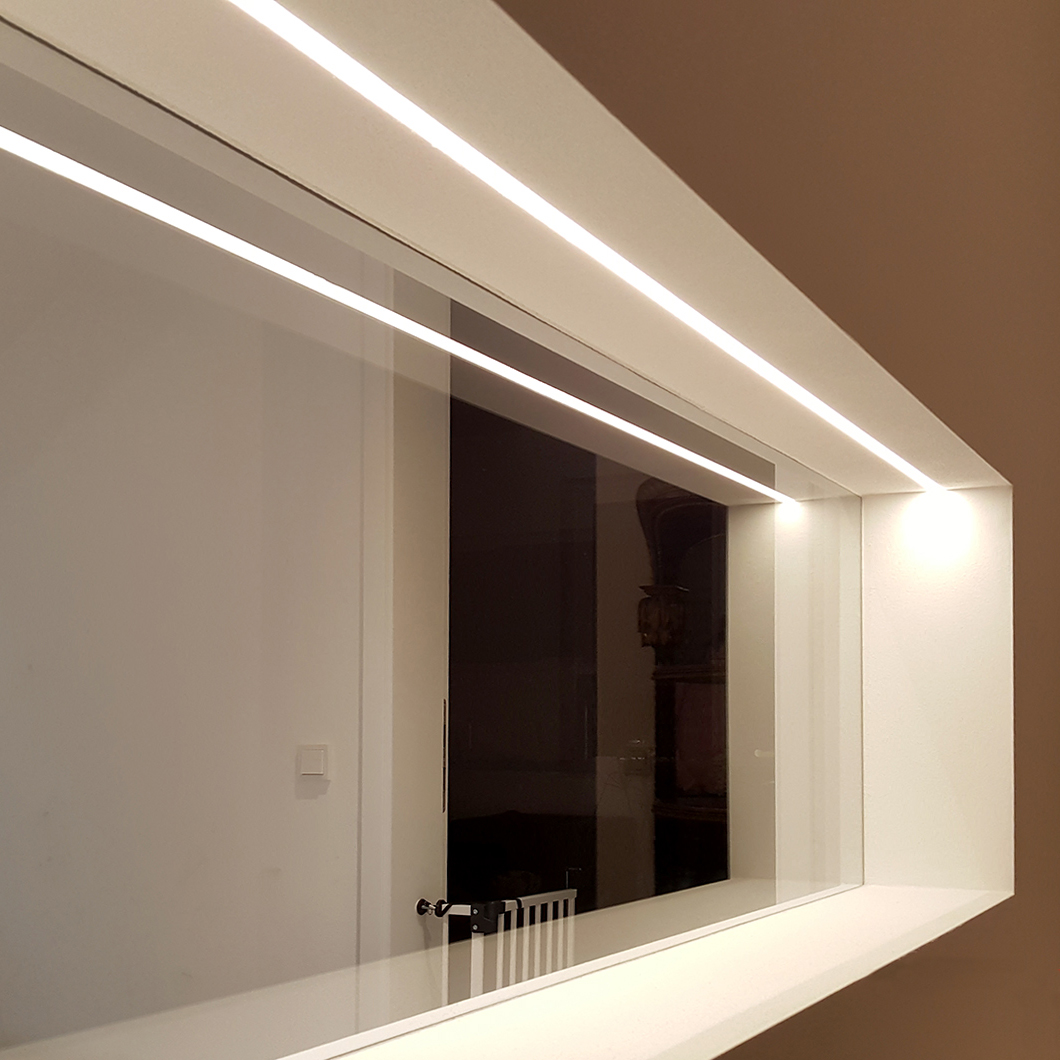

LED Profilelement L24 Linear profile for concealed and integrated installation in walls and ceilings. The L24 LED recessed profile is made from high-grade aluminium, in which a maximum of 2 LED strips with 8-10mm width can be installed. If the distance of the LED chips is less than 15mm, a homogeneously illuminated line (without visible points) is created.
Opal supplied diffuser cover made of polycarbonate (PC) is weathering and UV-resistant and flame-retardant. The optional end caps, made of polypropylene (PP), additionally seal the profile.
Installing two LED strips in the profile means that L24 can be used as a primary light source that is energy-efficient.
See the Optional Items below for:
The fleece lining for seamless installation (see install instructions)

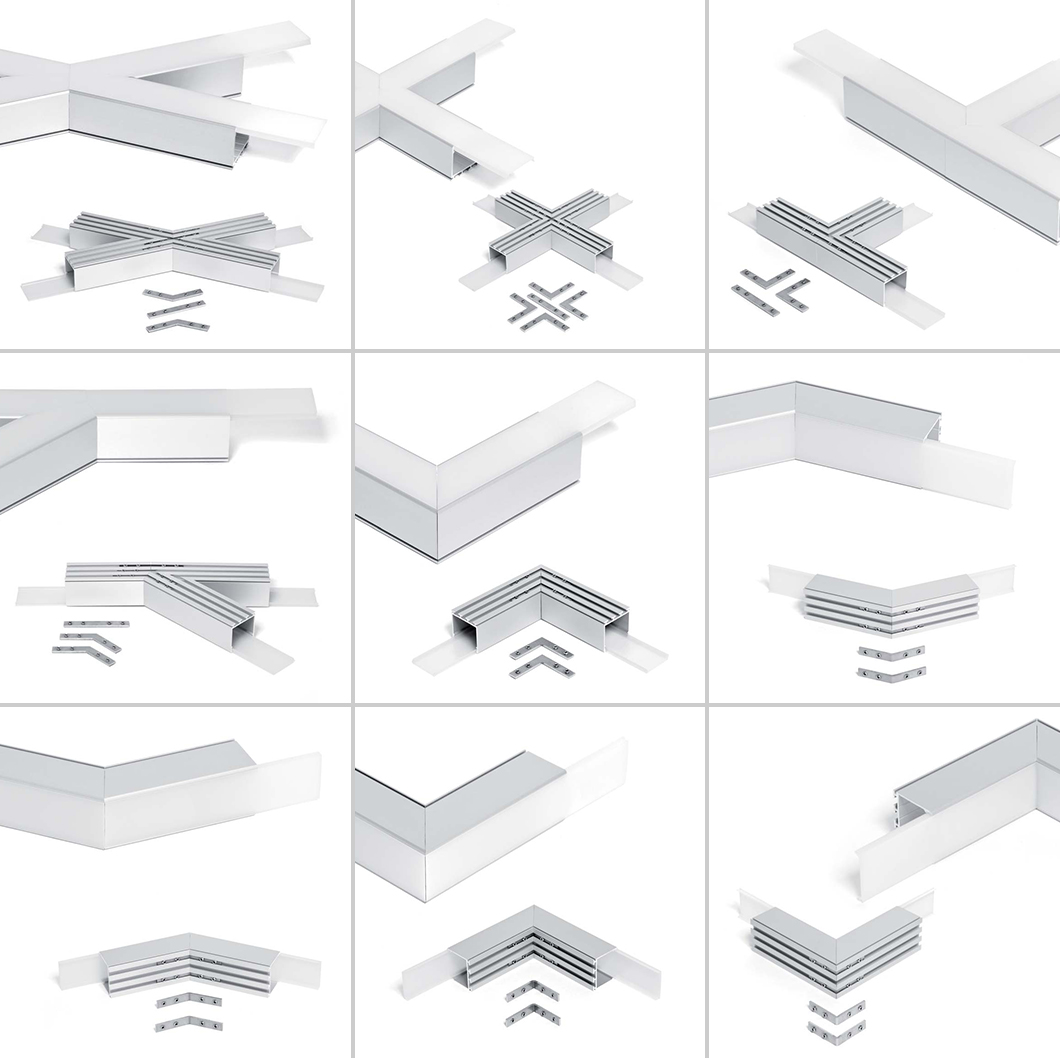

Supplied in 2m lengths. Various connectors are available to join on the same plane (flat) and wall-to-ceiling (angle), scroll through the images above for further details.
Delivery usually within 3-5 working days
See install instructions PDF in the Downloads tab.

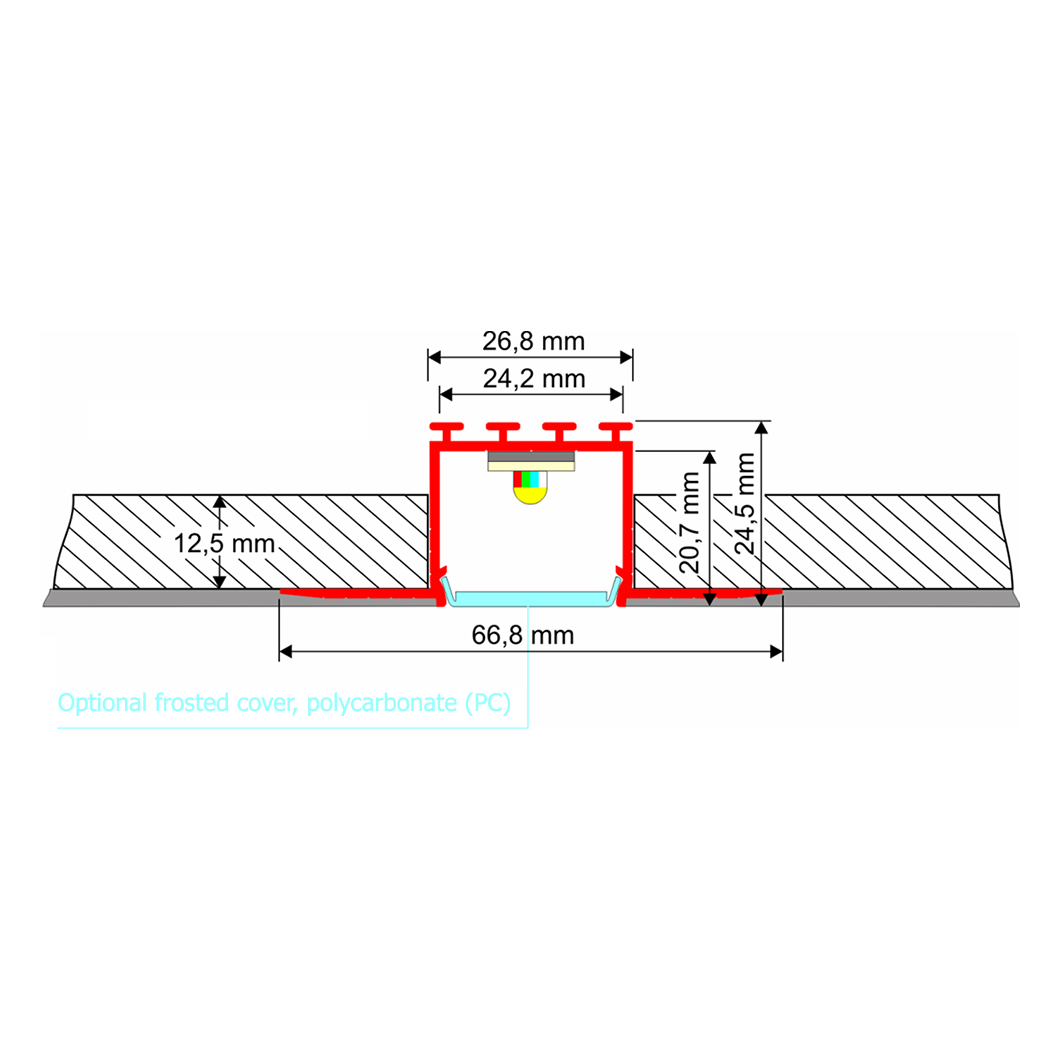

Internal width 24.2mm
Opal diffuser cover: polycarbonate (PC) included
Optional end cap (PE85.0005): polypropylene (PP)
Flat straight - wall-to-wall/ceiling-to-ceiling
Flat 90° - wall-to-wall/ceiling-to-ceiling
Flat 135° - wall-to-wall/ceiling-to-ceiling
Angle 90° - wall-to-ceiling/ceiling-to-wall
Angle 135° - wall-to-ceiling/ceiling-to-wall
LED tape: maximum 30W/m
How to install LED Profilelement L24 Alu Profile - video
Product dimensions: W.2000mm x D.67mm x H.25mm
When in stock: Next day delivery
Not in stock: Delivery approximately 2 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Supplied with a 3 year warranty

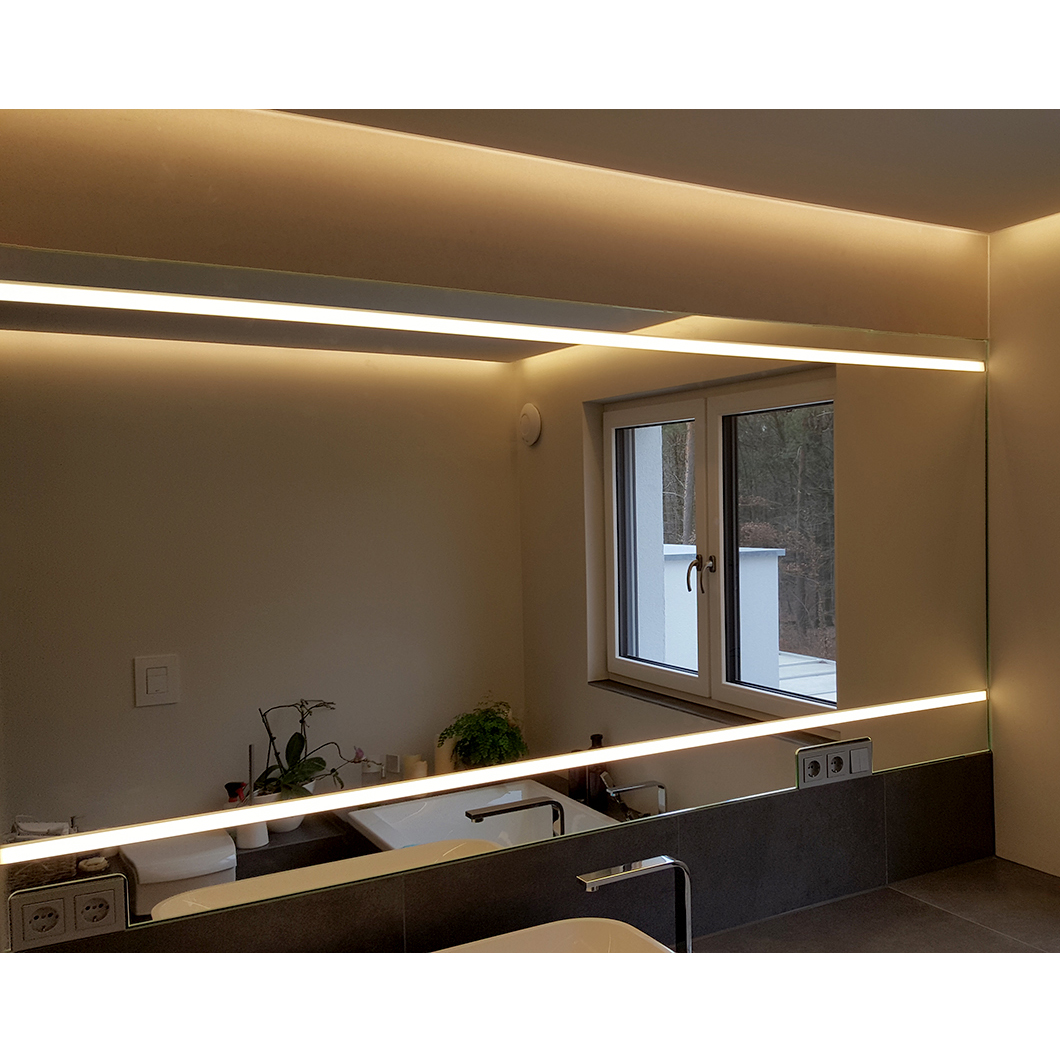

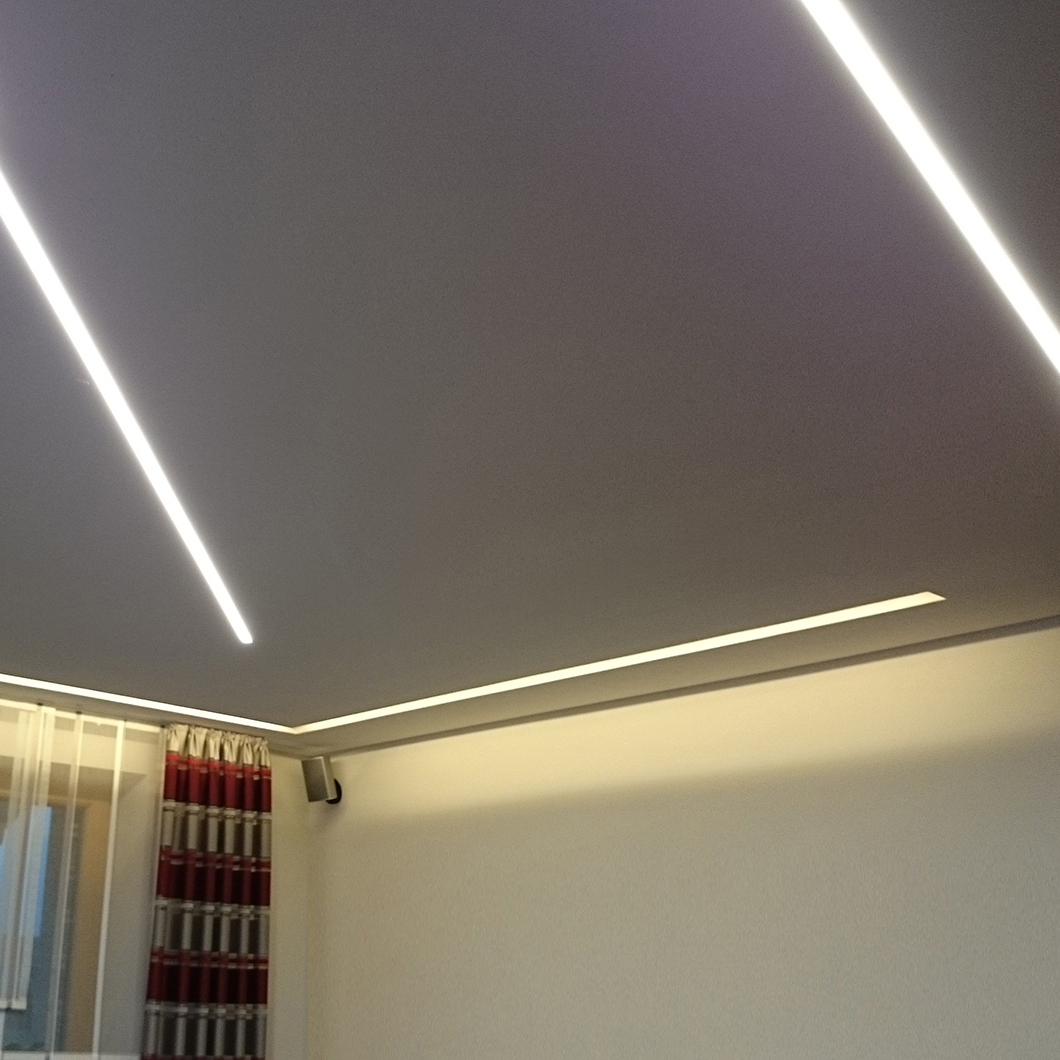

Flexibility. If there’s one word to sum up LED Profilelement, it’s flexibility. Whether creating indirect accent lighting, shadow gaps for coves and skirtings or highlighting architectural features, the versatility of LED Profilelement flows from soft and subtle integrated lighting to a striking, dramatic statement.

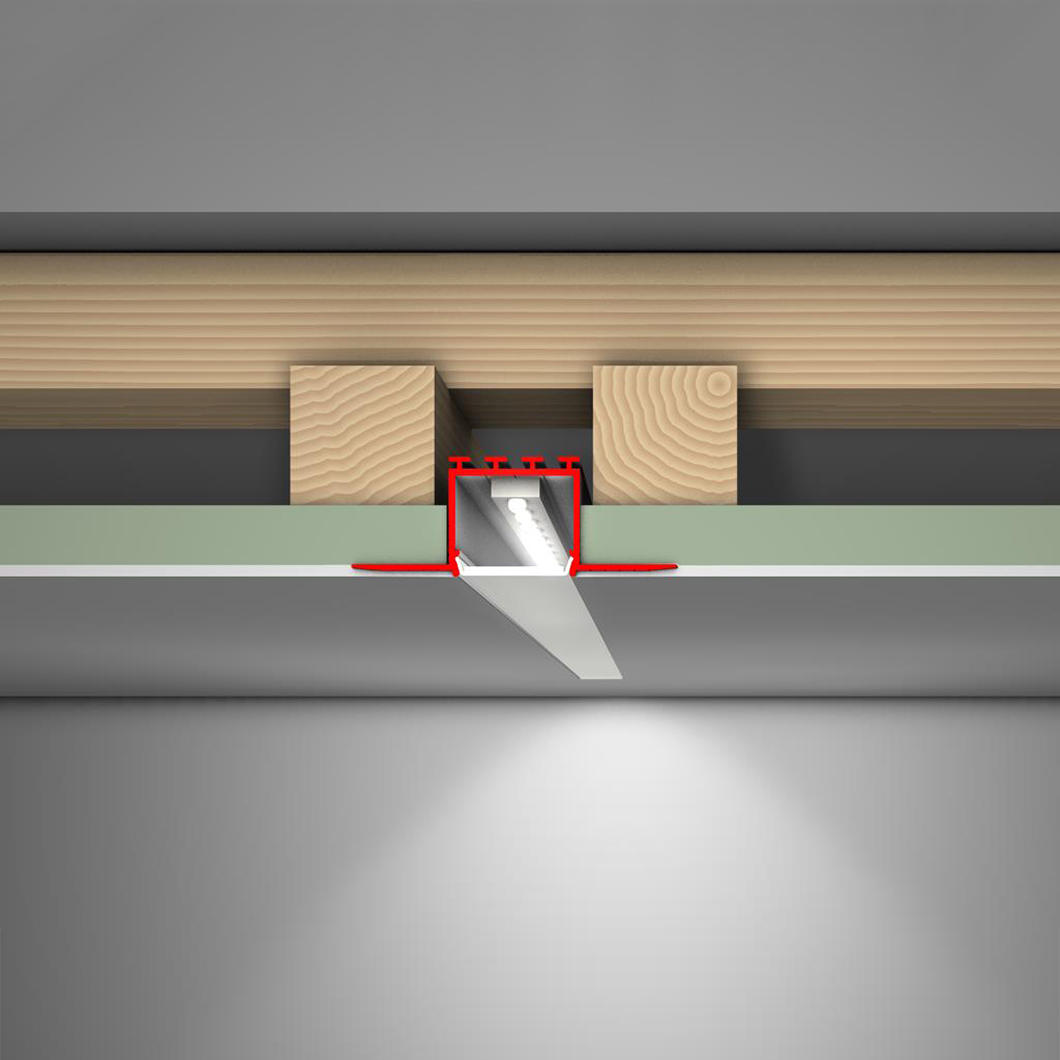

Installed directly into the drywall, many of the profiles are either plaster-in or with a paintable wing - seamlessly integrating into the architectural scheme whilst taking advantage of the latest in LED innovations. As we said - flexibility.
