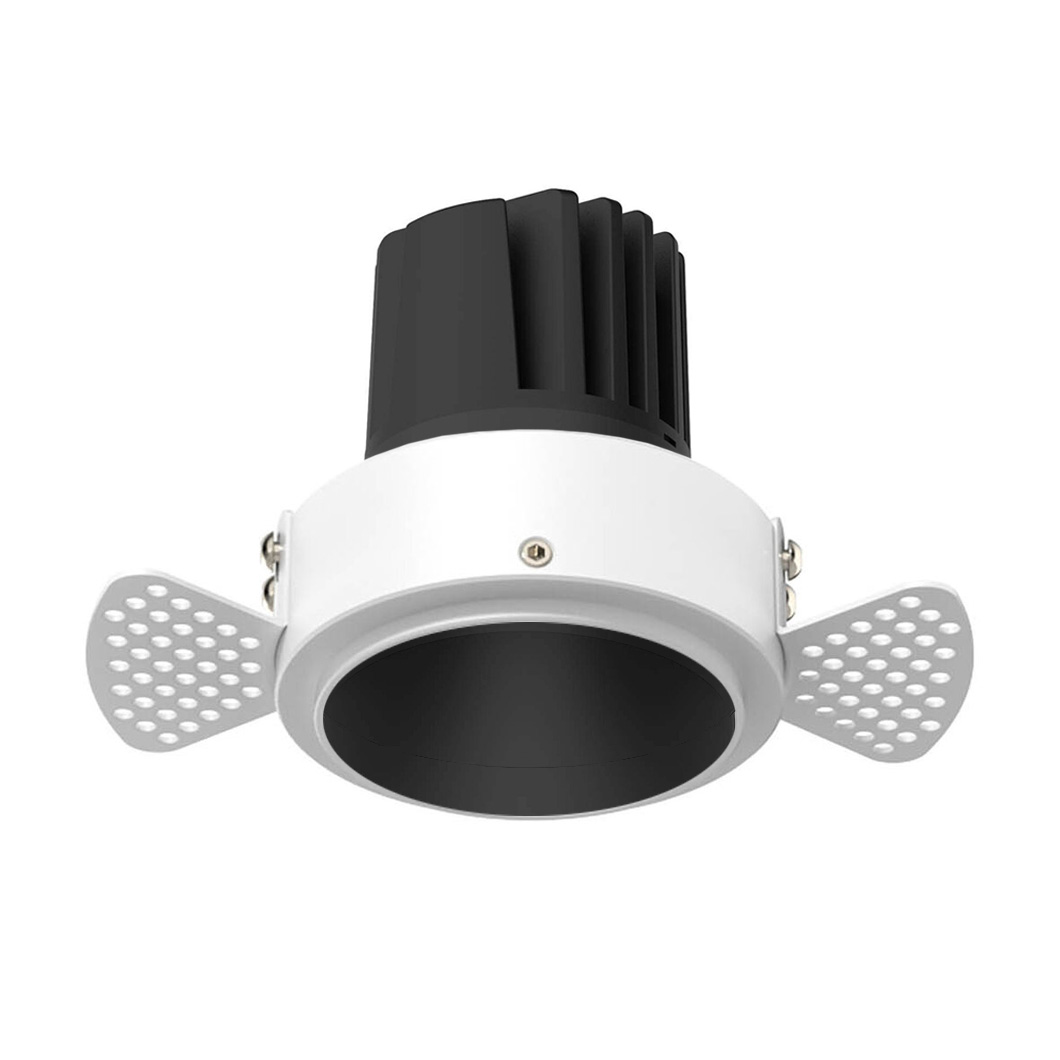

Faro Elios Fix Tunable White 2400K-6500K LED Trimless Plaster-in Downlight

Description

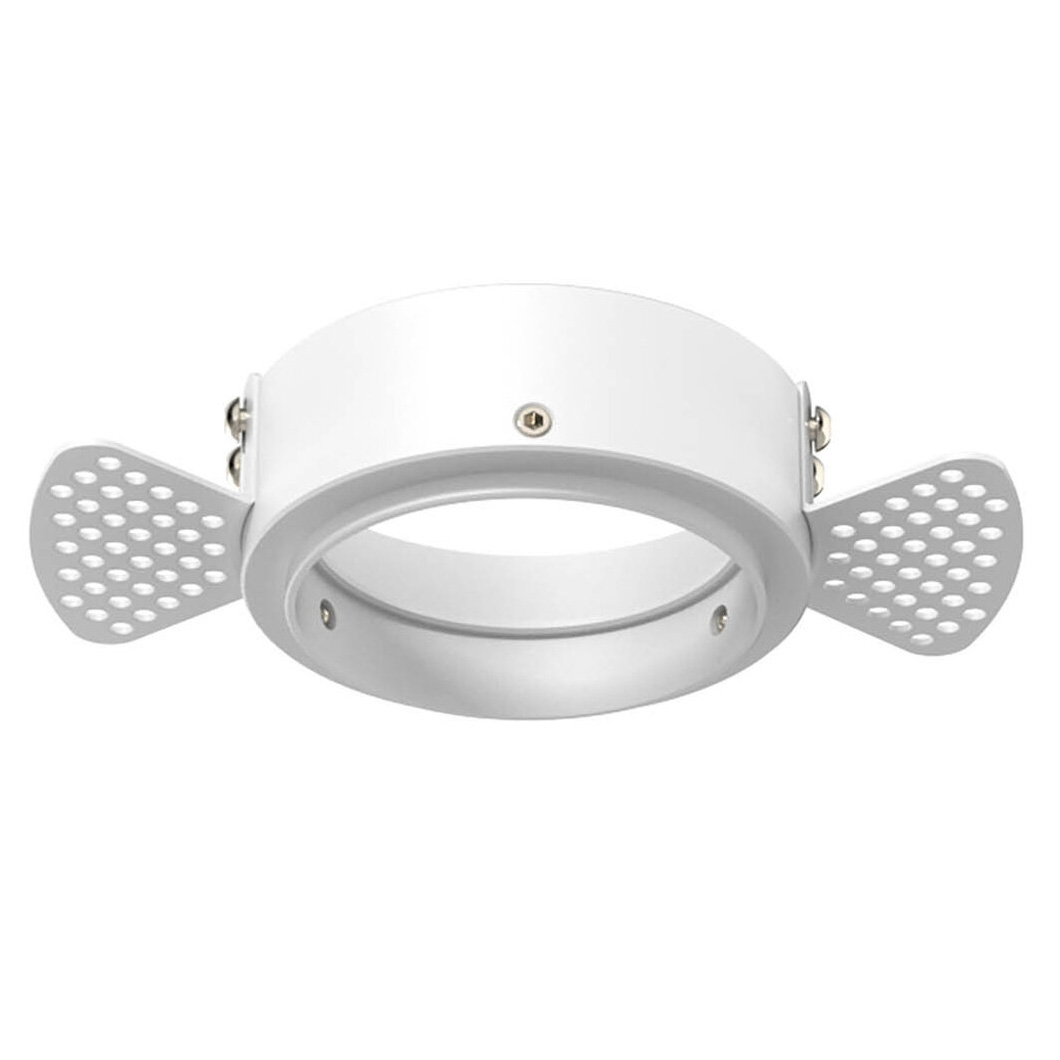

A versatile and adaptable collection of architectural downlights with a choice of recessed frames and engines, the Elios Fix Tunable White downlight by Faro Barcelona is supplied with a trimless recessed mounting accessory for plastering seemlessly into the ceiling.

The 7W CRI90 LED has a tunable white colour temperature of 2400-6500K, with a choice of IP20 or IP54 waterproof ratings. The fixed optic is designed for general lighting that supports the natural human circadian rhythm. The human centric aspect of Elios makes the collection of luminaires perfect for lighting in both residential and commercial projects. Optional accessory lenses available for increased visual comfort and decreased glare.

What is Tunable White LED?
The circadian rhythm of human beings evolved in sync with the natural cycles of the sun and moon, adapting to their different light spectrums at different times of the day. Tunable white lighting, also known as variable white, dim-to-white, or custom temperature lighting, allows the light colour to be adjusted to recreate the natural light of the day/night  - usually from candlelight 2400K white, to a neutral 4000K white, through to a cool 6500K white. A flexible lighting solution that promotes biological balance, Human Centric Lighting works with our natural rhythms, creating more productive or relaxing environments that mimic the natural lighting at that time of the day and greatly improves health, sleep, visual comfort and everyday wellbeing.

Casambi or DALI control
Available in versions compatible with either Casambi or DALI dimming control systems. Driver included.

Elios Fix available in twin versions - contact us for further details

Specification

Mounting: Ceiling
Voltage (V): 220V-240V
Hertz: 50/60Hz
Class: II
IP: 20 | 54

Power (W): 6.4
Light source: COB LED
Light source included: Yes
Incandescent wire: 650
Lifespan: 50.000h L70 B10
Power factor: 0.8
Beam Angle: 15° | 24° | 36° | 50°
Color temperature (K): 2400-6500K
Dimmable luminaire (W): Yes
Photobiological risk: 1
CRI 90

Luminous Flux (lm):

	Beam Angle
	15°	24°	36°	50°
Casambi	611 lm	630 lm	679 lm	655 lm
DALI	594 lm	612 lm	660 lm	636 lm

Control System: CASAMBI | DALI
Driver included: Yes
Supply current: 200 mA
Driver regulation type: CASAMBI | DALI

Structure material: Aluminium + Aluminium
Structure finish: White | Black

Cut-out Size: 75mm
Ceiling thickness: 22mm max.
Recessed height: 92mm min.

Lamp type: 2400K-6500K tunable white LED | 7W

Dimensions

Product dimensions: W.123mm x H.58mm x Diameter.72mm

Cutout dimensions: Dia.75mm

Downloads

• Data Sheet | 15° Beam Angle | PDF
• Data Sheet | 24° Beam Angle | PDF
• Data Sheet | 36° Beam Angle | PDF
• Data Sheet | 50° Beam Angle | PDF
• Install Instructions PDF
• Lighting File 15° | LDT
• Lighting File 24° | LDT
• Lighting File 36° | LDT
• Lighting File 50° | LDT

Delivery and warranty

Estimated delivery time 2-3 weeks.
