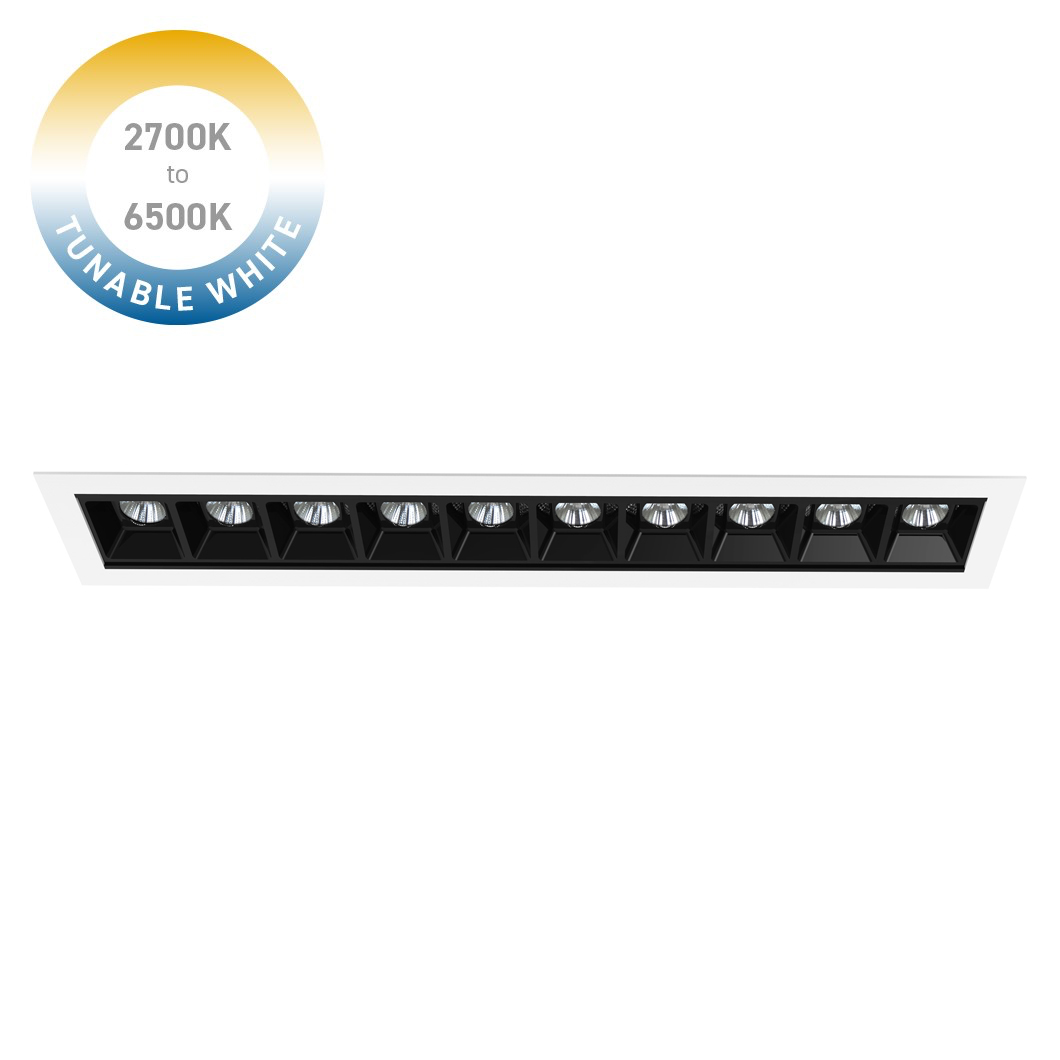

DLD Surf 10 Tunable White 2700-6000K LED Fixed Recessed Downlight

With tunable white 2700K - 6000K technology, our DLD Surf 10 fixed downlight is recessed into the ceiling and combines 10 high power energy efficient LEDs with an anti-glare baffle design.

Contemporary and minimal in style with a beam angle of 15º or 30º, Surf is a flexible downlight suitable for using as a focused spotlight or to bathe a wider area with light. Luminaire in steel with heat sink in extruded aluminium for optimum heat dissipation. Optic lens reflector with ABS baffle. The baffle is available in white or black. Supplied with 0-100% phase dimmable driver as standard. Compatible with leading edge and trailing edge dimmers.

View the Surf collection

About tunable white LED
Also known as variable white, dim-to-white, or custom temperature lighting, tunable white LEDs allow the light colour to be adjusted - usually from warm 2200K white, to a neutral 4000K white, through to a cool 6500K white. A flexible lighting solution that is perfect for human centric lighting schemes, the fitting easily switches from warm to cool depending on whether you need a calm ambiance or specific lighting for a task, usually automatically programmed to provide the correct white light temperature for the time of day.

This fitting can be adjusted from 2700K to 6000K.

Read more about the benefits of tunable white lighting

Residential or commercial
With a beam angle of 30º, Surf 5 fixed is a designed as a more focused spotlight, washing the space directly below with light - perfect for both commercial lighting in a hotel lobby, office or restaurant, or for lighting a hallway or above a table or kitchen island in your home.

High quality materials
The luminaire is made from steel with the heat sink in extruded aluminium for optimum heat dissipation. Optic lens reflector with ABS baffle. The minimal white bezel is supplemented by the baffle being available in matching white or black. With a unified glare rating (UGR) of less than 10, Surf offers completely homogeneous lighting. Supplied with 0-100% phase dimmable driver as standard. Compatible with leading edge and trailing edge dimmers. DALI dimmable driver also available.

Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

IP20
Class 1
Wattage: 22W (2.2W x 10)
Current: 700mA
Delivered lumen: 894 - 1100lm (2 x 447 - 550lm)
Beam angle: 15º | 30º
Colour temperature: 2700ºK - 6000ºK
CRI: 90+

Cut out: 272mm x 41mm

Including Constant Current driver

Product dimensions: W.285mm x D.47mm x H.61mm

Cutout dimensions: W.272mm x H.41mm

• Data Sheet PDF
