DLD Surf 10 LED Plaster In Recessed Downlight

Manufacturer: DLD Architectural


One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

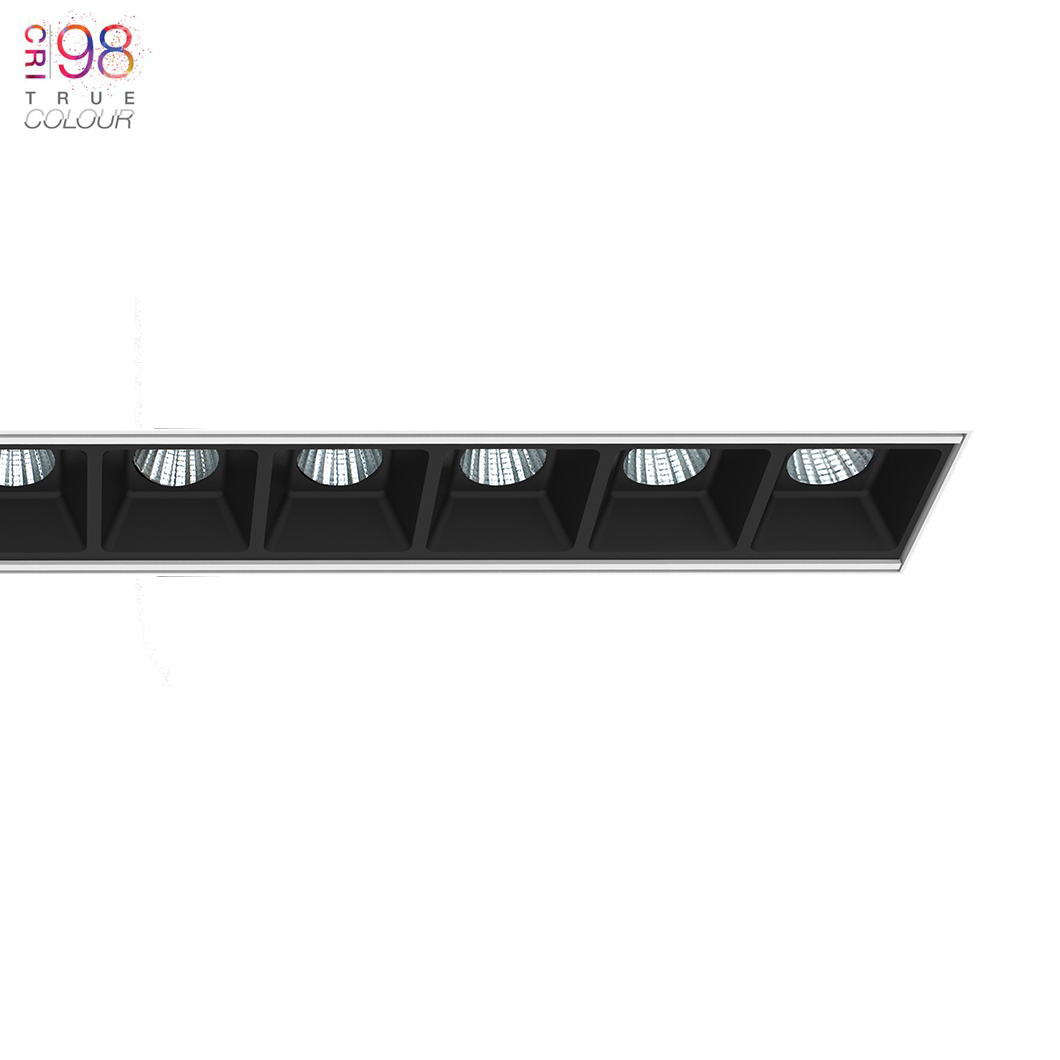

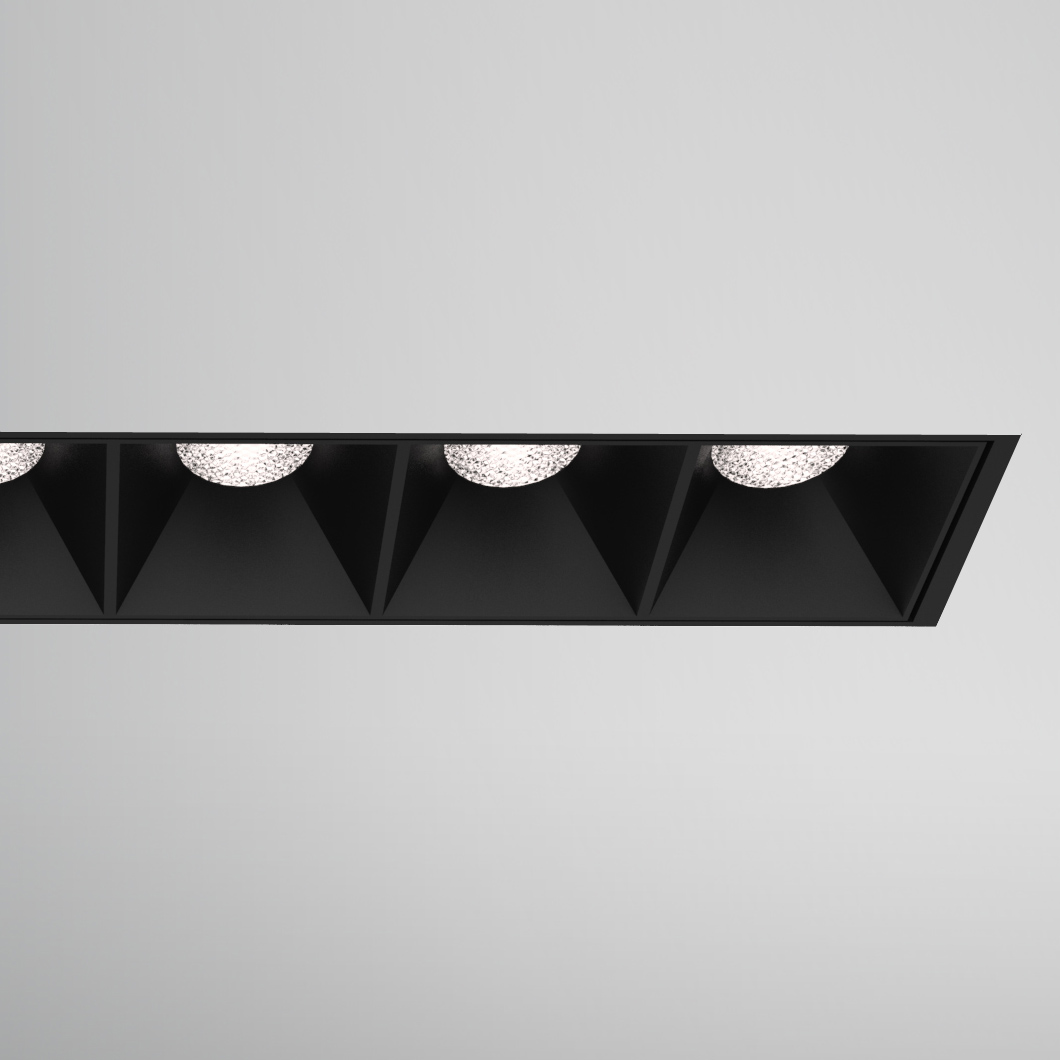

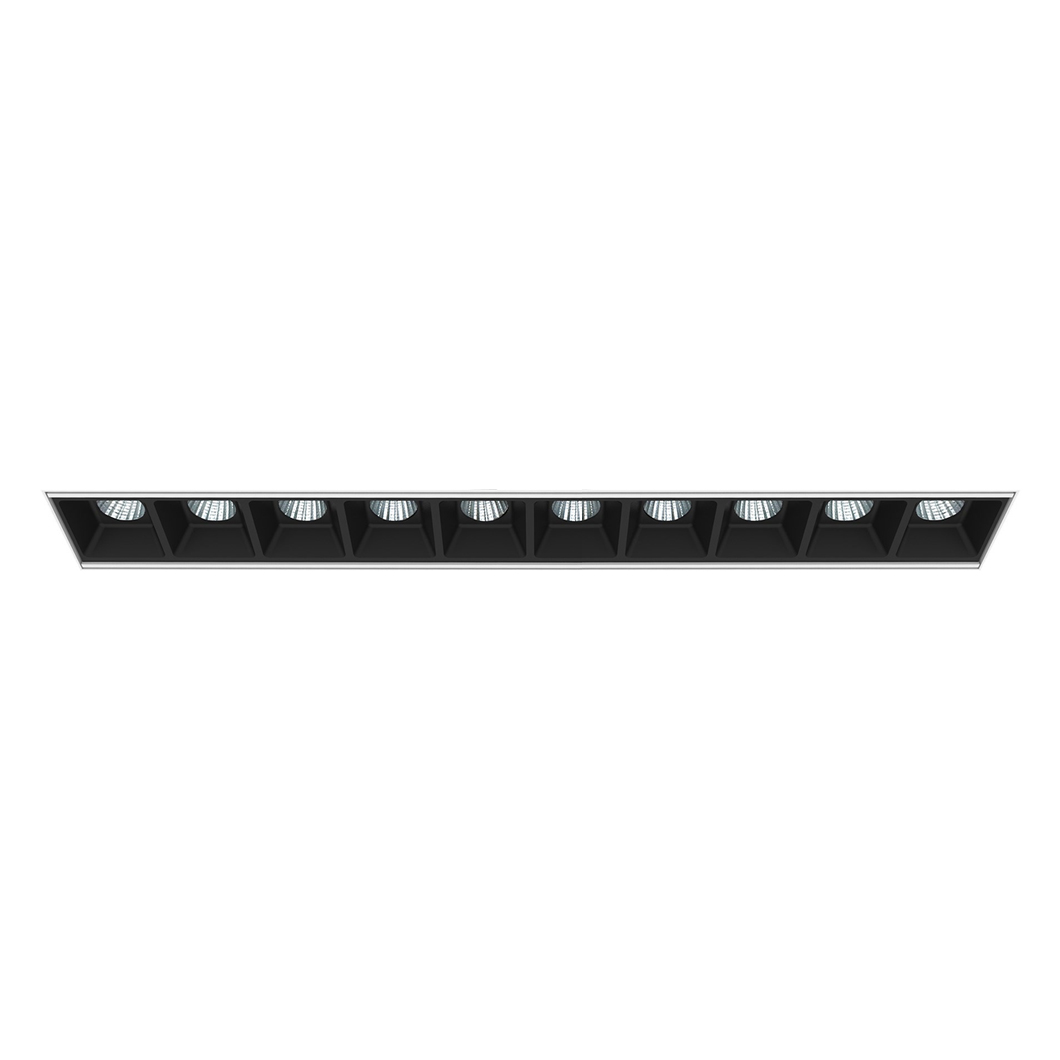

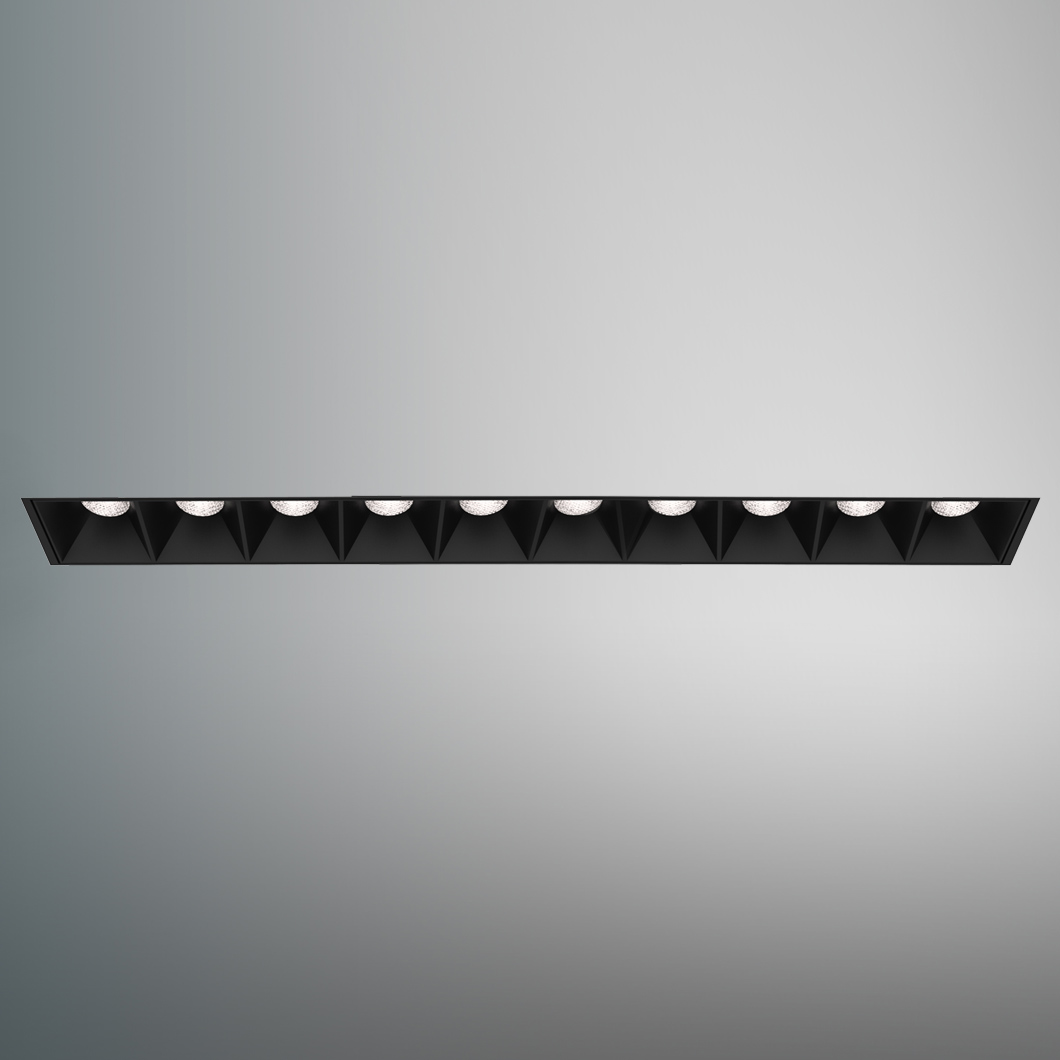

DLD Surf 10 fixed plaster in downlight is recessed and plastered into the ceiling, and combines 10 high power energy efficient LEDs with an anti-glare baffle design. Contemporary and minimal in style, the choice of beam angles makes the 10 LED Surf plaster-in downlight perfect for both commercial lighting in a hotel lobby, office or restaurant, or for lighting a feature or statement piece of furniture in your home.

With a beam angle of 15º or 30º, Surf is a flexible plaster in downlight suitable for using as a focused spotlight / wall washer or to flood an area with light. Luminaire in steel with heat sink in extruded aluminium for optimum heat dissipation. Optic lens reflector with ABS baffle. The baffle is available in white or black.

Supplied with 0-100% phase dimmable driver as standard. Compatible with leading edge and trailing edge dimmers.

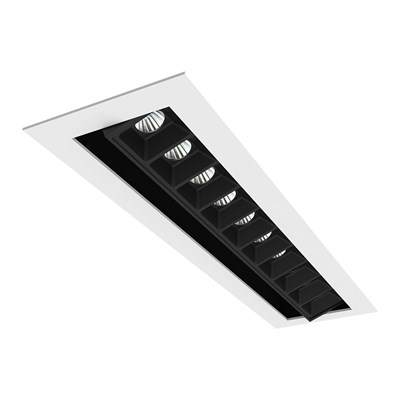

Surf is available in other fixed and adjustable versions - see below.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Delivery usually with 1-2 weeks.


Class 1
Wattage: 22W (2.2W x 10)
Current: 700mA
Lumen: 200lm x 10 (from LED chip)
Beam angle: 15º or 30º
Colour temperature: 2700ºK | 3000ºK
CRI: 80+

Dimensions: 277mm x 40mm

Including Constant Current driver


Product dimensions: W.313mm x D.74mm x H.60mm

Cutout dimensions: W.286mm x H.46mm

Delivery and warranty

Delivery varies for each product, please see product description

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.

For more information on our products and services please call 01189 882294 or email [email protected].
