DLD LumaLine Surface Mounted Profile

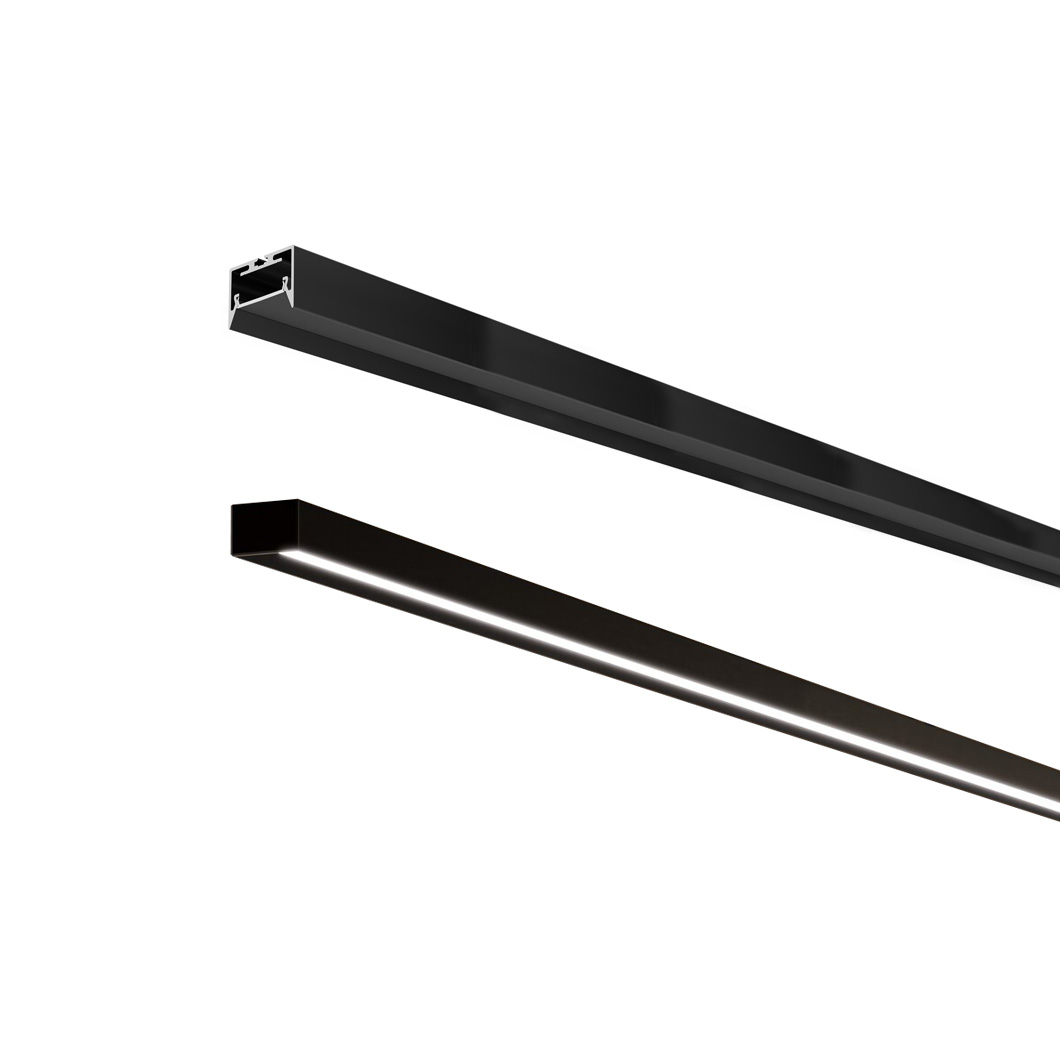

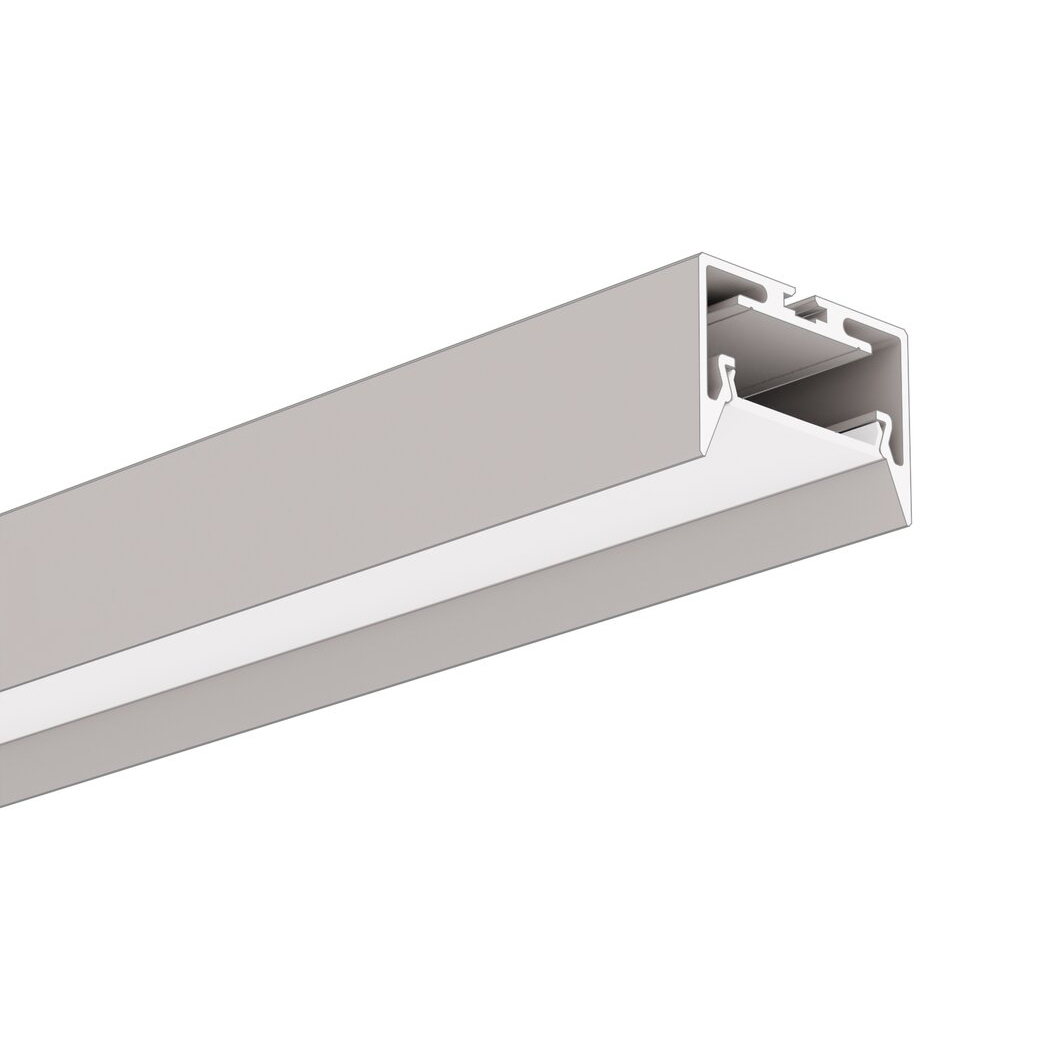

Minimalist and refined, the surface mounted version of our DLD LumaLine is just over 3cm in width. The extruded aluminium profile is finished in black or white, and supplied with a pair of matching end caps. A sleek bevelled-edge design combines with the frosted diffuser to reduce glare from the light source. DLD LumaLine is perfect for illuminating a long table or kitchen island in a modern home, or used in a commercial project.

Flexible lighting
For professionals, you can choose to supply your own LED tape and drivers. Or you can pick a 5m reel of DLD Lightflow CSP LED tape in 2700K or 3000K, in either 10W or 14.4W. With a width of 8mm, the Lightflow CSP LED tape can be installed in the profile (which has an internal width of 20mm) either as a single line or a double line for a more powerful light output. Compatible with either a phase dimming driver or DALI driver. The driver is installed remotely from the fitting.

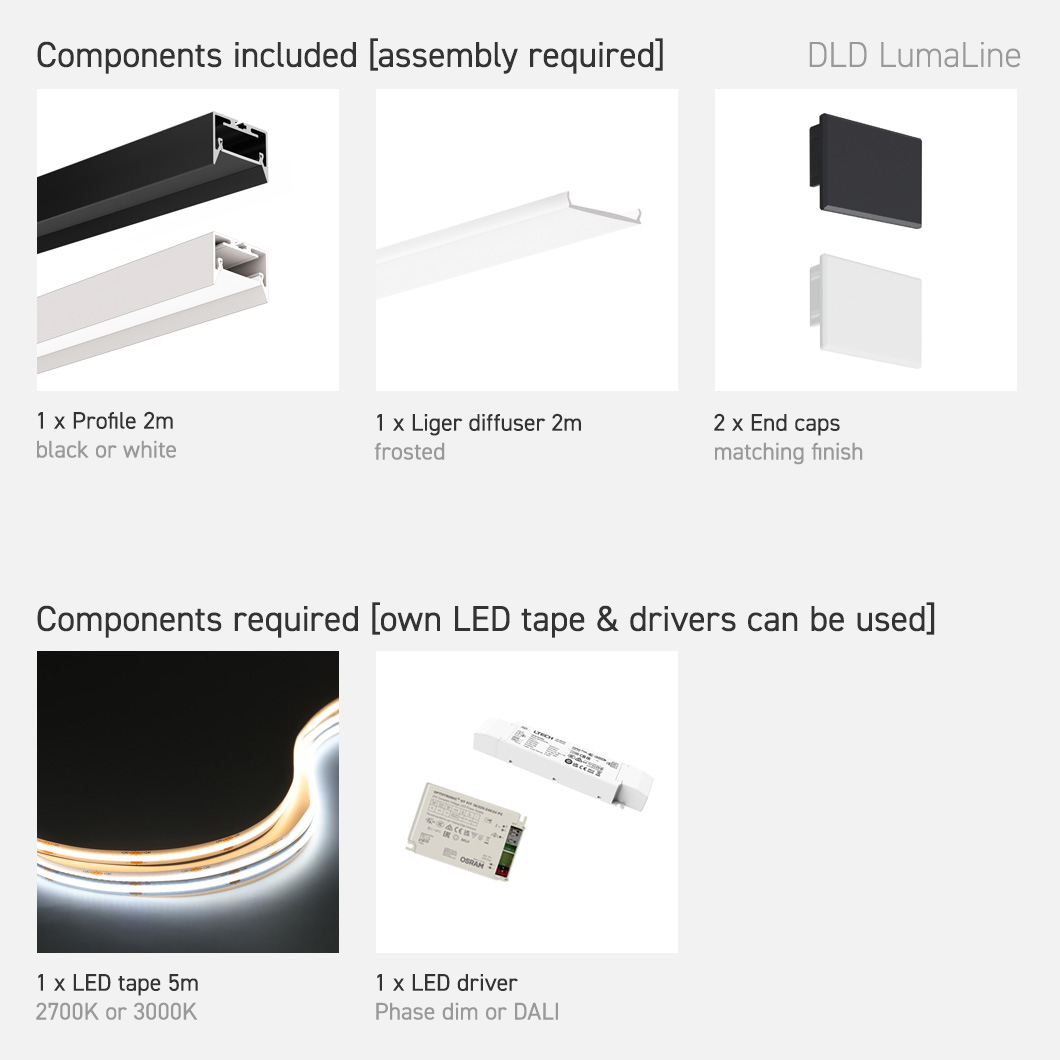

Self assembly - supplied as components

• DLD LumaLine is supplied as separate components and not fully assembled.


• Components included:
  - Profile length: 2m
  - Diffuser: frosted
  - End caps: matching x 2


• Components required*:
  - LED tape: DLD Lightflow CSP 10W or 14.4W 5m reel
  - Driver: Phase dim | DALI
  *own LED tape and drivers can be used
• A qualified electrical professional is required to assemble and install DLD LumaLine.

Wireless dimming from your smartphone
This track can also be used with the Casambi dimming units to give flexible control of the lighting in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch. See the 'You May Also Need...' section below for the available options and technical information.

Currently in stock:
UK orders placed before midday are delivered next working day

View the DLD Profile collection

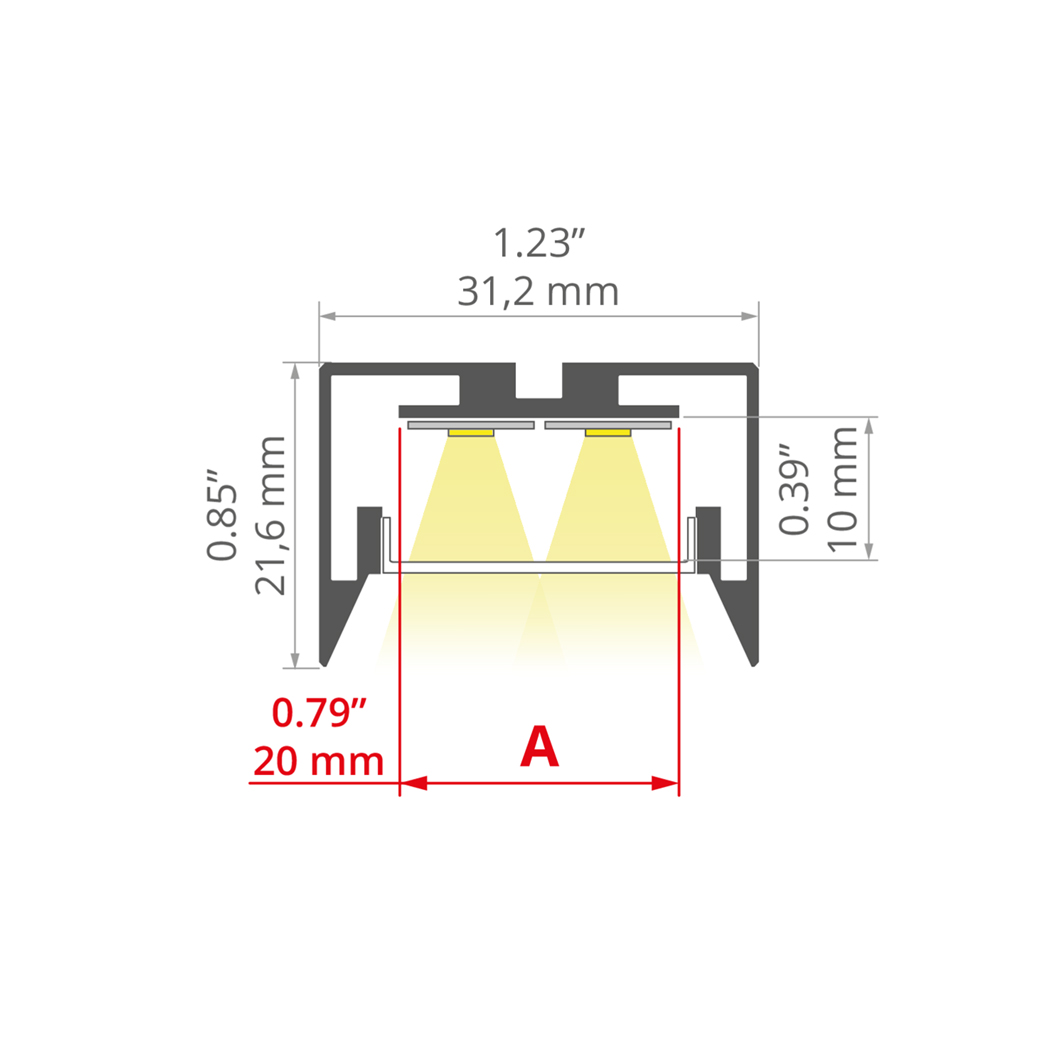

Internal dims: W.20mm

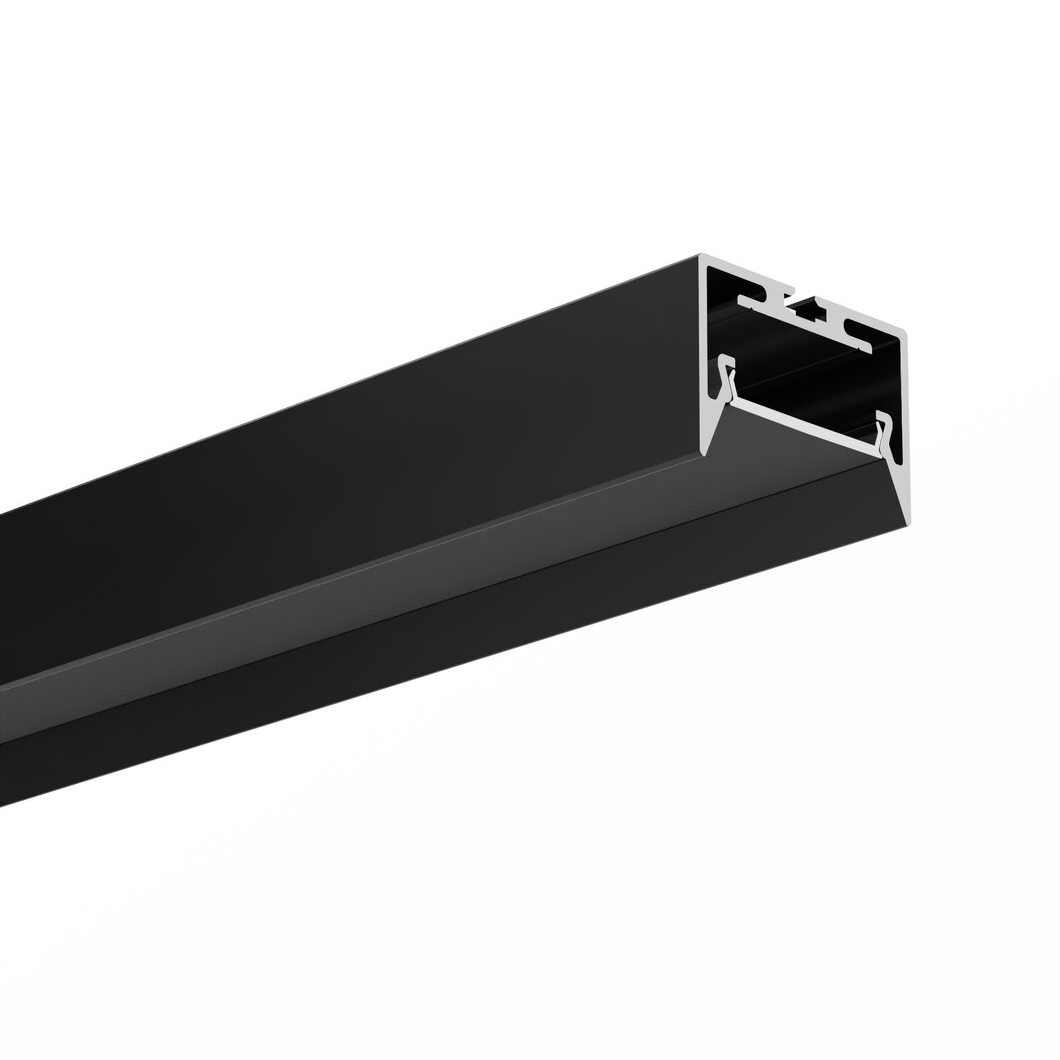

Aluminium extrusion
Cable drop: 5m max

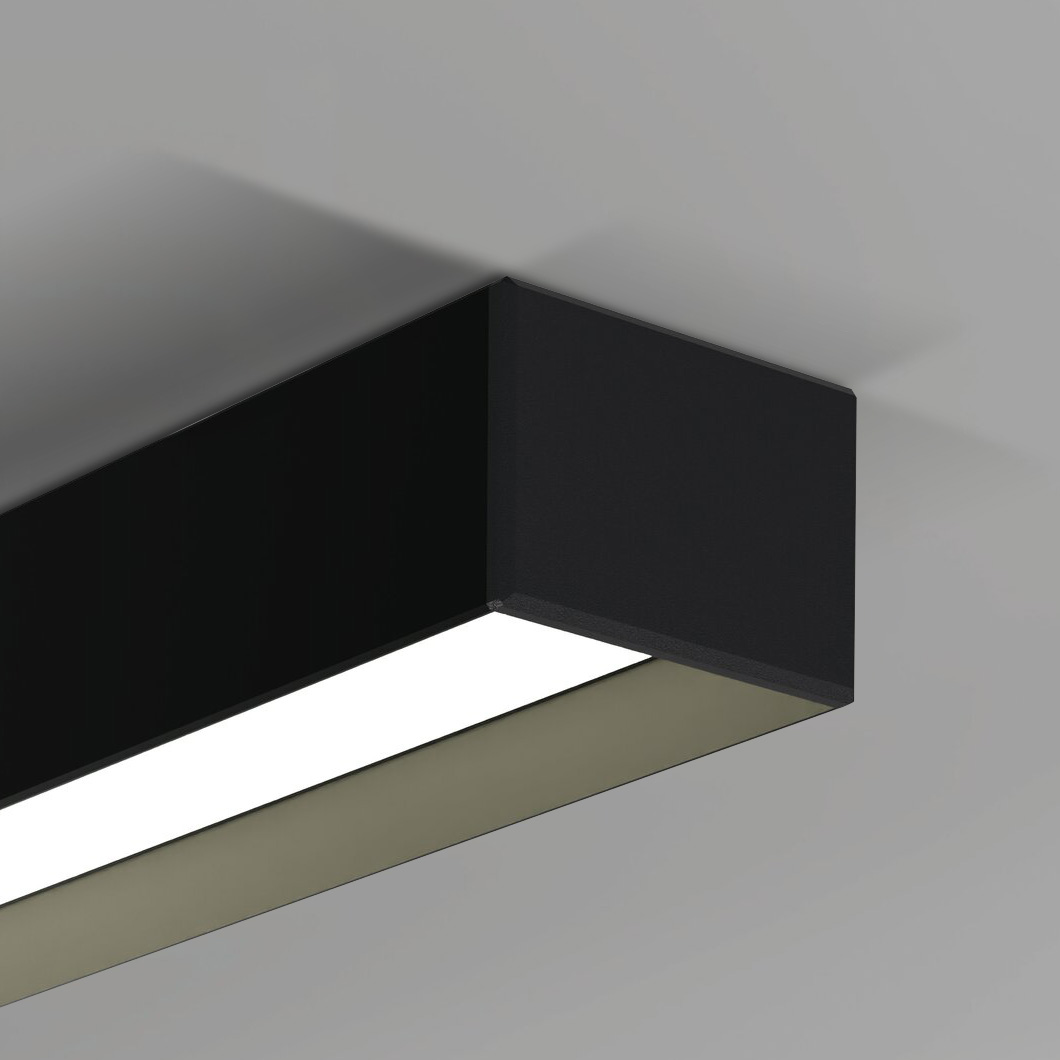

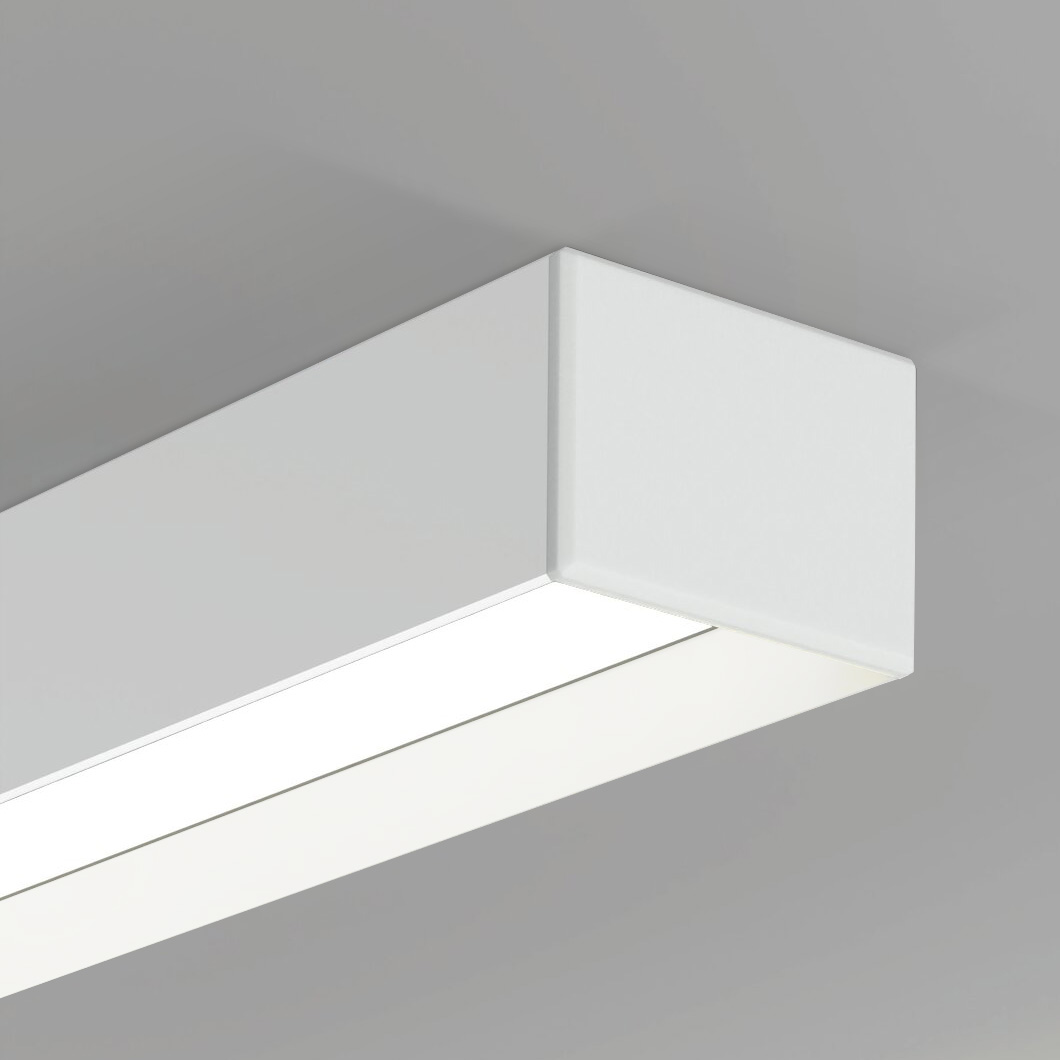

Finished in black or white

Components included
- Profile length: 2m
- Diffuser: frosted
- End caps: matching x 2

Components required*
- LED tape: DLD Lightflow CSP 10W 5m reel
- Driver: Phase dim | DALI
*own LED tape and driver can be used

Assembly and installation should be carried out by a qualified electrical professional

LED Tape
10W Version:
Voltage: 24V DC
Power (±10%): 10W/m
Lumens per Watt: 97lm/W
Lumens per 0.5m: 485lm
Light temperature: 2700K | 3000K
IP20
High CRI: 90
R9: >40
3M adhesive tape

Drivers
Phase dim: Osram OT FIT 36W 24V Constant Voltage LED Driver
DALI: L-TECH 36W 24VDC DALI Constant Voltage LED Driver
Driver data sheets available in the downloads tab below

Product dimensions: W.2000mm x D.31mm x H.22mm

• Data Sheet PDF
• Assembly & Install Instructions PDF
• Driver Data Sheet | Osram OT Fit 36W Phase Dim | PDF
• Driver Data Sheet | LM-36-24-G1D2 24V CV DALI | PDF
