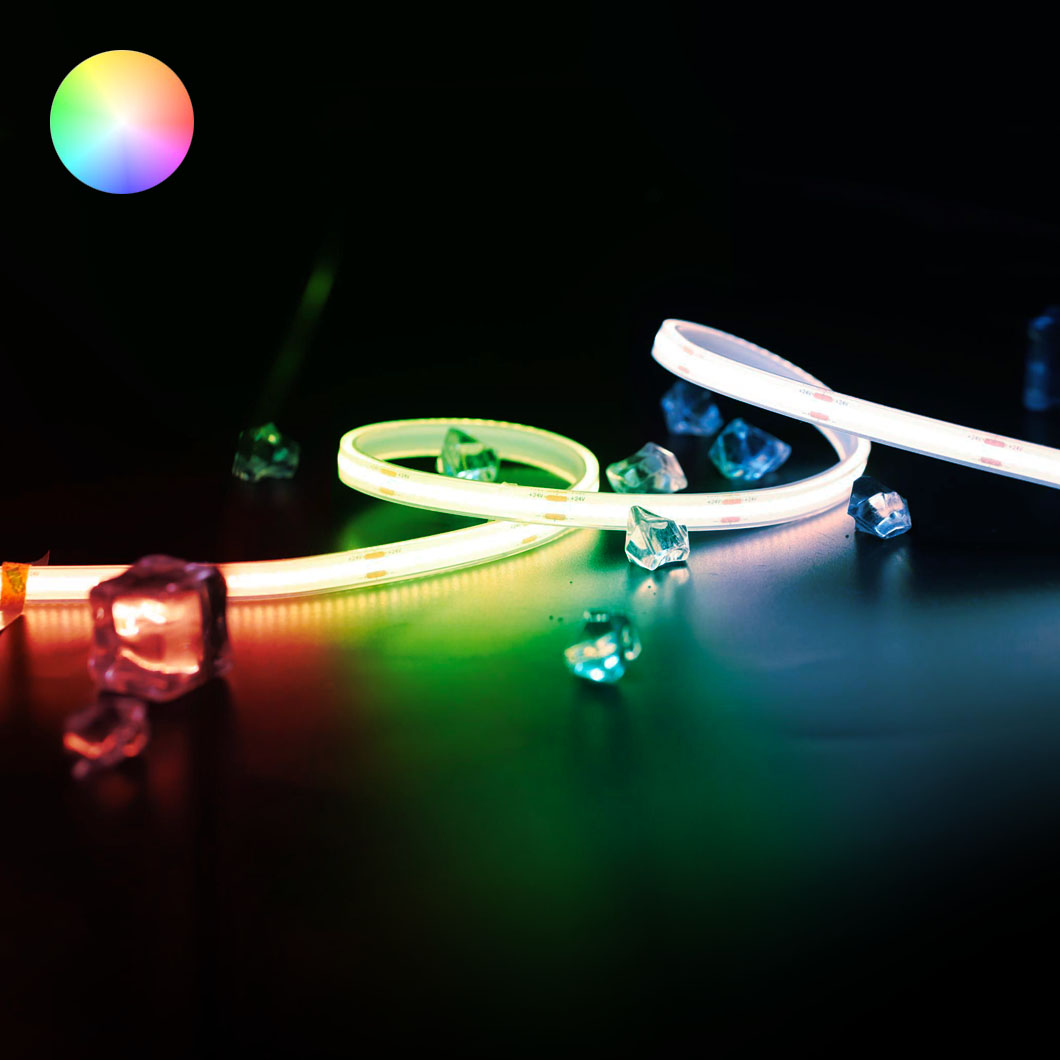

DLD Lightflow RGB CSP 15W 24V IP68 Linear LED Tape

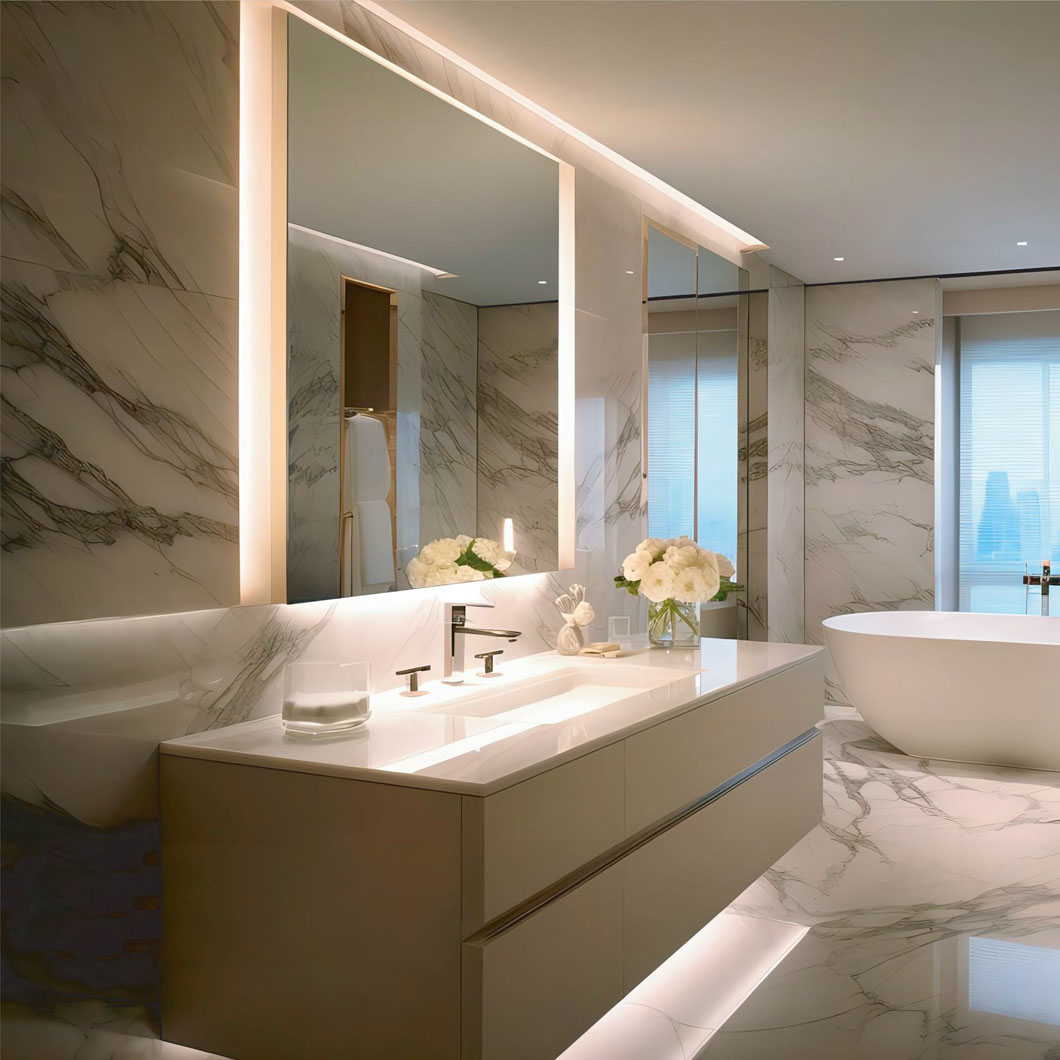

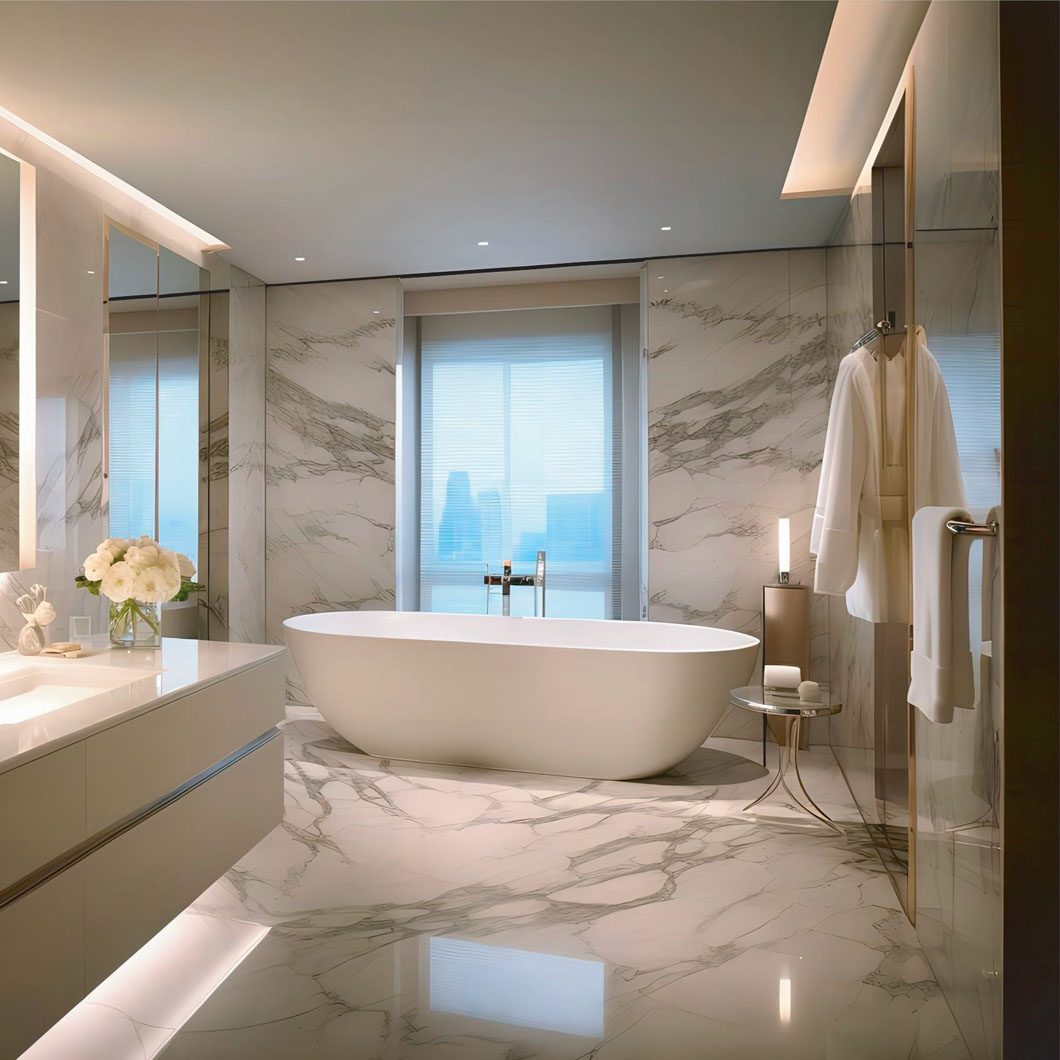

With a fully submersible IP68 protection rating, the Lightflow RGB CSP LED tape is designed for creating colour changing effects in bathrooms, outdoor spaces and in underwater settings. 24V 15W RGB 3 in 1 colour changing LED tape in 5m length, with self adhesive 3M tape. With 540 LEDs per metre, this LED strip gives a consistent light with a radiance angle of over 120°. Can be cut every 33.3mm along the cut mark. The IP68 rating makes Lightflow RGB tape perfect for use in both residential or commercial projects that need outdoor or bathroom zone 1 linear light. Available in 5m reel lengths.

Suitable for dimming with a PWM compatible driver - not included.

Wireless dimming from your smartphone
This Lightflow linear LED can also be used with the Casambi dimming units to give flexible control of the lighting in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

View the Lightflow LED Tape collection

Recommended for installation with an aluminium profile, as this acts as a heat sink and prolongs the lifespan of the LED tape.

Light Beads: CSP
Number Led/m: 540LED/m
Power W/m±10%: 15W
Voltage: 24V
PCB Width: 12mm
CRI: -
Max length(30% voltage drop): 5m

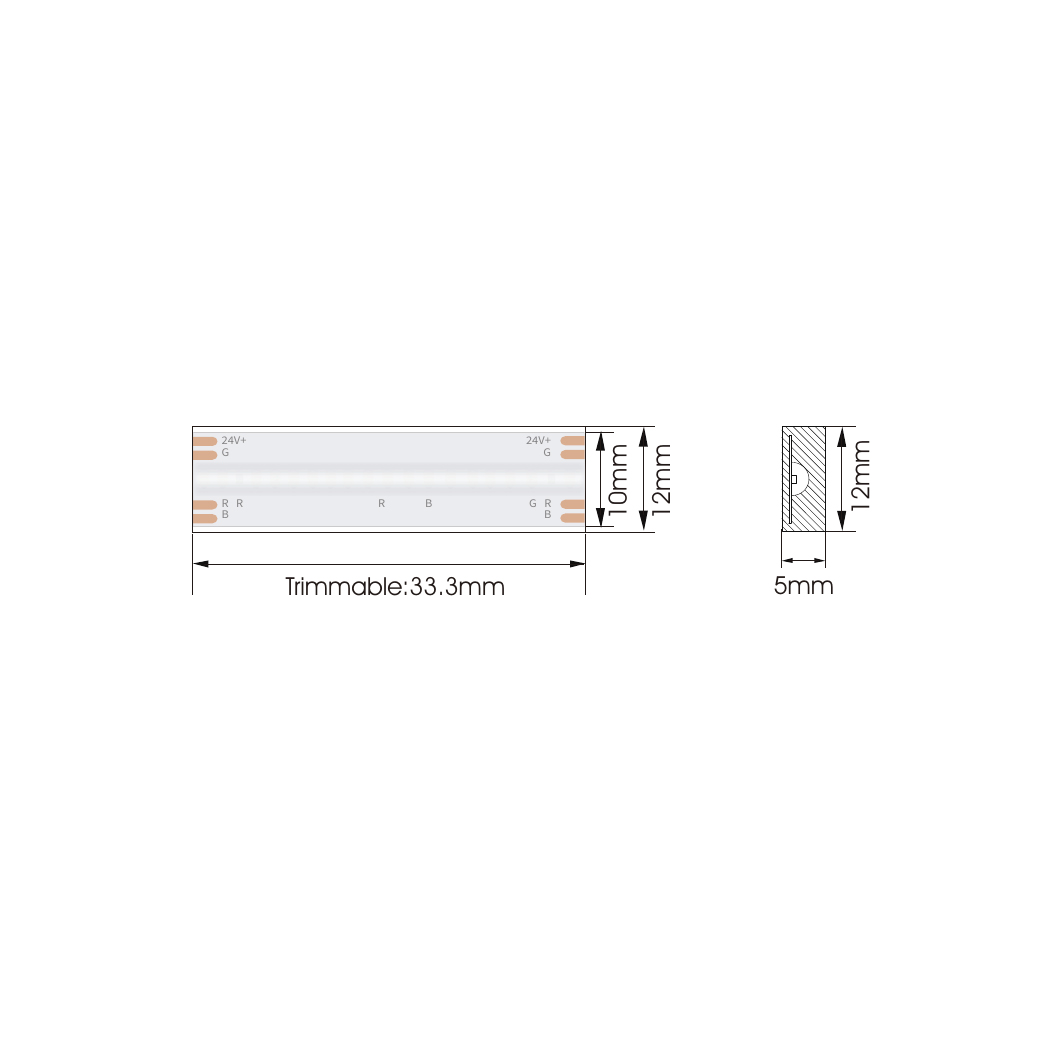

Cut Size: 33.3mm
IP rating: IP68

CCT | Lm/m | Power W:

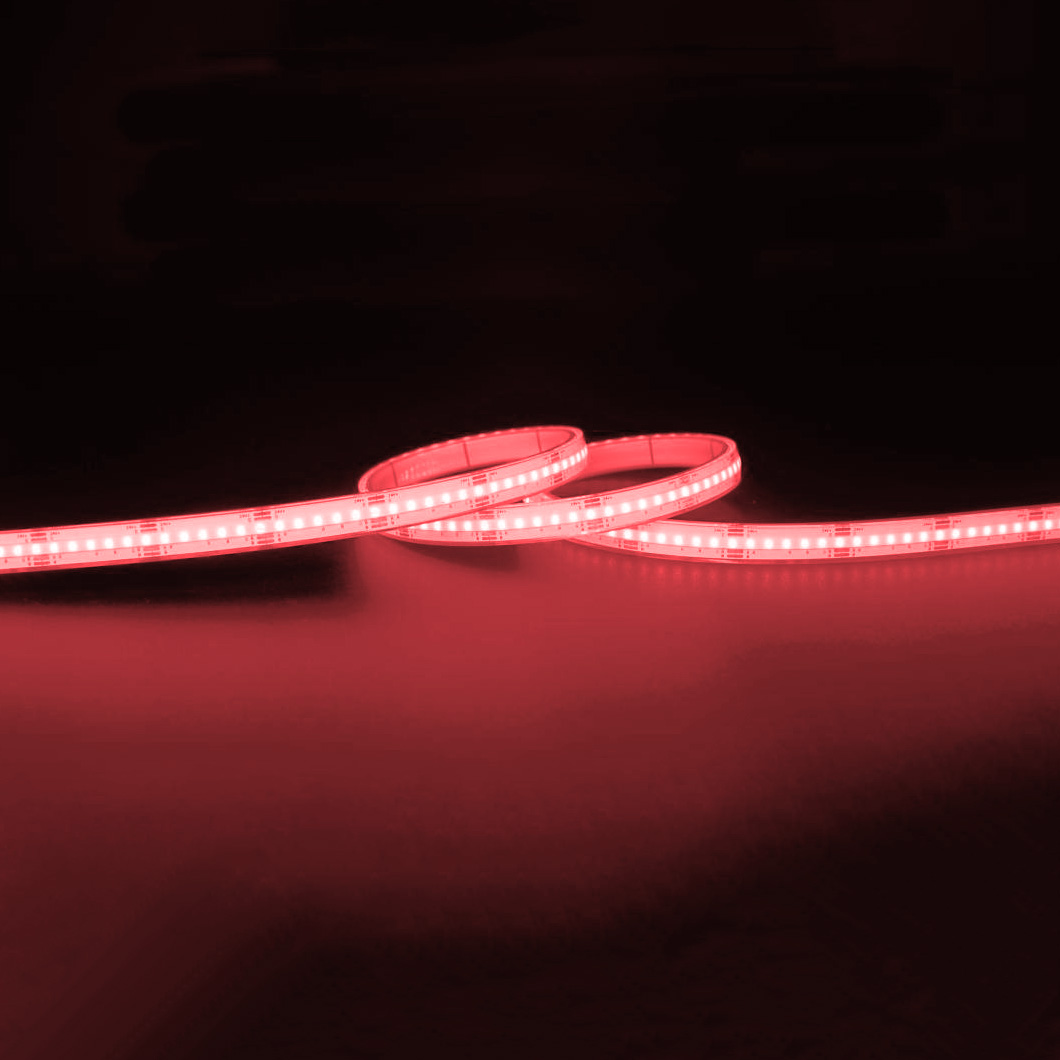

R | 145lm/m | 6W
G | 335lm/m | 4.5W
B | 70lm/m | 4.5W
RGB | 545lm/m | 15W

Dimmable with PWM compatible driver - not included

DALI compatible drivers:

• L-Tech 150W 24VDC Tunable White CV DALI LED Driver

Casambi compatible drivers:

• Osram OT FIT 150W 24V CV LED Driver + Casambi CBU PWM4 CV Wireless Control Unit (up to 115W)
• Casambi NDRV-L-CSB-4 Tunable White 4 Channel PWM Dimmer (up to 240W)
• Sunricher 150W 24VDC 2 Channel Tunable White CV Casambi Dimmable LED Driver

Lamp type: CSP RGB 15W 25V LED

Product dimensions: W.5000mm x D.12mm

• Data Sheet PDF
• Bathroom Zones & IP Ratings Explained PDF
