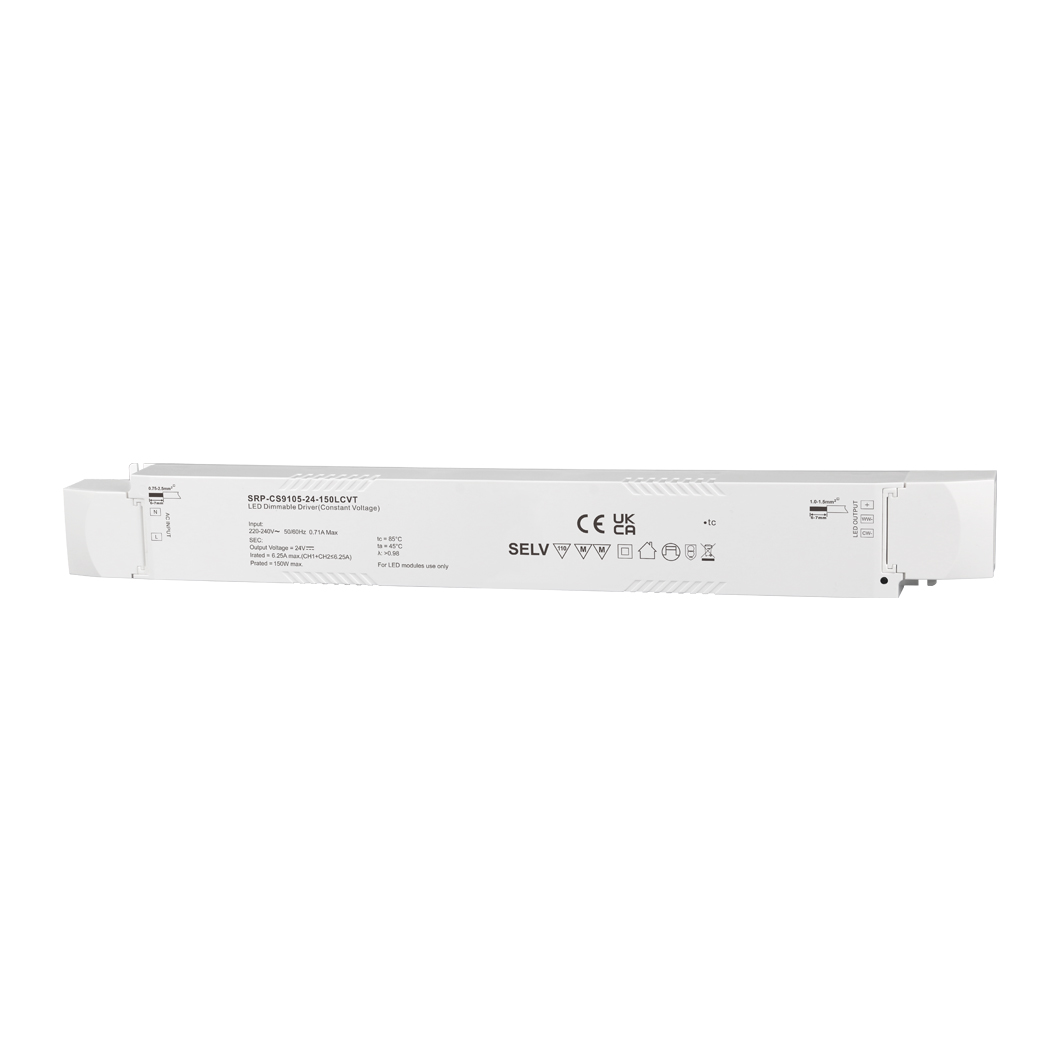

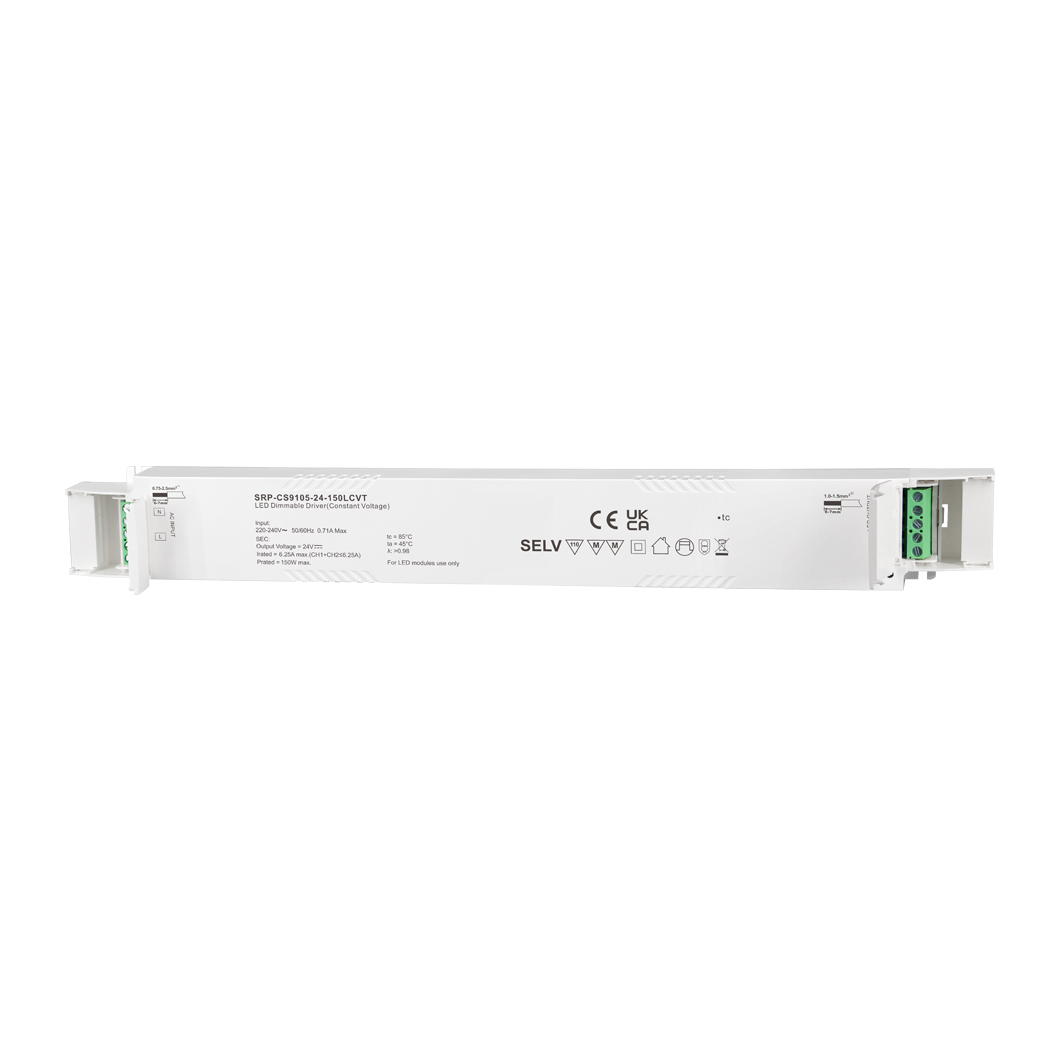

Sunricher 150W 24VDC 2 Channel Tunable White CV Casambi Dimmable LED Driver

SRP-CS9105-24-150LCVT is a high-performance 150W Casambi Bluetooth-enabled constant voltage LED driver with 2 output channels. Featuring a 24VDC constant voltage output with a 220-240VAC input, this driver ensures a power factor greater than 0.98 and an efficiency of over 93%. With its advanced Casambi technology, the driver supports smooth, flicker-free dimming down to 0.01% without any buzzing noise. It is equipped with built-in active Power Factor Correction (PFC), over-temperature, over-load, and over-voltage protection, making it a durable and safe solution for LED lighting applications.

Key features

• 2 channel Casambi dimmable LED driver
• Class II power supply, full isolated plastic case, built-in active PFC function
• PF > 0.98, Efficiency > 93%
• Can be controlled by both Casambi App and Casambi wall switches
• Easy commissioning with Casambi App
• On-board antenna
• Over-temperature/Over-load/ Over-voltage protection
• Waterproof grade: IP20
• 5 Years Warranty

Product Code: SRP-CS9105-24-150LCVT

Output

LED channel: 2
DC Voltage: 24V DC
Max. Current: Max. 6.25A(CH1+CH2≤6.25A)
Voltage Tolerance: ±3%
Rated Power: 150W max.

Input

Voltage Range: 220-240V AC
Frequency Range: 50/60Hz
Power Factor (Typ.): > 0.98 @ 230VAC
Total Harmonic Distortion: THD ≤ 6% (@ full load / 230VAC)
Efficiency (Typ.): 93% @ 230VAC full load
AC Current (Typ.): 0.8A @ 230VAC
Inrush Current (Typ.): COLD START Max. 62.6A @ 230VAC
Leakage Current: < 0.5mA /230VAC
Anti Surge: L-N:2KV

Control

Dimming Interface: Casambi
Dimming Range: 0.1%-100%
Dimming Method: Pulse width modulation
Dimming Curve: Linear/ Logarithmic optional

Protection

Over Voltage: Yes, remove the fault conditions and re-power the device.
Over Load: Yes, remove the fault conditions and re-power the device.
Short Circuit: Yes, remove the fault conditions and re-power the device.
Over Temperature: Yes, remove the fault conditions and re-power the device.

Environment

Working Temp.: -25℃ ~ +45℃
Max. Case Temp.: 85℃ (Ta=45℃)
Working Humidity: 10% ~ 95% RH non-condensing
Storage Temp. & Humidity: -40℃ ~ +80℃, 10% ~ 95% RH

Safety & EMC

Safety Standards: IEC/EN61347-1, IEC/EN61347-2-13
Withstand Voltage: I/P-O/P: 3.75KVAC
Isolation Resistance: I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission: EN55015, EN61000-3-2, EN61000-3-3
EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN614547

Product dimensions: W.120mm x D.41mm x H.28mm

• Data Sheet | Sunricher 150W 24VDC TW Casambi | PDF
