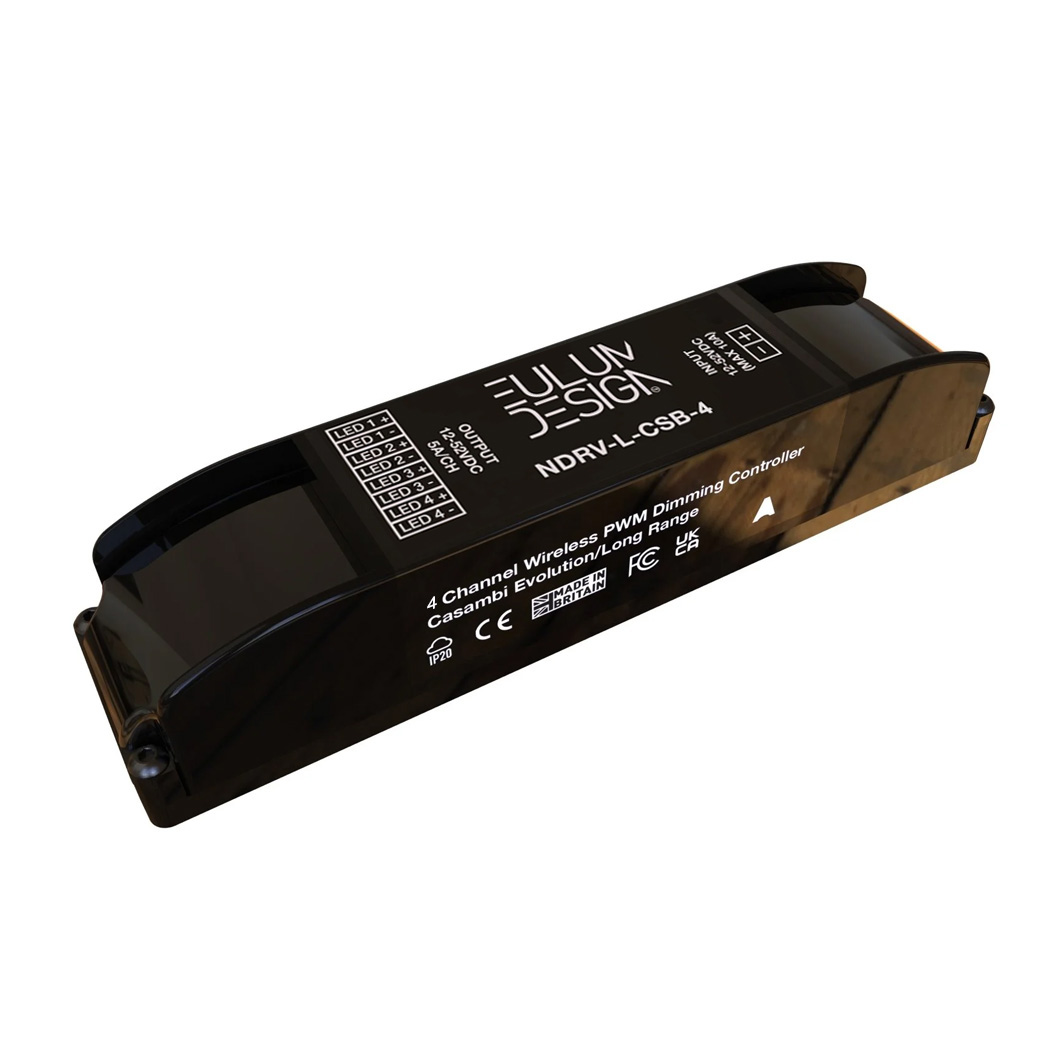

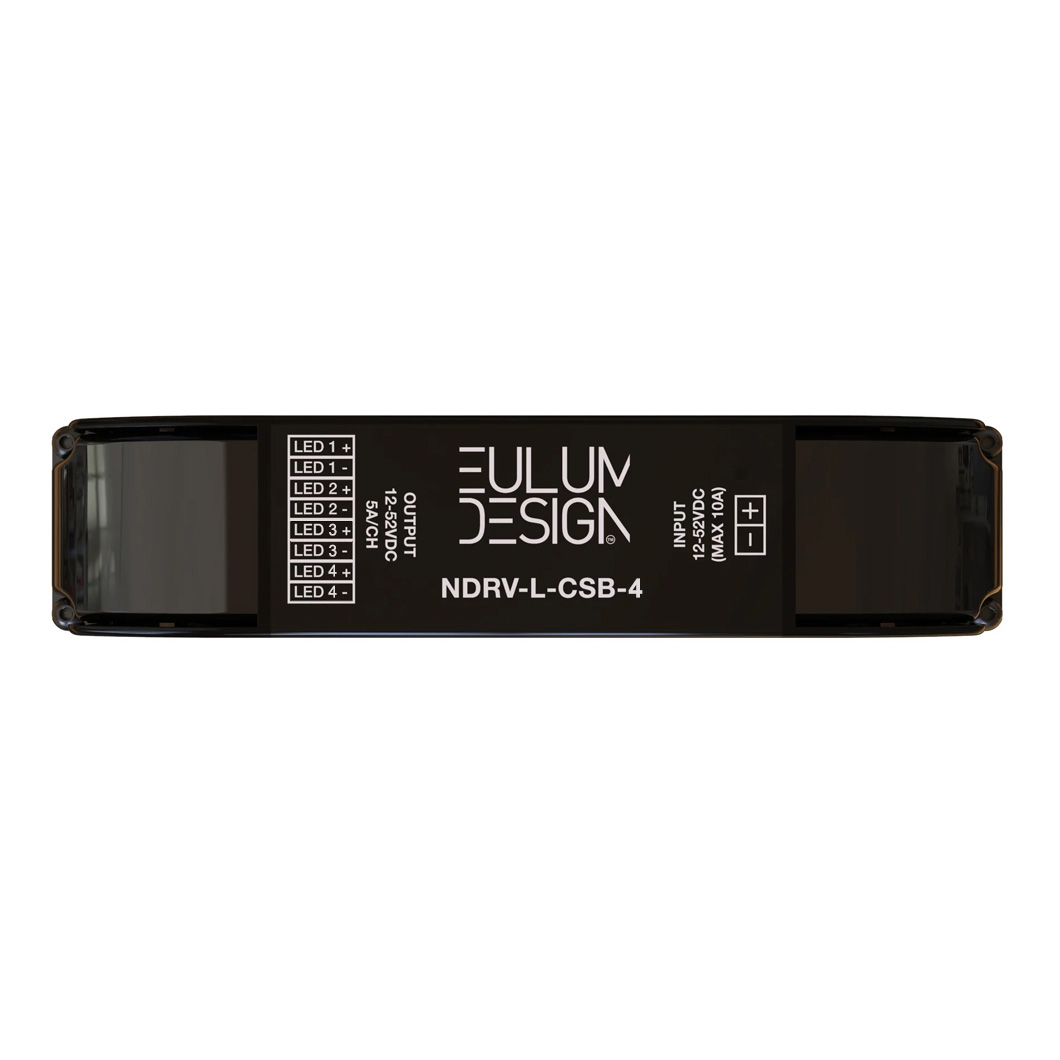

Casambi NDRV-L-CSB-4 Tunable White 4 Channel PWM Dimmer

The NDRV-L-CSB-4 is a 4 channel PWM (Pulse Width Modulation) dimmer with Casambi integration, giving smooth dimming suitable for RGBW, tunable white and single colour LEDs though a range of Constant Voltages.

Key features

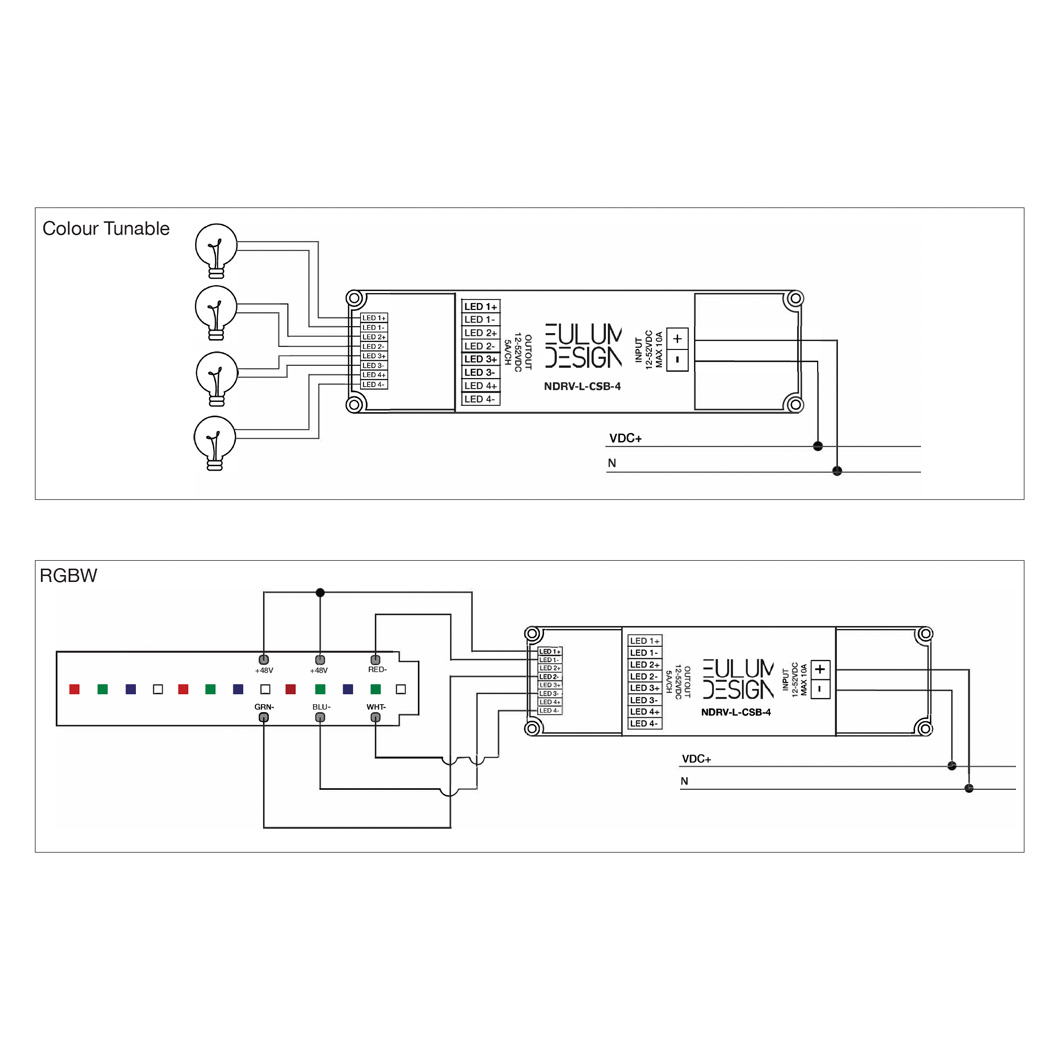

• 4 Individually addressable outputs for tunable and colour control. Works with any standard Constant Voltage supply and LED array
• Casambi Enabled
• 12-52VDC, 5A per channel, 10A Max/Controller
• Wireless Beacons
• Remote Antenna Configuration Available
• 200 Meter Wireless Range (Casambi Long-Range Mode)*
• Made In Britain

Product Code: NDRV-L-CSB-4

Mechanical

Housing: Black Plastic Injection Moulded ABS

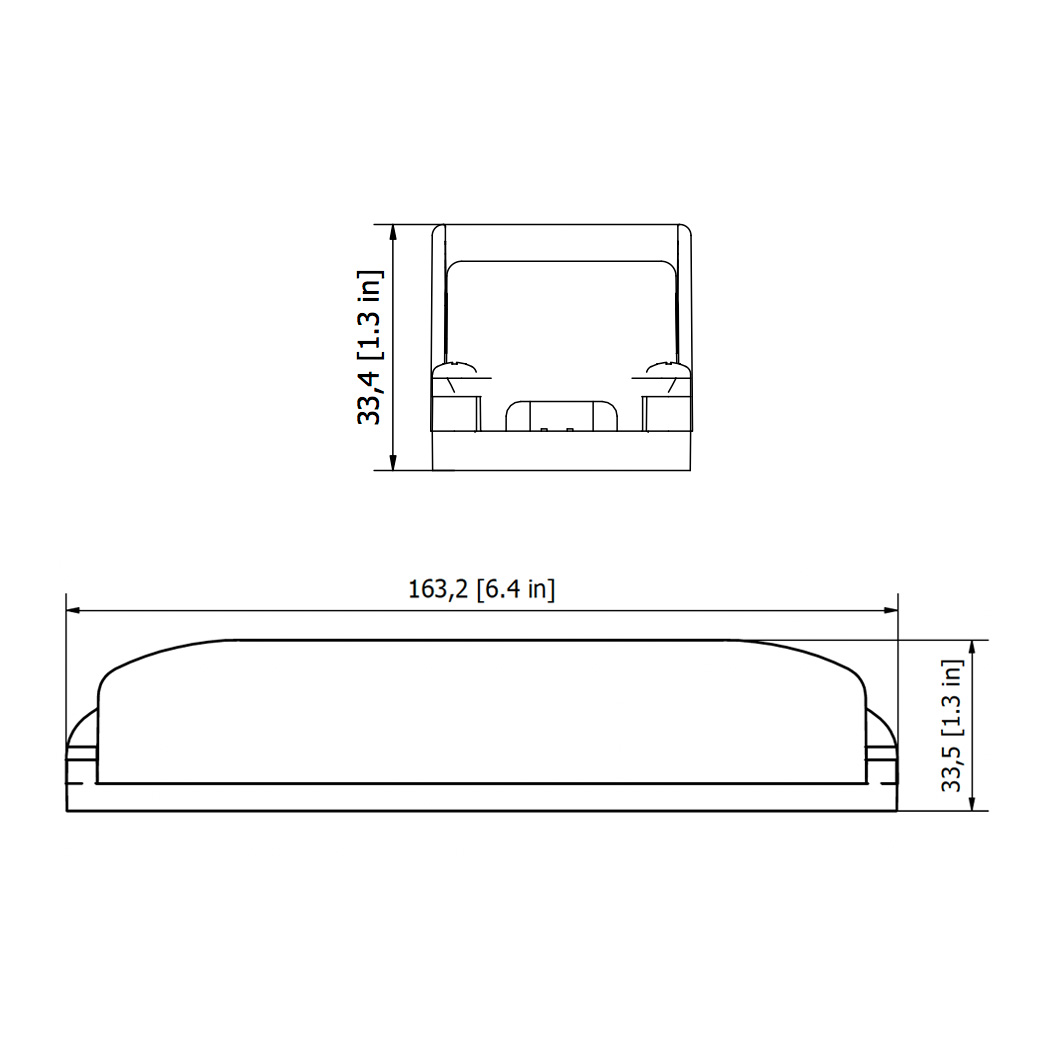

Dimensions: 162.2mm x 35mm x 33.3mm
Weight: 78g
Protection: IP20
Mounting: Screw down

Input

No. of Channels: 4 channel independent
Output Voltage: 12-52VDC
Max. Output Current: 5A per channel up to a combined total of 10A
Min. Load Requirement: 0W
Dimming Method: Pulse Width Modulation (PWM) @ 1.9khz Dimming Output: 0-100%, 0.1% minimum dimming level

Radio Transceiver

Operating Frequencies: 2.4Ghz - 2.483Ghz
Maximum Output Power: +8 dBm
Wireless Protocol: Casambi Wireless Mesh
Wireless Range: 75 Meters (200 Meters in Casambi Long-Range Mode)

Operating Conditions

Ambient Temperature: 0°c to +50°c
Max. Case Temperature: +75°c
Storage Temperature: -40°c to +80°c
Max. Relative Humidity: 80% non-condensing

Input Connectors

Wire Range: 0.2mm - 2.5mm
Wire Strip Length: 5mm

Output Connectors

Wire Range: 0.2mm - 1.5mm
Wire Strip Length: 5mm

Product dimensions: W.120mm x D.41mm x H.28mm

• Data Sheet | Sunricher 150W 24VDC TW Casambi | PDF

 Delivery

Delivery usually within 2-3 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

Clever tech brand Casambi lets you instantly upgrade your existing lights into a whole new smart lighting system. It's driven by Bluetooth Low Energy (BLE) - an innovative wireless technology which is built-in to all smartphones and considered a more reliable alternative to WiFi and Zigbee. Incredible user experience is guaranteed as you can effortlessly control luminaires with a simple swipe of the app. Casambi lighting control works with its own native devices or with any manufacturers’ existing luminaires and wall switches, and it’s easily integrated into LED bulbs, drivers and modules. Based on wireless mesh networks with no single point of failure, this fully scalable smart lighting solution transforms lighting for the home and commercial spaces. It’s smart lighting made simple.

Founded by ex-Nokia workers Timo Pakkala and Elena Lehtimäki, Casambi provides the best smart home lighting. Save time by grouping luminaires together and creating one-tap scenes. Make morning and bedtime routines easier using the timer function. What’s more, you can boost your home security - as well as saving money and energy - by scheduling your holiday lighting requirements on the system’s calendar. In business, Casambi also powers cost-effective lighting automation for office and commercial environments. Daylight sensors and occupancy sensors achieve maximum lighting quality while reducing energy consumption; no gateway module is required thereby keeping costs down; and as part of an IoT system it’s got plenty to offer too. In retail spaces its firmware extension interface creates heat maps of people's movements, whilst in art galleries and exhibitions, location awareness technology triggers apps to display on visitors’ devices informing them about the object they’re viewing. Casambi supports many major standards, including Bluetooth 4.0 DALI and Philips Hue, and is compatible with all lighting manufacturers. What more do you need to know? No seriously, any questions just give us a call on 01189 882294, Live Chat with us, or email us at [email protected].
