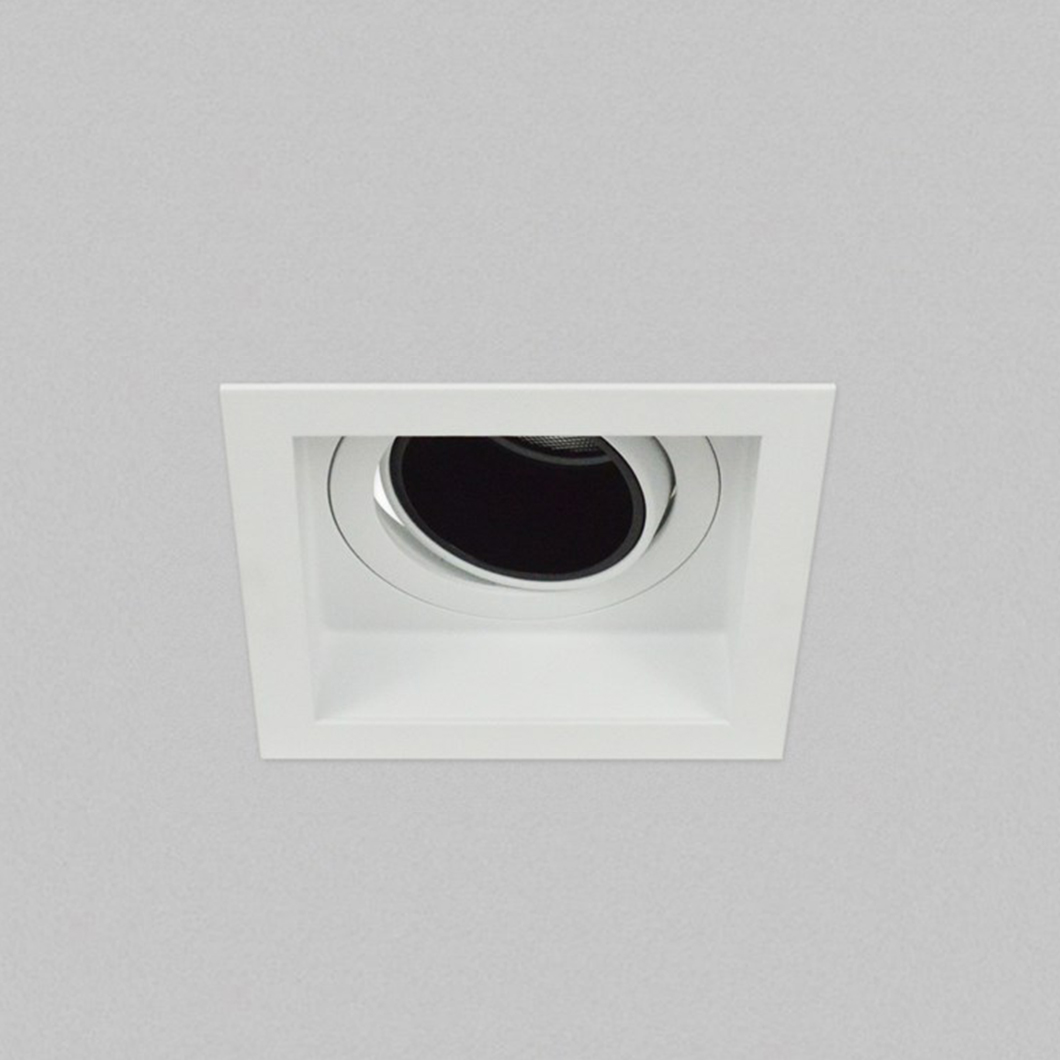

square andes ceiling mounted, with trim, no plaster downlighter, warm bright led
Warm bright Led, ceiling mounted andes square downlighter

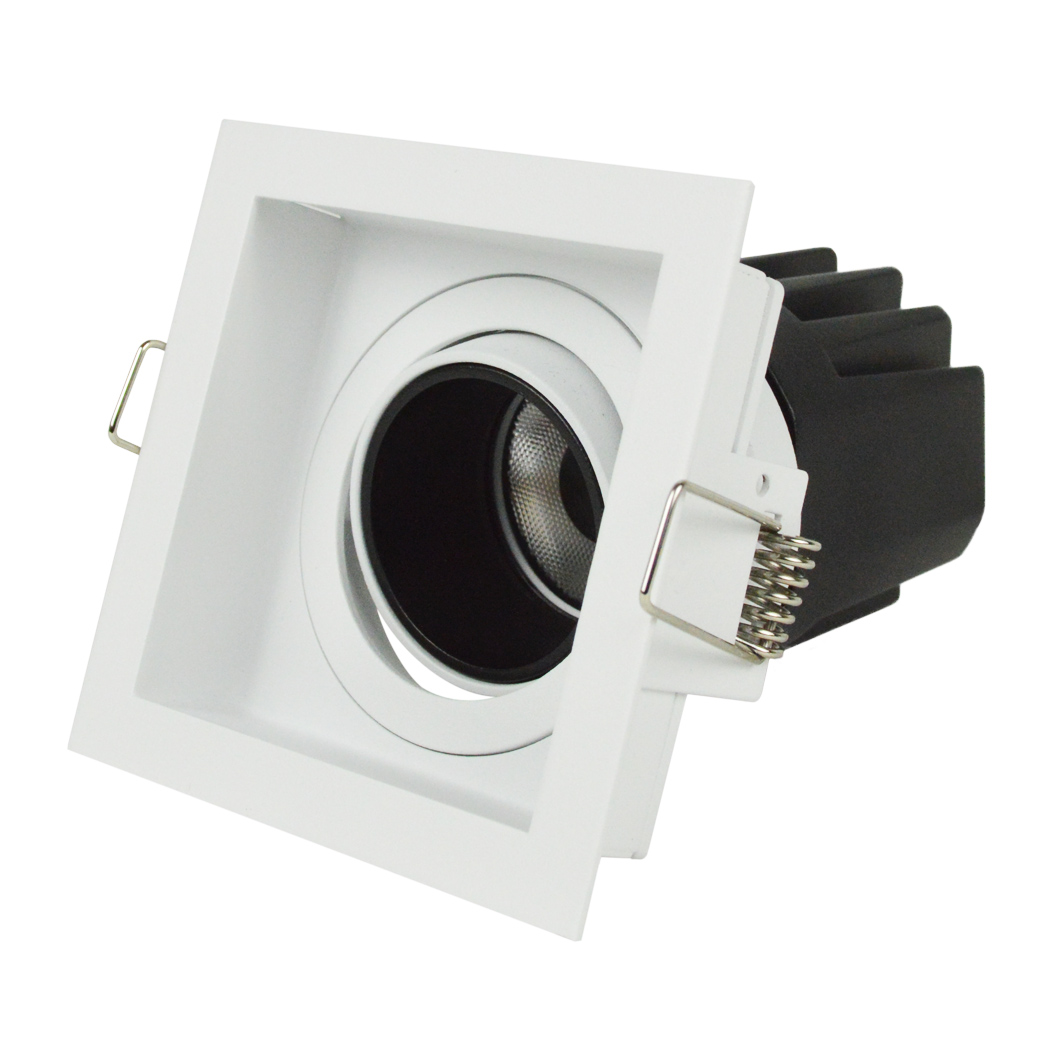

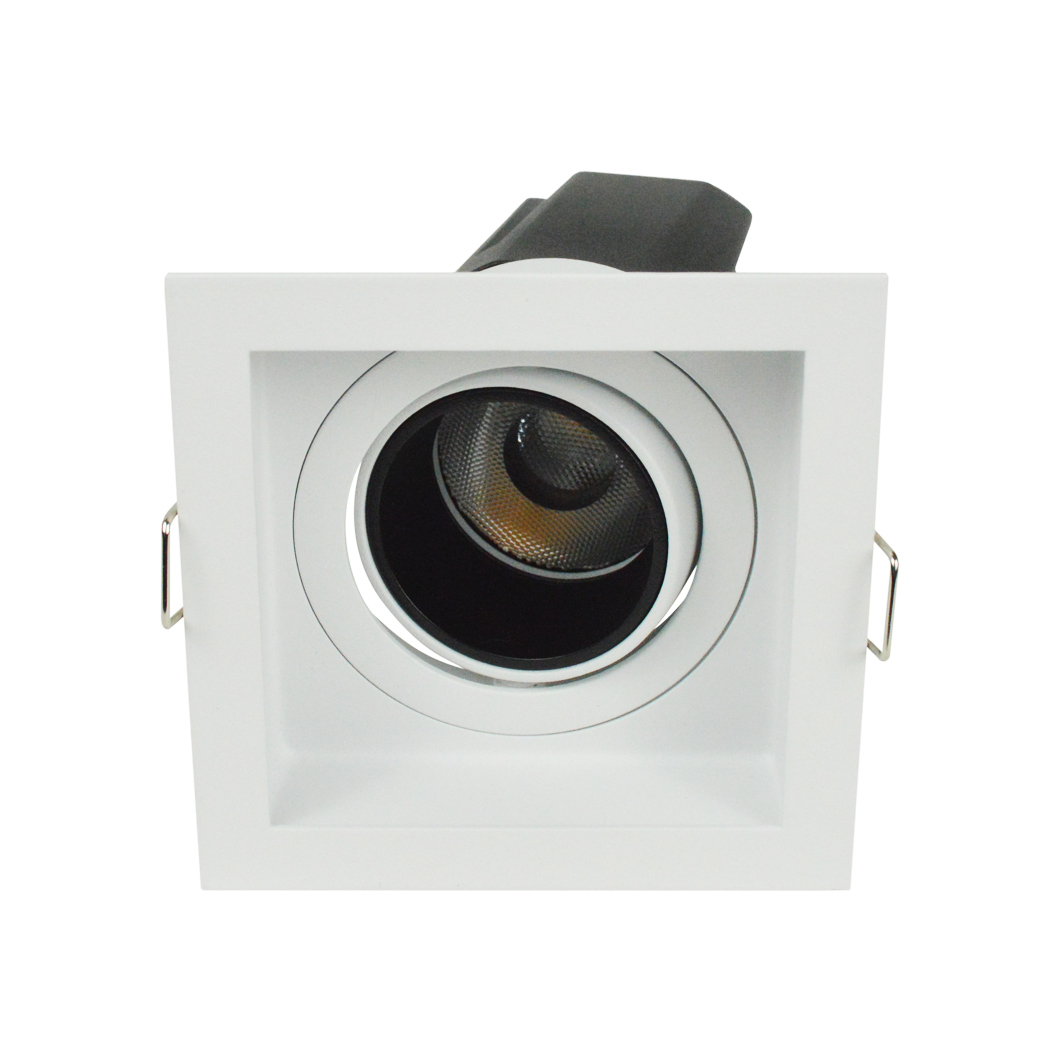

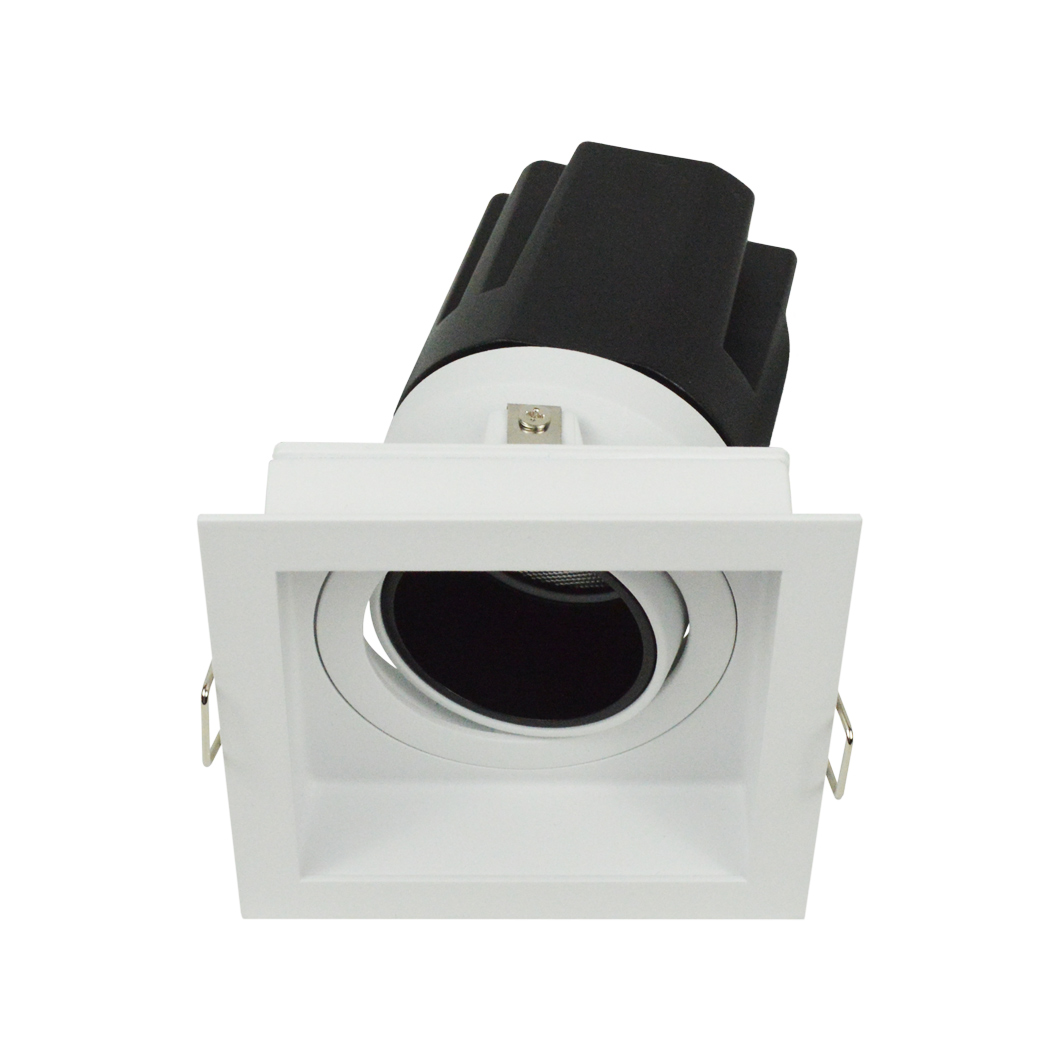

3/4 view DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with trim & tilted light engine on white background

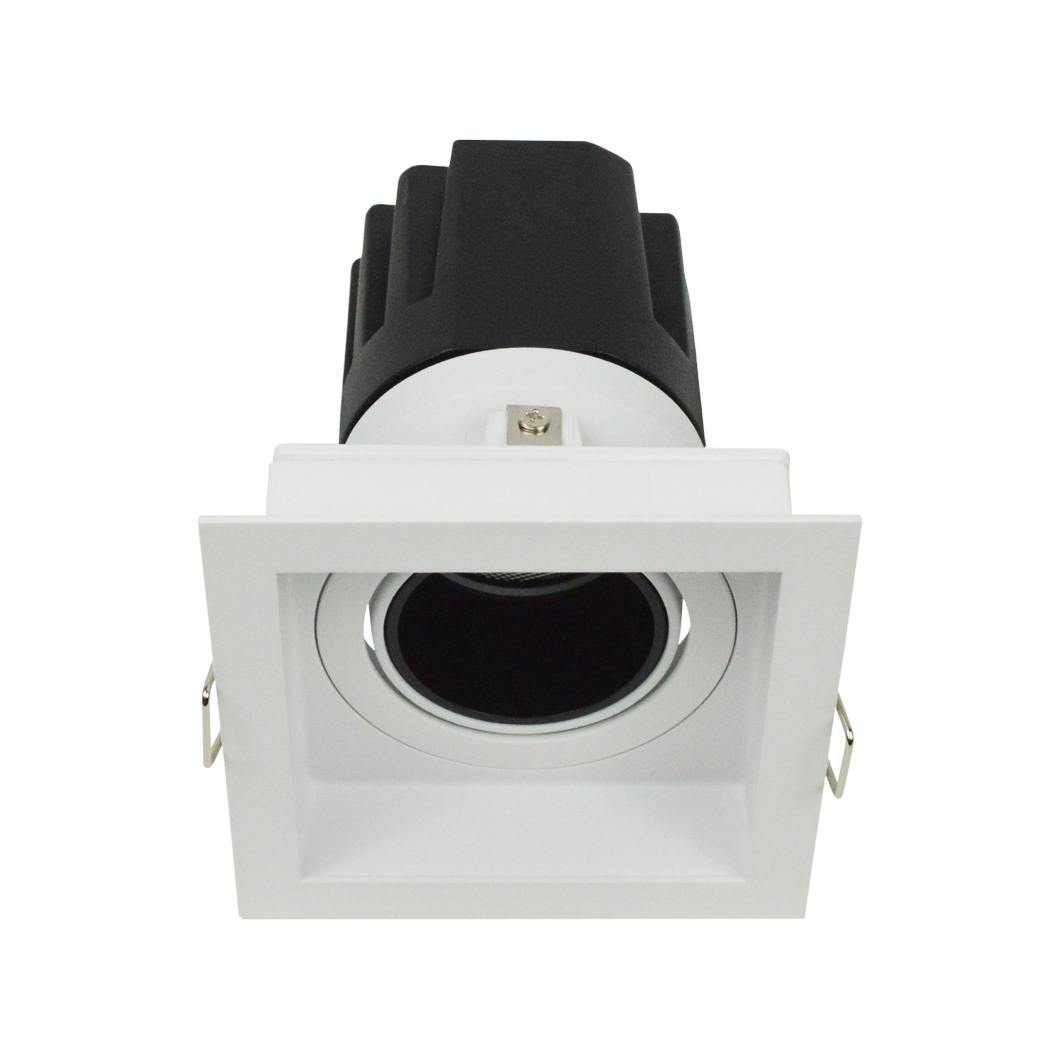

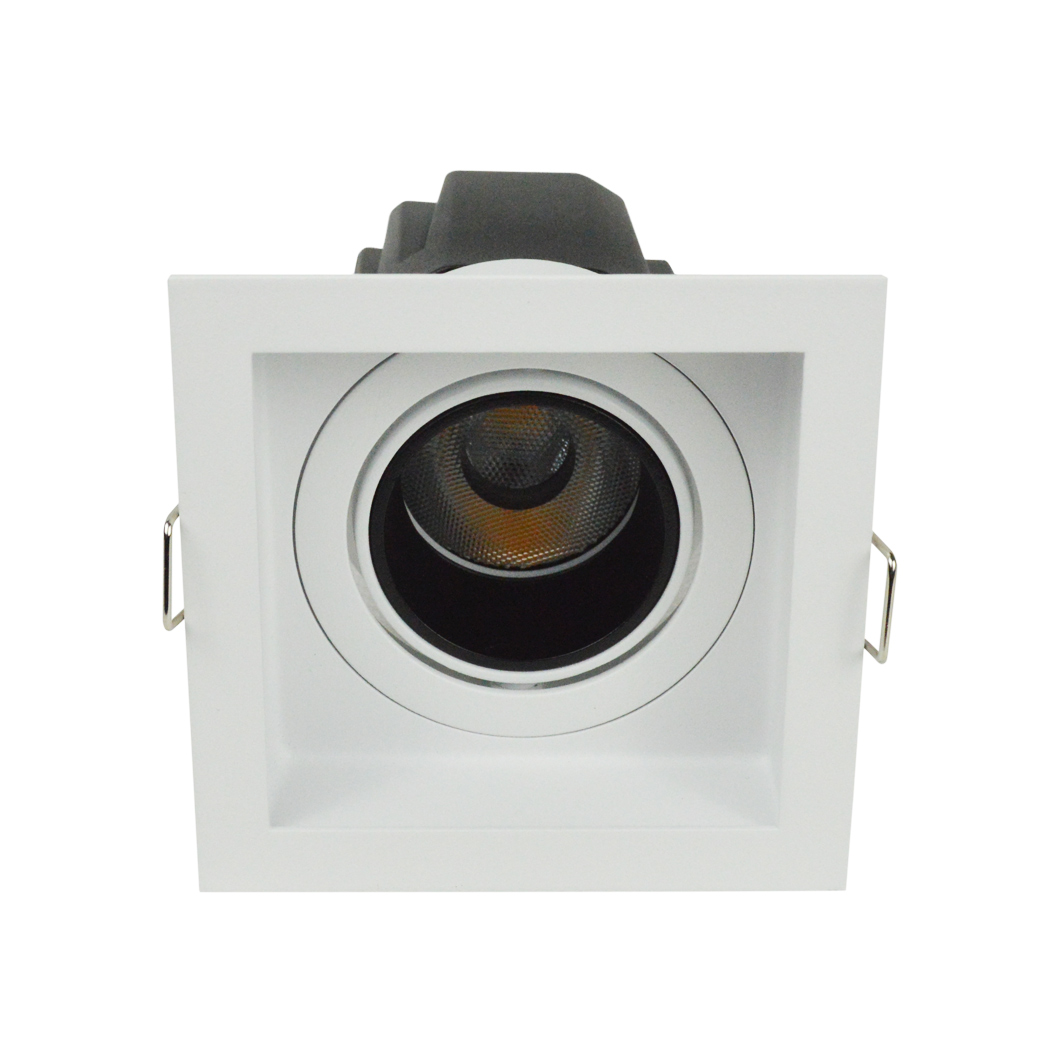

3/4 view DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with trim & straight light engine on white background

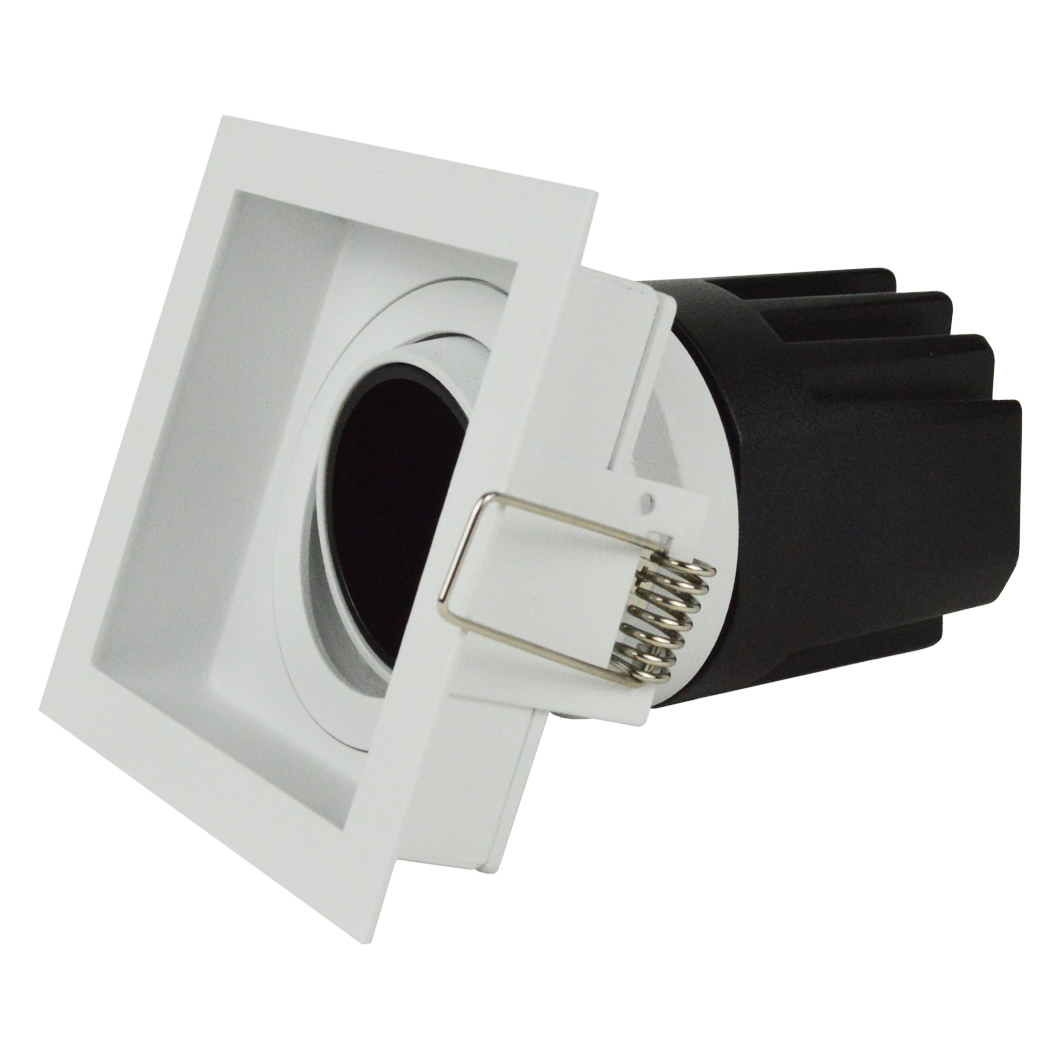

3/4 view DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with trim & tilted light engine on white background
3/4 view DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with trim & straight light engine on white background

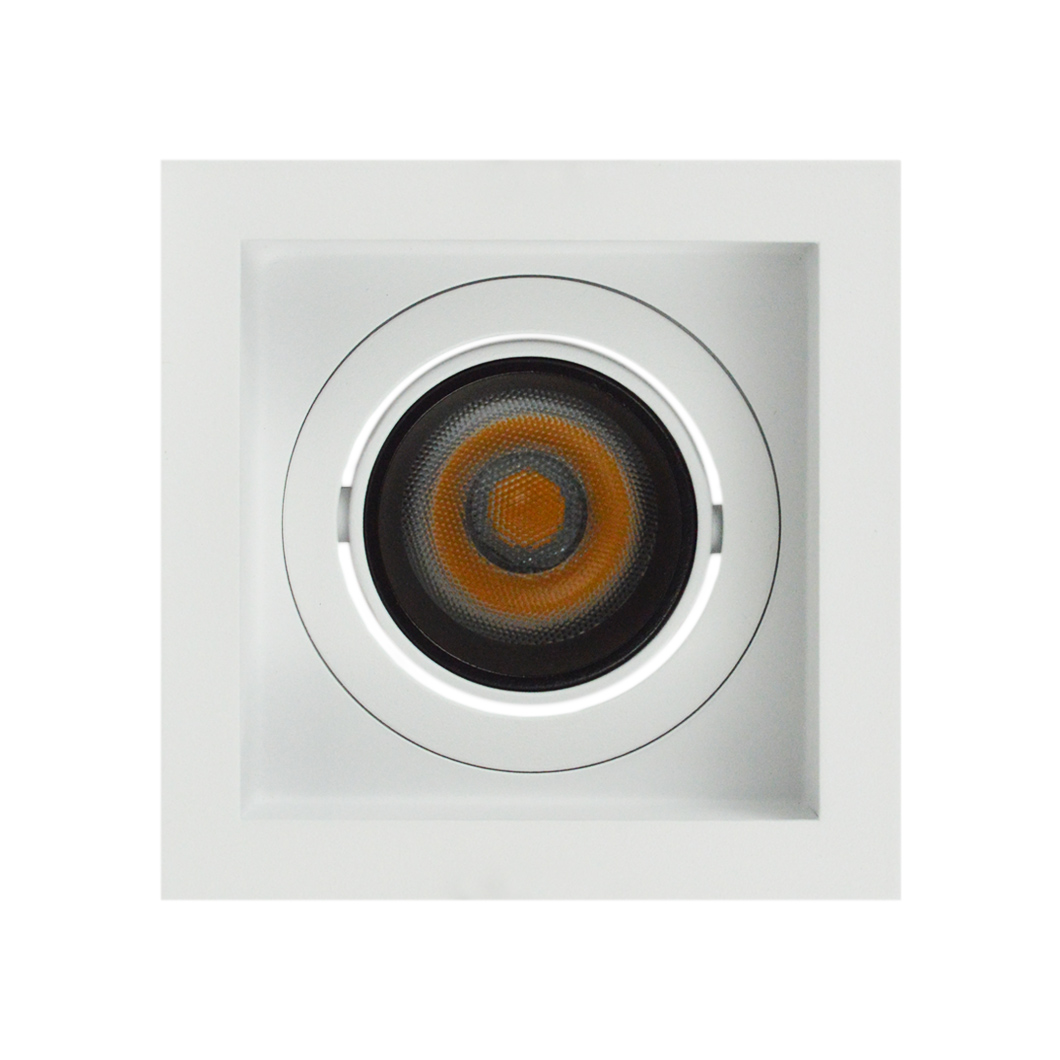

Straight on view DLD Andes 1-S True Colour CRI98 adjustable recessed downlight with square trim on white background

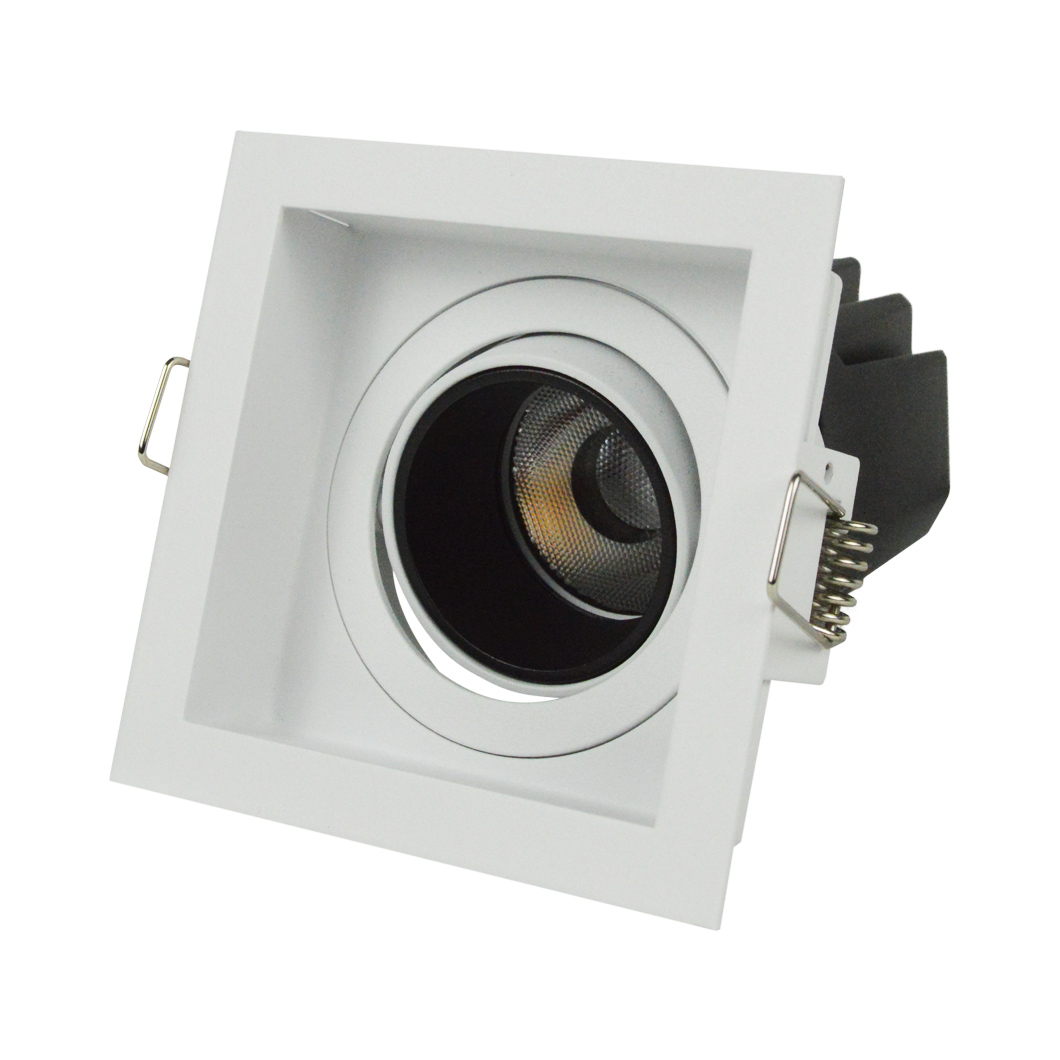

3/4 side elevation view of DLD Andes 1-S True Colour CRI98 adjustable recessed downlight with square trim on white background
3/4 side elevation view of DLD Andes 1-S True Colour CRI98 adjustable recessed downlight with square trim on white background
Side elevation view of DLD Andes 1-S True Colour CRI98 adjustable recessed downlight with square trim on white background
Side view of DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with straight light engine on white background

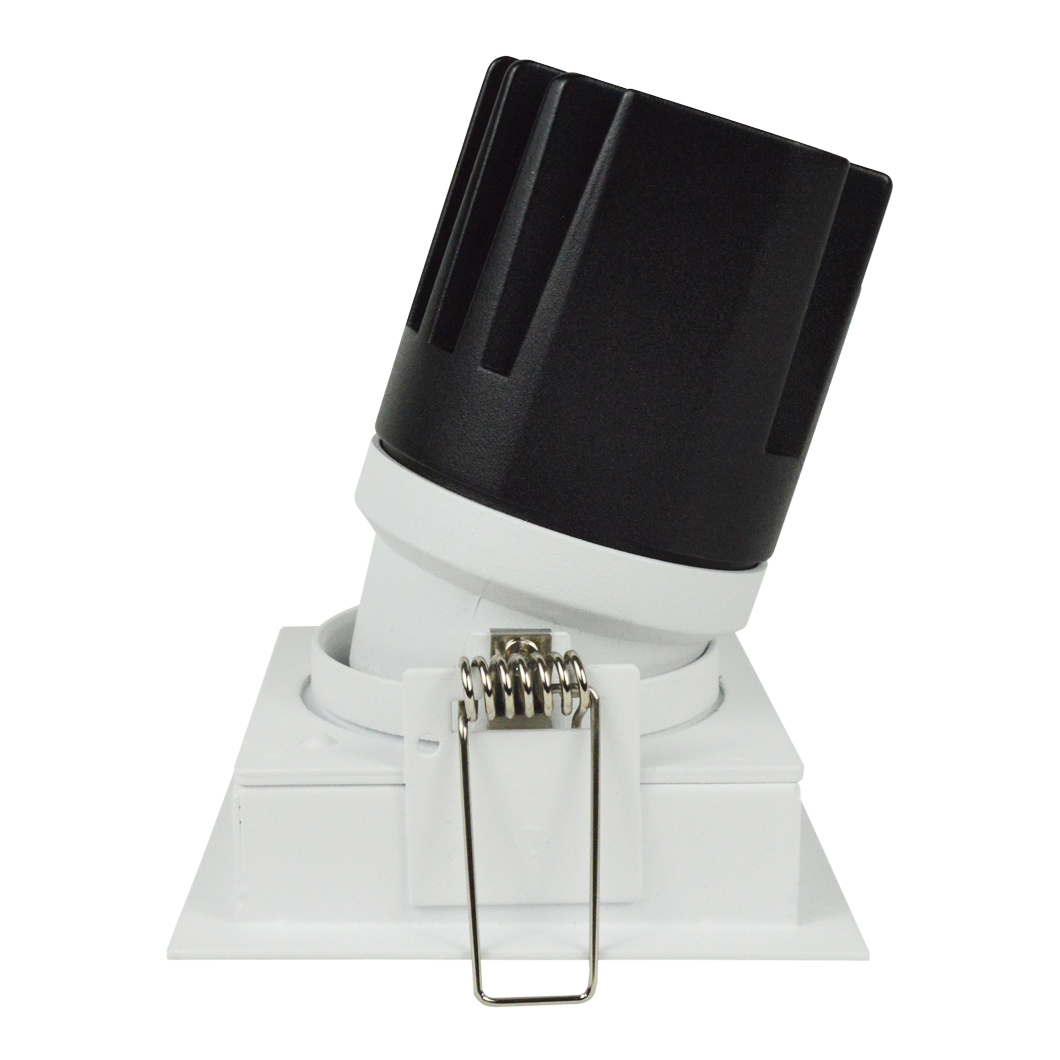

Side view of DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with tilted light engine on white background
square andes ceiling mounted, with trim, no plaster downlighter, warm bright led
Warm bright Led, ceiling mounted andes square downlighter
3/4 view DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with trim & tilted light engine on white background
3/4 view DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with trim & straight light engine on white background
3/4 view DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with trim & tilted light engine on white background
3/4 view DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with trim & straight light engine on white background
Straight on view DLD Andes 1-S True Colour CRI98 adjustable recessed downlight with square trim on white background
3/4 side elevation view of DLD Andes 1-S True Colour CRI98 adjustable recessed downlight with square trim on white background
3/4 side elevation view of DLD Andes 1-S True Colour CRI98 adjustable recessed downlight with square trim on white background
Side elevation view of DLD Andes 1-S True Colour CRI98 adjustable recessed downlight with square trim on white background
Side view of DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with straight light engine on white background
Side view of DLD Andes 1-S True Colour CRI98 square adjustable recessed downlight with tilted light engine on white background

DLD Andes 1-S True Colour CRI98 LED Adjustable Recessed Downlight - Next Day Delivery

Manufacturer: DLD Architectural

£90

Description

Our flagship adjustable downlight, the DLD Andes paired with a traditional 1-S recessed square trimmed frame boasts our True Colour CRI 98 LED chip, representing the full light colour spectrum with crystal clear clarity. Featuring a deep black baffle that effectively reduces glare from the luminaire, the IP54 rating combined with the 24º adjustable tilt and 355º rotation make the versatile Andes downlight range perfect for a range of uses - whether that's installation in bathroom zone 2, general lighting or to highlight artwork or specific features in the home.

It's simple to access the LED light engine post installation, which allows ongoing maintenance to be as simple as popping the engine in and out of the frame. Narrow or wider spreads of light are achieved with the choice of 15º, 24º or 36º beam angles. Luminaire made from die-cast aluminium with steel housing, with the heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. In white with black baffle. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. The Andes range is fully dimmable, supporting 0-10V, TRIAC or DALI drivers. Blue connection box included for easy push-fit installation.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Currently in stock:
Orders placed before midday are delivered next working day

Available on request:
Body in black & baffle in white or gold
Please contact us for the lead time on these finishes



Specification

IP54 - suitable for bathroom zone 2
Wattage: 13W
Current: 350mA
Beam angle: 15º | 24º | 36º
Adjustable tilt: 24º
Adjustable rotation: 355º
True Colour CRI 98

Colour Temperature | Lumen:
2700ºK | 628lm
3000ºK | 492lm
4000ºK | 803lm

Driver Options:

  • Mains dimmable driver: Osram TRIAC OSR/OTE13/220−240/350PC
  • 0-10V dimmable driver: EldoLED 0-10V ELD/SL0241A2-350
  • DALI dimmable driver: Osram OTi DALI 15/220…240/1A0 LT2 NFC
  • See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

  • LED fitting removable from the plaster-in housing post installation
  • Driver fits through the cut-out hole diameter
  • Driver can be housed remotely from the fitting (check maximum distance with us)
Dimensions

Product dimensions: W.90mm x D.90mm x H.105mm

Cutout dimensions: W.80mm x H.80m
