- Description
-

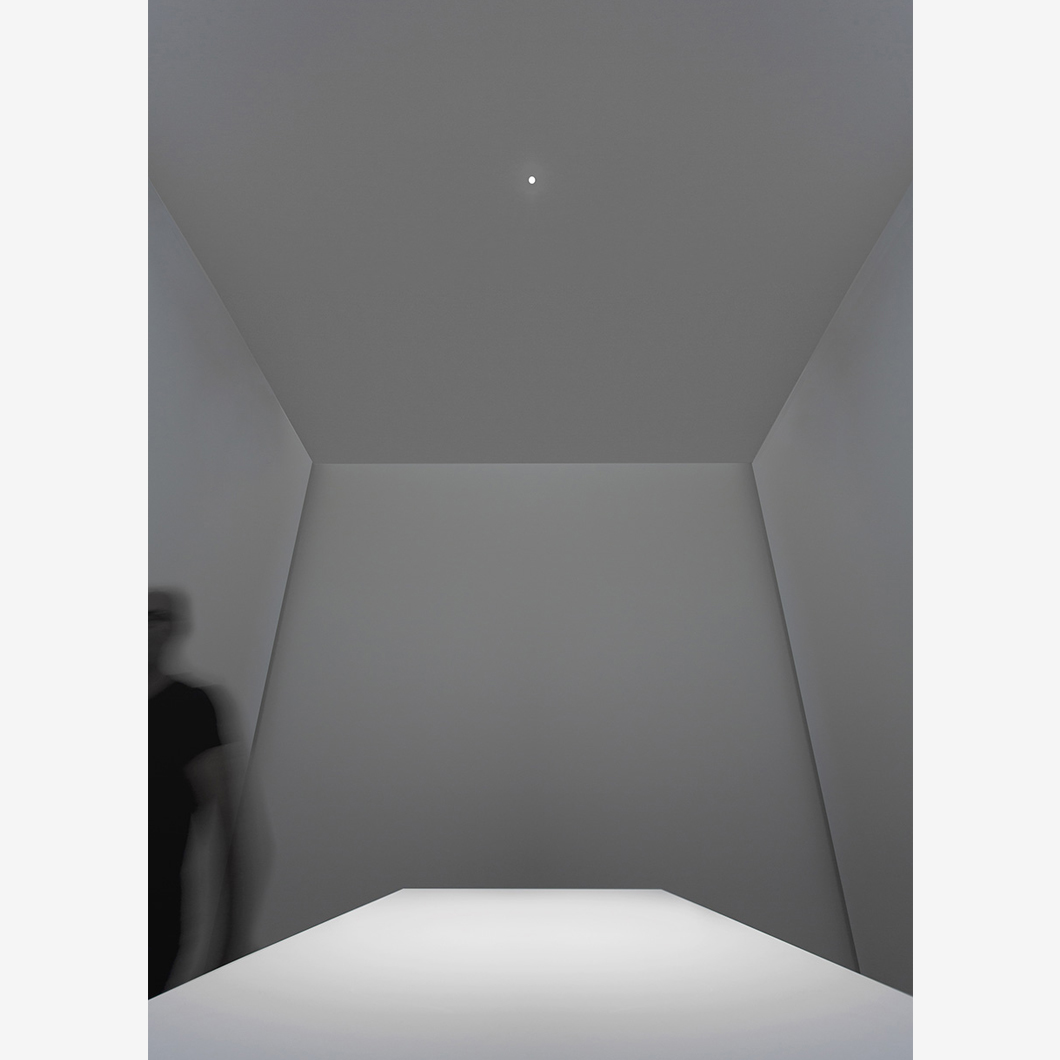

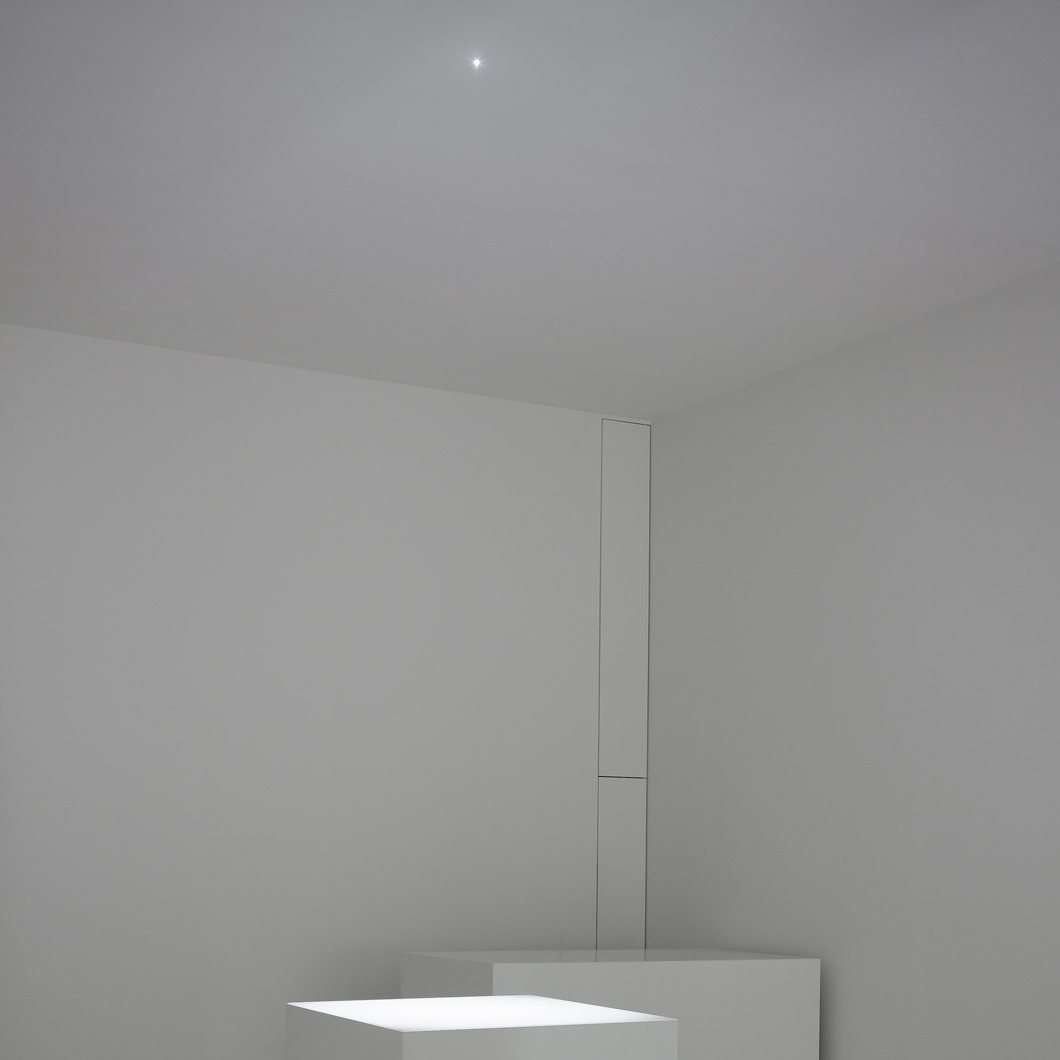

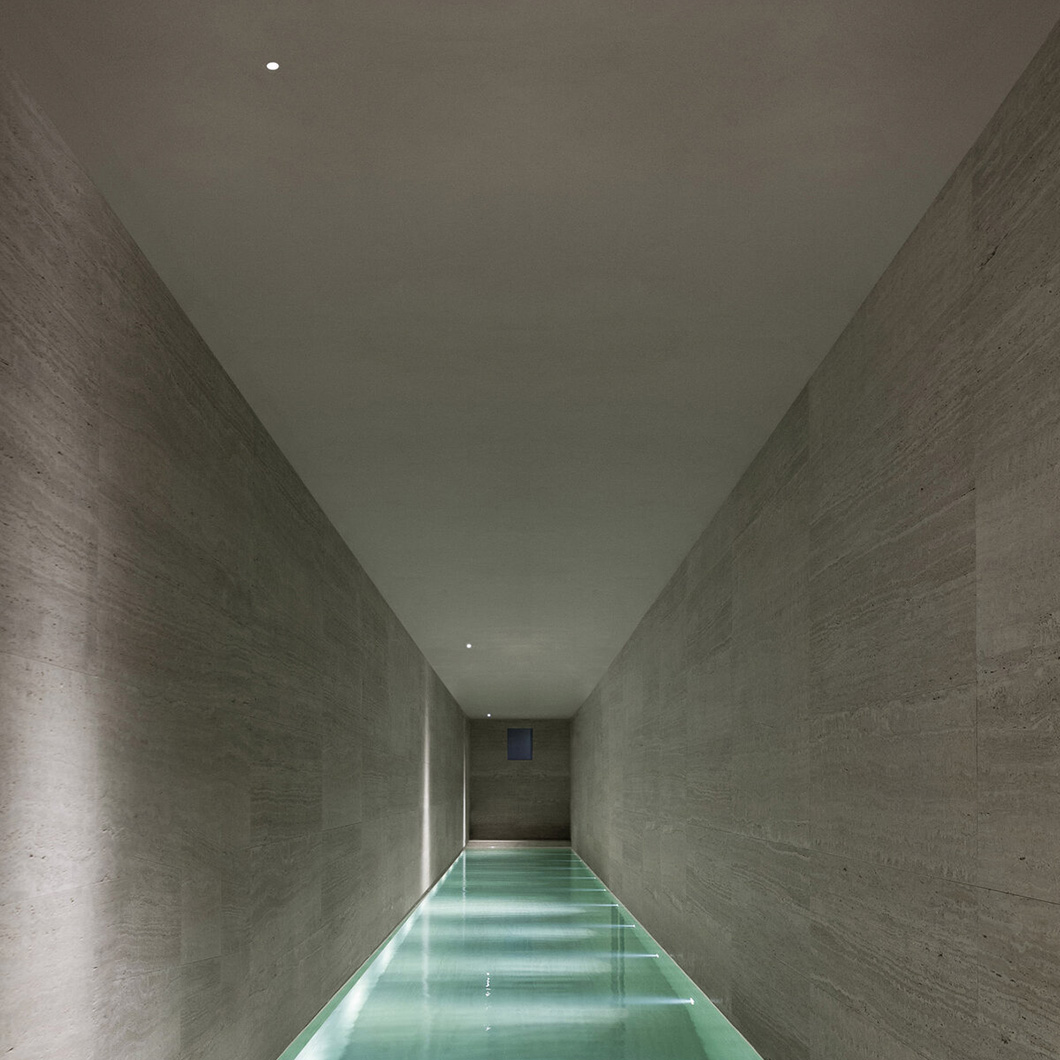

The Davide Groppi Nulla plaster in downlight is an extreme work on subtraction. Winner of the 2014 Compasso D'Oro ADI, the light is investigated and presented in its pure physical aspect. The research into a “light without a source” drove Davide Groppi to consider the realization of a project which is invisible, magic and illusive. A very simple idea: a hole in the ceiling. A 25 mm hole only, a special optical system and the LED technology make a wonderful light on the surface. Deep and sensual light. The light is constructed from metal.
This downlight is available in Push, DALI and TRIAC dimmable versions. A plasterboard flange, which is required for installation, is also available. US version available - usually delivered in 4 to 6 weeks. For prices and further information please contact us. Delivery approximately 2-3 weeks for other versions.
- Specification
-
IP20 / IP65
24V DC
Composition: metal
Nulla 25 Plaster In Downlight:
LED 9W
2700K 304lm
3000K 327lm
Beam 23°
Visible hole dia. 25mm
Luminaire removable for maintenance
Compulsory installation kit not included
Does not include LED Driver:
Input: 110-240V / 50/60Hz
Versions:
Push / 1-10V dimmable | DALI dimmable | TRIAC/IGBT dimmable
Drivers:
DALI: Input 220-240V(100-127V), 50/60Hz, Output 24V, 16W(15W), IP20
PUSH/1-10V: Input 220-240V(100-127V), 50/60Hz, Output 24V, 20W(15W), IP20
TRIAC/IGBT: Input 220-240V, 50/60Hz, Output 24V, 20W, IP20
Plasterboard Flange:
Flange 12.5mm
Cut-out dia. 35mm
Minimum space for mounting 160mm
ETL Certification
Lamp type: Integral LED - 24VDC, 9W, CRI>90
- Dimensions
-

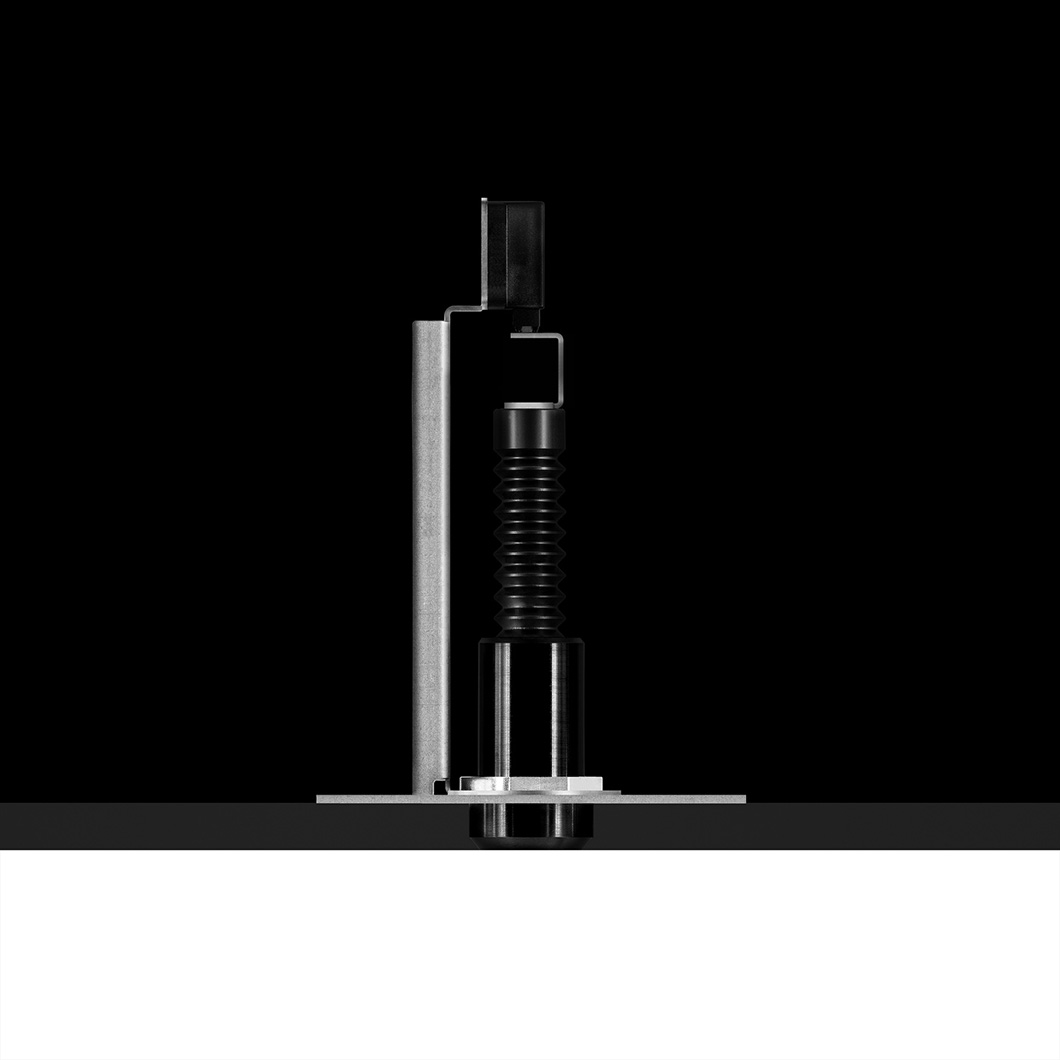

Product dimensions: H.144mm x Diameter.25mm
Cutout dimensions: Dia.35mm
- Downloads
-
- Delivery and warranty
-
Delivery
Delivery usually within 4-5 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Warranty
Supplied with a 2 year warranty - not including electronic and retrofit bulbs.
- About the manufacturer
-
His father taught him how to make things when he was young. Together they made a pinball machine, a telegraph and a lamp - and it was this lamp that sparked Davide Groppi’s passion for lighting. Over fifty years later and the brands’ extensive contemporary lighting range is still winning awards, including the prestigious ADI Compasso D’Oro for their Sampei and Nulla pieces. Their playful and exciting designs include a portable rechargeable table lamp, a giant yet delicate architectural floor lamp that seems to defy gravity, and a plaster-in downlight with a cunning hidden light source.
The brand is renowned for their sleek Italian lamps, meticulous design and cutting-edge LED technology. From humble beginnings in a small laboratory in the historical centre of Piacenza, their clever collaborations with talented lighting designers mean that, today, Davide Groppi is respected internationally as a superior quality lighting brand.
