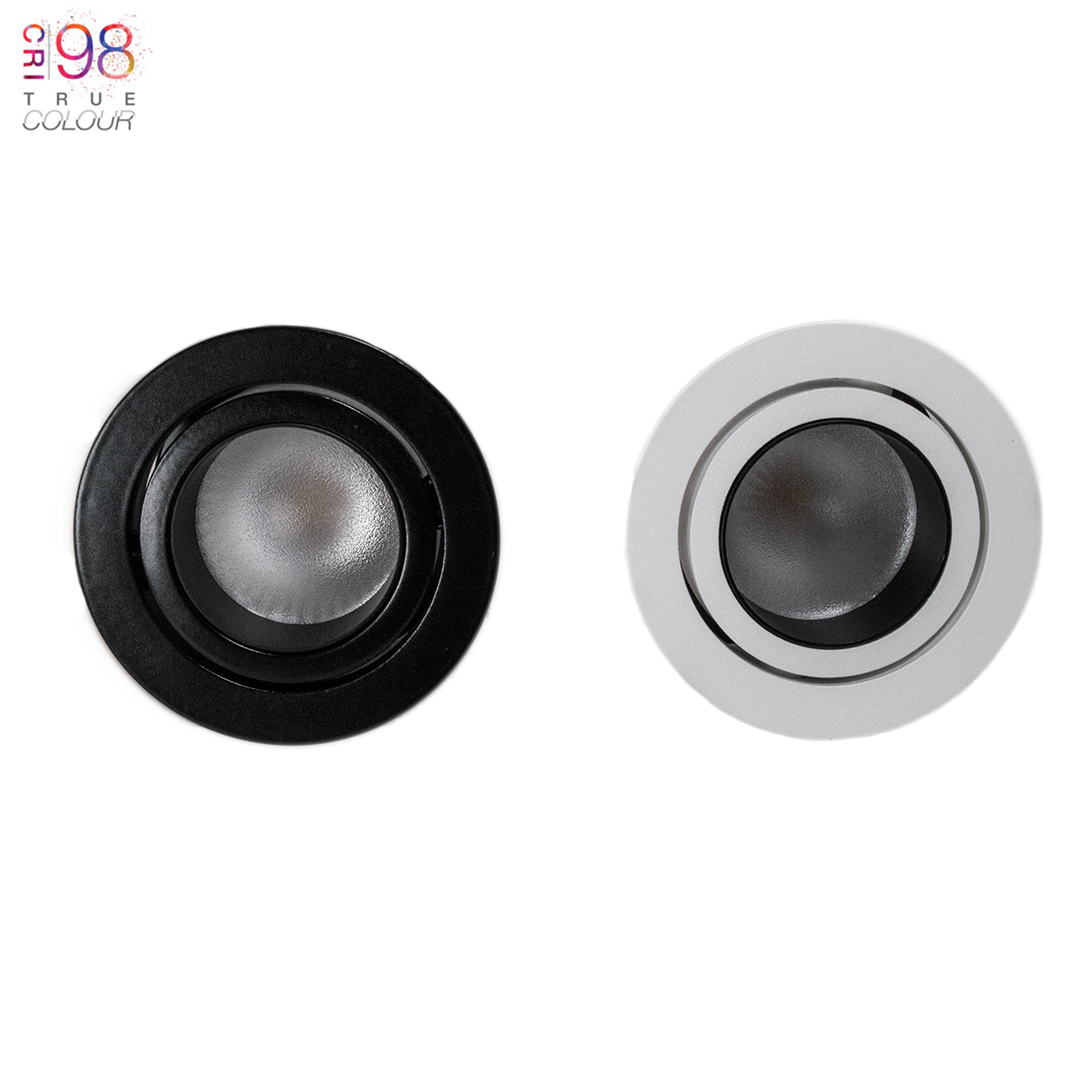

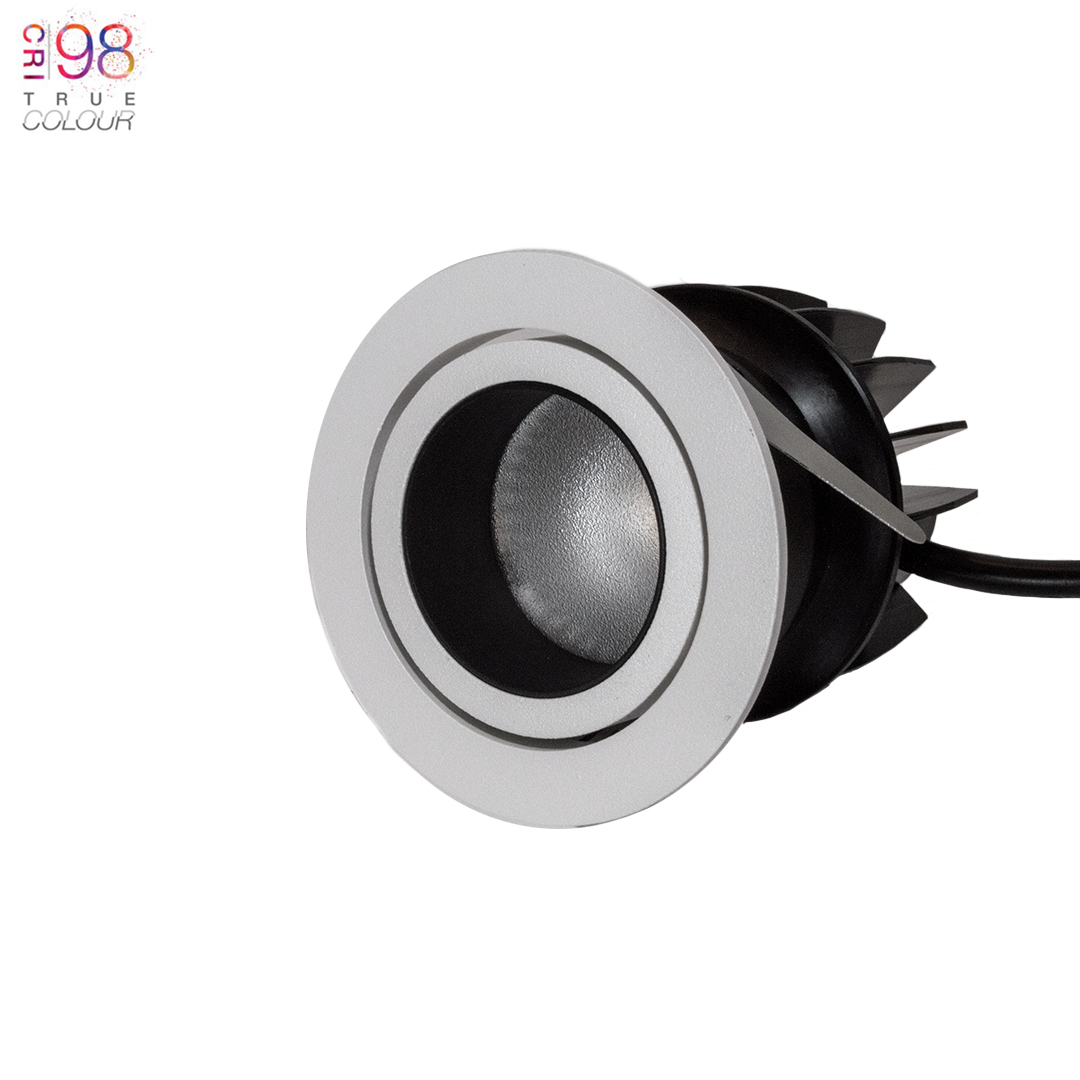

Atlas Baffle LED adjustable recessed downlight features a removable light engine with black baffle and white bezel. The light engine can be simply accessed through a simple twist mechanism, which allows for easy maintenance. Adjustable by 20º and available with a beam angle of 15º, 38º or 60º, Atlas is a flexible fitting suitable for using as a focused spotlight / wall washer or to flood an area with light.
Luminaire in die-cast aluminium luminaire with steel housing with heat sink in forged aluminium for optimum heat dissipation. Bezel in black or white. Reflector in PC plastic. IP44 rated, suitable for installation in bathroom zones 1, 2 and 3. Complete with anti-glare frosted lens. Fixed version also available. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Fully dimmable, supporting 0-10V, TRIAC or DALI drivers - see dropdown options.
4000K colour temperature on demand - please contact for details.
Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch. See the 'You May Also Need...' section below for the available options and technical information.
Emergency lighting compatible
Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.
Currently in stock:
All bezel finishes | all beam angles | 2700K & 3000K
Orders placed before midday are delivered next working day
Versions not in stock: delivery usually with 1-2 weeks
Lumen: 1456lm (3000ºK)
Delivered lumens: 700lm (3000ºK)
Beam angle: 15º, 38º or 60º
Colour temperature: 2700ºK or 3000ºK
Cutout: Ø 68mm
60+ minute FR rating
Independently tested by Cambridge Fire Service
Emergency pack (optional)
1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations
Maintenance & Access
Product dimensions: H.87mm x Diameter.76mm
Cutout dimensions: Dia.68mm
Delivery varies for each product, please see product description
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
