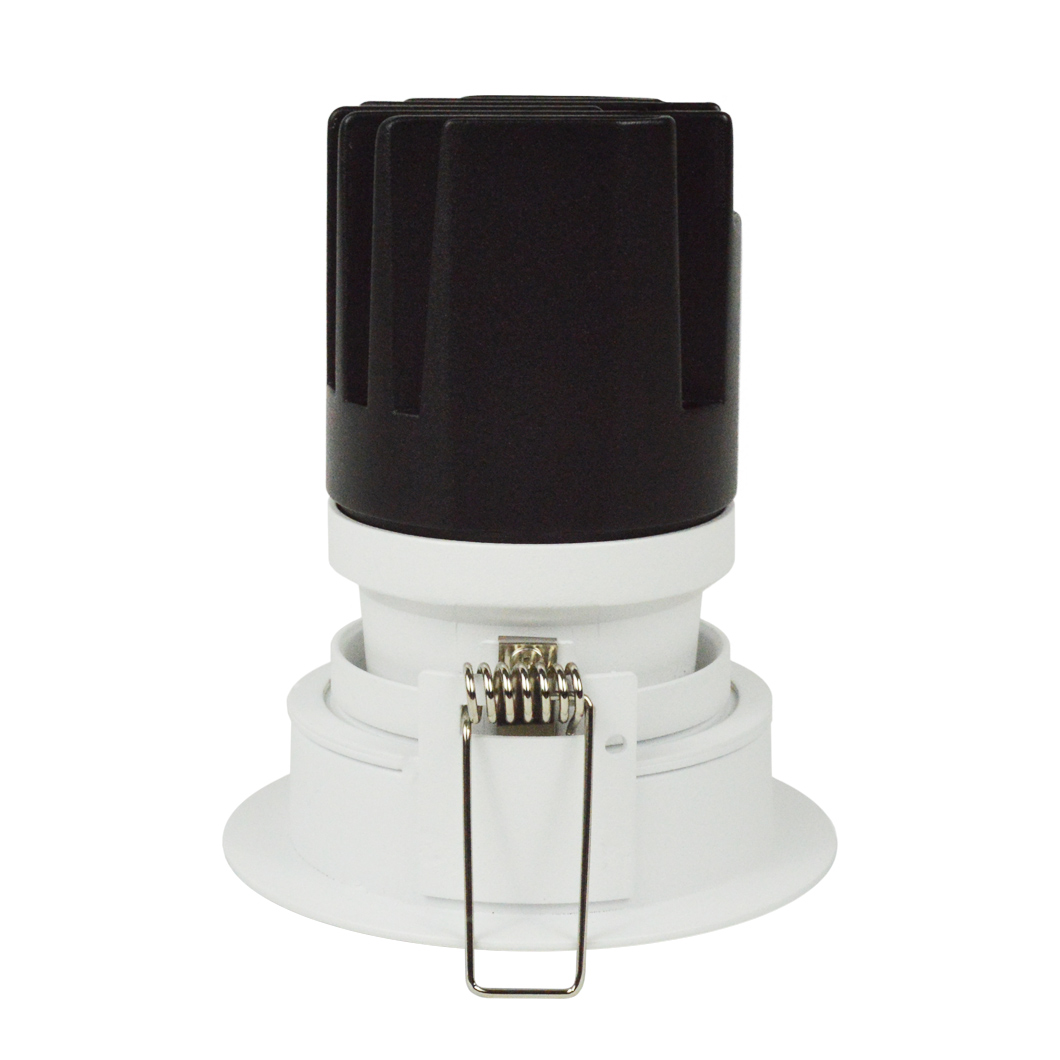

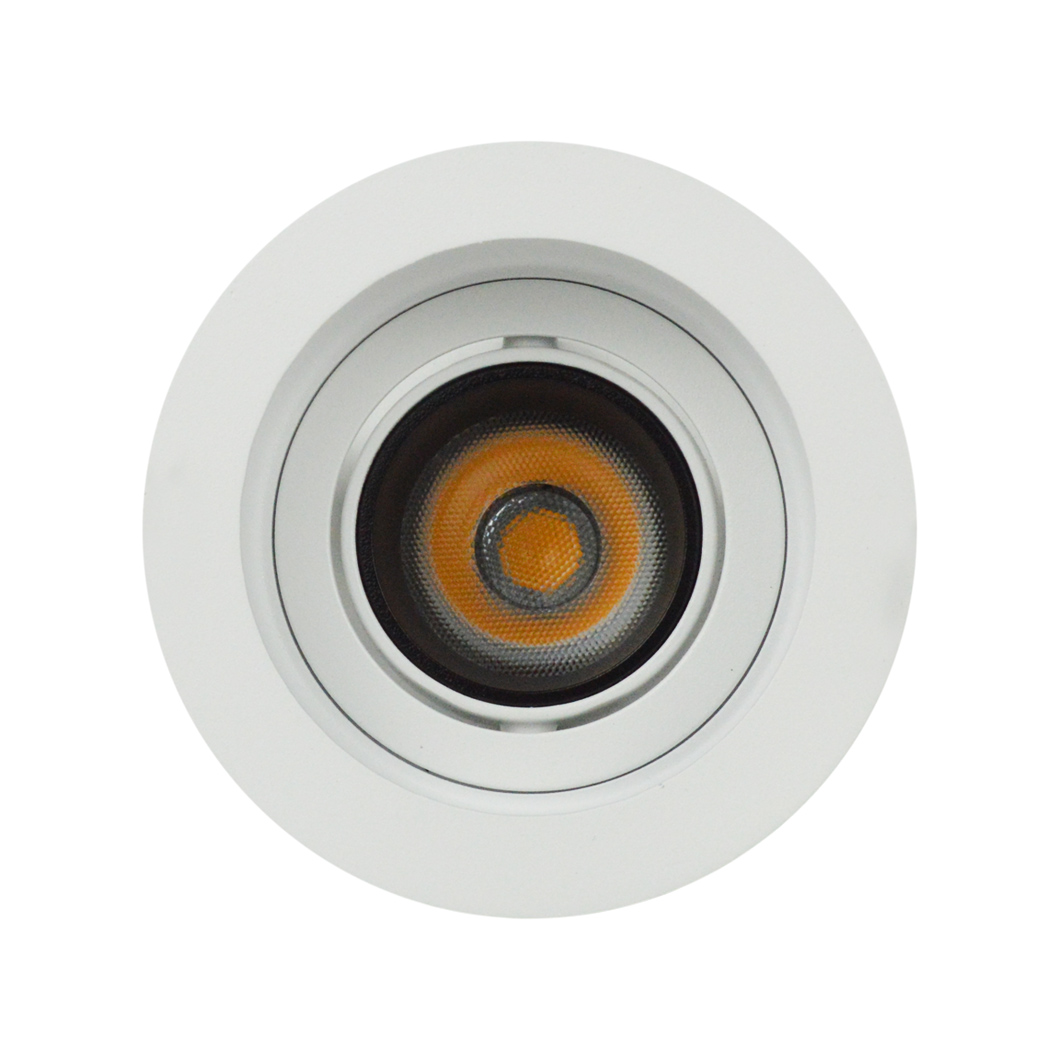

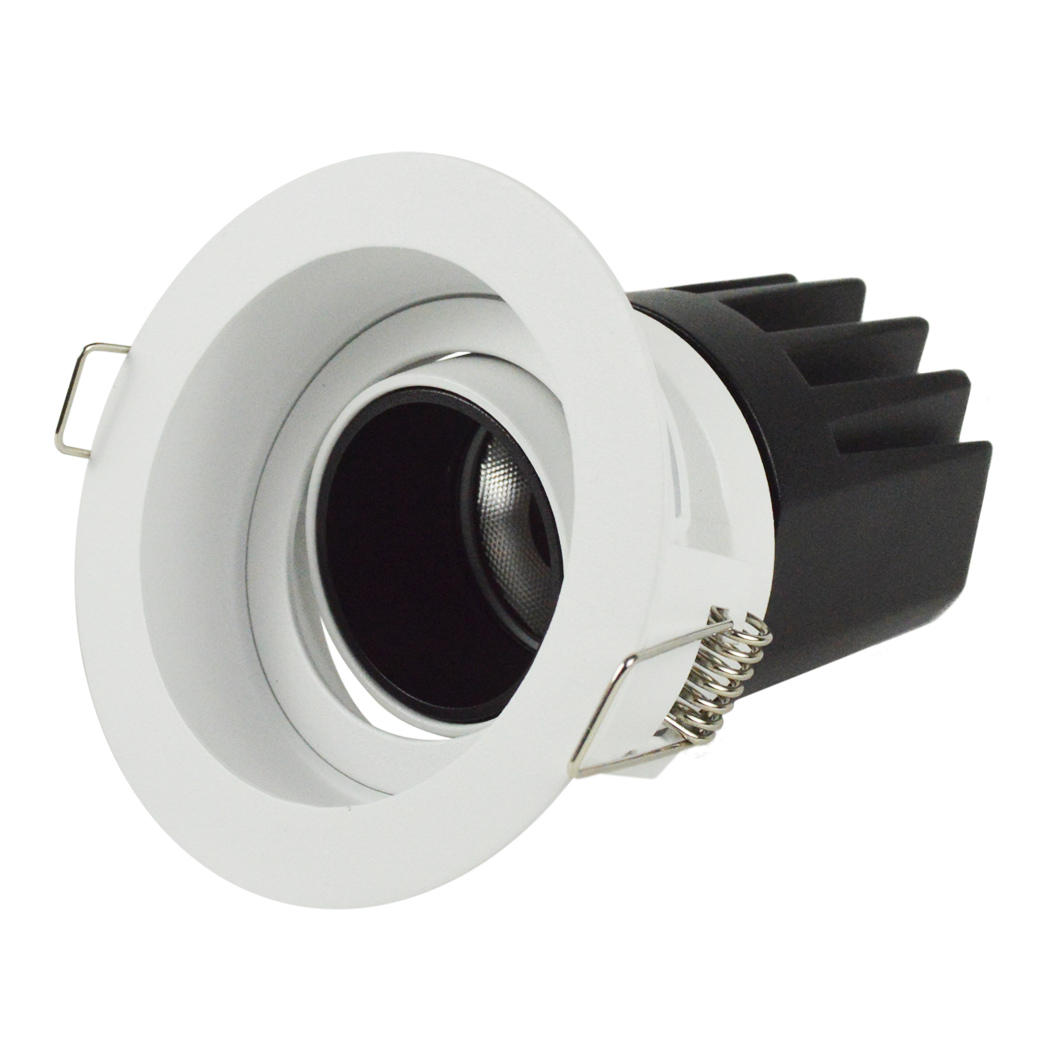

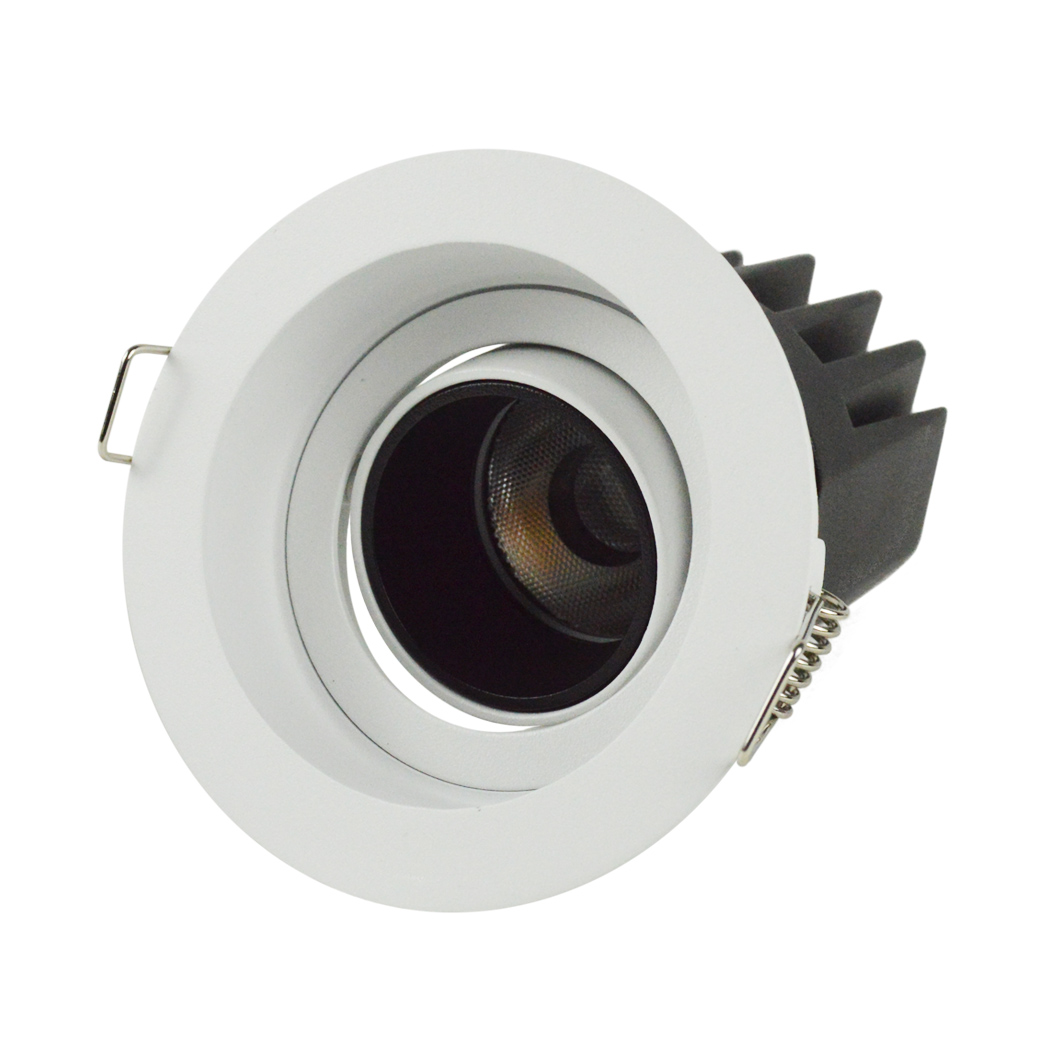

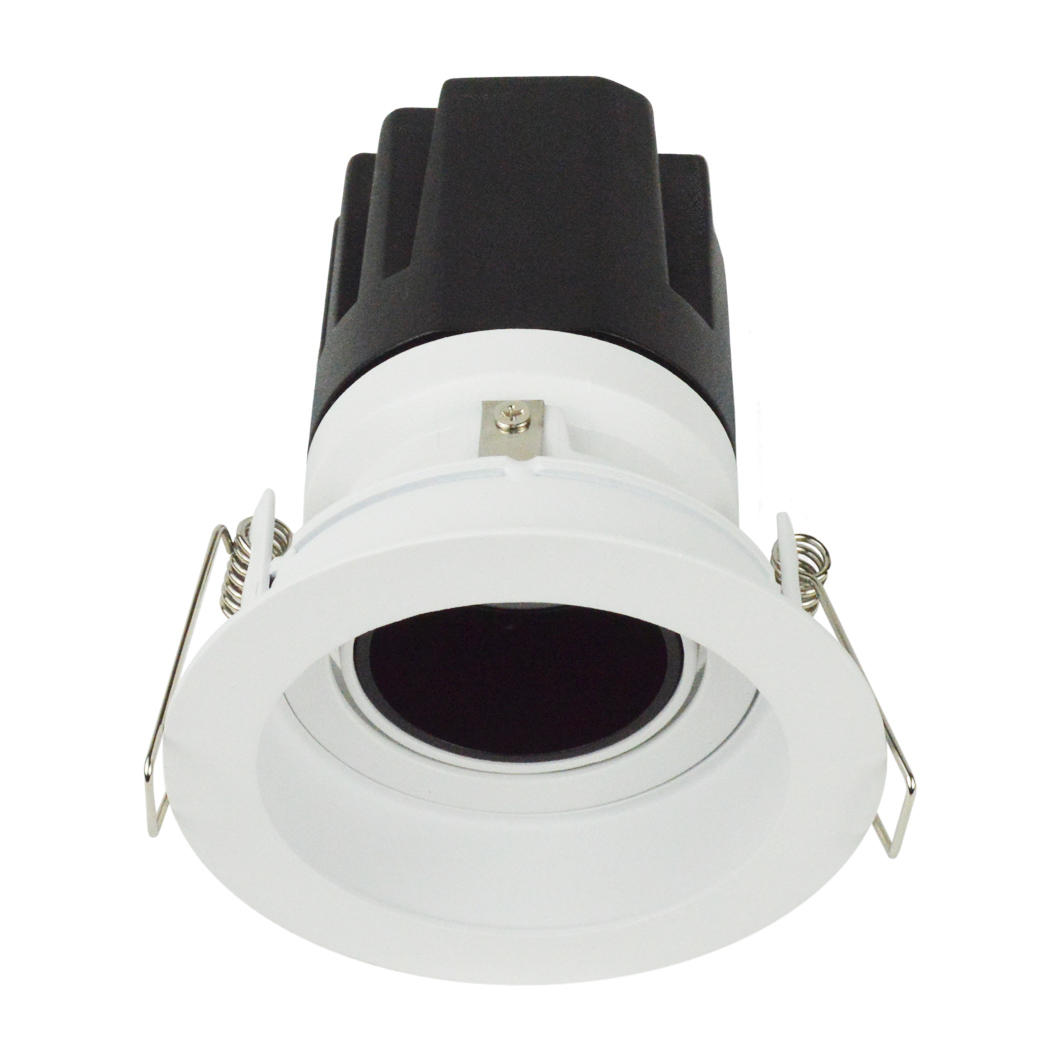

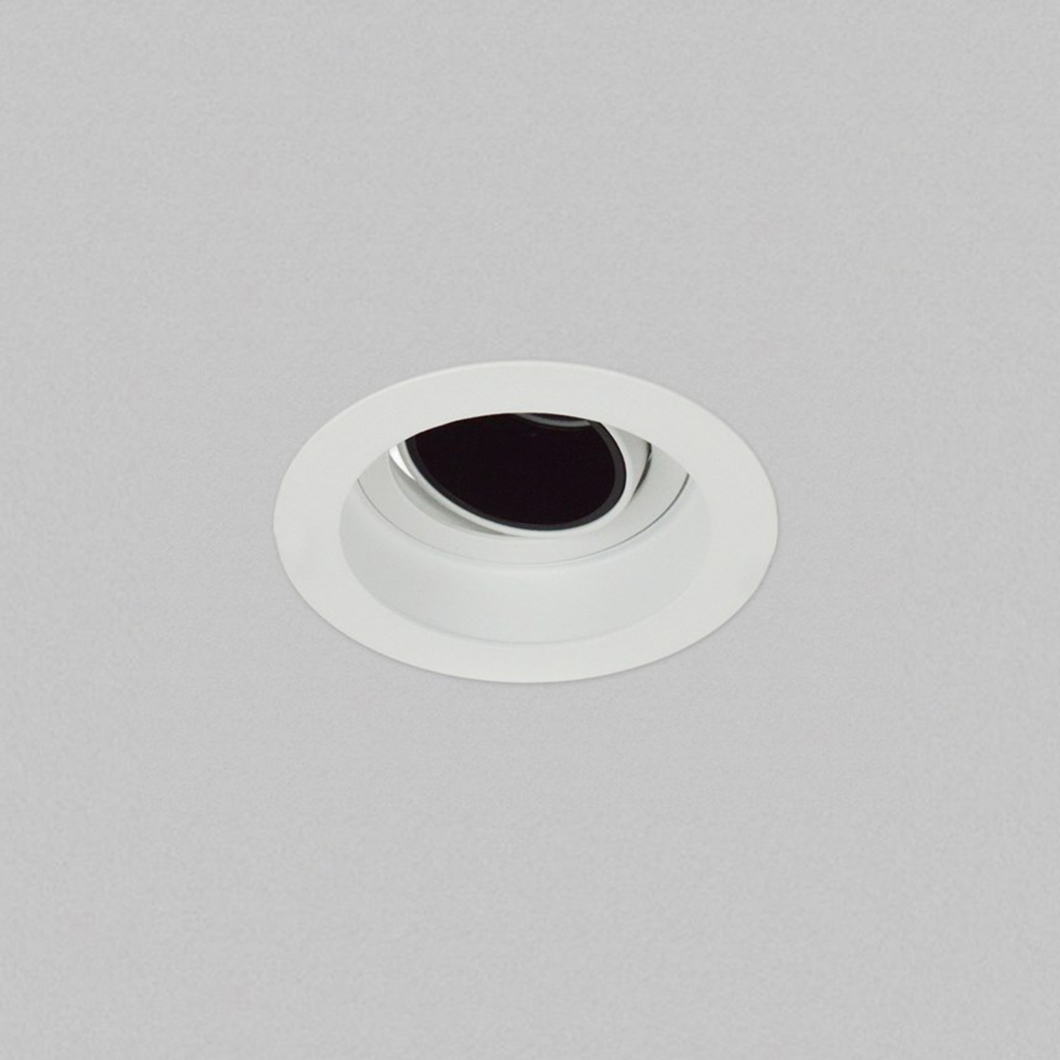

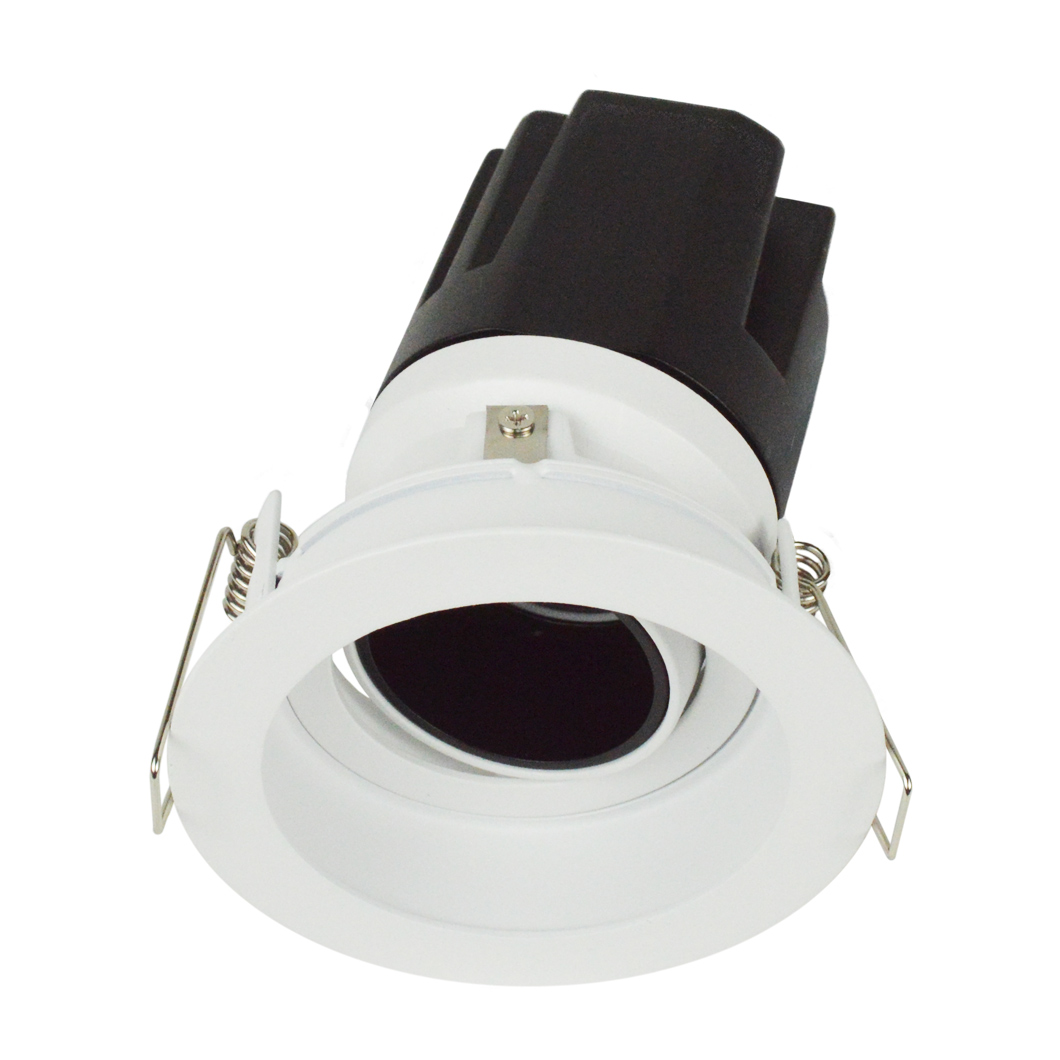

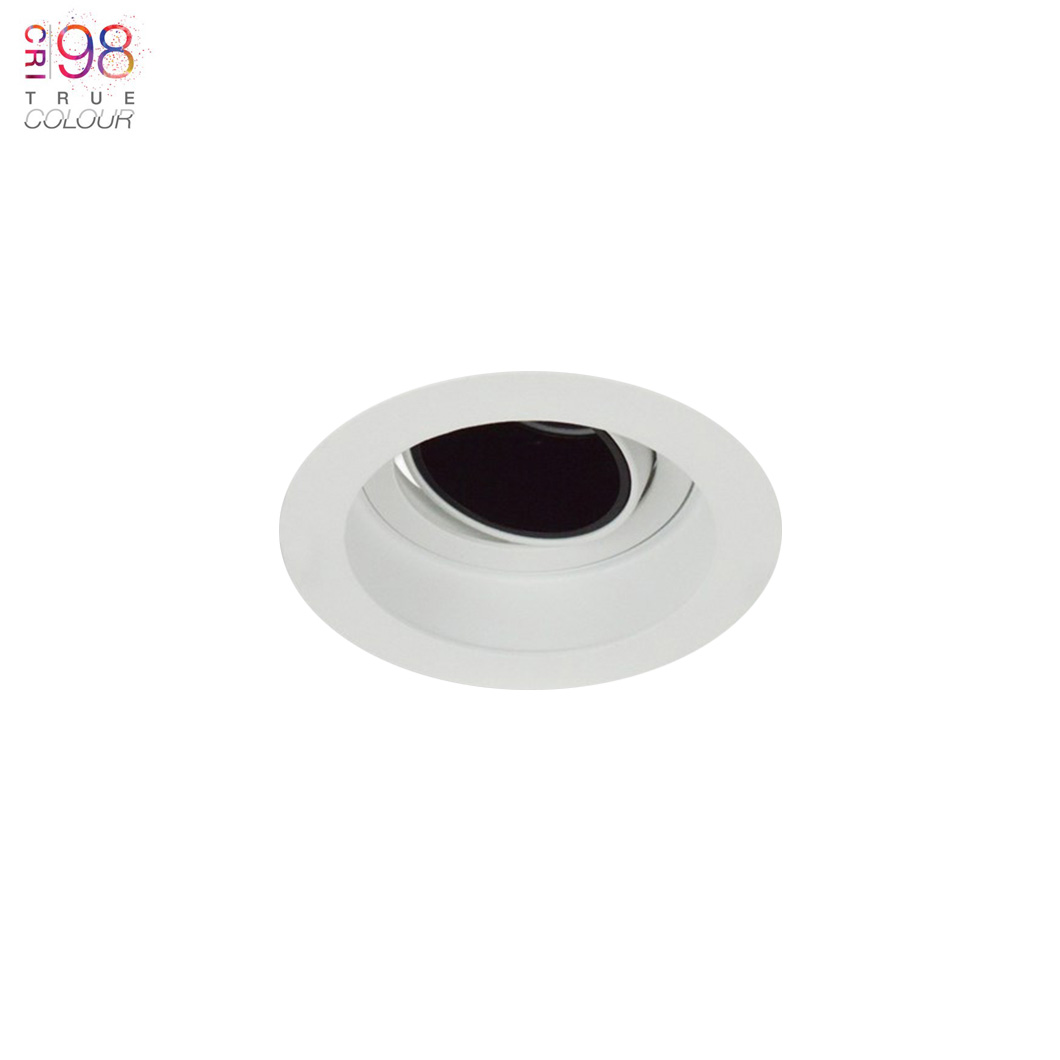

With a glare-reducing deep black baffle, the DLD Andes 1-R adjustable recessed downlight displays colours with amazing precision thanks to our True Colour CRI98 LED chip. The Andes range is the ideal directional downlight for bathroom zone 2 (it's also suitable for standard rooms) thanks to the IP54 rating. The 24º adjustable tilt and 355º rotation mean Andes can be used to highlight specific walls or architectural features.
Once the frame is installed into the ceiling it's easy to pop the LED light engine in and out, allowing for simple maintenance after installation. Beam angles of 15º, 24º or 36º offer a narrower or wider spread of light depending on what effect is needed. Die-cast aluminium luminaire with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. In white with black baffle. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. The Andes range is fully dimmable, supporting 0-10V, TRIAC or DALI drivers.
Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch. See the 'You May Also Need...' section below for the available options and technical information.
Emergency lighting compatible
Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.
Currently in stock:
White with black baffle
Orders placed before midday are delivered next working day
Available on request:
Body in black
Baffle in white or gold
Please contact us for the lead time on these finishes
IP54 - suitable for bathroom zone 2
Beam angle: 15º | 24º | 36º

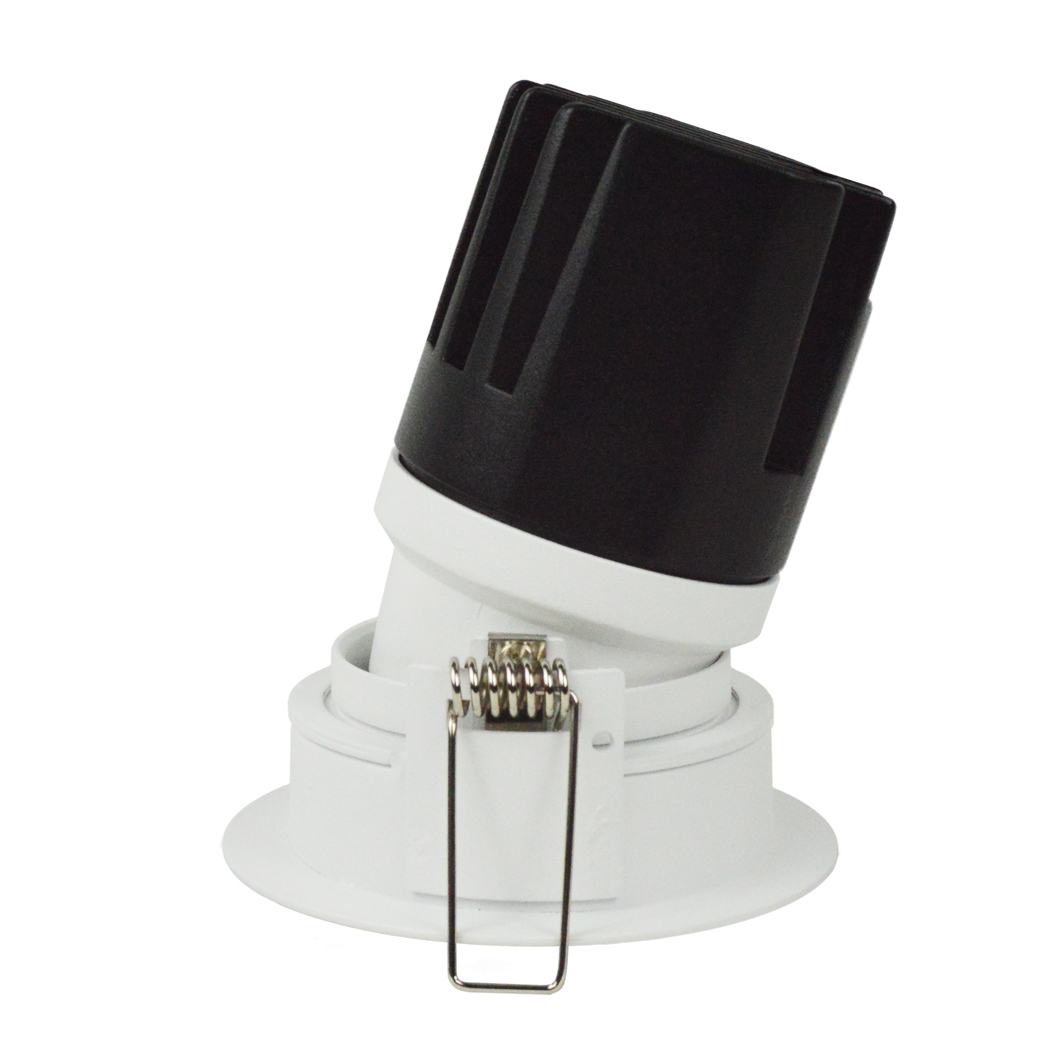

Adjustable tilt: 24º
Adjustable rotation: 355º
True Colour CRI 98
2700ºK | 3000ºK | 4000ºK
Dependent on beam angle and colour temp - see datasheet in Downloads tab
60+ minute FR rating
Independently tested by Cambridge Fire Service
Emergency pack (optional)
1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations
Maintenance & Access
Product dimensions: H.105mm x Diameter.92mm
Cutout dimensions: Dia.78mm
