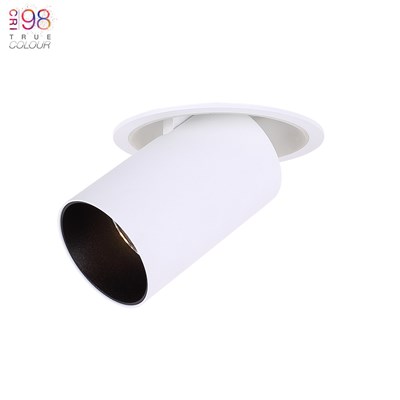

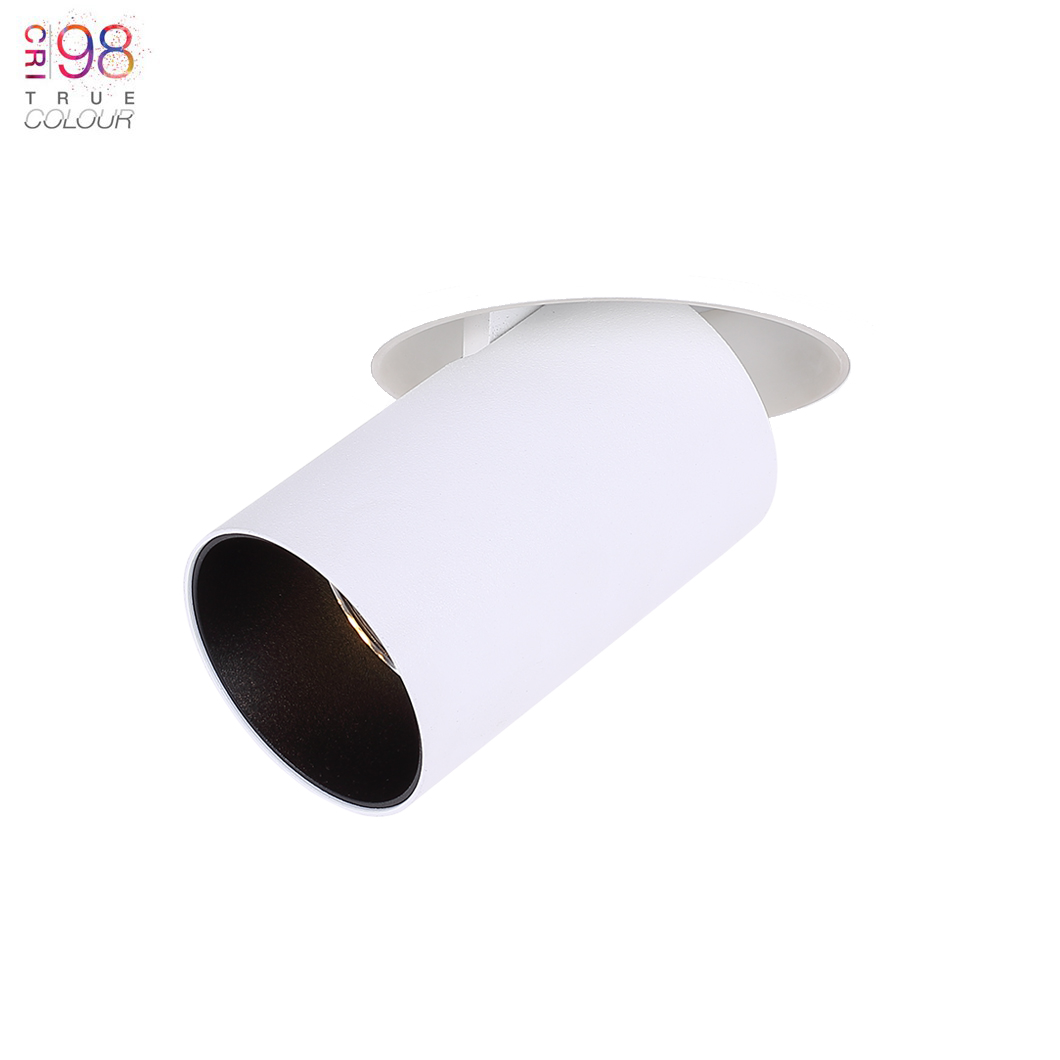

The DLD Alps is an Architectural range which balances functionality with style. Crafted from aluminium with precision for a sleek contemporary appearance combined with versatility, Alps can be installed either on walls or ceilings with a recessed mount.

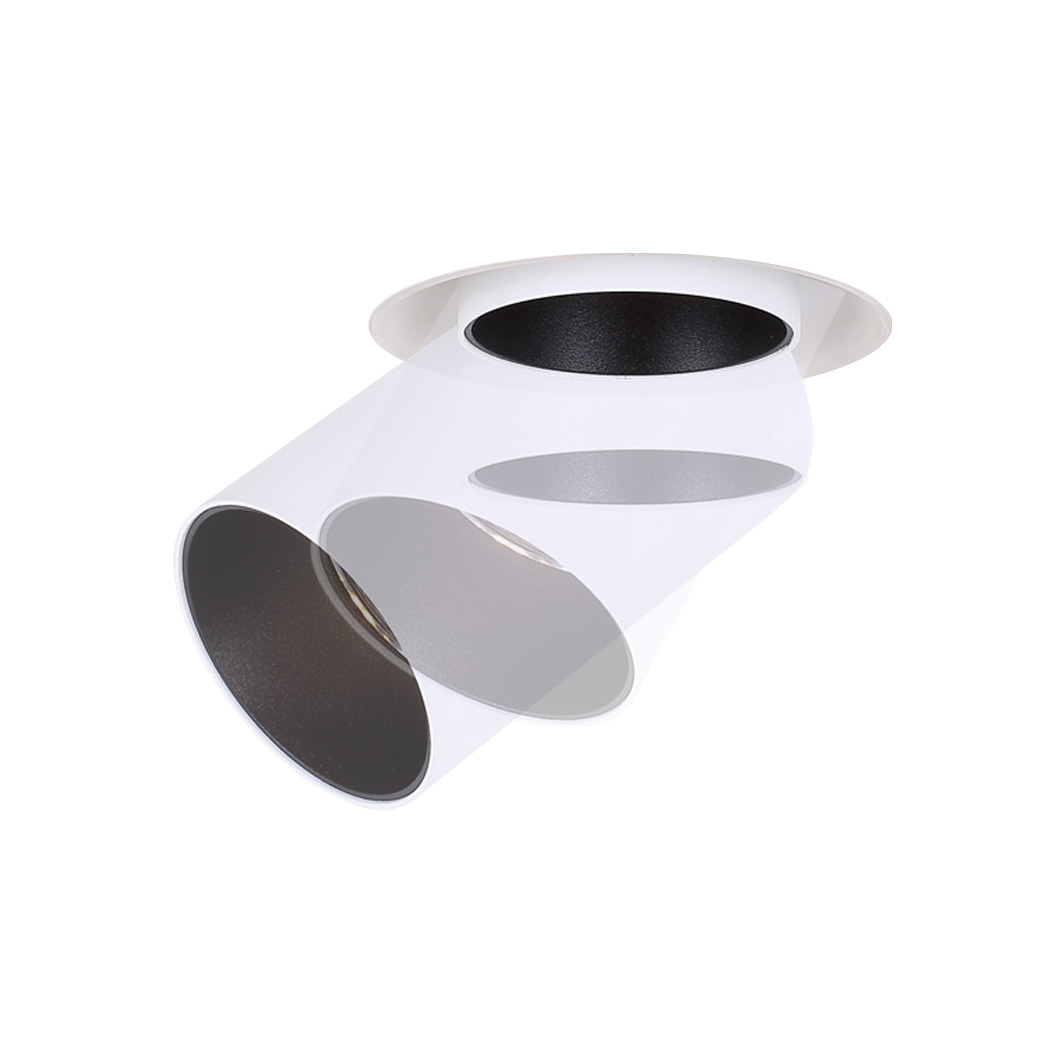

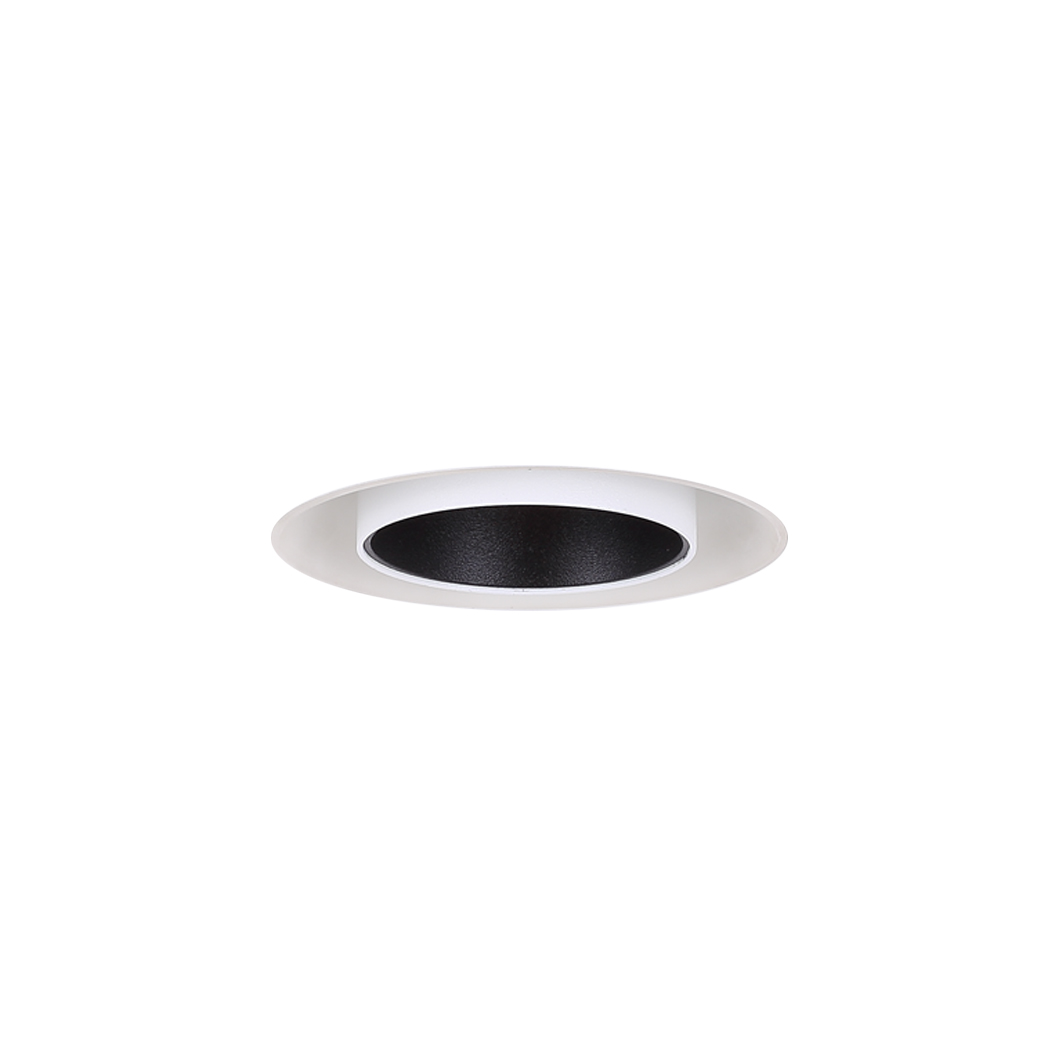

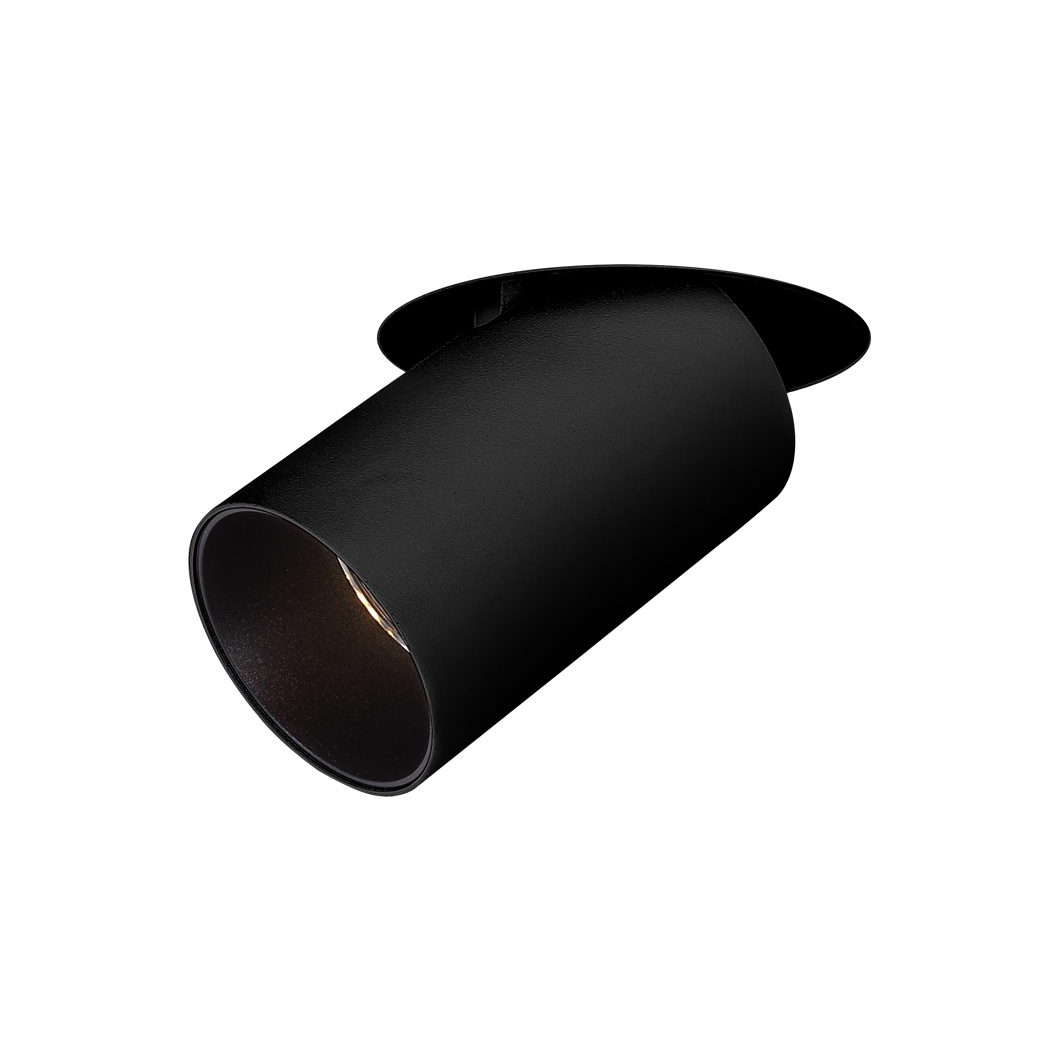

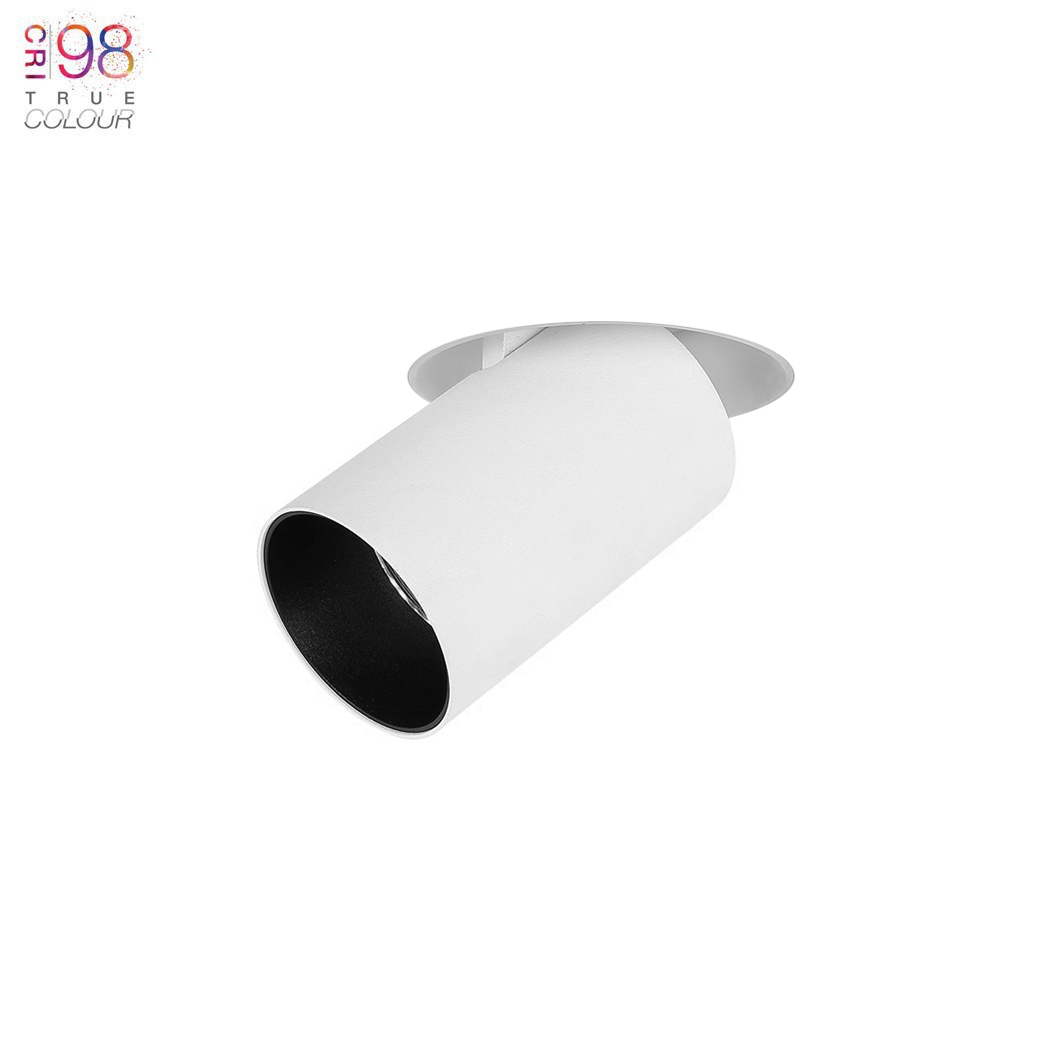

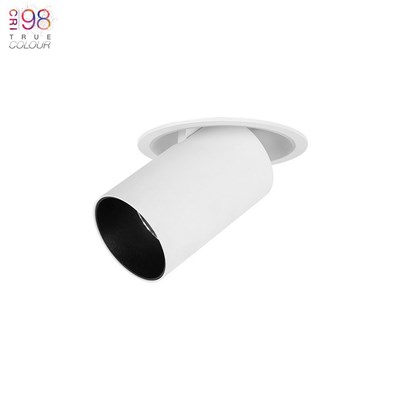

This is the adjustable pull out plaster in spot light module. This allows you to swap between a downlight or spot light style through a simple mechanism whether you want something more discreet with a straight beam of light or an architectural aesthetic with adjustable beam. With 2 power versions/sizes available, choose between higher or lower illumination effects or even mix and match for different situations. The head can be tilted from 0-90 degrees and rotated by 355 degrees to light almost any angle which could change depending on the scenario. With integral LED technology, choose between 2 colour temperatures and 3-5 beam angles to find the perfect light projection for a desired effect. Available in 3 finishes: matt black, matt white and silver grey. Recess baffle in black. With 3 dimmable options available and also a non-dimmable option if not required.
4000K colour temperature on demand - please contact for details.
Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch. See the 'You May Also Need...' section below for the available options and technical information.
Diecasting housing and gear box
Adjustability - 0-90 degree tilt | 355 degree rotation
Remote driver required (not included)
15W | 1200lm | 80lm per 1W
Beam angle: 15D | 24D | 36D | 350mA
Dia.62mm, Length 100mm
25W | 2100lm | 104lm per 1W | 700mA
Beam angle: 15D | 24D | 36D
Dia.75mm, Length 142mm
35W | 2600lm | 104lm per 1W | 1050mA
Beam angle: 15D | 24D | 36D | 45D | 60D
Dia.88mm, Length 142mm
Lamp type: Integral LED CRI98
Delivery varies for each product, please see product description
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
