Arkoslight Magnetic 24V Micro Shaper LED Adjustable Semi-Recessed Spotlight

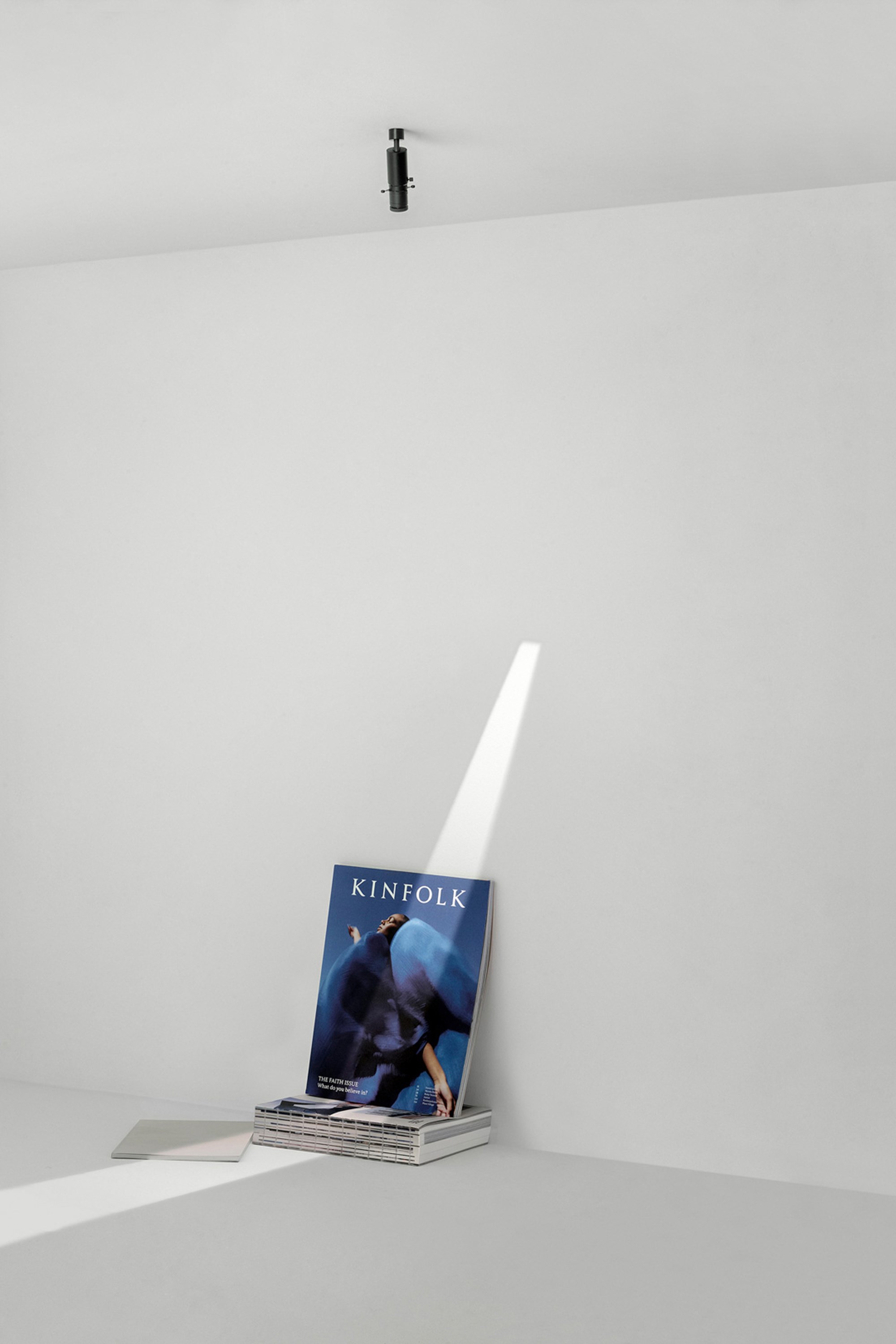

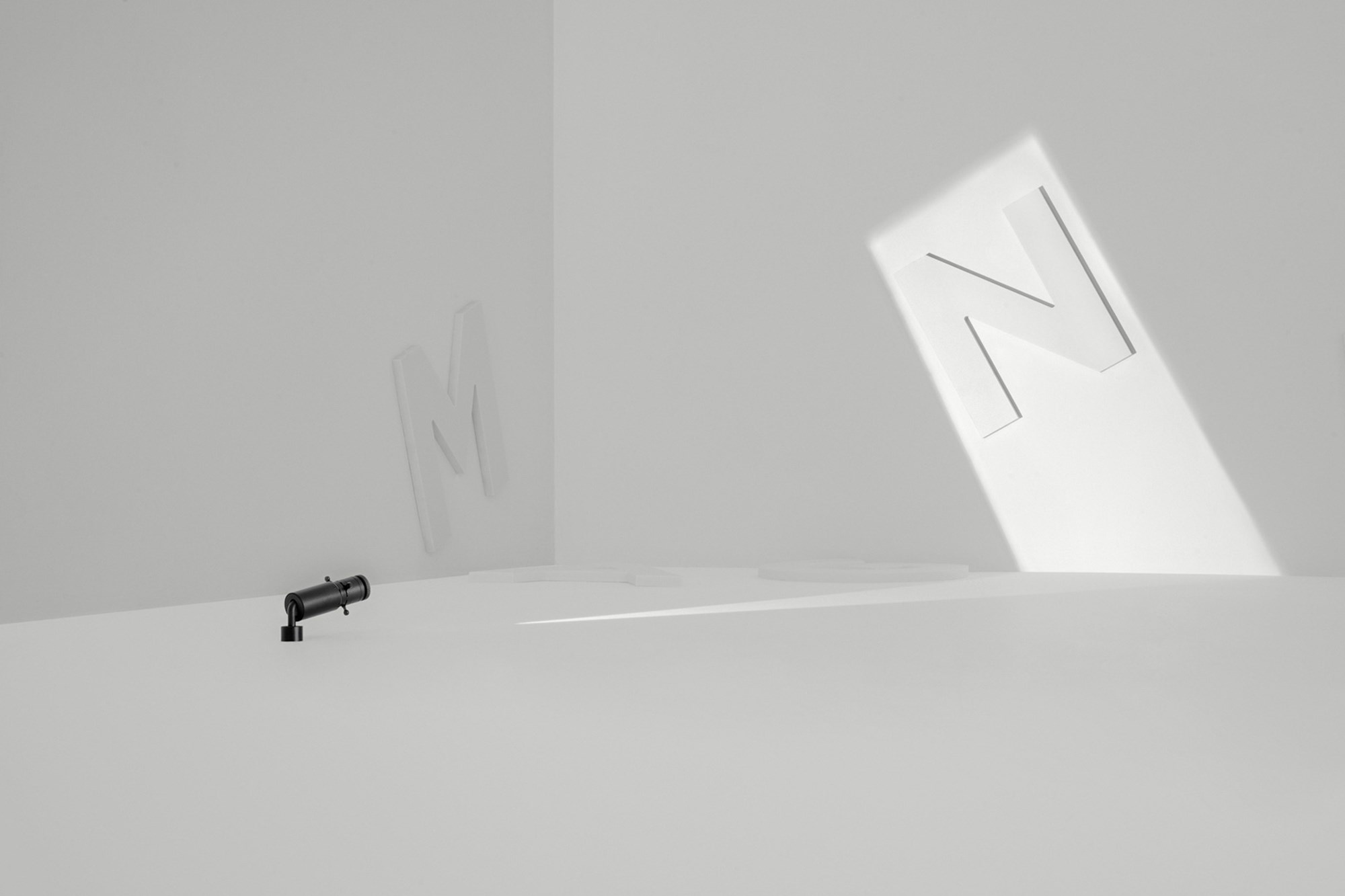

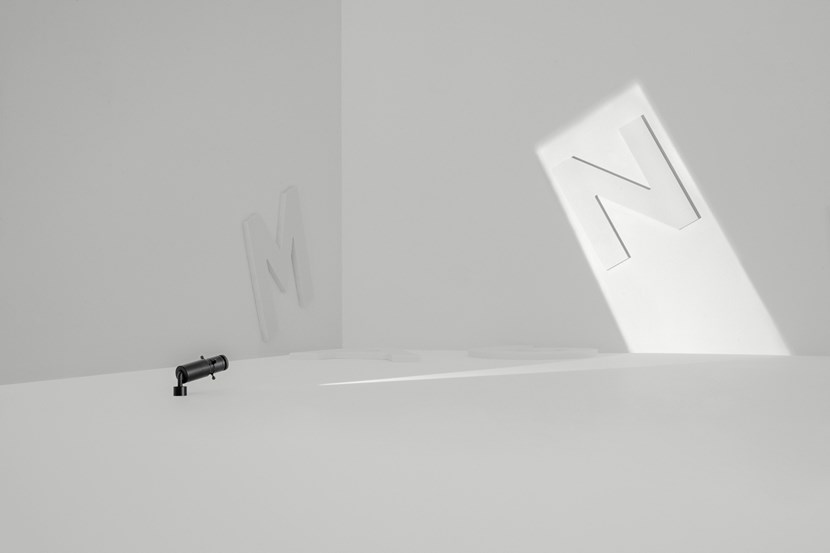

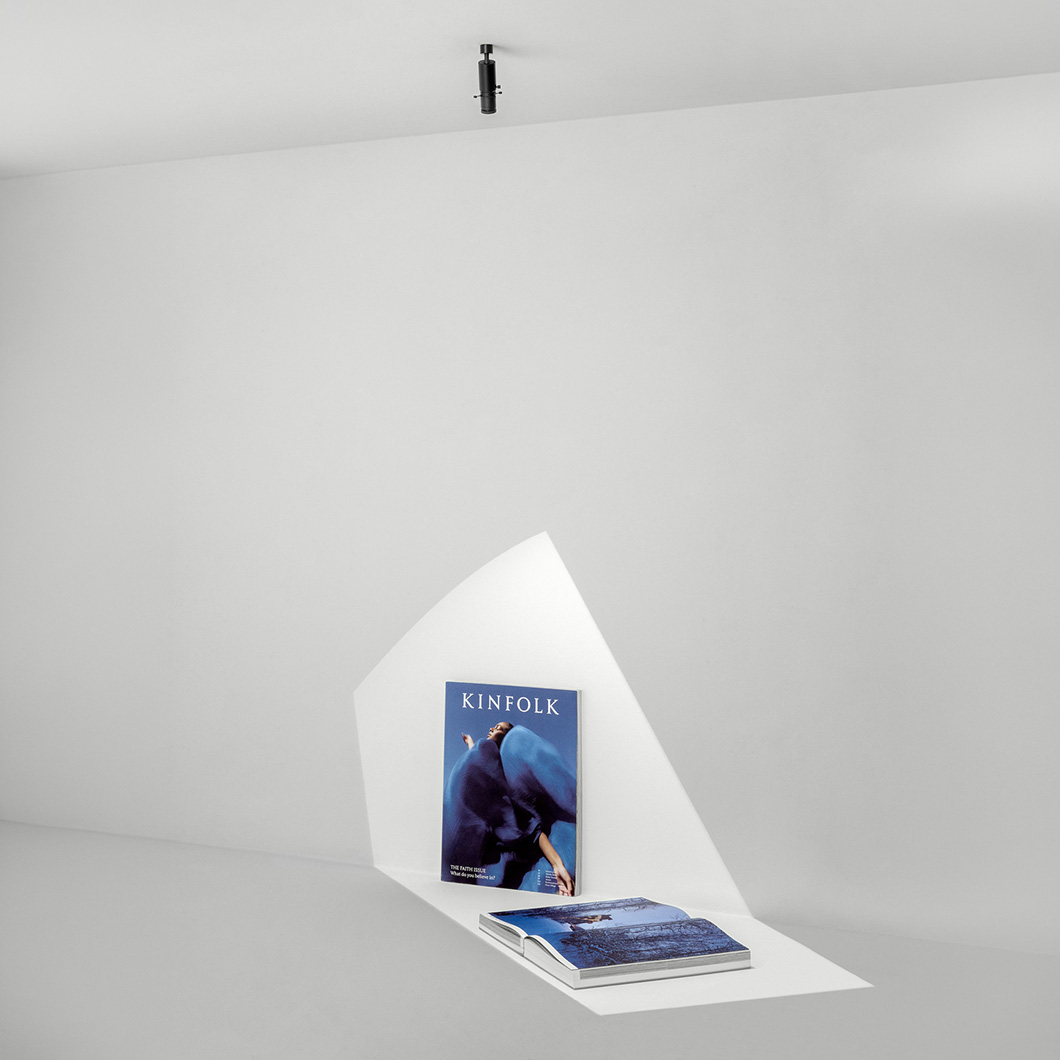

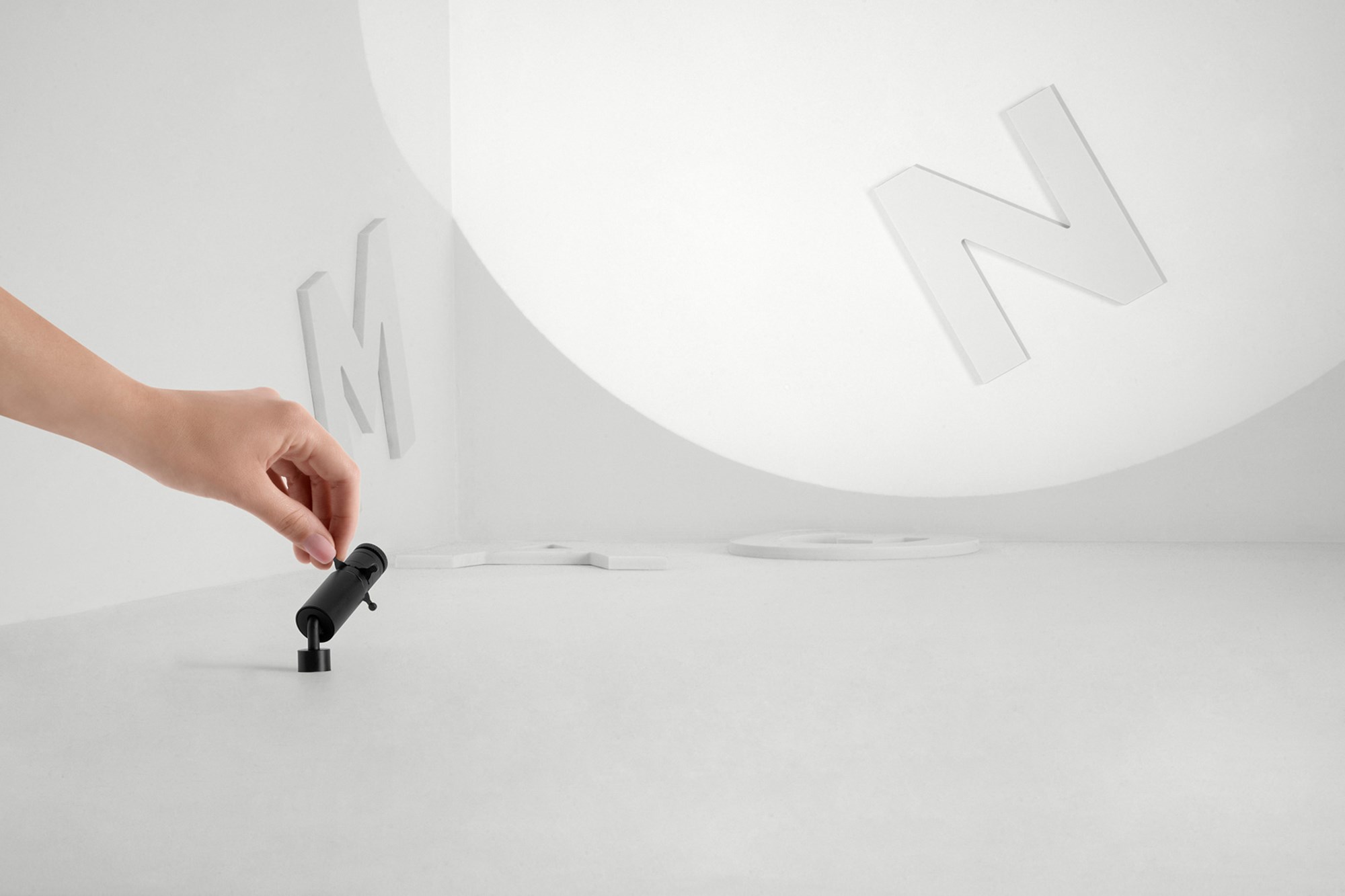

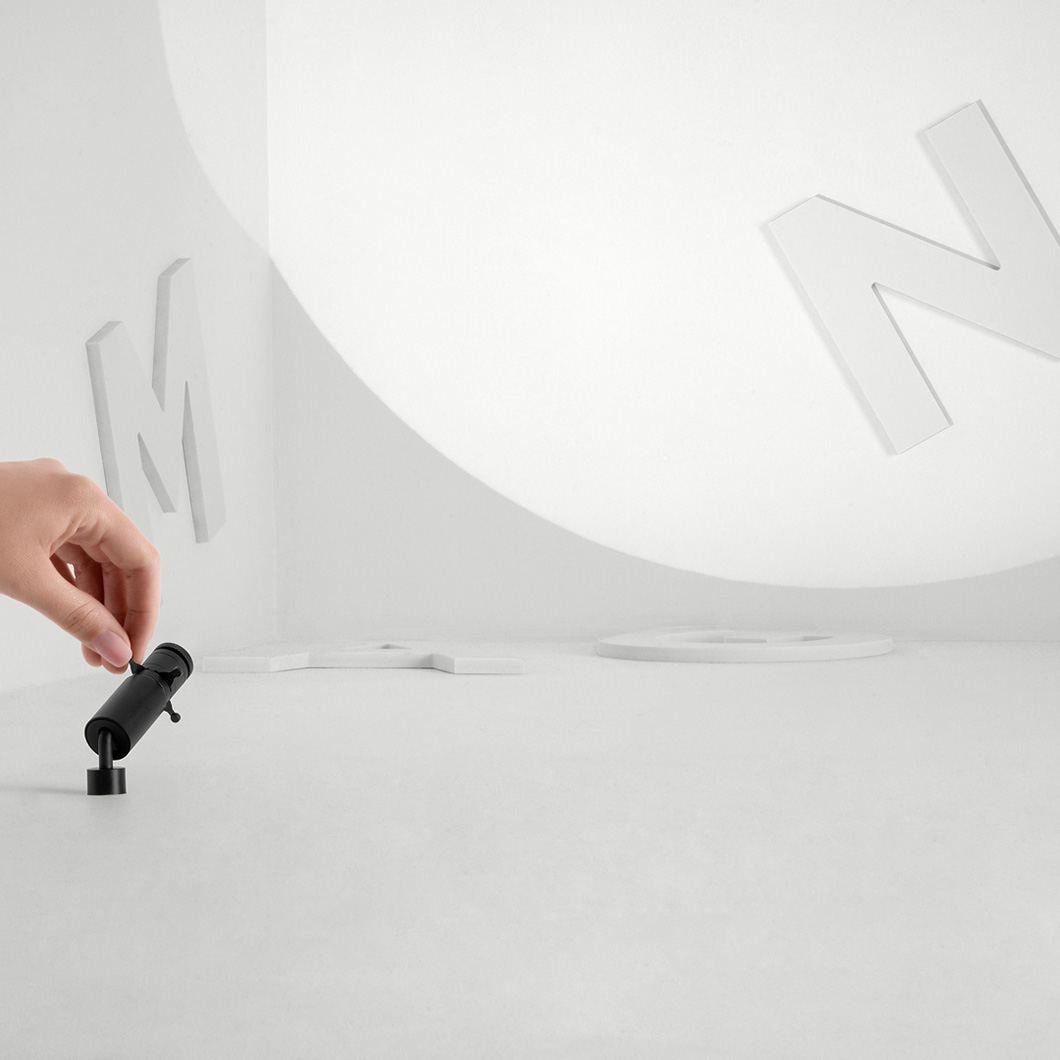

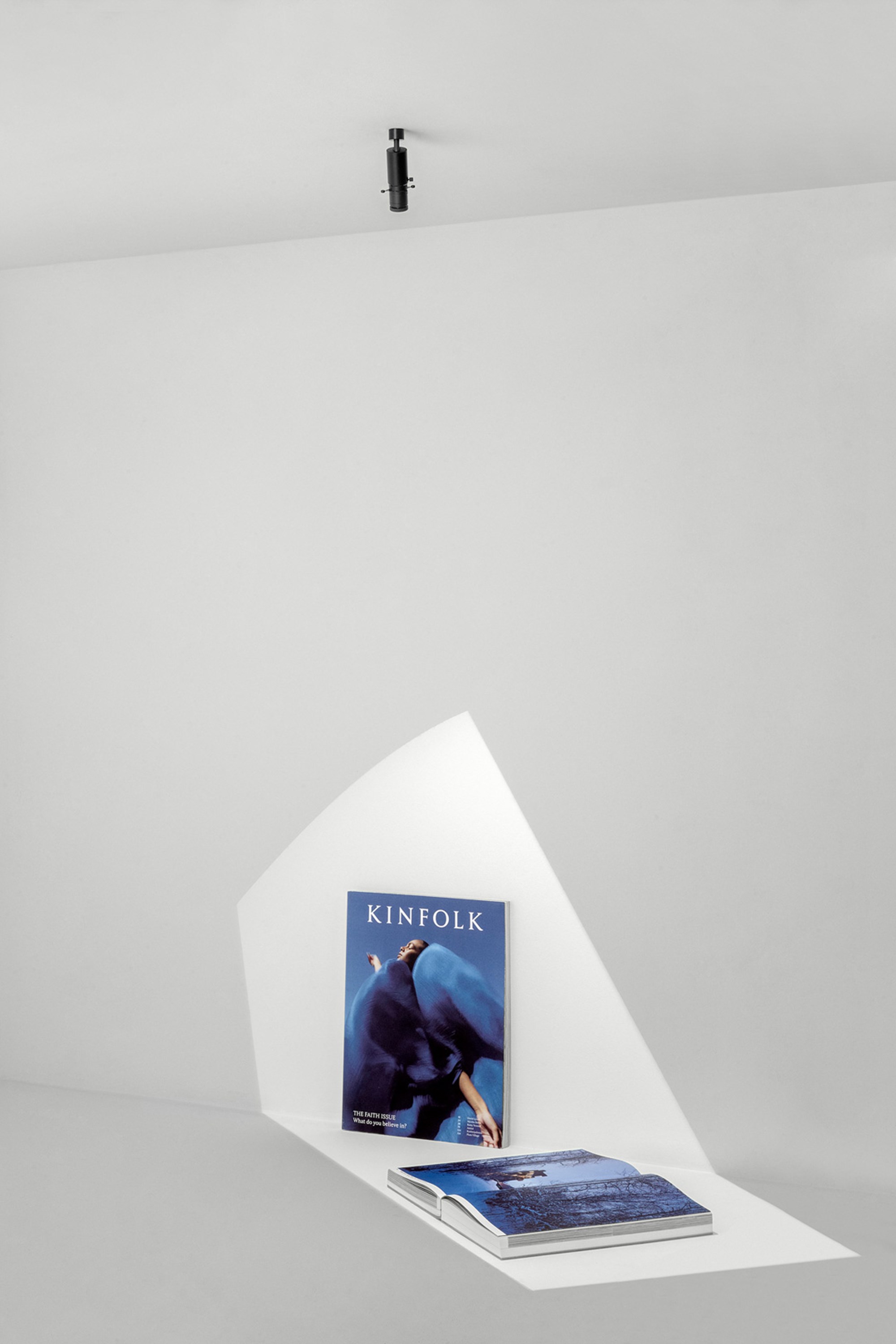

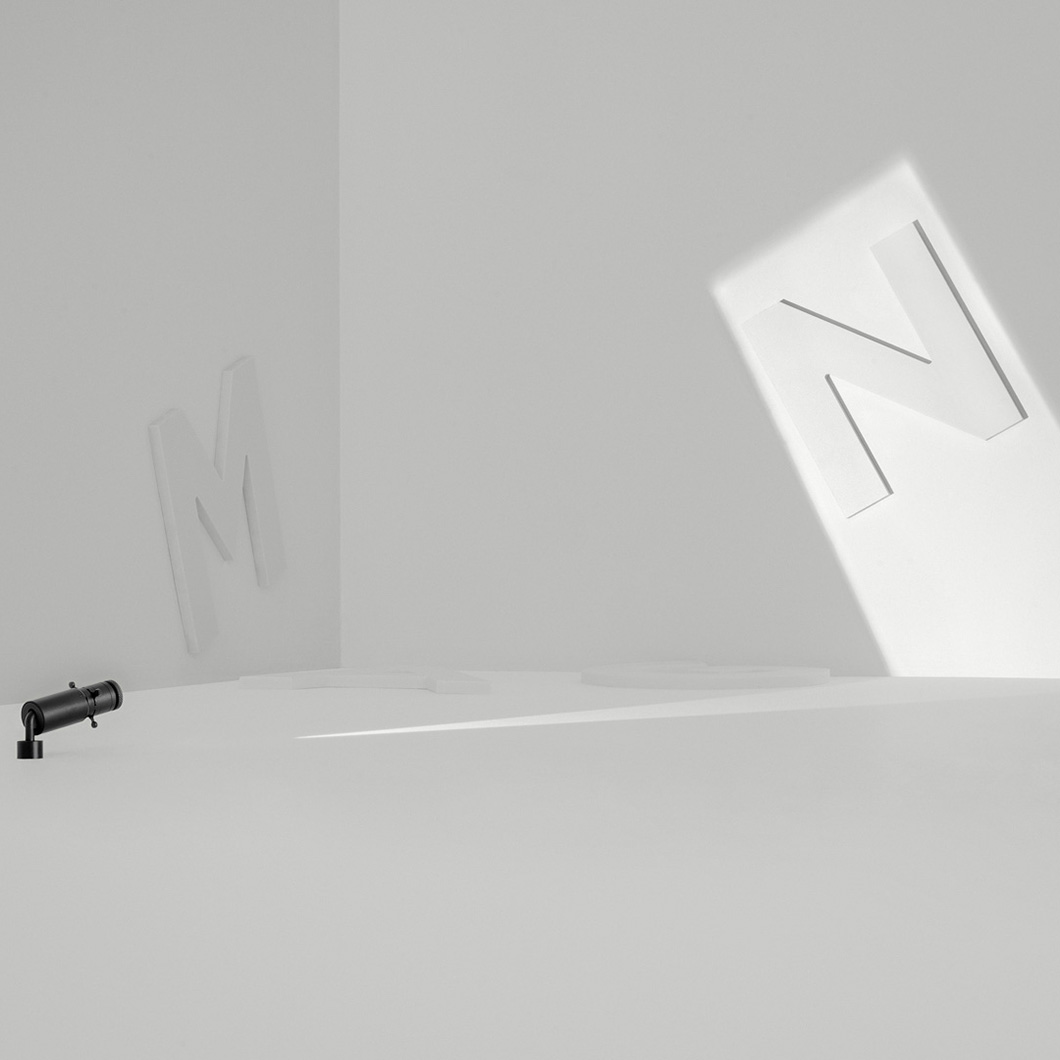

Featuring an innovative installation system with a recessed magnetic connection, the 24V Micro Shaper by Arkoslight enables seamless ceiling integration. The ideal solution to illuminate artwork and galleries, the versatile spotlight allows micro-adjustments to the beam, producing focused or diffused light, round or square shapes, and more, to adapt to the space's needs. Simply rotate the toggles on the lamp head to adjust the beam to your preference - see the instruction manual in the downloads tab for guidance.

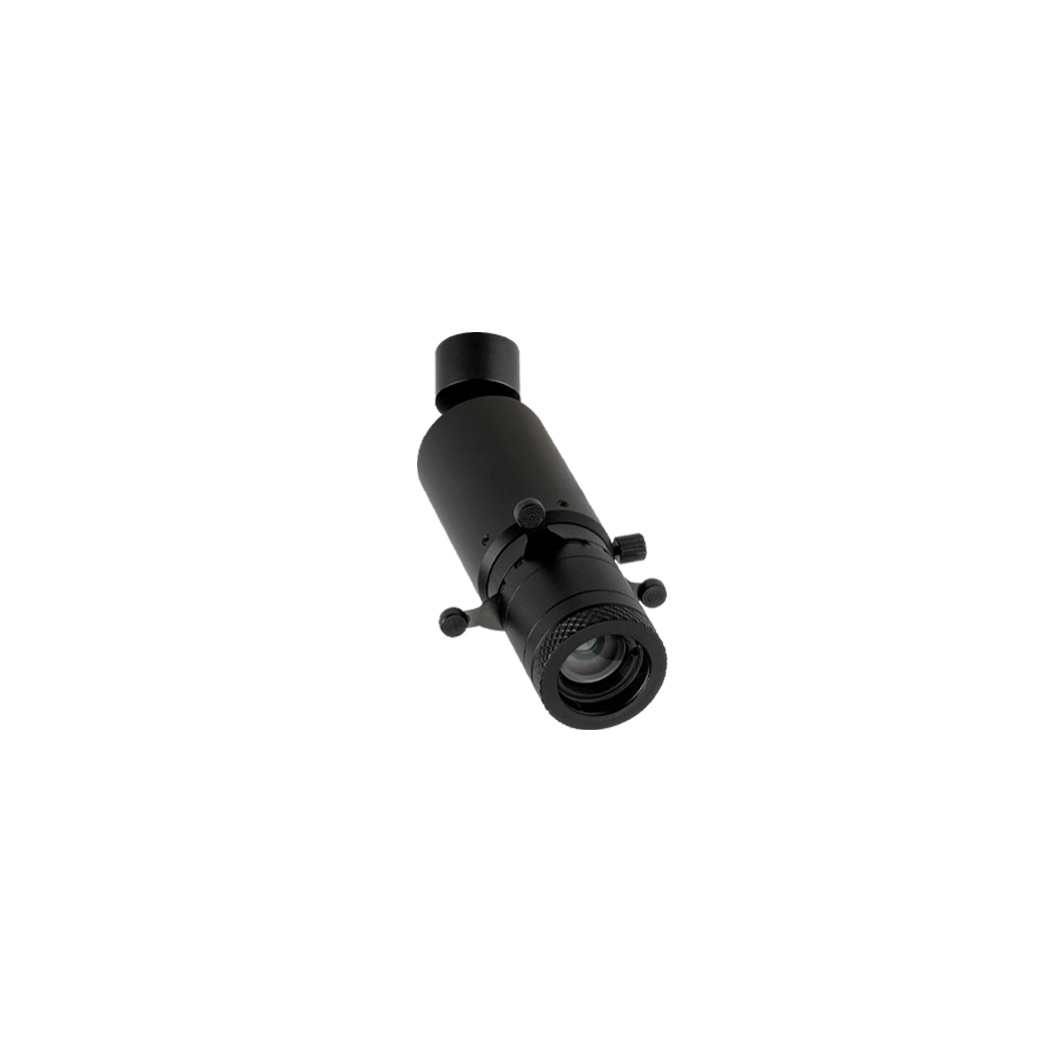

The petite spotlight is finished in black, measuring 18mm in diameter and approximately 80mm tall. Micro Shaper offers a fixed 52° beam angle or an adjustable 18°-34° beam angle. Choose between 2700K, 3000K, or 4000K colour temperatures. A magnetic 24V connector accessory is required for installation. Remote driver required - see the dropdowns and the specification tab for more details.

IP20

Materials: Aluminium / Optical glass

LED 2,2W
700mA
Colour temperatures: 2700K (190lm) | 3000K (210lm) | 4000K (250lm)
CRI 90
Beam angles: 52° | 18°-34°

Swivel angle: 90°
Rotation angle: 360°

Dimensions:
Min. 65mm recess depth for magnetic 24V connector accessory

Fixed 52° version:
Lamp: Ø18mm x 64mm
Total height: 81mm

Adjustable 18°-34° version:
Lamp: Ø18mm x 67mm
Total height: 84mm

Driver options (required):
Must be placed ON REMOTE
- 24V Power Supply | 60W
- 24V Power Supply | 100W
- 24V Dimmer | DALI / Push
- 24V Dimmer | CASAMBI

Accessories:
Magnetic 24V Connector (mandatory for installation)
Trimless Tool

Lamp type: LED 2,2W

Product dimensions: Diameter.18mm

Cutout dimensions: H.65mm x Dia.16mm

• Magnetic 24V Micro Shaper 18°-34° | Datasheet PDF
• Magnetic 24V Micro Shaper 52° | Datasheet PDF
• Magnetic 24V Connector Accessory PDF
• Driver Options PDF
• Trimless Tool Accessory PDF
• Instructions PDF

 Delivery

Delivery usually in 3-4 weeks
