Arkoslight Linear 24V Minimal Surface Modular Track System Components

Designer: Arkoslight

Manufacturer: Arkoslight

** Bespoke Specialist Product **

Please call for price and availability on +44 (0)1189 882294 or email [email protected]

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

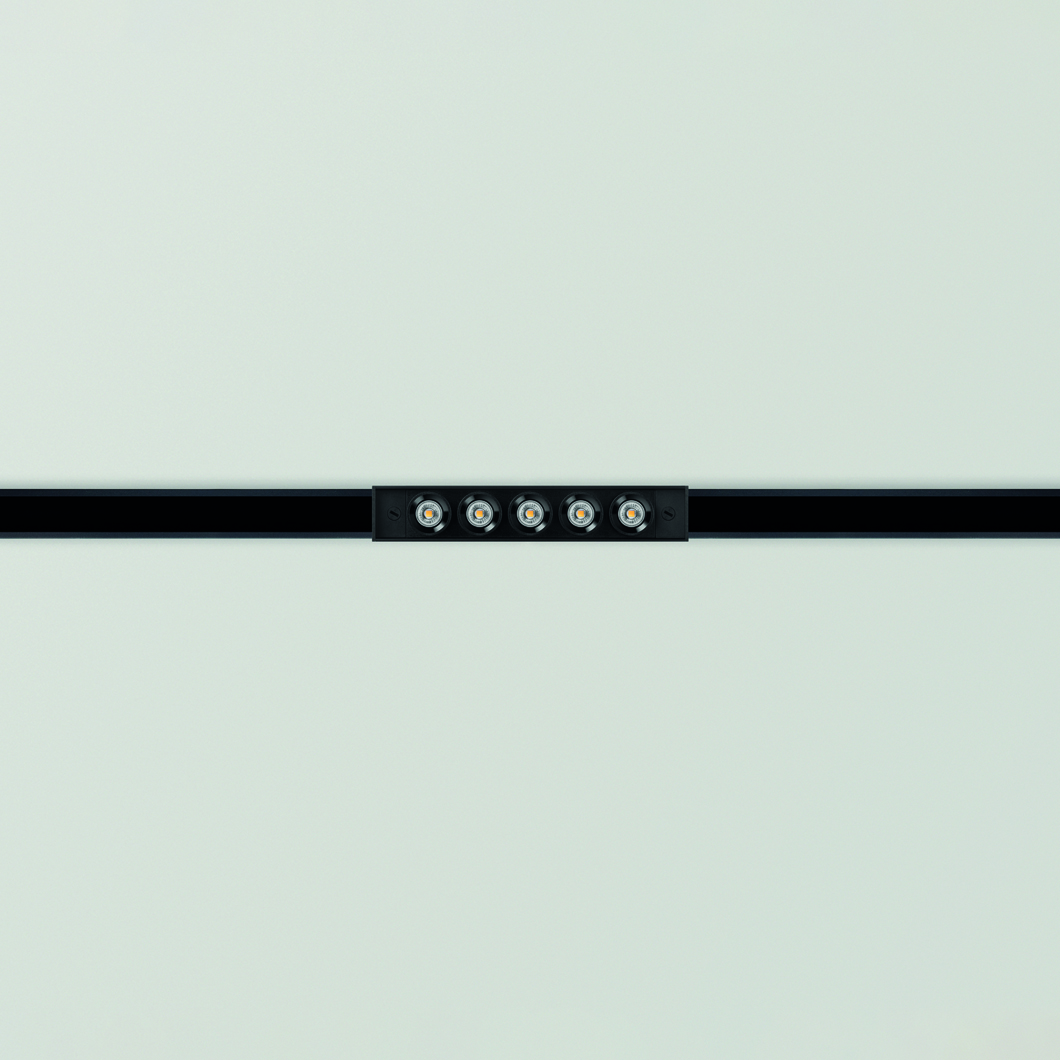

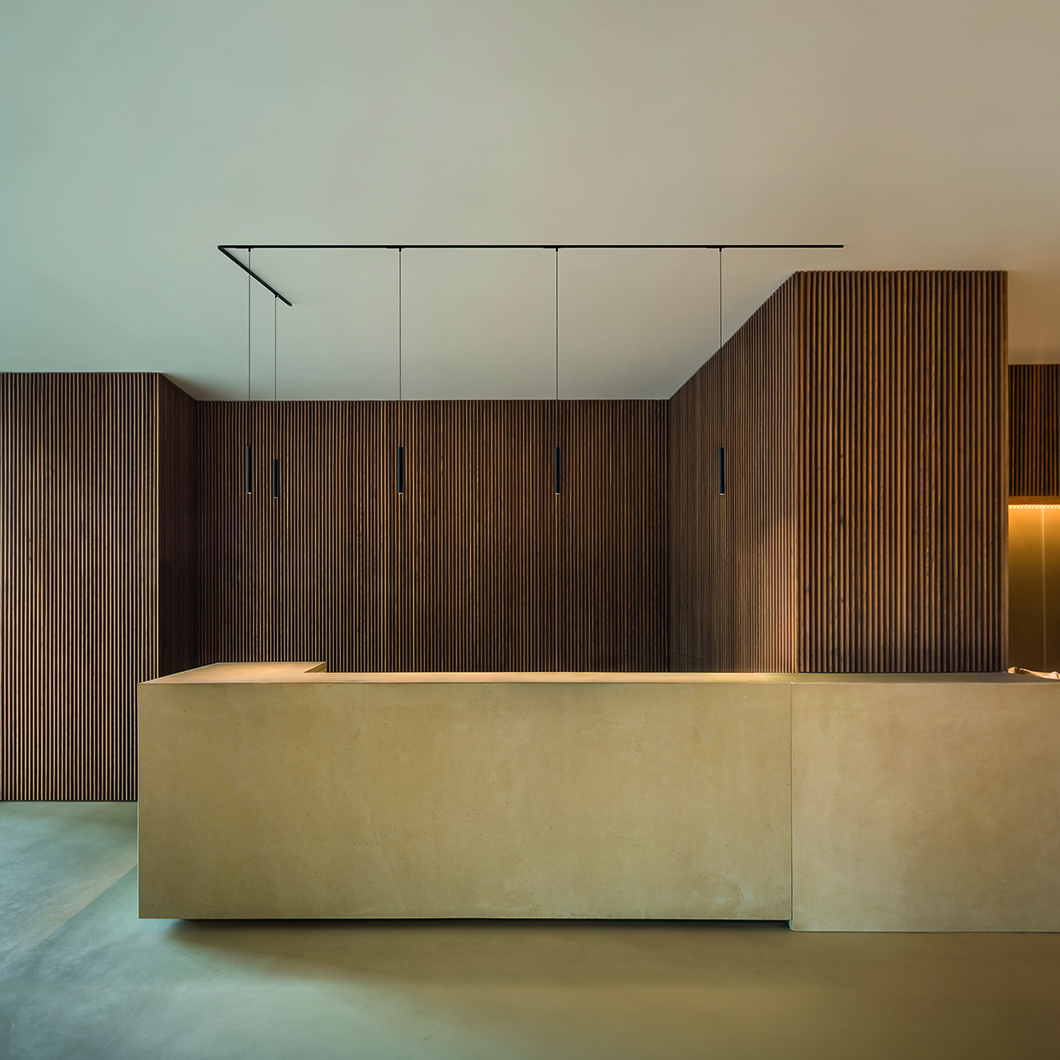

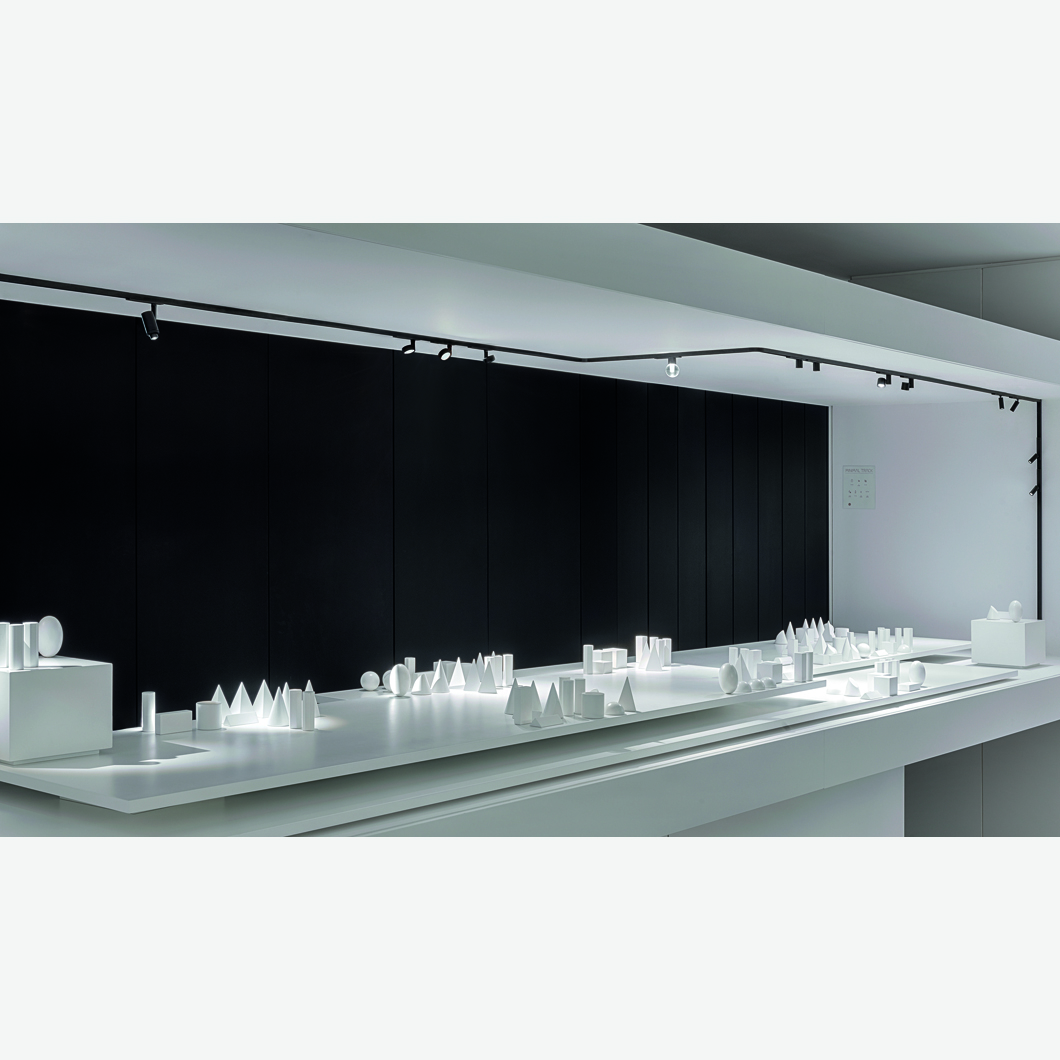

24V track system is a miniaturised surface track system offering energy-efficient low voltage. The thin, compact and minimalist design of the track gives a “visual trimless’ effect on the ceiling. Track systems allow for versatility, as track lines and corner angles can be created at will and a range of different lights can be installed on one track. Insert diffuse light modules, suspended lighting fixtures or spotlights onto the same track module. Simple installation means each luminaire can be easily removed or repositioned with no need for tools to create a unique composition of architectural lighting. Also available are single cover corner planes which allow the track to be rotated 90° along the corners of a wall or ceiling. Exclusive to this version is edgeless rounded corner planes, in addition to the sharper 90° corners.

This listing is for the system components version. For pre-set package compositions, see the suspended and surface-mounted listings below in More Like This. 24V Minimal track also allows for WIFI voice-dimming through integrated Amazon Alexa and Google Home compatibility.

Two Red Dot design awards 2020.

Please note that the white track option comes with black cable.

This track is non-dimmable as standard but dimmable on request - please enquire for more information.

Top Micro
Exclusively available as a track spot, Top Micro is a miniature-yet-versatile luminaire. Track lines and corners can be created at will and a range of different lights can be installed on one track, with each luminaire able to be removed or repositioned at ease. Its minimalist, architectural design allows Top to blend in well with its surroundings when installed in a contemporary interior. Micro is the most compact light in the Top range, making it the perfect lighting solution where a discreet luminaire is needed.

Plus Micro
Plus 24V is a low voltage alternative to the family of minimalist and versatile spotlights, featuring an ultra-compact design. The stylish, cylindrical structure of the spotlight is simple in design, which allows it to blend in well to any contemporary interior. This can be rotated by 355°, allowing the LED light to be focused on individual areas around a room. As with the rest of the Plus family - the beam of light is able to be expanded or concentrated by using a simple manual gesture. This versatility means Plus is perfect for use in museums, exhibitions and retail stores, where beams of light will need to be precisely concentrated on providing illumination to certain objects.

Fit 27
Fit 27 is a compact LED spotlight boasting a stylish contemporary aesthetic, designed for the 24V Minimal Track System. Crafted from aluminium, the textured exterior excellently contrasts with the black perimeter around the inside of the spotlight to create an elegant aesthetic unique to the Fit family. The versatile spotlight can be rotated 355°, meaning the direction of light can easily be focused on individual objects around a room. When installed with the optional anti-glare honeycomb diffuser, Fit projects a unique light and shadow effect.



Lightbulb with brain filament icon
- Our Top Tips -

How do I order a track?
We know track lighting can be confusing so we've simplified it the best we can for you!

  • Use the dropdown options to select an individual component of the track system you want to build, along with the finish and a colour temperature (for modules) - then simply add to your basket with the desired quantity.
  • You can then continue to do this until all the required components for your system are in the basket. Once you're happy with everything selected, progress to the payment page.
  • It's as easy as that!
  • Please see the 'Downloads' tab below for a helpful pdf guide
  • Of course, if you would like any help with anything, we are more than happy for you to email us at [email protected] or call us on 01189 882294

What driver do I need?

  • Minimal is a 24V track and therefore requires a 24V power supply. Simply add up the total number of watts from each module component included in your system (refer to Specification tab). As a bare minimum, select a driver (from the 'Accessories' dropdown) which is over the total wattage amount. However we recommend choosing the next largest driver in case of future upgrades.
Specification

Accolades:
RedDot winner 2020 - Innovative product
RedDot winner 2020 - Lighting Design
Delta Awards 20 bronze
European Product Design 2020 honourable mention

Track dimensions:
Minimal Track 24V Profile (2m): W. 15mm, H. 10mm, D. 2000mm
Minimal Track 24V Rubber Cable (1m): W. 11.5mm, H. 4.5mm, D. 1000mm
Minimal Track Corner 90° One Plane: L. 30mm, H. 30mm
Minimal Track Corner 90° One Plane Rounded: L. 30mm, H. 30mm
Minimal Track Corner 90° Two Planes: L. 50mm, H. 30mm

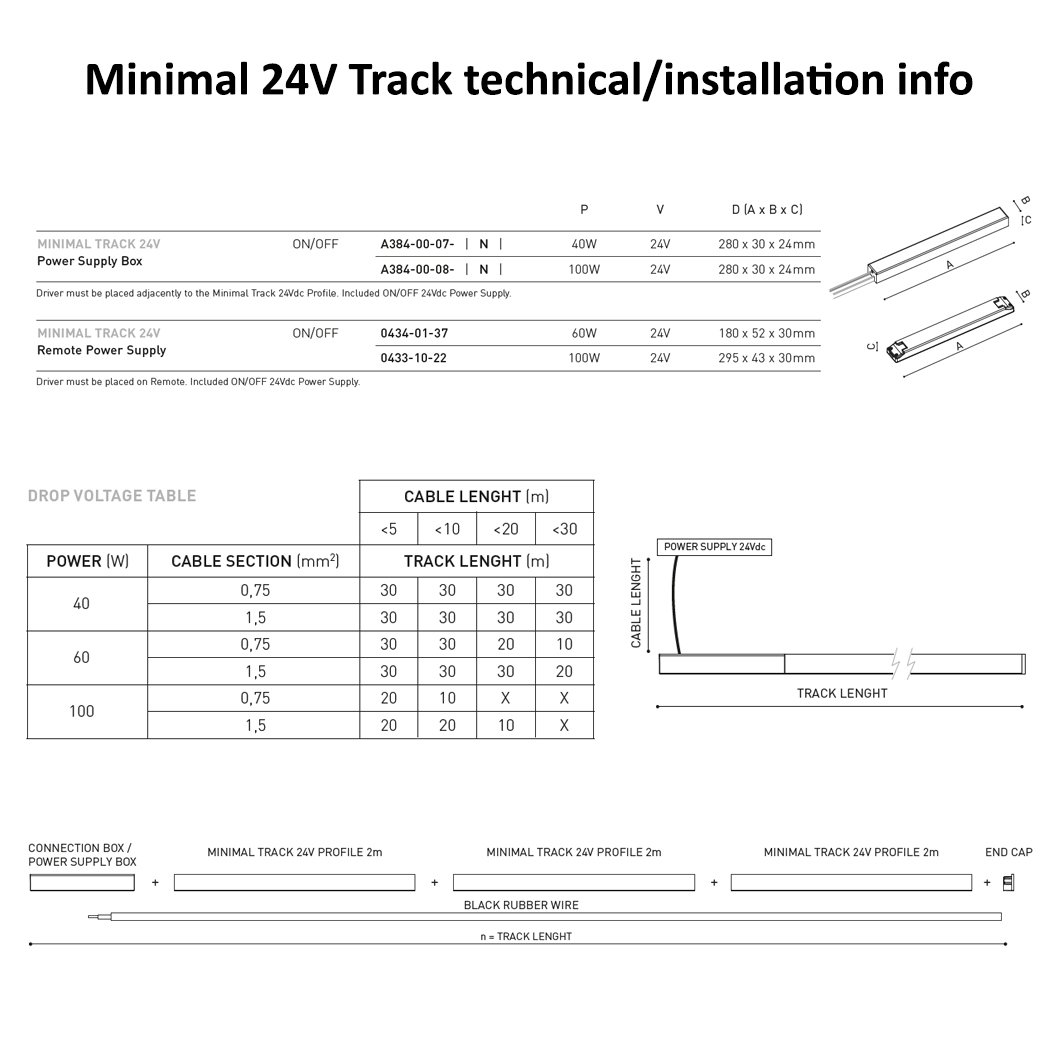

Power Supply Box (On/Off):
Type 1 - 40W / 24V
W. 280mm, H. 30mm, D. 24mm
Type 2 - 100W / 24V
W. 280mm, H. 30mm, D. 24mm

Remote Power Supply (On/Off):
Type 1 - 60W / 24V
W. 180mm, H. 52mm, D. 30mm
Type 2 - 100W / 24V
W. 295mm, H. 43mm, D. 30mm

*Dimmable power supplies on request*

Module details

Alaska LED Track Spotlight:
H. 72mm, Dia. 50mm
LED 3.5W / 400mA

Fit 20 LED Track Spotlight:
Dia. 20mm, H. 50mm
LED 2.1W / 700mA
Beam angle - 30 degree (12 degree and 54 degree on request)

Plus Micro LED Track Spotlight:
W.44mm, Dia. 21mm, H. 65mm, D.60mm
LED 4.7W / 400mA

Six XS LED Track Spotlight:
W.48mm, Dia. 41mm, H. 58mm, D.18mm
LED 3.5W / 400mA
Beam angle - 23 degree (17 degree and 34 degree on request)
Accessories (on request) - high chromatic LED

Top Micro LED Track Spotlight:
Dia. 25mm, H. 31mm
LED 2.1W / 700mA
Beam angle - 35 degree (17 degree on request)

iO Micro LED Track Spotlight:
W.44mm, Dia. 21mm, H. 65mm, D.60mm
LED 4.7W / 400mA
Beam angle - 40 degree (20 degree and 54 degree on request)
Accessories (on request) - beam mixer diffuser, anti-glare honeycomb diffuser

Dimensions
Downloads
Delivery and warranty

Delivery usually in 3-4 weeks.

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Boasting more than three decades experience in the lighting field and offering an extensive range of luminaires, Arkoslight have established themselves as a brand built on providing the best possible lighting solutions. Each and every product in this range has been thoroughly researched to feature state-of-the-art technological innovations. These distinguished creations have been designed to assure they meet their high standards of quality.

Our Arkoslight edit below showcases the most popular products in the range.

 Browse the full 2019 catalogue
 Browse the News 2020 catalogue
 Browse the News 2021 catalogue

For prices on any product that isn't shown below please contact us.



Got a question? Email us or call 01189 882294
