- Description
-
Bouly by Trizo21 is a minimalist luminaire that doubles as both a wall and ceiling light. The versatile fitting is crafted from transparent PMMA with built-in power LEDs, emitting a warm 2700K glow with a 40° beam angle. The Ø75mm spherical lamp has a rounded base, measuring just 14mm deep for the standard version, and 27mm deep for the integrated driver model. Bouly is available in 4 sleek, modern finishes: white, black, grey, or chrome.
350mA driver is required for the standard model - see the specification tab below for more details on suitable drivers and select one from the dropdown options above.
- Specification
-
IP50
Materials:
Aluminium & PMMA
Finish: Black | White | Grey | Chrome
Depth: min. 75mm (driver in ceiling/wall)
Light source:
1x 4 LED 0.96W (LED incl.)
350mA
456lm
2700K
CRI 93
Beam: 40°

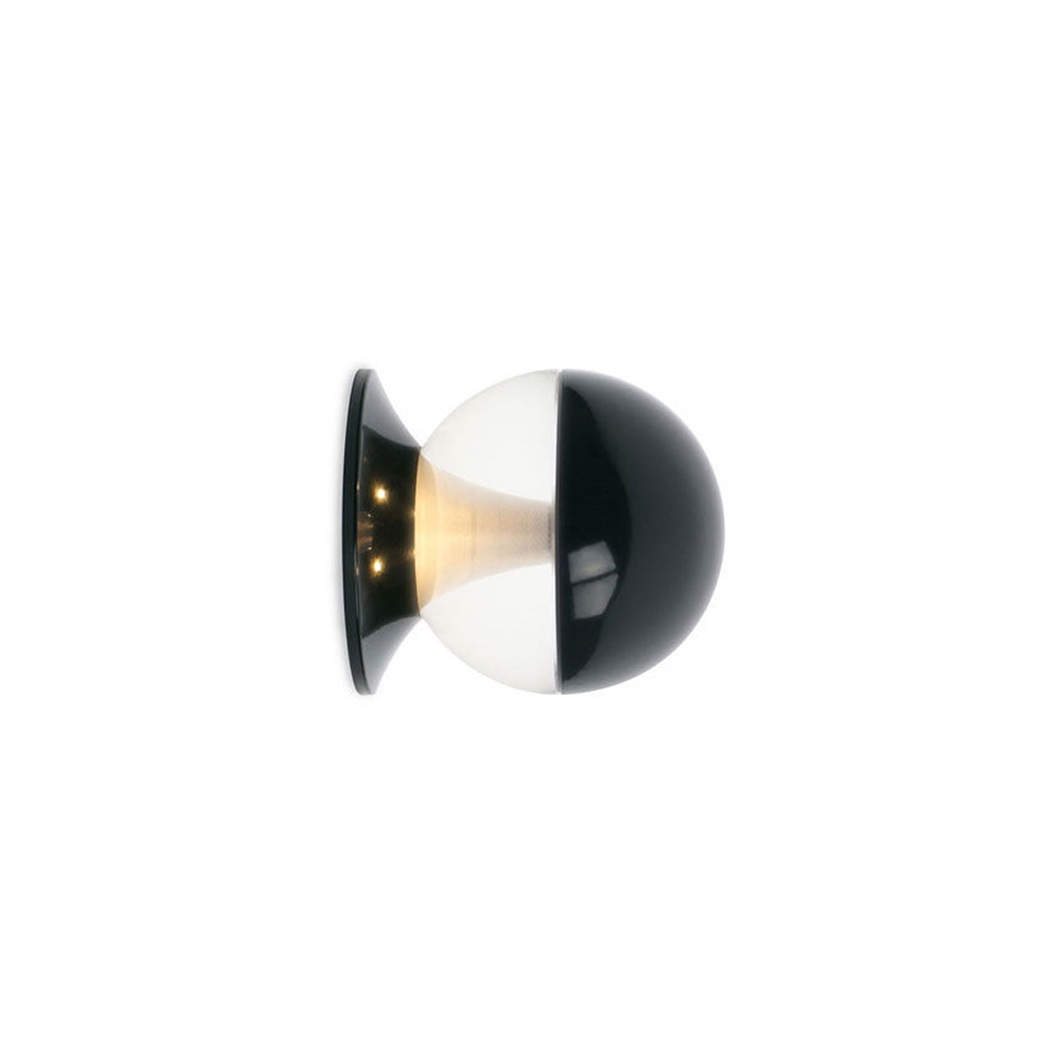

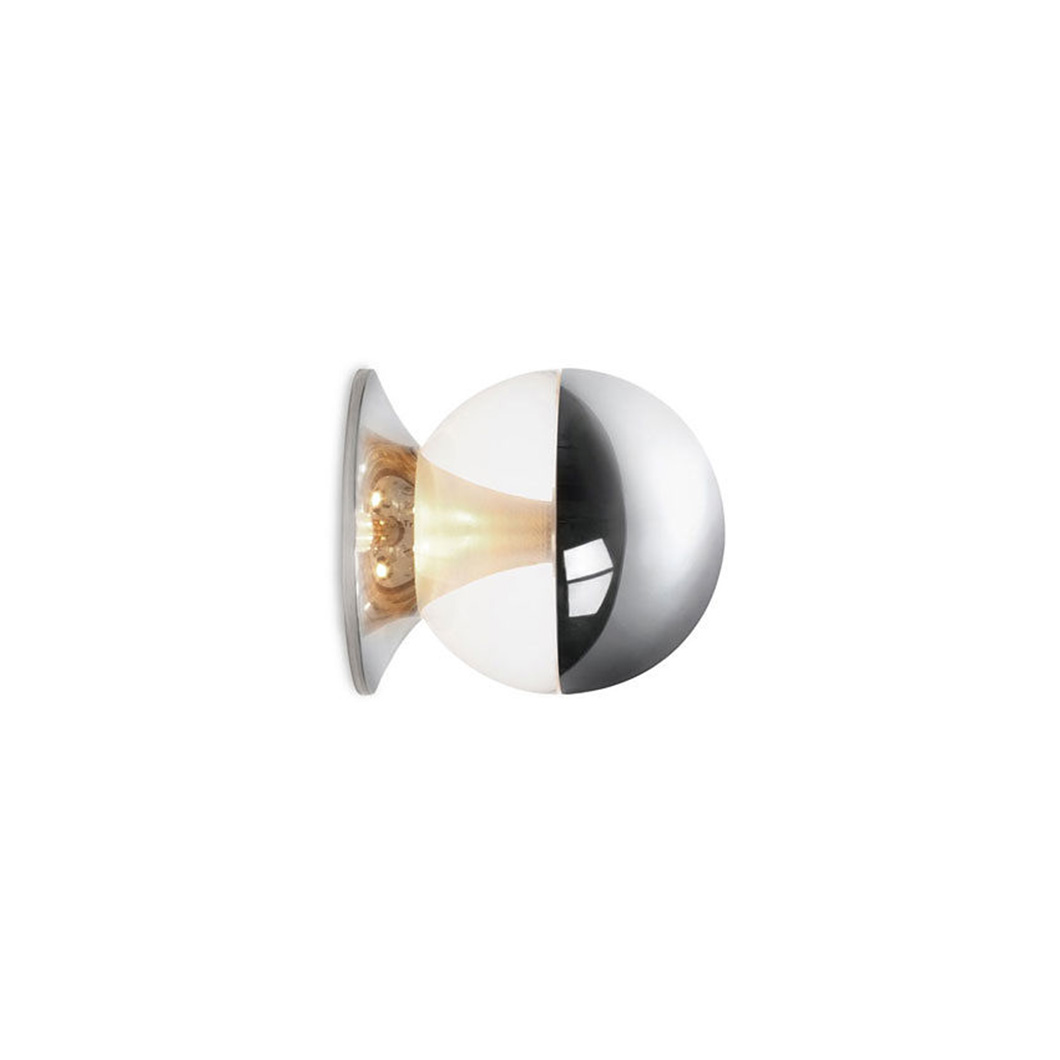

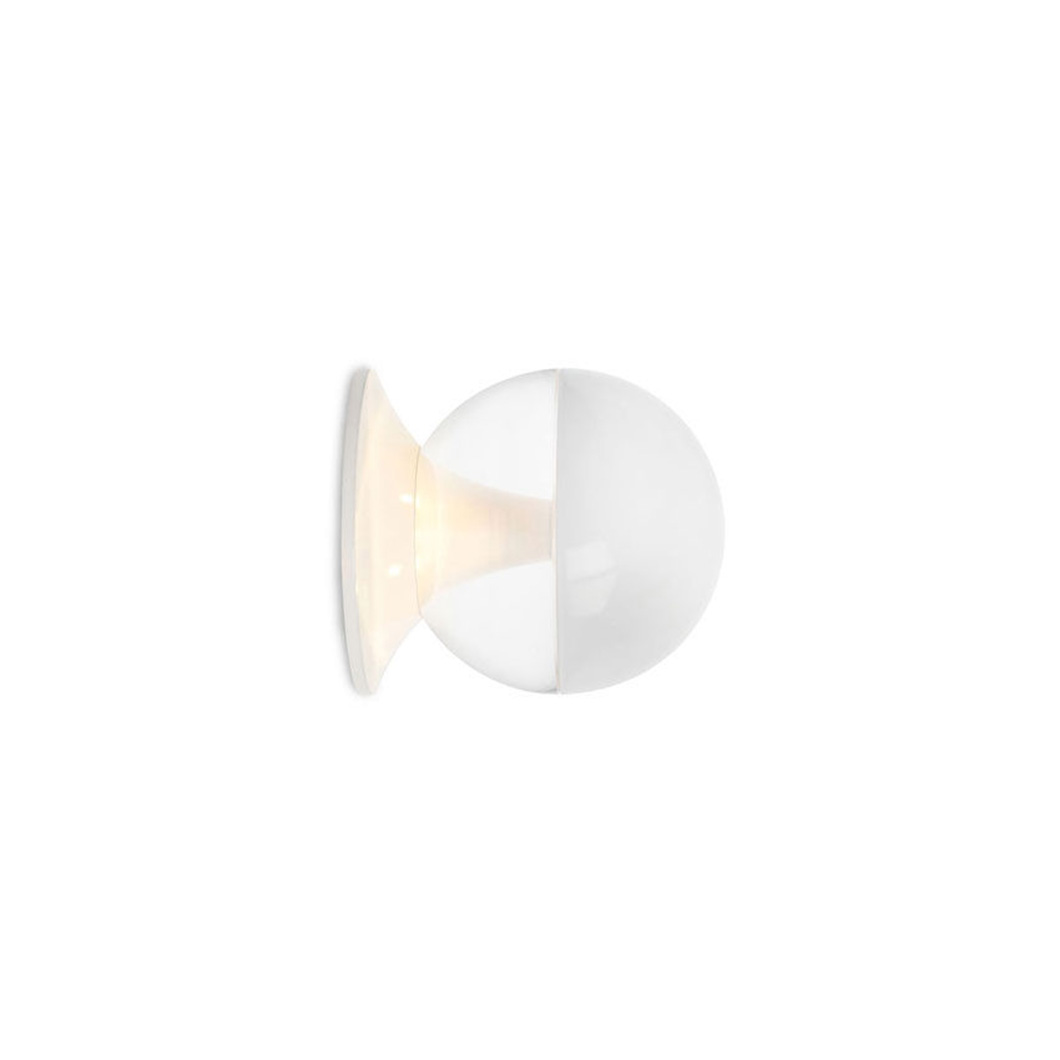

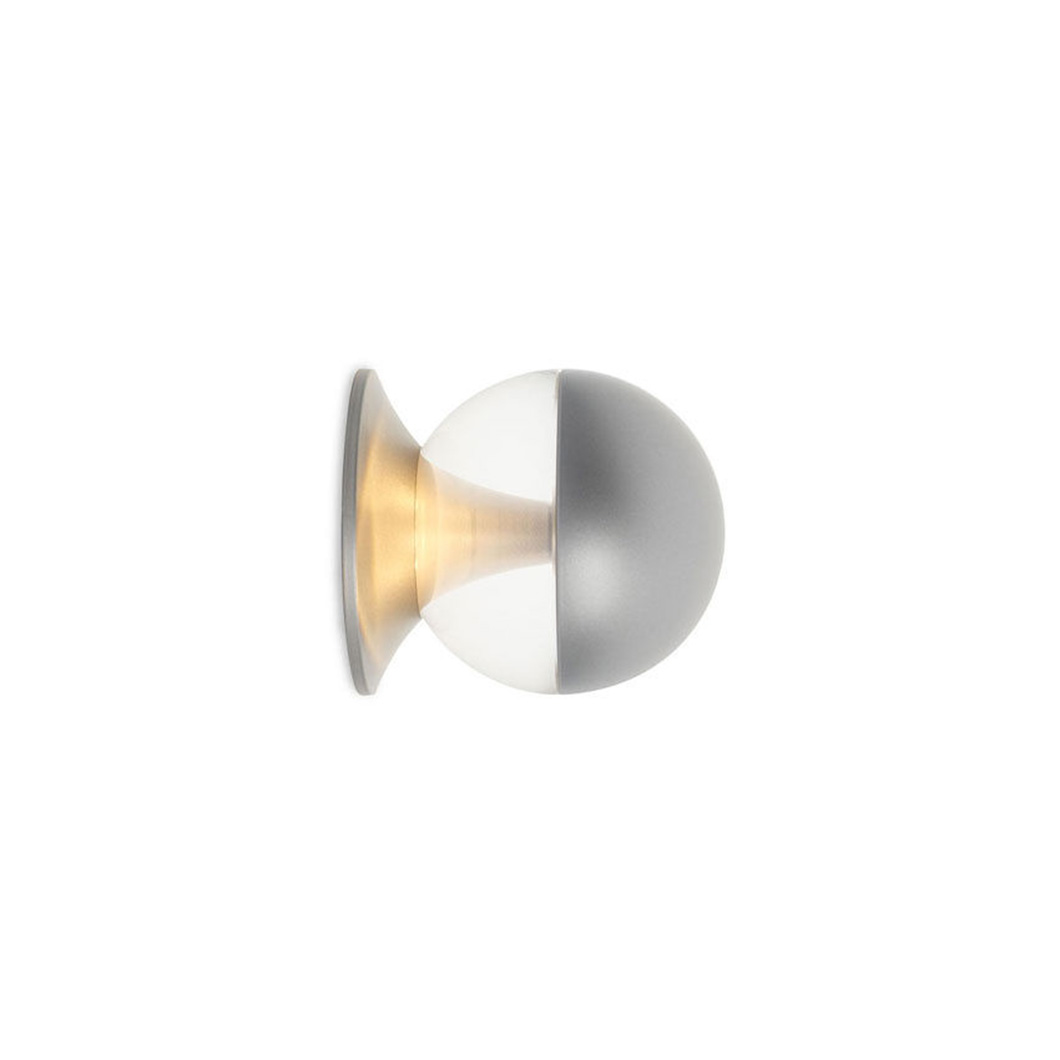

Bouly (remote driver)
350mA driver required
Ø75mm
Base: D.14mm

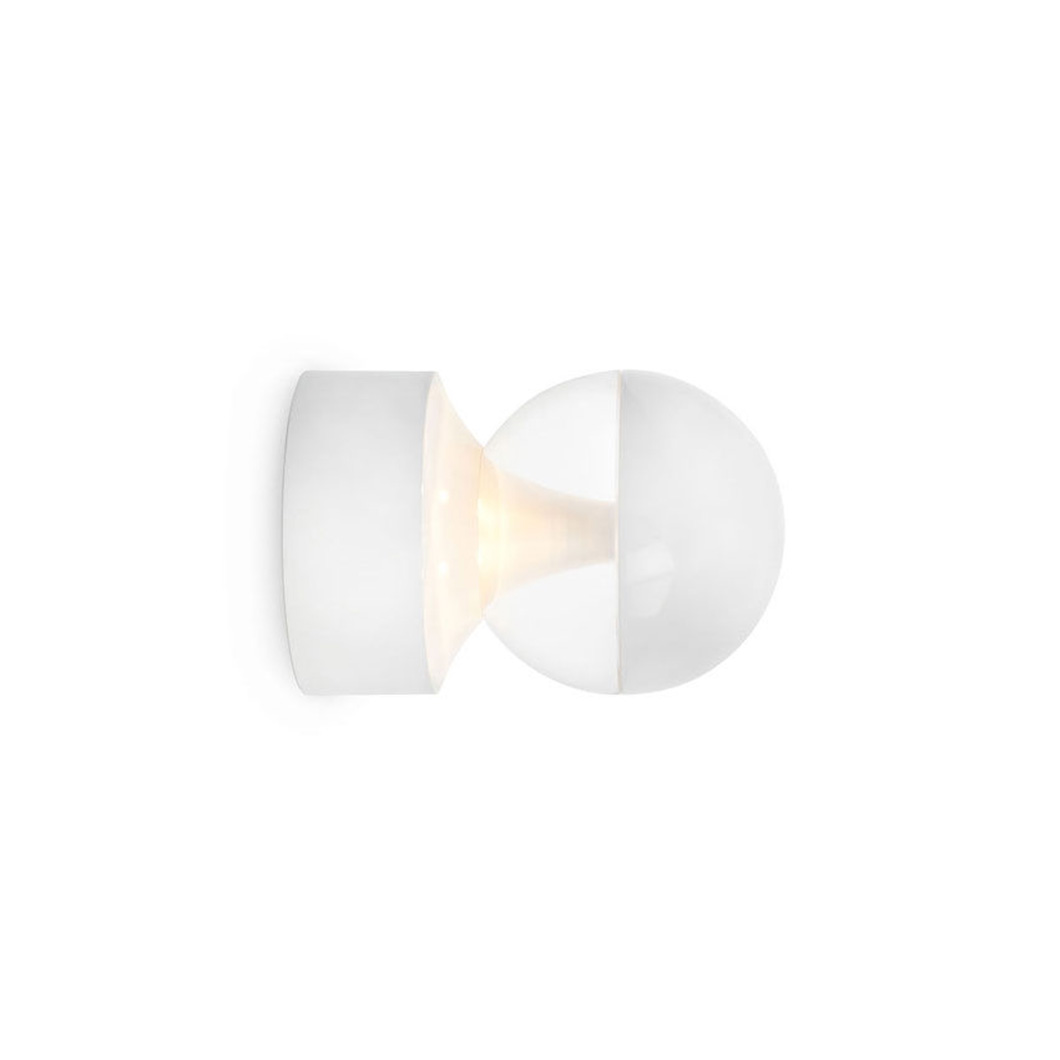

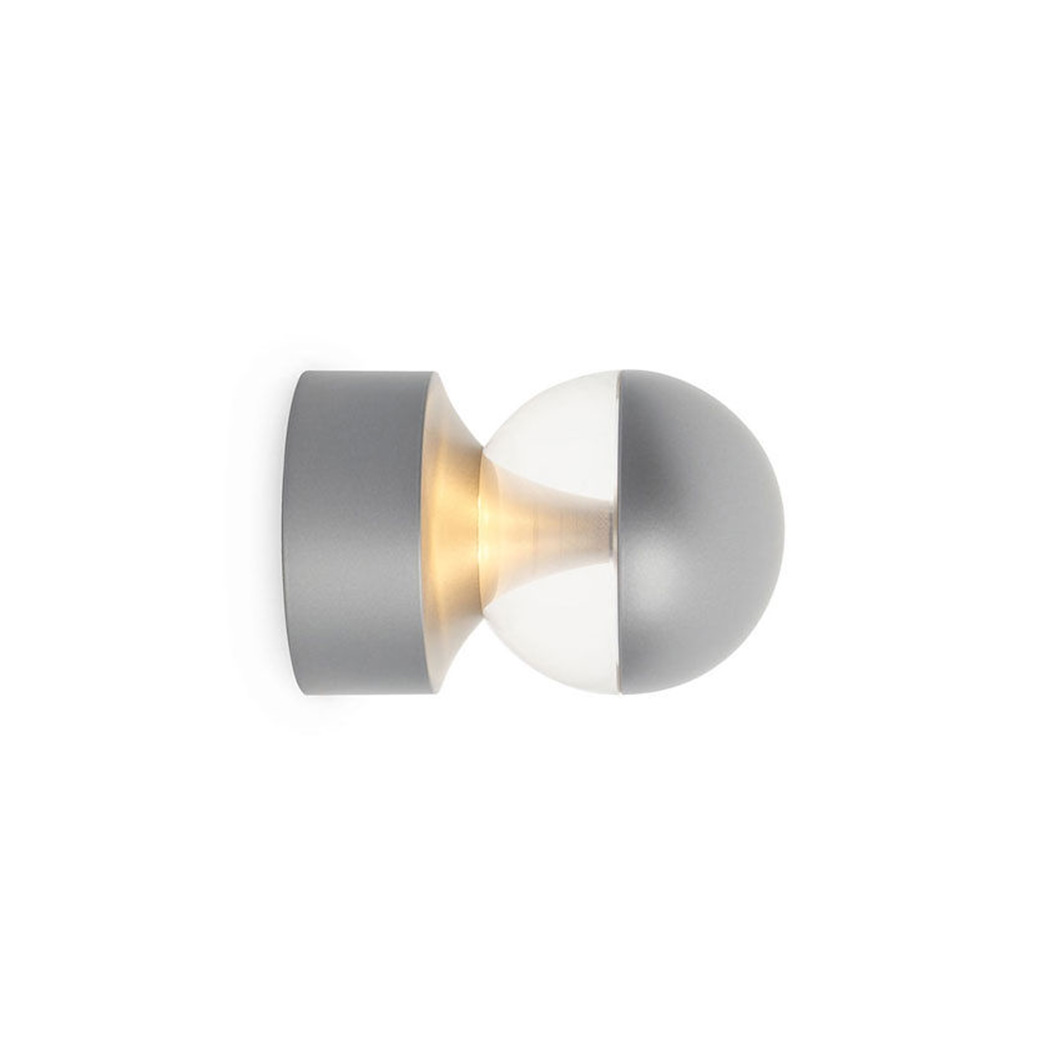

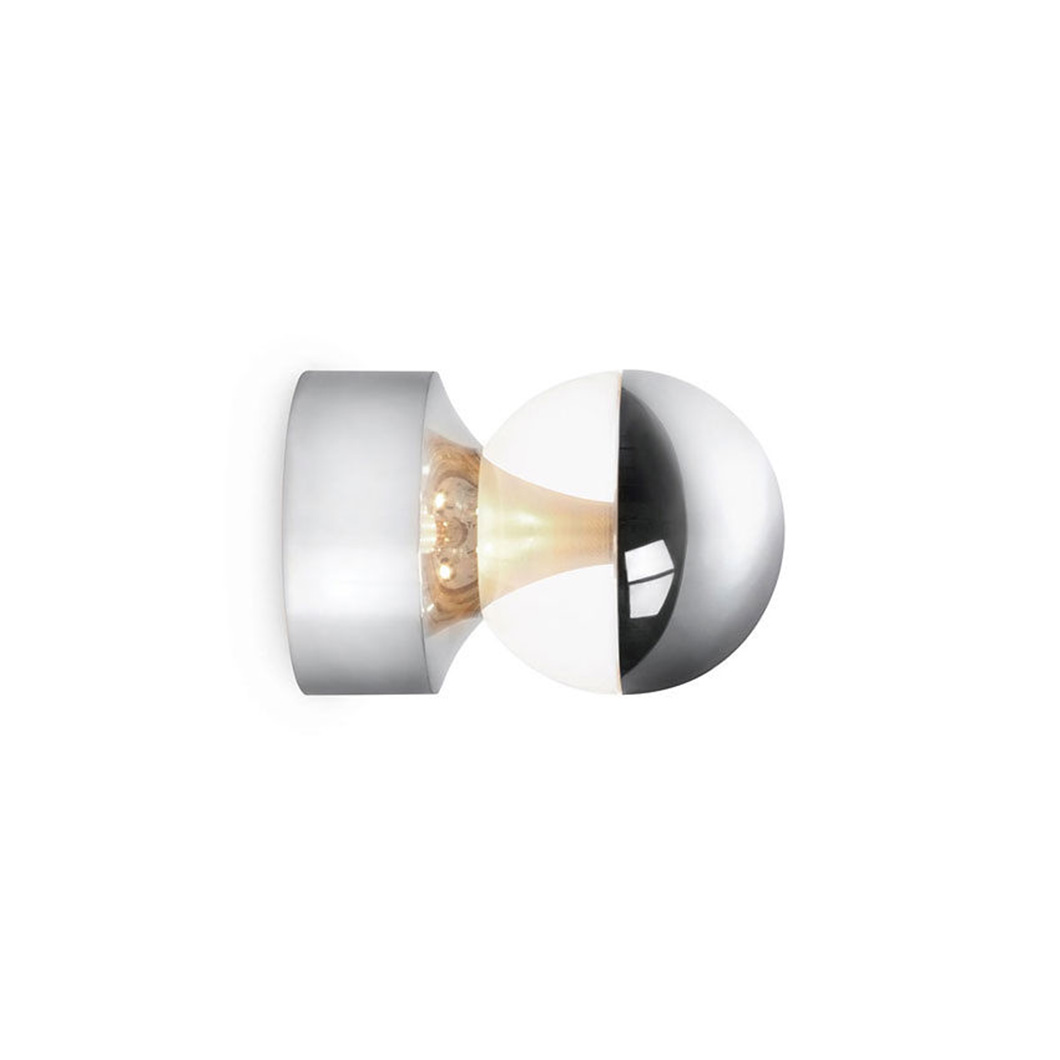

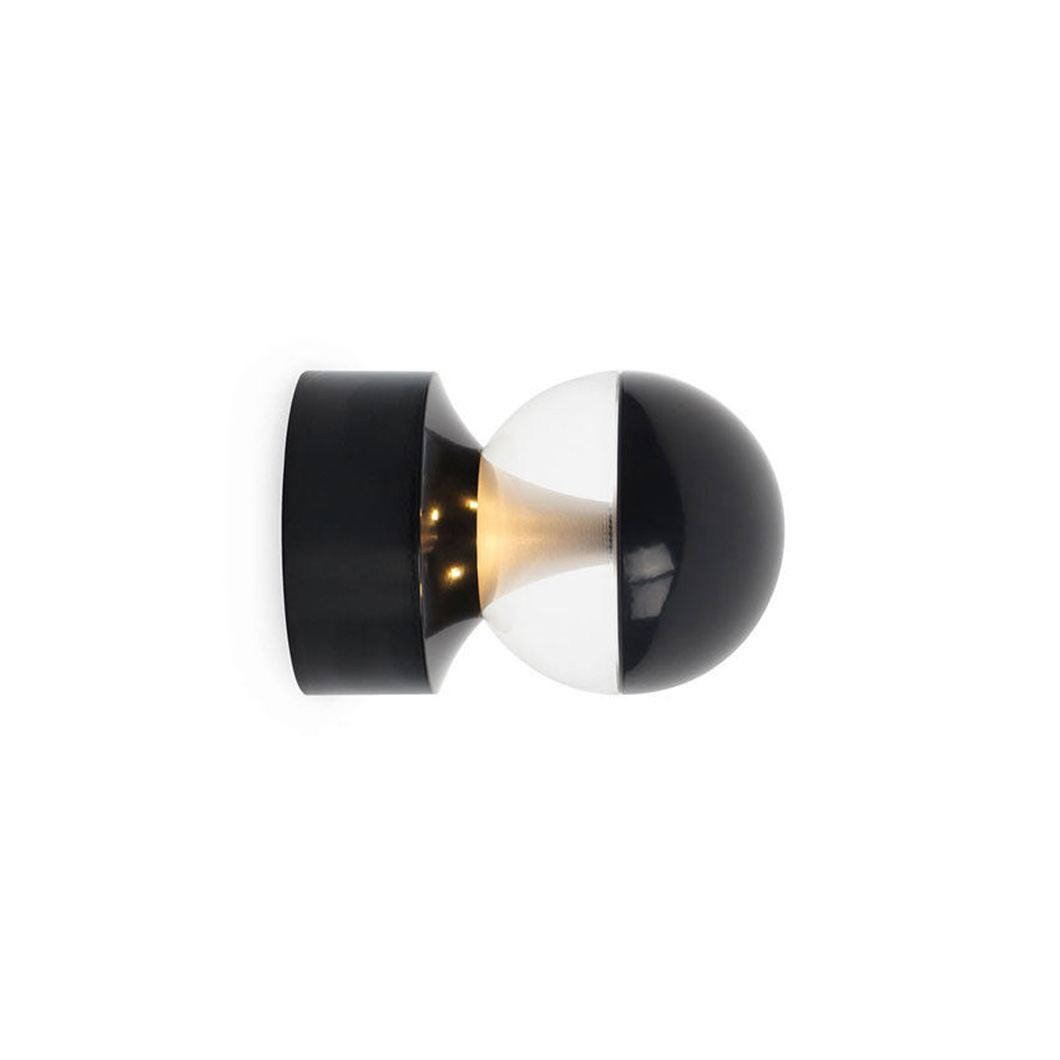

Bouly (driver in base)
230V - driver included in base - (TRIAC/IGBT) dimmable
Ø75mm
Base: D.27mm
350mA driver required for the standard Bouly -
| Code |
Driver |
Volt |
Devices Powered |
| N 5W |
5W Non-dimmable |
230V |
1x |
| D 3WT |
3W TRIAC/IGBT dim. |
110V-230V |
1x |
| D 6WP* |
6W PUSH-DIM or 1-10V dim. |
230V |
1x |
| D 15WP* |
15W PUSH-DIM or 1-10V dim. |
110V-230V |
1-3x |
| D 15WDA EU* |
15W PUSH-DIM or DALI dim. |
230V |
1-3x |
| D 15WDA EU-US* |
15W DALI dim. |
110V-230V |
1-3x |
| D 40WDP* |
40W PUSH-DIM, 1-10V or DALI dim. |
110V-230V |
2-8x |
*Driver remote: does not fit through cutout hole of fixture
Lamp type: 1x 4 LED 0.96W (LED incl.)
- Dimensions
-
Product dimensions: Diameter.75mm
- Delivery and warranty
-
Delivery
Delivery approximately 6-7 weeks
Warranty
5-year warranty on LEDs.
Warranty only applies to products sold with Trizo21 drivers.
- About the manufacturer
-
Trizo21 is a Belgian company, designs and manufactures contemporary lighting of the highest quality. They are suitable for a large variety of lighting purposes, from private homes to commercial venues including hotels & business centres.
All products are fully designed and assembled on site with special attention given to technical perfection, quality of materials and the finishing touches.
